How to properly tow your Jeep Wrangler TJ

Alex M.

Member
Supporting Member
Joined
Oct 30, 2015
Messages
87
One of the great things about owning a truck camper is the ability to tow things like boats, trailers, and Jeeps. With several trips planned for the winter and spring, getting our 2004 Jeep Wrangler rigged for towing was a high priority for us. These preparations included the installation of electrical wiring for the Jeep’s tail lights, purchasing a Class III adjustable tow bar, mounting the tow bar brackets and safety hooks to the Jeep’s OEM front bumper, and purchasing an 18-inch-long hitch box extension for my Ford F-250.

After researching this topic, I decided to tow the Jeep flat or “four down.” It wasn’t a hard decision, actually. The Jeep Wrangler is built to be towed four down and is one of the few vehicles built to be able to do this (I considered buying a small trailer to tow the Jeep, but I didn’t want to deal with the additional tongue weight as I’m 200 pounds over my GVWR already with a fully loaded truck camper). A tow bar is the main piece of hardware that you need to tow four down. After looking at numerous tow bars, I decided to buy a simple Reese Class III adjustable tow bar
t=melmikstrucam-20&bm-id=default&l=ktl&linkId=900480f6ce0a5e57d54ca1721a3cc76d&_cb=1474116110841.gif
for around $110. I could’ve spent $700 for a fancy Blue Ox, but why? My Reese tow bar is rated to tow 5,000 pounds, which is more than stout enough to tow my 3,450 pound TJ.

1. Tow Bar
Installing the tow bar brackets on my Jeep’s OEM bumper was pretty simple. First, the bumper had to be unbolted from the Jeep using a T-55 torx fitting. Before installing the brackets you’ll first need to remove the two bumper pads from the bumper (if you’re lucky, like me, you’ll be able to use the existing bumper pad holes for the tow bar brackets). The installation instructions state that the tow bar brackets should be mounted between 24 and 41 inches apart on the bumper and mine are centered about 35 inches apart–perfect! Some TJ owners question the strength of the 1/8 inch thick bumper and its ability to support bolted tow brackets and withstand the forces that will be exerted against them. That’s a valid question and one I had, too. No, the bumper metal isn’t very stout, but if you reinforce the backside of the bumper with support plates, such as the ones that were included in my tow bar kit, you’ll be fine. Many TJ owners who have gone this route over the years have towed for thousands of miles with zero problems.

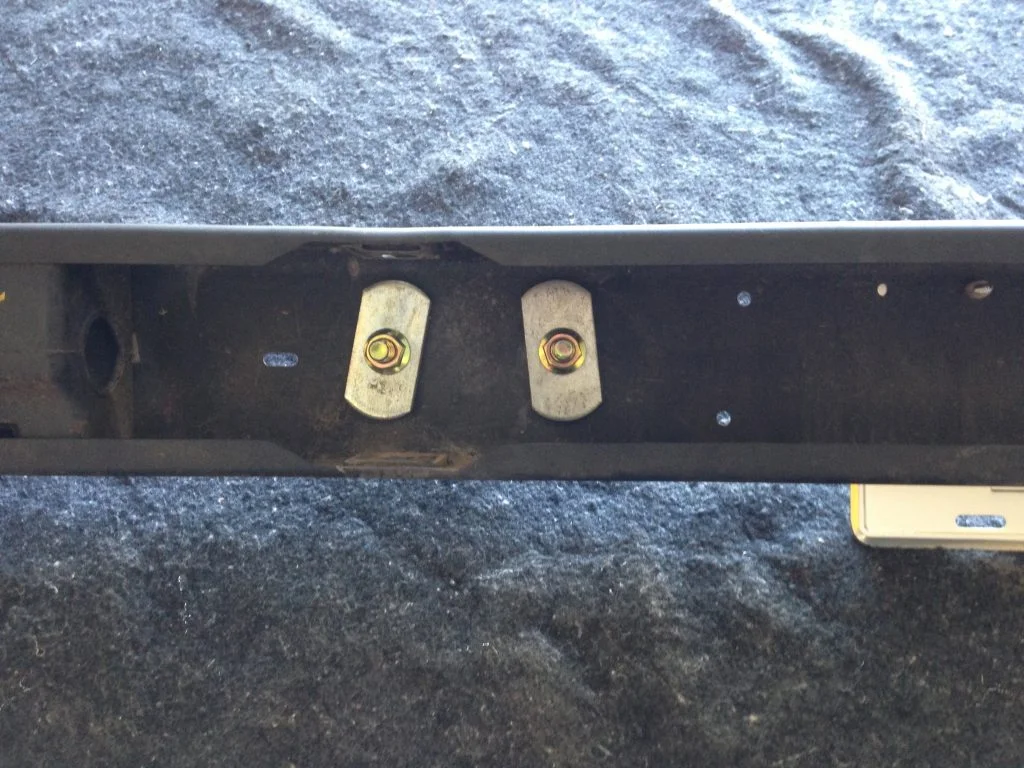

Backside of bumper showing the backing plates.

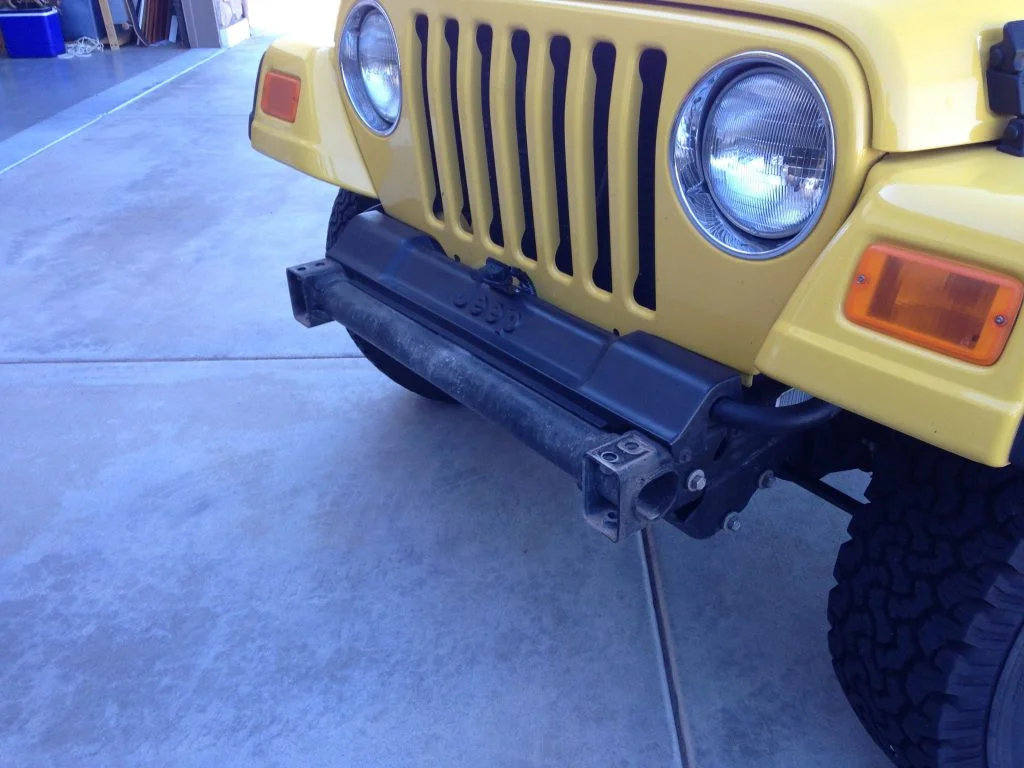

Bumper mount with bumper removed.

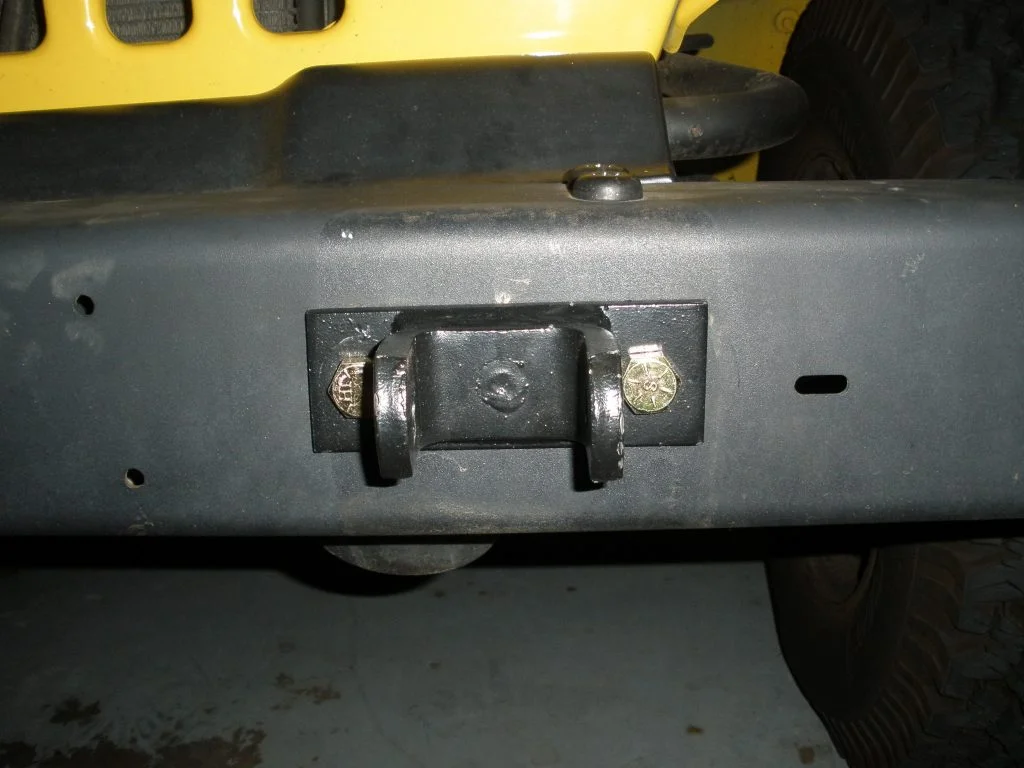

Close up of an installed tow bar bracket.


Safety Chains

Having just a tow bar isn’t enough when flat towing–safety chains are also needed as an emergency backup in the event that the tow bar or hitch fails while in-motion. In order to use safety chains, I needed two attachment points on the Jeep. These can either be tow hooks or D-rings. Unfortunately, my Jeep had neither, so I had to find something that was suitable that bolted to the Jeep’s frame. Fortunately, a pair of Curt tow hooks can be purchased for $7.99 at Harbor Freight that mount directly to the top of the bumper (see pic below). Rated for 10,000 pounds these hooks are pretty beefy and also include a retainer clip. You can also purchase Curt Tow Hooks on Amazon.com. In addition to towing, these hooks can also be used for recovery in the event that you ever get stuck while off-roading. Getting stuck is something that happens to every Jeeper, eventually, so having a good set of tow hooks provides extra peace of mind.

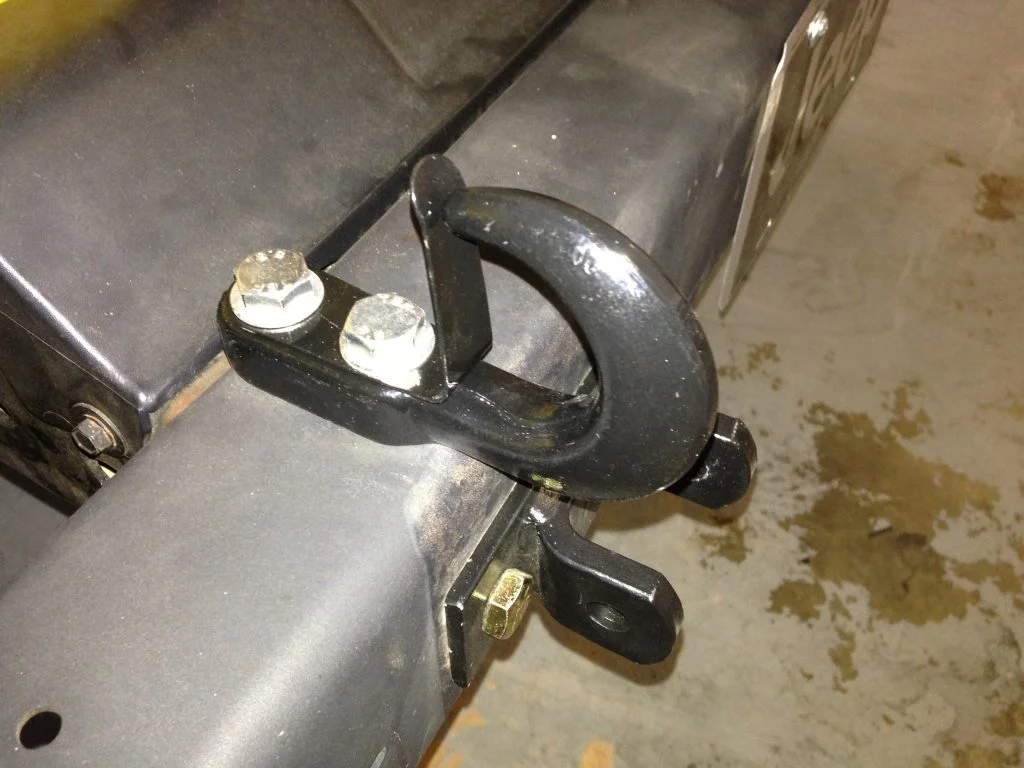

The Curt tow hook installed on OEM bumper.

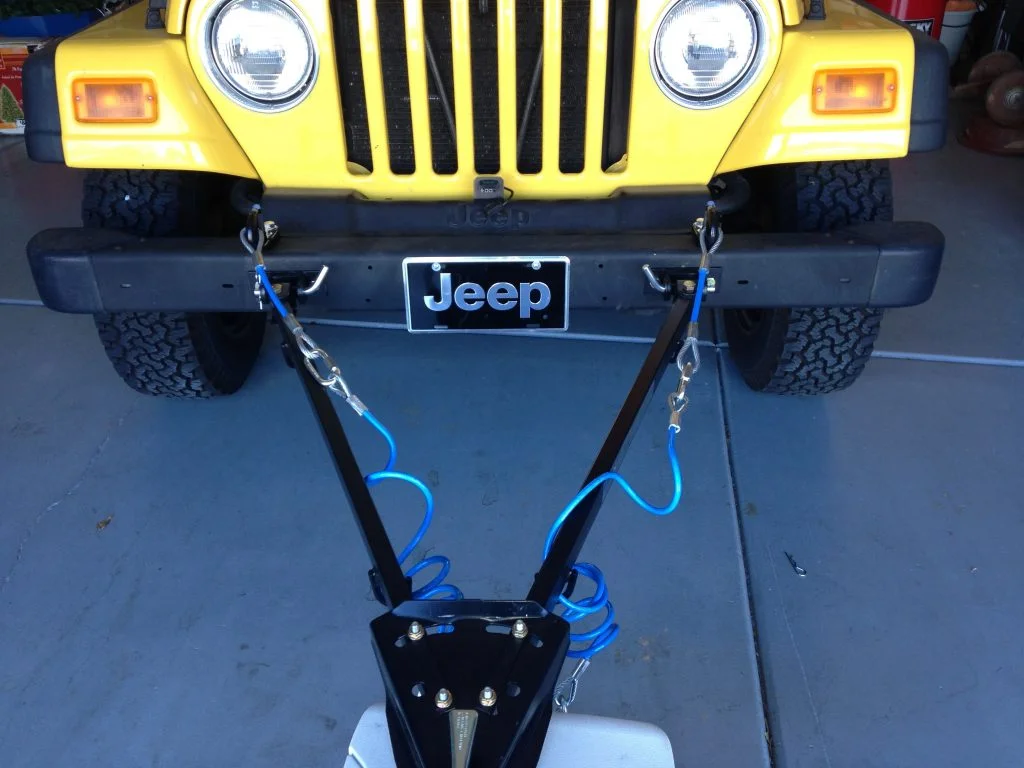

Tow bar and safety chains hooked up.


Towing Lights

You can go two ways to meet this legal requirement: buy a set of removable tail lights–the quickest and cheapest option–or permanently tap into the Jeep’s tail light wiring using a hard-wire diode kit. I chose to go with the latter as I wanted a more permanent, “hidden” solution. What’s the purpose of the diodes? They prevent the truck’s electrical impulses from being back-fed and causing damage to the Jeep’s electrical components. I do have one recommendation when hard-wiring: make sure that the wire run through the Jeep’s engine compartment is protected with flex tubing as this area can get pretty hot during vehicle operation. I should also point out that the common four-wire system is used for towing lights. As for the length of my umbilical (the cord that connects the Jeep to the truck), mine is 80 inches long and is protected with flex tubing wrapped in insulating tape.

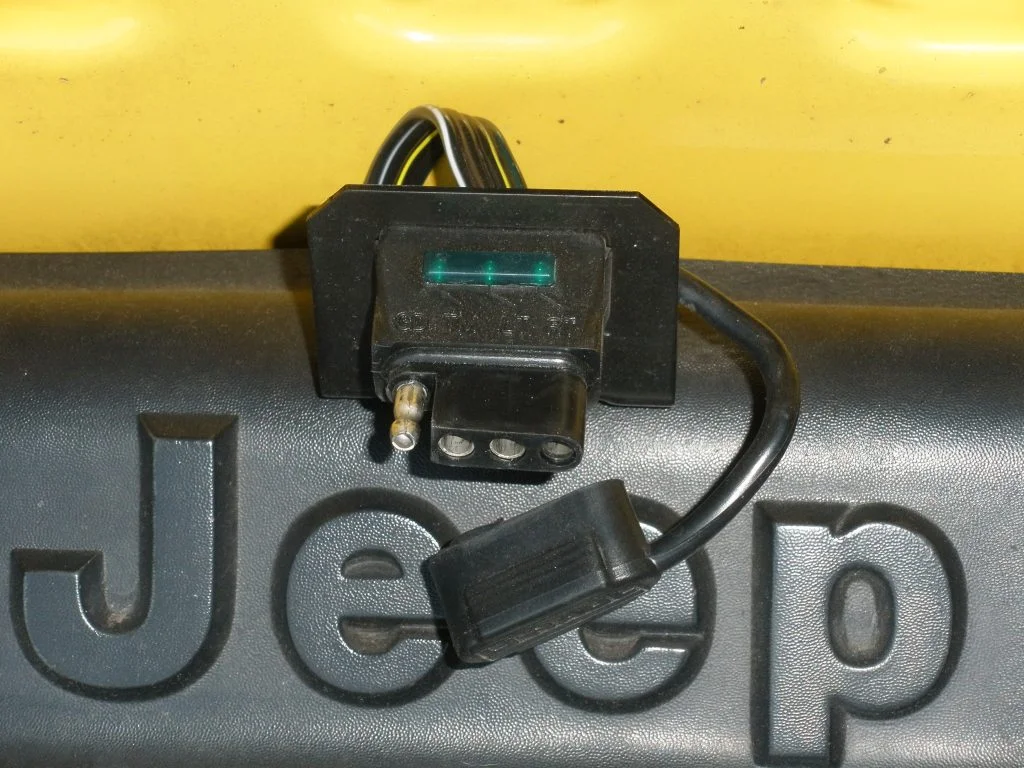

The mounted 4-wire electrical interface plug.


Supplemental Brakes

Since Arizona law doesn’t require a supplemental braking system (click here to see if your state requires one), I’ve decided to forgo the purchase of a Brake Buddy
t=melmikstrucam-20&bm-id=default&l=ktl&linkId=336490119a1bfd8a8d9210a1bfa0b264&_cb=1474117029712.gif
or similar braking system for my Jeep. No doubt, a few will question this decision. But my F-250 has a towing capacity of 12,400 pounds and is equipped with beefy, superduty brakes and a transmission braking system that is second to none. Most of my towing will occur here in the desert Southwest where the terrain is relatively flat, so I feel pretty good going this route (I’ve been able to confirm this decision on a couple trips already. Most of the time I didn’t even know the Jeep was behind me and this included during quick stops).

Hitch Box Extension
This piece of towing hardware isn’t needed in all cases, but it was for me as I usually tow with a truck camper which extends two feet beyond the rear bumper. I decided on an Reese 18 inch long hitch box extension
t=melmikstrucam-20&bm-id=default&l=ktl&linkId=59efef87025b8cfb3f14e7df74dcd83f&_cb=1474117083607.gif
. With both the hitch and extension installed, the total length from the rear bumper to the hitch ball is 26 inches. Along with the tow bar’s length of 41 inches, this provides me with the required amount of clearance between the Jeep and camper even on sharp turns. Here are a couple tips when choosing your hitch box extension and hitch. First, if you need an extension with a length greater than 40 inches, you’ll want to make sure that the extension has support chains to prevent side-to-side movement (this may require that a special plate be welded to the extension to accomplish this). For the hitch itself, you’ll want to make sure that the hitch ball is the correct size and that the shank is large enough to support the weight of your Jeep. You’ll also want to ensure that your tow bar is fairly level when hitched up, especially if a supplemental braking system isn’t being used. Doing so will improve handling and stopping.

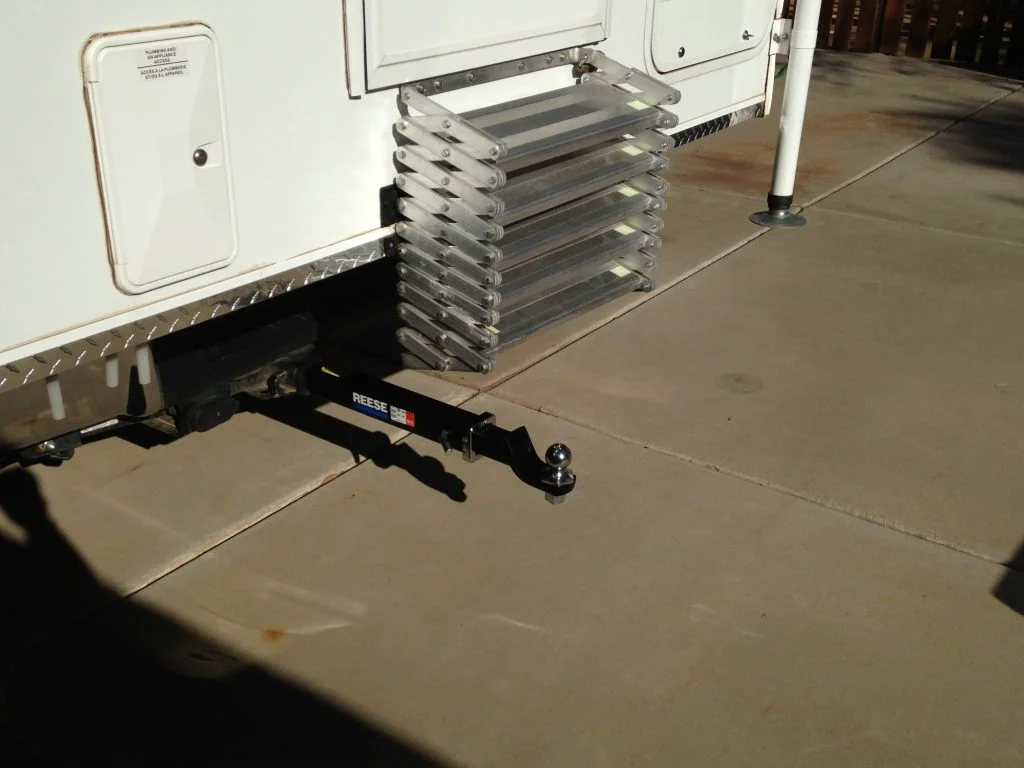

The Reese Hitch Box Extension and Hitch.

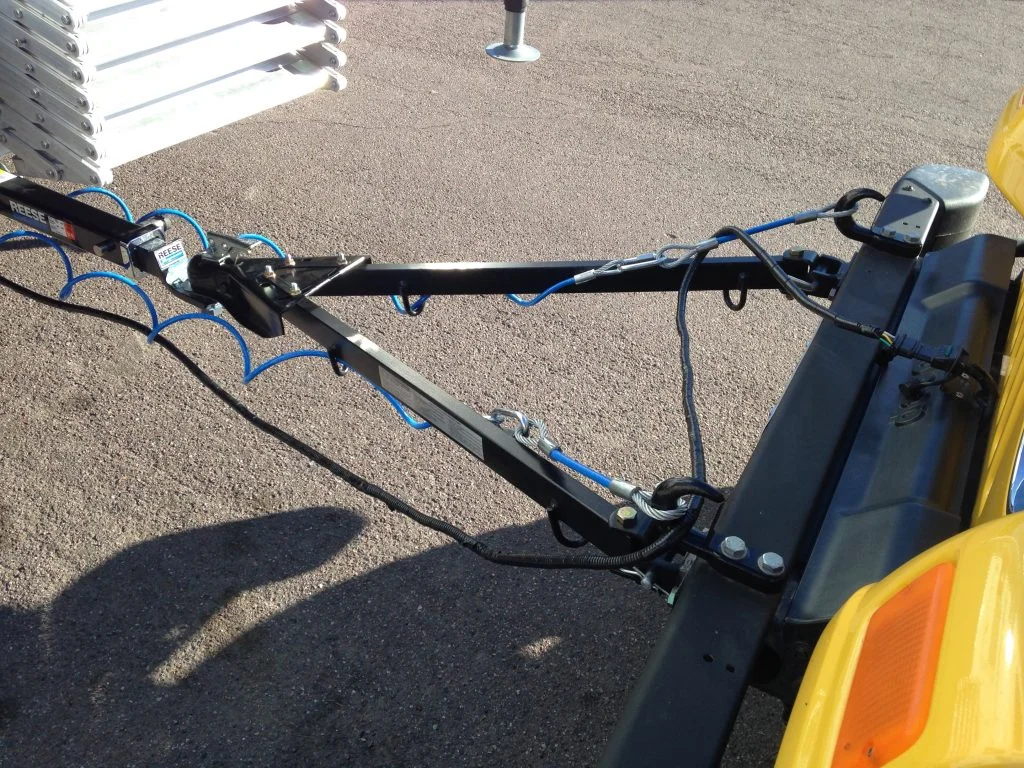

Close-up view of the Jeep Wrangler flat tow hitch set-up.


Jeep Wrangler Flat Towing

The Jeep Wrangler is one of the few vehicles built specifically to be flat towed and it does terrific in that role. Flat towing a TJ Jeep Wrangler is fairly simple, but it’s critical that you have everything set up properly before you roll. Note that the transfer case must be shifted into Neutral (N) and that the transmission MUST be placed in gear (I like to place mine in second gear) so that the transmission can be lubricated while the Jeep is being towed (your transmission will burn up if you don’t). According to the owner’s manual, here are the steps for flat towing a TJ Jeep Wrangler:
  1. Depress the brake pedal
  2. Depress the clutch pedal
  3. Shift the transfer case into N (Neutral)
  4. Start engine
  5. Place manual transmission into gear (second or third gear are the most popular. Don’t make the mistake of putting it into Neutral as this will prevent the transmission from being lubricated and it will burn up while being towed.) For automatics, place the transmission into park (P).
  6. Release brake pedal to ensure no movement
  7. Shut engine off and place the ignition key into the unlocked OFF position (this allows the steering wheel to turn while being towed).
  8. Apply parking brake
  9. Attach Jeep to tow vehicle
  10. Release parking brake
Note: Tow bars have no speed limitations. They can be used at any speed (but are subject to local highway speed towing laws, of course).

For others that are considering a tail light solution, I highly recommend not touching the Jeeps wiring or harnesses to install diodes.

The tow lights that are separate are a better solution if you spend a few minutes to build in some plugs. I cut the lights at the back and install a small trailer plug so the harness is short at the back. The plug wires run through the vehicle and terminate at another plug up front that accepts a conventional trailer plug from the tow rig.

The reason for that recommendation is how many factory harnesses I've had to try and repair due to back feed issues, wires cut in the wrong place and general wiring dumbassery.

Note I didn't say you would be wrong for not taking my recommendation, just that I highly recommend leaving the factory harness intact.

Nice write up. I bought mine knowing I would be flat towing it. All the way to Idaho and back without issue. And once out of Kalifornia we were motoring as fast as 80 (gotta love other states:D), no problem. I use the separate towing lights from HF so I didn't have to tap into any wiring. The only thing about your set up that I disagree with is the safety cables to those hooks. Only because I have seen those cast hooks break, makes me nervous about their use in that particular environment. I like to go right to the frame for safety chains.

  • Like
Reactions: sideproject
Very nice and thorough write up. One question, for the automatic being put into drive for towing what is your source of this information. I have only found direction to tow it in park with t-case in neutral of course. I'm not challenging just want to know the best method. I've being towing my 03 in Park for several thousand miles with no problems however if it should be in D I would want to do that. I'm hoping your info is from an actual owners manual which I have not been able to find to read.

Last edited:
One comment. My TJ has no steering wheel lock. I can tow it without the key in the ignition. I've checked a few other Canadian TJs and found you can steer them without a key.

From my '04 owners manual:


Attachments

  • 2004 TJ Wrangler Owners Manual.pdf
    15.6 KB · Views: 4,264
Last edited:
Thank you CodaMan. I thought you were leaving it in D when towing. This is the procedure I follow. I'm copying this out to keep for my records. Really appreciate it

Thank you CodaMan. I thought you were leaving it in D when towing. This is the procedure I follow. I'm copying this out to keep for my records. Really appreciate it

I edited my above post with the actual pages from the owners manual.

  • Like
Reactions: Chris
I have also heard to leave an Automatic in D for towning, do you leave in P or D while towning?

You must have overlooked this part in the first post:

"Place manual transmission into gear (second or third gear are the most popular. Don’t make the mistake of putting it into Neutral as this will prevent the transmission from being lubricated and it will burn up while being towed.) For automatics, place the transmission into drive (D)."

I did see that but the manual pict posted after has the tow vehicle in Park while towing unless I am reading it woring. Thanks Chris.

  • Like
Reactions: Chris
Flat tow an auto in park? :eek:

Says it right in the factory manual. The OP is missing the part where it says to turn off the engine and shift an auto trans to park. The download that Codaman posted has all of the information on how to flat tow.

If it spins while not running it will not be lubed which will end badly.
