2006 TJ Sport Build

Well, I haven't updated this thread in awhile. Currently, parts are trickling in slowly.


Recently upgrades:

Flowmaster Super 44 Muffler (This video is an example of the exhaust sounds like) (
)
All 4 - O2 Sensors


Parts that have arrived already:

Goodyear Wrangler MTR Kevlar 35 x 12.5 x 15
JVC KW-V320BT Double Din Stereo (http://www.us.jvc.com/car/multimedia/kw_v320bt/)


Arriving Next Week:

Borgeson Lower Steering Shaft (http://www.borgeson.com/xcart/product.php?productid=965&cat=112&page=2)
Borgeson Upper Steering Shaft (http://www.borgeson.com/xcart/product.php?productid=962&cat=112&page=2)
Ten Factory Outer Axle Seals (https://www.quadratec.com/products/52420_900X_PG.htm)
Coyote / Stauns Inner Beadlocks (https://www.4wheelparts.com/Wheels/...t_c=11&t_s=107&t_pt=100684&t_pn=STNCEB15710-1)
Metra Double Din Dash Panel (http://www.metraonline.com/part/95-6541)
Pro Comp Wheels & Center Caps


Order Was Placed For These Items:

Poison Spyder Roll Cage (http://shop.poisonspyder.com/TJ-Lazer-Fit-Full-Cage-Kit-p/14-19-010.htm)
Poison Spyder TJ Rear Stinger Tire Carrier (http://shop.poisonspyder.com/TJ-Rear-Stinger-Tire-Carrier-No-Body-Lift-p/14-13-020.htm)
Superchips (https://superchips.com/shop/jeep-traildash2)
Genright Front Fender Flares (https://genright.com/products/tj-lj-6-flare-front-tube-fenders-steel.html)
Genright Rear Fender Flares (https://genright.com/products/jeep-tj-lj-yj-cj-6-flare-rear-tube-fenders-steel.html)

  • Like
Reactions: Chris, Fouledplugs and JMT
tjroughrider said:
Well, I haven't updated this thread in awhile. Currently, parts are trickling in slowly.


Recently upgrades:

Flowmaster Super 44 Muffler (This video is an example of the exhaust sounds like) (
)
All 4 - O2 Sensors


Parts that have arrived already:

Goodyear Wrangler MTR Kevlar 35 x 12.5 x 15
JVC KW-V320BT Double Din Stereo (http://www.us.jvc.com/car/multimedia/kw_v320bt/)


Arriving Next Week:

Borgeson Lower Steering Shaft (http://www.borgeson.com/xcart/product.php?productid=965&cat=112&page=2)
Borgeson Upper Steering Shaft (http://www.borgeson.com/xcart/product.php?productid=962&cat=112&page=2)
Ten Factory Outer Axle Seals (https://www.quadratec.com/products/52420_900X_PG.htm)
Coyote / Stauns Inner Beadlocks (https://www.4wheelparts.com/Wheels/...t_c=11&t_s=107&t_pt=100684&t_pn=STNCEB15710-1)
Metra Double Din Dash Panel (http://www.metraonline.com/part/95-6541)
Pro Comp Wheels & Center Caps


Order Was Placed For These Items:

Poison Spyder Roll Cage (http://shop.poisonspyder.com/TJ-Lazer-Fit-Full-Cage-Kit-p/14-19-010.htm)
Poison Spyder TJ Rear Stinger Tire Carrier (http://shop.poisonspyder.com/TJ-Rear-Stinger-Tire-Carrier-No-Body-Lift-p/14-13-020.htm)
Superchips (https://superchips.com/shop/jeep-traildash2)
Genright Front Fender Flares (https://genright.com/products/tj-lj-6-flare-front-tube-fenders-steel.html)
Genright Rear Fender Flares (https://genright.com/products/jeep-tj-lj-yj-cj-6-flare-rear-tube-fenders-steel.html)
Click to expand...
Whoa!!! Big list coming! Congrats. Look forward to seeing the Genright’s! Nice steering parts and the GY Wrangler M/T w Kevlar

tjroughrider said:
Well, I haven't updated this thread in awhile. Currently, parts are trickling in slowly.


Recently upgrades:

Flowmaster Super 44 Muffler (This video is an example of the exhaust sounds like) (
)
All 4 - O2 Sensors


Parts that have arrived already:

Goodyear Wrangler MTR Kevlar 35 x 12.5 x 15
JVC KW-V320BT Double Din Stereo (http://www.us.jvc.com/car/multimedia/kw_v320bt/)


Arriving Next Week:

Borgeson Lower Steering Shaft (http://www.borgeson.com/xcart/product.php?productid=965&cat=112&page=2)
Borgeson Upper Steering Shaft (http://www.borgeson.com/xcart/product.php?productid=962&cat=112&page=2)
Ten Factory Outer Axle Seals (https://www.quadratec.com/products/52420_900X_PG.htm)
Coyote / Stauns Inner Beadlocks (https://www.4wheelparts.com/Wheels/...t_c=11&t_s=107&t_pt=100684&t_pn=STNCEB15710-1)
Metra Double Din Dash Panel (http://www.metraonline.com/part/95-6541)
Pro Comp Wheels & Center Caps


Order Was Placed For These Items:

Poison Spyder Roll Cage (http://shop.poisonspyder.com/TJ-Lazer-Fit-Full-Cage-Kit-p/14-19-010.htm)
Poison Spyder TJ Rear Stinger Tire Carrier (http://shop.poisonspyder.com/TJ-Rear-Stinger-Tire-Carrier-No-Body-Lift-p/14-13-020.htm)
Superchips (https://superchips.com/shop/jeep-traildash2)
Genright Front Fender Flares (https://genright.com/products/tj-lj-6-flare-front-tube-fenders-steel.html)
Genright Rear Fender Flares (https://genright.com/products/jeep-tj-lj-yj-cj-6-flare-rear-tube-fenders-steel.html)
Click to expand...
Heck yea what a list! Keep us updated.

Well I had to change the list of parts slightly. I change the fender flares to ones below.

Warrior Fender Flares (http://www.warriorproducts.com/cata...wrangler-tj/tube-fender-flares/fender-flares/)
Textured Black Steel 6.5 Inches Wide.

These should be more than wide enough to cover the 35's with a 3.75 inch backspacing.

Also, to add to the list I'm going with a Fox 2.0 Steering Stabilizer (https://www.quadratec.com/products/16335_2004.htm)

Here's the link to the Pro Comp Wheels (https://www.procompusa.com/wheels-p...1557-2339&pqa=13689-8275-8275-8056-8239-13827)


Next week's list of parts coming in: Stauns, Wheels, Center Caps, Steering, Axle Tube Seals, Double Din Dash Piece, Superchips Traildash 2.

In 2 week's these parts will be in: Roll Cage, Tire Carrier, Stabilizer, Fender Flares.


Then I have approx. 1 month to have all the parts installed and the bare metal ones painted or powder coated before the annual World of Wheels (https://autorama.com/attend/winnipeg/) here in Winnipeg in March. It'll be a crazy month of installing.

  • Like
Reactions: Red Dog
Kind of a heads-up to the next chapter in the never ending list of parts that will be added to my jeep. Not sure if this will be feasible for this year as I am already starting out 2018 with a hefty bill for parts. Mind you the parts that I have already listed, most will be paid through a local company here that is sponsoring my jeep build for World of Wheels. There has been no set amount for what they are paying, but once it is figured out I will plan my next chapter (parts list more in-depth).

This is what I have come up with so far for the next (so-called) list:

Currie RockJock 60 - Jeep TJ Rear Crate Axle (https://www.currieenterprises.com/TJ-RJIIIR)
Currie RockJock 60 - Jeep TJ Front Crate Axle (https://www.currieenterprises.com/rockjock-60-tj-front-axle-with-big-brakes-and-hd-trac-bar-kit)
I spoke with Currie and because I want to stay with a 15 inch wheel both front & rear axles have to be custom made, which makes the price tag on these axles move up into the 5 digit range.

ATK 4.7L V8 Baja Stroker Jeep Engine (https://www.4wheelparts.com/Perform...=46&t_pt=4337&t_pn=ATKHP88#overview_Container)
Moroso Hi Performance Oil Pan (https://www.quadratec.com/products/51009_1002_07.htm)
Mountain Off-Road BombProof Motor Mounts w/1" Lift (https://www.quadratec.com/products/12590_072X_A_PG.htm)
Daystar 1 Inch Body Lift (https://www.4wheelparts.com/Suspens...aspx?t_c=1&t_s=20&t_pt=3680&t_pn=DAYKJ04508BK)
Bosch 3rd Gen 4-Hole Fuel Injectors (https://precisionautoinjectors.com/...uel-injectors-for-1999-2005-jeep-4-0l-engines)
Flowkooler Water Pump (https://www.quadratec.com/products/51212_60.htm)
Flex-a-Lite Aluminum Rad (https://www.quadratec.com/products/17800_1100_07.htm)
Metal Cloak Lock n Load Long Arm RockSport Edition Suspension Kit (https://www.metalcloak.com/TJ-Lock-N-Load-Long-Arm-RockSport-Edition-p/7179.htm)
Teraflex Low 231 HD Transfer Case (https://www.quadratec.com/products/52254_102.htm)
Derale Performance Direct Fit Transmission Cooler (https://www.quadratec.com/products/94000_200.htm)


With the RockJock Axles I will be going to 5.13 gearing.

  • Like
Reactions: JMT and derekmac

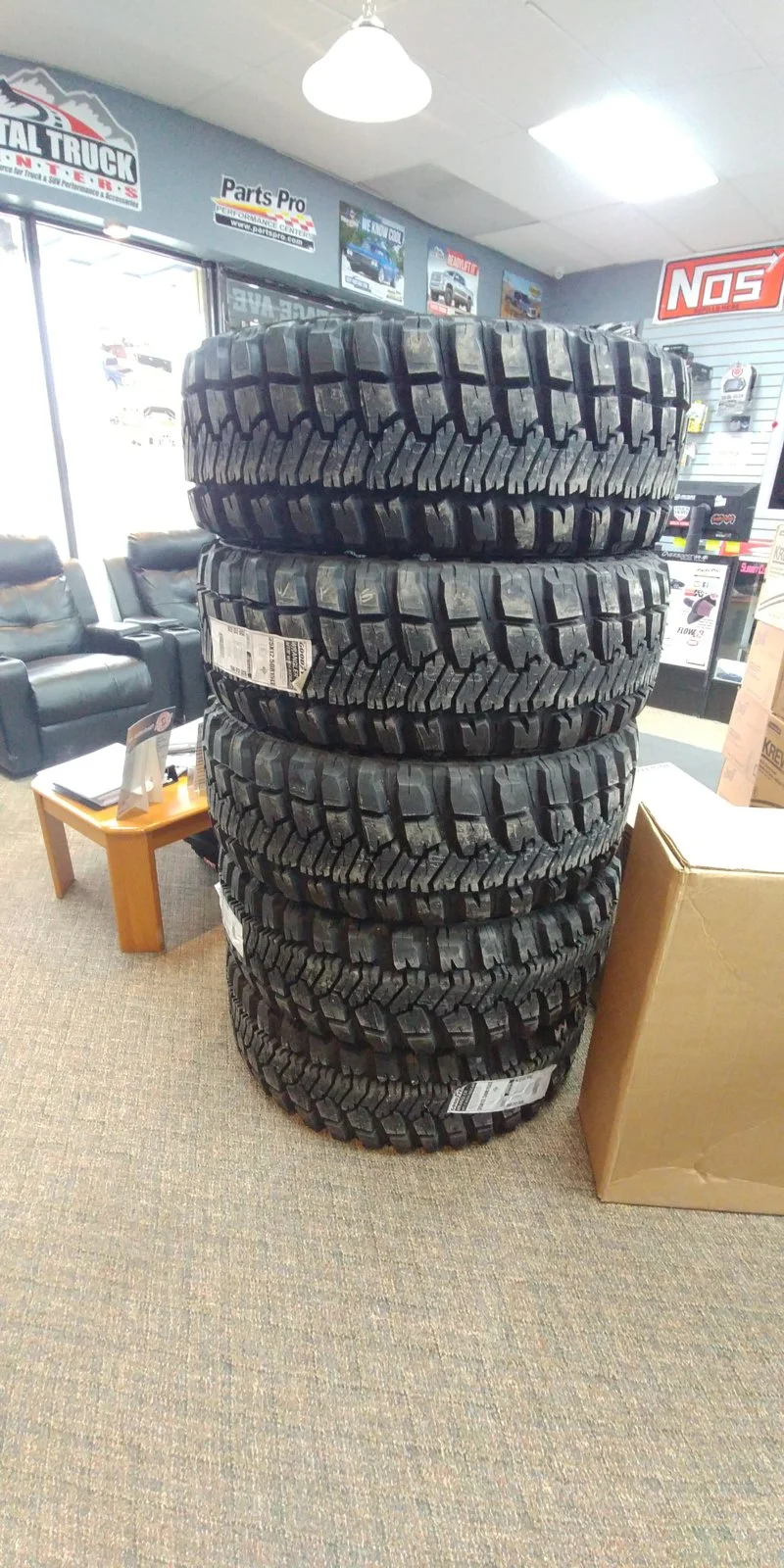

Tires are in -> 35 x 12.5 x 15 Goodyear Wrangler MTR Kevlars


  • Like
Reactions: derekmac and JMT
And......... it begins. This is the first part of the many installs to come over the next while.

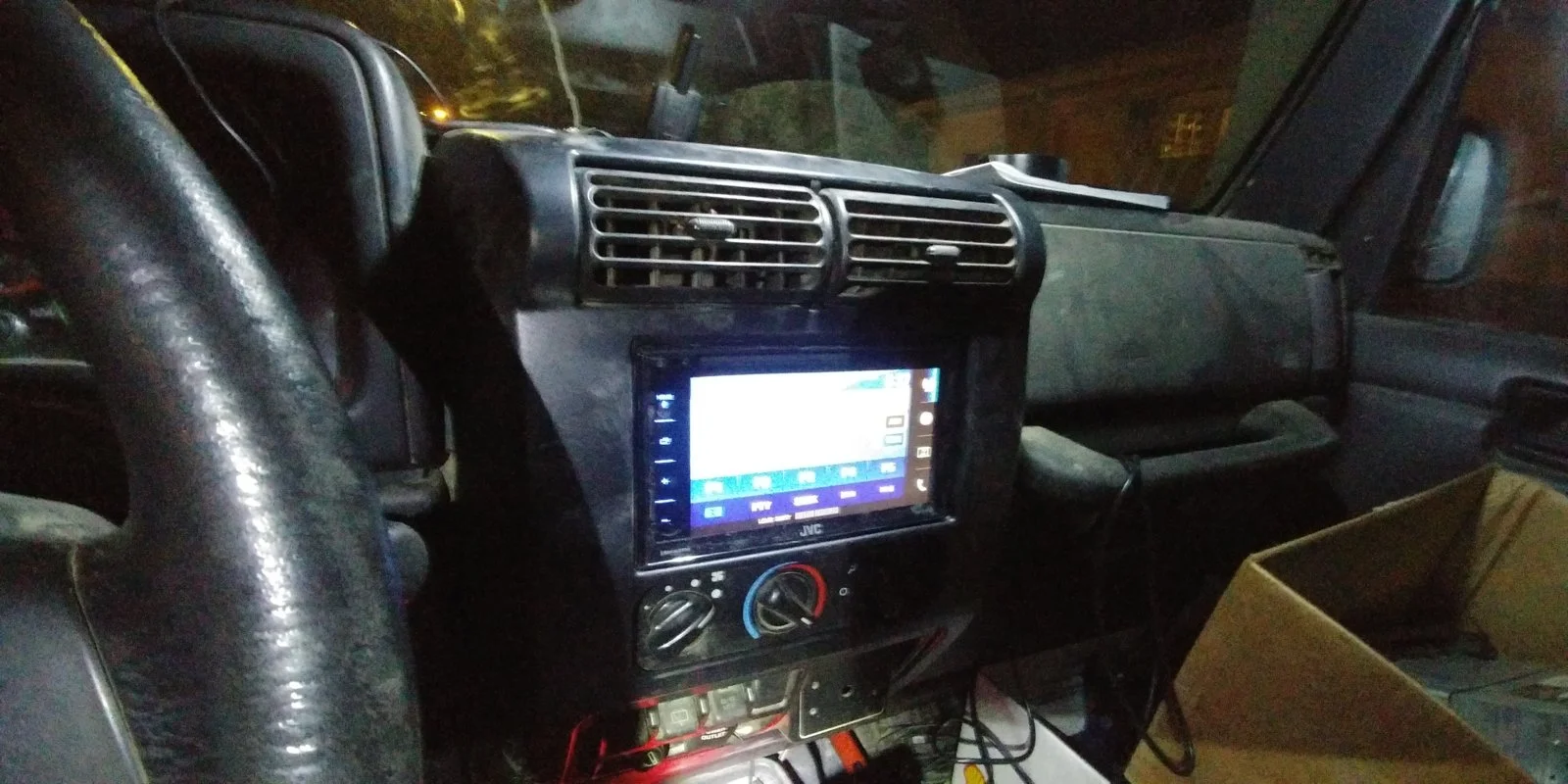

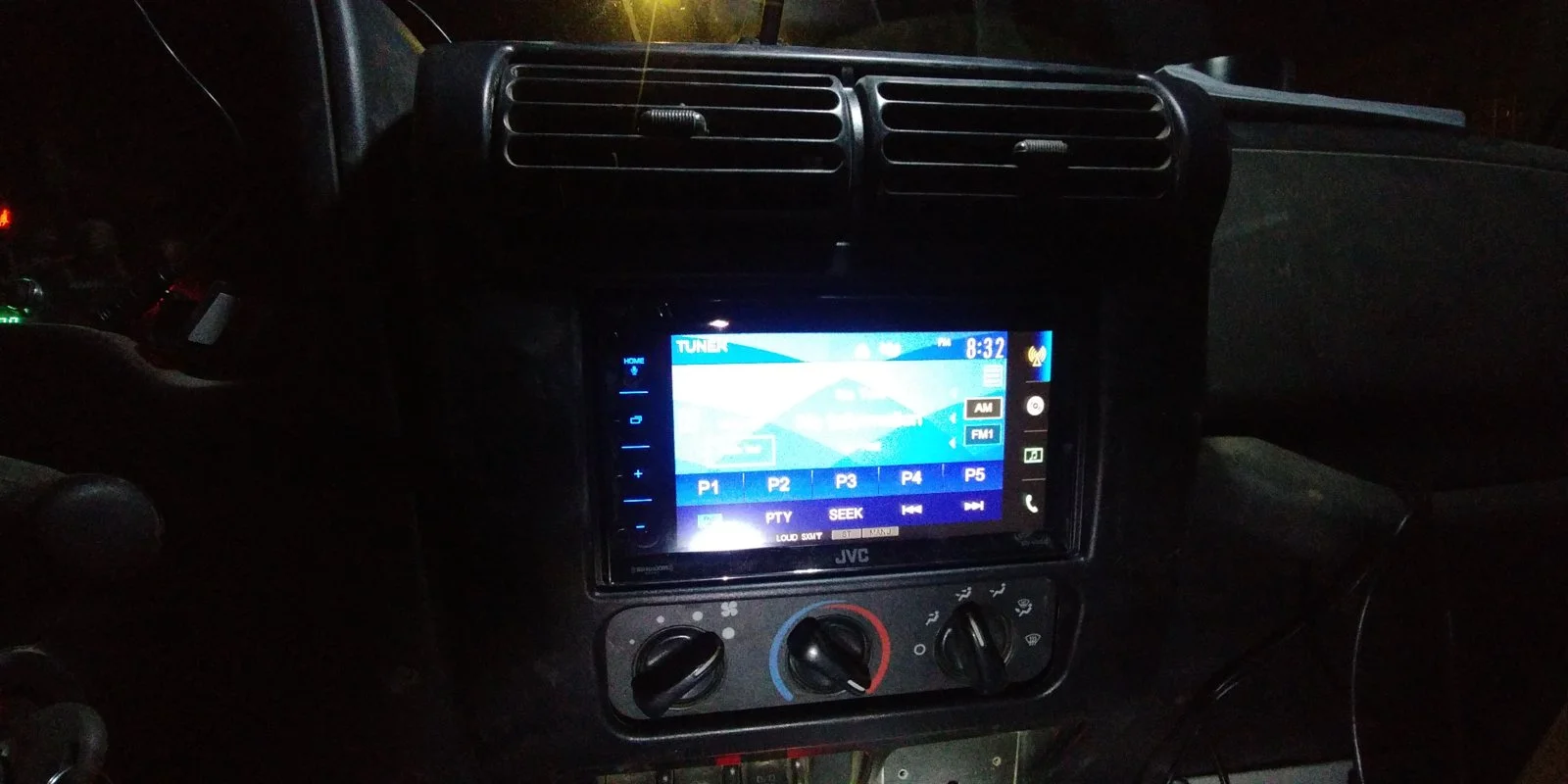

Finished installing the JVC double din stereo and dash kit tonight. For something I thought would take maybe an hour turned into almost 3 hours. But it went smoothly, no real pain in the ass hiccups.

Sorry I don't have pics of the removal and install process, but I will try and walk you through the scenario.

First I had to remove the factory dash piece, then remove the other JVC single din stereo. Kind of good I already had an aftermarket JVC stereo because I didn't have to buy the plug n play wire harness.

Then I had to remove the heater controls, there is a piece plastic that divide the single din stereo and the heater controls that needs to be removed. This can be done with an Olfa knife but would probably be easier with a dremel.

Once this piece of plastic is removed it's a fairly simple process after this.

Next, you will need to figure out where you are going to put the external USB cable and microphone. Once this has been decided you will need to feed those 2 cables through the dash to the location you want them (this can be a bit of a pain). Then it's just a matter of attaching the top tray to the dash piece with the 2 supplied screws, taking the heater vents from the factory dash piece and install them into the new dash piece. You will also need the 4 metal clips on the back of the factory dash piece for the new dash piece.

With the new dash piece you are provided with 2 plastic brackets that need to be attached to the sides of the stereo (these 2 brackets have screws that are provided in the kit). The stereo I purchased didn't have the normal metal sleeve that you sometimes get with a new stereo (thankfully the kit came with these 2 brackets).

Then it's just a matter of pushing the wires into the dash and using the factory screws to mount the stereo back into the dash. Then install the new aftermarket double din dash piece. Attach the 2 screws back at the top by the heater vents.

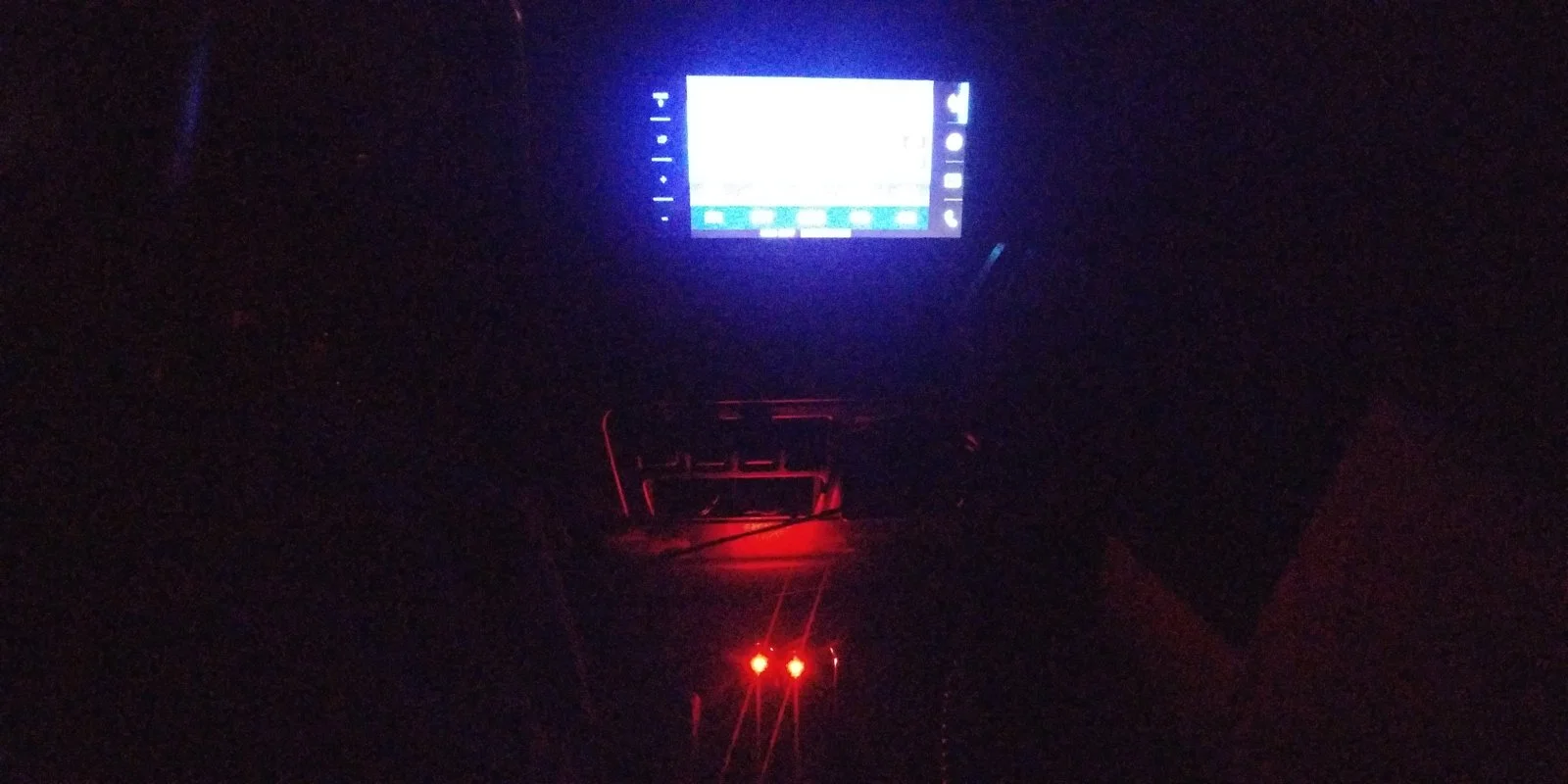

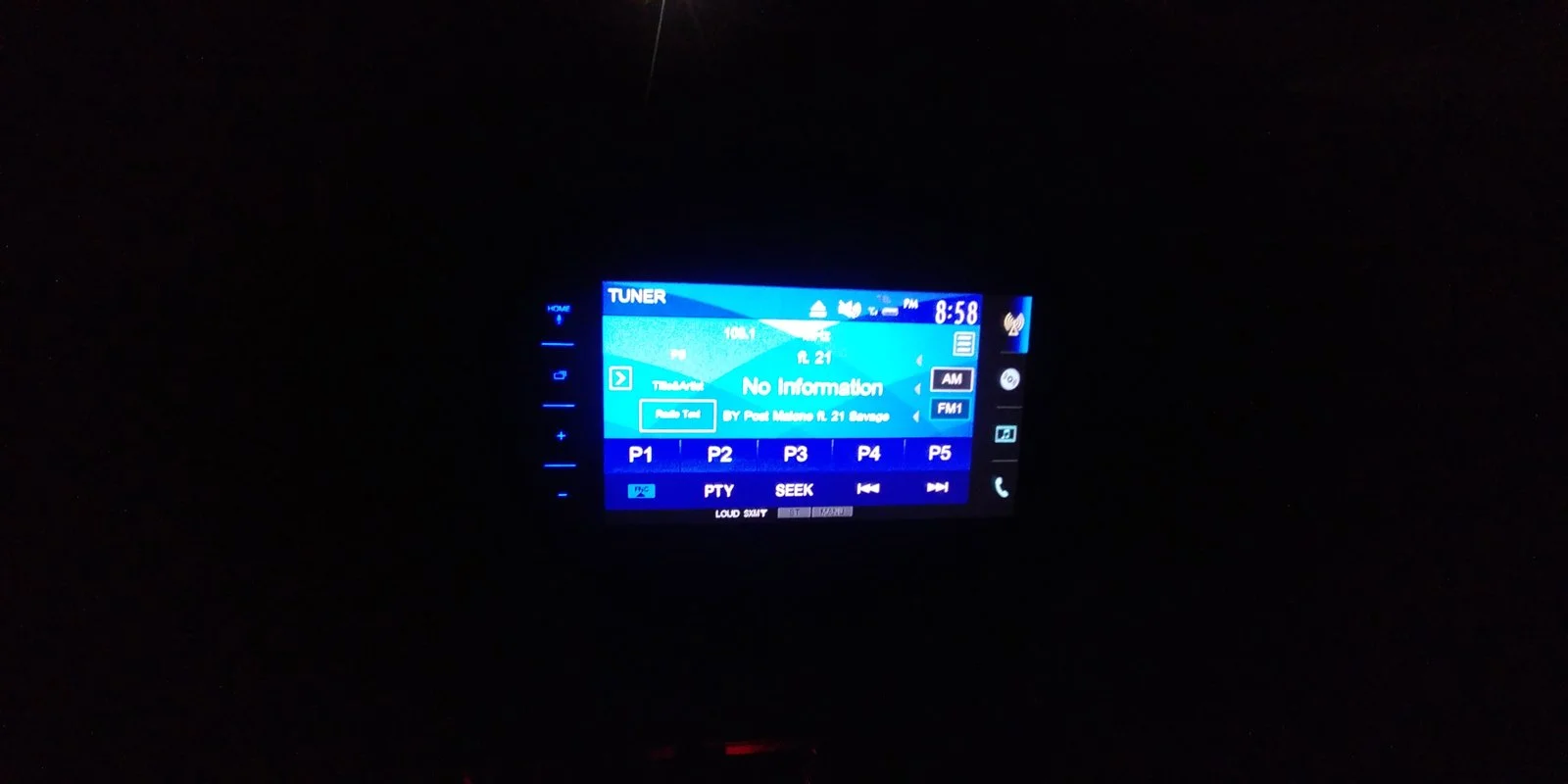

See below for the pics on the finished install.

20180116_205734.jpg 20180116_203159.jpg 20180116_205722.jpg 20180116_203149.jpg

Some parts have arrived today a......nd I bought more parts.

Coyote Industries Internal Beadlocks
Pro Comp Wheels (15 x 10 x 3.75 Inch Backspacing
Borgeson Upper & Lower Steering
Pro Comp Center Caps (only 4)

Items on backorder: Ten Factory Axle Seals & 1 Pro Comp Center Cap

I also bought the following:

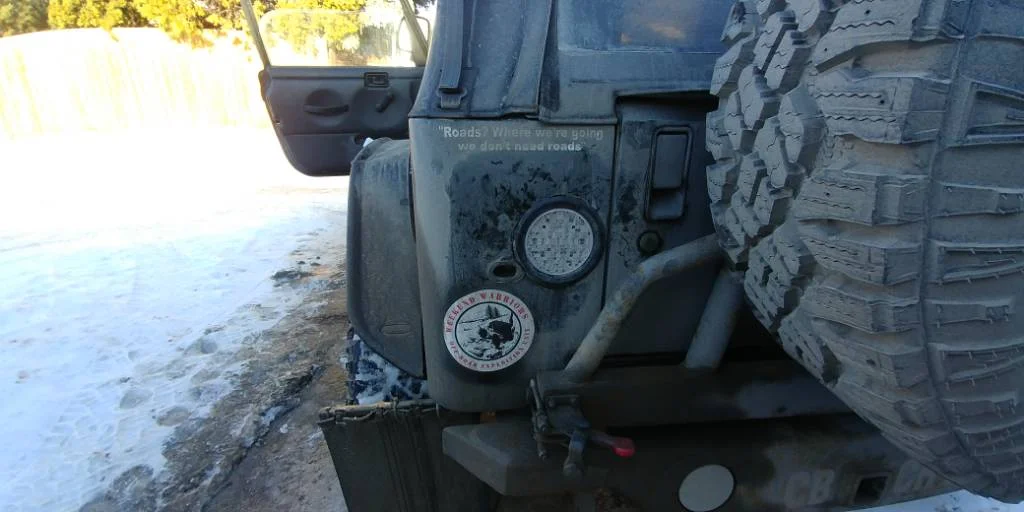

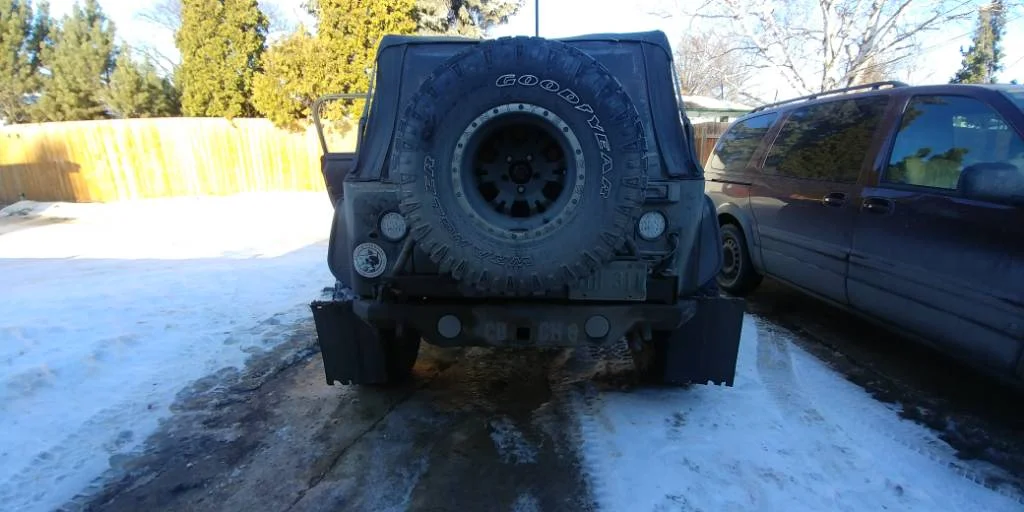

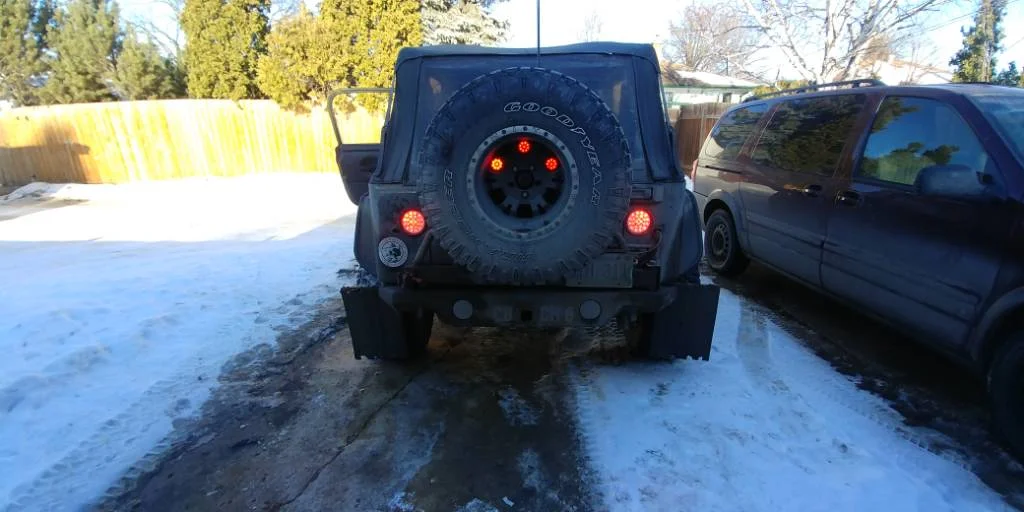

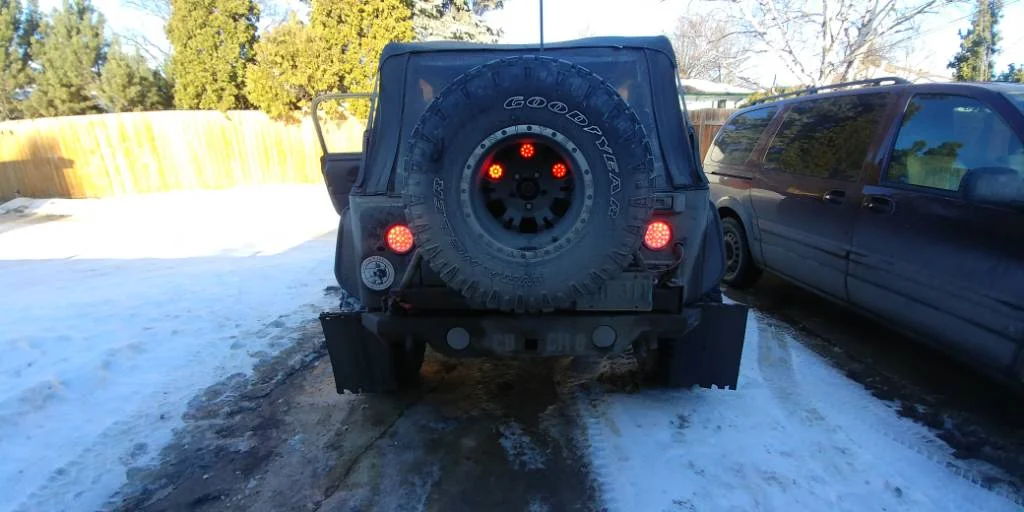

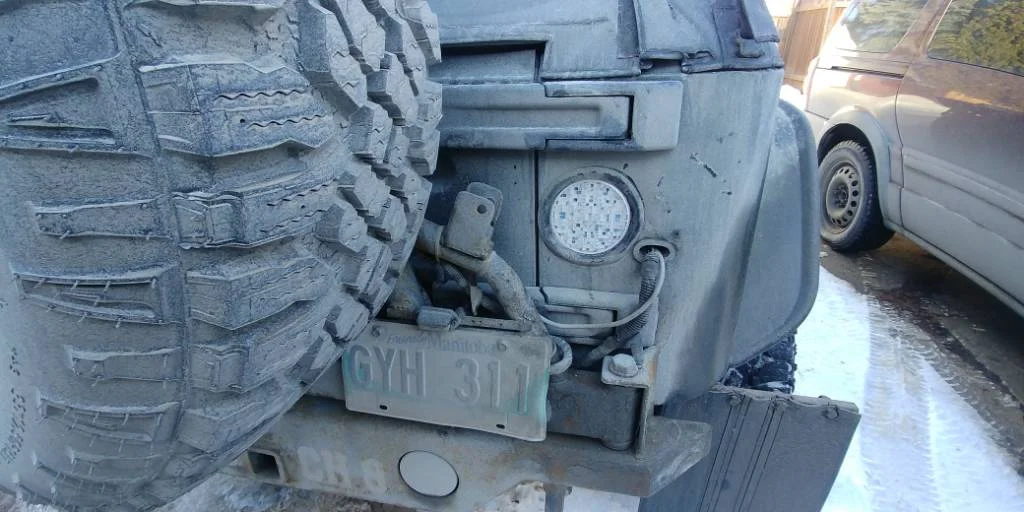

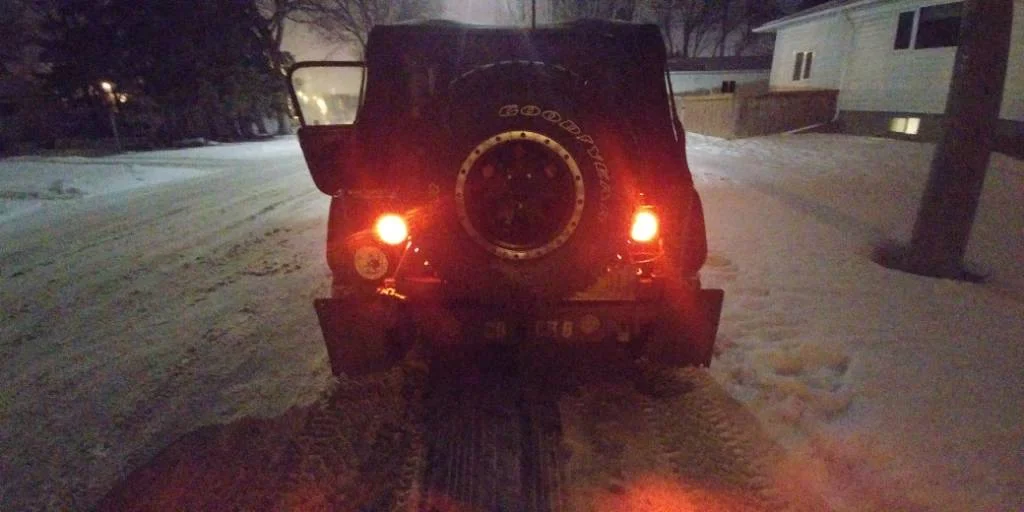

2 - Grote 4" LED Tail Lights (clear lens with red LED bulbs)
1 - Mackin set of lug nuts
(Pictures to follow for the above items)

Also, ordered today 1 - 8" Rough Country LED Spot Light Bar (to replace the 2 - 4" round back-up lights).


Tires, wheels, internal beadlocks, center caps will be installed next Tuesday (with pictures to follow).

  • Like
Reactions: JMT
Damn... You're not sparing any expense here. I dig it! Can't wait to see more photos.

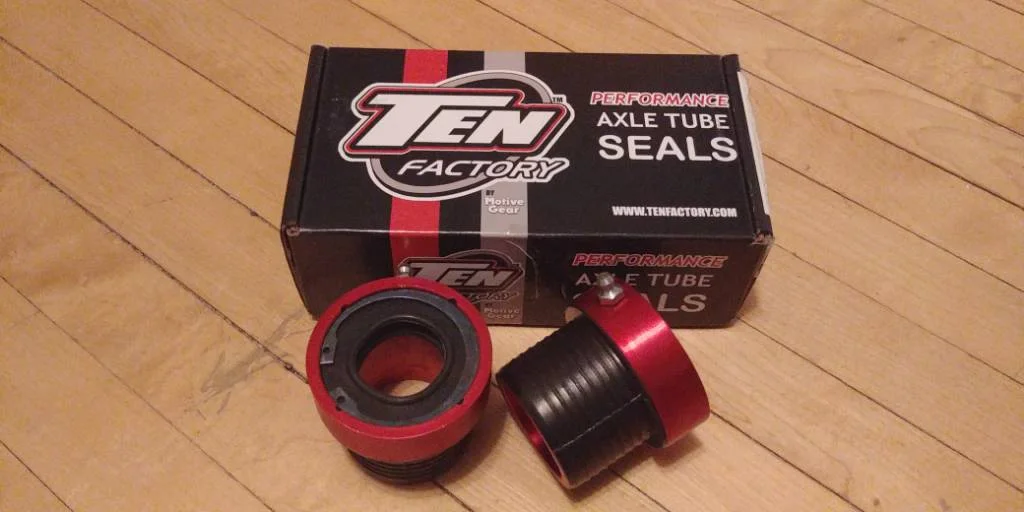

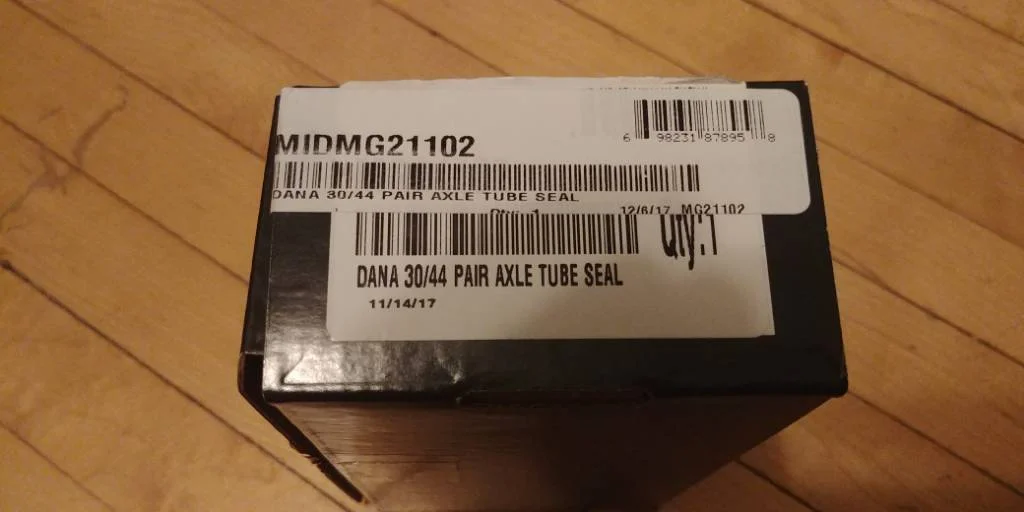

Received the Ten Factory Dana 30 Outer Axle Seals today.

Still waiting for the rest of the parts to arrive.

Plus ordered more items yesterday. Might order a few more parts.
