30mm Ammo Can Center Console with 8" Sub Enclosure

Discussion in 'TJ How-to Guides' started by jjvw, Mar 11, 2018.

  1. jjvw

    jjvw 0-60 in 18 seconds
    Supporting Member
    Thread Starter

    Joined:
    Feb 17, 2018
    Messages:
    2,197
    Likes Received:
    1,960
    Location:
    Colorado, USA
    Here is my version of the ammo can center console.

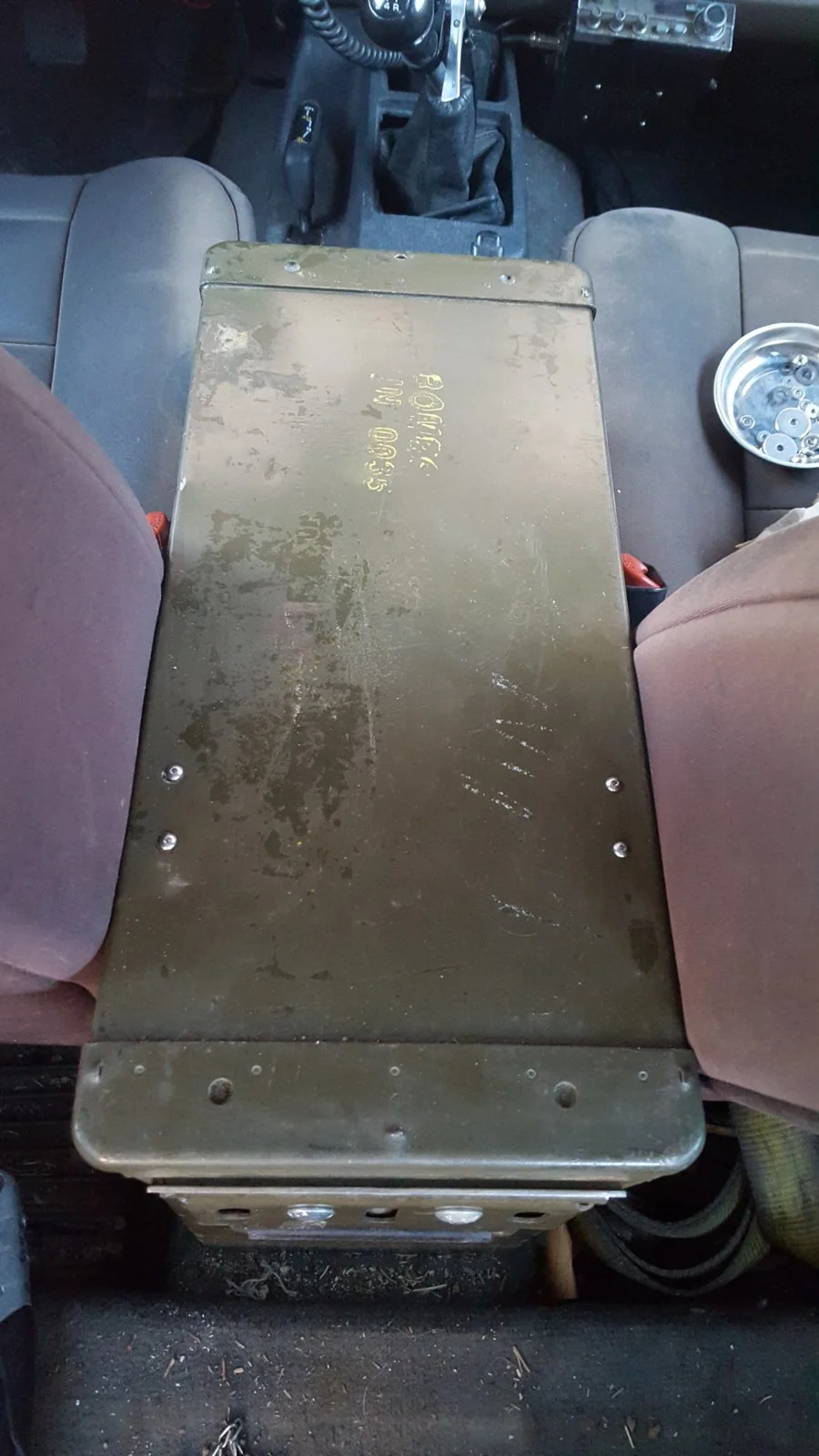

    I built mine out of a 30mm ammo can. These measure 9.5 x 17.25 x 14H" and fit comfortably snug between the front seats.

    The goal was to both increase interior storage space and maintain the factory design of a hidden subwoofer. There was an added benefit of being a far more comfortable armrest than the factory console.

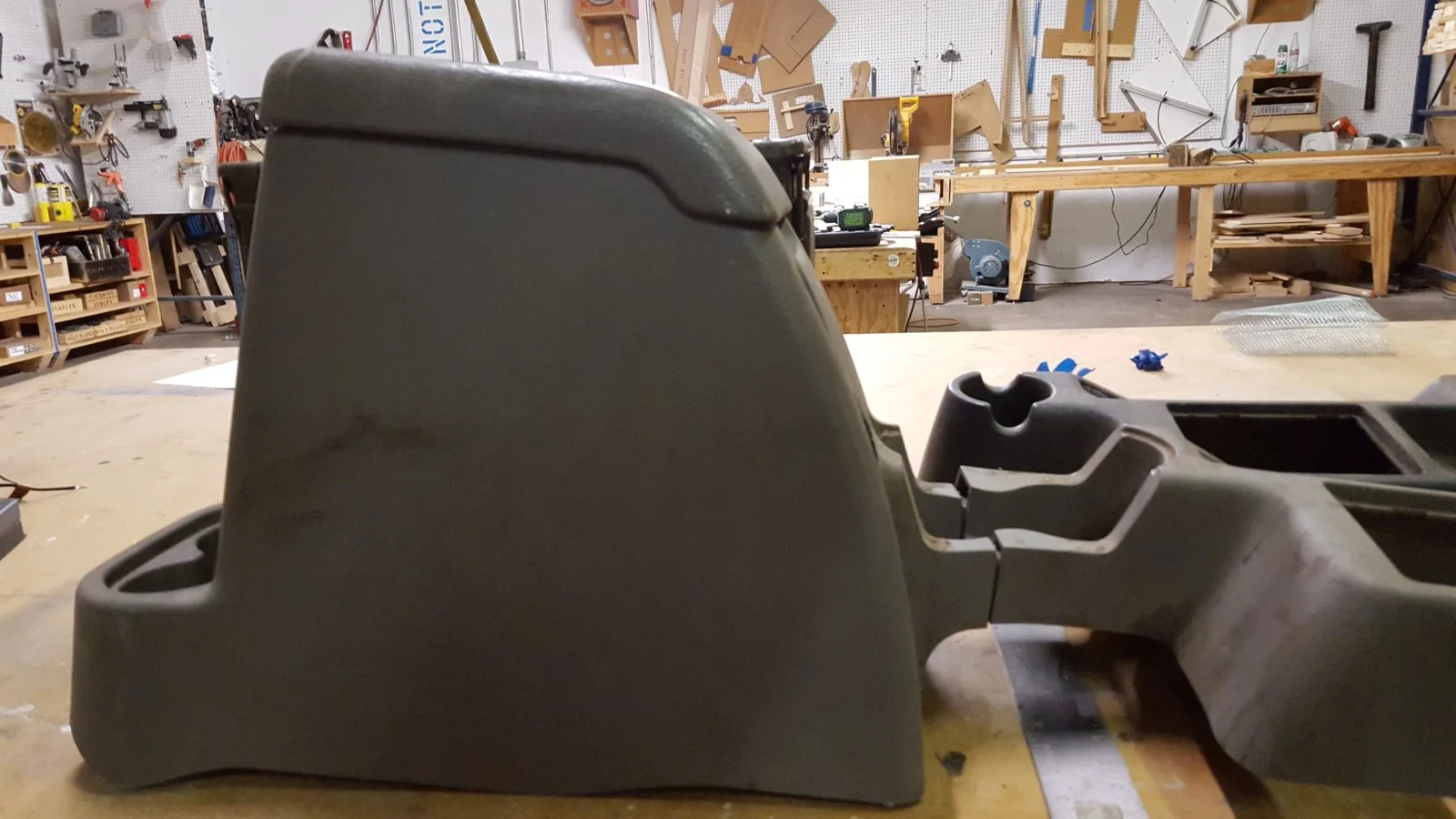

    Because I have a late-TJ, the console has two front cupholders with one being split in half. This makes cleanly separating the console halves aesthetically difficult. My solution is to put in an early-TJ front half with a single cupholder. I gave up the rarely used and barely useful rear cupholders. Another thing I like about the earlier console is the general purpose tray at the far front rather than the coin tray that was added to the later years.

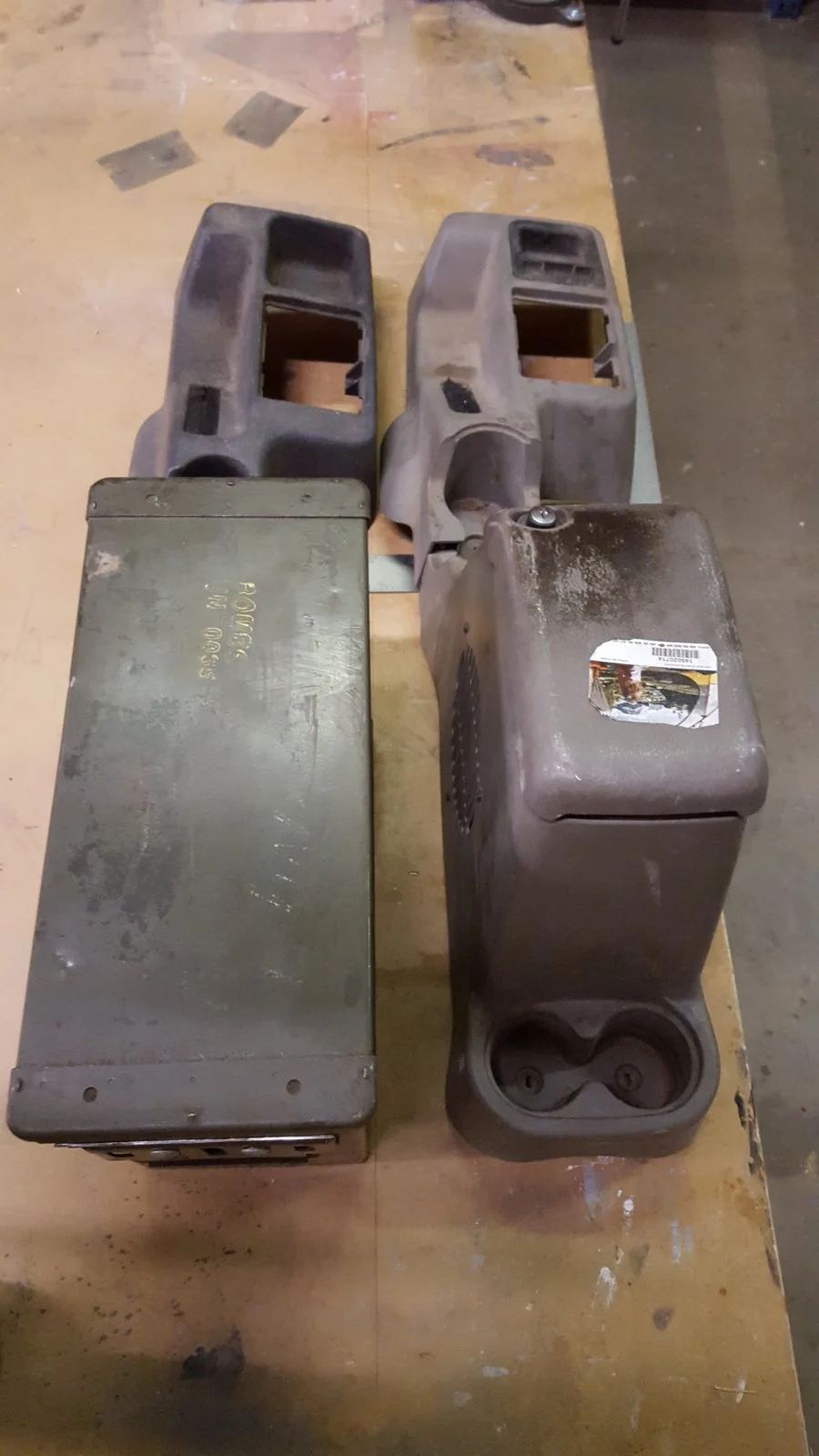

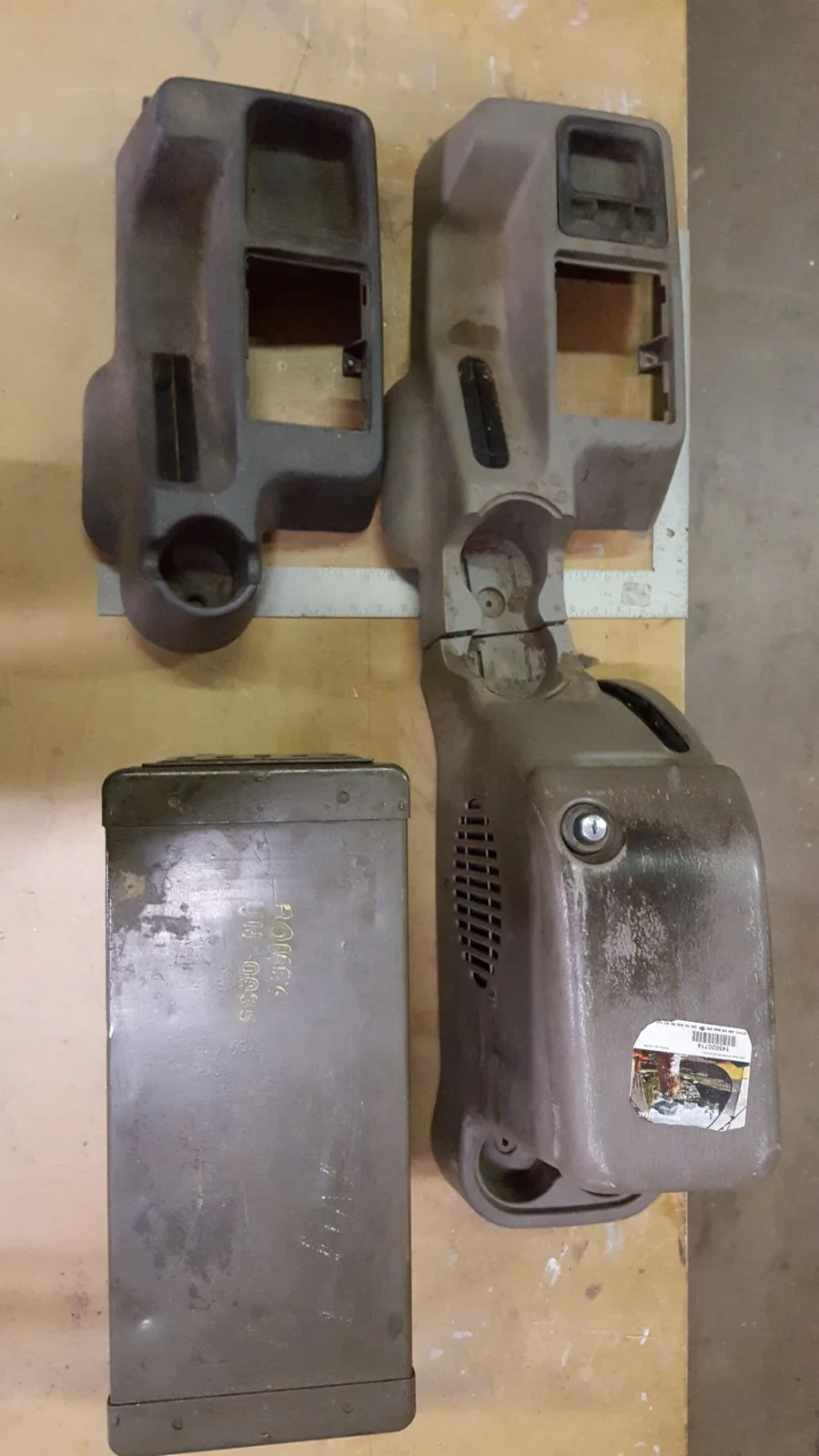

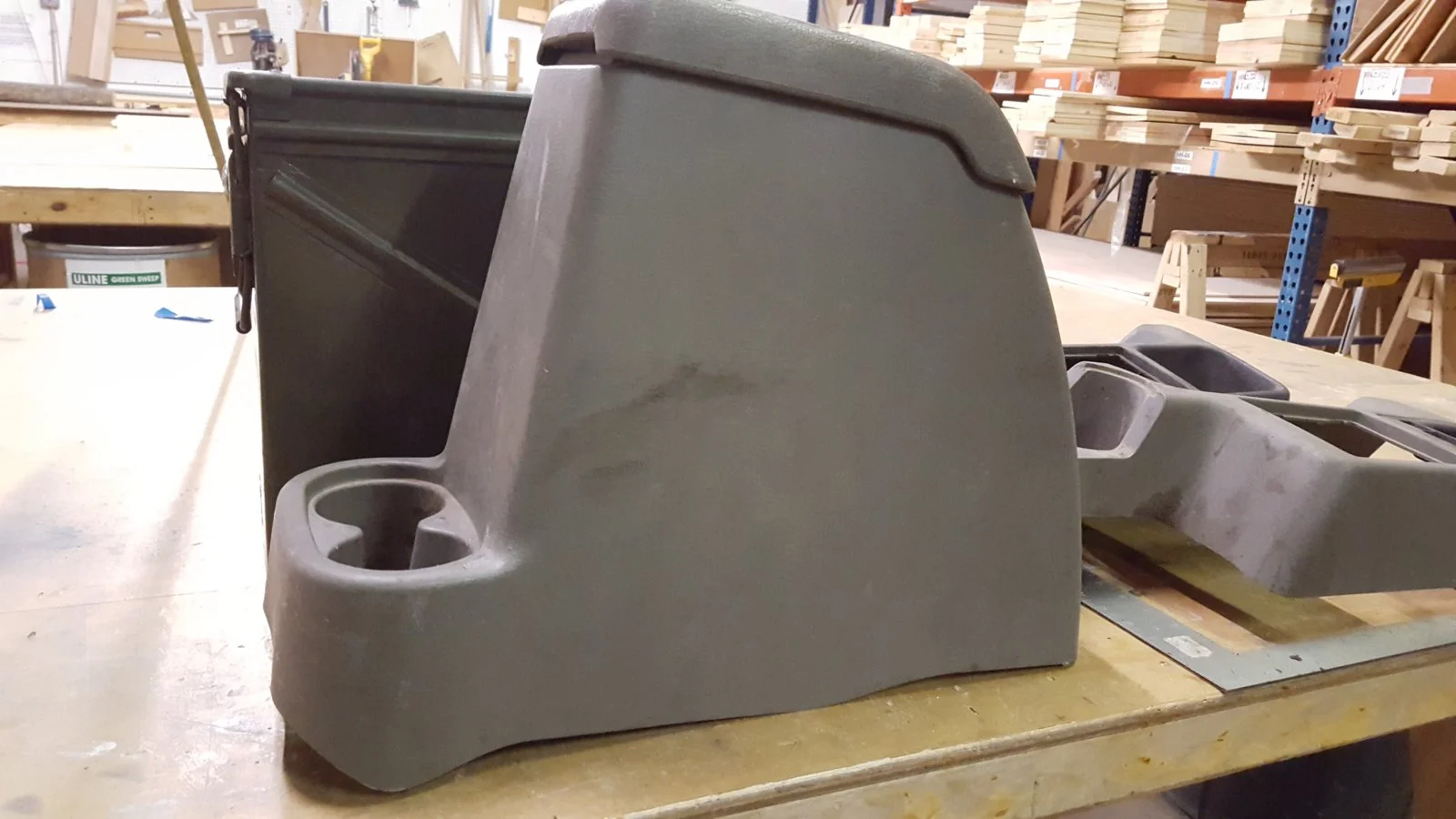

    Here is the late-TJ full console next to my cobbled together version. The lengths and spacing are the same, though the wide angle lense on my phone distorts the appearance. Still, you can get a good idea of have much added space will be gained.
    View attachment 34827
    View attachment 34828
    View attachment 34829
    View attachment 34830

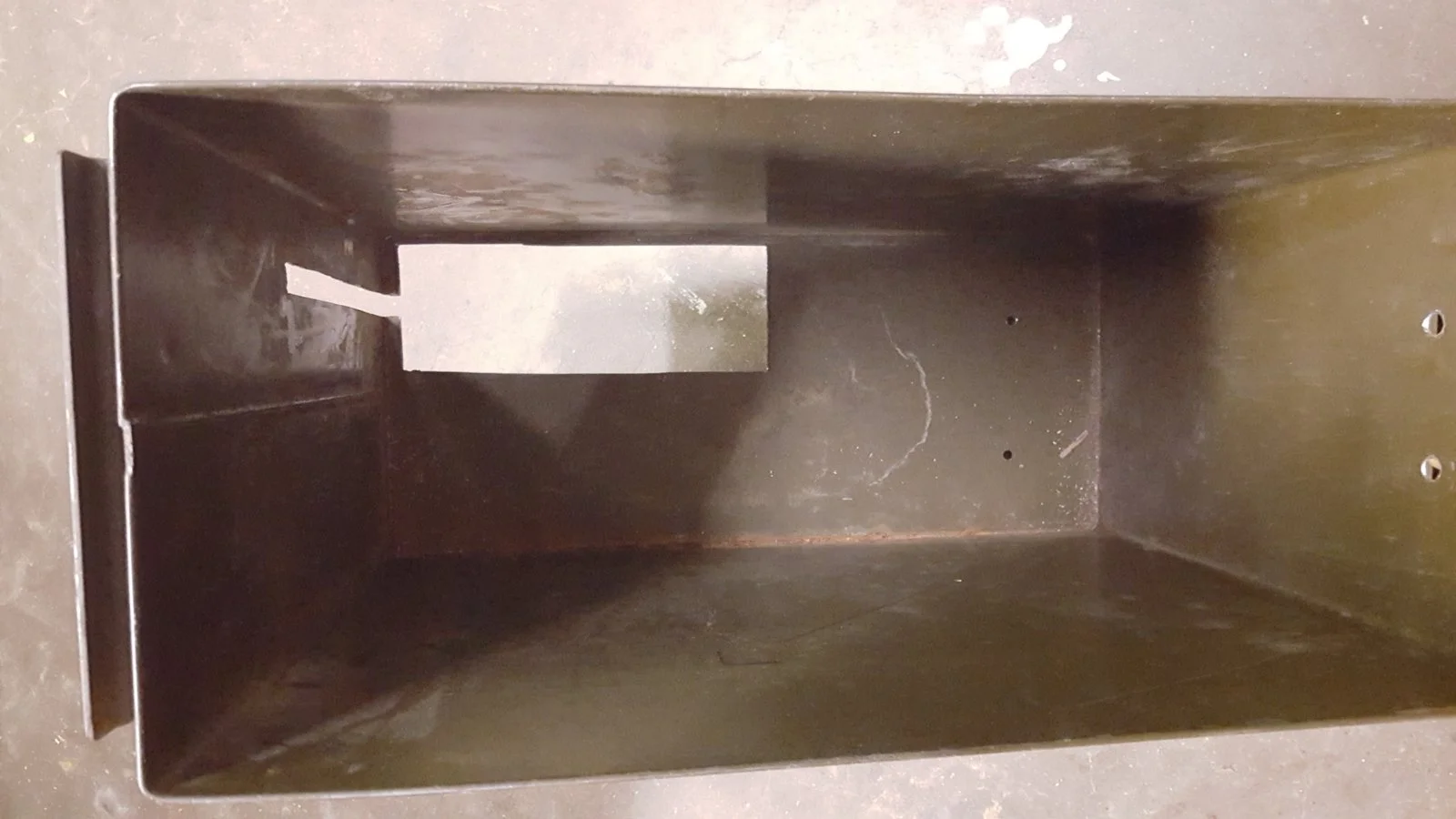

    This is the cutout for the parking brake. The mounting bracket for the parking brakes hooks over the front lip of the cut out in the can. Two holes are drilled in the rear to use the factory mounting bolts found under the rear cup holders. These three points make for a very secure attachment. This positioning is nearly identical to the placement of the factory console.
    View attachment 34831

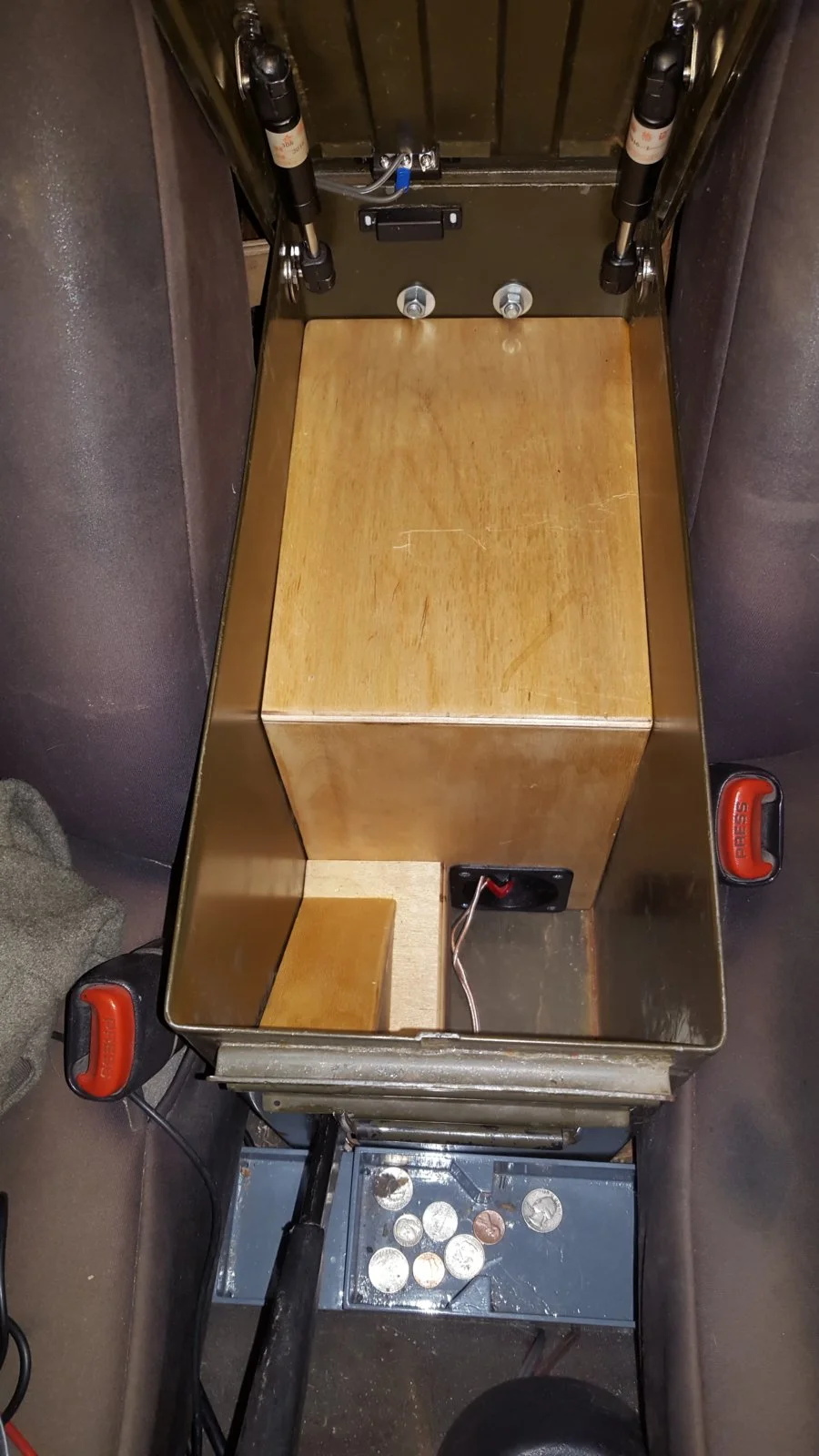

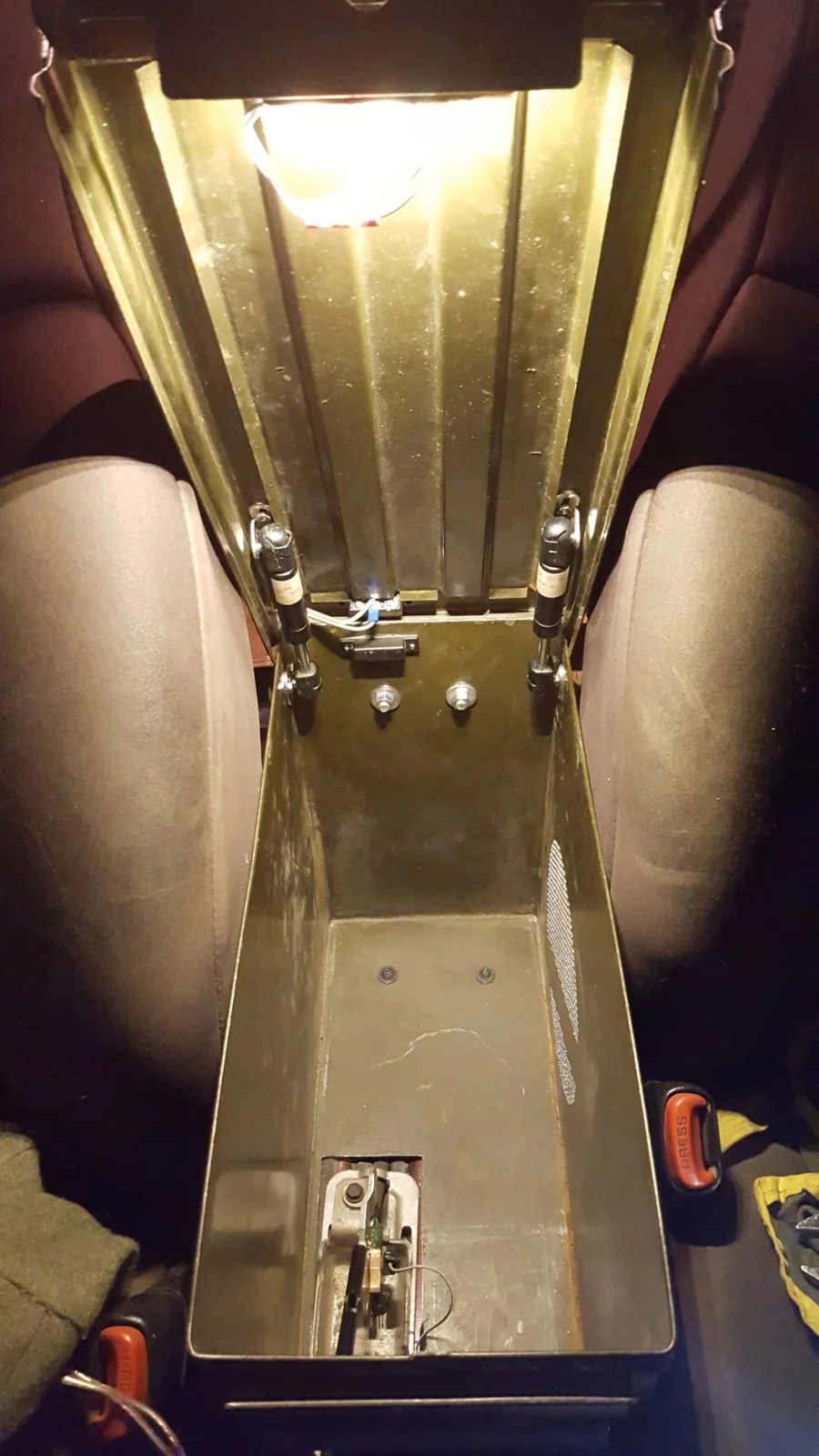

    The hinge is created by shortening the lip that the lid rests in and using a pair of carriage bolts to hold the latch in place. The lid is held up with a pair of really short, low pressure lift struts. The lid raises by itself, but is easy to push back down. The light is an LED pod with a magnetic reed switch that shuts off when closed. The wiring is routed through the stiffening braces in the lid and the outside of the can before running into the front console for power. The rubber gasket was removed except for the front edge. This allows the front latch to have a firm action without being too stiff.
    View attachment 34832

    Now for the controversial part. I know (and care) very little about car audio outside of the recent upgrade to my TJ's sound system including the headunit, speakers and amps. I researched a good amount and went from there. For my sub enclosure I did not follow many of the rules. To my ears, I think it sounds very clear and clean.

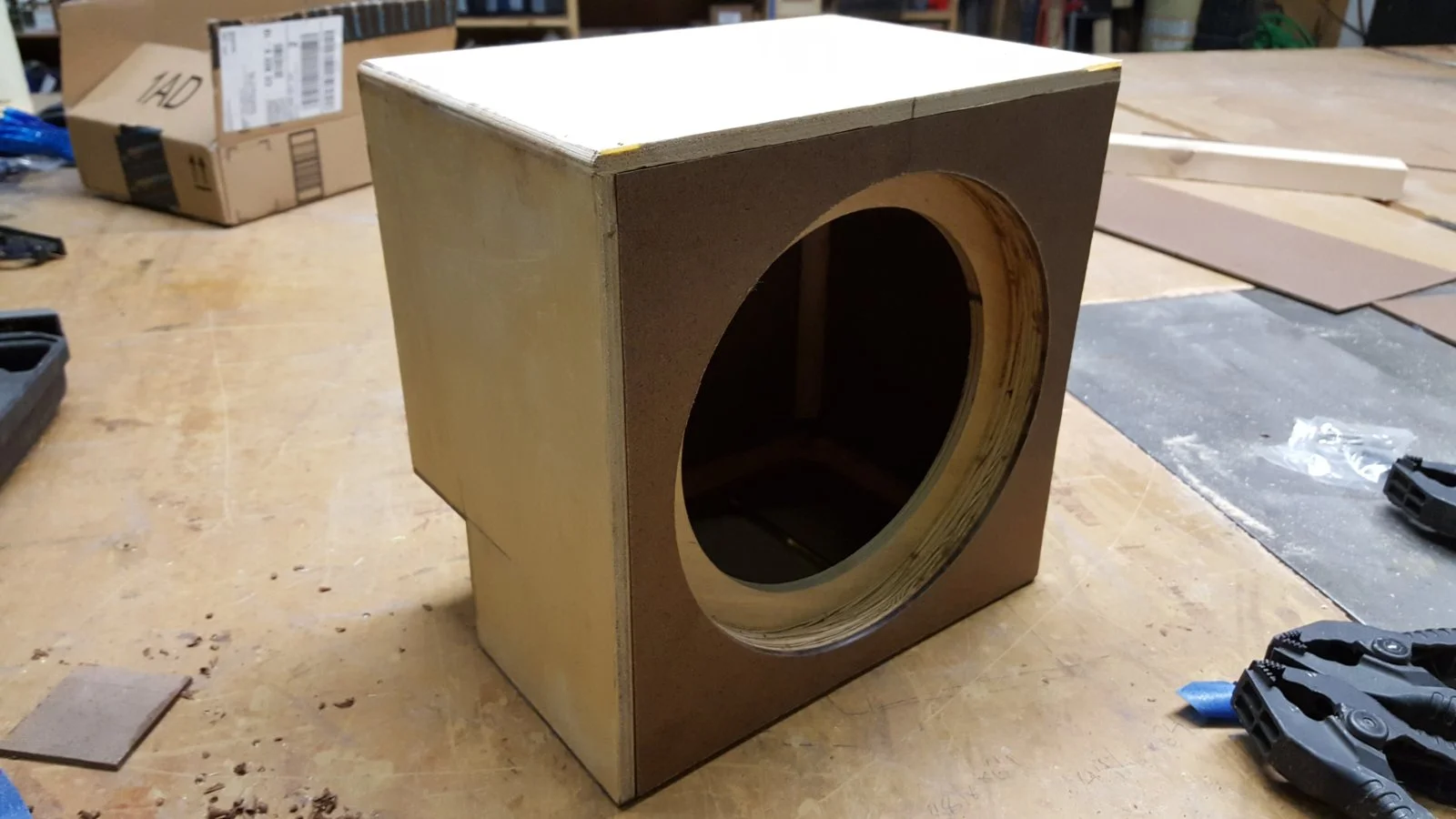

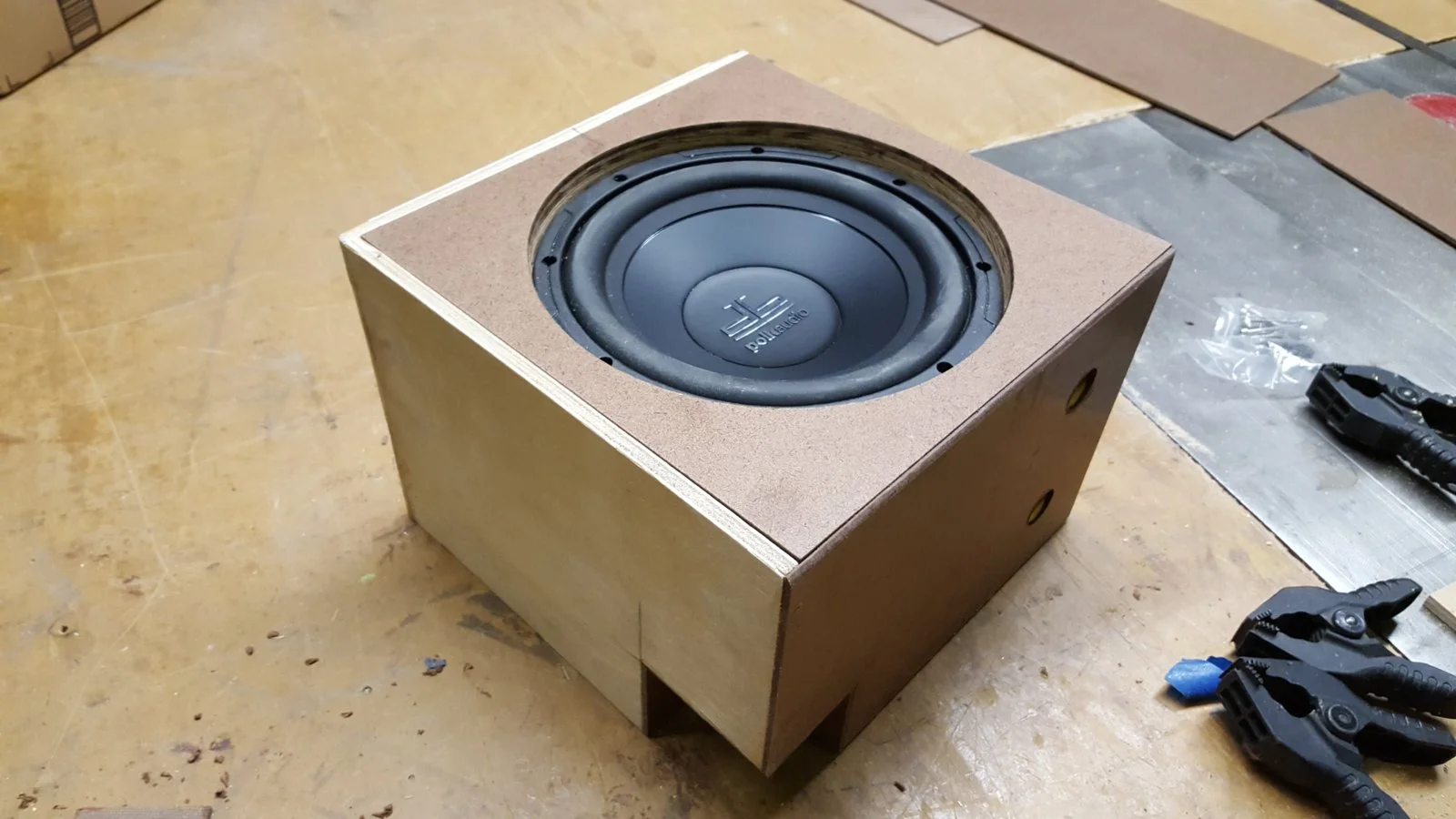

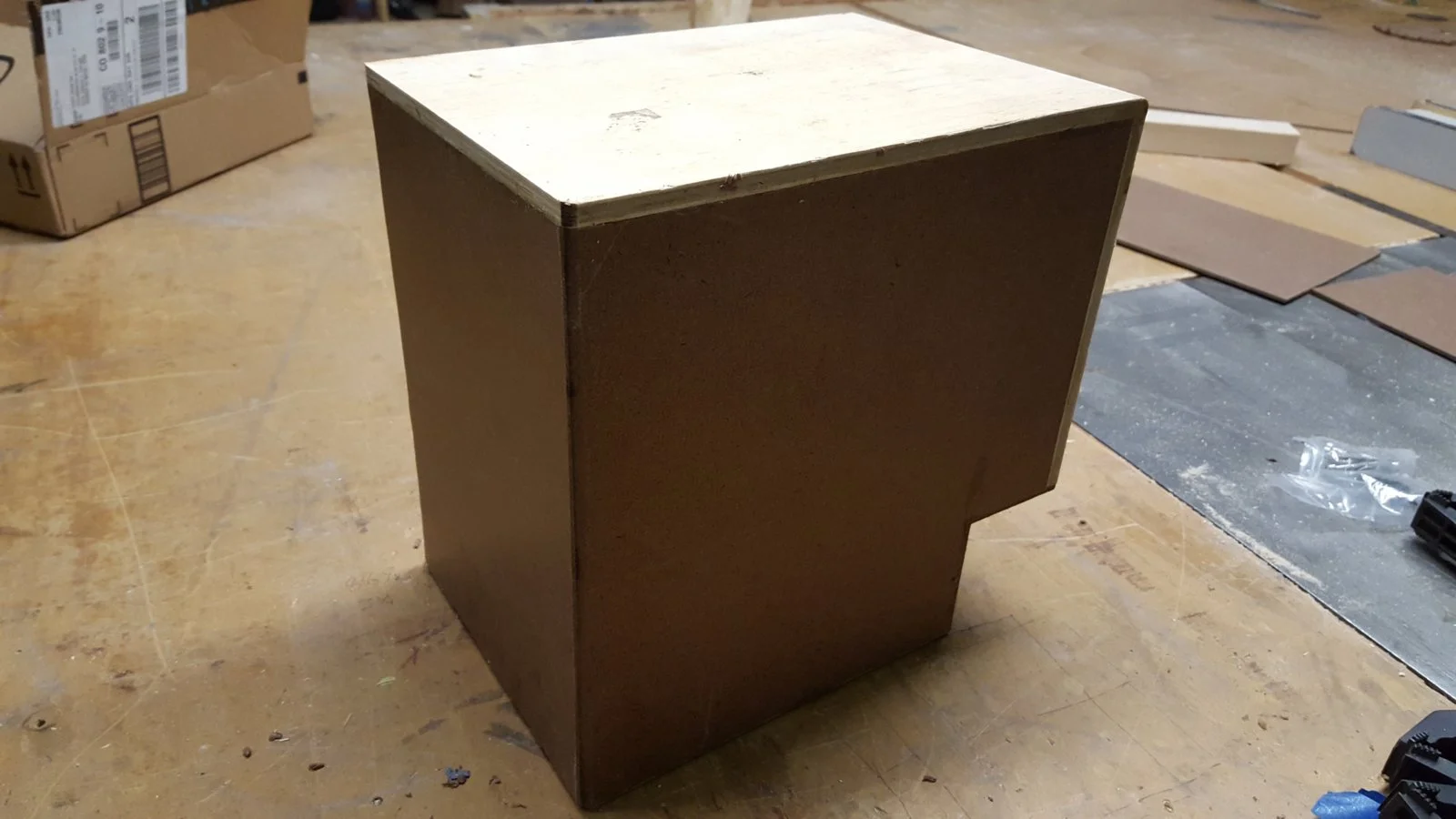

    The subwoofer is a Polk Audio db840DVC 8-Inch Dual Voice Coil. For a sealed enclosure, the speaker requires a minimum .34 cubic feet of interior space. I achieved ~.4 cuft by using 1/4" Baltic birch plywood and masonite. The box is strengthened with internal gussets and is sealed inside and out with several layers of polyurethane. The funny notch is to accommodate the parking brake. There is a chunk of poly fiber fill inside as well.

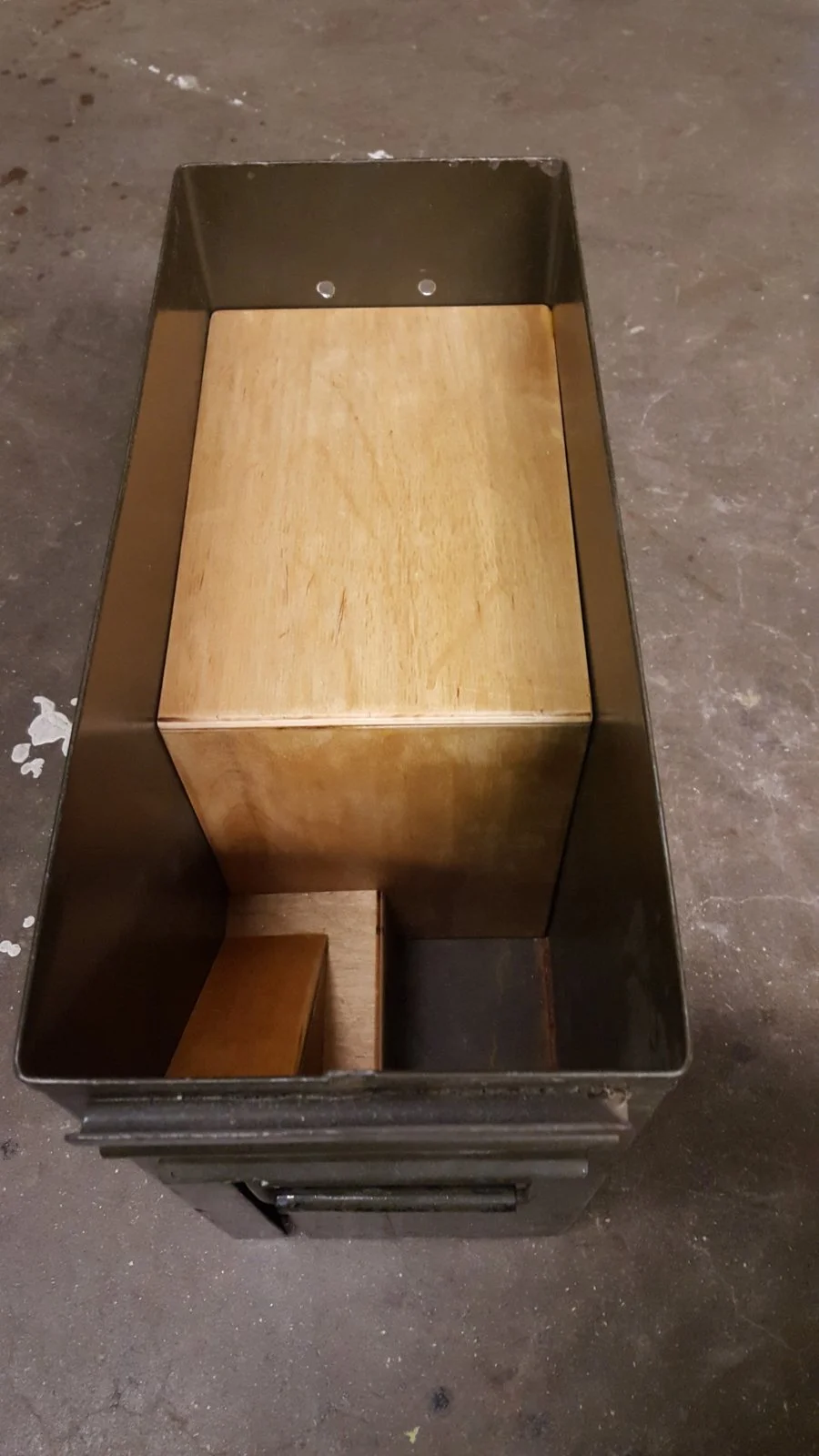

    The enclosure measures roughly 8 x 10 x 10" and fits very well inside the can. I made a cover for the parking brake mechanism that also holds the enclosure in place.
    Because I wanted to retain the ammo can-ness of the ammo can, I secured the handles in place with silicone rather than remove them. No rattles. Also, to retain the appearance, I narrowed the front handle to clear the parking brake.

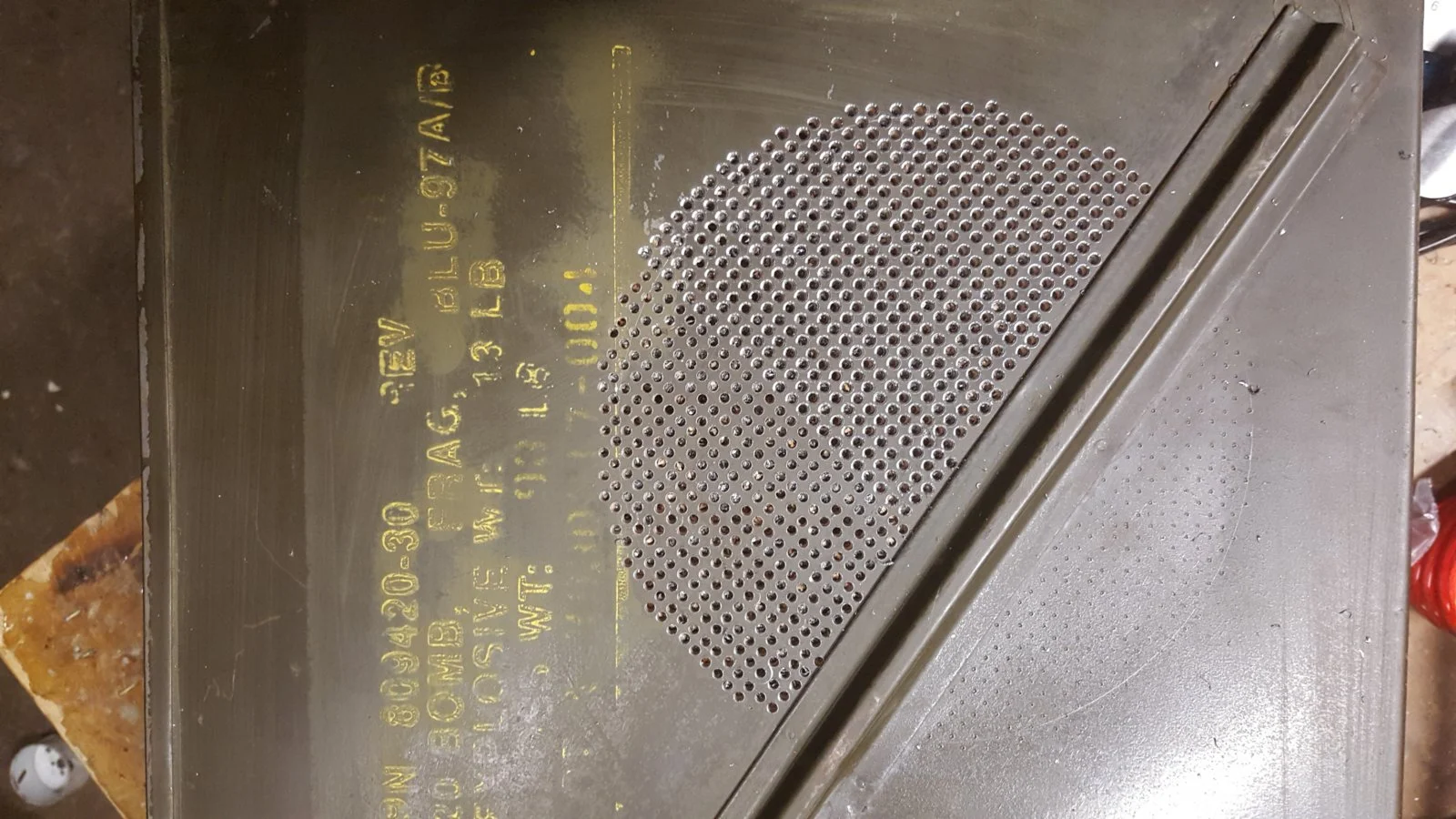

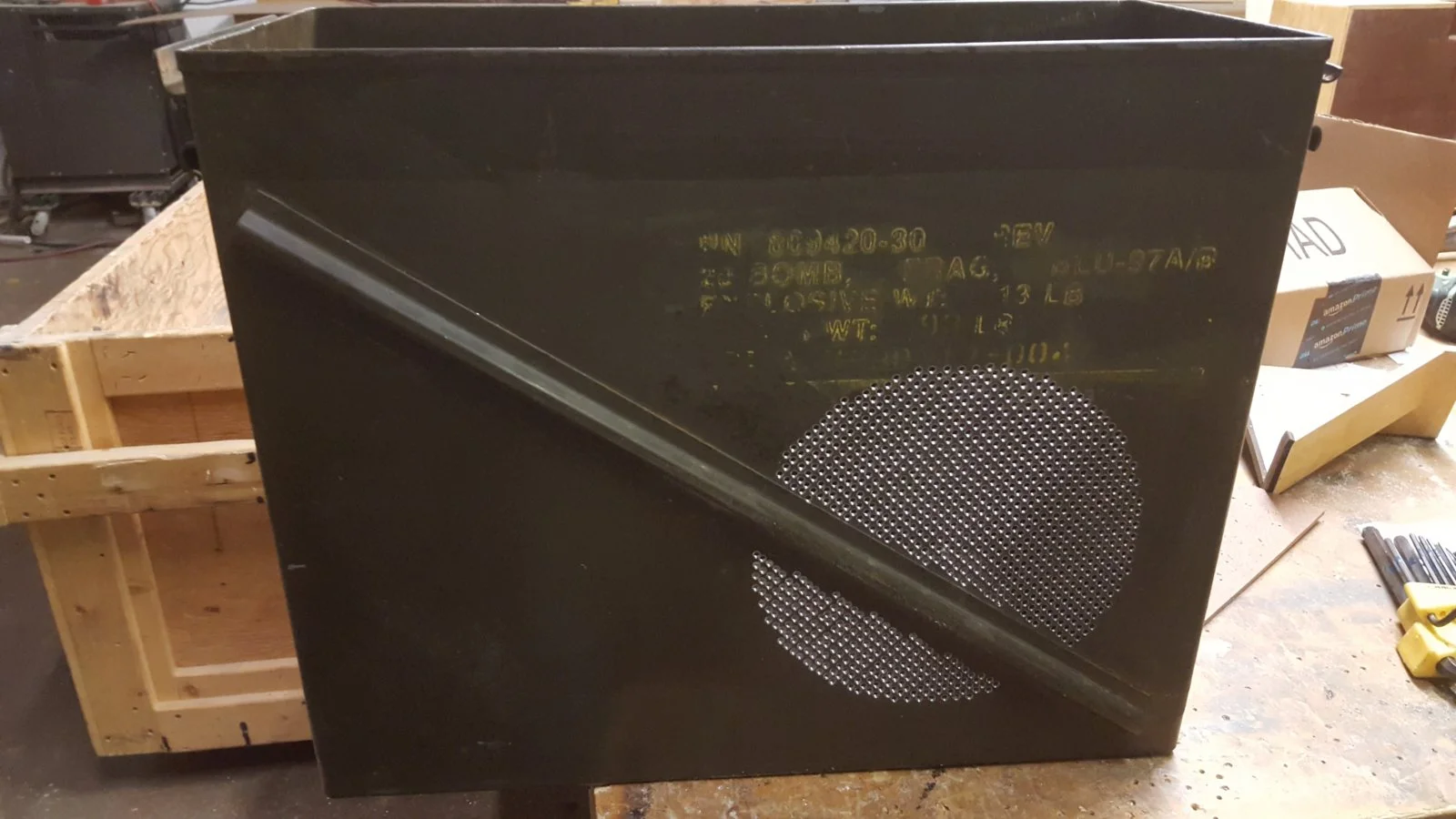

    The speaker grill is a bunch of holes drilled into the side of the can.


    To fill the empty space in front of the ammo can and make up for the missing cup holder, I made this container insert out of masonite. The middle section with the wedges doubles as a surprisingly secure cup holder that holds a cup of coffee just fine. I don't care for the color. I will fix that later.

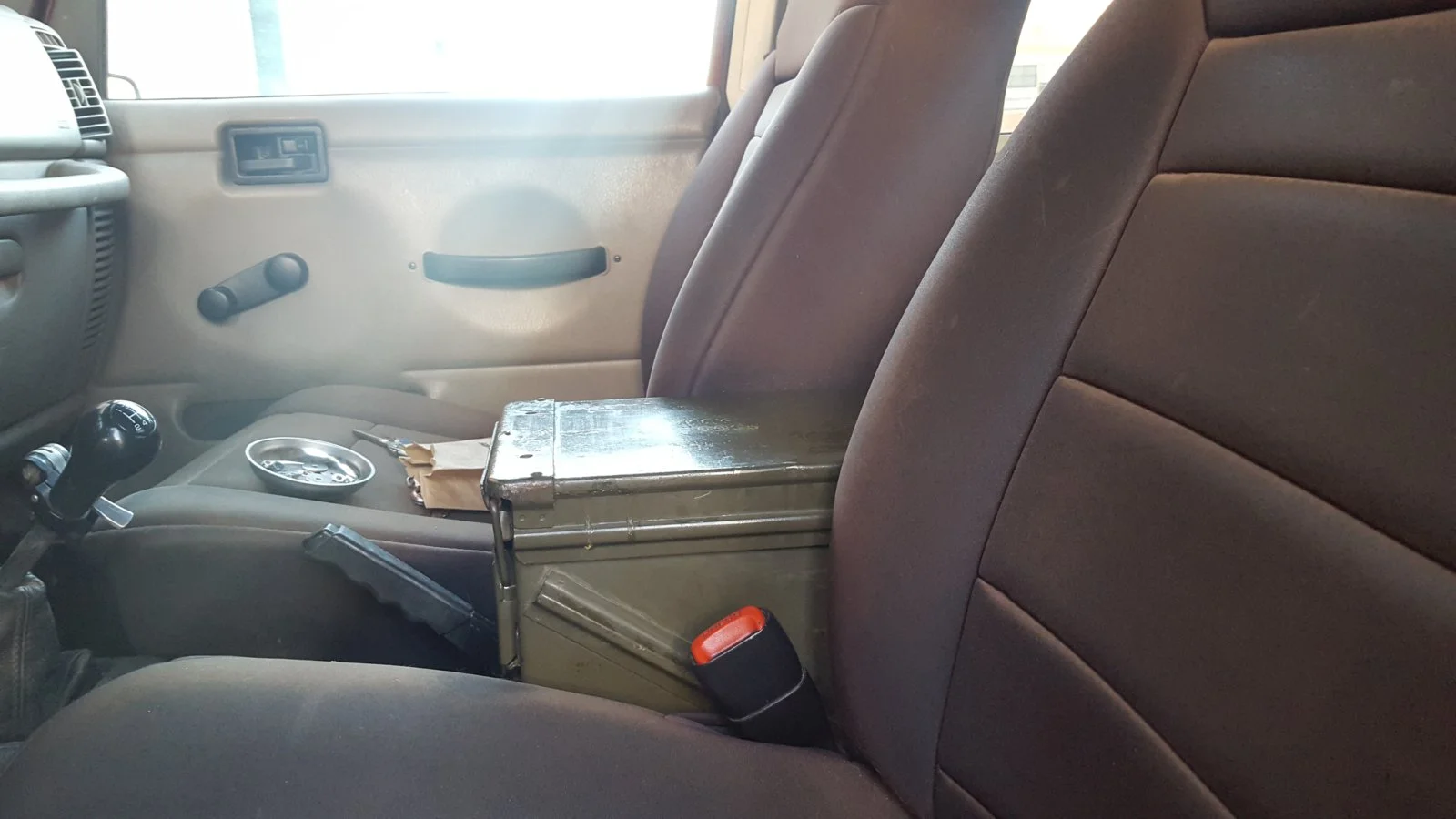

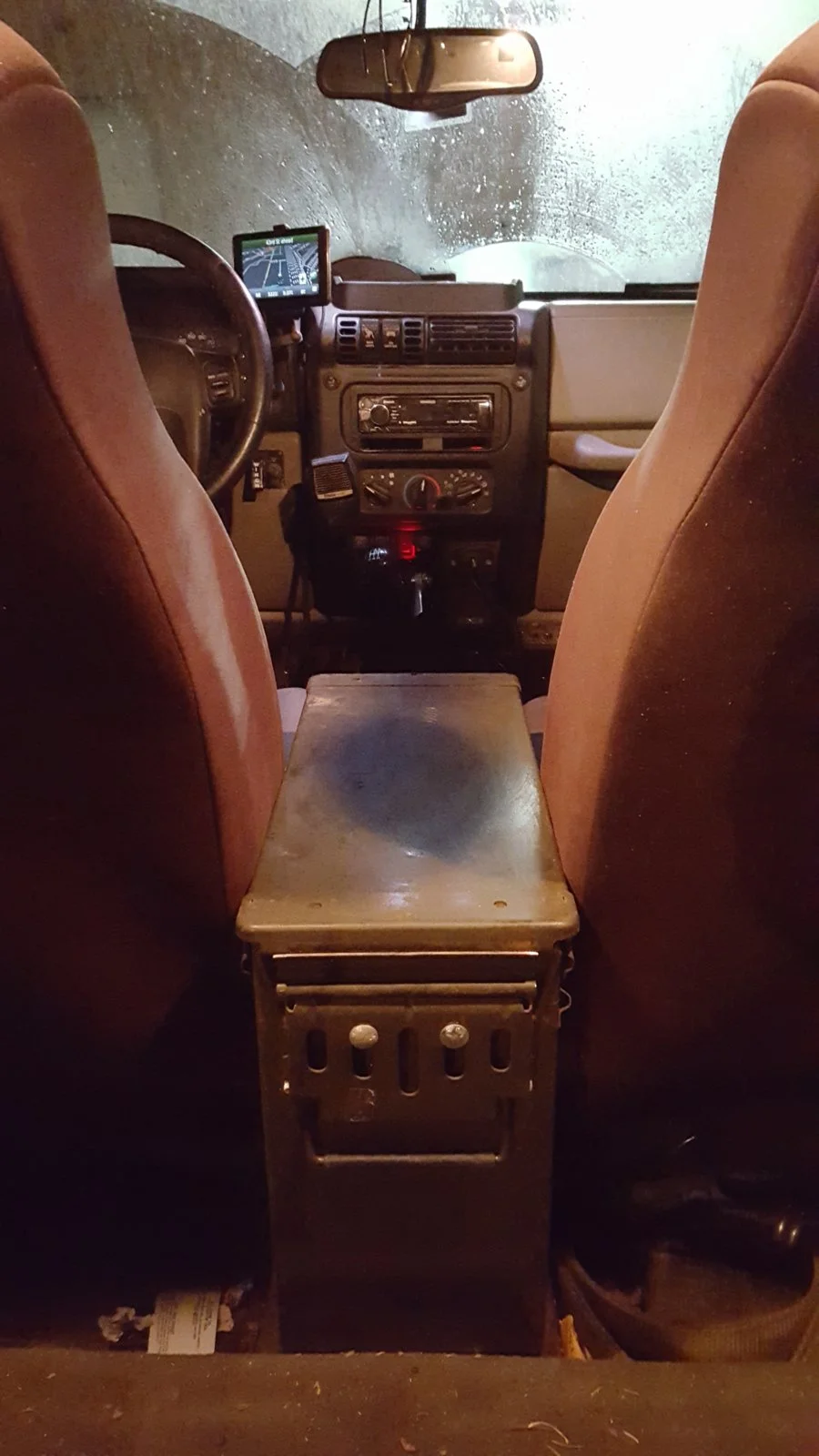

    I've been daily driving the new console for about two months and find it to be a significant improvement over the factory console. Both in functionality and comfort. It isn't obvious that I have a sub and it is an uncomfortable ordeal to get it out of the can should someone know to take it. When it warms up, I plan to paint the early-TJ front console a very dark grey/black along with the cupholder insert to match the center dash.

    #1 jjvw, Mar 11, 2018
    Last edited: Mar 11, 2018
    jgaz, SpikeMaul, b0xcar and 5 others like this.
  2. Chris

    Chris Administrator
    Staff Member

    Joined:
    Sep 28, 2015
    Messages:
    27,563
    Likes Received:
    16,366
    Location:
    Salem, Oregon
    Damn, your factory center console was worn as hell, huh?

    I like this though! It's rugged, and it looks right at home in a TJ!

    Being metal, I would think the sub would be obnoxious inside of it and rattle everything, does it not?

  3. jjvw

    jjvw 0-60 in 18 seconds
    Supporting Member
    Thread Starter

    Joined:
    Feb 17, 2018
    Messages:
    2,197
    Likes Received:
    1,960
    Location:
    Colorado, USA
    No rattles. Everyone asks that. The sub enclosure is a tight fit.

    It really works well as an arm rest and for storage.

    2003 Rubicon

    Chris likes this.
  4. Ranger_b0b

    Ranger_b0b Rust Belt Heavyweight
    Supporting Member

    Joined:
    Feb 28, 2017
    Messages:
    2,949
    Likes Received:
    3,091
    Location:
    Grand Rapids, MI, United States
    Nice work! I like it.

  5. Kiwi TJ

    Kiwi TJ If people ar talking behind ur back,then just fart
    Supporting Member

    Joined:
    May 3, 2016
    Messages:
    2,871
    Likes Received:
    4,107
    Location:
    Auckland New Zealand
    I'm thinking I may have to do something like that....not an exact copy of course. I think I'm gonna have to hunt for 300mm ammo case this weekend.

  6. FireJeep

    FireJeep TJ Enthusiast

    Joined:
    Jan 4, 2018
    Messages:
    185
    Likes Received:
    142
    Location:
    Virginia
    I think it is really cool. That is a lot of holes for the woofer!!! Must have taken forever. Very well done!

    skrelnik likes this.
  7. skrelnik

    skrelnik TJ Enthusiast
    Supporting Member

    Joined:
    Jan 10, 2018
    Messages:
    556
    Likes Received:
    339
    Location:
    CT, United States
    I thought the same, well thought out idea here, especially if there is little to no rattling.

    All those holes for the grill, talk about having patience and a steady hand, great job there.

    VallenMaes likes this.
  8. b0xcar

    b0xcar TJ Enthusiast

    Joined:
    Oct 28, 2017
    Messages:
    387
    Likes Received:
    475
    Location:
    Central, TX, United States
    What a great idea. Nice work man!

  9. Kiwi TJ

    Kiwi TJ If people ar talking behind ur back,then just fart
    Supporting Member

    Joined:
    May 3, 2016
    Messages:
    2,871
    Likes Received:
    4,107
    Location:
    Auckland New Zealand
    I went out and looked at an army surplus store today to try and find a 30mm case...no luck, plenty or 20mm and 40mm I'm guessing I'm going to have to dig deeper into the web to find one.

  10. jjvw

    jjvw 0-60 in 18 seconds
    Supporting Member
    Thread Starter

    Joined:
    Feb 17, 2018
    Messages:
    2,197
    Likes Received:
    1,960
    Location:
    Colorado, USA
    I had to search a bit for mine.

    2003 Rubicon

  11. JGil

    JGil Member
    Supporting Member

    Joined:
    Feb 16, 2018
    Messages:
    43
    Likes Received:
    2
    Location:
    Philadelphia PA, USA
    Hi, would you be willing to sell just the door off of the center console.??

  12. jgaz

    jgaz TJ Enthusiast

    Joined:
    May 29, 2016
    Messages:
    250
    Likes Received:
    280
    Location:
    Peoria, AZ
    Very nicely done. Love the speaker holes !

  13. jjvw

    jjvw 0-60 in 18 seconds
    Supporting Member
    Thread Starter

    Joined:
    Feb 17, 2018
    Messages:
    2,197
    Likes Received:
    1,960
    Location:
    Colorado, USA
    My old console is long gone. Plus the lock was broken, which is part of what prompted this "fix".

    2003 Rubicon

  14. JGil

    JGil Member
    Supporting Member

    Joined:
    Feb 16, 2018
    Messages:
    43
    Likes Received:
    2
    Location:
    Philadelphia PA, USA
    Thank you for responding...
