Advice on u-joints

Hhouse54

Member
Joined
Jan 14, 2022
Messages
40
Location
Oregon
Hey guys,

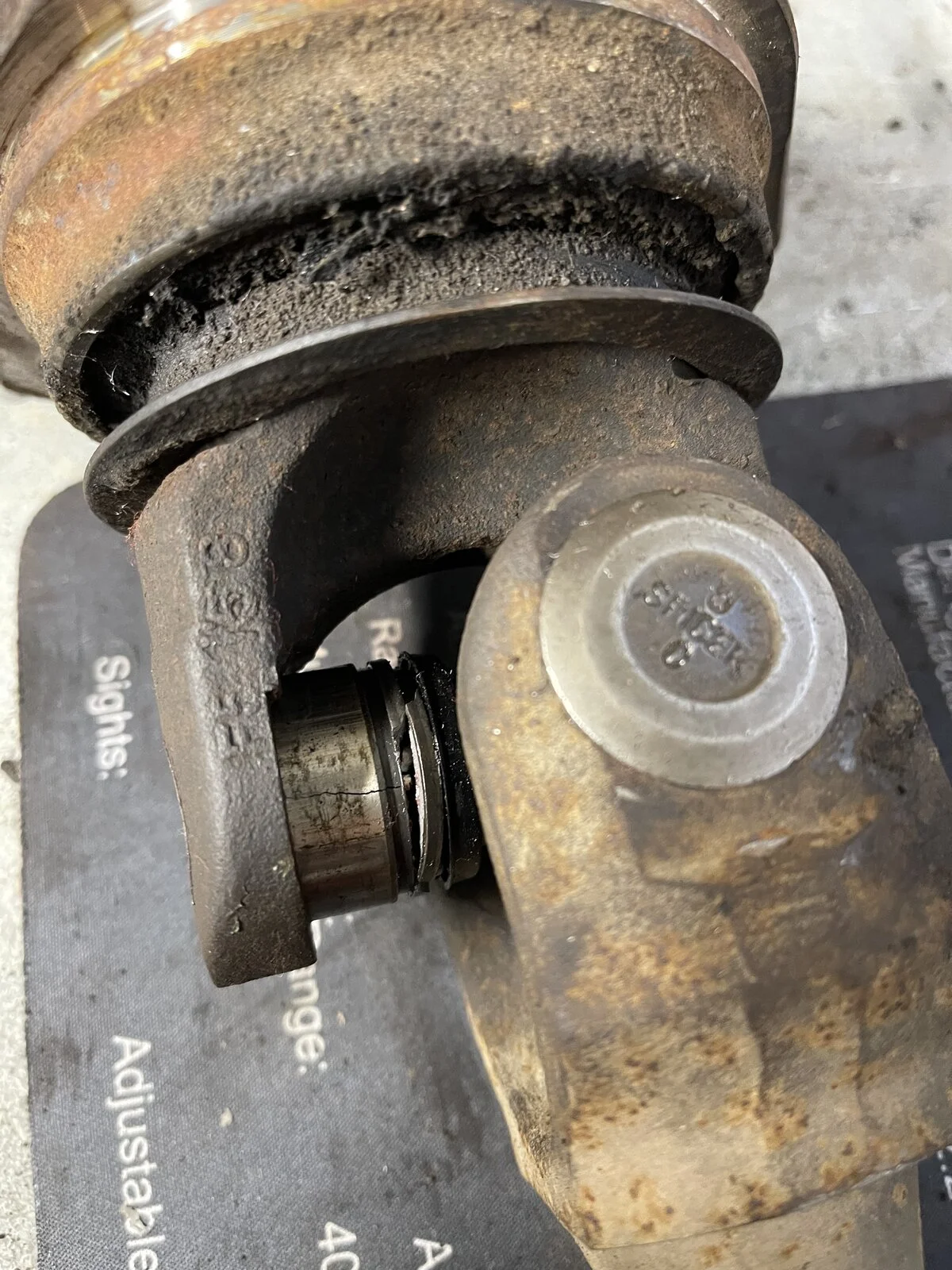

I need some advice on replacing U-joints. I have my axles out and removed the stock U-Joints. I went to press the new spicer ones in and everything went good on first two sides. The second side must have went in crooked and cracked my u-joint and looks like did some damage to my outer axle ears. Here are my questions. I’m running a 2.5 inch lift on 33’s for reference.

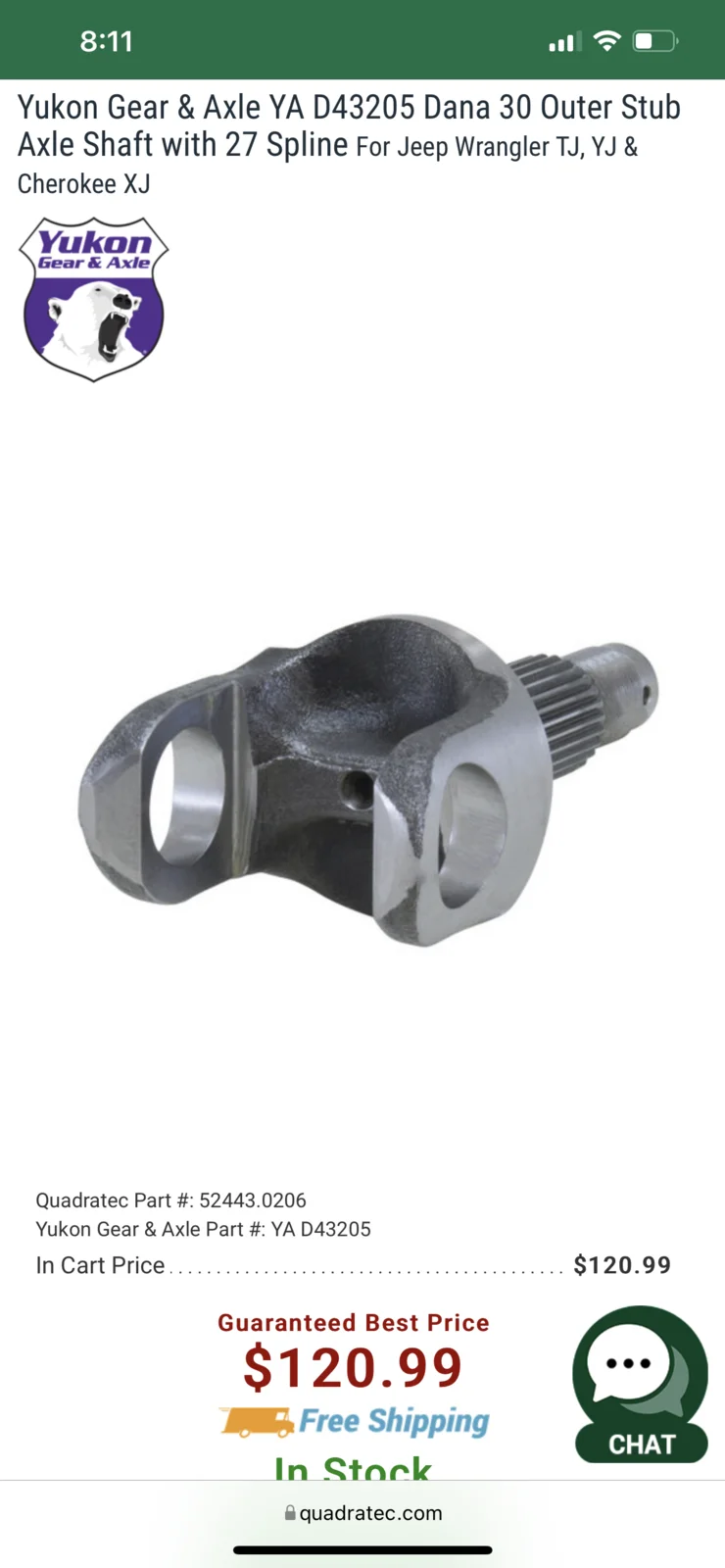

What is the best option to replace outer shafts? I found a Yukon gear and axle option I will attach a picture of. Is this my best option? If I go this route should I do both sides? While I’m at it should I just replace all inner and outer drive shafts with something more robust ? Heres pics for reference. Hope this all makes sense.TIA





Blackjack

Evil Winch Doctor
Supporting Member
Joined
Dec 16, 2018
Messages
2,103
Location
Kenai
Look for an actual Spicer 43205 you should be able to find it for under $75


pagrey

TJ Guru
Supporting Member
Joined
Apr 10, 2018
Messages
7,462
Location
Los Angeles, CA, USA
If your outer is really damaged any stock used outer will be fine to replace it. A cracked cap and a few gouges are nothing to worry about, just put in a new joint. Do not use a press, use a hammer so you don't do this again. The Yukon will probably be fine but you don't need one unless you really bent the old outer.

Edit: or what @Blackjack suggested if you need a new one

  • Like
Reactions: Sancho

Sancho

TJ Addict
Supporting Member
Joined
Jan 17, 2018
Messages
1,757
Location
San Diego, CA, United States
Be sure to really clean the yolk... even sand it lightly. The rust and junk can impede the new ujoint installation.

Dont forget to grease.

Also... be sure you are using u-joints... and not me-joints.
(Dad joke)


Jerry Bransford

TJ Guru Moderator
Staff Member
Supporting Member
Joined
Nov 9, 2015
Messages
24,025
Location
Fleming Island Florida
I would just replace the u-joint, the outer shaft looks ok from what I can see in your photo. The correct u-joint is a Spicer 5-760x, avoid store brand u-joints.
