ATOTO A6 Pro double DIN install

texvet

Member
Supporting Member
Joined
Apr 28, 2019
Messages
49
Location
Austin, Texas
Had to upgrade the radio in the jeep, the after market one that was in it suddenly became possessed and was randomly changing channels, volume, input source etc. Many thanks to who came before me on the double din install. I went with the ATOTO A6 Pro and added on the Dash Cam, rear camera (more for obstacles / spotting in reverse than parking), and ODB II. It came with dual bluetooth, GPS, WiFi, and pretty much everything else.

I'm really liking the android OS, while also having apple car play for my iPhone. It seems to be the best of both worlds to me. System is stable and snappy thus far. I'll follow up in a few months on how it's holding up.

OP
texvet

texvet

Member
Supporting Member
Joined
Apr 28, 2019
Messages
49
Location
Austin, Texas

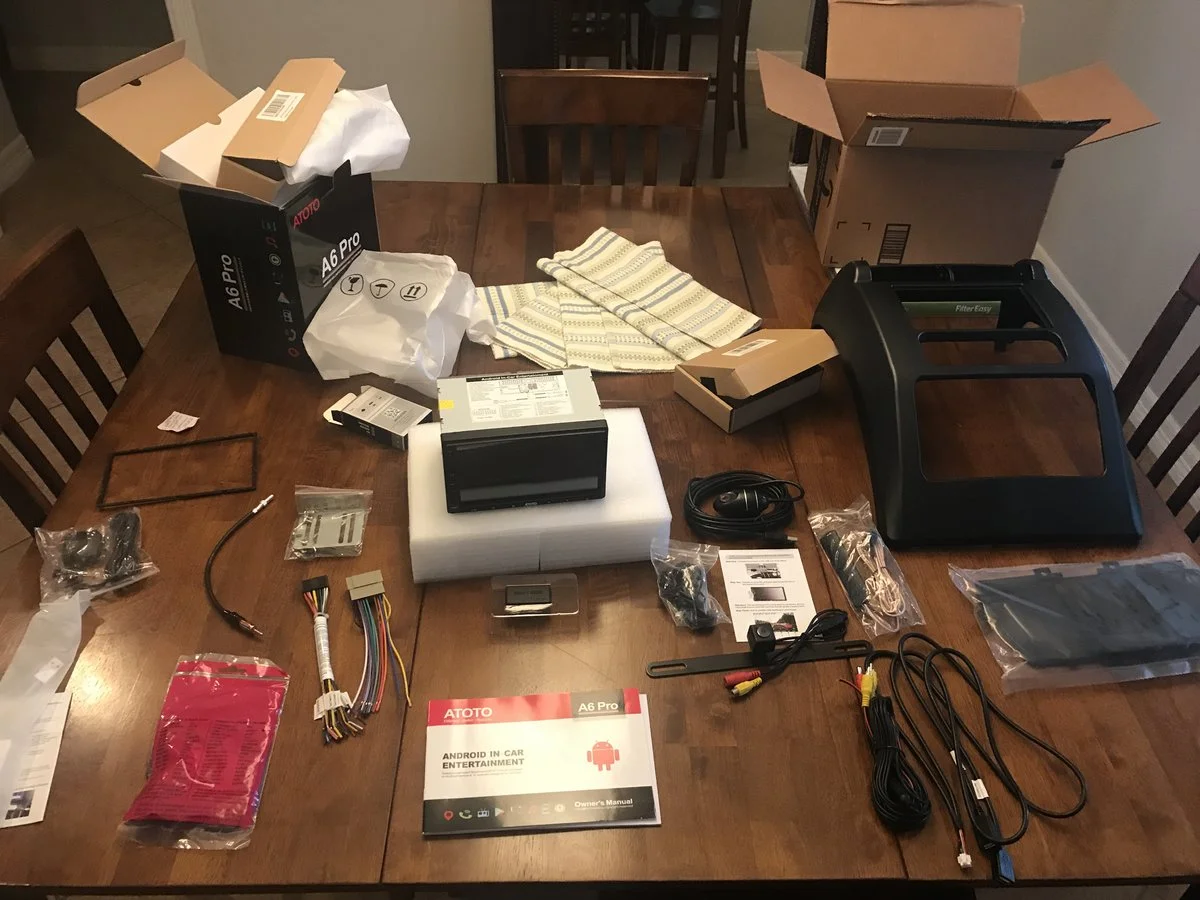

Here is everything unpacked including the double din faceplate from Amazon.


OP
texvet

texvet

Member
Supporting Member
Joined
Apr 28, 2019
Messages
49
Location
Austin, Texas

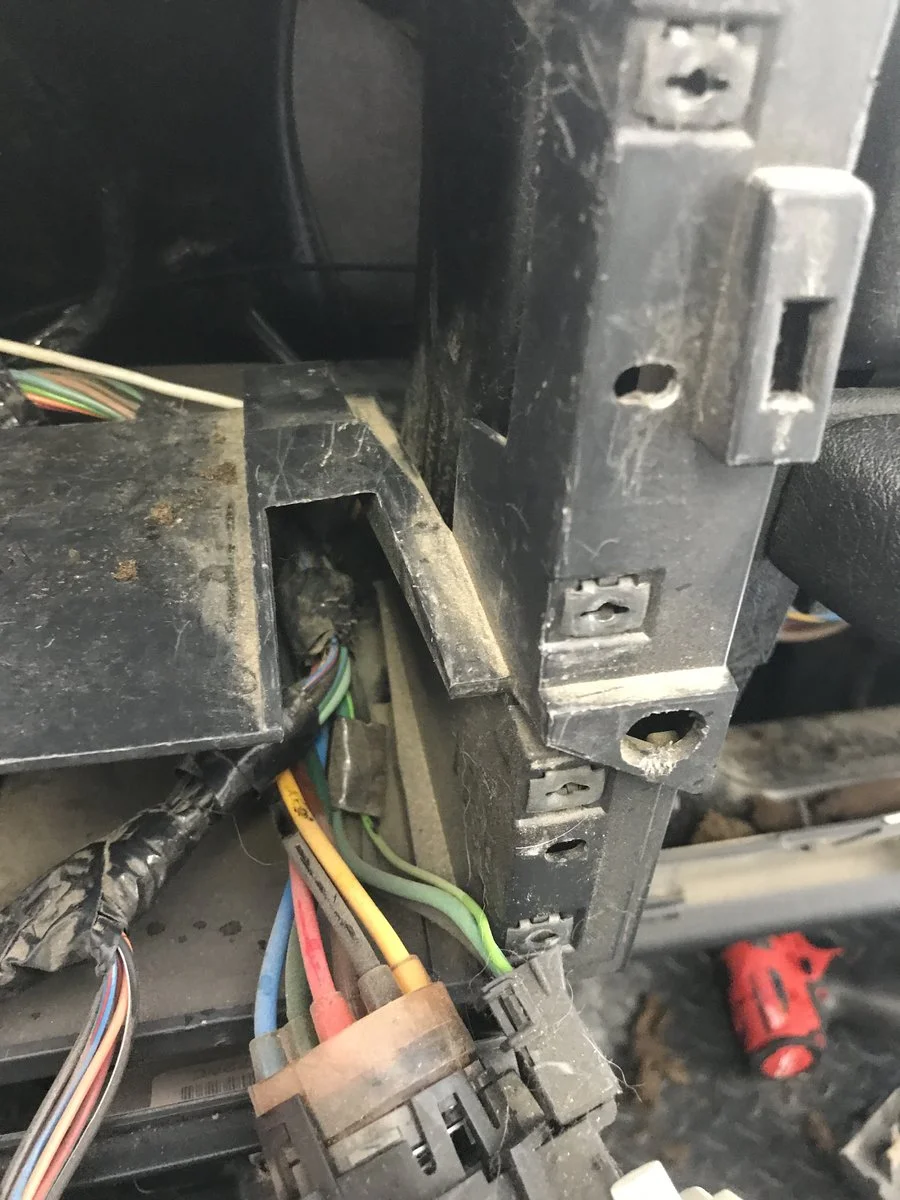

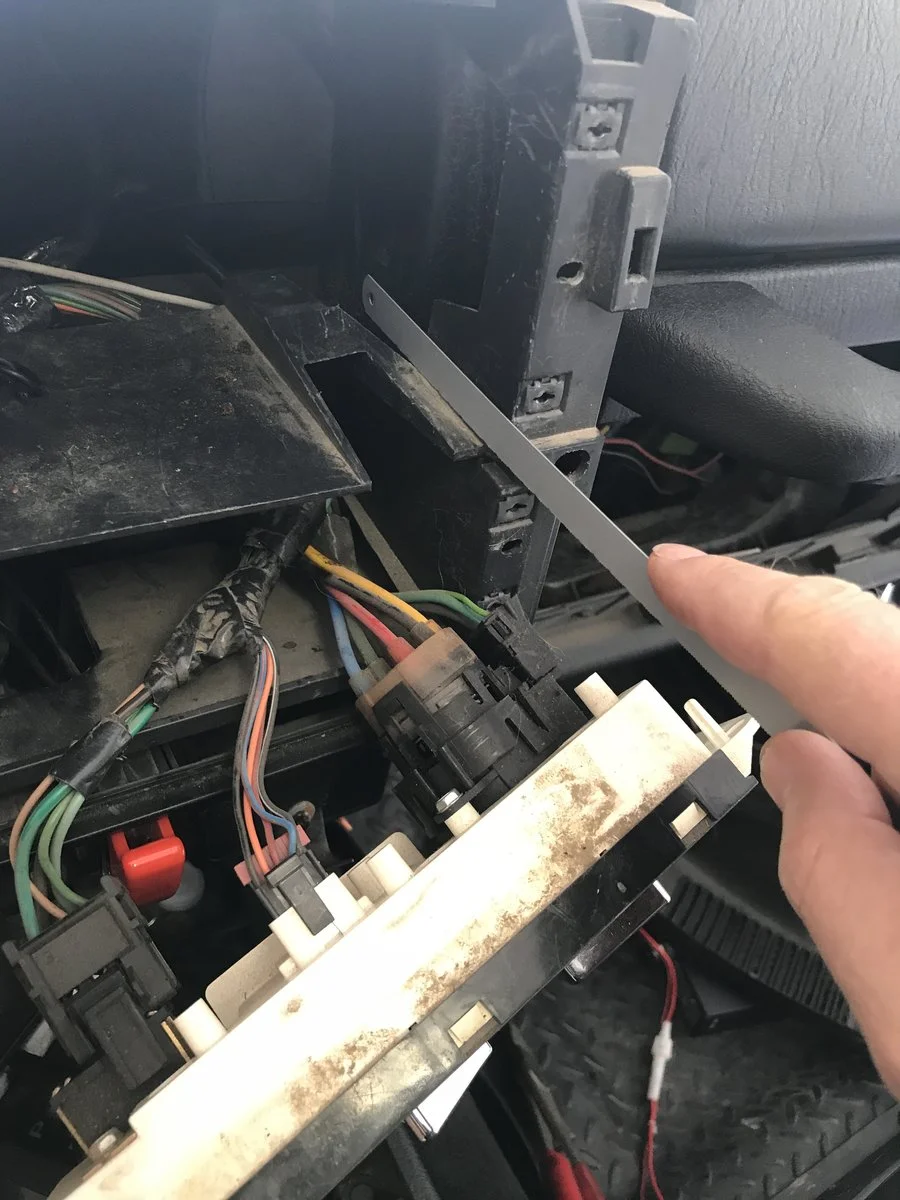

The trimming was a little more than I thought, besides the plastic separating the AC controls and the radio, I had to trim down above the unit. From the factory it angles down to wedge the factory radio in place, my guess to limit bounce etc.



I used a hack saw blade to start the cuts, then tin snips and a Dremel to finish it off.


OP
texvet

texvet

Member
Supporting Member
Joined
Apr 28, 2019
Messages
49
Location
Austin, Texas

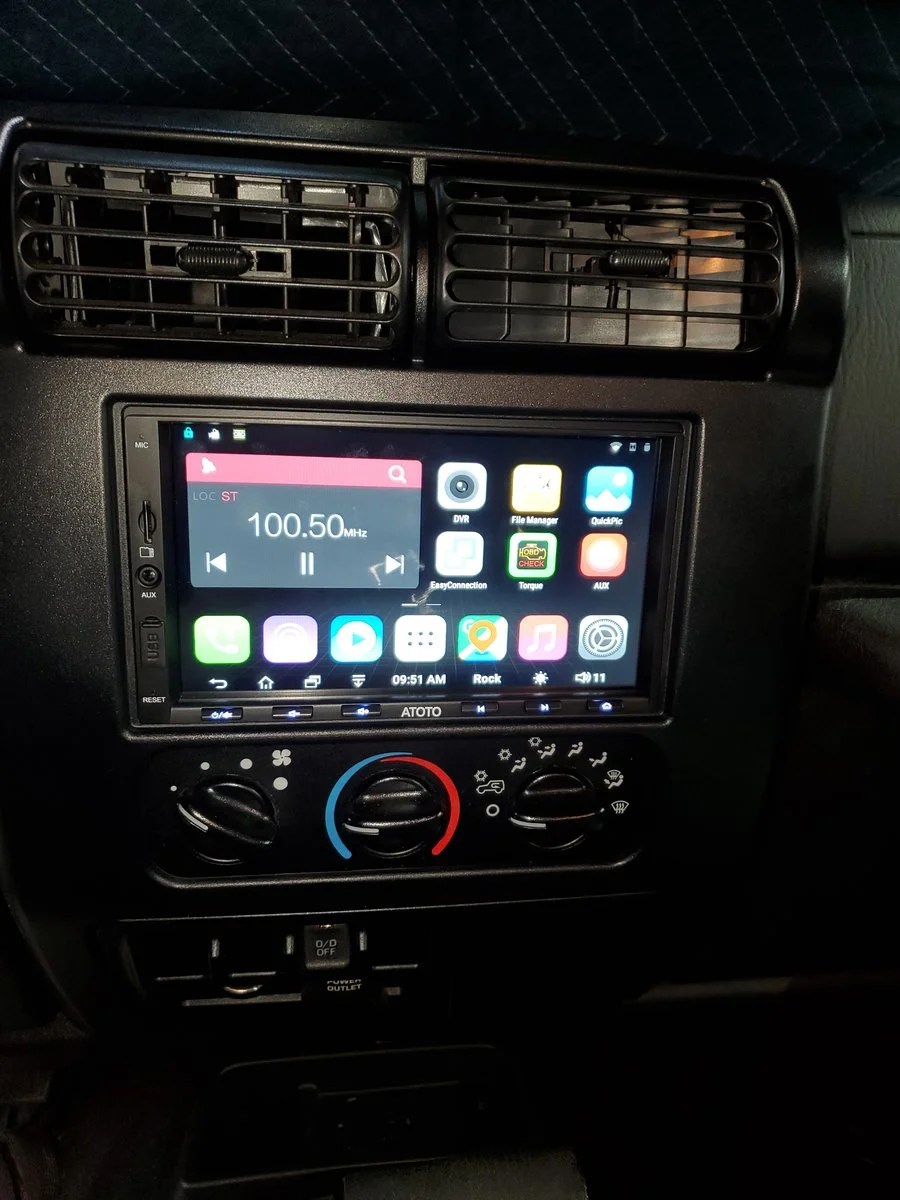

I ran everything except the rear camera, waiting to replace the front seats and lay down sound proofing in December. I'll route the rear wires at that point and clean up the existing ones in the jeep. Here it is pretty much buttoned up.



Pretty cool being able to pull all trails on it as well:


  • Like
Reactions: Bad Habits
OP
texvet

texvet

Member
Supporting Member
Joined
Apr 28, 2019
Messages
49
Location
Austin, Texas

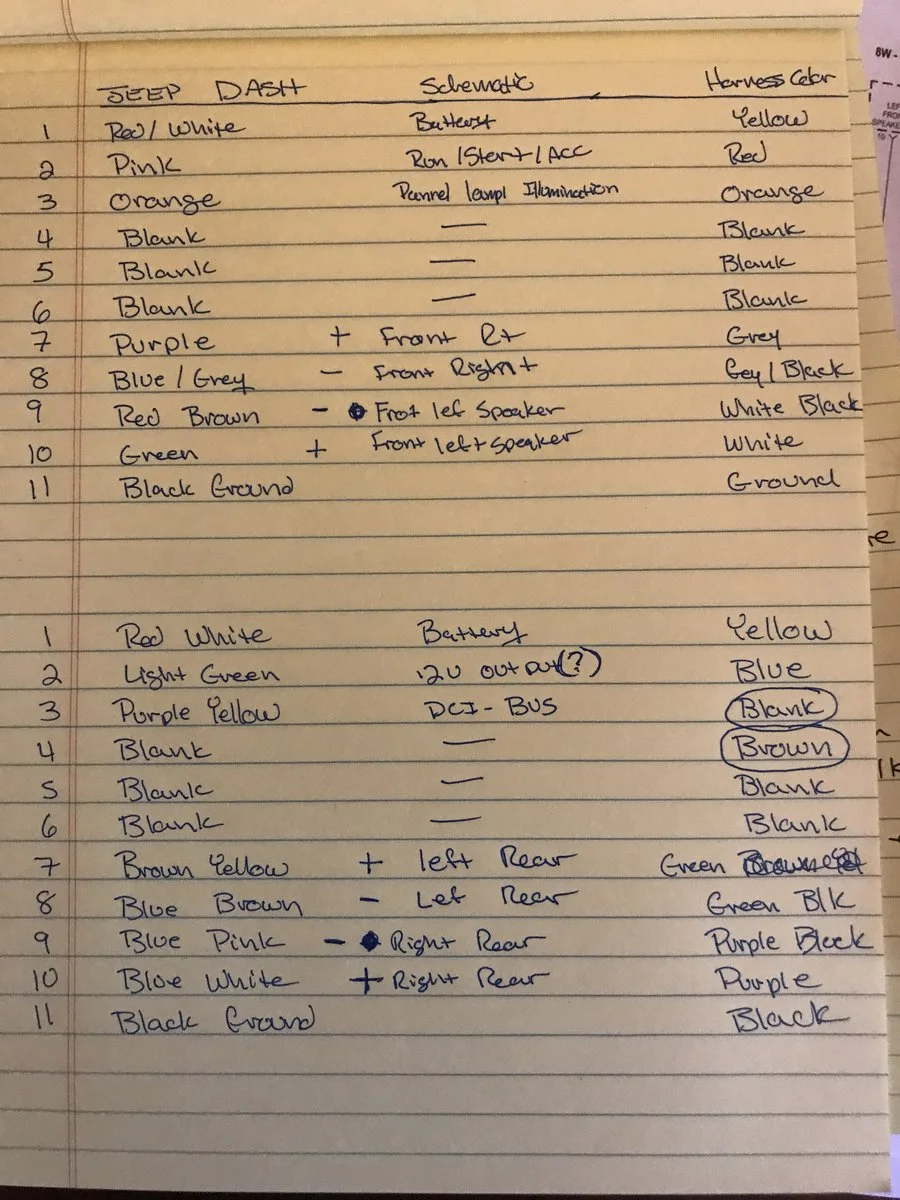

I have read several threads on the radio wiring diagrams and finally decided to go pin to pin and write down what the schematic said based on wire color. If it will help anyone in the future here it is (for the record purple is violet)
