Broken easy out inside a broken bolt


Hammer24

TJ Enthusiast
Joined
Jan 29, 2019
Messages
383
Location
Melbourne, Australia

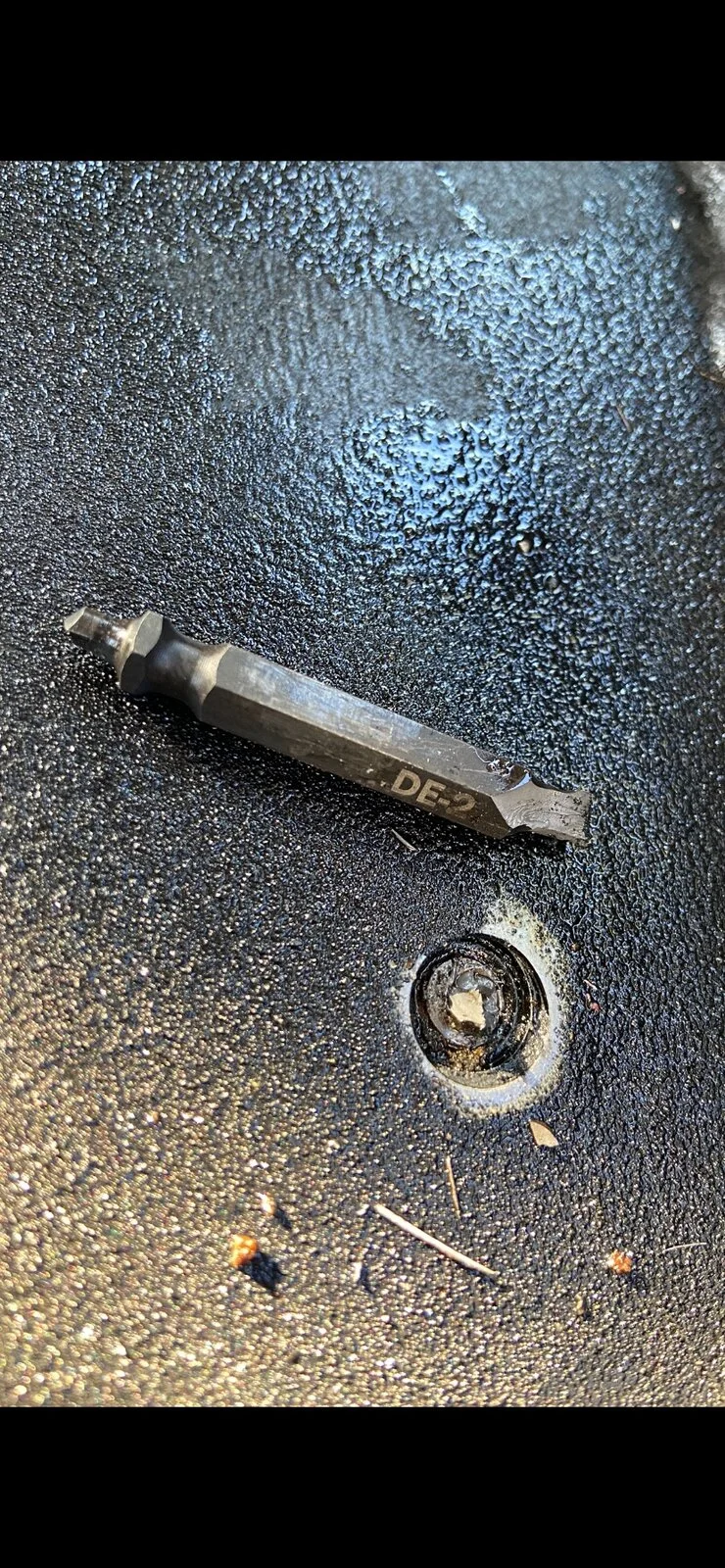

I've found myself in quite the pickle here. The other day we had super high winds and i opened my door, and it swung out so hard that one of the bolts snapped holding that little loop for the door strap. I tried to use an easy out and the easy out bit snapped inside the bolt so now I can't even re drill the snapped bolt because the snapped bit is hardened steel. Anyone have any ideas or am I just going to have to drill a new hole to the right of the original and rivnut it.


CharlesHS

TJ Addict
Supporting Member
Joined
Mar 10, 2020
Messages
1,755
Location
Jacksonville, FL, Quezon Philippines

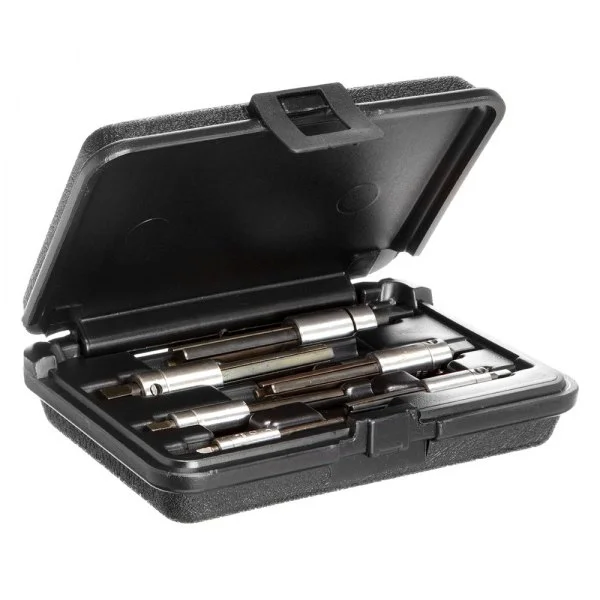

Walton makes a tool that will remove broken taps.

Walton Tool


Stinkbug

TJ Enthusiast
Supporting Member
Joined
Apr 9, 2016
Messages
118
Location
Huntington Beach, Ca
I think I would just consider relocating the bracket rather than invest in a $60.00 -$90.00 in a solution to remove the broken extractor. However if I routinely ran across rusted bolts in my restoration projects, I think that Walton set would warrant additional investigation.

  • Like
Reactions: Rubicon88

Wingback73

Member
Joined
Feb 27, 2020
Messages
55
Location
Massachusetts
No reason to panic - you simply need a different bit. Same exact thing happened to me on my rear upper shock mount. Bolt broke, easy off broke, life sucks.

The only reason this is an issue is because easy-outs are hardened - so much so that it is harder than your drill-bit.

The solution, of course, is nothing other than getting a better drill bit.

In my case, for space reasons alone, I used my dremel with a carbide tipped bit in it to create a small crater in the middle of the easy out, then switched over to split-point carbide I ordered through Amazon.

When I broke off the Grade 8 bolt in the shock bump stop I skipped the easy out and went straight to the carbide. Drilled right through it like nothing at all.

d-

OP
Hammer24

Hammer24

TJ Enthusiast
Joined
Jan 29, 2019
Messages
383
Location
Melbourne, Australia
Thanks for the suggestions guys, might look into some harder cobalt or carbide bits as I can't seem to find those other options available near me. I can get some left handed cobalt bits, could be a good option?


Claybirdd

New Member
Joined
Oct 27, 2020
Messages
24
Location
Alabama
Carbide drill bit at low speed and plenty of oil (not WD-40) to keep it cool. Its likely when you tried to drill it out before the material got way to hot essentially case hardening it.
Make small pecks while blowing out chips and re-lubing in between cuts.


JeepingNet

TJ Enthusiast
Joined
Sep 17, 2018
Messages
148
Location
Saint John, NB, CA
Thanks for the suggestions guys, might look into some harder cobalt or carbide bits as I can't seem to find those other options available near me. I can get some left handed cobalt bits, could be a good option?
Left handed cobalt are perfect! Sometimes you’ll get lucky and since it’s spinning to the left it will also act like an easy out.
