Cruise Control Wiring Diagram Help

Tycarver said:
I’m about to do this install and I was just wondering if you @HuskerJeep were still on the forum so I could get some help from you if needed. You seem to understand those diagrams good and I might need a little help. Thanks.
Click to expand...
Yeah, I'm still here. I may have to dust off the cobwebs since it's been almost 2 years, but I'm sure we can work it out.

  • Like
Reactions: Tycarver
Sorry just re-read that didn't catch you had directed that to Husker just responded to a email alert but if you do have questions happy to help.

Shandara said:
Sorry just re-read that didn't catch you had directed that to Husker just responded to a email alert but if you do have questions happy to help.
Click to expand...
No your good! More help is always appreciated. Just directed to him because it was his forum I don’t wanna be a forum hijacker

Tycarver said:
No your good! More help is always appreciated. Just directed to him because it was his forum I don’t wanna be a forum hijacker
Click to expand...
I also did the junkyard install,use it daily you will love it,got some parts out of an xj-if you need help ask,the hardest part is pinning wires in the computer DO NOT PULL THAT OUTSIDE CAP OFF

So I don’t have the plug that others did for the cruise control nor do I have the C180 connector.. so I’m going to have to get pins from an XJ or something and plug them in to the pcu? I would much rather run new wires then have to trace them all over the Jeep.

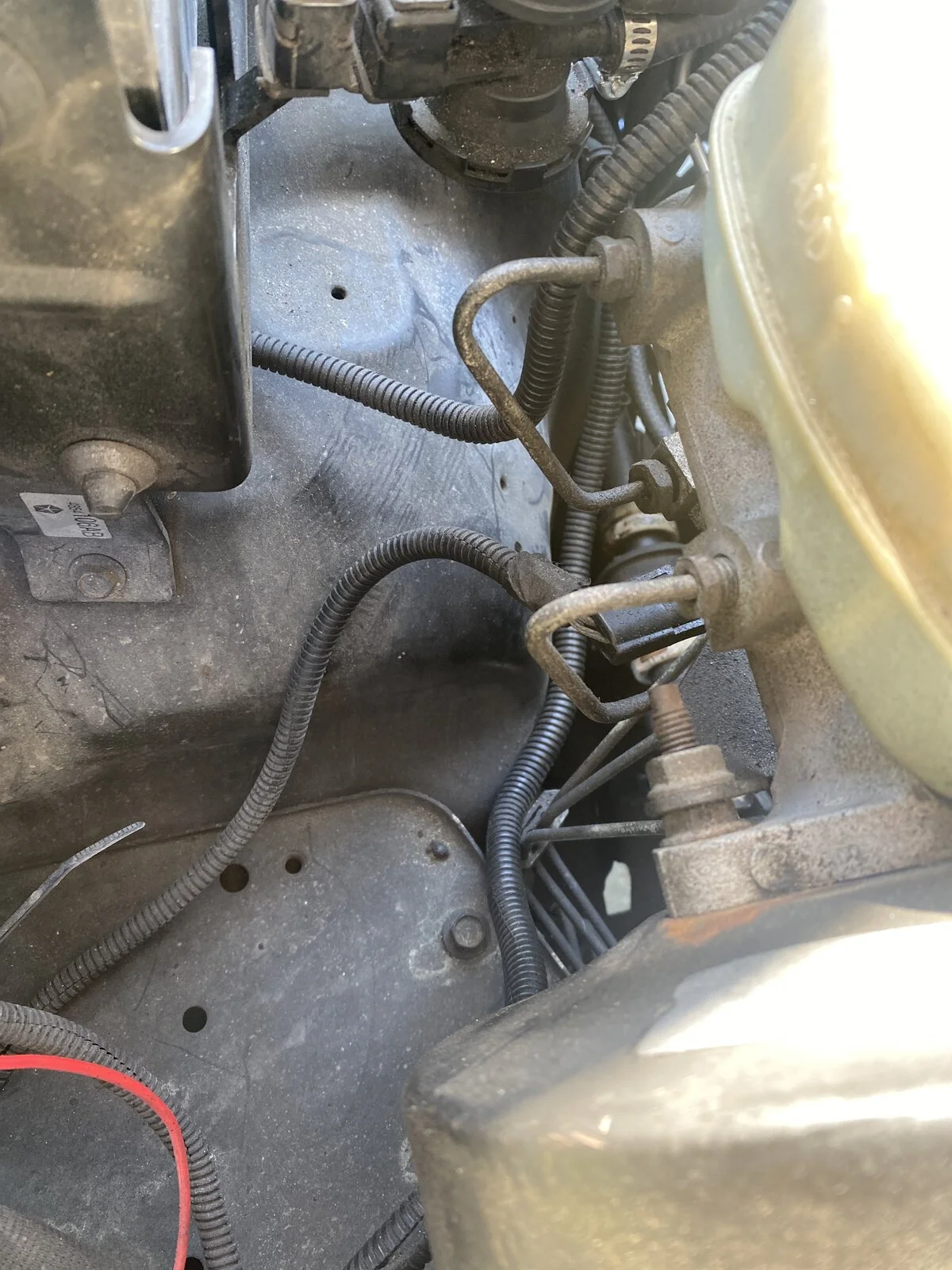

Red wire is for accessories.


It's possible you're already wired to the ECU and into the engine bay but the wires are terminated in the loom. Have you tried to trace the wires back from the steering column to confirm that they are either there or not?

HuskerJeep said:
It's possible you're already wired to the ECU and into the engine bay but the wires are terminated in the loom. Have you tried to trace the wires back from the steering column to confirm that they are either there or not?
Click to expand...
No I have not pulled open the steering wheel. I’m waiting till I get my new steering wheel before opening that since I have a new clock spring and everything coming if I need to change them for this( I got a full kit from a guy online)

Tycarver said:
No I have not pulled open the steering wheel. I’m waiting till I get my new steering wheel before opening that since I have a new clock spring and everything coming if I need to change them for this( I got a full kit from a guy online)
Click to expand...
If I remember correctly, you can trace the wires from underneath the steering wheel, you don’t have to remove it to see if the wires come down into the loom.

Once you get the pcm wires stuck in it’s all inside work,just make sure you unplug the computer connector before you take the cap off or you will be buying a new grey plug kit

Moglocker said:
Once you get the pcm wires stuck in it’s all inside work,just make sure you unplug the computer connector before you take the cap off or you will be buying a new grey plug kit
Click to expand...
Got it. Yeah I could use those pins and wires I guess I’ll need them I can pay you for the shipping of them

Moglocker said:
Once you get the pcm wires stuck in it’s all inside work,just make sure you unplug the computer connector before you take the cap off or you will be buying a new grey plug kit
Click to expand...
By unplug the computer connector before I take the cap off you mean just unplug it from the pcm before I take the back off right?

HuskerJeep said:
If I remember correctly, you can trace the wires from underneath the steering wheel, you don’t have to remove it to see if the wires come down into the loom.
Click to expand...
I’ll have to see if I have the wires in my steering wheel. I’ll check soon and if so just follow those
