Drivetrain Vibrations

Dakota

New Member
Joined
Dec 3, 2015
Messages
3
I installed a 2.5" lift on my jeep last weekend and now I have driveline vibrations. Id rather not lower my transfer case, so will a 1" motor mount lift work? I've heard mixed opinions on it

I agree that the MML should lessen the angle between the t-case output and driveshaft and therefore potentially solve the vibration issue. I can't say with certainty, but it should.

Still, if you are experiencing drivetrain vibrations you really ought to put a transfer case drop on there temporarily until you do the right thing and get a SYE.

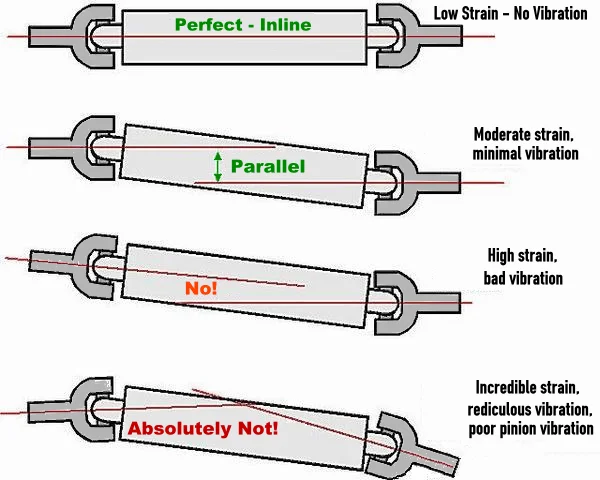

You need to check the angle from the transfer case yoke and the diff yoke. It needs to be paralell Don't get confused, it does not have to be a straight line, but the angles have to match.


  • Like
Reactions: Chris
That first drawing is misleading, it will never look like that on a TJ. With a stock TJ rear driveshaft, the correct angles will actually look more like the second drawing.

And if you don't want to drop the tcase skid plate, yes a 1" motor mount lift will work.

The correct angles when you have the stock rear driveshaft will look like this...


  • Like
Reactions: TJim and Chris
Chris if you add an MML wouldn't it angle the output down and look like the 3rd drawing?


Sent from my iPhone using Tapatalk

If you added a MML without a body lift, then yes, it would I believe. But if you added a body lift and a MML then it would even things out.

Someone correct me if I am wrong, but in my head that makes sense.

Adding the MML tilts the engine and thus the transfer case output shaft to a slightly steeper angle. That better matches the steeper angle of the rear driveshaft caused by the suspension lift. That eliminates the excessive angle between the driveshaft and output shaft the u-joint would have to work in, eliminating the vibrations caused by the u-joint.

  • Like
Reactions: Chris
Yeah so it would look like the third diagram


Sent from my iPhone using Tapatalk

Not necessarily. If you had a big enough lift that your rear pinion angle was pointing upwards more (due to lack of adjustable control arms) then it would look almost like the third photo in that diagram but the rear pinion angle would be pointed slightly up more essentially causing things to be more parallel, thus reducing potential vibrations.

I'm pretty sure at least...

Yeah so it would look like the third diagram
No, not even close. The only one of those four illustrations that is like what we'd see on a Jeep with the factory driveshaft is the 2nd one. The others are not good examples of anything we'd likely ever see on a Wrangler. Drivetrain geometry can be fairly complex but it's not hard to get your head around if you read up on it a little.

An EXCELLENT source of information on drivetrain geometry is at from Tom Wood at http://www.4xshaft.com/. Click on "Tech Info" at the top of the page, then click on "Geometry 101" where you'll find the golden keys to understanding all of this.

Last edited:
@Jerry Bransford the photos are for reference.

@Dakota That is why you need to physically check the angles. Raising the engine, leaving the transfer case the same, would make the transfer case yoke point down. If you lifted your jeep 2.5 inches I am assuming it is lifted the same rear and front and therefore the angles should remain the same. The only thing you have done is increased the vertical distance. If you lifted 2.5 in front and 2in in read, the angles could be slightly off

Last edited:
