Being a measure 1000x cut one kinda guy, these install instructions are a bit perplexing. I’ve ready on other forums to measure over 2.25 instead of 2.75, but not sure where I should start that measurement from? Anyone install a set of these on an 04-06? The top measurement is the easy one.




Sent from my iPhone using Tapatalk Pro


glwood

Jeepless
Supporting Member
Joined
Sep 16, 2016
Messages
6,597
Location
Albuquerque, NM
Well winged it and got lucky. Like most things I was over thinking the process. ;)

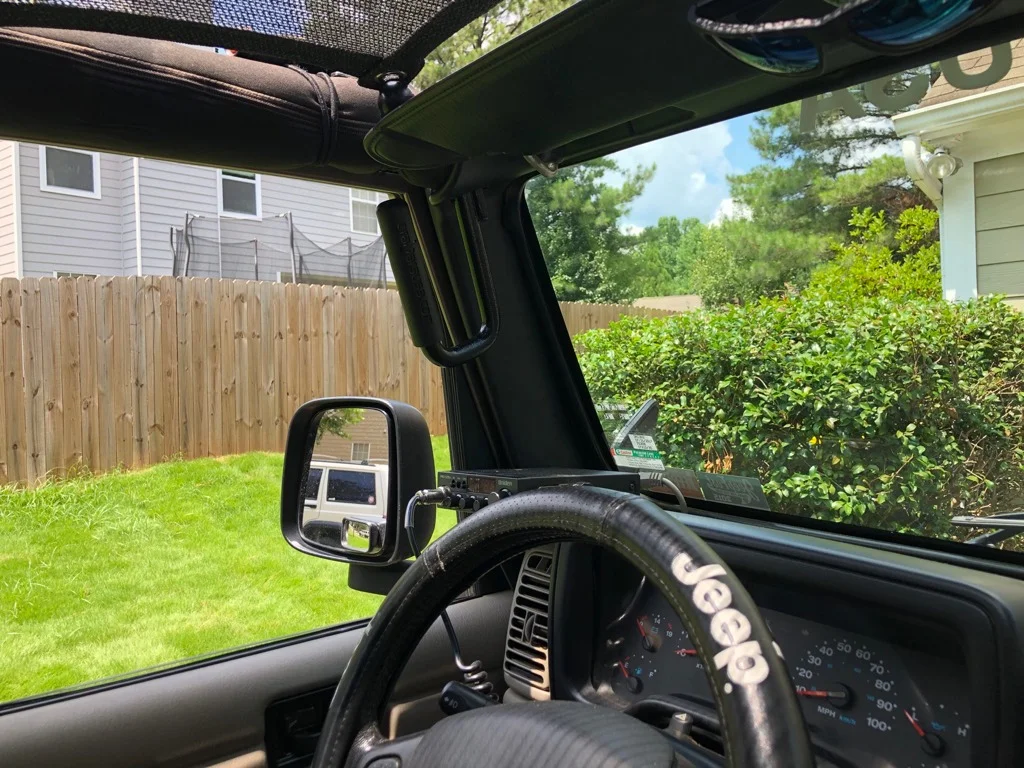

View attachment 44584

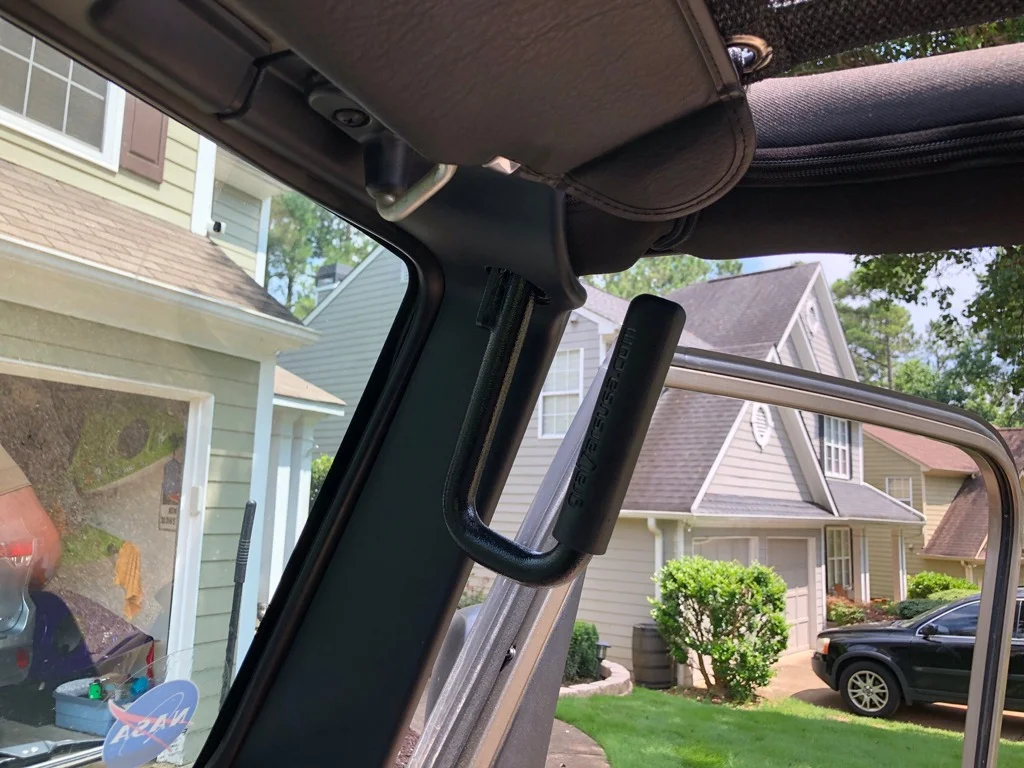

View attachment 44585


Sent from my iPhone using Tapatalk Pro
I was in the same boat as you. The instructions pretty much suck on that part of the installation. I did the passenger side first, and the hole was a bit off to one side, which to most people would have been fine. I left it, but learned for when I did the driver side, which came out perfect. The PS bugged my OCD enough to where I ordered another trim piece, and redid it. It came out perfect that time.

Congratulations on the successful install. GraBars are always my first installation on a new to me Jeep.


psrivats

waiting for parts ...
Supporting Member
Joined
Jun 4, 2018
Messages
2,868
Location
OR, USA
I really want to get one of these but I'm worried that I'll botch up that measurement and not drill the hole correctly. Are those trim pieces easy to come by?


IPerkWVU

TJ Addict
Supporting Member
Joined
Feb 11, 2018
Messages
1,611
Location
Kenai, AK
Nice job, I did the driver's side first and needed a little drimmel action to make it fit then did a clean cut for the pasenger side. Agree that the instructions are terrible!

Sent from my Pixel 2 using Tapatalk

  • Like
Reactions: JeepZilla380
OP
JeepZilla380

JeepZilla380

TJ Addict
Ride of the Month Winner
Joined
May 30, 2017
Messages
1,511
Location
Atlanta, GA
Yea, I probably measured 12x before I actually drilled. Couldn't wrap my brain around their measurements in the instructions.


nk24

307 ► 602
Supporting Member
Ride of the Month Winner
Joined
Jul 6, 2017
Messages
720
Location
Phoenix
I just cut mine over the weekend using the diagram shown above. I didn't have a 1.5" bit, so I used an 11/16" bit and a hacksaw to make the hole. I wasn't too concerned about how clean the cut was because they do sell grommets to provide a finished look.

https://grabarsusa.com/jeep-grabars...dles-grabars/Jeep-TJ-GraBars-Install-Grommets

I might order a set, but I haven't even noticed the rough edges the last few days.


glwood

Jeepless
Supporting Member
Joined
Sep 16, 2016
Messages
6,597
Location
Albuquerque, NM
Probably the key is to drill the hole smaller than it says, at first, try it, then adjust as necessary...
I just cut mine over the weekend using the diagram shown above. I didn't have a 1.5" bit, so I used an 11/16" bit and a hacksaw to make the hole. I wasn't too concerned about how clean the cut was because they do sell grommets to provide a finished look.

https://grabarsusa.com/jeep-grabars...dles-grabars/Jeep-TJ-GraBars-Install-Grommets

I might order a set, but I haven't even noticed the rough edges the last few days.
I wish I had known that when I did my install...those cost less than a new trim piece...
I really want to get one of these but I'm worried that I'll botch up that measurement and not drill the hole correctly. Are those trim pieces easy to come by?

I found the trim piece without too much effort. I don't remember the exact source, but I believe it was a Mopar supplier.


khakitj

TJ Enthusiast
Supporting Member
Joined
Sep 2, 2019
Messages
223
Location
NorCal

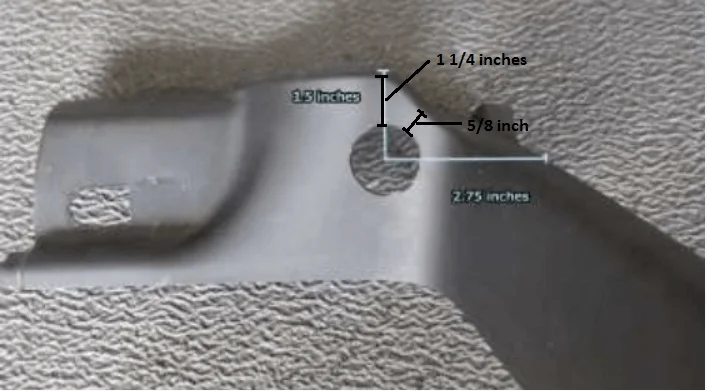

Not sure if this will help, but I went out and took a couple of other measurements, in black below...
View attachment 52371

The 5/8" measurement is very helpful, because I was having a hard time knowing where the 2.75" was being measured from.

For the 1 1/4" measurement, though, I think I'm more confused now. This one seemed more straightforward from their picture, but when I look at your measurement, it doesn't add up. The hole is supposed to be 1 1/2", so half that would be 3/4" to the midpoint. If I add that to your 1 1/4" to the edge, I get 2" to the midpoint of the hole from that side. Seems like a big difference. Does it really need to be that much further in that what they are showing?


Viking Jeeper

2A Supporter
Supporting Member
Joined
Jan 10, 2019
Messages
2,567
Location
Jacksonville FL
I did the driver side first and the bar did not land exactly in the center of the hole so I adjusted for the passenger side. Problem is I adjusted the wrong way and the bar touched the trim on the passenger side. After the install it squeaked horribly. I had taken my door surround off to get a little extra room to work with and thought it was the surround that was squeaking. Once I figured out it was the bar and trim piece squeaking I dremeled the hole so it was no longer touching. You really have to bend over and look up to see the holes at all so they dont bother me.


glwood

Jeepless
Supporting Member
Joined
Sep 16, 2016
Messages
6,597
Location
Albuquerque, NM
The 5/8" measurement is very helpful, because I was having a hard time knowing where the 2.75" was being measured from.

For the 1 1/4" measurement, though, I think I'm more confused now. This one seemed more straightforward from their picture, but when I look at your measurement, it doesn't add up. The hole is supposed to be 1 1/2", so half that would be 3/4" to the midpoint. If I add that to your 1 1/4" to the edge, I get 2" to the midpoint of the hole from that side. Seems like a big difference. Does it really need to be that much further in that what they are showing?
I did it the way the instructions said for the passenger side, and it turned out to be wrong. I ordered another trim panel, did it using my measurements, it was right. It worked for me, your mileage may vary.


khakitj

TJ Enthusiast
Supporting Member
Joined
Sep 2, 2019
Messages
223
Location
NorCal
I did it the way the instructions said for the passenger side, and it turned out to be wrong. I ordered another trim panel, did it using my measurements, it was right. It worked for me, your mileage may vary.

Thanks. I had already ordered another trim panel because the current one on there has a big scratch on it. I'll use the scratched one for testing purposes.

  • Like
Reactions: JMT

afitzray97

Member
Joined
Aug 5, 2019
Messages
90
Location
TN
I would stop measuring and start worrying about hitting my head on a protruding object. Get some fabric grab handles that work pretty much the same and aren’t a safety hazard


chino1969

TJ Addict
Supporting Member
Joined
Apr 14, 2019
Messages
1,183
Location
Oxford, PA
Being a measure 1000x cut one kinda guy, these install instructions are a bit perplexing. I’ve ready on other forums to measure over 2.25 instead of 2.75, but not sure where I should start that measurement from? Anyone install a set of these on an 04-06? The top measurement is the easy one.

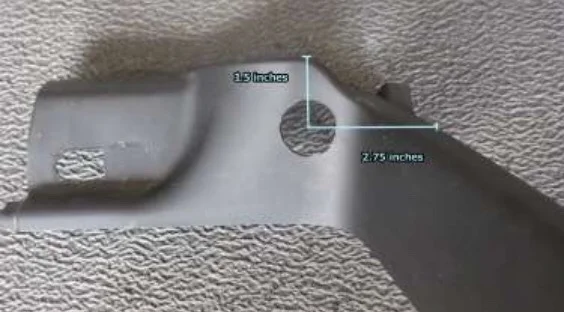

View attachment 44577


Sent from my iPhone using Tapatalk Pro

I installed these on my 2004 TJ and used various size hole saws to get them to fit up. Those measurements did not work for me and I didn't care about putting larger holes in the trim pieces. Unless you look specifically at that spot you can't even tell. My intent was to provide a secure hand hold for ingress and egress.

  • Like
Reactions: JeepZilla380

glwood

Jeepless
Supporting Member
Joined
Sep 16, 2016
Messages
6,597
Location
Albuquerque, NM
I would stop measuring and start worrying about hitting my head on a protruding object. Get some fabric grab handles that work pretty much the same and aren’t a safety hazard
Fabric grab handles don't even come close to working the same. Anyone who's had both will attest to that. If you don't like solid grab handles, don't use them, but don't try to convince anyone they're a safety hazard.


Mr. Bills

Essayist and Raconteur
Supporting Member
Joined
Nov 24, 2017
Messages
3,708
Location
Area Code 530
I would stop measuring and start worrying about hitting my head on a protruding object. Get some fabric grab handles that work pretty much the same and aren’t a safety hazard

They don't work pretty much the same. Not even close.

Since there is no place where bad news or negative reviews travel faster than the Internet, I googled "Grabar safety hazard jeep."

I found one thread. There, two participants with no automotive design, engineering, or accident reconstruction experience argued vociferously that Grabars are unsafe. Neither was able to provide a single example of an injury caused or exacerbated by a Grabar or Grabar copycat. A third poster wrote that he fractured his eye socket in an accident and believed he hit the factory plastic grab handle in his Dodge pickup. The louder the naysayers shouted, the louder they were shouted down. In the end there was no objective evidence to support either viewpoint.

https://www.********forum.com/f202/are-grabars-safe-1638593.html
[replace ******** with wrangler]

Maybe Grabars are a safety hazard and maybe they aren't. I'm not going to remove mine.

  • Like
Reactions: americanwrkmule

Viking Jeeper

2A Supporter
Supporting Member
Joined
Jan 10, 2019
Messages
2,567
Location
Jacksonville FL
I installed the brand name bars soon after I got my Jeep and a couple of shorter friends had a hard time getting in. Makes getting in and out so much easier. I still have the fabric ones PO had on. Free, just pay shipping.


chino1969

TJ Addict
Supporting Member
Joined
Apr 14, 2019
Messages
1,183
Location
Oxford, PA
Fabric grab handles don't even come close to working the same. Anyone who's had both will attest to that. If you don't like solid grab handles, don't use them, but don't try to convince anyone they're a safety hazard.

I have both and the Grab Bars are the ones I use to climb in and out of the Jeep. Falling on your ass is unsafe as you try to climb in and out of your Jeep without a sturdy hand hold. Haven't hid my head yet and I'm as graceful as a bull elephant in a storage shed.


Last edited:
