Heavy duty tie rod help

Andrew Tanner

New Member
Joined
Oct 2, 2016
Messages
3

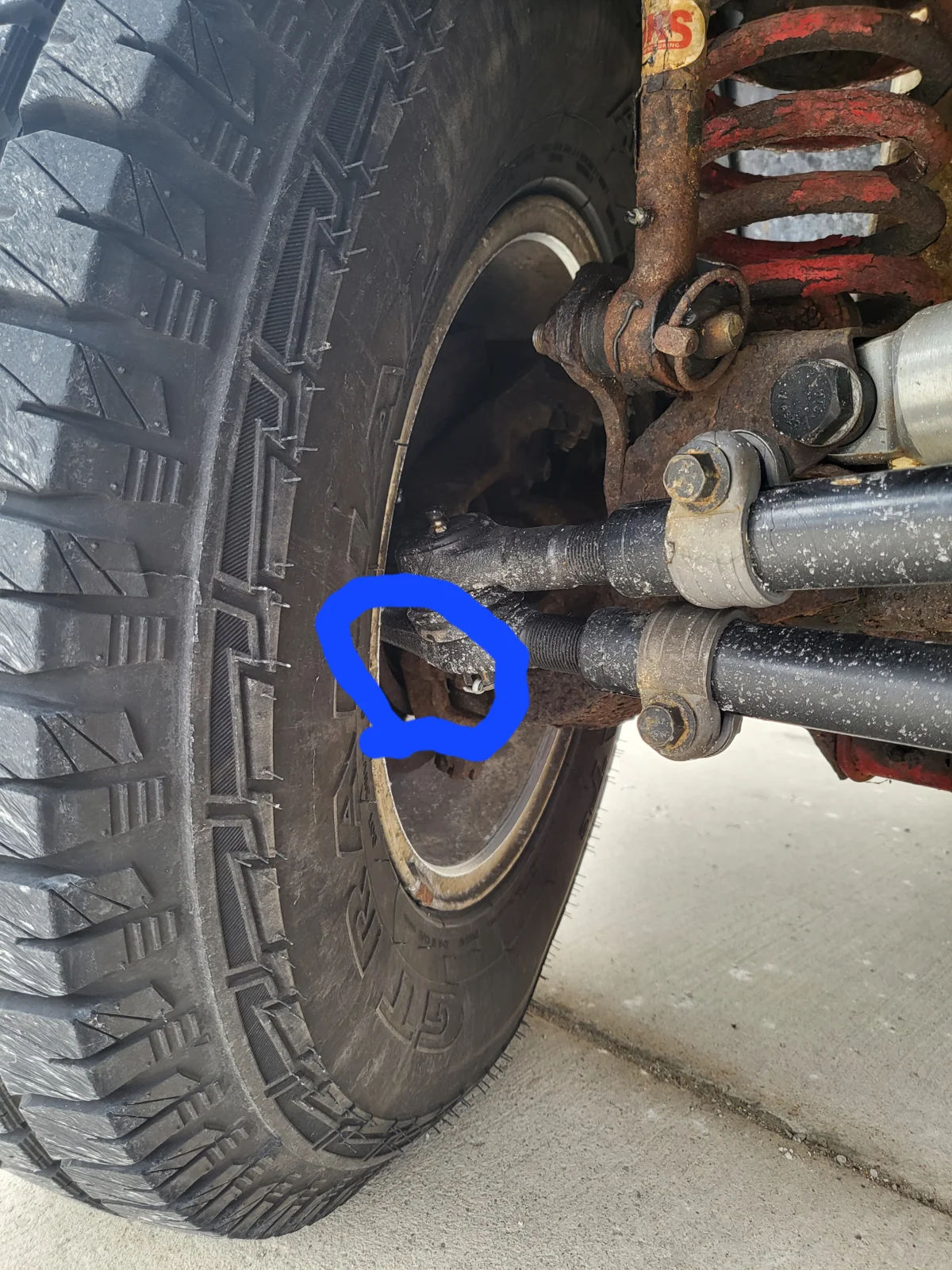

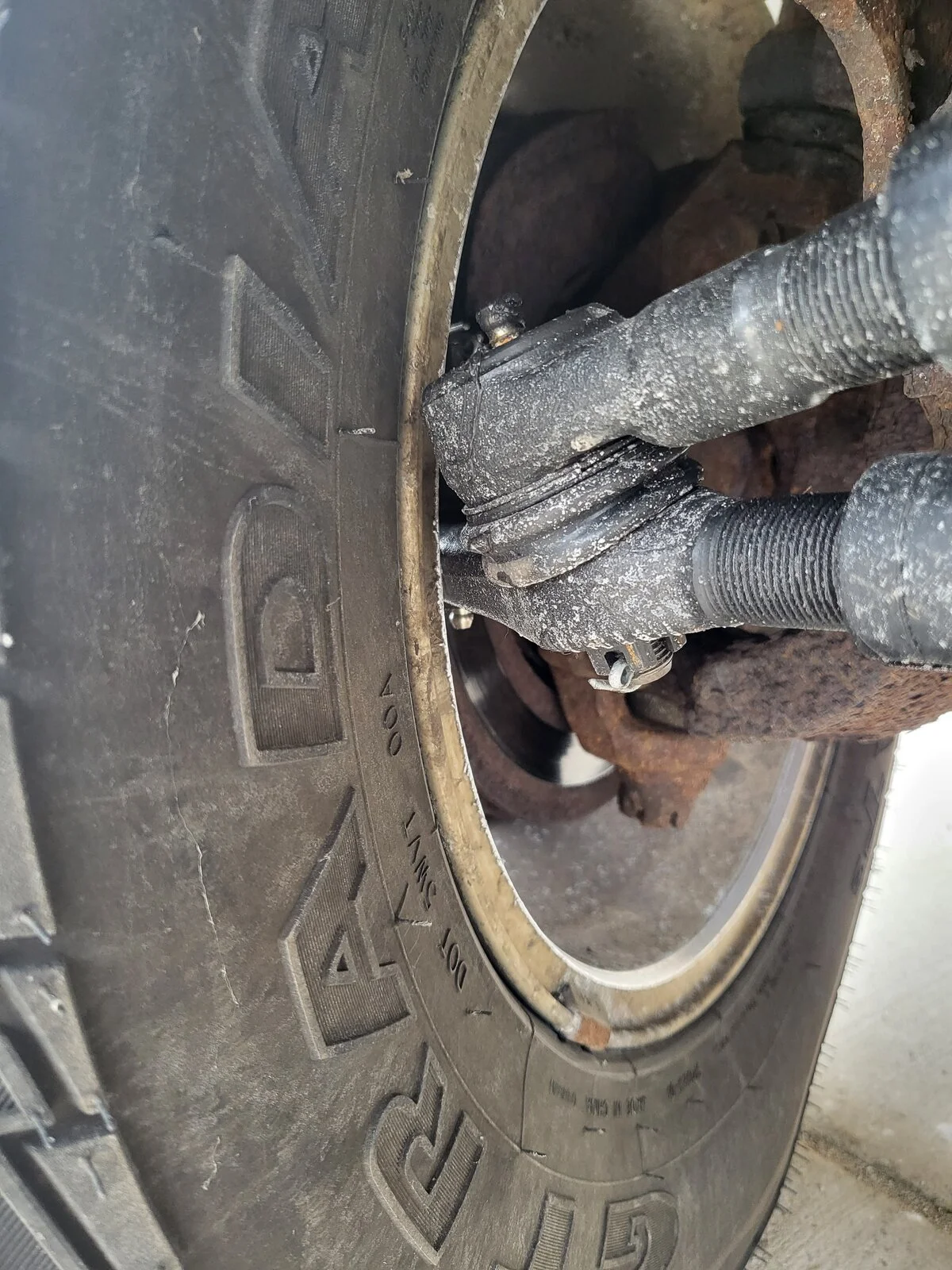

I installed heavy duty steering, new drag link and tie rod with fox steering dampner. Now i am rubbing on the inside of my rim. Should i just order wheel spacers or am i missing something 🤔







jjvw

secret beadlocks
Supporting Member
Ride of the Month Winner
Joined
Feb 17, 2018
Messages
23,020
Location
Colorado, USA
Did the heavy duty upgraded steering ruin the wheel while you drove around?

OP
A

Andrew Tanner

New Member
Joined
Oct 2, 2016
Messages
3

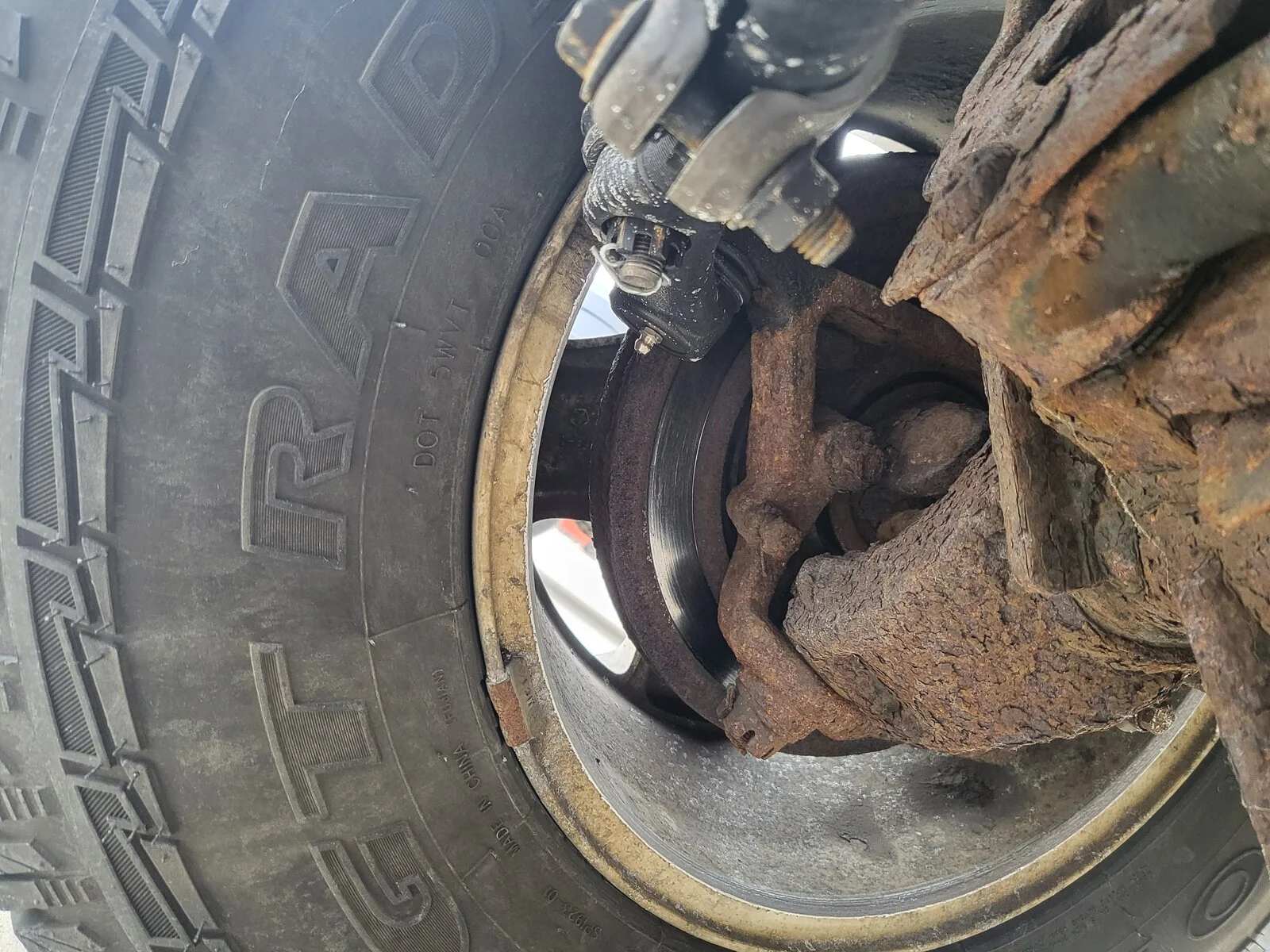

So i ordered rugged ridge heavy duty tie rod and drag link kit and i threw on a fox steering damper. I just bought this 98 to drive back and forth to work. Lots of parts are very worn out on this jeep i will be giving it love. Yes it does need brake work. Im not sure these are the stock wheels either ill have to get a few more pictures on break


jjvw

secret beadlocks
Supporting Member
Ride of the Month Winner
Joined
Feb 17, 2018
Messages
23,020
Location
Colorado, USA
So i ordered rugged ridge heavy duty tie rod and drag link kit ...

See post #2. You bought a poorly designed inverse T steering kit. Other than the obvious problem of ruining the wheel, this steering creates tie rod roll resulting in a dead spot of no steering until the entire system binds up. You will perceive this as slow steering response and wandering while driving. And there will be a small amount of bump steer because the drag link and track bar are no longer in a proper relationship.

OP
A

Andrew Tanner

New Member
Joined
Oct 2, 2016
Messages
3
Frame shoot what frame we here in Michigan dont have much of a frame left lol i have to fix rear passenger side of the frame needs new trail arm mount. Not a big deal for me cut it out weld in new send it! This isnt my main tj this is just a drive to work lol only manual tj i could find wasnt an arm an a leg, older women gave me a great deal and i told her i wouldn't part it out ill fix it

  • Like
Reactions: TheBoogieman

jkosten

Member
Supporting Member
Joined
Dec 30, 2022
Messages
38
Location
Sonoma County, CA
I feel better about my frame light rust now, but I feel for you. Look into rust mitigation options before it completely erodes away.
