Help identifying differential component

WhiteTJ Sahara

New Member
Joined
Mar 25, 2020
Messages
4
Location
Mississippi

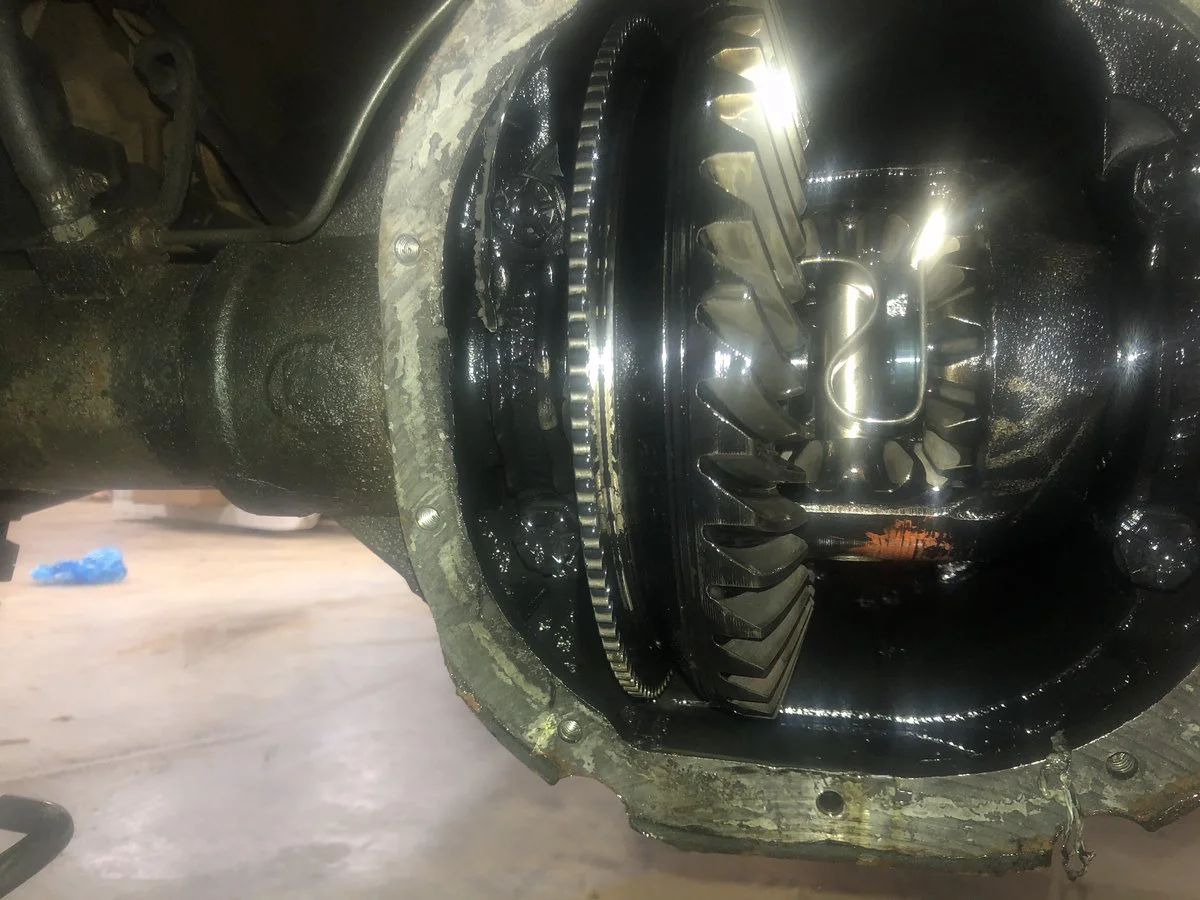

I don’t typically post anything but can anyone help me identify what this tone ring looking thing is? I believe this could be a rubicon differential as it is a Dana 44 with 4.10s. Not sure about the locker thing though. Any help is appreciated! The Jeep it is on is a donor and came with a Dana 35 and 3.07 gears from factory according to the vin. Thanks again!




OP
WhiteTJ Sahara

WhiteTJ Sahara

New Member
Joined
Mar 25, 2020
Messages
4
Location
Mississippi
That’s interesting. I originally believed it to be a rubicon when i saw the disc brakes it has in the rear...


someguysjeep

TJ Enthusiast
Lifetime Supporting Member
Joined
Nov 17, 2019
Messages
872
Location
ohio
the shape of that housing os odd. post good pic of the whole diff and the cover...looks like a WJ aluminum housing almost.

Justin might have it those dimples at the bottom. look like they match an 8.8.

  • Like
Reactions: Justin Homan

CharlesHS

TJ Enthusiast
Supporting Member
Joined
Mar 10, 2020
Messages
254
Location
Carmel Mountain
The differential appears to have a LS traction device and that is definitely a tone ring for ABS.
Can't see enough of the differential to determine what differential that is.

Actually after taking a closer look at that differential; I am mistaken about the LS....

Last edited:

Justin Homan

TJ Enthusiast
Supporting Member
Ride of the Month Winner
Joined
Oct 31, 2019
Messages
174
Location
Brentwood California
the shape of that housing os odd. post good pic of the whole diff and the cover...looks like a WJ aluminum housing almost.

Justin might have it those dimples at the bottom. look like they match an 8.8.
I verified the dimples match my 8.8. A picture from the front could make it even more clear.

  • Like
Reactions: someguysjeep

mrblaine

TJ Guru
Supporting Member
Joined
Nov 20, 2015
Messages
8,384
Location
Quail Valley, CA
the shape of that housing os odd. post good pic of the whole diff and the cover...looks like a WJ aluminum housing almost.

Justin might have it those dimples at the bottom. look like they match an 8.8.
I've not checked but I thought the WJ ran tone rings at the housing ends?


someguysjeep

TJ Enthusiast
Lifetime Supporting Member
Joined
Nov 17, 2019
Messages
872
Location
ohio
I've not checked but I thought the WJ ran tone rings at the housing ends?
not sure sir..... i just knew that housing was oddly flat at the bottom and if the OP claimed it was a 44 it was my best guestimate at a 44 with an odd shape
who knows what someone did. around here some hillbillys weld all kinds of crap into diffs to lock up permanent. for all i know that could be a southern ohio backlash adjuster.
but that housing was definately odd.

OP
WhiteTJ Sahara

WhiteTJ Sahara

New Member
Joined
Mar 25, 2020
Messages
4
Location
Mississippi

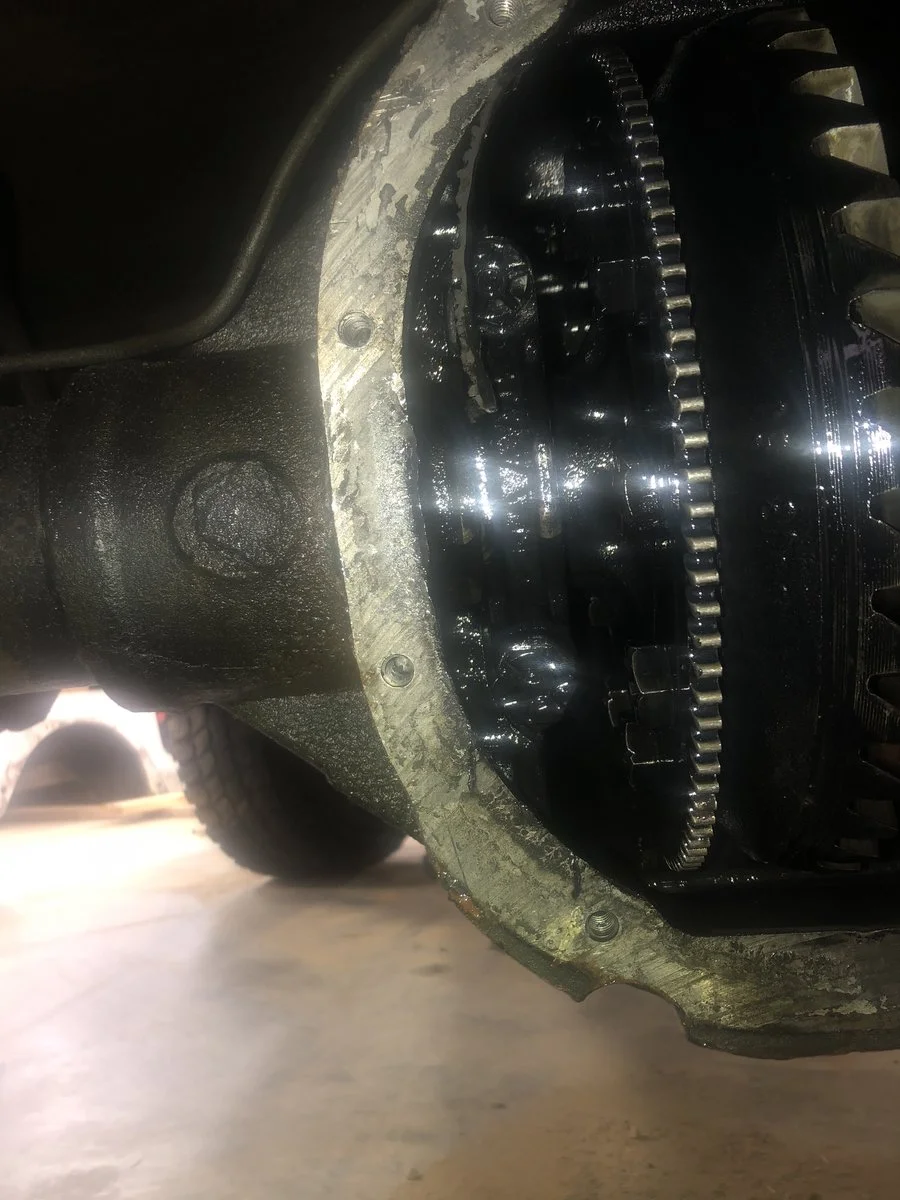

Yea after comparing it to my jk Dana 44 rear I’m now positive I was mistaken. I will post a picture of the housing and cover now.




OP
WhiteTJ Sahara

WhiteTJ Sahara

New Member
Joined
Mar 25, 2020
Messages
4
Location
Mississippi
So guys if i counted 41 teeth on the ring is that enough to justify it being 4.10 gears? Im not near the Jeep curently but im not completely familiar with this axle.


mrblaine

TJ Guru
Supporting Member
Joined
Nov 20, 2015
Messages
8,384
Location
Quail Valley, CA
So guys if i counted 41 teeth on the ring is that enough to justify it being 4.10 gears? Im not near the Jeep curently but im not completely familiar with this axle.
It is if there are 10 teeth on the pinion. If there are 11, it is 3.73, if there are 12, it is 3.41 and so on.
