Help me find out what axle I really have here

Kaptainkid1

Kaptainkid1

TJ Enthusiast
Joined
Aug 19, 2019
Messages
587
Location
Los Angeles

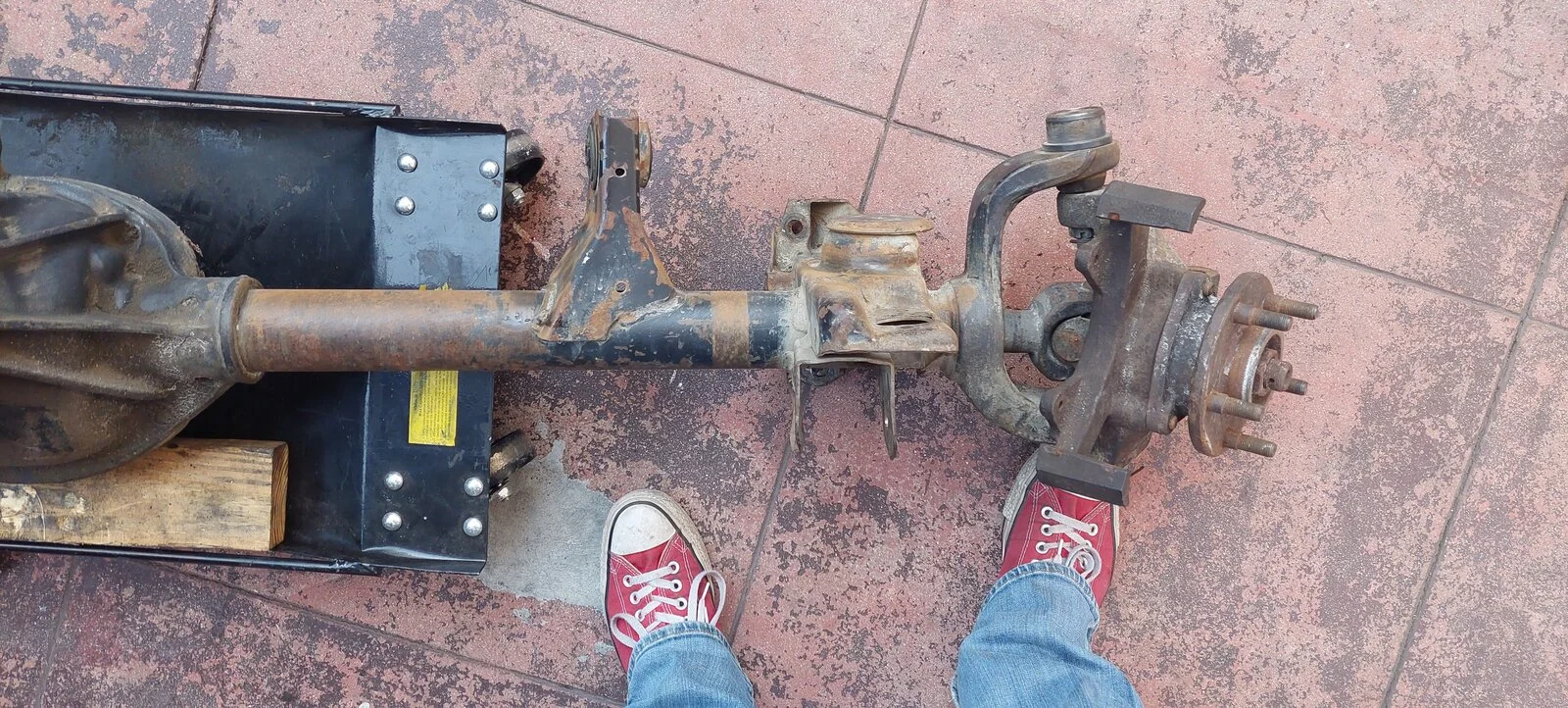

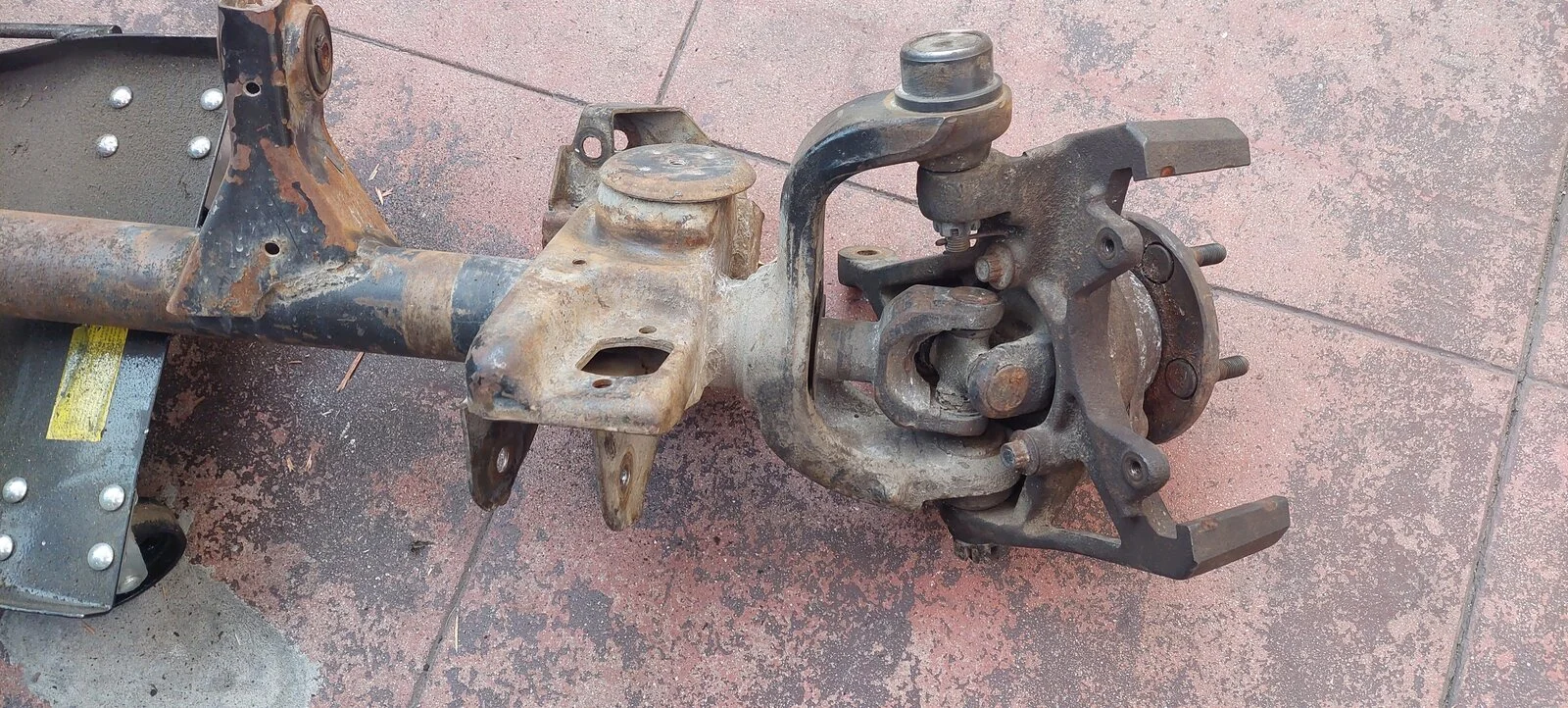

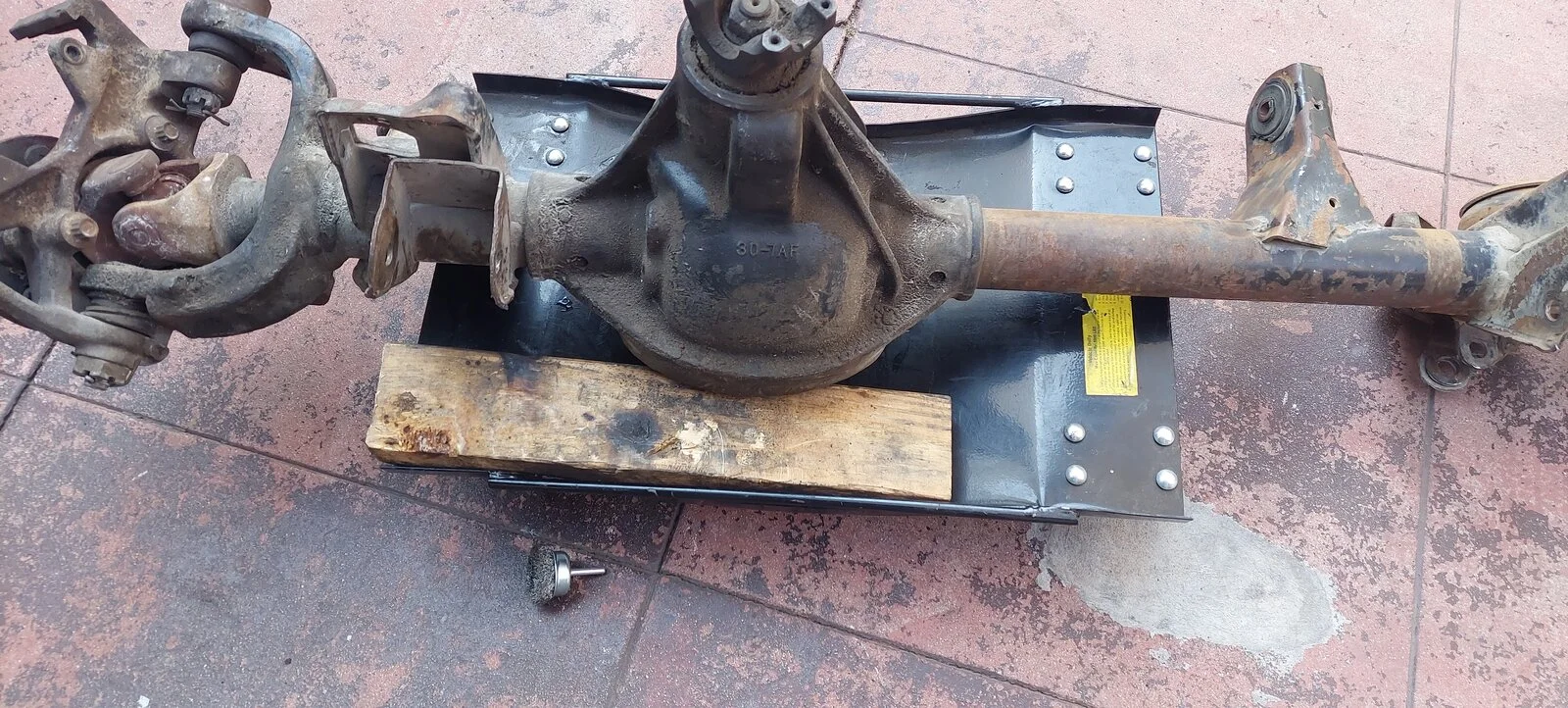

I just picked up a Dana HP30?
I want the TJ's forum opinion and help me find out what I really have here.
Do I really need to put on new brackets?

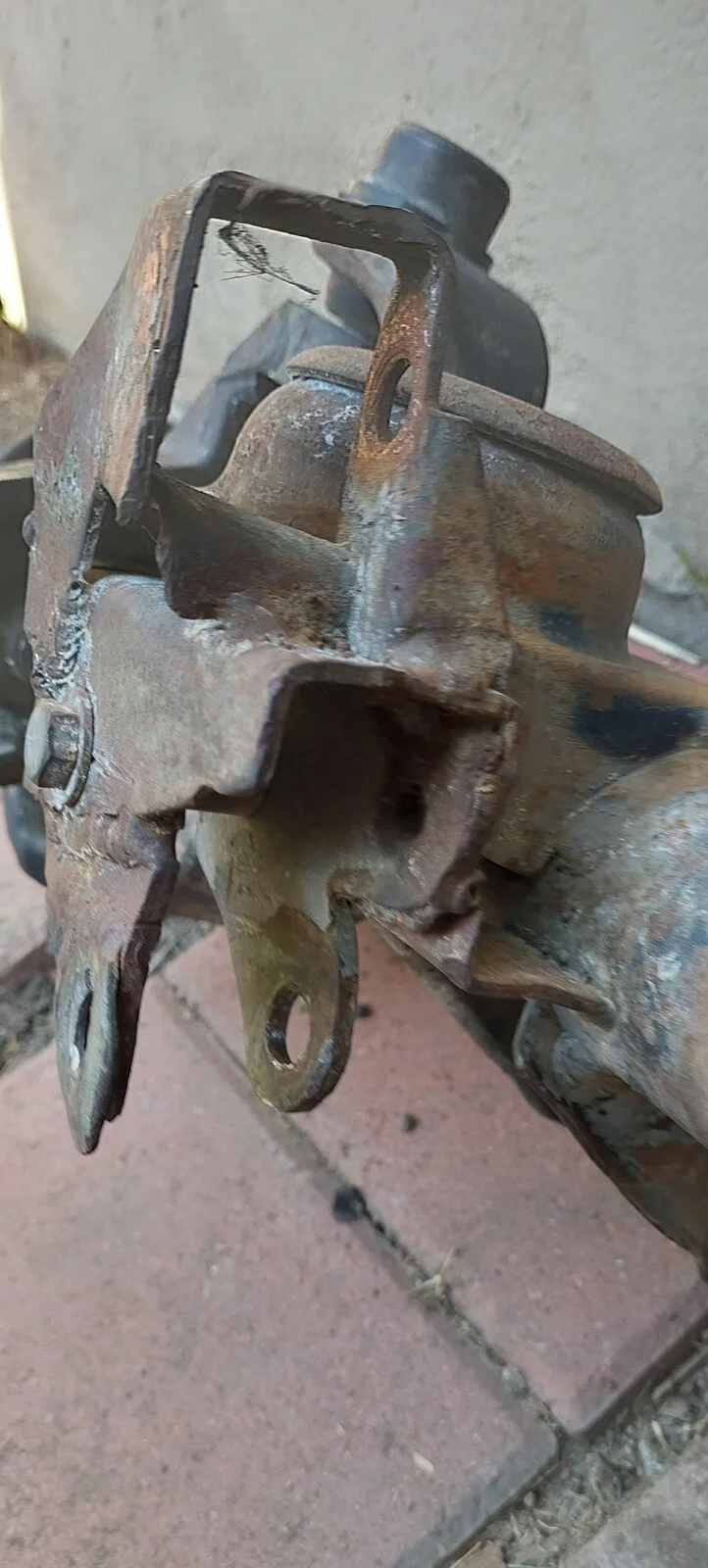

They look pretty beat up and thinking over going thicker for lower control arm brackets and sway bar brackets.

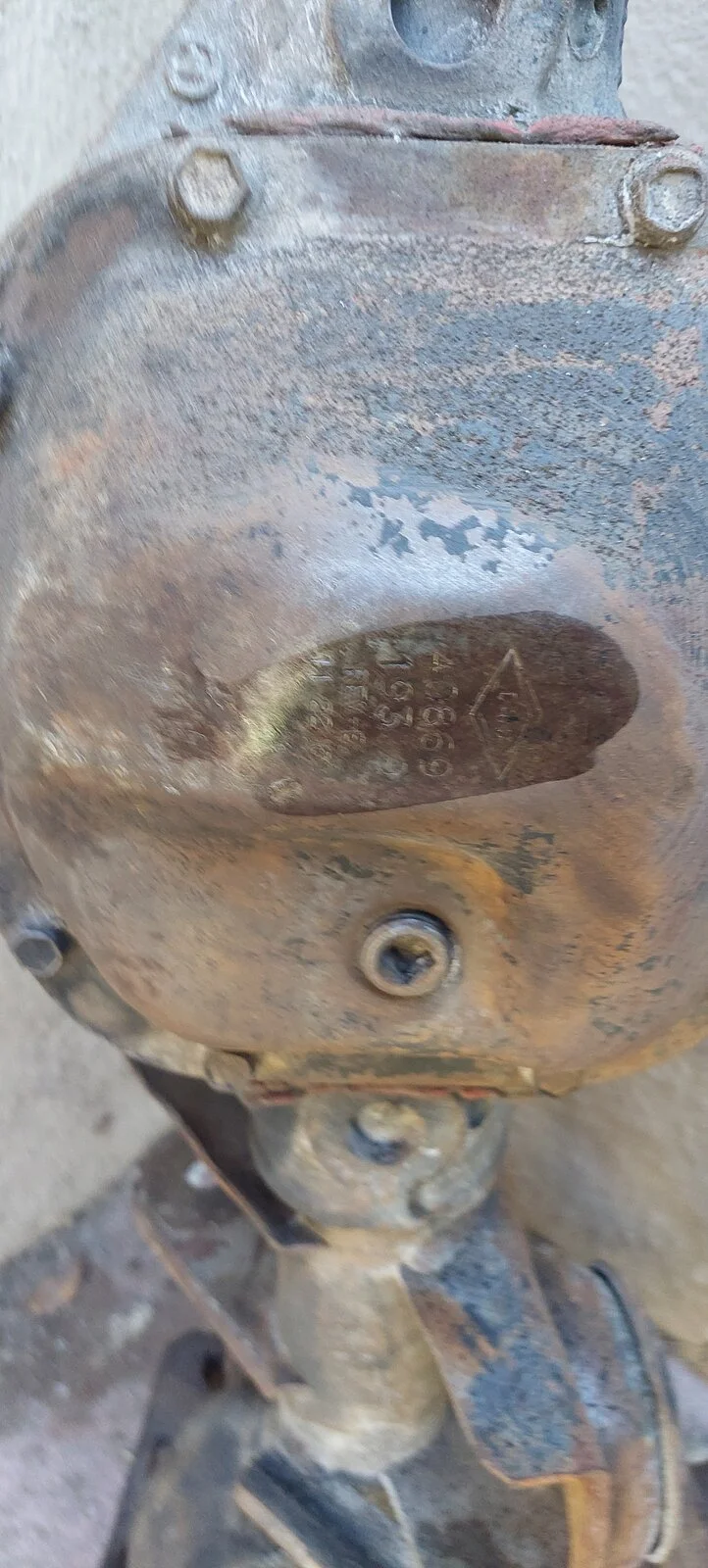

So I spun the yoke and 2.5 rotations and it spun the shafts 1x revolution.
What are gears ? 3.07 gears?
Just wondering because I'm going with 4.56 gears once I start building this Dana HP30.

Goal for this Dana HP30:
WJ swap....
Knuckles and dual piston calipers disc etc.
Steering control arms and new bushing and tie rods.
WJ brake upgrade mod Akebono brake calipers.
The goal is to run 35" on 17" steelie beadlock pro comps wheels. 4.56 or 4.88 gears with powertrax no slip up.
Trussed as well but haven't picked supplier yet.
Chromaly axles...
What do you guys think?


















CharlesHS said:
At the very least that tracbar bracket needs to be replaced....

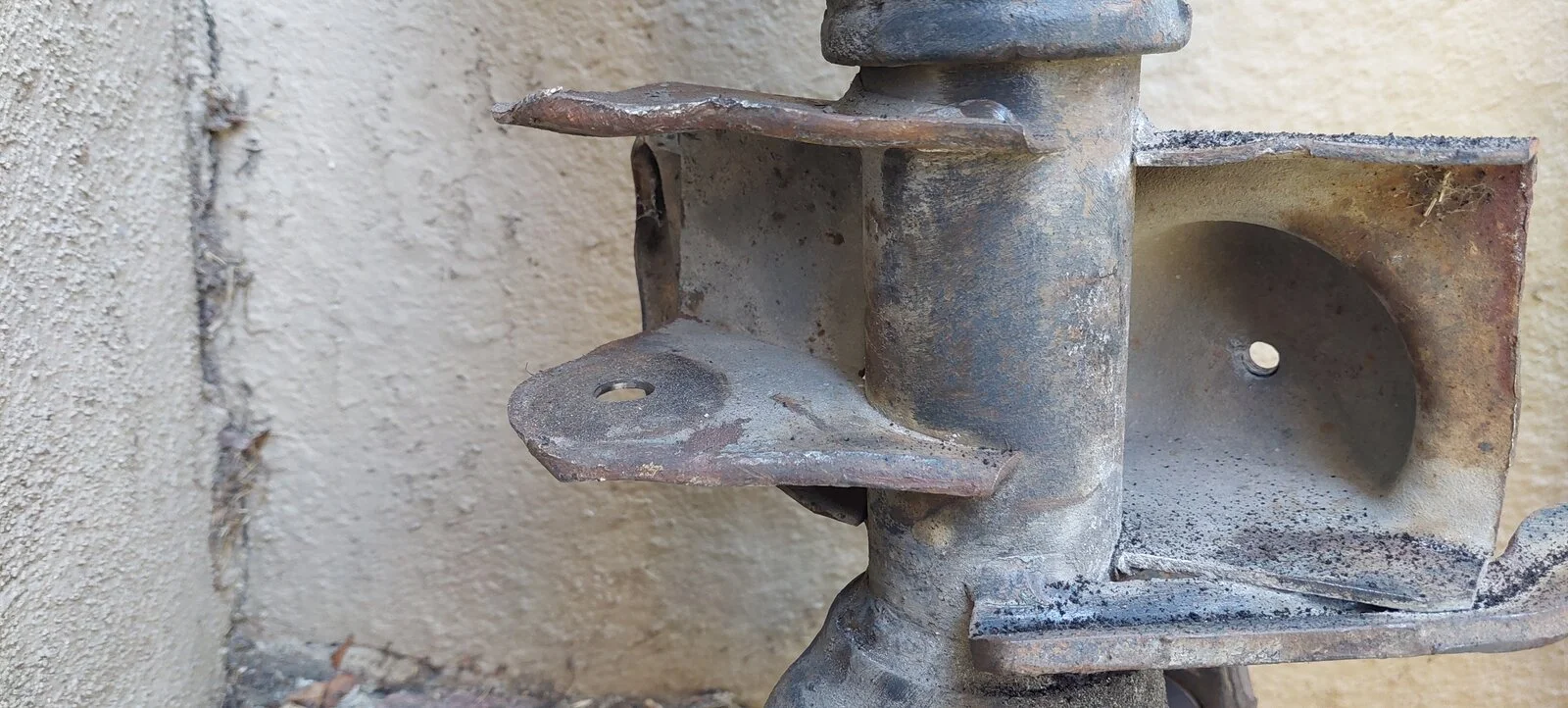

The tracbar bracket shown in picture 4 is nasty.....
Click to expand...
Yeah this Dana HP30 has a few problems but I'm very excited on building this axle on a budget with Junkyard parts and second hand or discounted stuff. I don't have deadline so couple years in making is serious possibility.
Does this axle look like HP30?

Kaptainkid1 said:
Yeah this Dana HP30 has a few problems but I'm very excited on building this axle on a budget with Junkyard parts and second hand or discounted stuff. I don't have deadline so couple years in making is serious possibility.
Does this axle look like HP30?
Click to expand...

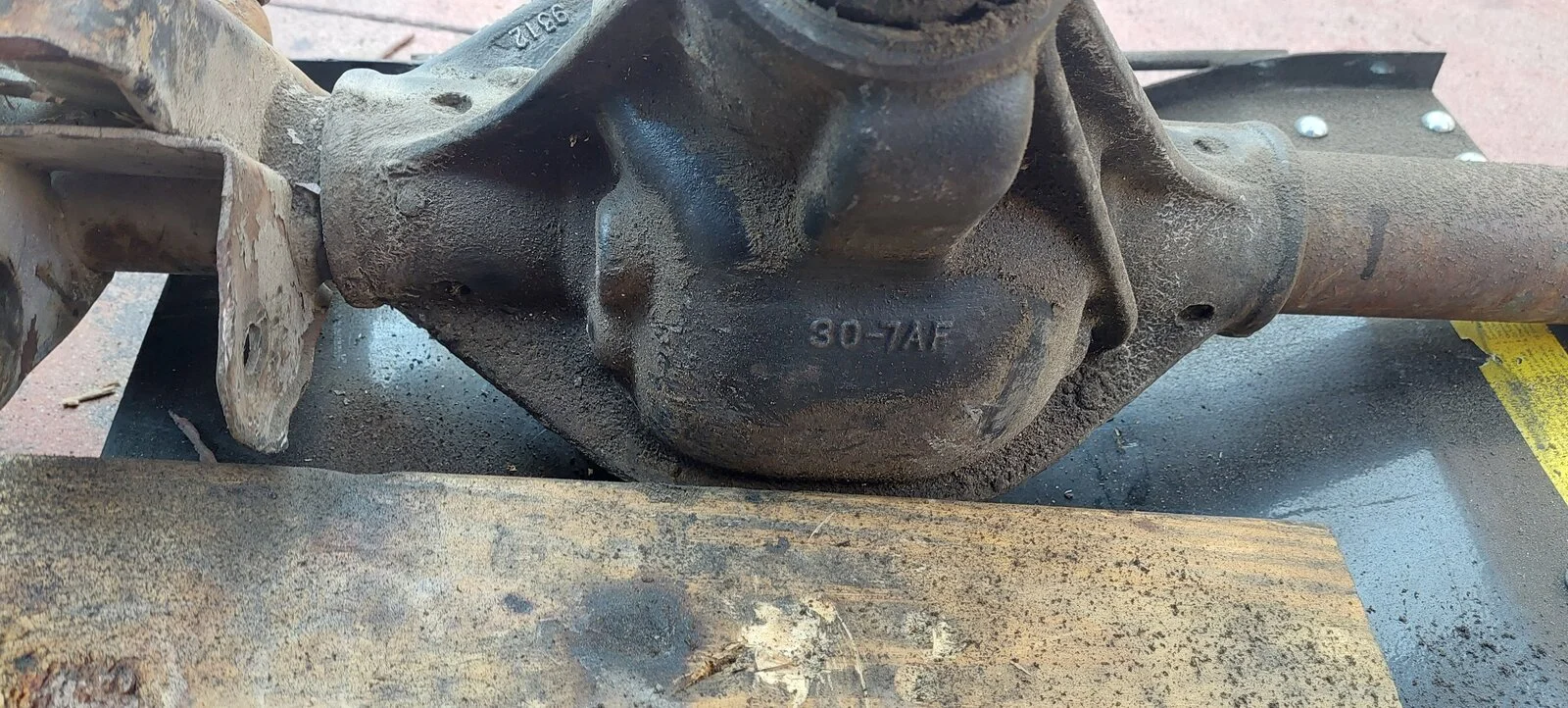

The 30-7AF indicates that Dana 30 came from a late 90s Jeep (XJ/TJ) so it should be a HP30.

Last edited:
  • Like
Reactions: Kaptainkid1
CharlesHS said:
The 30-70AF indicates that Dana 30 came from a late 90s Jeep (XJ/TJ) so it should be a HP30.
Click to expand...
What year TJs had a HP30? :unsure:

XJ Dana 30 high pinion - reverse cut - 27 spline, 1.16" diameter shafts, 7.13" ring gear - used 84-99 (some axles through 91 are vacuum disconnect, 92+ are non-disconnect, 89-95 with ABS have 5-297x u-joints, all 95+ have 5-297x u-joints, all others have 5-260x u-joints). XJs stopped using them for 00-01. Not a big deal though.

Last edited:
  • Like
Reactions: CharlesHS and Irun
new knuckles won't change anything unless they are aftermarket hi-steer's.
and a truss is not needed unless it's to be used for link mount relocation.

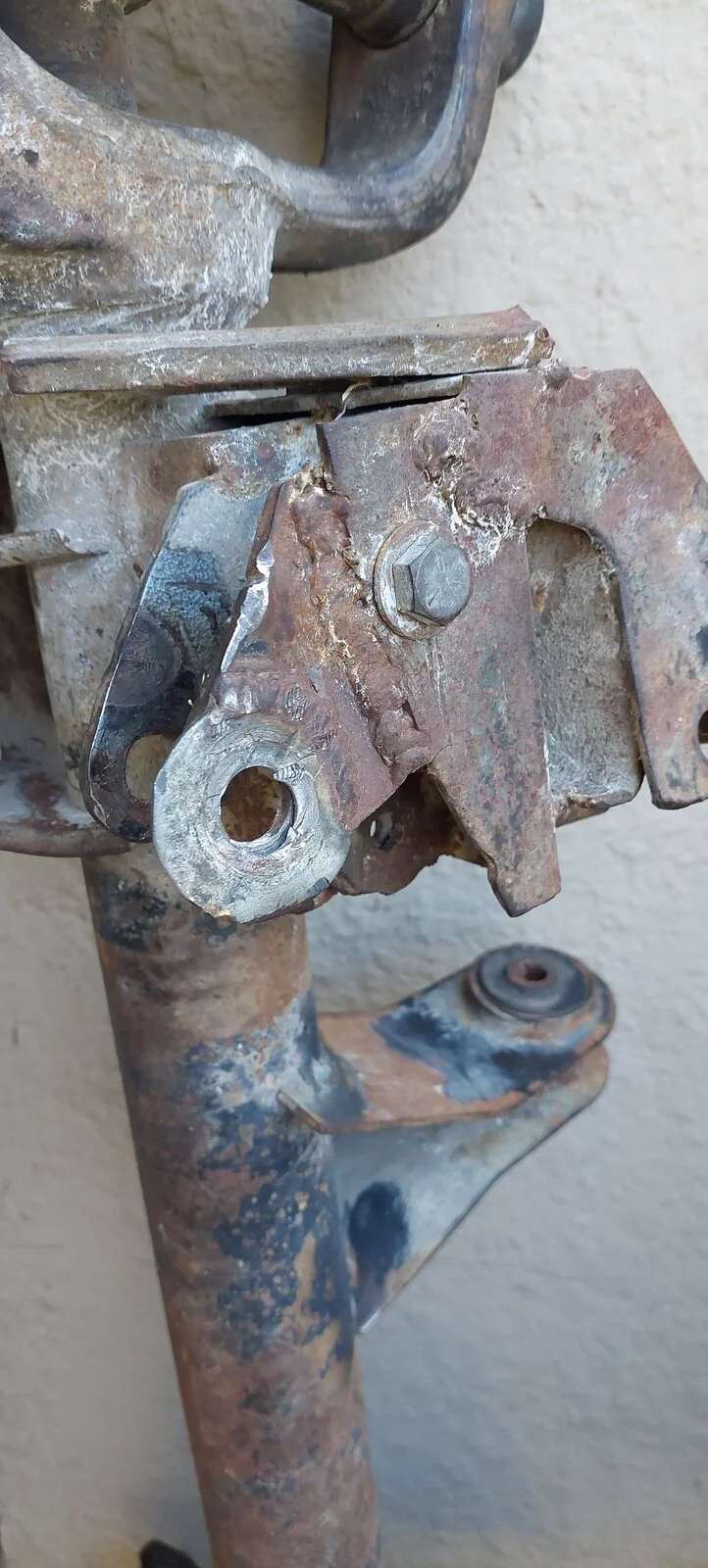

stand back and look at it 1 more time............. torn up the TB mount, both lowers have been pounded to shit, the stabilizer mounts been torn up.............that axles been beat and it ain't bent yet.

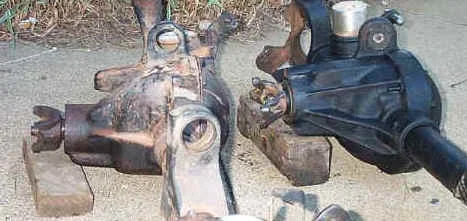

the thing i can't figure is why did they scalp the pumpkin? the upper right stiffener on the dif socket is cut away.

Akebono? are your aware of Black Magic Brakes?

  • Like
Reactions: Wildman
Kaptainkid1 said:
I just picked up a Dana HP30?
I want the TJ's forum opinion and help me find out what I really have here.
Do I really need to put on new brackets?
They look pretty beat up and thinking over going thicker for lower control arm brackets and sway bar brackets.

So I spun the yoke and 2.5 rotations and it spun the shafts 1x revolution.
What are gears ? 3.07 gears?
Just wondering because I'm going with 4.56 gears once I start building this Dana HP30.

Goal for this Dana HP30:
WJ swap....
Knuckles and dual piston calipers disc etc.
Steering control arms and new bushing and tie rods.
WJ brake upgrade mod Akebono brake calipers.
The goal is to run 35" on 17" steelie beadlock pro comps wheels. 4.56 or 4.88 gears with powertrax no slip up.
Trussed as well but haven't picked supplier yet.
Chromaly axles...
What do you guys think?
Click to expand...
If you are re-gearing don't worry about the current ratio. Generally speaking 4.88 is the ratio more recommended for 35s. If the ratcheting sound bothers you then go with the powertrax no slip or a selectable locker. Otherwise I would recommend the torq locker, super easy install. Since you are more than likely going to weld or get someone else to weld I would add

https://liftkits4less.com/catalog/p...DVDKlNdYZKQKGiPUgR10J-6ffdMBqK5RoCUOgQAvD_BwE

CharlesHS said:
At the very least that tracbar bracket needs to be replaced....
The tracbar bracket shown in picture 4 is nasty.....
Click to expand...
If he plans on going to a WJ steering, all that will be cut off anyway. ;) He'll need to contact JKS for the over the axle bracket unless he's going to fab something himself.

Andy-WhiteTJ said:
If he plans on going to a WJ steering, all that will be cut off anyway. ;) He'll need to contact JKS for the over the axle bracket unless he's going to fab something himself.
Click to expand...
the pitman line to the knuckle is gonna dicitate where he can place the axle end of the TB. not where some other vehicle had it.

diggin those levers on the steering limbs in post 14, yikes.

Last edited:
mrblaine said:

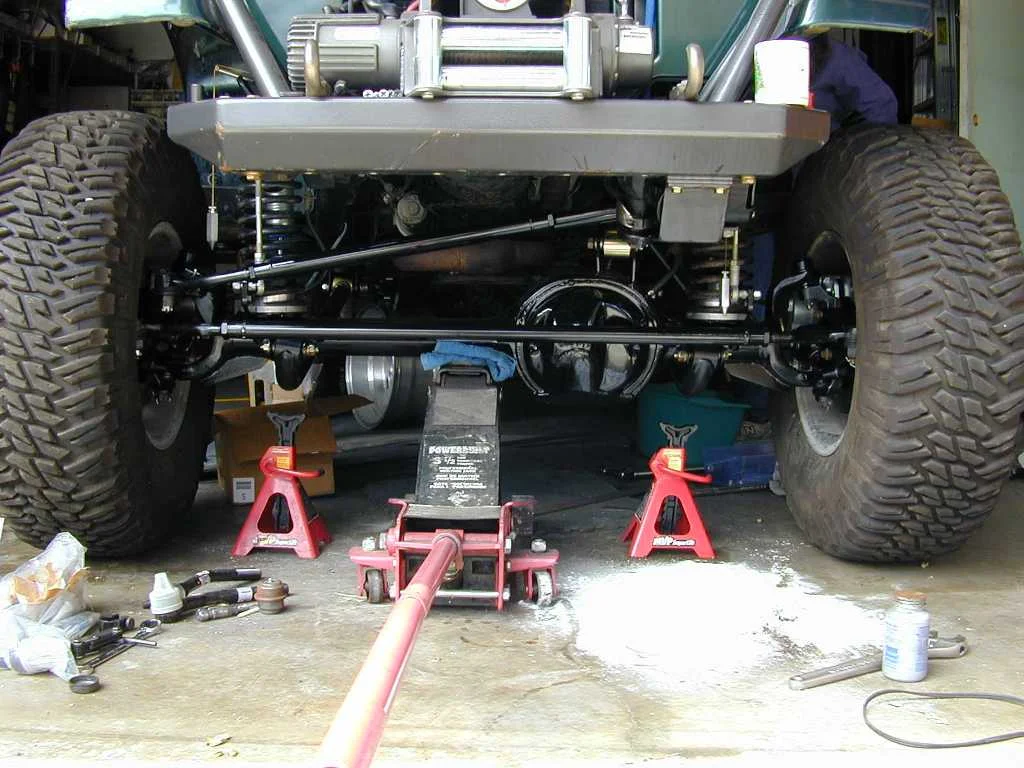

Look at everything above the axle tubes. The trackbar is there, right behind the draglink just like it is supposed to be.
Click to expand...
That's why I never noticed the J-arms. I was always looking for/at the track bar. Beautiful design on where it all attaches to the passenger knuckle and inner-C.

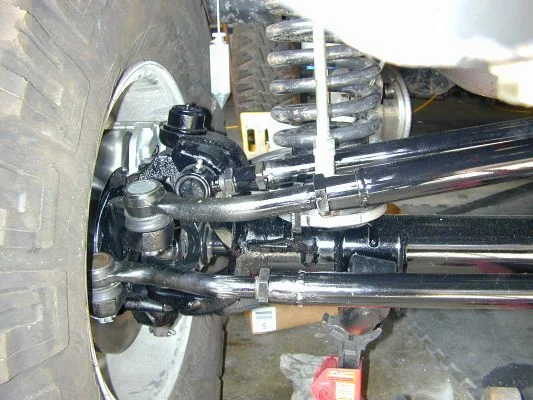

Blaine's Steering.jpg
