Help with transmission identification

hear

Can't type
Lifetime Supporting Member
Joined
Oct 18, 2020
Messages
3,356
Location
Prosper, TX
Found a guy selling a transmission & t-case off a "94 jeep." As far as I can tell the only autos used in TJ/YJ/XJ/ZJ were the 30RH/A904, 32RH/A999, AW4, and 4(2|5|6)R(L)E, and this is none of those. Just in case he meant "84" it doesn't look like a TH400 either. I also don't recognize the transfer case & note the lack of extension housing, but I wouldn't say t-case identification is my superpower.




The transfer case looks like chevy stuff maybe 208 or 241?

Ask him to look at the circular tag on the transfer case

Found a guy selling a transmission & t-case off a "94 jeep." As far as I can tell the only autos used in TJ/YJ/XJ/ZJ were the 30RH/A904, 32RH/A999, AW4, and 4(2|5|6)R(L)E, and this is none of those. Just in case he meant "84" it doesn't look like a TH400 either. I also don't recognize the transfer case & note the lack of extension housing, but I wouldn't say t-case identification is my superpower.

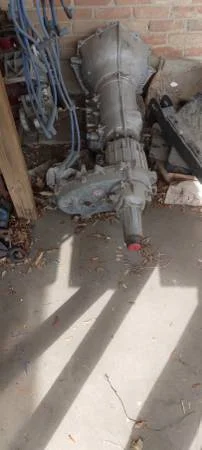

View attachment 514678

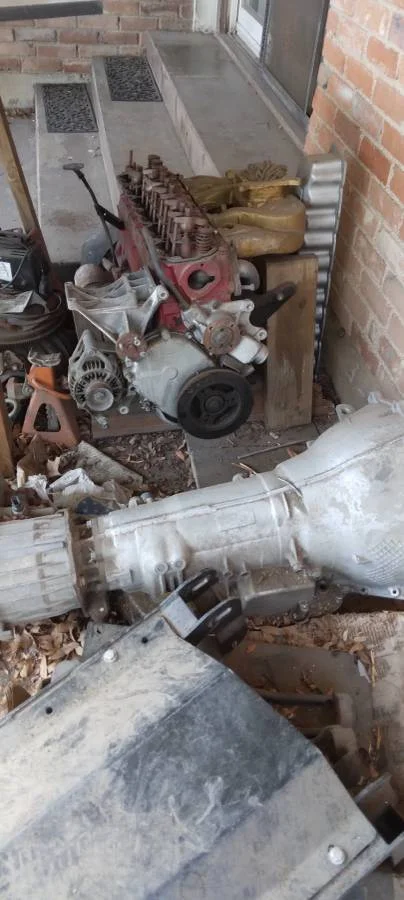

View attachment 514680

It IS a TH400. https://www.ss396.com/cars/history-of-the-th400-transmission/

TC is probably a NP208/207, NP228, or NP229.
