HVAC switch and wiring

[WMattK]

2000 TJ previous owner messed this thing up. Cutting wires, adding their own.
My problem is: 5 wire plug connects to the switch. The switch would only work on LO, or HI, nothing in between. I replaced the blower motor, the resistor, and the dash switch, no change. What do I look for? I already broke the knob post. So, I already need a new switch. What colored wires do what on this switch?
THANKS EVERYONE



[WMattK]

Oops, AC/HTR switch



[LONGJP2]

@WMattK
Welcome

Service manual for wiring diagram.



[WMattK]

@WMattK
Welcome

Service manual for wiring diagram.

Saw no service manual for 2000, I’ll look in the 1999



[CharlesHS]

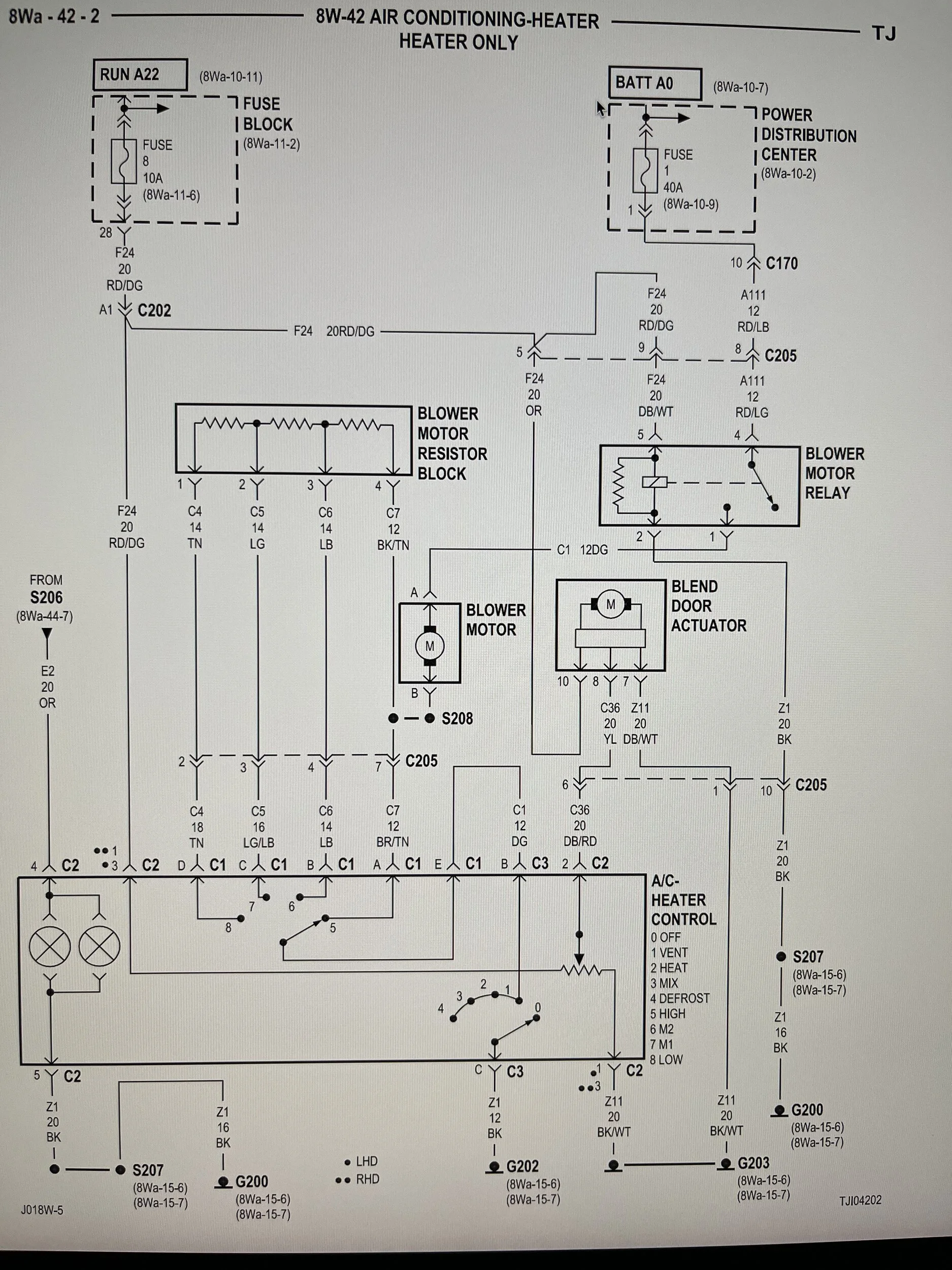

Hope this assists you in troubleshooting the wiring circuit ...



[hear]

Saw no service manual for 2000, I’ll look in the 1999

its definitely there. They're sorted weird, so it's easy to miss the one you're looking for.



[WMattK]

Is it possible for someone, to tell me what color goes to which post on the back of the switch. And/or does anyone know where I can get a new/used connector with wires to splice into the harness. Without the connector, the wires must stay in the correct place,otherwise the connections inside the switch. Mine was burned pretty bad, so when I tried to pry it apart, pieces flew everywhere.



[WMattK]

@WMattK
Welcome

Service manual for wiring diagram.

Thank you
