Is something missing from my rear lower spring perch?

jazngab

Not sure how I ended up here
Supporting Member
Joined
Aug 23, 2018
Messages
1,815
Location
Montgomery County, PA, USA

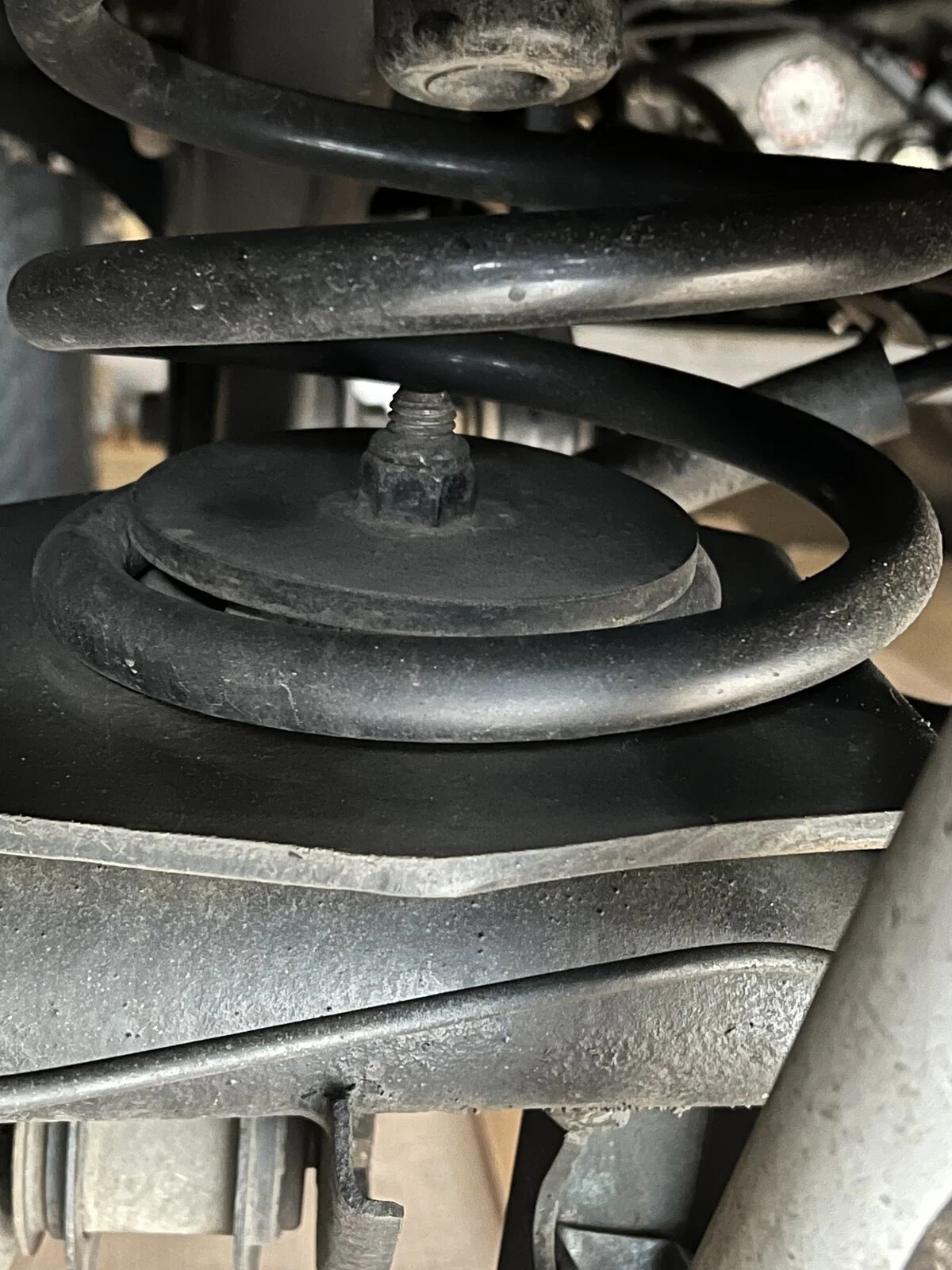

My rear lower spring perches have the nut and bolt exposed. It has a retainer plate that holds the lower spring in place. The bolt tears up my bump stop when it contacts. Something I’ve noticed, every other TJ rear lower spring perch I’ve seen has the raised pad to contact the upper bump stop. Am I missing something or is this how some rear axles came from factory. FWIW, it’s a Dana 44 that came from a TJ sport.



JMT

Saxum Erepo 🪨
Supporting Member
Ride of the Month Winner
Joined
Feb 27, 2017
Messages
19,046
Location
🌎
My rear lower spring perches have the nut and bolt exposed. It has a retainer plate that holds the lower spring in place. The bolt tears up my bump stop when it contacts. Something I’ve noticed, every other TJ rear lower spring perch I’ve seen has the raised pad to contact the upper bump stop. Am I missing something or is this how some rear axles came from factory. FWIW, it’s a Dana 44 that came from a TJ sport.

View attachment 394784

That shouldn’t be there. I can’t tell exactly what’s under what looks like a round plate. I’d remove that nut and then the bolt if you can or if not cut off the bolt and weld on the round plate if you need it or just remove it if you can

  • Like
Reactions: jazngab

JMT

Saxum Erepo 🪨
Supporting Member
Ride of the Month Winner
Joined
Feb 27, 2017
Messages
19,046
Location
🌎
Yeah, I suspect that bolt is somehow attached to or through bolted into the axle tube. 🙄
