Jeep Wrangler TJ Torque Specs

[Chris]

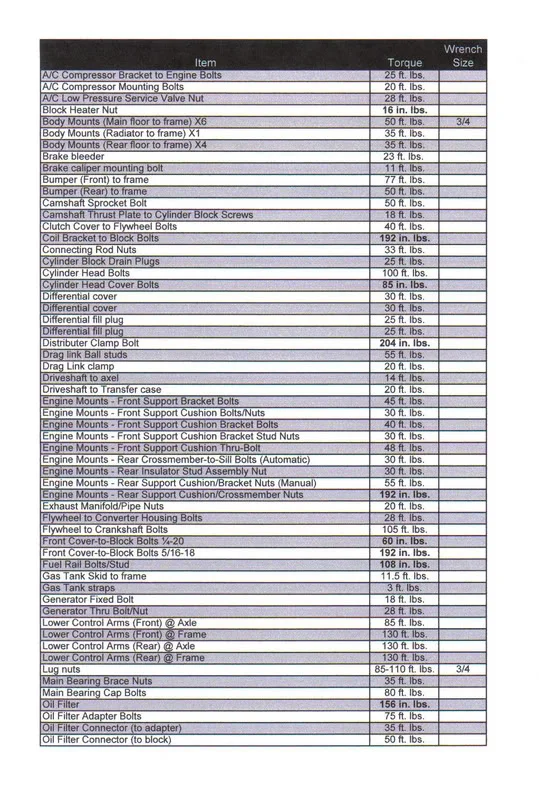

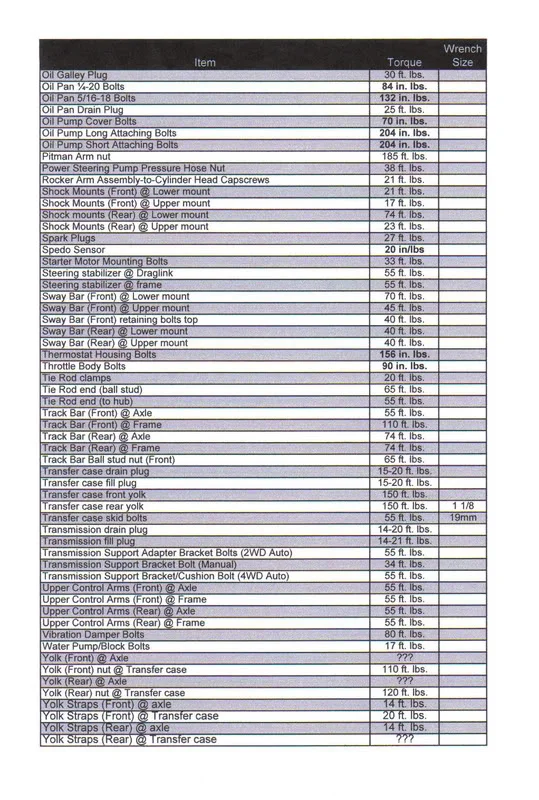

I thought that this might be helpful for those of you who are constantly trying to find torque specs.

It's worth noting that if you don't have one already, you should have a copy of the FSM (Factory Service Manual) as it has all the torque specs in it.

However, I understand being lazy (since I'm lazy a lot) and wanting an immediate answer. So, this should help give you guys a quick and easy answer for torque specs as they pertain to your TJ.



[burghermike]

Chris, thank you very much. Much easier to read the phone than book while under the JEEP. Thanks again for your diligent efforts. Nicely done!


Sent from my iPhone using Tapatalk



[tquig01]

Awesome Chris! I was googling the torque specs for the body mounts and this was at the top of the search- this site rocks!!



[RD3]

Very cool of you and helpful. I need the brake caliper specs today



[fraserjm]

I thought that this might be helpful for those of you who are constantly trying to find torque specs.

It's worth noting that if you don't have one already, you should have a copy of the FSM (Factory Service Manual) as it has all the torque specs in it.

However, I understand being lazy (since I'm lazy a lot) and wanting an immediate answer. So, this should help give you guys a quick and easy answer for torque specs as they pertain to your TJ.

View attachment 11115 View attachment 11116

Thank you



[k-huevo]

Thank you very much Chris!



[Allstar424]

Thank you Chris! I will be doing a once over this weekend for the suspension and steering components.



[MaloStapalo]

I like the ??? mark's on the yoke specs. Could be 8, or 80 no one knows!



[MsLarr]

I thought that this might be helpful for those of you who are constantly trying to find torque specs.

It's worth noting that if you don't have one already, you should have a copy of the FSM (Factory Service Manual) as it has all the torque specs in it.

However, I understand being lazy (since I'm lazy a lot) and wanting an immediate answer. So, this should help give you guys a quick and easy answer for torque specs as they pertain to your TJ.

View attachment 11115

View attachment 11116

Thank you!



[Rubiconned]

Yolk? Ok, that must be the Easter eggs my kids hid under my jeep. lol.
