LED backup lights

[Claytone]

Price

$22 or $30

Location

Centennial CO

Price update, $32 shipped due to postage increase. Each addl pair is $22 more, no extra shipping.
***See the last posting page for the latest availability. My parts come in so slowly that I don't want to have a long list again. When I get these parts and make a few, I open it back up. When that quantity is sold I'll change the thread back to closed until I can make more.***

Selling a pair of bright LEDs that fit inside the stock TJ tail light housing.

They mount on the sheet metal housing separator plate. I’ll include a proper sized nail that works as a transfer punch to mark where you drill the mounting holes.

Plug the connector into the reverse bulb socket, no wiring alterations required.

These have a nice heat sink and get pretty warm in operation.

The pair draws around 1.6 amps.

$22 for local pickup and $32 shipped in a small USPS flat rate box.

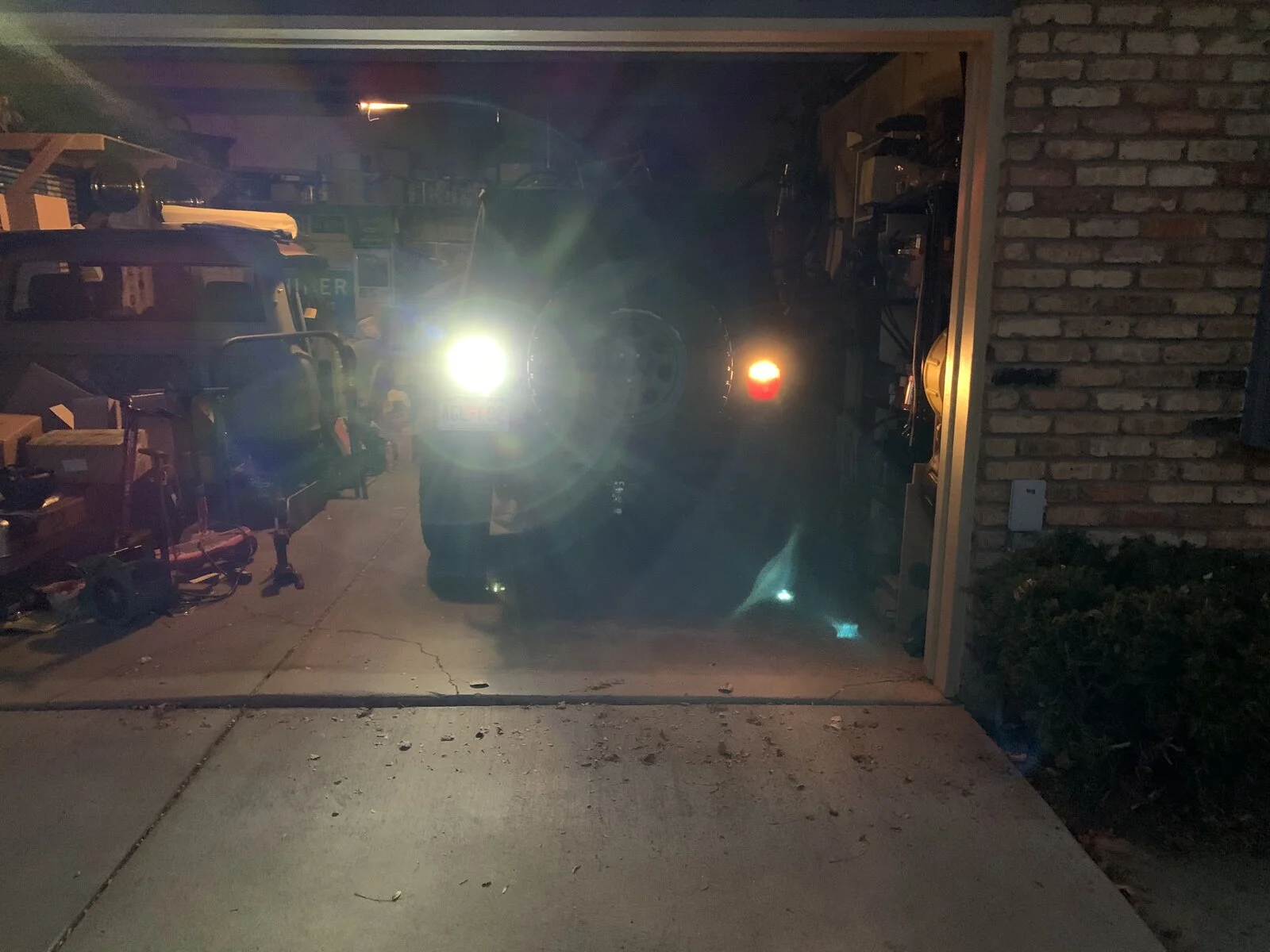

One side installed for comparison



[Claytone]

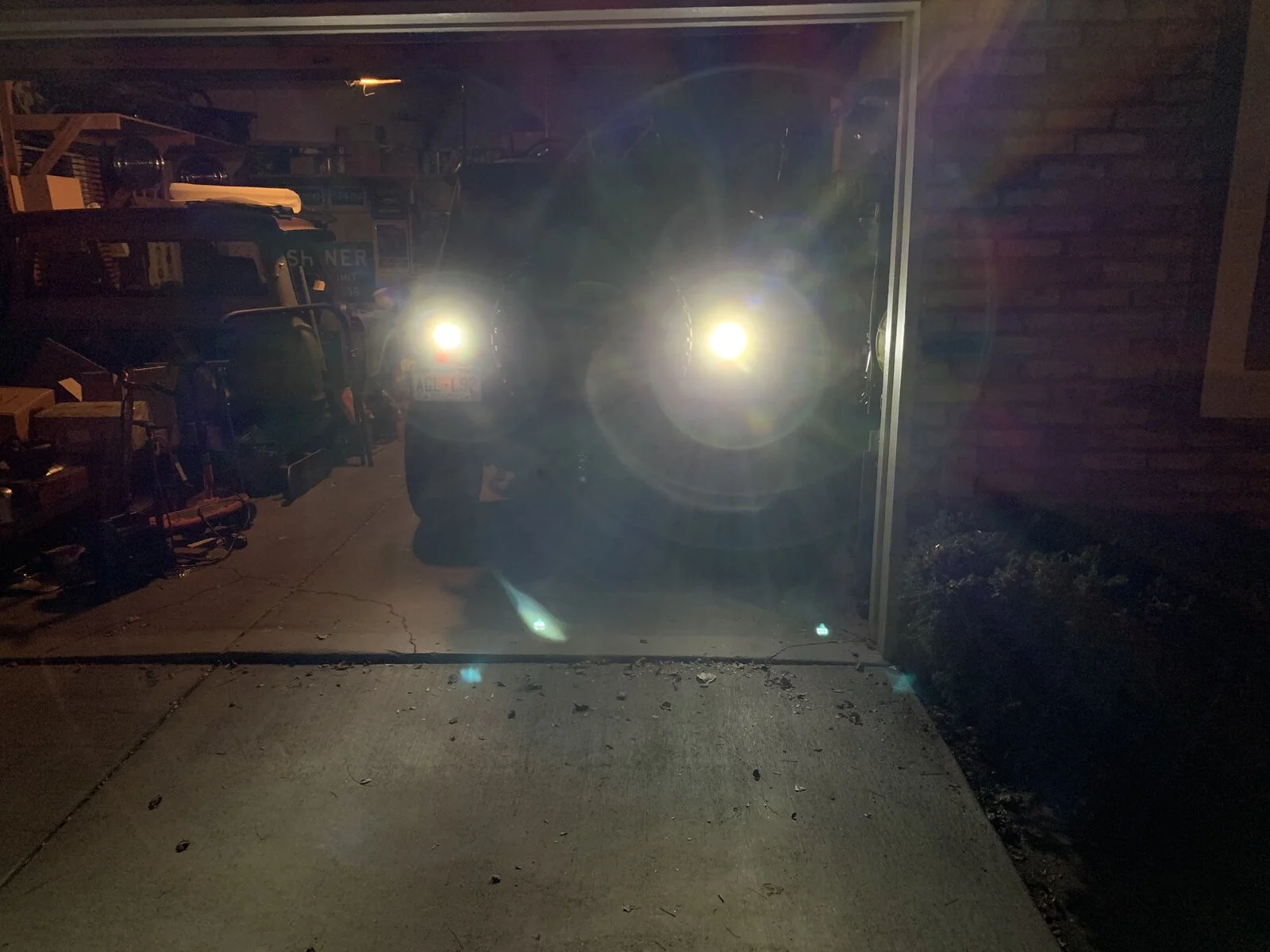

Both installed



[Claytone]

The plate with the 11/64 drilled holes in it, and the high tech transfer punch.

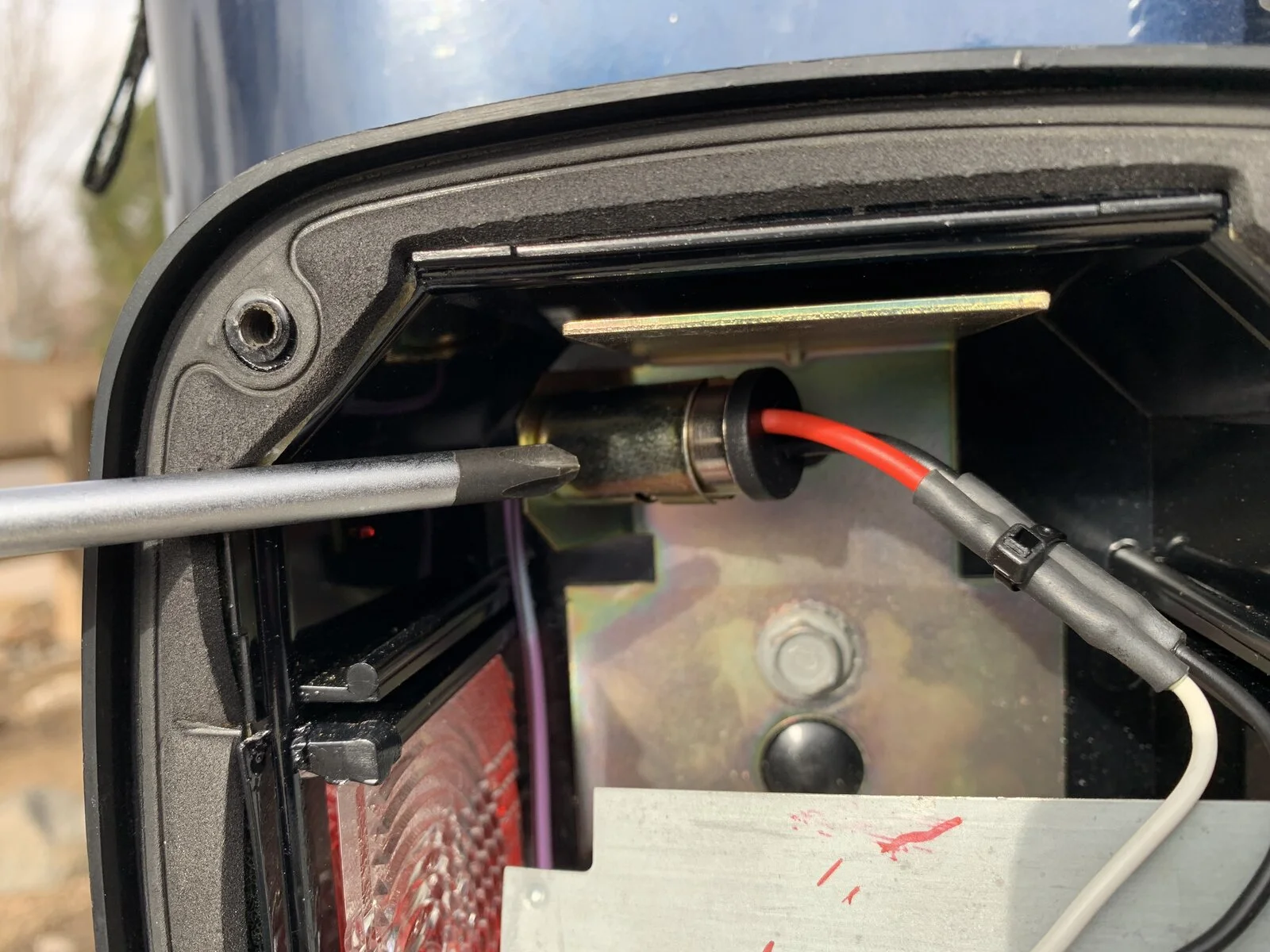

I put the light in so that the edge of the LED lens was even with the metal plate. Your install depth may vary depending on clearance to the tail light cover. Mine just touches it, but doesn’t push it off the seal.

Depending on your housing, you may need to bend this bulb holder tab back towards the body for clearance. I had to on one side of mine but not the other.



[Jramos013]

Just pmed you



[Claytone]

I have 2 sets left



[Byhumba]

Selling a pair of bright LEDs that fit inside the stock TJ tail light housing.

They mount on the sheet metal housing separator plate. I’ll include a proper sized nail that works as a transfer punch to mark where you drill the mounting holes.

Plug the connector into the reverse bulb socket, no wiring alterations required.

These have a nice heat sink and get pretty warm in operation.

The pair draws around 1.6 amps.

$22 for local

Sent you a PM. Thx



[Jramos013]

I have 2 sets left

Payment sent, thank you!



[Claytone]

1 set left.
Thanks folks



[Claytone]

Last set is sold.
I’ll have more in a couple of weeks



[nk24]

PM sent.



[Claytone]

@nk24 is first in line for the next round.



[NWPA Jeepy T]

2nd for next round here



[Claytone]

2nd for next round here

10-4



[BC Moto]

Im in for the second round



[Zorba]

Count me in too.



[WestCoastDan]

Mind revealing what LEDs you are using?



[Claytone]

So, round 2 will be:
@nk24
@JeepOnDecision
@roverhi
@BC Moto

I'll get some more adapter plugs and LEDs coming for round 3 for:
@Zorba



[Claytone]

Mind revealing what LEDs you are using?

They are out of Whelen emergency equipment light bars, circa 2013ish.



[Rmorales7590]

Just a guess, but i'll bet the 4th wire goes to the tailgate pins for the 3rd brake light...

Makes sense. I hadn’t thought of that. I’ll give it a shot.



[Lou]

Hey all,

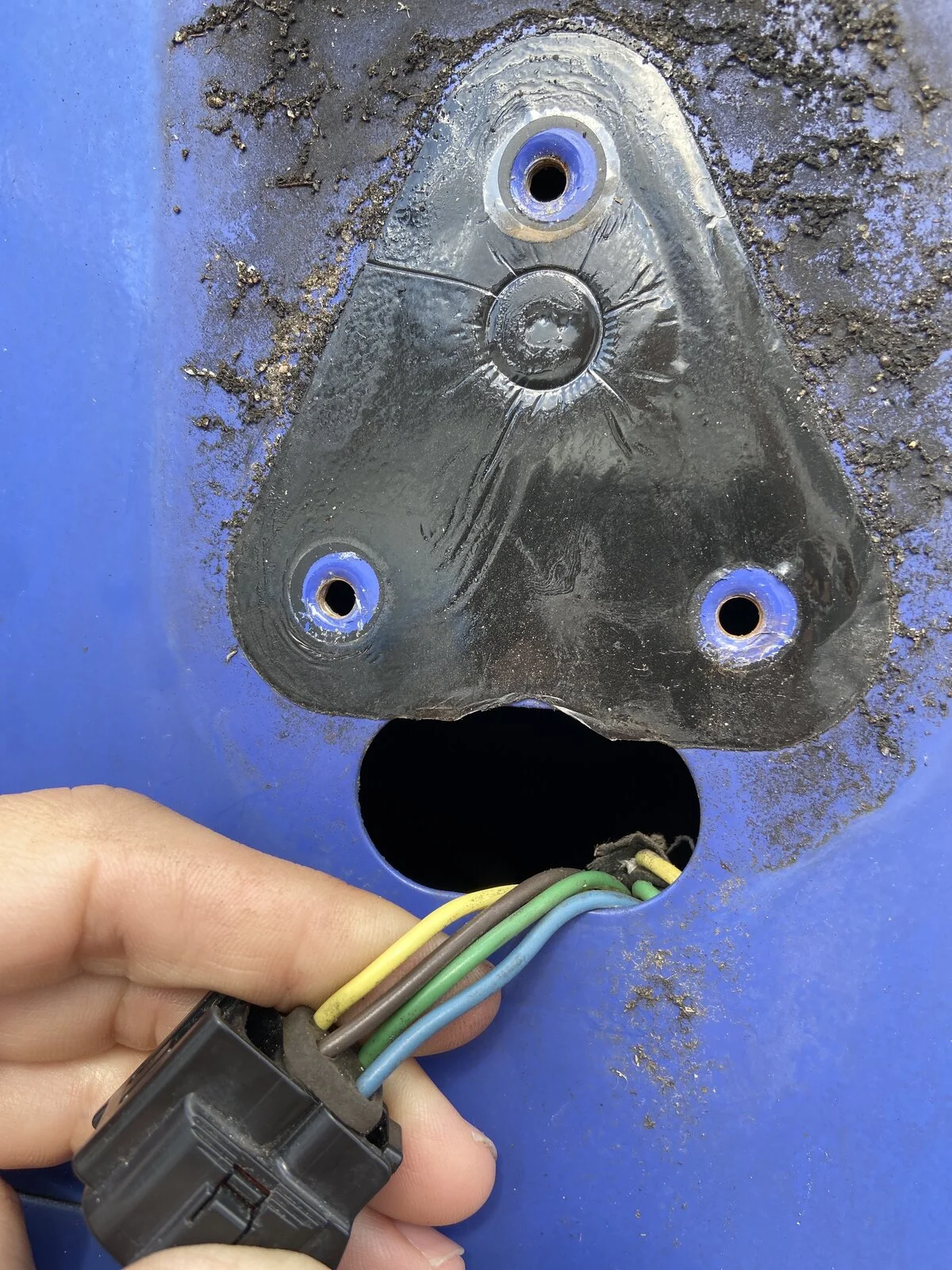

I’m new here. I just bought LED tail lights for my 98 tj and I was able to get my driver side working but the passenger side wires are different colors and they have 4 wires instead of 3. Not sure what to do. Please help! Photo attached.

Thank you,
-Rick

View attachment 296425

Looks like a trailer wiring harness.
