Measurement Request: OEM Tire Carrier Dimension (mounting depth)


Mikee024

TJ Enthusiast
Supporting Member
Joined
Mar 29, 2021
Messages
288
Location
Arizona

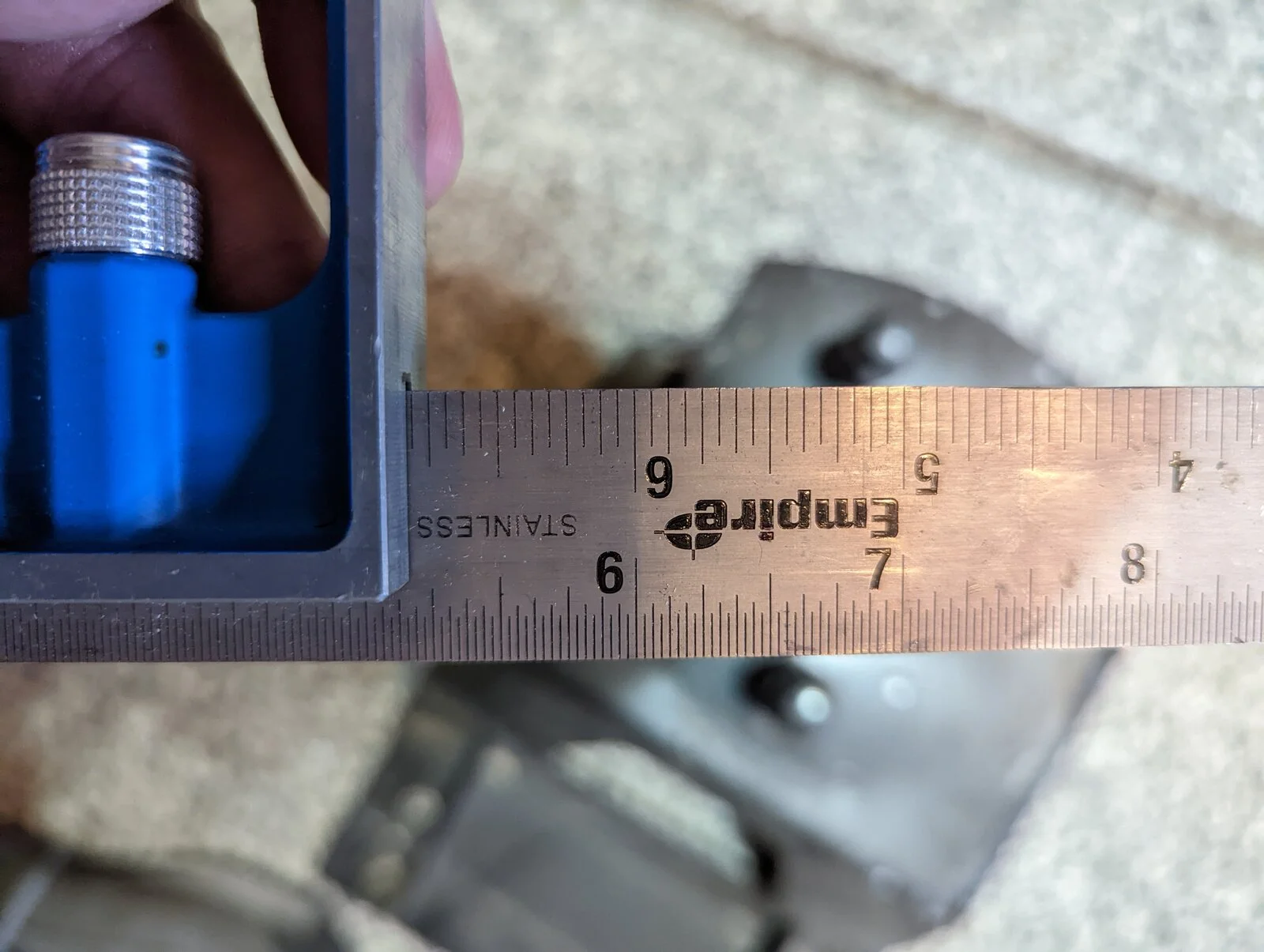

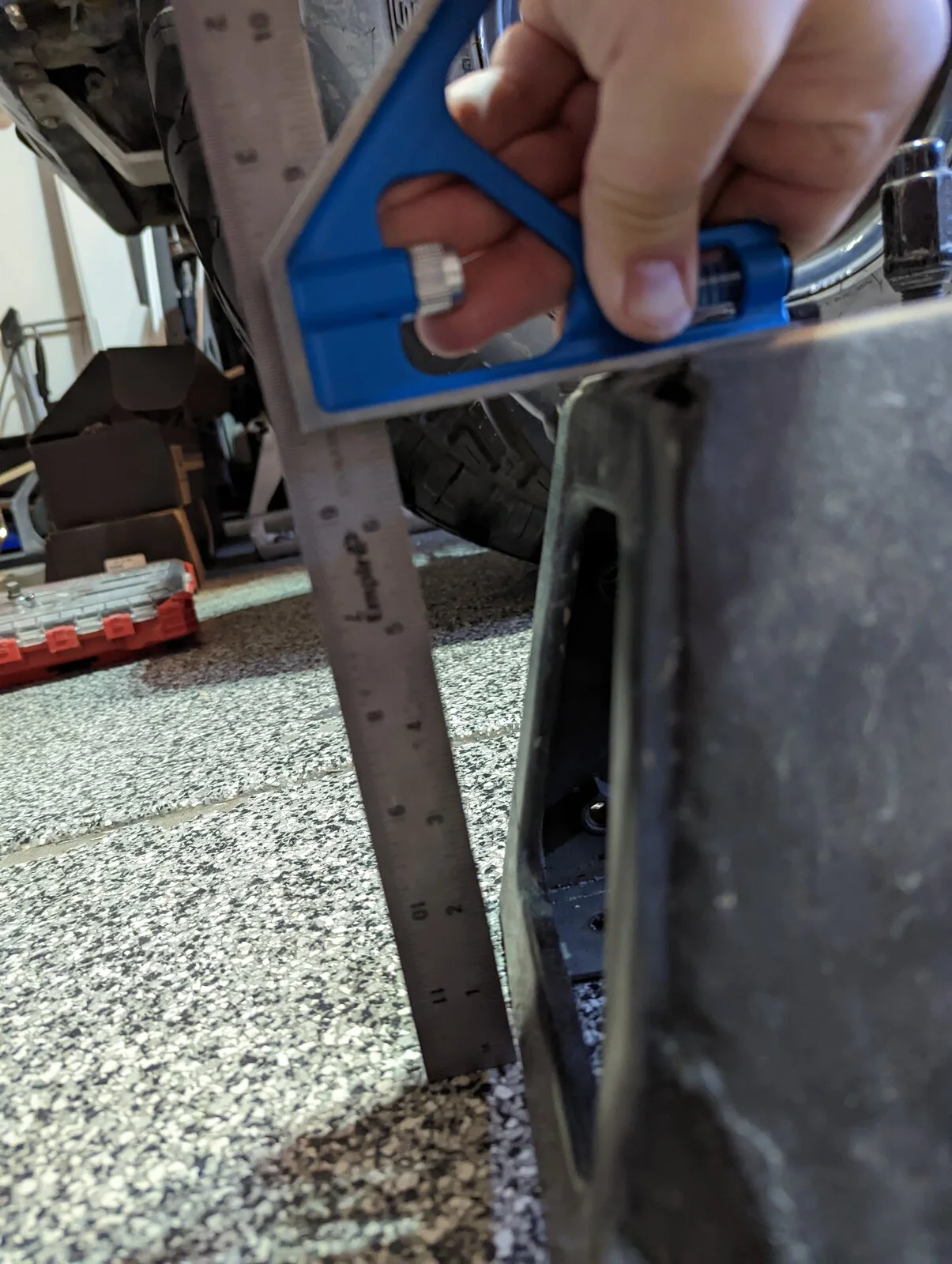

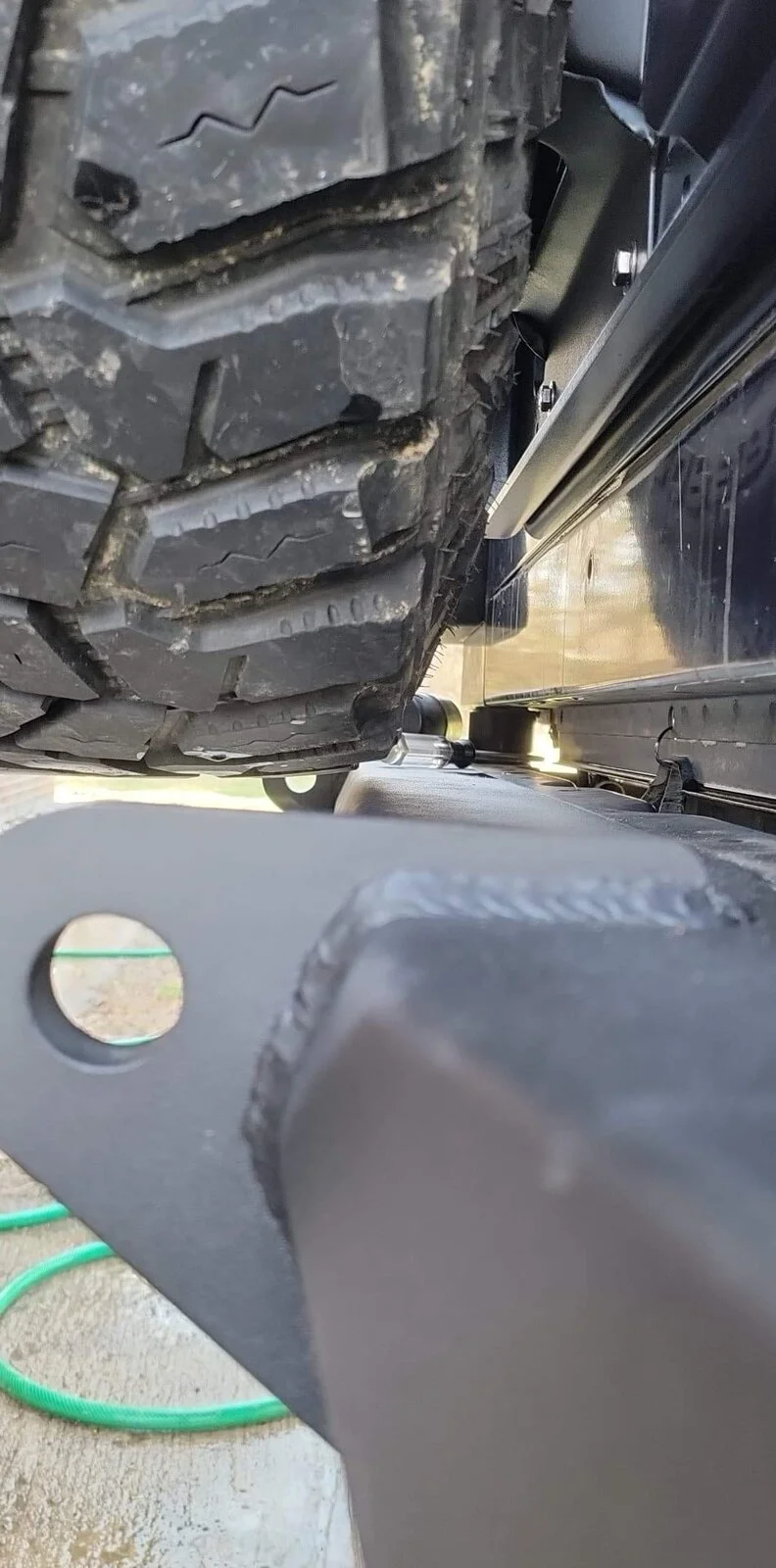

Could someone provide me with the mounting depth for a stock TJ tire carrier (end-to-end mounting surface measurement) in order to help me plan for the following task?

Summary:

I will be switching from a bumper carrier to a MORryde kit. I will be running 5x5.5" bolt pattern MT III wheels (w/ 3.6" BS) and STT PRO 35s (13.1" width tire). The wheels won't be mounted to my current tires until the regear work is done.

My known options:
  • run a tire carrier extender/coupler with a stock tire carrier (will likely push the tire our too far);
  • run a "4x4.5 to 5x5.5" wheel spacer with a stock tire carrier;
  • redrill the stock tire carrier for 5x5.5" bolt pattern; or
  • run an aftermarket tire carrier
Note: I want to keep the tire up against the rubber tailgate pads, which many aftermarket carries do not appear to do.

I'm open to hearing other suggestions

Thanks for the help!


rasband

This one goes to 11
Supporting Member
Ride of the Month Winner
Joined
Sep 11, 2018
Messages
5,832
Location
Highlands Ranch, CO
Mine has been customized, but not in that dimension.


  • Like
Reactions: Mikee024

sab

"Semper Discens"
Lifetime Supporting Member
Joined
Jun 12, 2021
Messages
63
Location
DITHOT
After a lot of research, and a failed attempt at modifying the stock spare carrier, I used the HyLine Offroad spare carrier, which can handle your bolt pattern, but in order to get it to fit on the MoRyde bracket, I had to drill new holes higher up on the bracket. It lowers the tire some, but with my DirtWorx bumper, a 35" tire still clears. I ended up order some rubber bar stock and cutting spacers for the stock bumpers.

sab

  • Like
Reactions: Mikee024
OP
Mikee024

Mikee024

TJ Enthusiast
Supporting Member
Joined
Mar 29, 2021
Messages
288
Location
Arizona
After a lot of research, and a failed attempt at modifying the stock spare carrier, I used the HyLine Offroad spare carrier, which can handle your bolt pattern, but in order to get it to fit on the MoRyde bracket, I had to drill new holes higher up on the bracket. It lowers the tire some, but with my DirtWorx bumper, a 35" tire still clears. I ended up order some rubber bar stock and cutting spacers for the stock bumpers.

sab
This is great input thank you 🙏

How close is your tire to the tailgate?

Last edited:
OP
Mikee024

Mikee024

TJ Enthusiast
Supporting Member
Joined
Mar 29, 2021
Messages
288
Location
Arizona
35" tire still clears. I ended up order some rubber bar stock and cutting spacers for the stock bumpers.

sab
The website recommends up to a 33” but it’s not clear if that’s due to the 3/16” material thickness or something else like a clearance issue for a larger diameter tire (which u worried around by redrilling).

Did you gusset/reinforce the mount at all to run a 35” tire or is 3/16” plenty good?

Do you mind sharing the approximate diameter and length of your rubber bar stock spacers?


sab

"Semper Discens"
Lifetime Supporting Member
Joined
Jun 12, 2021
Messages
63
Location
DITHOT
I don't have 35s. I run metric 33s. However, when I drilled the holes, I made sure a 35 will fit. The HyLine carrier is gusseted pretty well. If the stock carrier can handle a 35, I think the HyLine will, too. The stock carrier is boxed pretty well, but it's much thinner sheet metal (I think it was 16 gauge when I was messing with it).

I bought a 3' chunk of 1"x2" and a 3' chunk of .125" x 2" Shore A 60 durometer neoprene rubber for the mounts (from McMaster-Carr). For the 1" thick rubber, I used a jig saw to rough cut them and then sanded them to match the stock oval profile using a 12" disc sander. The .125" thick rubber was cut using a scissors. For the top bumpers, which mounted onto the MoRyde bracket, I used just one of the 1" spacers for each. The bottom bumper mounts directly to the tub, so it needed three of the .125" spacers (to make up for the MoRyde thickness), in addition to the 1" spacer. However, depending on the tires and wheels you're running, you may need different thickness spacers. I figured out the thickness I needed by mounting the stock spacers, putting a ball of modeling clay on each one, and mounting the spare tire. The tire compressed the clay, so when I removed the tire, I plunged the depth gauge from my digital calipers through the clay to measure the thickness.

If you'd like pics, let me know, and I can take some in the morning.

sab

  • Like
Reactions: Mikee024

sab

"Semper Discens"
Lifetime Supporting Member
Joined
Jun 12, 2021
Messages
63
Location
DITHOT
I would definitely like to see your set up when if you have time to share some photos.

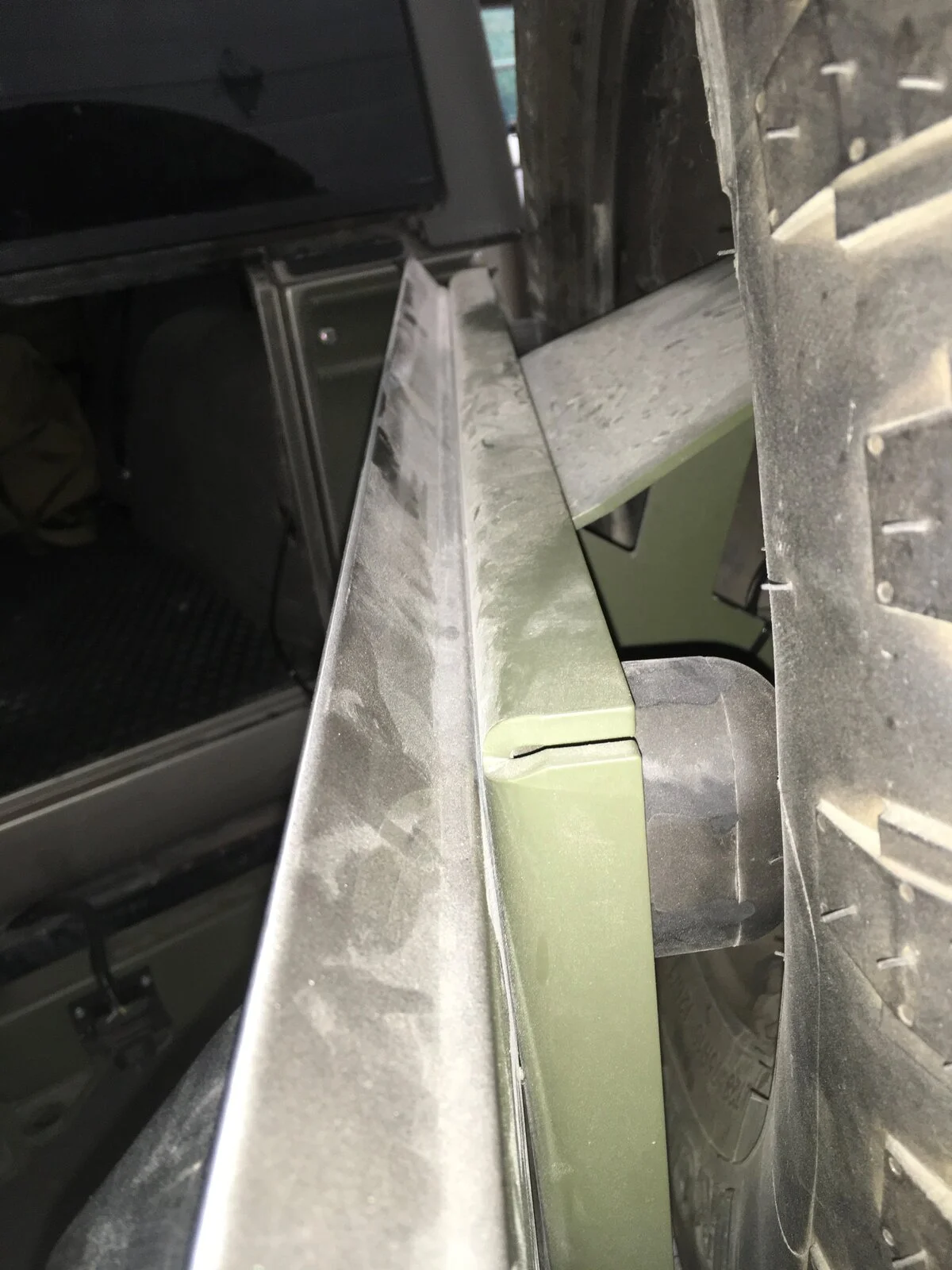

Here goes. This shot shows the X-bracing that Hyline puts in the center of their carrier, along with the reason for drilling new holes in the carrier (to clear the top lip on the MoRyde bracket):

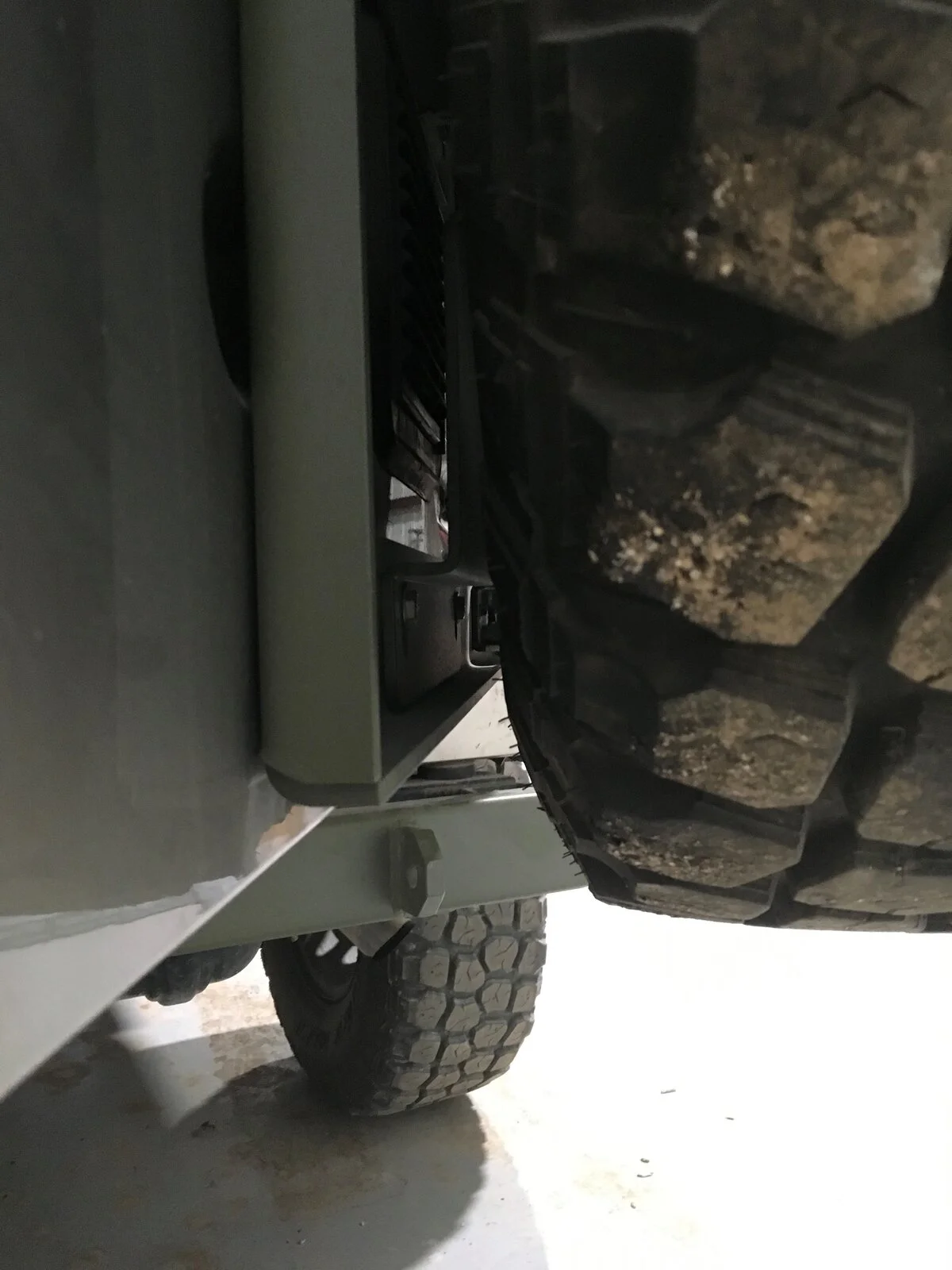

This shot shows the new hole locations I drilled to lower the carrier to clear the top lip on the MoRyde bracket (look closely - you'll see the original holes below the ones I drilled):

New Hole Location.jpg

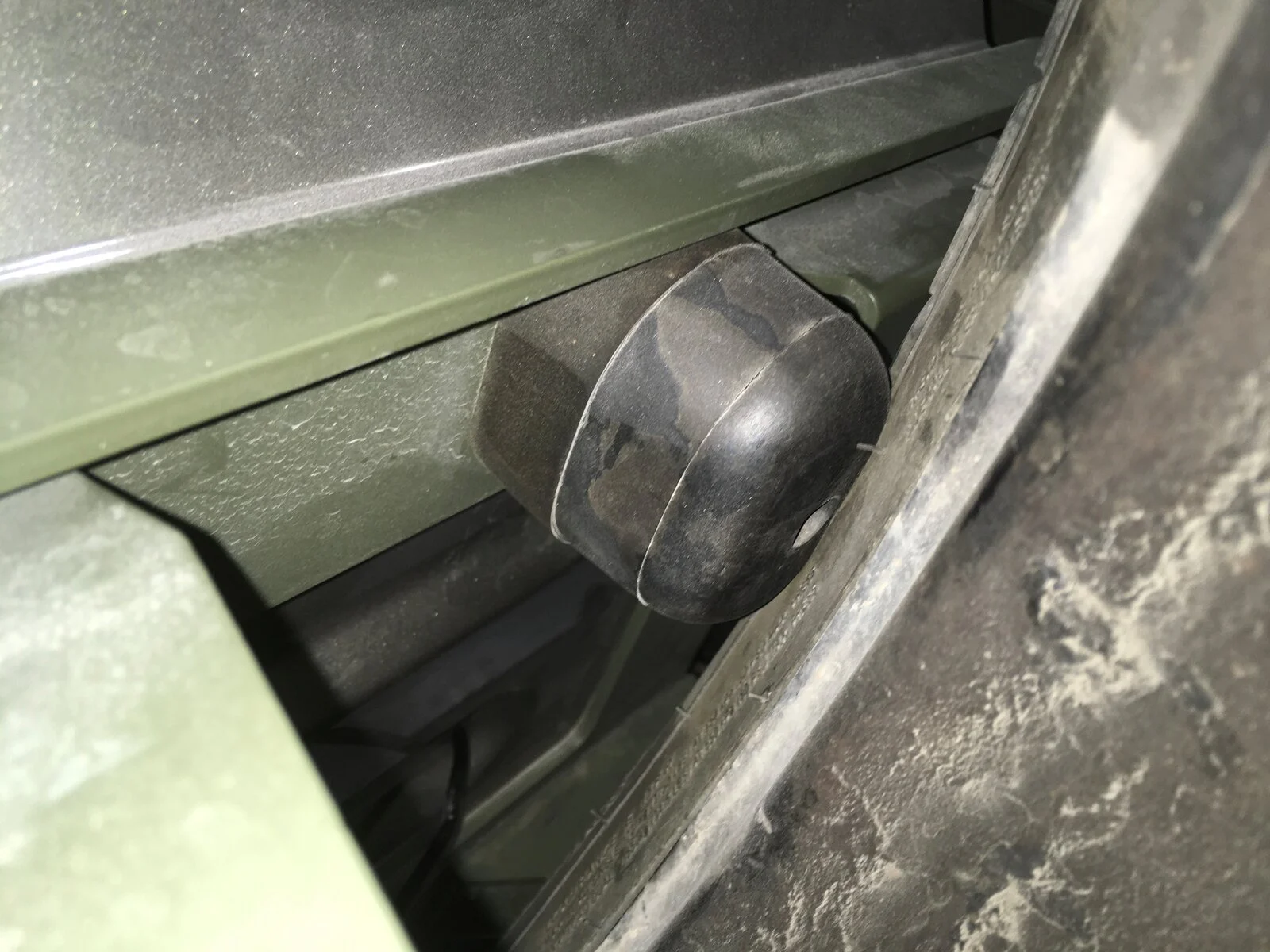

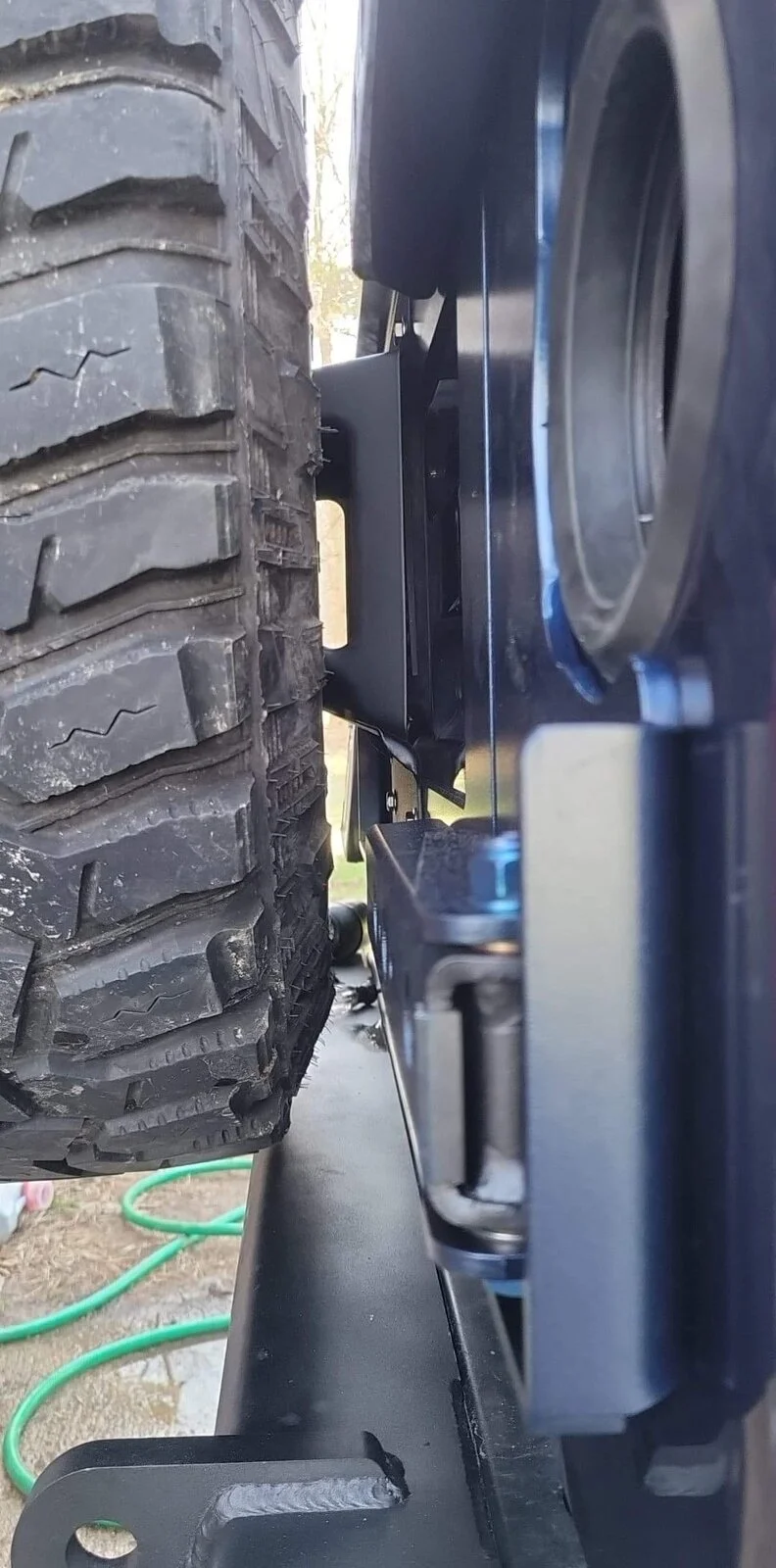

This shot shows the top bumper and spacer (only the inside "edge" is touching the tire):)

Top Bumper.jpg

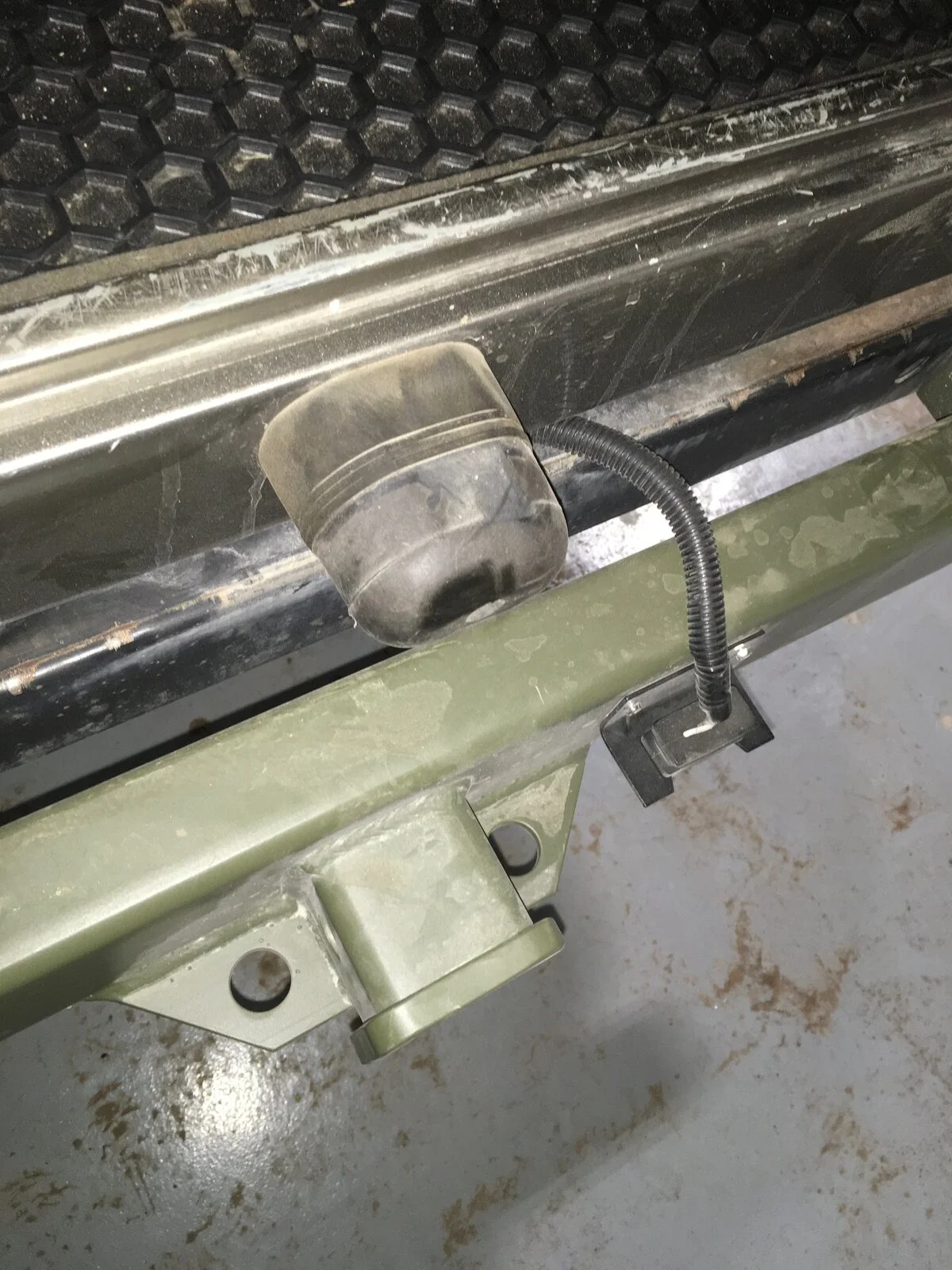

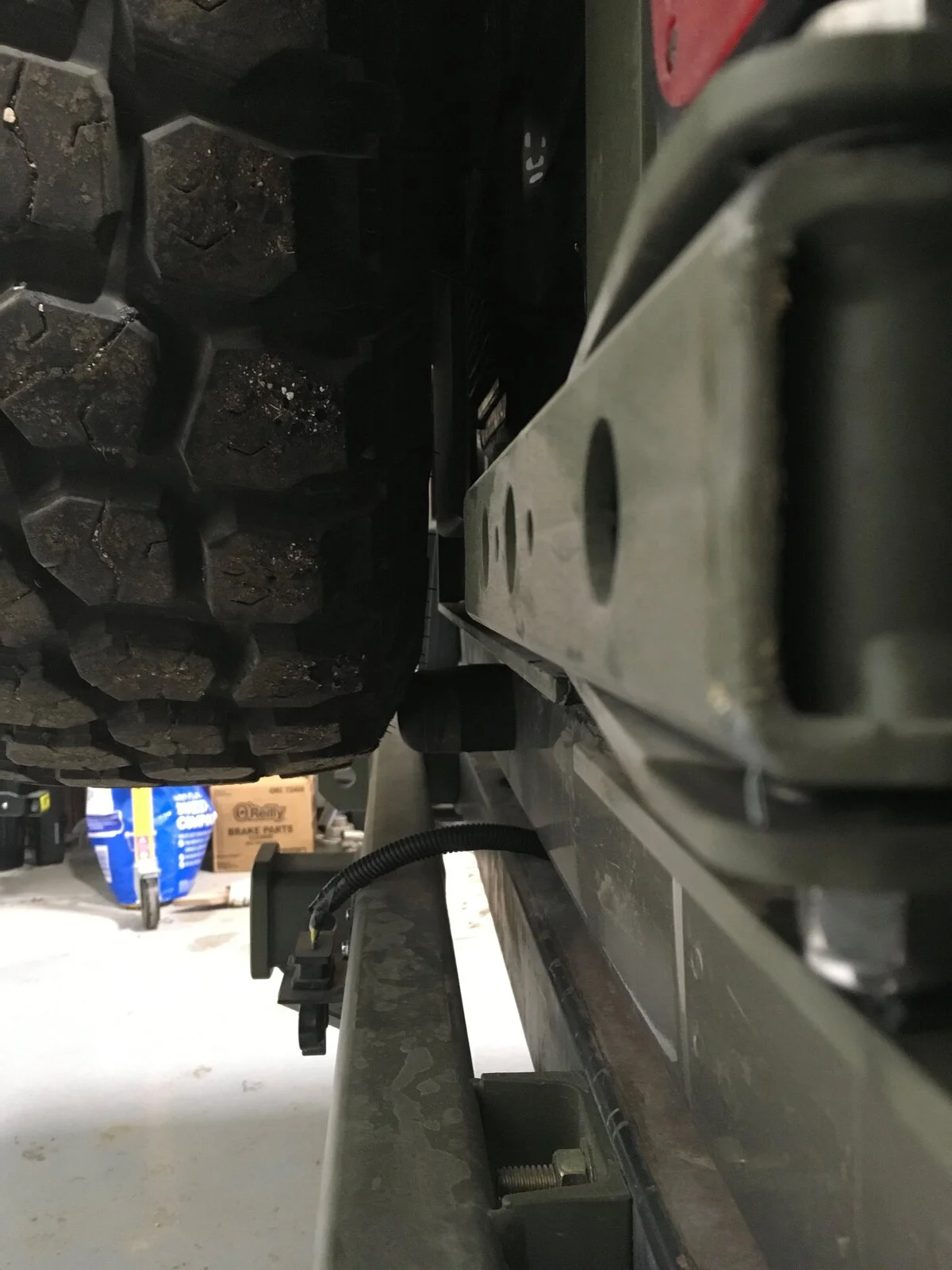

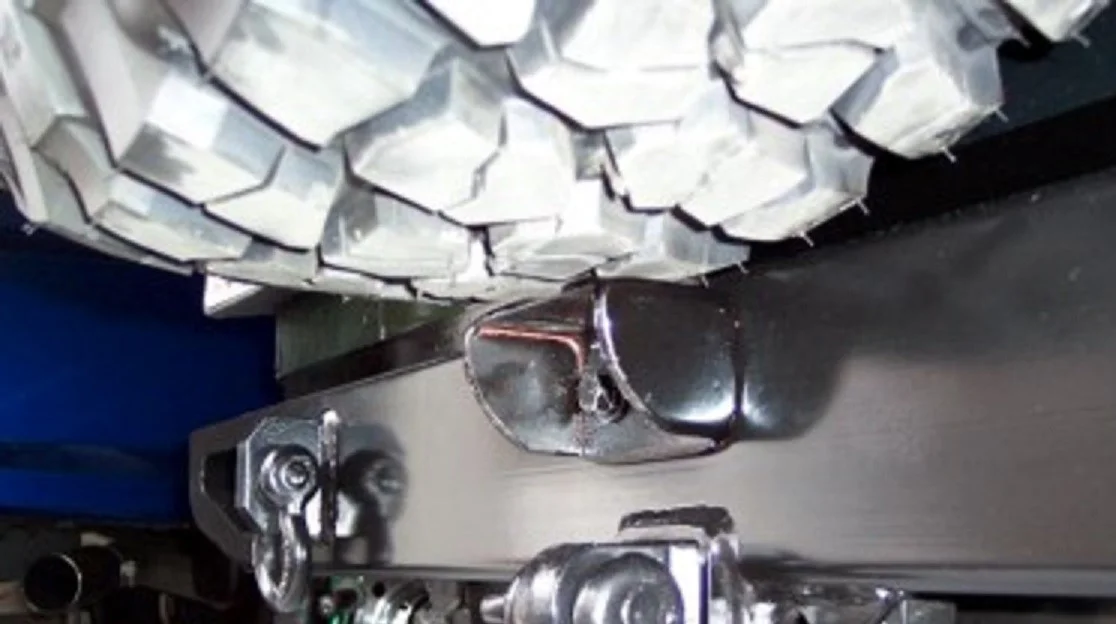

These two shots show the top view and side view of the bumper and spacers (this one has four spacers in total):

Bottom Bumper - Top View.jpg


Bottom Bumper - Side View.jpg



Finally, here are links to the rubber used (Note - it was pricey because the shortest length is 36"!):

2" x 1" Rubber Strip
2" x 1/8" Rubber Strip

Hope this helps!

sab

  • Like
Reactions: Mikee024
OP
Mikee024

Mikee024

TJ Enthusiast
Supporting Member
Joined
Mar 29, 2021
Messages
288
Location
Arizona
Here goes. This shot shows the X-bracing that Hyline puts in the center of their carrier, along with the reason for drilling new holes in the carrier (to clear the top lip on the MoRyde bracket):

View attachment 292804


This shot shows the new hole locations I drilled to lower the carrier to clear the top lip on the MoRyde bracket (look closely - you'll see the original holes below the ones I drilled):

View attachment 292805


This shot shows the top bumper and spacer (only the inside "edge" is touching the tire):)

View attachment 292806


These two shots show the top view and side view of the bumper and spacers (this one has four spacers in total):

View attachment 292807

View attachment 292808


Finally, here are links to the rubber used (Note - it was pricey because the shortest length is 36"!):

2" x 1" Rubber Strip
2" x 1/8" Rubber Strip

Hope this helps!

sab
Thanks for the photos, Sab!

Random thought…you happen to have extra material that you would be willing to sell/ship?

Just thought I’d ask since you had to purchase so much material. I’d rather not be wasteful, and I’m happy to put money back in your pocket.

I’ll use my angle grinder and cutter/flapper wheels to do the job and plan to install the items in about three weeks.

No problem if that doesn’t work for you.🍻
