Pics of Aux Fuse / Relay Panel Location

SSTJ

Inexperienced Overthinker
Supporting Member
Joined
Aug 24, 2019
Messages
1,912
Location
South Carolina
I’m thinking about installing one. I see plenty of threads about options, wiring advice, etc. But let’s see some pics of your chosen mounting location.

OP
SSTJ

SSTJ

Inexperienced Overthinker
Supporting Member
Joined
Aug 24, 2019
Messages
1,912
Location
South Carolina
I’m not sure yet. At least four fuses and at least three relays.

I’m reading other threads for recommended products. Here I’m just interested in locations.

I think I’d prefer under the hood, rather than anywhere inside the tub. But if there are good locations there then I’m interested.


rustygastank

TJ Enthusiast
Joined
Jun 11, 2021
Messages
147
Location
San Diego, CA.

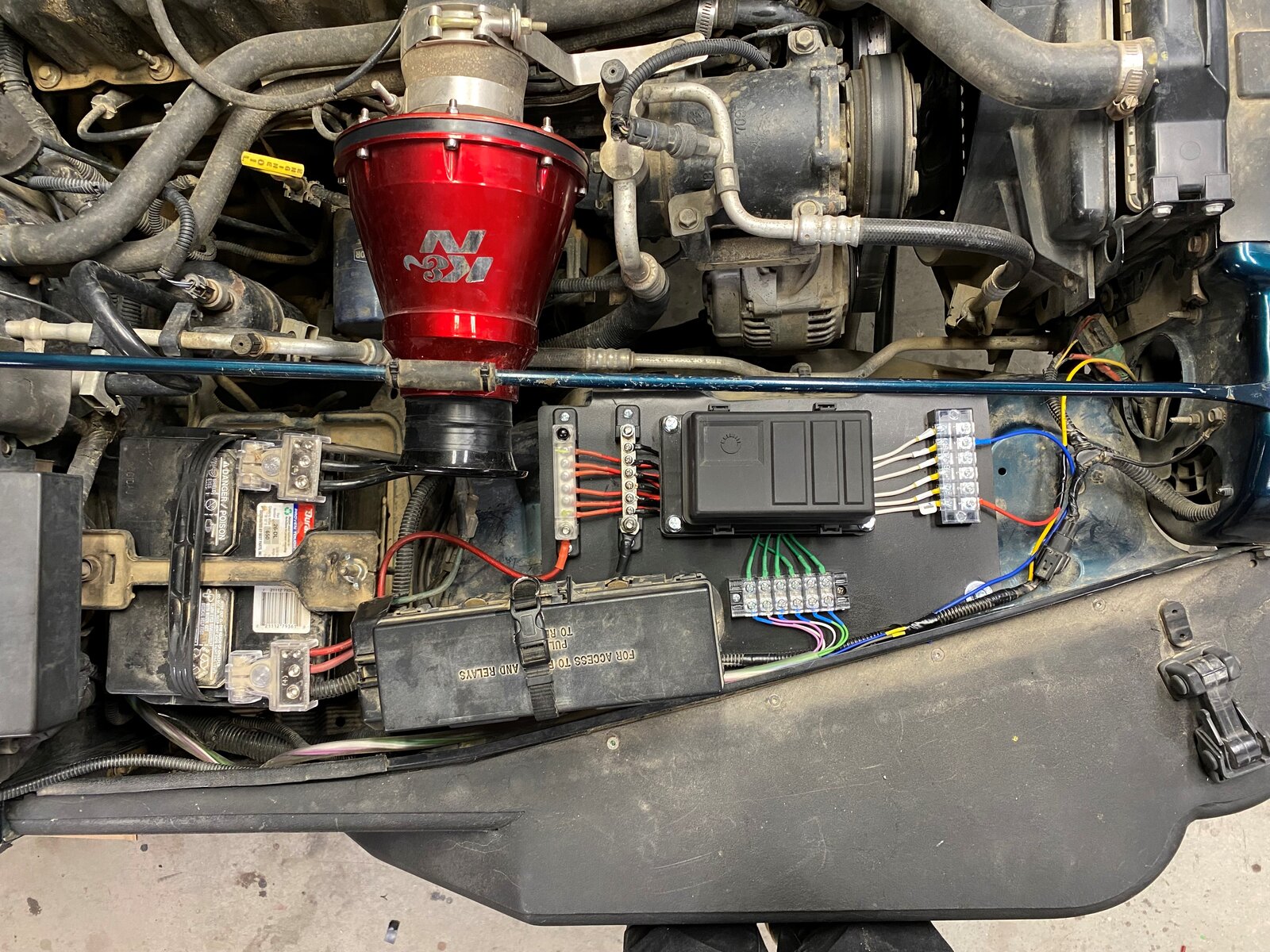

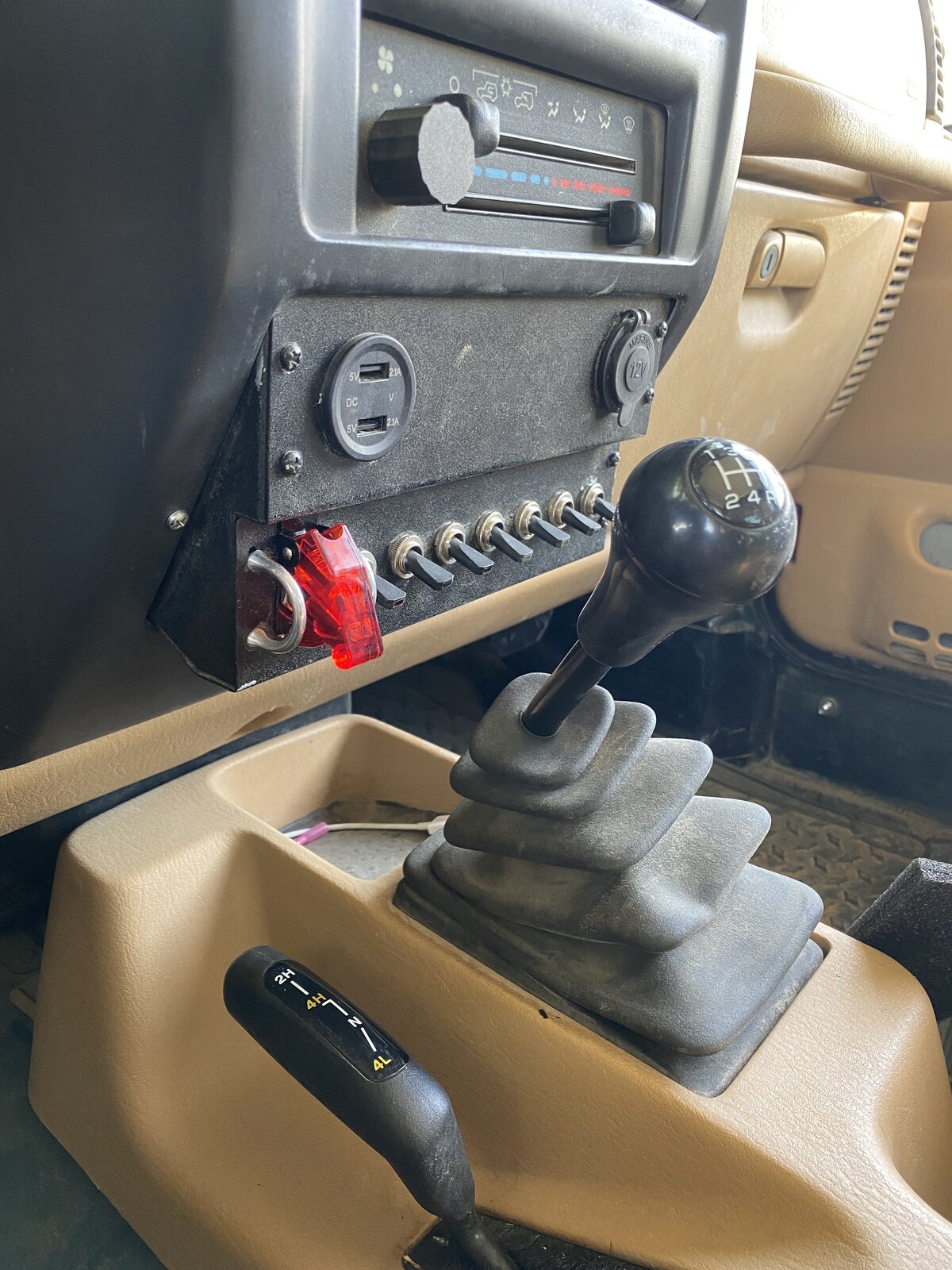

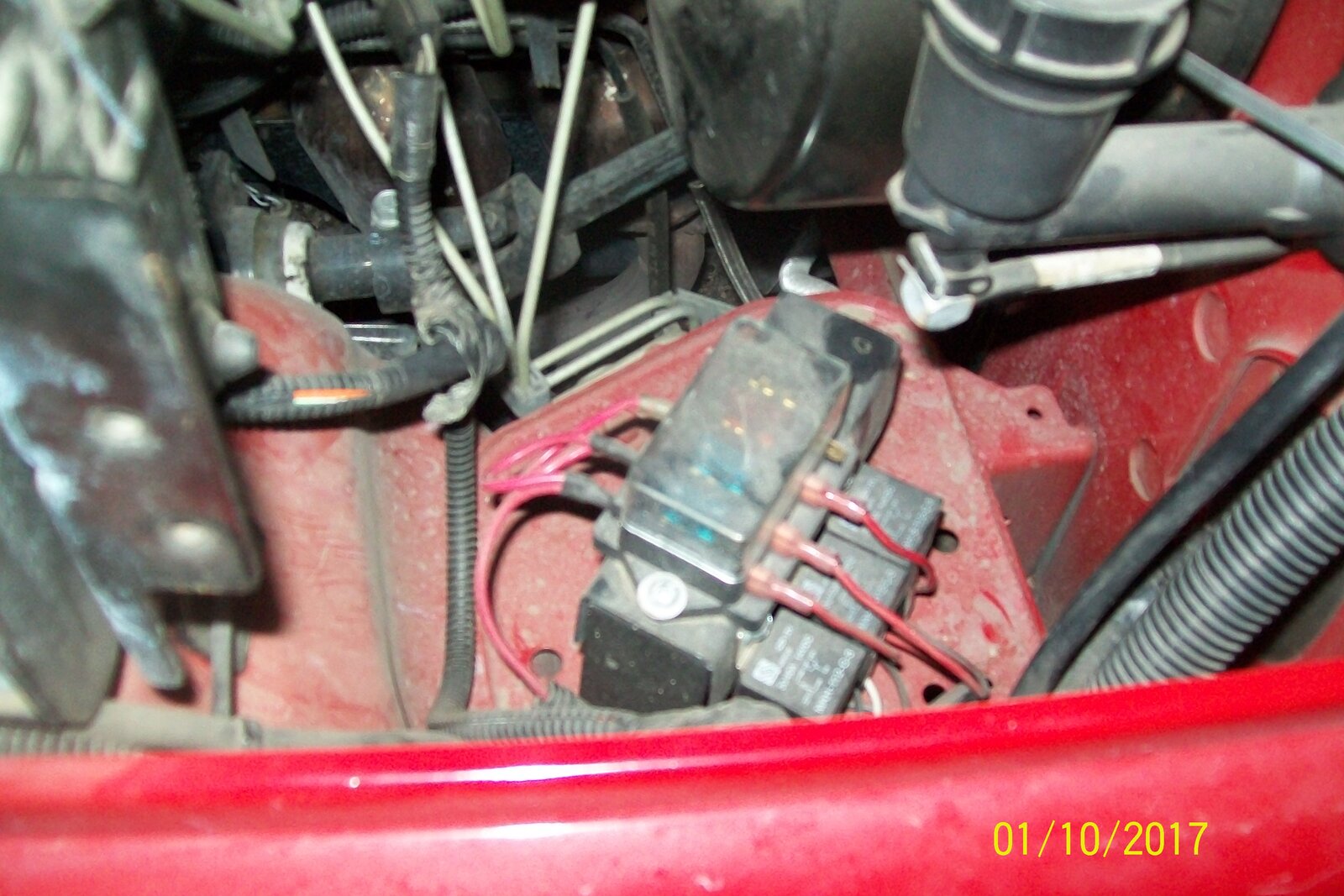

Here's what I did with mine. looking back at it, I would have made it a little more compact. but it gives me open circuits when I add an accessory all I have to do is run the load wire and its done.






  • Like
Reactions: SSTJ

Steel City 06

TJ Expert
Supporting Member
Joined
Mar 12, 2019
Messages
4,246
Location
Pittsburgh, PA
I did a thorough how-to:

  • Like
Reactions: SSTJ
OP
SSTJ

SSTJ

Inexperienced Overthinker
Supporting Member
Joined
Aug 24, 2019
Messages
1,912
Location
South Carolina
OP
SSTJ

SSTJ

Inexperienced Overthinker
Supporting Member
Joined
Aug 24, 2019
Messages
1,912
Location
South Carolina
I did a thorough how-to:
Yup, thanks, I remember this one. You’re happy with the location?


Steel City 06

TJ Expert
Supporting Member
Joined
Mar 12, 2019
Messages
4,246
Location
Pittsburgh, PA
Yup, thanks, I remember this one. You’re happy with the location?
Pretty much, yes. I might redo the mounting brackets by printing some new ones out of Lexan, but other than that, it is very easily accessible there. Might make the new brackets slightly taller too.

OP
SSTJ

SSTJ

Inexperienced Overthinker
Supporting Member
Joined
Aug 24, 2019
Messages
1,912
Location
South Carolina
Pretty much, yes. I might redo the mounting brackets by printing some new ones out of Lexan, but other than that, it is very easily accessible there. Might make the new brackets slightly taller too.
And your is where Cruise Control would go, right?


Steel City 06

TJ Expert
Supporting Member
Joined
Mar 12, 2019
Messages
4,246
Location
Pittsburgh, PA
And your is where Cruise Control would go, right?
Close to it. I've relocated the cruise control module a half dozen times already for various projects. I can't recall in which order I did it, but I might have actually installed the cruise control after the Bussmann.

Note if you use the RTMR rather than the RFRM, the box itself is maybe half the size of the RFRM. My pictures are of the RFRM. Someone posted RTMR pictures on Page 2 if I recall correctly.

  • Like
Reactions: SSTJ

Andymc79

New Member
Joined
Dec 11, 2020
Messages
13
Location
Akron Ohio
I used a combination of @Steel City 06 and this write-up as inspiration to make my own bussman RTMR.


Was a really fun project! Only used 1 fused relay and 1 fused location, but have plans for the others as time allows.




  • Like
Reactions: SSTJ

NskLJ

TJ Enthusiast
Joined
Oct 19, 2021
Messages
455
Location
Long Beach
I’m thinking about installing one. I see plenty of threads about options, wiring advice, etc. But let’s see some pics of your chosen mounting location.
I went down to the pick your part and pulled some terminals out of a under hood fuse box. I added relays and fuses to the empty holes in the factory box. No additional real estate required under the hood.

OP
SSTJ

SSTJ

Inexperienced Overthinker
Supporting Member
Joined
Aug 24, 2019
Messages
1,912
Location
South Carolina
I used a combination of @Steel City 06 and this write-up as inspiration to make my own bussman RTMR.


Was a really fun project! Only used 1 fused relay and 1 fused location, but have plans for the others as time allows.

View attachment 328618

View attachment 328619

Nice, thanks for sharing. What’s that mount you used, or did you make it?
