Project: a daily driver off roader (4-cylinder)

OP
TJim

TJim

TJ Addict
Supporting Member
Joined
Dec 23, 2019
Messages
1,200
Location
Athens, Greece
After a lot of months I had some progression in my build!

I finally installed my custom rear bumper (that I mentioned in post #15). If anyone wants to follow the whole process, he can check this thread: https://wranglertjforum.com/threads/custom-rear-bumper-build.50938/

I want to thank again @Mike_H again, for sending me some cad files early in this project! It helped me create my final design.

Some photos (for more photos, and procedure check the thread above)



  • Like
Reactions: Mike_H
OP
TJim

TJim

TJ Addict
Supporting Member
Joined
Dec 23, 2019
Messages
1,200
Location
Athens, Greece
The next steps for my TJ will be some brake maintenance (less sexy, but important), and shock replacement (they are shorter than they should be).

I am currently taking some measurements in order to decide which ones to buy, and whether to use some spacers, in order to set my up travel and down travel ratio of the new shocks as close to 50/50 as possible.

  • Like
Reactions: SSTJ
OP
TJim

TJim

TJ Addict
Supporting Member
Joined
Dec 23, 2019
Messages
1,200
Location
Athens, Greece
  • Like
Reactions: Jerry Bransford
OP
TJim

TJim

TJ Addict
Supporting Member
Joined
Dec 23, 2019
Messages
1,200
Location
Athens, Greece

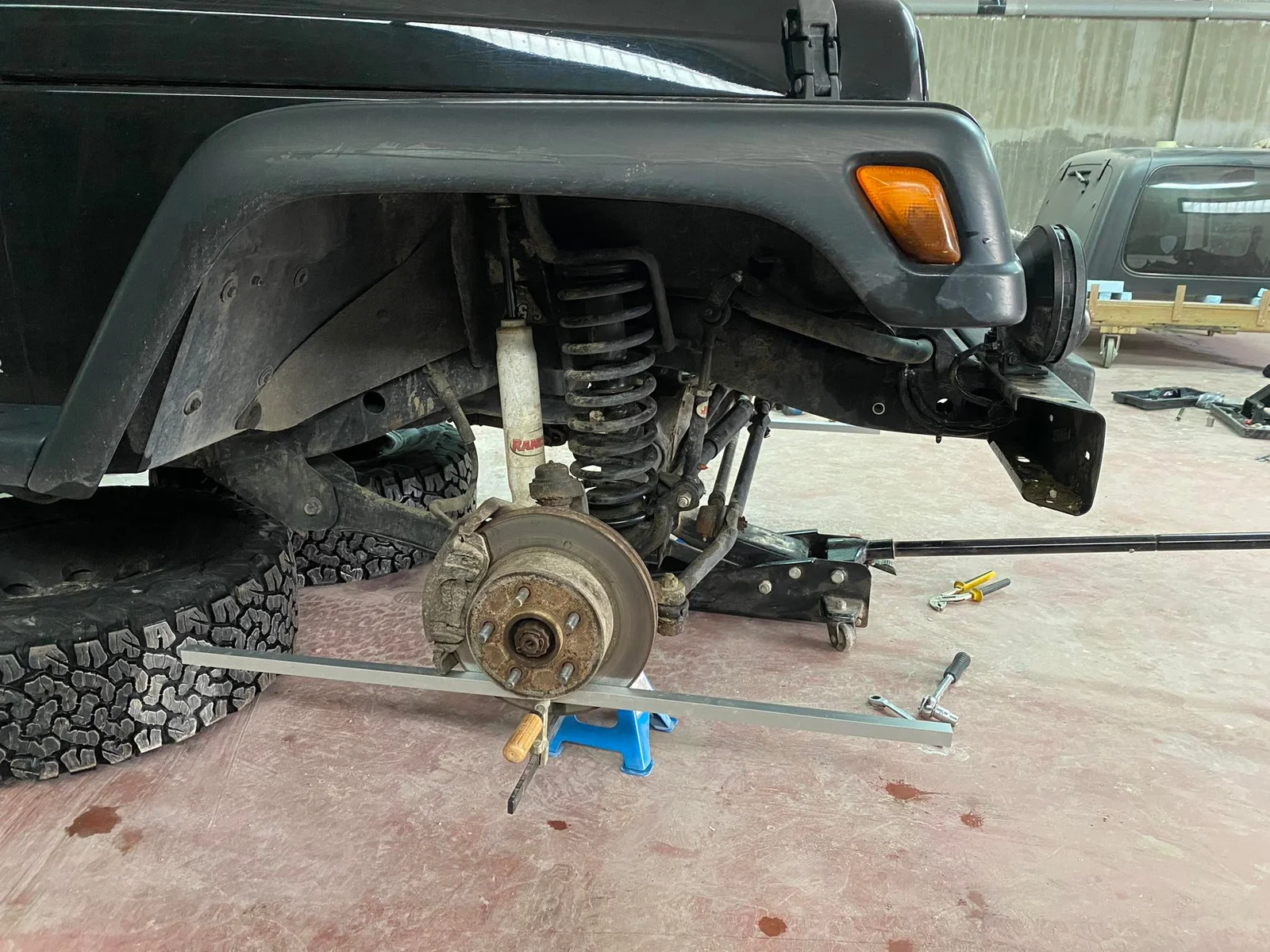

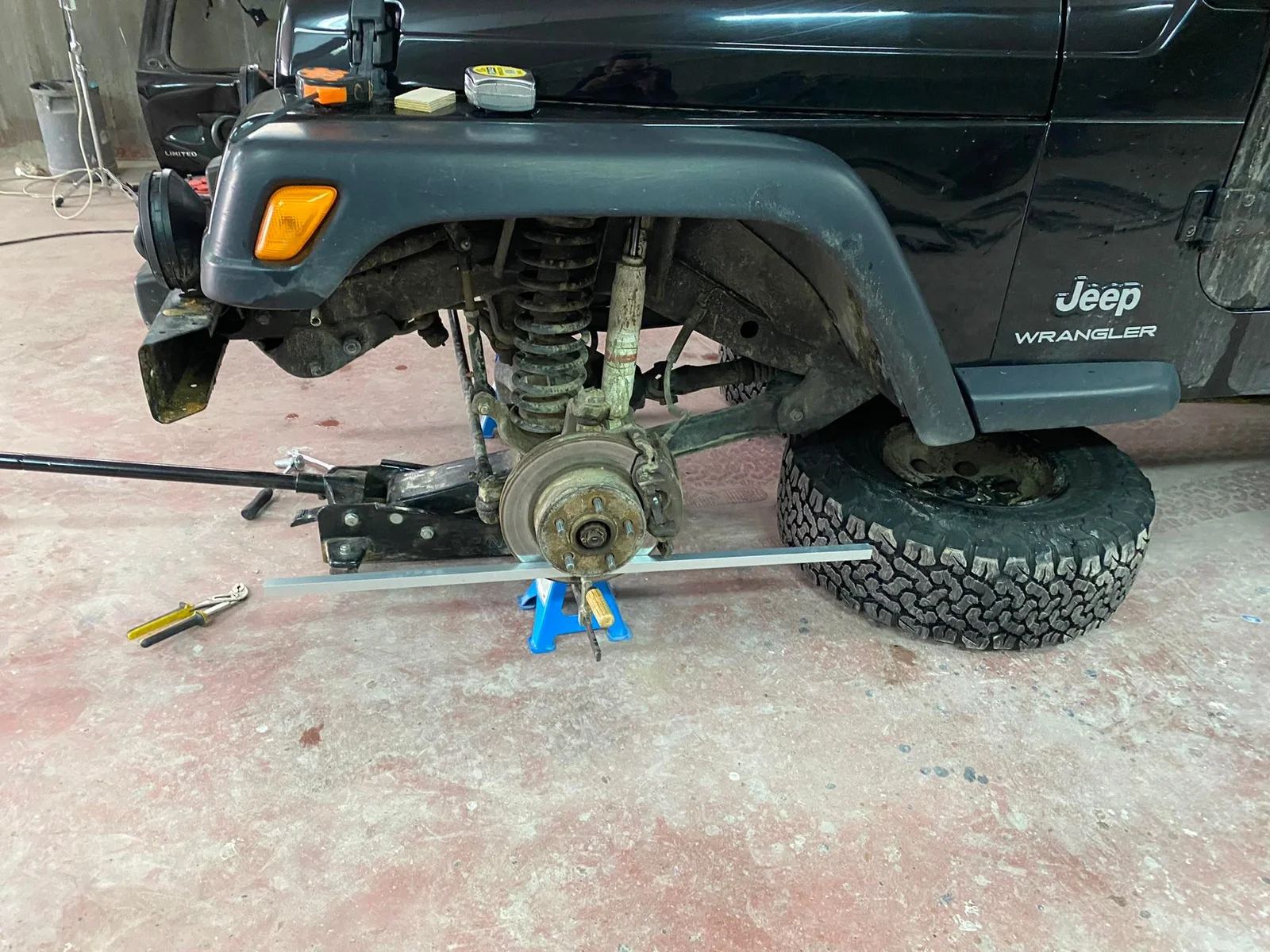

Firstly, my aluminum tubings, are 1 meter (39.37”) each. I marked their center, in order to place them in the rotors. I decided to not mark my tire diameter (31”) on them, but to calculate the desired total toe in angle, which is 0.3 degrees, using the total length of the tubings. (It was an unnecessary step for me)


  • Like
Reactions: RHP61
OP
TJim

TJim

TJ Addict
Supporting Member
Joined
Dec 23, 2019
Messages
1,200
Location
Athens, Greece

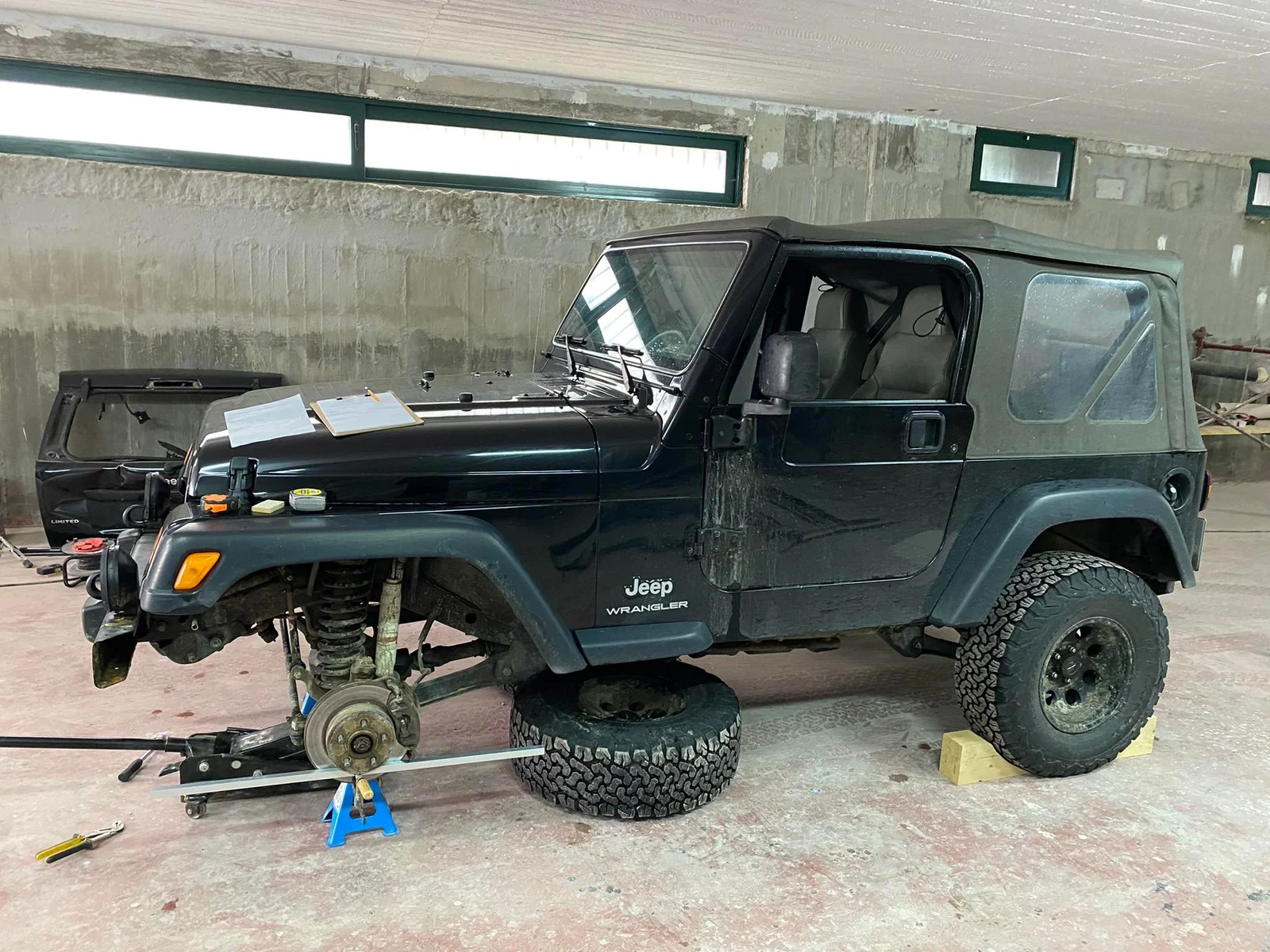

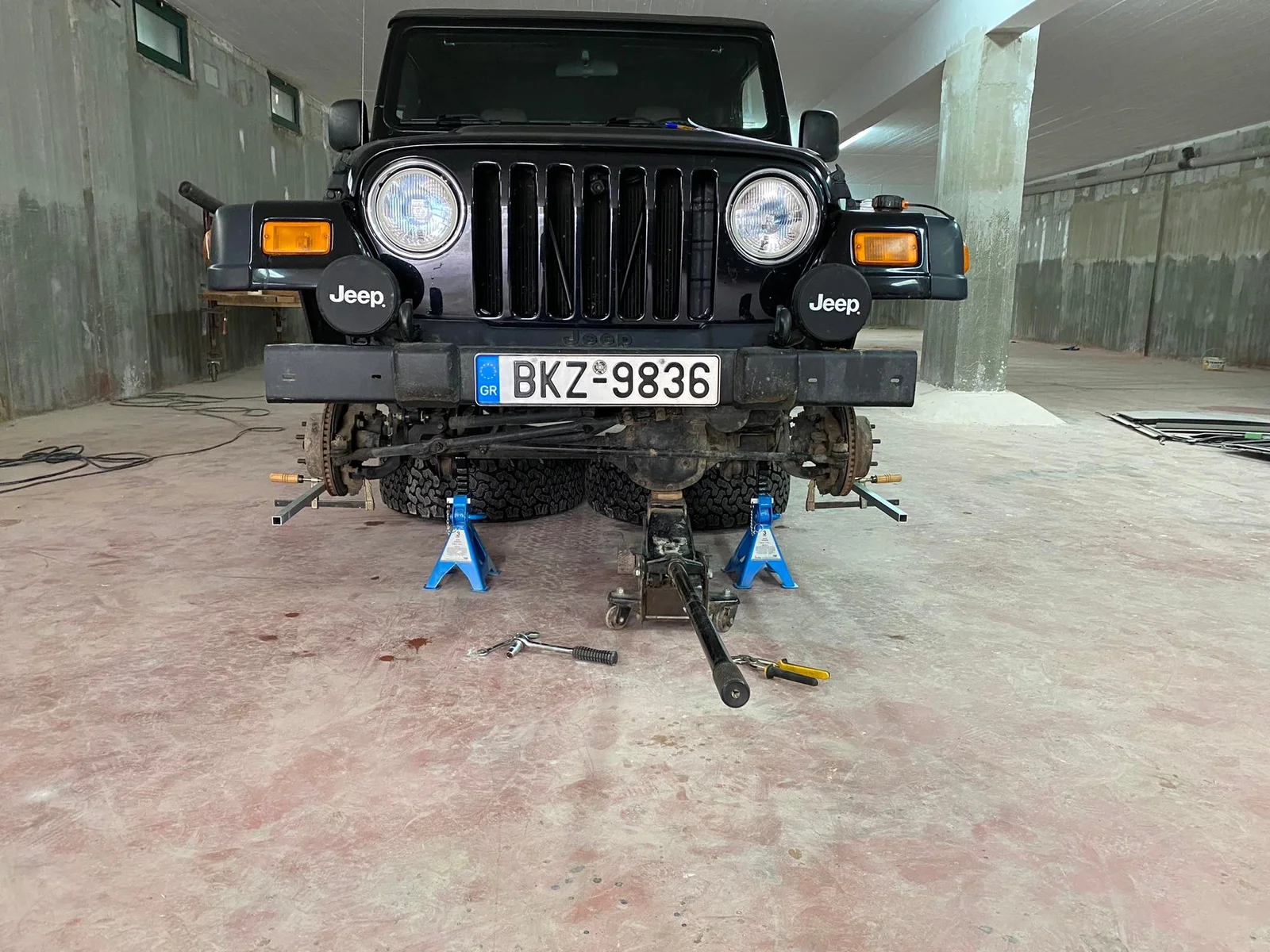

Time for some before results:

My toe in was set by an alignment shop before, but unfortunately as the measurements showed it was completely off.
My toe in was set at 1.43 degrees. That was way off! Time to set it right.


Calculation of correct toe in measurement

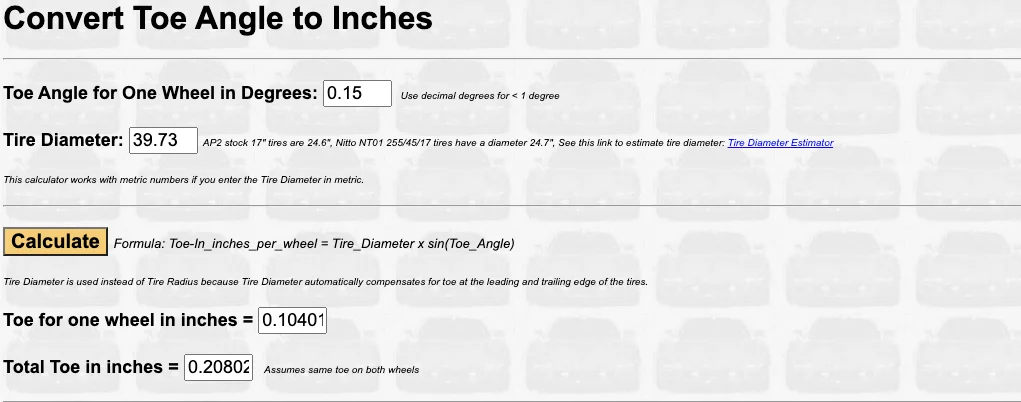

Having as a fact that I should set my toe in at 0.3 degrees total, I calculated my toe in measurement using this calculator: https://robrobinette.com/ConvertToeDegreesToInches.htm




Don’t be spooked by the tire diameter (39.73”). It is just the length of my aluminum tubings, since I use metric system.

So, my measurement was 0.2” toe in. The front side of the tubings should be 0.2” closer than the rear side of the tubings.

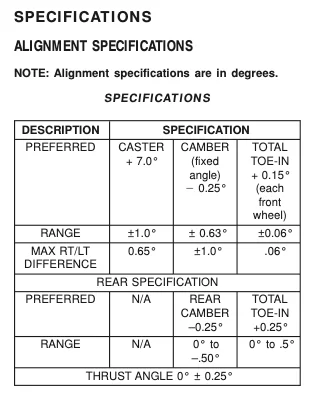

I quickly unbolted the tie rod clamp bolts, and adjusted the correct measurement. I ended up with a 0.3 degrees toe in, which is the Factory spec.

Thanks to this method, I finally set up my toe in, which was about 1.13 degrees off. Congrats to the alignment shop that set it up before. 🎉🥳

  • Like
Reactions: JMT
OP
TJim

TJim

TJ Addict
Supporting Member
Joined
Dec 23, 2019
Messages
1,200
Location
Athens, Greece
Here is a list of the toe in measurement, to have a 0.3 degrees as a result, for the most common tire sizes.

29" Tires
0.152" toe in

30" Tires
0.157" toe in

31" Tires
0.162" toe in

32" Tires
0.168" toe in

33" Tires
0.173" toe in

35" Tires
0.183" toe in

37" Tires
0.194" toe in

40" Tires
0.21" toe in


As you can see, the larger the tire, the largest the toe in measurement, in order to keep the factory spec.

**You can calculate your own measurement using this calculator:**

It's a process that everyone should do to their rig, since it is so easy. Have fun!


OldBuzzard

TJ Enthusiast
Supporting Member
Joined
Sep 19, 2021
Messages
326
Location
San Denver, Colofornia
Great job! And you picked handy metric values for your measurements, 5 mm toe-in at 1 meter length.

For folks using feet-inches, 1/8" toe at 24", or 3/16" toe at 35.75" gives the same 0.30° total toe-in per the FSM.

I think listing tire sizes and measurements just confuses the matter. That only counts if you're measuring on the tires. When using the square tubing, the tire sizes are irrelevant.

Nice looking Wrangler, by the way. I like your rear bumper. I need to change mine, and I like fabbing my own stuff. But I don't think I want to put that much work into it.

  • Like
Reactions: TJim
OP
TJim

TJim

TJ Addict
Supporting Member
Joined
Dec 23, 2019
Messages
1,200
Location
Athens, Greece
Great job! And you picked handy metric values for your measurements, 5 mm toe-in at 1 meter length.

For folks using feet-inches, 1/8" toe at 24", or 3/16" toe at 35.75" gives the same 0.30° total toe-in per the FSM.

I think listing tire sizes and measurements just confuses the matter. That only counts if you're measuring on the tires. When using the square tubing, the tire sizes are irrelevant.

Nice looking Wrangler, by the way. I like your rear bumper. I need to change mine, and I like fabbing my own stuff. But I don't think I want to put that much work into it.
Thanks! I picked metric values, because mainly this is what I use in everyday life here in Greece. I am more familiar with metric.

I know, it is more practical to just use the full length of the tubing. No extra steps needed. That's what I did.

Thanks for the bumper! I have a whole thread about it.


PickeringFarms

New Member
Lifetime Supporting Member
Joined
Feb 1, 2022
Messages
20
Location
Reynoldsburg, Ohio
Thanks TJim for this awesome write-up.

Your descriptions and pictures helped me decide to keep the lift the PO put on, and my 31's are waiting for the pinion seal and speedometer gear to arrive.

This forum has been so helpful to me. Thank you all.

  • Like
Reactions: Mikee024 and TJim
