STICKY Share Your 3D Design Files (or Sell a DIY Part)

[SSTJ]

We have several threads full of ideas for 3D printed items, or screenshots of something seen online. I thought it might be nice to have a thread that keeps track of options for others to print if they want.

So if others will drop a file, link, and description of anything they have designed and want to share, I'll keep an up-to-date list here. Or, if you don't want to share your files, drop a description if you're willing to print one for others for a fee.

———

• @IOwnCalculus has a replacement panel for early TJs with the airbag switch in the console.
  • See here for the file.
  • See here for a pic.

• @gbirk has a small storage bin for the rear right corner, designed to fit without carpet.
  • See here for the file.
  • See here for an editable version.
  • See here for why to print in PETG, not PLA.

• @gbirk also has a connector/latch/lock for the rods inside your doors.
  • See here for a pic.
  • See here for another pic.
  • See here for the file.

• @Chase_C has some speaker pods for the front dash.
  • See here for his post and others' feedback.
  • See here for the file.

• @Queticon made some OEM-style mounts for the factory fog lights.
  • See here for his original post.
  • See here for an updated file.

• @rasband is working on a custom switch panel.
  • See here for pics.

• @Sudo created some center caps with the Jeep logo and seven beer-bottle slots.
  • See here for pics.

• @Jezza has some end-caps for the OEM rear bumper.
  • See here for pics.
  • See here for the file.

• @LJGreg has a part for putting 6.5s in the overhead pods of late-model TJs, and one for mounting BLAM tweeters to the A-pillar.
  • See here for description and pics.
  • See here for the pod ring file.
  • See here for the tweeter mount file.

• @andya has a rear camera mount that attaches between the tail light and the tub.
  • See here for a pic.
  • See here (and scroll down in first post) for a pic of it in place.
  • See here for the printable files.

• @Steveorino has bushings for the back seats and front seats.
  • See here for a description of the back, and here for the file.
  • See here for a description of the front, and here for the file.

• @chili_pepper designed a cover and filter housing for the cabin air intake.
  • See here for pics and description.
  • See here for pics of installed parts.
  • See here for link to printable files.

• @gbirk has a spare tire bumper spacer.
  • See here for pics.
  • See here for files.

• @Tinnitus_Z has a heater blend door actuator "connector thingy".
  • See here for original description.
  • See here for file.

• @DMopar97 found a center console tray that works well with a center-console sub.
  • See here for description and pics.
  • See here for the main file use.

• @Mogul345 has a EP26 LED flasher relay mount.
  • See here for description and pics.
  • See here for the files.

• @Mogul345 has replacement pins for sun visors.
  • See here for description and files.

• Someone on Printables has a cabin air filter adapter.
  • See here for the files.
  • See here for discussion.

• Someone on Thingiverse has a 97-style AC slider knob.
  • See here for the files.

• Someone on Thingiverse has a center air vent.
  • See here for the files.

• Someone on Thingiverse has coil spacers.
  • See here for the files.
  • Read the page's updates about rear spacers failing due to heat.

• Someone on Facebook is selling switch panels.
  • See here for pics.



[tr21triton]

THis is a great idea with so many discontinued and hard to find parts atleast those of us with no 3D printing capabilities can purchase parts from someone who has it !!!!



[IOwnCalculus]

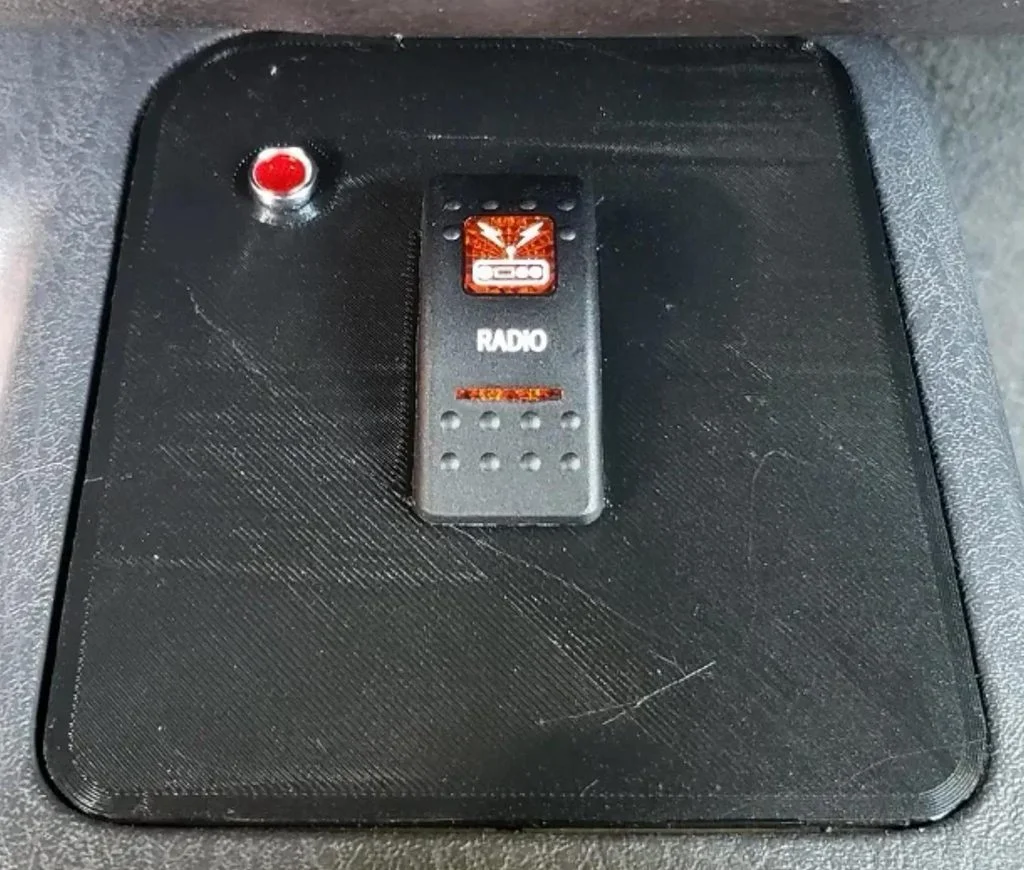

I'll throw out my replacement panel for early TJs with the airbag switch in the console. Worth noting that while I designed it around a 0.312" incandescent indicator bulb from BGMicro, they've since closed up shop so a suitable replacement light would need to be sourced to keep the airbag controller happy.



[SSTJ]

@Fulton_Hogan, I don't know if you want to offer it to others, but I'm still enjoying the stereo mount you made for me.



[gbirk]

I posted this in another thread, but here is my small storage box for the rear right corner of the Jeep. Deigned to fit without any carpet.
https://www.printables.com/model/226636-jeep-tj-rear-fender-storage-boxTinkerCAD link if you want to make changes: https://www.tinkercad.com/things/53Zc5quTHH8

For those us us with guns, here is a gun rest I designed for when I have to dig into the safe and need somewhere to lean a rifle for a minute.
https://www.printables.com/model/237995-steel-safe-magnetic-rifle-rest
CMMG .22LR conversion bolt for AR15 storage box:
https://www.printables.com/model/179329-cmmg-22-lr-conversion-bolt-storage-box



[KimsJeep]

I posted this in another thread, but here is my small storage box for the rear right corner of the Jeep. Deigned to fit without any carpet.
[URL]https://www.printables.com/model/226636-jeep-tj-rear-fender-storage-box[/URL]
TinkerCAD link if you want to make changes: https://www.tinkercad.com/things/53Zc5quTHH8

For those us us with guns, here is a gun rest I designed for when I have to dig into the safe and need somewhere to lean a rifle for a minute.
[URL]https://www.printables.com/model/237995-steel-safe-magnetic-rifle-rest[/URL]

CMMG .22LR conversion bolt for AR15 storage box:
[URL]https://www.printables.com/model/179329-cmmg-22-lr-conversion-bolt-storage-box[/URL]

Thanks for the storage box. Going to have to give that one a try.



[SSTJ]

I've added a few more to the original post. Others?



[gbirk]

So definitely print my box in PETG not PLA.
https://wranglertjforum.com/threads/made-a-small-storage-box-with-new-3d-printer.62960/post-1152120



[MikekiM]

I'll throw out my replacement panel for early TJs with the airbag switch in the console. Worth noting that while I designed it around a 0.312" incandescent indicator bulb from BGMicro, they've since closed up shop so a suitable replacement light would need to be sourced to keep the airbag controller happy.

View attachment 341344

I would love one of these panels.. just the blank panel.. no provisions for lights or switches.. I was going to fab one from plexiglass or some left over kydex. Can you do one with no switch/light? I figured I would just stuff the stock panel under the console so I don't get any idiot lights



[SSTJ]

So definitely print my box in PETG not PLA.
[URL]https://wranglertjforum.com/th...ge-box-with-new-3d-printer.62960/post-1152120[/URL]

Updated the OP.



[IOwnCalculus]

I would love one of these panels.. just the blank panel.. no provisions for lights or switches.. I was going to fab one from plexiglass or some left over kydex. Can you do one with no switch/light? I figured I would just stuff the stock panel under the console so I don't get any idiot lights

I really would not recommend this. The whole reason I started that project was because my airbag switch was failing, and hitting bumps on the road was enough to cause it to intermittently switch off the passenger airbag. You wouldn't see or know about that if your airbag switch is hidden. Mine no longer has any way to toggle the airbag off, but the indicator light is still necessary both to keep the airbag computer happy, and to alert you if something is not as it should be.



[SSTJ]

Bump. I know there are some more floating around out there.



[rasband]

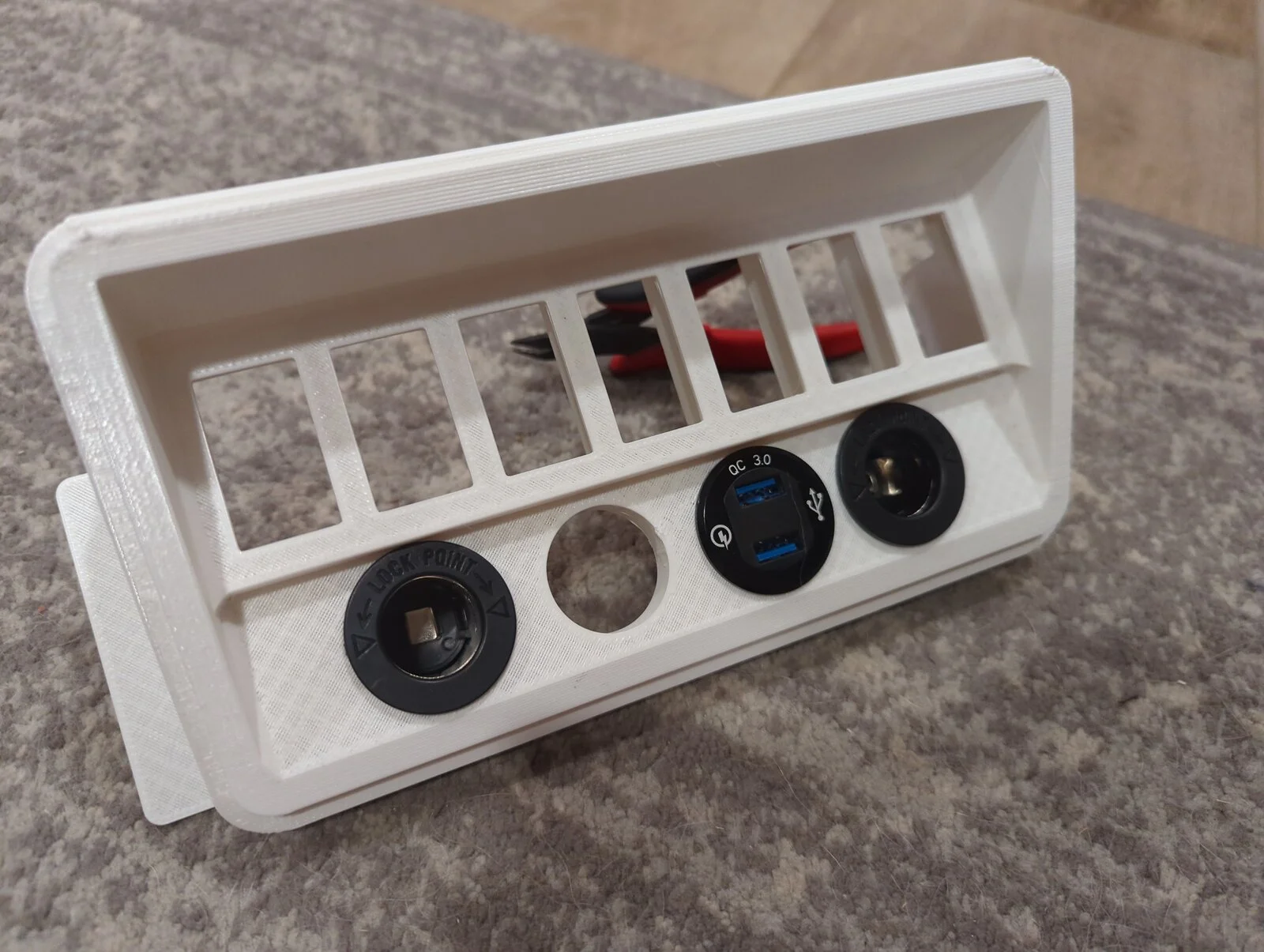

Still prototyping, but here's a new switch panel I've been designing and refining.



[B34C0N]

Still prototyping, but here's a new switch panel I've been designing and refining.

View attachment 348391

That looks nice! I was planning to do the 2 factory panels into one mod, but maybe I'll have to cad something like this up



[Sudo]

Center cap....



[hear]

Still prototyping, but here's a new switch panel I've been designing and refining.

View attachment 348391

A 2 piece design that let's you get to the wiring w/o taking off the whole center bezel would be nice. I built a similar thing out of sheet metal with a screw on front plate, but a 3d printed piece would do well I would think. (Obviously you have to take off the center bezel to do the initial install.)



[rasband]

A 2 piece design that let's you get to the wiring w/o taking off the whole center bezel would be nice. I built a similar thing out of sheet metal with a screw on front plate, but a 3d printed piece would do well I would think. (Obviously you have to take off the center bezel to do the initial install.)

That's a great idea!



[Jezza]

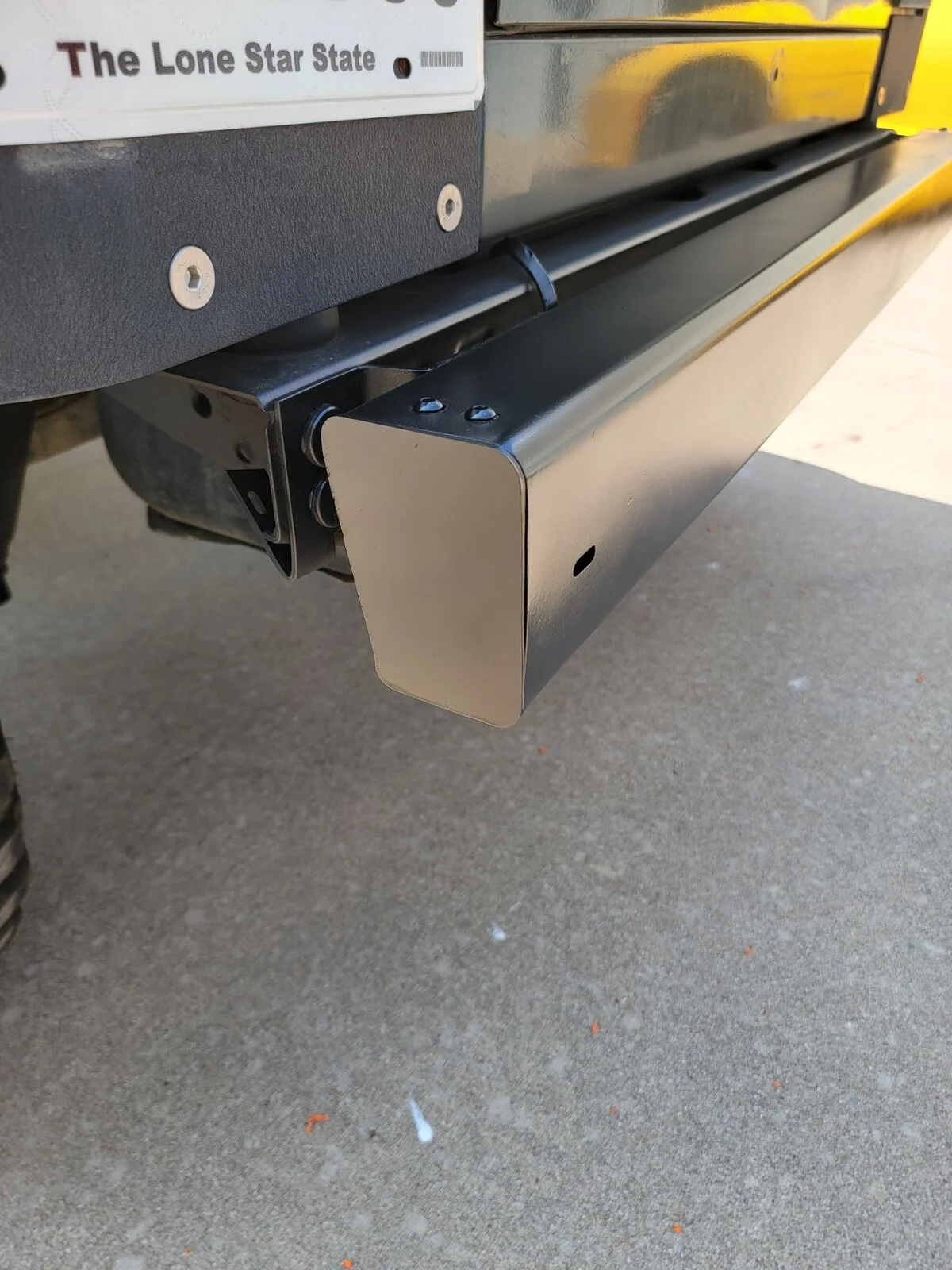

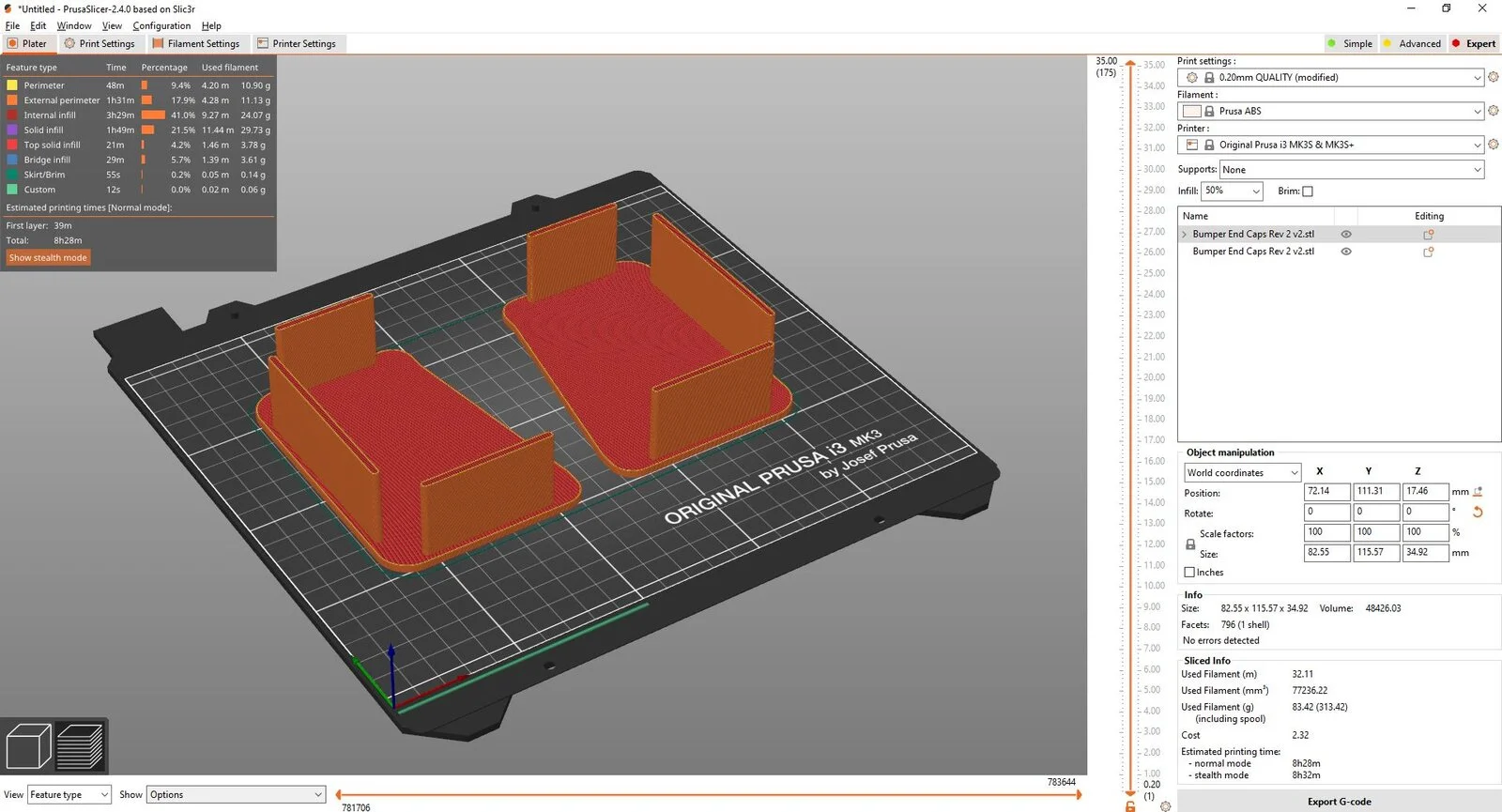

Bumper end caps for the OEM bumper. 3d printed in ABS and painted along with the bumper. Drill in place and attached with 1/4-20 button heads.

https://www.printables.com/model/254989-jeep-wrangler-tj-bumper-end-cap



[SkylinesSuck]

Still prototyping, but here's a new switch panel I've been designing and refining.

View attachment 348391

If you get it tweeked the way you want, I would buy one fow sheezy!



[Jezza]

If you get it tweeked the way you want, I would buy one fow sheezy!

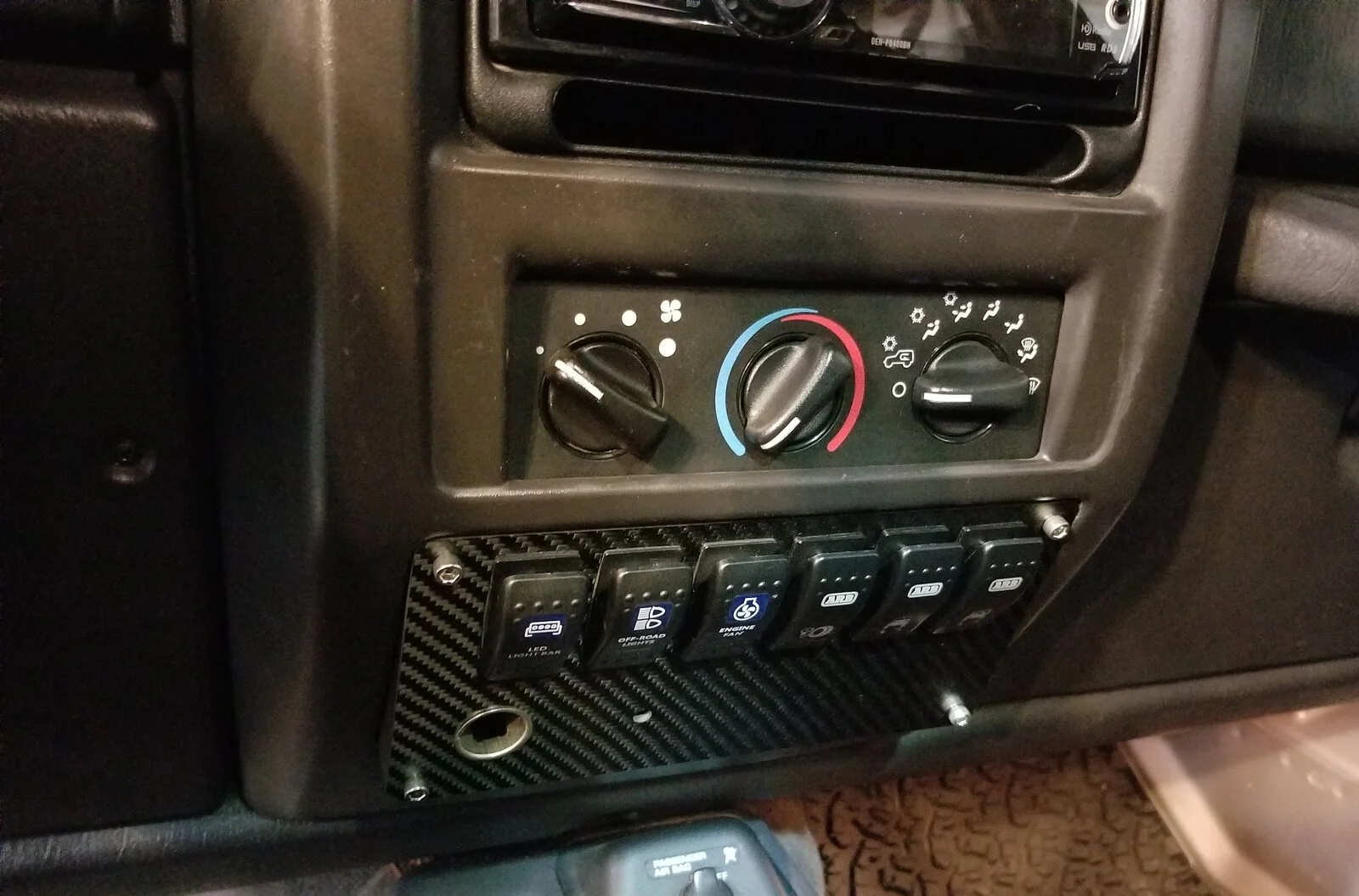

This is the one I made for mine. Although instead of printing the panel I cut it out of some carbon.

https://www.printables.com/model/255069-jeep-wrangler-tj-lower-switch-panel
