What TJs came from the factory with a short console and a rubber E/parking brake boot/cover?

We're any of these like this from the factory? Seeing a lot of used 97-02 or 03-06 rubber e brake boots and the short console cup holder adapter. I would have assumed they are aftermarket but I am mostly seeing used ones.


Chris

Administrator
Staff Member
Ride of the Month Winner
Joined
Sep 28, 2015
Messages
60,736
Location
Florence, AZ
While I don't know which models it was for sure, I'm willing to bet it was the early (97-02) base models such as the SE. That and the ones they sold to the government for postal service routes and such.


Chris

Administrator
Staff Member
Ride of the Month Winner
Joined
Sep 28, 2015
Messages
60,736
Location
Florence, AZ
I wouldn't have the slightest clue at all, but I don't think it would fit. I say that because the console is much shorter, so the boot would have to be shaped entirely different in order to fit the shorter console.


billiebob

TJ Addict
Supporting Member
Joined
Oct 31, 2015
Messages
5,521
Location
Kootenays, BC, Canada
Your Chrysler Jeep dealer should be able to find the parts numbers etc for you. I doubt they will still have the parts in stock but they should be in the data base.

And someone on here must have one.

OP
Tj04

Tj04

TJ Enthusiast
Joined
Jun 4, 2017
Messages
960
Location
Minneapolis, MN, United States
I'll give em a try. I've never found them very helpful took them ten minutes to look up the large cross bolt for the motor mount.

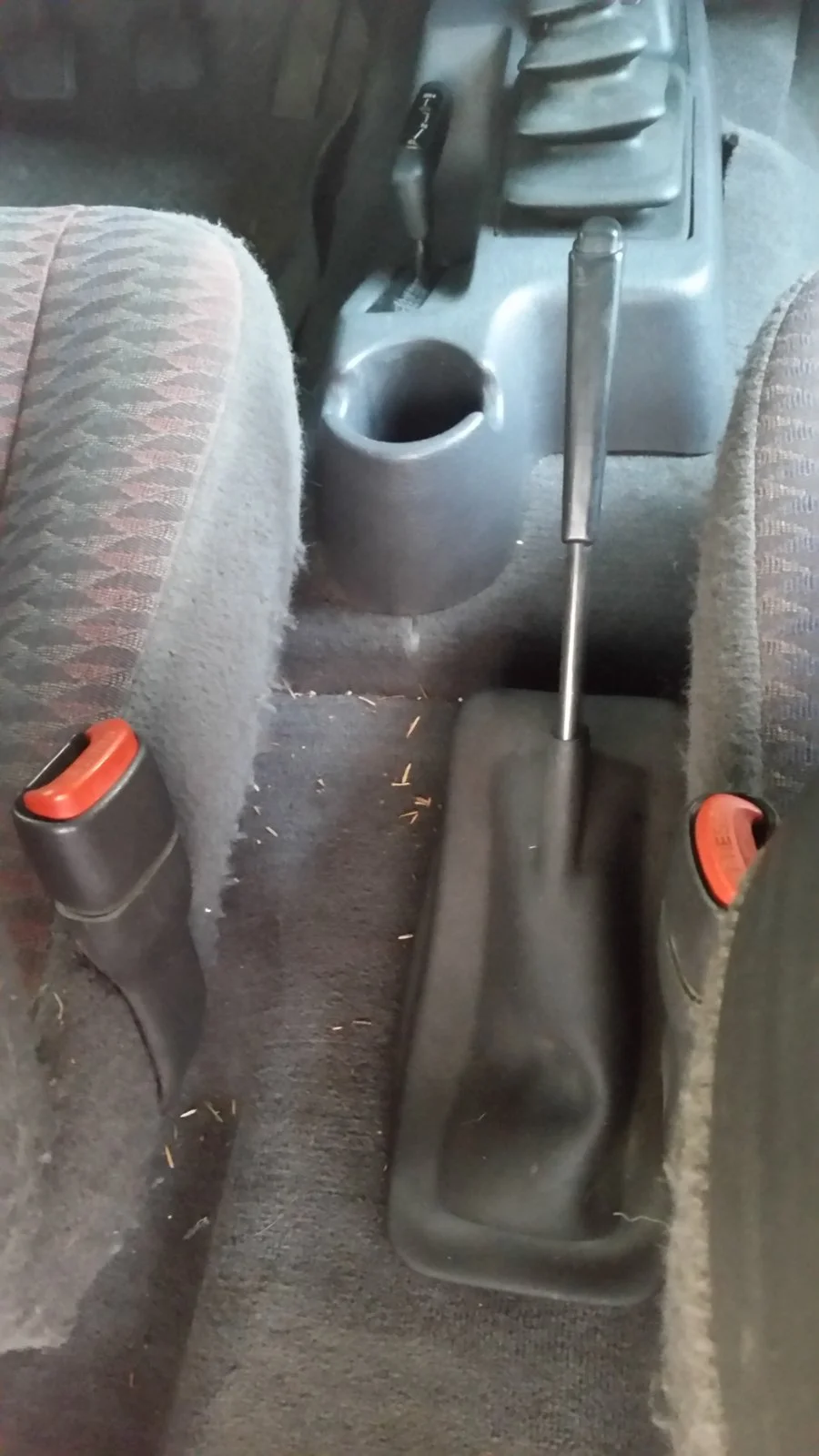

This is what I'm refering to in case I wasn't descriptive enough, and can't picture how this wouldn't fit. But I do see 03-06 ones too so obviously I'm making this more complicated than I need to. Just really curious if this part actually changed as I've only seen an SE with this on never a sport or Sahara.


Fouledplugs

TJ Guru
Supporting Member
Joined
Jun 19, 2017
Messages
6,157
Location
Alabama/South Carolina
The short consoles are also often called half consoles and even single cupholder consoles. I think they look awesome. TJ mini consoles came with a single cup holder and a rounded tail for a minimal look. Pretty sure they bolt right into 97-02 Wranglers. And could probably be made to fit a 02-06 with little work for a factory look. The SE TJ's without a convenience package came from the factory with the mini consoles. Correct me if I am wrong. Automatic and manuals use the same mini console with a part number : 5DT85TRMAC
The mini console can be found all over ebay and other part houses online. If you look hard enough you should be able to find a new old stock item that is still in plastic.
https://www.jeepsunlimited.net/prod...-center-console-plastic-trim-bezel-cup-holder

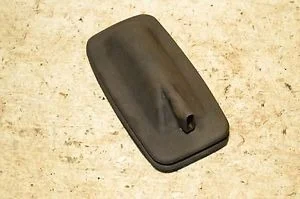

The mini console ememgency brake cover has a part number : 8220-52078891AB

Morris Offroad has a bunch of emergency brake boots brand new and in stock from Mopar.

https://www.morris4x4center.com/mopar-emergency-brake-lever-boot-52078891ab-m.html

So does JeepsRus

https://www.ebay.com/i/380422296176

Full consoles from 97-00 full length consoles are one (1) piece consoles.
Full consoles from 01-06 full length consoles are two (2) piece consoles with a split between the double cup holders.


TJ mini console:


TJ full console:


IIRC the TJ models that didnt have the airbag switch in the center consoles came with a small dish for storage and a coin organizer. Someone chime in.


Mike_H

Going my own way
Supporting Member
Joined
Feb 28, 2017
Messages
5,809
Location
Grand Rapids, MI, United States
The short consoles are also often called half consoles and even single cupholder consoles. I think they look awesome. TJ mini consoles came with a single cup holder and a rounded tail for a minimal look. Pretty sure they bolt right into 97-02 Wranglers. And could probably be made to fit a 02-06 with little work for a factory look. The SE TJ's without a convenience package came from the factory with the mini consoles. Correct me if I am wrong. Automatic and manuals use the same mini console with a part number : 5DT85TRMAC
The mini console can be found all over ebay and other part houses online. If you look hard enough you should be able to find a new old stock item that is still in plastic.
https://www.jeepsunlimited.net/prod...-center-console-plastic-trim-bezel-cup-holder

The mini console ememgency brake cover has a part number : 8220-52078891AB

Morris Offroad has a bunch of emergency brake boots brand new and in stock from Mopar.

https://www.morris4x4center.com/mopar-emergency-brake-lever-boot-52078891ab-m.html

So does JeepsRus

https://www.ebay.com/i/380422296176

Full consoles from 97-00 full length consoles are one (1) piece consoles.
Full consoles from 01-06 full length consoles are two (2) piece consoles with a split between the double cup holders.

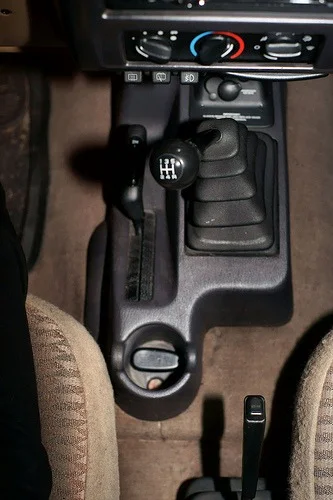

TJ mini console:
View attachment 22032

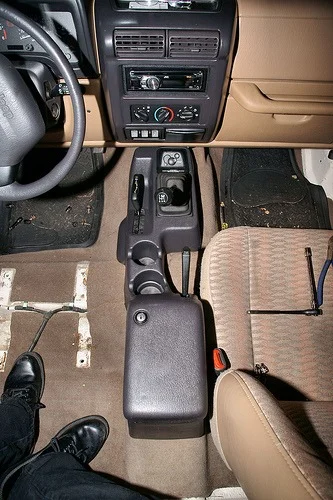

TJ full console:
View attachment 22033

IIRC the TJ models that didnt have the airbag switch in the center consoles came with a small dish for storage and a coin organizer. Someone chime in.
Yup, no airbag switch, and a worthless little tray for coins...


Chris

Administrator
Staff Member
Ride of the Month Winner
Joined
Sep 28, 2015
Messages
60,736
Location
Florence, AZ
Right but do people really use their consoles? I dont keep anything in mine..but then again I am a clean freak.

You're right, I rarely use mine. The short console actually does look better in my mind.

If it wasn't for the fact that mine has the factory subwoofer in it, I would just get rid of it in favor of a short console.

  • Like
Reactions: Fouledplugs

JamesAndTheSahara

TJ Addict
Supporting Member
Joined
May 22, 2017
Messages
2,164
Location
Auburn, AL, United States
Right but do people really use their consoles? I dont keep anything in mine..but then again I am a clean freak.
The center console is worthless for storing stuff. Trying to figure out a way to permanently attach the console lid so people won't rip it off anymore, may store and amp/sub combo inside it though.

The short console is super cool, my girlfriend would hate to lose her cupholder though.

Oh yeah I love you airbag switch thingy I have never used in a million years and probably still won't use. At least 97-02 TJ's came with the ashtray that functions quite nicely as a coin storage tray.


glwood

Jeepless
Supporting Member
Joined
Sep 16, 2016
Messages
6,597
Location
Albuquerque, NM
Right but do people really use their consoles? I dont keep anything in mine..but then again I am a clean freak.
I use mine as an armrest.

Back when I cared whether I had a nice stereo system, I replaced the stock console with a locking Tuffy security console, and had the head unit in the steel console, and the factory AM/FM radio in the dash.


Mike_H

Going my own way
Supporting Member
Joined
Feb 28, 2017
Messages
5,809
Location
Grand Rapids, MI, United States
Right but do people really use their consoles? I dont keep anything in mine..but then again I am a clean freak.

I have the long console...I was referencing the "coin tray" I actually keep a couple items in my center console. Its not very big, due to the sub, but a microfiber for cleaning my sunglasses goes in there, the stupid spline adapter for my lug nuts is there, Phone charger, etc.


bobthetj03

WRKJ779
Supporting Member
Ride of the Month Winner
Joined
Feb 3, 2017
Messages
13,027
Location
NorCal
Owning an SE meant you couldn't afford more than one drink anyway. Storage? Who needs storage? Not a SE owner. Can't afford to buy stuff to store. TJ Jonny has the Deluxe edition mini console. Way to show off that poor man's wad of $1 dollar bills buddy!

I'm kidding guys! Don't flame me! In all seriousness, that mini console is cool, but I'd miss my full console which houses my sub and my CB. Plus I'd miss my arm rest.


TJ Jonny

Member
Joined
Jun 28, 2017
Messages
99
Location
Massachusetts, United States
Owning an SE meant you couldn't afford more than one drink anyway. Storage? Who needs storage? Not a SE owner. Can't afford to buy stuff to store. TJ Jonny has the Deluxe edition mini console. Way to show off that poor man's wad of $1 dollar bills buddy!

I'm kidding guys! Don't flame me! In all seriousness, that mini console is cool, but I'd miss my full console which houses my sub and my CB. Plus I'd miss my arm rest.

Pretty elaborate joke...
