Sonnax article on the 32RH common problems

astjp2

TJ Expert
Supporting Member
Joined
Aug 22, 2018
Messages
5,559
Location
Utah and Alaska
November 26, 2004 The Cure for the Common (Chrysler RWD) Cold

Questions? Email Sonnax Tech Support about this article.


Remember the old advertising line, “Why trade a headache for an upset stomach?”
It’s not uncommon in transmission rebuilds to find a fix for one problem that either creates or intensifies another problem.
Just about every transmission rebuilder has seen a Chrysler rearwheel- drive come into his shop having suffered the effects of lube failures. It is likely that the same unit is also suffering from delayed engagements. It’s not uncommon. It’s not a coincidence. Both are the result of the way the circuits have been designed.
Lube failures are so common that many rebuilders have become accustomed to seeing galled governor supports, seized output shafts, or rounded sun and planetary gears, all signs of loss of lube. These failures can be traced back to the cooler/converter circuit and how it is controlled or fed by the pressure regulator valve.
Rebuilders have even come up with a “fix” to get around the problem. They have realized that the problem is this: The cooler/converter charge circuit won’t open until the pressure regulator valve moves far enough to flow oil, which means that the transmission is essentially running on empty until the pressure regulator valve is fully engaged. The “fix” is to drill a small orifice between the line pressure and cooler circuit to allow fluid to flow to the cooler/converter circuit, otherwise known as drilling line to lube.
But while this takes care of the headache, it inflames an already upset stomach called drainback. Drilling that small hole for line to lube does help the lube flow when the engine is running, but it increases converter drainback problems because ATF can drain out through the hole when the engine is turned off. While it is likely that drainback is already an issue in units with moderate mileage or more, it becomes a larger and potentially damaging issue when you add a circuit and provide more options for drainback flow.


Sonnax has developed a lube-regulated PR valve, 22771A-02K, that allows oil to flow into the converter charge circuit as soon as the engine is started. Once there is enough line pressure built up and the PR valve starts to feed the converter/cooler circuit, the internal valve is shut down and the unit operates as it would normally. When the unit is shut off, the internal check valve does not allow fluid to drain back out through the orifice, reducing converter drainback. This steel PR valve will improve converter feed at low RPM and at high throttle. Remember that if the passage for line to lube has been drilled, you can still make things right. Just remember to plug the hole, then install the valve.
While the PR valve was contributing to both the lube and converter charge problems, it had help on the converter charge or delayed engagement problem; the manual valve. The original manual valve design doesn’t allow the converter to be charged in park, which contributes to delayed engagements and potential converter bushing failure. You are not filling the converter until you pull it out of park so the delay is noticed as the fill begins after the lever is moved. If you have normal drainback, or worse, extra drainback from the line-to-lube hole, that converter filling delay becomes not only more of an annoyance but increases the risk of damage.
The Sonnax redesigned manual valve 22771-09 has a new control spool and circuit that provides converter charge in park. You don’t have to rework or adjust the valve body to install this valve, and it will not cause the forward clutch to drag in Park.
The Sonnax PR valve and manual valve are standalone parts that can be installed independently. The one-two punch they provide to cure two chronic problems is a most effective combination and we recommend they be used together whenever
possible. These guys won’t just work in a few late models either. In addition to 42 through 47 RH & RE units, you can also install them in most 727 or 904 or variations of those generation units.
The rule is simple: Always look at the design of the original pressure regulator valve. If the spools on the inboard end get progressively smaller (like a Christmas tree) you can use our PR and our manual valve in that unit. If the design of the original PR valve had end spools that are all the same diameter – rather than getting smaller at the end – do not use either our PR or our manual valve in that valve body.
While you are in the valve body, don’t forget another player that often causes similar and additional problems: the line pressure plug and sleeve. Slippage in reverse, poor cooler charge at idle, poor line control and poor forward and reverse engagements are all symptoms of a worn line pressure plug and sleeve. When these parts wear, the PR valve can’t control line pressure properly. The solution is a Sonnax line pressure plug and sleeve kit, 12229-01K for the A904, or 22229-01K for the A727, 42RE, 46RH and 47RH. The sleeves and plugs allow the PR valve to do its job, and can save you hundreds in valve body replacement costs.

  • Like
Reactions: TJProjectRon
OP
astjp2

astjp2

TJ Expert
Supporting Member
Joined
Aug 22, 2018
Messages
5,559
Location
Utah and Alaska
Chrysler RWD Valve Body Linkage Pivot Wear
Gregg Nader

Questions? Email Sonnax Tech Support about this article.


The basic design of the internal shift linkage of Chrysler / Dodge rear wheel drive transmissions has not changed since 1967 (Figure 1). As movement, vibration and wear take their toll over time, looseness of the internal linkage becomes a big problem. When there is excess movement in the manual lever, the manual valve is not held precisely in position, resulting in fluid leakage, cross leaks and unit failure. Even a small amount of positional error becomes a problem on these units, due to the narrow width of the lands in these Chrysler valve bodies.

There are established repairs available for where the internal shift linkage passes through the case and where the detent ball wears into its bore in the valve body casting. Fixes for these two locations tighten up the linkage but the lower linkage pivot point in the valve body is one more area that wears. Shops have tried various approaches to repair the lower pivot but typical bushings do not work well. The biggest problem is the flat on one side of the casting (Figure 2). If the bore is machined oversize to accept a typical bushing, the wall thickness of the bore ends up too thin and will crack. What follows is a method any shop can use: installing a very thin plastic Delrin® sleeve to salvage worn castings. Delrin® is a high strength, flexible, impact and abrasion resistant plastic material often used for bushings and thrust washers. The material used here is very reasonably priced.

Items required for this repair include:

  • A .522" reamer
  • Strips of .010" thick Delrin® shim stock
  • An older linkage pivot with the lever portion removed
  • A 5/16" diameter x 8" long steel rod

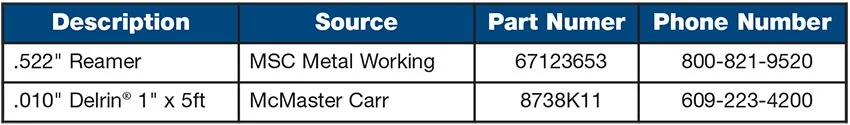

See the source list at end of this article.

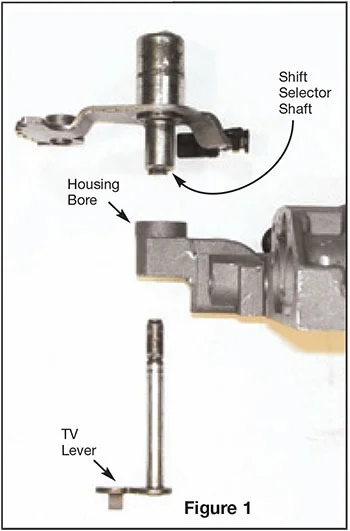

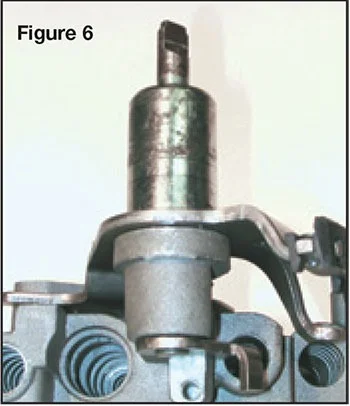

Cut the .010" Delrin® into small rectangles .730" x 1.5" as shown in Figure 3. The bore in the valve body housing needs to be machined oversized to accept the plastic sleeve. There is a small unworn area in the bottom of the bore that can be used for centering. This process can be done in a mill or even in a drill press. Figure 4 shows the reamer and the early splined/crimped type internal linkage with the lever portion removed and attached to the 8" long 5/16" O.D. steel rod with Loctite®. This will be used as an alignment pin to establish a centerline, prior to reaming.


With the alignment pin in a chuck, clamp the casting in place in a drill press or mill so the pin is centered in the unworn portion of the bore. Replace the alignment pin with the reamer and machine the bore oversized. Roll the rectangle of Delrin® into a plastic cylinder and insert into the bore as shown in Figure 5. When installed, the plastic sleeve material is held captive at both ends: on the top by the shift selector shaft and on the bottom by the TV lever (Figure 6).


The result is a wear resistant thin-wall sleeve that corrects the looseness in this problem area. The repair restores the linkage to like-new condition which will once again ensure precise positioning of the manual valve.



Gregg Nader is a Sonnax Technical Specialist and a member of the Sonnax TASC Force® (Technical Automotive Specialties Committee), a group of recognized industry technical specialists, transmission rebuilders and Sonnax Industries Inc. technicians.

OP
astjp2

astjp2

TJ Expert
Supporting Member
Joined
Aug 22, 2018
Messages
5,559
Location
Utah and Alaska
Another sonnax about repairing the valve body in pdf


Attachments

  • sonnax-trans-report_v1n1-1.pdf
    3 MB · Views: 510
OP
astjp2

astjp2

TJ Expert
Supporting Member
Joined
Aug 22, 2018
Messages
5,559
Location
Utah and Alaska
103043

904 BILLET REAR SERVO KIT

High performance low/reverse billet rear servo kit for a 1967 and newer 904, 998, 999, 500, 42RH, 42RE, 44RH, 44RE Dodge Plymouth Chrysler Jeep or AMC transmission. This rear servo kit features a redesigned 1-piece piston which replaces the stock piston, inner spring, piston plug, snap ring, and the after market shim used in performance rebuilds. It is CNC machined out of solid billet aluminum so it will not crack like the stock cast aluminum pistons are known for doing. You will also get much less internal leakage with the solid 1 piece piston compared to the stock assembly, that means more holding power for the rear band. Included in this kit is the piston, a heavy duty return spring that will help eliminate the 1-2 shift overlap, a new seal, and a .075” extra thick stainless steel retainer that will not bend around the retaining ring and pop out of the case like the factory steel retainers do. This is a complete ready to install kit, no extra parts are needed and it is 100% Made in the USA. The price for this kit is $75.00. There is also a $8.00 per order shipping charge.

If you have any questions, or would like to place an order, please email me at [email protected] Thanks!!!

OP
astjp2

astjp2

TJ Expert
Supporting Member
Joined
Aug 22, 2018
Messages
5,559
Location
Utah and Alaska
103044

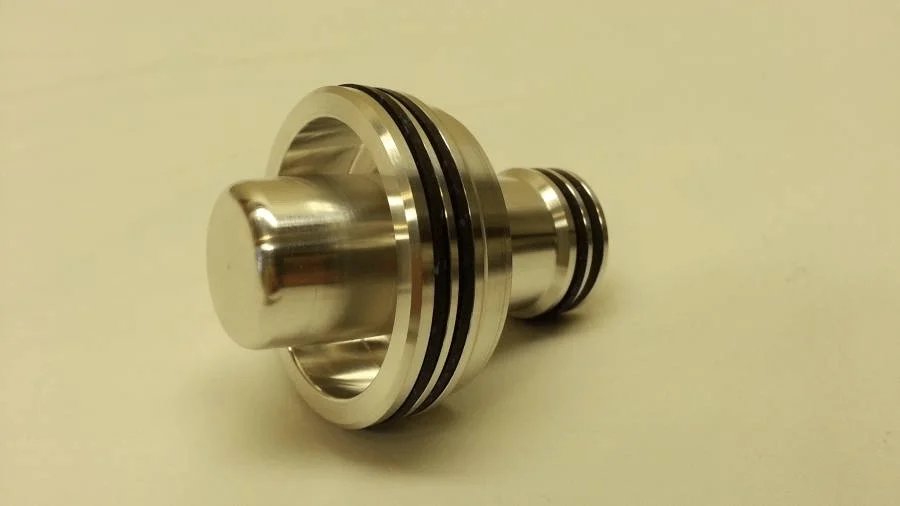

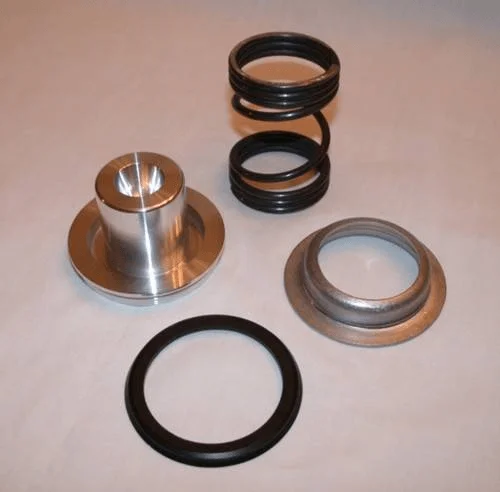

BILLET DUAL RING ACCUMULATORS

These will fit just about any torqueflite transmission including the 727, 904, 998, 999, 500, 518, 618, 42RH, 42RE, 46RH, 46RE, 47RE, and 48RE, almost every rear wheel drive transmission from 1962 on up to the 2007 48RE Cummins Turbo Diesel overdrive transmission. These are a great upgrade for all the 727s and 904s and are also perfect for replacing the plastic accumulator that Chrysler switched to in the late 80s. The plastic accumulators are known for cracking and causing problems in performance transmissions. I have done these 2 different ways: First is an exact stock replacement, this one will accept all the stock springs whether they go between the case and the piston or the piston and the valve body. These are perfect for the turbo diesel guys that have tighter aftermarket torque converters, or for the person doing a stock type rebuild on a gas transmission. Second is with a built in blocker rod that will stop the accumulator from moving in the bore and firm up shifts. No need to cut down round stock and make a blocker rod anymore, I did it for you. Comes with all 4 sealing rings. The price on these are $45.00 each. There is also a $8.00 shipping and handling charge per order.
These are 100% Made in the USA. If you have any questions or want to place an order email [email protected] Thanks for looking!!!

  • Like
Reactions: Bigmac
OP
astjp2

astjp2

TJ Expert
Supporting Member
Joined
Aug 22, 2018
Messages
5,559
Location
Utah and Alaska
103045

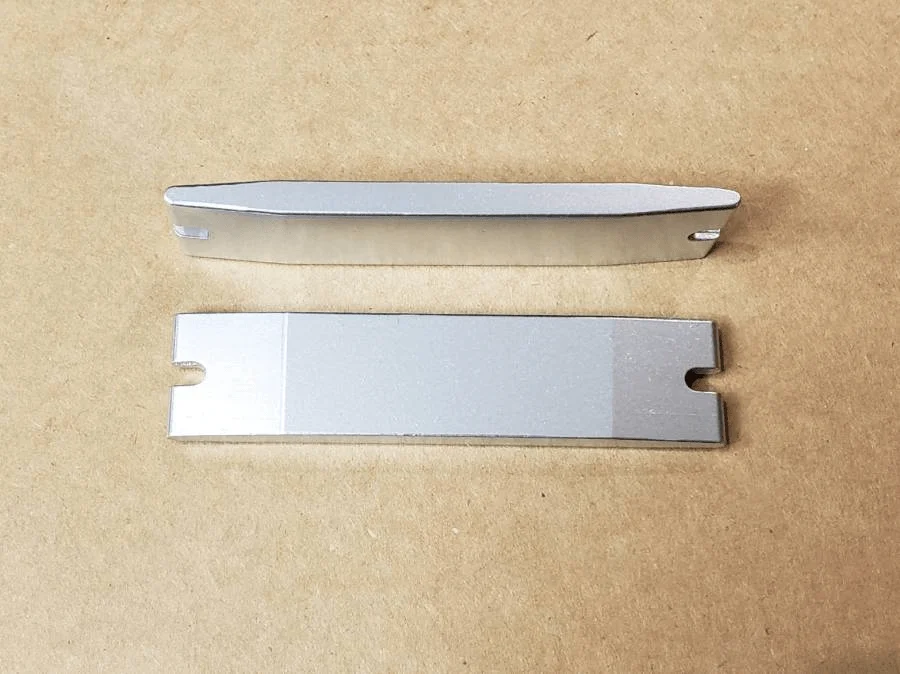

The OEM Chrysler front band struts are prone to bending, and the OEM band anchors are known for breaking in high performance and heavy duty applications. The band strut is CNC machined from 1/4” thick steel, which is twice as thick as the factory strut and it is zinc coated for corrosion protection. The band anchor is also CNC machined from billet steel. Both are made in the USA. The price is $25.00 each, and includes shipping anywhere in the USA.
I have the struts for a 904 transmission (32rh)
Email [email protected]

OP
astjp2

astjp2

TJ Expert
Supporting Member
Joined
Aug 22, 2018
Messages
5,559
Location
Utah and Alaska
More info on how the torque flight works

Taken from Allpar

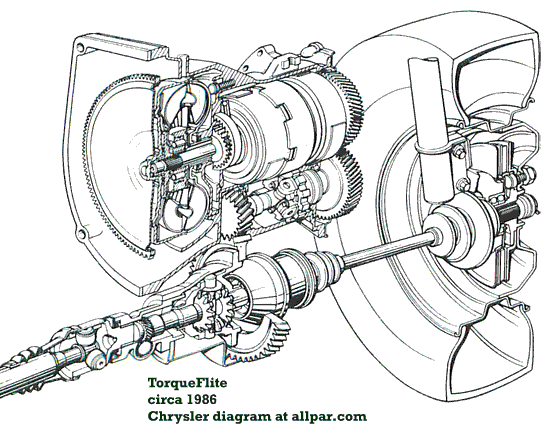

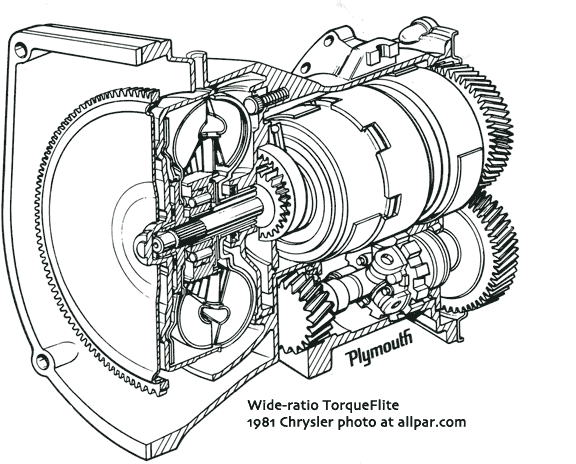

Introduction to the TorqueFlite

The automatic transmission is a convenience item for most people. The shift lever is moved to get the car in motion and then left alone until the car is stopped. No clutch pedal to push or shifter to change between three, four, or even five forward gears makes for a minimum of driver effort [editor’s note: by 2014, up to nine forward gears!]. Not only were automatics originally used for general driving comfort, they quickly found a place in competition vehicles.


In the 1960s, Chrysler products dominated various drag strip classes, in both AHRA and NHRA. The majority of the cars were running manual transmissions as they were faster and easier to repair. However, the shock of 4000 to 6000 rpm drops on the starting line created enormous loads on tires and driveline components. If it wasn't for the fact that tires were a lot slicker then, there probably would have been an incredible amount of additional parts breakage.


Chrysler was the first to develop better racing automatics since they already had the most dependable automatic transmissions on the road. It took G.M. until 1964 to develop the famous Turbo-Hydramatic 400. Up to that point in time, only the Powerglide was seriously used in G.M. racing vehicles.


The aluminum torqueflite revealed many more classes that Chrysler could dominate. Evidently, early engineering groups at Powertrain Design did their homework, because the original design has changed little as Chryslers still dominate A through D stock automatic in NHRA classes. With bracket racing coming alive in the 1970s, it has been almost mandatory to have a good automatic in 90% of the classes if you want to be consistent and win races. Torqueflites still fulfill the needs of Chrysler racers.





Automatics have usually been four to six percent less efficient than manual transmissions. Torque converter slippage was a big contributing factor to this inefficiency; in 1978 lock-up clutch-type converters [a Chrysler invention] were added with Torqueflites, to help reduce the gas mileage difference between automatic and manual transmissions. I will not go into much detail on these because they are very similar in design to stock 727s and 904s with the addition of a few control valves and a slightly different torque converter.


As gas mileage demands increased, thereby decreasing engine size, Chrysler changed from 727s to more 904-type transmissions (G.M. created the Turbo 200-type automatic for smaller vehicles, and what a money maker this has been for automatic transmission repair shops!). No real problems were noted by changing to the smaller unit except for 1978 early lock-up shuddering, remedied by delaying the lock-up speed a few mph later that model year.




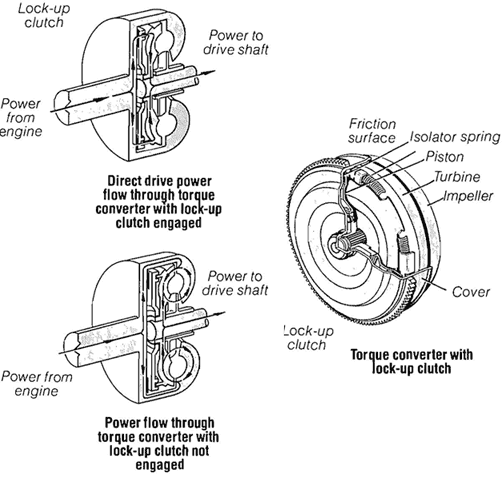

The Torque Converter

There has to be something to transfer motion from the engine to the transmission and that item is a Torque Converter. This unit does what its name implies; it converts or “multiplies” engine torque at low speeds and couples the engine to the drive train hydraulically at higher speeds.


The converter consists of three elements, all necessary for proper transmittal of motion. The Impeller and Turbine transfer fluid between each other to drive the Input Shaft of the transmission. The Stator gives proper direction to the fluid flowing between the impeller and turbine. The converter hub has slots that engage the tabs on the inner rotor of the oil pump to create oil pressure and oil flow from the pump while the engine is running.


The overall purpose of the torque converter is to:


  1. Provide a coupling between the engine and transmission
  2. Supply a method of driving the transmission oil pump
  3. Provide a unit that incorporates a flywheel for starting
  4. Supply a multiplication of engine torque of approximately 2.2:1 at low speeds and 1:1 at higher speeds

Refer to either Chrysler literature or other applicable information for more details about the internal “Vortex, Rotary and Turbulent” flow of fluid if you are interested in more of the converter operation and design. Converter diameters and stall speeds will be discussed in the modification section.

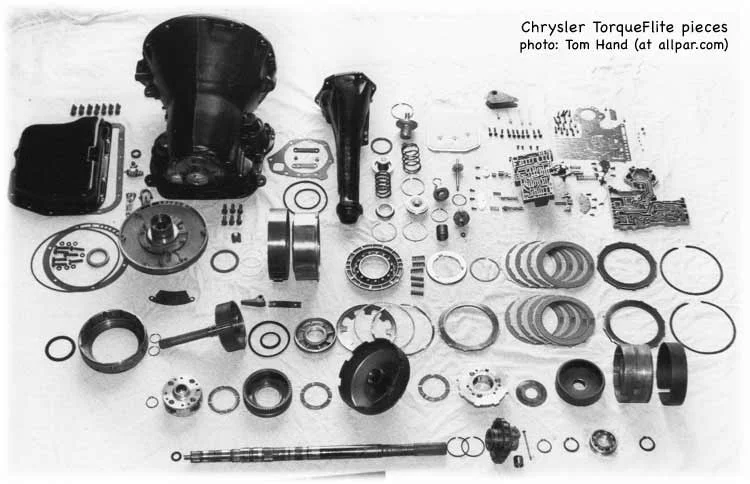

Torqueflite Exploded View

Before going into details of each subassembly in the Torqueflite, refer to the exploded view of a complete 1976-727 transmission. The over-running Clutch is not shown and the Valve Body is actually a 1970 model. There are reasons for this but they are not important to the overall explanation of the internal operations.


From top left you will see the Pan, the Case, and the Tail shaft, or Extension Housing and associated hardware. The top right corner contains all the Servos, Bands, Operating levers and pins, and the Accumulator and its spring.


The next row has the Oil Pump and the Front Clutch assembly shown. Row three displays the Rear Clutch assembly. The fourth row holds both Planetary Gear sets, the Front Clutch hub, Sun Gear and Sun Gear Driving Shell, and the Low-Reverse Drum assembly.


To the far right is the oil filter and “Direct Connection” oil filter extension. This extension is used with the deep oil pan shown in the upper left corner. The last row contains the Output Shaft, Governor Assembly and the Output Shaft Support Bearing. To the right of this is the “Brain” of the transmission; the Valve Body.




I will explain the pictures of the various units in the general order they are displayed and tell what functions the pieces have in the overall transmission operation in the following text.

Torqueflite Case Assembly

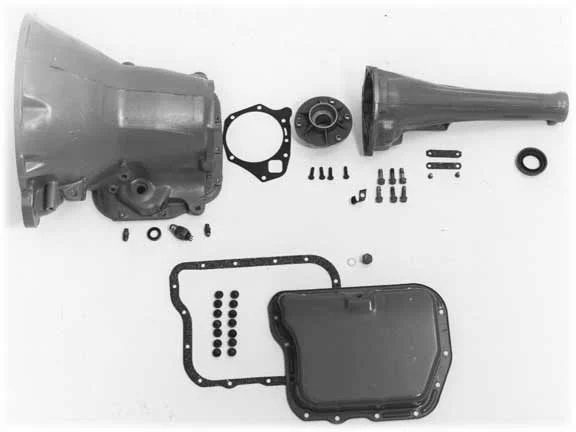

Shown is a 727 case and associated pieces (the 904 is almost identical except the size and shape of everything is slightly reduced). This case is 727-A which fits all small blocks. The 727 can also be a 727-B which fits the big blocks, or 727-RG which bolts to the six-cylinder blocks. The 904 comes in a 904-A, 904-RG, as well as units for some of the earlier 4-cylinders. Some higher performance 904 units were designated as 998s and 999s in the later 1970s.




The case is in the upper left corner. Below it are the cooler line fittings, the shifter shaft seal, and neutral start switch. The neutral start switch allows the engine to be started when the transmission is in only park or neutral range, and it turns on the reverse lights when needed (1968 and earlier cars had the reverse lights controlled from a switch on the steering column or console shifter).


Next is the case-to-tail shaft gasket and the governor support. The governor support bolts to the case and it has three purposes. It supports the low-reverse drum, the governor-output shaft assembly, and it directs oil to and from the rotating governor weights (The governor works with the throttle pressure circuit to control shift points). Next is the tail shaft housing that contains the parking gear lever (used to lock the governor-output shaft assembly in park) and the output shaft support bearing snap ring. A seal is used at the end of the housing to ride on the drive shaft yoke to keep oil contained in the case.


Below all this is the oil pan (I've shown the Direct Connection deep pan with a drain plug), the fluid source for the hydraulic system (some oil cooling is also done by the pan). Not shown is the filler tube and the dipstick, used both for checking the level and for filling the system.

Servos and Bands

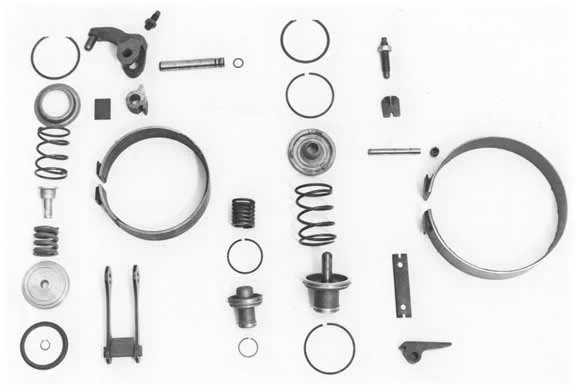

Shown in this photo are the bands necessary to give second gear (kickdown band), and reverse or manual low (low-reverse band).


In the upper left corner is the low-reverse band assembly consisting of the retaining snap ring, the spring retainer, the large diameter return spring, the piston plug, the piston plug spring, the piston itself, the synthetic rubber piston seal, and the snap ring that holds the piston plug and spring to the piston.




Moving to the top of the photo again, is the low-reverse lever assembly, its adjustment screw and lock nut, the reverse lever shaft and O-ring that the lever assembly pivots on and the rectangular strut that applies the low-reverse band. Right below the band is the anchor that holds the band when the piston pushes the low-reverse lever, which is also held in place by the reverse lever shaft.


An accumulator spring, a cast iron sealing ring, the accumulator piston and one more sealing ring are in the center of the photo. Both 904 and 727 Torqueflites use the accumulator to give a cushioned drive breakaway only, depending on which side of the piston the spring is placed.


In the right half of this picture is the kickdown servo assembly, and the kickdown band. The kickdown servo assembly consists of the retaining snap ring, cast iron seal ring, the aluminum pin guide, the large servo return spring, and a controlled-load servo with its cast iron rings below it.


This particular servo piston is called a controlled load servo; it cushions the three-two downshift. The other type of servo assembly does not use an internal spring-piston assembly, and is usually found in high performance applications where soft shifts would be detrimental. Individual pieces cannot be interchanged between the standard and controlled-load servos.


The lever at the lower right corner comes in different ratios, again depending on engine usage. Usually the higher performance transmissions use a 3.8 to 5.0 ratio lever. The higher numbered levers multiply the apply force more to tighten the band quicker and harder around the front clutch retainer drum.


The 904 uses two different types of low-reverse bands. One type is called a double wrap band, similar to the Hemi kickdown band; it is used with the V8 engines to give greater low-reverse drum holding capability. The other band is a single width band that has less torque holding capacity and is used with six-cylinder engines. The 727’s single width low-reverse band and is used with all engines.


The low-reverse band works with the over-running clutch (not shown) to hold the low-reverse drum during manual low. The 904 has a smaller over0running clutch so it depends on the band to give it sufficient holding power to prevent breakage of the clutch. I'll explain later why the low-reverse drum must be held stationary, but for now bear in mind that the drum needs to be held during manual low, drive breakaway (or low), and reverse. The over-running clutch is like a stator in the torque converter, but its outer race is firmly affixed to the rear of the case whereas the outer race of the converter stator is free to lock-up or spin depending upon engine-vehicle speed difference.


The 904 uses different kickdown bands to hold the front clutch retainer drum during second gear. Most 904s have a single width band, but some 998 and 999 versions of the 904 have a drum with five clutches, and need a wider band to hold it. Some 904s and later 727s use what is called a “flex band” that works the same way as the standard cast band, but will not retain the circular shape when removed from the transmission.


A double wrap band (also called the Hemi or 440-6 pack band) was used with the five clutch retainer drums in the maximum performance 727s. This band could produce much greater holding power than the single width cast or flex band on most other 727s. One might think it wise to use the Hemi-band with the standard 727 drums, but it will not work because of the width difference between the four and five clutch drums. I will explain various tricks that can be done with bands, apply levers and drums in the modification section.

Oil Pump Assembly

The oil pump provides the hydraulic pressure needed to operate the units in the transmission. It is made up of the pump body, two rotors, and the reaction shaft support. The first rotor has 14 external teeth and the second rotor has 15 internal teeth, The rotor with external teeth is driven by the torque converter hub and it meshes with the other rotor at only a few locations thereby creating a gap. As the rotor spins, fluid is picked up in this gap and is forced out where the teeth are meshing creating pressure to drive the fluid through various passageways of the pump body (The 904 pump is physically smaller and the pump body and reaction shaft support each make up one-half of the pump body assembly).


The reaction shaft holds the stator stationary in the torque converter and it supports the input shaft in its I.D. and the front clutch retainer on its O.D. The front clutch is sealed to the reaction shaft by the two cast iron rings that direct oil from the pump to the inside of the front clutch.




The oil pump body has a bushing to support the converter hub and a seal to prevent fluid leakage around it. The reaction shaft has a bushing in it to support the input shaft (which is part of the rear clutch assembly), oil pump assembly.


Pressure forces the lip seals against their surfaces and pushes the piston away from the clutch hub and applies force to the clutch pack through the Belleville spring-pressure plate assembly.


The rear clutch has to hold a larger torque load than the front clutch so the Belleville washer is used to multiply the apply force of the piston. The Belleville washer also acts as a spring to return the piston when the clutch is not hydraulically functioning. Once the plates and discs are locked in the rear clutch assembly, power can be transmitted through the input shaft, to the locked clutch-pack and to the front annulus gear (see planetary assembly photo). Once the planetaries are utilized, you get gear reduction and torque multiplication; or in other words, first or second gear depending on planetary usage.


Both the front and rear clutch have a check ball in the apply piston, not easily seen in the photos. When the clutch is spinning but not hydraulically operating, residual fluid can be forcing the piston out against the pressure plate (front clutch) or Belleville washer (rear clutch), creating clutch drag. This ball-check valve lets that fluid (that is under pressure from the clutch assembly spinning and throwing the fluid out due to centrifugal force) out of the clutch cylinder or drum. The 904 rear clutch is smaller but similar to the 727; and the front clutch hub-rear clutch retainer is in two separate pieces in the 727 but only one in the 904.

Planetaries, Output Shaft, and Governor




I've grouped three basically separate assemblies in this one photo, both above and below. The planetaries and sun gear in the top row give gear reductions and reversals; the output shaft transfers output torque; and the governor controls the shift points.


The planetary parts include four thrust washers and:


  • The snap ring that holds the planetaries on the output shaft,
  • The front planetary gear,
  • The front annulus gear,
  • The sun gear-driving shell assembly,
  • The rear planetary gear,
  • and the rear annulus gear.

The last three pieces are contained in the low-reverse drum. The front annulus gear is splined to the rear clutch discs and it drives the front planetary. Depending on gear selection, the sun gear-driving shell assembly will be driven by the front or rear clutch packs and will transmit torque to the rear planetary assembly. The thrust washers prevent wear between the rotating members.




The output shaft is shown with its thrust washer on the left; it prevents wear between the input shaft and the output shaft. It is fiber or bronze, depending on the year of the transmission.


The output shaft has four sets of splines cut into it. The splines on the left fit into the front planetary gear, while the second set locks the output shaft to the rear annulus gear and the third set holds the governor-park pawl assembly on the shaft. The splines on the far right are used to connect the drive shaft yoke solidly but still allow it to slide easily on the output shaft. The shaft also has gear teeth cut into it to drive the speedometer gears.


In the lower right portion of the picture is the governor assembly and the output shaft support bearing with their associated snap rings. The bearing supports the loads imposed on the output shaft by the internal mechanisms of the transmission, and maintains the correct end play in the gear train.
The governor works with the throttle pressure rod to control shift points, according to the vehicle speed and engine torque requirements.


Two cast iron sealing rings, the governor body-park pawl assembly, and the governor valve-governor weight assembly all work together to send the governor signal to the valve body to tell it to operate various shift valves, controlling up and down shifts. There is one snap ring used to hold the governor body park pawl assembly secure on the splines on the output shaft.


As in the other units, the 904 planetarys, output shaft, and governor assembly are similar to the 727 pieces, but smaller in size. Depending on the size, both will have three or four planet pinion gears in the assembly. The four pinions will be found in higher performance units.

Control Valve Body and Filter

The valve body can be considered the brain of the transmission. It takes hydraulic signals and fluid pressure to time and control all transmission functions. The springs and valves work together to modulate fluid pressure to time application of the bands and clutches. The channels that resemble endless mazes transfer fluid from valve to valve, or from valve to case passageway.




The 904 and 727 valve bodies are very similar, as are the lockup units. The valve bodies are extremely well designed, and it is hard to make a mistake while assembling them. As long as the springs are not interchanged or the balls mixed up, they always seem to work. Comparing Chrysler valve bodies with Ford units is like comparing 426 Hemis with flathead Fords, no comparison can be found. GM units are pretty slick but not as much fun to work on.

The Torqueflite in Operation

After reviewing all the previous information to get an idea what the various assemblies look like and do, the Torqueflite can now be studied as a complete unit. I'll go through a gear by gear description explaining the active components and how they combine to get the different gears. Because of the skill and generosity of a close friend, I'm able to supply a block diagram of the Torqueflite in the various gears.

Park and Neutral

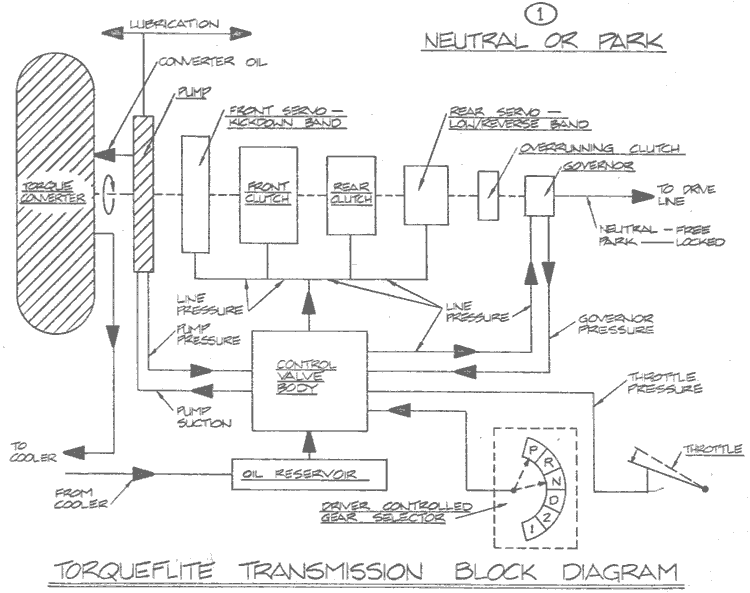

Neutral and Park are similar in the Torqueflite. No hydraulic units are operating and, with no clutches or bands applied, the input shaft-front clutch hub assembly and the driving discs in the rear clutch pack are rotating at engine speed. The rear clutch driving discs that are splined to the front annulus gear are free to spin, and the annulus gear is stationary. Therefore, all power flow stops at the rear clutch retainer.




When in Park, something has to lock the output shaft solid to prevent unwanted vehicle motion. This is done by a piece of linkage that connects to the parking gear lever and the valve body manual gear lever. This parking gear lever is pushed into the parking gear-governor assembly by a cam on the parking linkage. The parking gear-governor assembly is splined to the output shaft so when the gear is stopped, the output shaft is stopped.


There is also a hydraulic difference between neutral and park: the “Park” location of the manual valve (inside the valve body) allows fluid to leak from the valve, creating a line pressure drop. This low pressure in park keeps the converter from completely filling and loading the engine unnecessarily.


In neutral, the converter is filled and there are no “controlled leaks,” as in park. This is the reason Torqueflites should always have the level checked only in neutral. If you check the level in park, the level checks higher than it really is.

Control Valve Body and Filter

As mentioned earlier in the text, the valve body takes the hydraulic signals from the governor, throttle pressure rod, and manual shift valve, and combines these with fluid pressure from the oil pump to time and control all transmission functions.


I am not going to describe each valve or spring just yet. I'll incorporate that into the modification section. For now, I'll just point out that the filter and filter extension are at the top, the valve body and associated valves, springs, balls, and end plates are on the left, the separator plate is in the right-center and the transfer plate is at the right.


The springs and valves work together to modulate the fluid pressure to time application of the appropriate bands and clutches. The channels in both valve body and transfer plate that resemble endless mazes, transfer fluid from valve to valve, or valve to case passageway.


Sometimes Chrysler owners complain of delayed motion of the vehicle after dropping it in gear from park. This is due to the converter not being fully charged in park. The best remedy for this is to start the vehicle in park and then immediately shift to neutral. This will fill the converter which gives a quicker vehicle response.

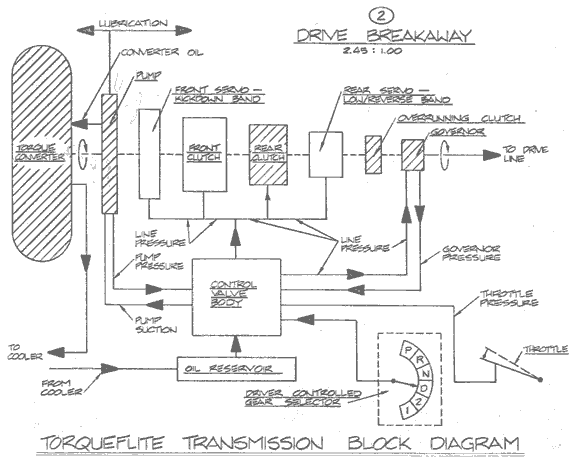

The block diagram (1) has the converter and pump shaded to show they are the only units in operation. In park, the driveline will be locked as explained above.

Drive Breakaway

Drive breakaway (or low gear) is used to move the vehicle from a dead stop or very slow roll.


When the shift lever is placed in drive, the rear clutch drive plates rotate the front annulus gear pinions which then spin the sun gear in a reverse direction. The sun gear then rotates the pinion gears of the rear planetary in the same direction as the engine, which gives a 2.45:1 gear reduction. The rear planet carrier is splined to the low-reverse drum which is held stationary by the over running clutch. The rear annulus gear is locked to the output shaft, so when the rear planets are rotating, the output shaft is spinning.


Reviewing the mechanics of this again will show that the planet pinions of both planetaries transfer the torque from the input shaft to the output shaft. As the input shaft turns 2.45 times, the output shaft turns once.


In drive breakaway, the rear clutch is applied and line pressure is directed to various valves in the valve body. The same oil is also present at the governor and the signal is modulated and returned to the valve body to prepare for the 1-2 shift.



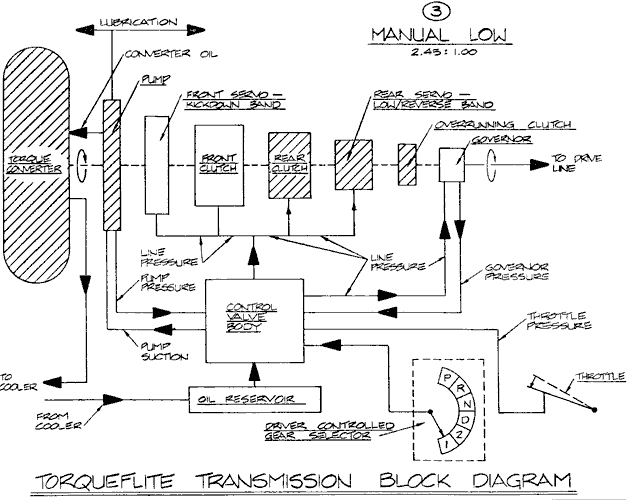

Manual Low, Drive Second or Manual Second

When the selector lever is placed in the low gear position, something else is needed to supplement the existing Drive Breakaway units. Manual low slows the vehicle down when in motion or holds the transmission in low gear longer than the governor and throttle pressure circuit normally allow. Engine braking uses the low-reverse servo to apply the low-reverse band around the drum. When the vehicle is stationary, the over-running clutch will hold the drum, but when the vehicle is already out of low gear, the drum is free wheeling and can only be stopped by the low-reverse band. (Low gear is a combination of the front and rear planetary sets, so the low-reverse drum has to be stationary to hold the rear planet carrier).


It can be seen that manual low is identical to Drive Breakaway with the addition of the low-reverse servo-band assembly and the blocking of the governor signal to the 1-2 shift valve.




The Torqueflite is shifted automatically into second gear by a governor signal pushing the 1-2 shift valve over and allowing line pressure to be directed to the front servo-kickdown band assembly and to the accumulator. The governor signal is created by the rotation of the output shaft, which throws the governor weights outward and sets up the proper pressure (I'll go into more of the pressure relationships in the modification section). Governor pressure is also directed to the 2-3 valve in preparation for that shift.


Since the rear clutch is functioning, and the kickdown band had now been applied, the front clutch drum has now been stopped. The drum is interlocked to the sun gear driving shell with tabs that engage slots in the shell. The rear clutch is still rotating the annulus gear and the sun gear is stopped so no torque is transmitted to the rear planetary. With the sun gear held and the annulus rotating, the planet carrier is spinning at a reduced speed. The planet carrier is splined to the output shaft so it, too, rotates at a reduced speed which is 1 turn for every 1.45 turns of the input shaft.

Drive Second or Manual Second

Hemi Andersen added, “The overrunning clutch holds in all forward drive conditions. For every action there is an equal and opposite reaction, so if the overruning clutch was not holding, the car would not move forward. Since it is shown ‘holding’ in drive breakaway, it would continue holding in second and direct drive as well.”


Manual second is exactly the same mechanically as Drive second, but there is a hydraulic difference. With the lever in second, the vehicle starts in low and shifts to second but line pressure blocks the 2-3 shift valve in the valve body to prevent any 2-3 upshift. The governor pressure will never overcome the line pressure on the 2-3 valve until the transmission is shifted into drive. All the same units are operating when the transmission is downshifted from drive into second. The transmission cannot upshift until the lever is moved back into Drive because the 2-3 shift valve is being blocked by line pressure.



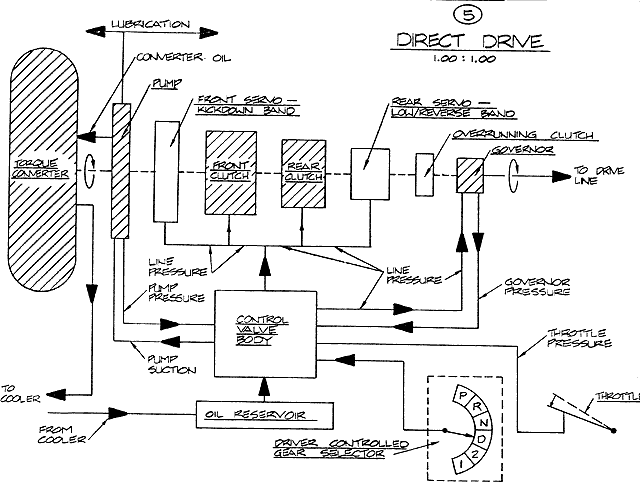

Direct Drive

While the transmission is in second gear, there is governor pressure on the 2-3 shift valve, the front clutch retainer is stopped by the kickdown band, and the rear clutch is applied, turning the front planetary and, therefore, the output shaft.


When the governor signal moves the 2-3 shift valve, fluid is applied to the release side of the front servo and the front clutch is applied. With the band released, the front clutch starts spinning. Now torque is applied to the front annulus gear by the rear clutch and torque is also applied to the sun gear driving shell by the front clutch (the driving shell is attached to the sun gear). When the sun gear and the front annulus gear spin at the same speed the planet carrier has to rotate at that speed (gear train rules dictate that when two members of the same gear rotate at the same speed, the whole gear set rotates at that speed).


Remember that this planet carrier is splined to the output shaft so it, too, turns at engine speed. Direct Drive is named for the fact that engine speed is transferred directly in a 1:1 ratio through the transmission.



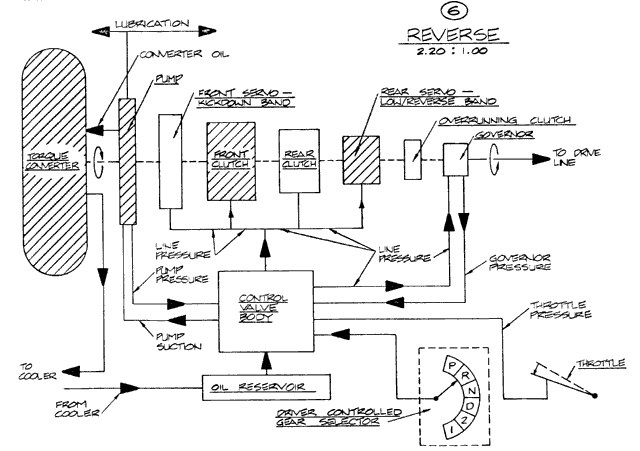

Reverse Gear

When the Torqueflite is shifted into reverse a couple of interesting things happen. First, the rear clutch, used in all forward gears, is deactivated. Then the front clutch is applied, which locks on to the front clutch hub-input shaft assembly.


Along with application of the front clutch, fluid is directed to the low-reverse servo, which locks the low-reverse band tightly around the low-reverse drum-rear planet carrier assembly. Engine torque can now be transferred through the transmission.


Looking at this in order, it happens like this: The front clutch is appliedm transferring engine torque through the sun gear driving shell, driving the sun gear in the same direction as the engine. With the low-reverse band holding the rear planet carrier stationary, torque is transmitted only through the planet pinions (via the sun gear), driving them in a reverse direction. The only thing left to spin is the rear annulus gear which is splined to the output shaft.


Using this planetary only gives one turn to the output shaft for every 2.2 turns of the input shaft, again remembering the output rotates the opposite direction of the input shaft.


Hydraulically, there are also a couple of interesting things to note. Governor pressure will not be used in reverse, and a quick line pressure check shows reverse to have about 250 + or - 20 psi (where normal line pressure is 75+ or - 19 psi). It is not immediately obvious why reverse should be so high until the rear clutch and front clutch are compared.


The rear clutch is on in all forward gears. It uses a Belleville spring washer to multiply the piston apply force the necessary amount to transmit engine torque through the rear clutch pack. However, the front clutch has no multiplication factor to depend on when it is applied.


Since direct drive is the only other time the front clutch is used, and the vehicle is already in motion, no extra holding power is needed to sufficiently lock the front clutch drum. But going into reverse, the vehicle is stationary, and much greater torque (2.2 times as much) will be transmitted through the front clutch plates. Therefore, through a couple of hydraulic tricks, line pressure is almost tripled to give the front clutch the necessary holding power.



Part two by Tom Hand - modification

This is the second part of a three part series devoted to the Chrysler Torqueflite Automatic Transmission. I'll give the reasons that I modify Torqueflites and why the majority of 904s and 727s can benefit from a few well proven alterations. Advantages and disadvantages to modifications will be explained. There are many types of kits made to improve Torqueflite and I'll give my recommendations on the ones I'm familiar with. Prices of kits and recommended usage will he discussed.

Introduction

Of part one of this series has been read, it will probably be bringing up a few questions as to why a Torqueflite could be so well designed yet still need modifications. Alterations to any original design do not necessarily make that design bad; it just shows that some individuals like things to be different in one way or another.


Prior to learning the Torqueflite’s internal operation and configuration, I was reluctant to tamper with originality. To overcome this reluctance and to learn at the same time, I got a spare valve body from a salvage transmission and followed the Chrysler service manual in disassembly and reassembly procedures. After I determined that the valve body was operational and was a suitable substitute for the one in my car, I performed all my modifications. This was an easy way to eliminate worries in case the valve body functioned incorrectly. The old unit could always be put back into service while the discrepancy was corrected.


I will present information that applies to both the 904 and the 727 (Most front wheel drive vehicles are not used for heavy duty purposes or racing as of yet so not much has been written on them). The information I'll give comes from my past experience and selected other references.

OP
astjp2

astjp2

TJ Expert
Supporting Member
Joined
Aug 22, 2018
Messages
5,559
Location
Utah and Alaska
continuation to the article above:

Reasons for Modifications

Stock Torqueflites, since the very beginning, have been very reliable. In a vehicle’s lifetime with normal operations, little, if any, maintenance was needed. The trucks and high performance cars were equipped with stronger, harder shifting automatics; the reason being that Chrysler was aware of the intended usage of these vehicles.


The “stronger” transmissions consisted of front and rear planet carriers with more pinions, front and rear clutch assemblies with more discs and plates and sometimes larger, higher friction coefficient kickdown bands. Various hydraulic modifications were made by changing spring rates in the valve body and the kickdown band apply strength was altered by a mechanical leverage change. These changes all worked together to give a higher torque-capacity transmission as well as a stronger, more defined shift.


Even these changes weren't enough in some cases. Muscle car units and fleet service units (taxi, ambulance, police, rental, etc.) needed more torque handling capacity as well as severe service capabilities. These requirements brought the home mechanics and aftermarket manufacturers to some of these same conclusions; design and construction of transmission shift modification kits were needed.

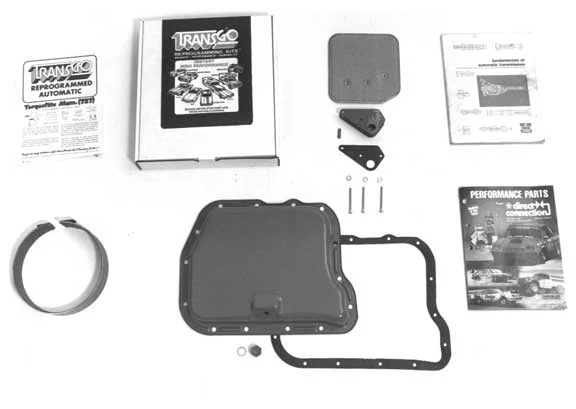

Several manufacturers introduced shift improving kits. These kits, when used as directed, were helping to eliminate a lot of premature failure of severe service transmissions. However, most of these modifications for competition and heavy duty service sometimes made the transmission too severe for everyday use. It became apparent that modifications should meet three important requirements: shift performance, longevity, and driver comfort.




Advantages and Disadvantages

The last sentence of the previous paragraph determines both the pros and cons of Torqueflite modifications. In order to get longevity you must give up a small amount of driver comfort. It is basically a trade off. The Torqueflite is designed in such a way to give relatively slow, soft shifts; and the 2-3 shift is the one I think needs the most improvement. To refresh memories, I'll explain the 2-3 shift function again. When the Torqueflite shifts from 1st to 2nd, the kickdown band locks around the Front Clutch Retainer to stop the sun gear driving shell. To make the 2-3 shift, the kickdown band has to hold until the front clutch is applied and then it has to be quickly released. This timing is very important; too early of a band release causes the engine to “rev up” until the front clutch is applied. Too late of a band release and/or too early of a clutch apply is more common; this gives a “putting on the brakes sensation” which is actually called shift overlap (Since the rear clutch is applied in both 1st and 2nd, and nothing has to be released, kickdown band timing is not as critical in the 1-2 shift). Delay in the kickdown band-release and premature clutch-apply both cause overlap and, therefore, friction material wear.

Advantages to Torqueflite modification

Advantage number one to Torqueflite modification is elimination of the 2-3 shift overlap which gives a crisp, efficient shift from second to third, prolonging the friction material life. Why is this not factory accomplished? Probably due to the fact that 90% of vehicle owners believe a soft, slow shift is better on the transmission than a firm one, so original equipment units (excluding factory high performance units) are programmed for this shift.


The second advantage is firmer 1-2 and 2-3 shifts. The word firmer is relative; the shifts are not severe (in most cases this depends on kit manufacturer as well as intended usage), they are just more noticeable. Again, these firm, properly timed shifts eliminate slippage of friction material during shifts. A couple of other advantages are: more fluid is supplied to various hydraulic units which sometimes compensates for seal leakage or wear; and certain kits give control of the 3-2 and 2-1 downshifts to the driver (this comes in handy during hilly terrain). Some valve body modification kits give complete control of the shifts to the driver. These are normally referred to as “full manual” or “full race” valve bodies. Obviously, these are not intended for Imperials or anything used for normal transportation.

Disadvantages to Torqueflite modification

I've only experienced a couple of things I call disadvantages. The most common complaint after modification is due to improper product selection (I use only modification kits from a company called Transgo in El Monte, California. This will be justified and explained a little later). (Neither Allpar nor the WPC Club endorses any product; the recommendations above are the author’s opinion only.) The wrong kits will cause too severe 1-2 and 2-3 shifts, harsh park or neutral-to-reverse shifts, and some light throttle 2-3 overlap. Improper adjustments after the modifications are performed also causes light throttle 2-3 “thunk.” I use this term to describe the noise you hear when the 2-3 shift is not correctly timed. This is still 2-3 shift overlap (at slow speeds) and minor adjustment usually eliminates this.


Another disadvantage might be the price. Valve body modification kits generally cost from $25 to $65. On the average, when performing the modifications yourself, expect to pay about $55 for a kit, $10 for new fluid and a couple of dollars for a filter. [Note: 1989 prices]


One way to eliminate disadvantages is to select the proper kit. I'll give my recommendations shortly.

Kit Variations and Proper Selection for Required Results

This is the point where I'll plug for what I know works. For the same reason we stick with Chrysler products, I stick with Transgo; performance and dependable results. I've experimented with different types of products and they won't be named here. I've had no severe catastrophes; it’s just that the shifts were too firm all the time or they weren't firm enough at the correct time, and sometimes the instructions weren't easy to follow. (Transgo has the exclusive rights to the “Shift Kit” and “Reprogramming Kit” names I'll mention from now on.)

Shift Kit

The “shift kit,” or “SK-TF,” is a small version of a reprogramming kit; it can be used in fleet service or everyday vehicles. It eliminates the 2-3 shift overlap, firms up the 1-2 and 2-3 shifts (not severely), provides more fluid to the front clutch circuit, and gives a bypass to prevent excessively high fluid pressure during cold weather starts and higher RPM service.

Reprogramming Kits

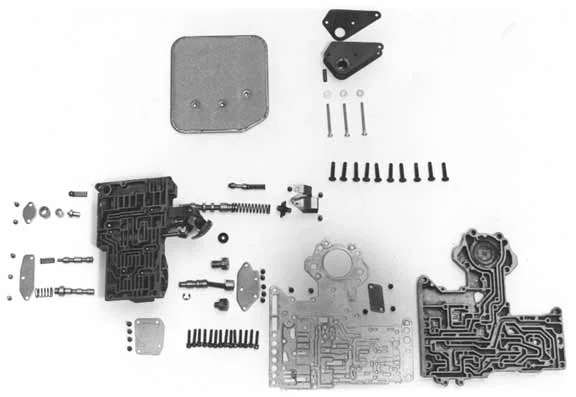

Transgo manufactures three reprogramming kit for Torqueflites. These actually reprogram the valve body; various springs are changed and fluid passages enlarged or restricted to give the correct shifts at the correct time.


A.“Tow or Go or TF-1” is for the fleet service and everyday vehicles. Additional driver downshift control and all the features of the “SK-TF” are provided. This is a good kit for motor homes, taxis, and police vehicles; good shifts, firm, yet comfortable


B.“Competition or TF-2” is good for full race and extremely heavy campers or motor homes. Shifts are definitely firmer and some driver comfort will be sacrificed. Additional full throttle and down shift control is provided in addition to all the standard Shift Kit features. However, this is still very streetable and reliable (95% of my Torqueflites get these).


C.“Stick shift or TF-3” is a full-race, full-manual controlled “Reprogramming Kit.” It is very similar to the TF-2 except that the driver controls all up and down shifts (It is convertible back to automatic shifting if required). This is good for full-race vehicles or ones where the driver likes to do a lot of shifting.

Chrysler “Shift-Improver” Kits

For people that stick to Chrysler-engineered products, Direct Connection offers two “shift-improver” kits; one for the 904 and one for the 727. These are inexpensive and easy to install. They work well and they, too, are a good choice for everyday as well as some fleet use. You don't get as much driver control and the 2-3 shift is not as good as the Transgo kits provide but they are still a good value for the dollar.


Everything in the previous section on kit variation deals with external modifications, or things that can be done with the transmission still installed. However, if the transmission is removed, a few more key items can be changed to give bullet proof operation.


Along with a “Shift Kit” or “Reprogramming Kit,” revised clutch clearances and band adjustments can be made. I also add a higher friction coefficient kickdown band to every high-performance unit I build. This makes an incredible 1-2 shift and it only costs an additional $30-$35 (The 1-2 shifts are firm enough that I don't recommend this for luxury vehicles). I use Raybestos-Manhatten waffle-cut front clutch discs and Raybestos-Manhatten smooth rear clutch discs and Perfect Circle steel sealing rings. Good overhaul gasket and seal kits are available from many different sources so check around. To finish it off, normally I install the “Direct Connection deep pan and pick-up” package from Chrysler.


By following simple recommendations available from Transgo, a home mechanic can really assemble a neat package. Using these suggestions and products has allowed me to build many street and race Torqueflites with zero failures. I attribute 75% of this to product selection and 25% to very careful attention to assembly details.

Closing Comments

To write an article on modifications is rather difficult without mentioning manufacturers’ names. I don't intend to down-grade ones I don't use or aren't familiar with; that’s why I mentioned only the few vendors I did. I know what has worked best for me and I'm sure the same results are possible for anybody.


TJProjectRon

Member
Supporting Member
Joined
Dec 27, 2015
Messages
52
Location
Oklahoma
November 26, 2004 The Cure for the Common (Chrysler RWD) Cold

Questions? Email Sonnax Tech Support about this article.


Remember the old advertising line, “Why trade a headache for an upset stomach?”
It’s not uncommon in transmission rebuilds to find a fix for one problem that either creates or intensifies another problem.
Just about every transmission rebuilder has seen a Chrysler rearwheel- drive come into his shop having suffered the effects of lube failures. It is likely that the same unit is also suffering from delayed engagements. It’s not uncommon. It’s not a coincidence. Both are the result of the way the circuits have been designed.
Lube failures are so common that many rebuilders have become accustomed to seeing galled governor supports, seized output shafts, or rounded sun and planetary gears, all signs of loss of lube. These failures can be traced back to the cooler/converter circuit and how it is controlled or fed by the pressure regulator valve.
Rebuilders have even come up with a “fix” to get around the problem. They have realized that the problem is this: The cooler/converter charge circuit won’t open until the pressure regulator valve moves far enough to flow oil, which means that the transmission is essentially running on empty until the pressure regulator valve is fully engaged. The “fix” is to drill a small orifice between the line pressure and cooler circuit to allow fluid to flow to the cooler/converter circuit, otherwise known as drilling line to lube.
But while this takes care of the headache, it inflames an already upset stomach called drainback. Drilling that small hole for line to lube does help the lube flow when the engine is running, but it increases converter drainback problems because ATF can drain out through the hole when the engine is turned off. While it is likely that drainback is already an issue in units with moderate mileage or more, it becomes a larger and potentially damaging issue when you add a circuit and provide more options for drainback flow.
View attachment 103034

Sonnax has developed a lube-regulated PR valve, 22771A-02K, that allows oil to flow into the converter charge circuit as soon as the engine is started. Once there is enough line pressure built up and the PR valve starts to feed the converter/cooler circuit, the internal valve is shut down and the unit operates as it would normally. When the unit is shut off, the internal check valve does not allow fluid to drain back out through the orifice, reducing converter drainback. This steel PR valve will improve converter feed at low RPM and at high throttle. Remember that if the passage for line to lube has been drilled, you can still make things right. Just remember to plug the hole, then install the valve.
While the PR valve was contributing to both the lube and converter charge problems, it had help on the converter charge or delayed engagement problem; the manual valve. The original manual valve design doesn’t allow the converter to be charged in park, which contributes to delayed engagements and potential converter bushing failure. You are not filling the converter until you pull it out of park so the delay is noticed as the fill begins after the lever is moved. If you have normal drainback, or worse, extra drainback from the line-to-lube hole, that converter filling delay becomes not only more of an annoyance but increases the risk of damage.
The Sonnax redesigned manual valve 22771-09 has a new control spool and circuit that provides converter charge in park. You don’t have to rework or adjust the valve body to install this valve, and it will not cause the forward clutch to drag in Park.
The Sonnax PR valve and manual valve are standalone parts that can be installed independently. The one-two punch they provide to cure two chronic problems is a most effective combination and we recommend they be used together whenever
possible. These guys won’t just work in a few late models either. In addition to 42 through 47 RH & RE units, you can also install them in most 727 or 904 or variations of those generation units.
The rule is simple: Always look at the design of the original pressure regulator valve. If the spools on the inboard end get progressively smaller (like a Christmas tree) you can use our PR and our manual valve in that unit. If the design of the original PR valve had end spools that are all the same diameter – rather than getting smaller at the end – do not use either our PR or our manual valve in that valve body.
While you are in the valve body, don’t forget another player that often causes similar and additional problems: the line pressure plug and sleeve. Slippage in reverse, poor cooler charge at idle, poor line control and poor forward and reverse engagements are all symptoms of a worn line pressure plug and sleeve. When these parts wear, the PR valve can’t control line pressure properly. The solution is a Sonnax line pressure plug and sleeve kit, 12229-01K for the A904, or 22229-01K for the A727, 42RE, 46RH and 47RH. The sleeves and plugs allow the PR valve to do its job, and can save you hundreds in valve body replacement costs.
When i looked at Sonnax site and the part numbers you posted there was no mention of the 32RH application in their description.

OP
astjp2

astjp2

TJ Expert
Supporting Member
Joined
Aug 22, 2018
Messages
5,559
Location
Utah and Alaska
It’s a 904 by the original designation, the rh has a lock up torque converter and a Jeep specific bell housing and the torque converter is made without the rig gear where the mopar one is welded to the converter and not the ring gear. So use the 904 parts

  • Like
Reactions: TJProjectRon

TJProjectRon

Member
Supporting Member
Joined
Dec 27, 2015
Messages
52
Location
Oklahoma
It’s a 904 by the original designation, the rh has a lock up torque converter and a Jeep specific bell housing and the torque converter is made without the rig gear where the mopar one is welded to the converter and not the ring gear. So use the 904 parts
Ok, thanks a lot!


Bvanwinkle

New Member
Joined
Mar 29, 2020
Messages
16
Location
Richmond IN

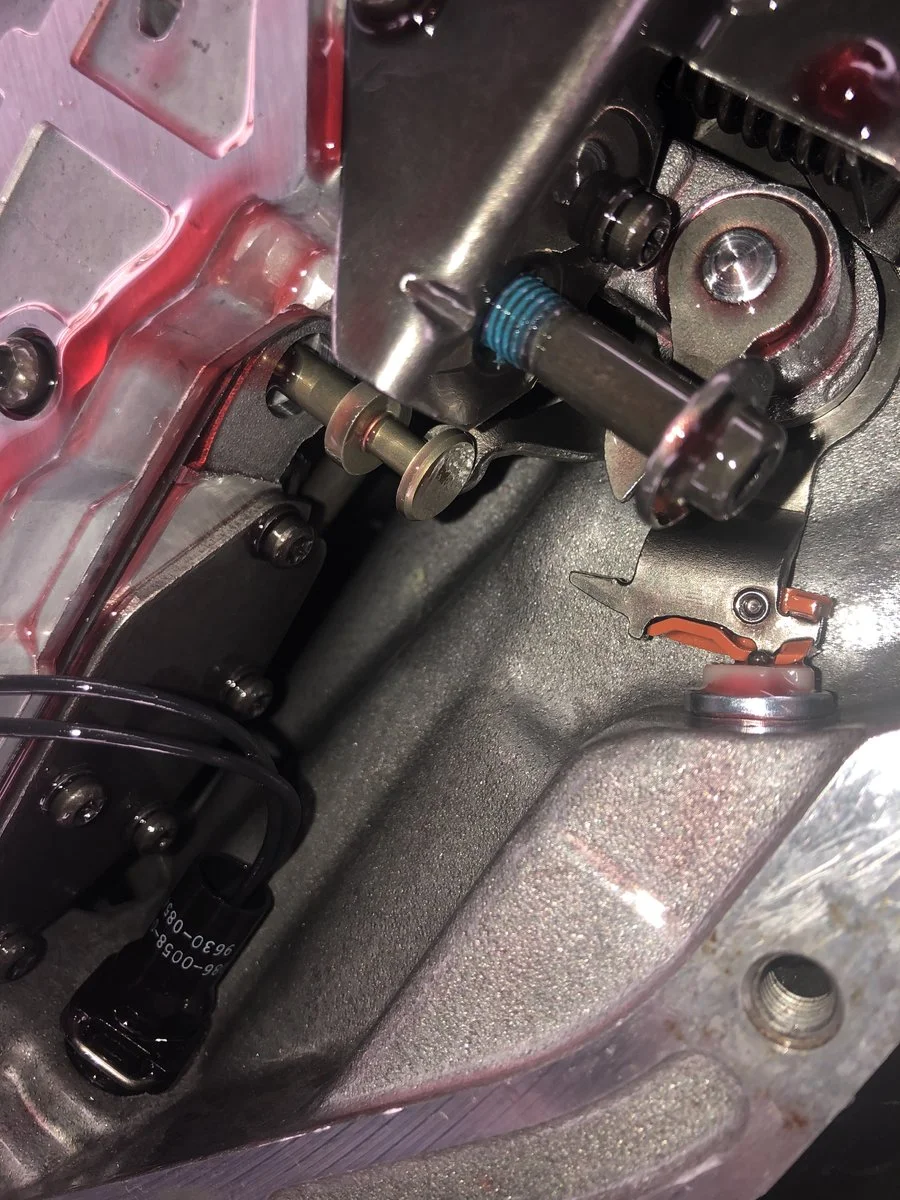

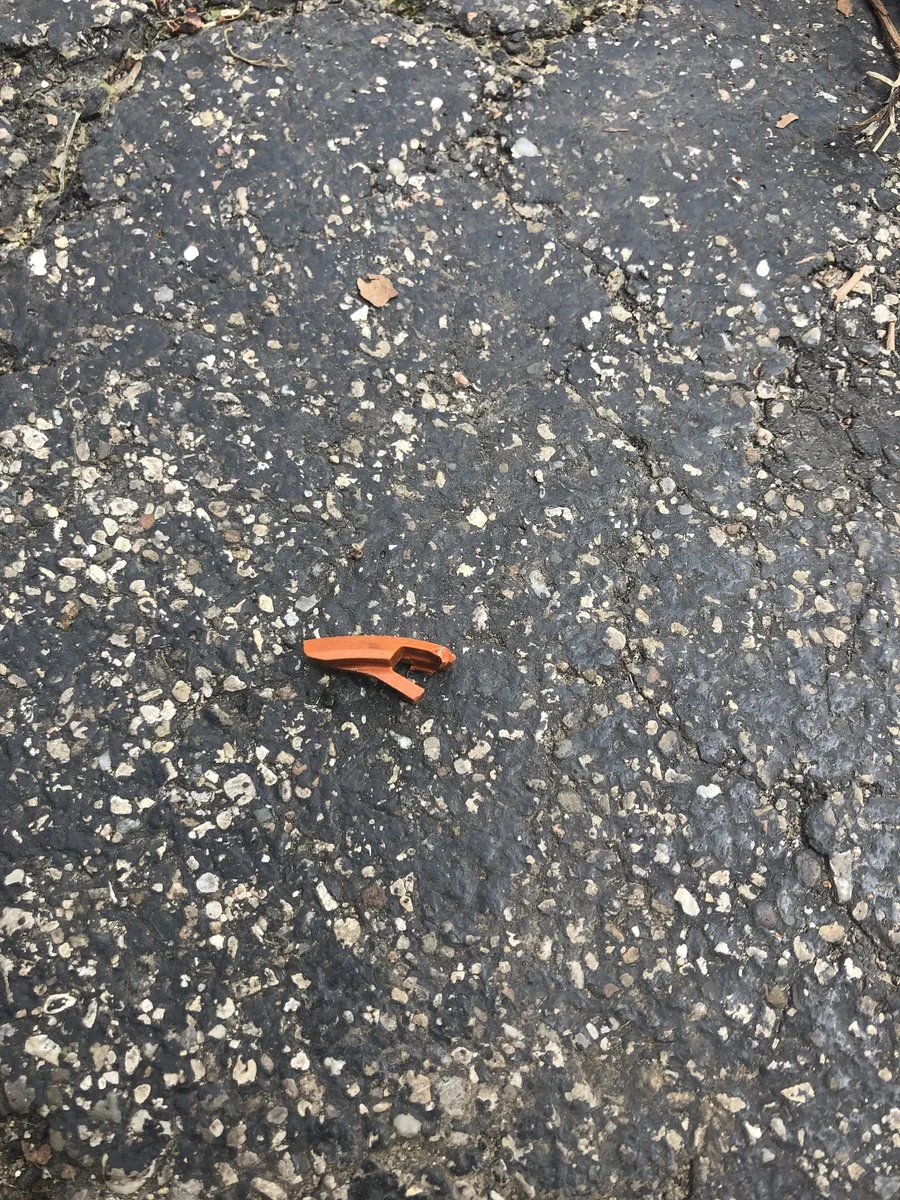

Sorry for breaking into this thread but maybe you can help? My 32RH (97 TJ, 4.0) has a broken piece of plastic that connects to the shift selector shaft. I cannot find a replacement part for the plastic piece or the whole assembly. Any idea where to find it?





Daryl

2004 Rubicon
Supporting Member
Joined
Apr 29, 2018
Messages
2,769
Location
Earth 🌎
Sorry for breaking into this thread but maybe you can help? My 32RH (97 TJ, 4.0) has a broken piece of plastic that connects to the shift selector shaft. I cannot find a replacement part for the plastic piece or the whole assembly. Any idea where to find it?

View attachment 150409

View attachment 150410
I replied in your other thread about the solution.


Attachments

  • 22229-03-IN.pdf
    94.3 KB · Views: 186
