Summit Dual Air Compressor


jesseshoots

TJ Enthusiast
Joined
Feb 20, 2019
Messages
582
Location
Atlanta, GA
I was scrolling thru Instagram and came across an ad for Summit Offroad. They’re advertising a 10.6 CFM compressor with 50% duty cycle for under $200 and its portable. I like that because I can take it out to use with another vehicle if I’m not in the Jeep or don’t want to take it.

I’ve been pretty dead set on a York setup but this one has me thinking otherwise. My only hesitation is the duty cycle. Thoughts?


Specs:
10.6 CFM @ 0 PSI
6.36 CFM @ 29 PSI
50% duty cycle


LJBean

TJ Fanatic
Supporting Member
Joined
Dec 25, 2019
Messages
83
Location
Union Valley, TX
I'm interested in this. Does anybody have specs/dimensions? I've got a modified Smittybilt compressor mounted in my engine bay and would love to be able to double the capacity if there is room.


WSS

Rock Stacker
Supporting Member
Joined
Jan 28, 2019
Messages
1,008
Location
California, southern part
These are half the amps even under load and 100% duty cycle.



Last edited:

Lou

This forum has gone to shit
Supporting Member
Joined
Jun 16, 2016
Messages
1,923
Location
Long Beach
I know a guy who has one and he swears by it. He runs 40s and says it is significantly faster than his previous ARB twin and smittybuilt. I havent seen it in action yet.


Jerry Bransford

TJ Guru Moderator
Staff Member
Supporting Member
Joined
Nov 9, 2015
Messages
19,530
Location
Escondido California
I was scrolling thru Instagram and came across an ad for Summit Offroad. They’re advertising a 10.6 CFM compressor with 50% duty cycle for under $200 and its portable. I like that because I can take it out to use with another vehicle if I’m not in the Jeep or don’t want to take it.

I’ve been pretty dead set on a York setup but this one has me thinking otherwise. My only hesitation is the duty cycle. Thoughts?


Specs:
10.6 CFM @ 0 PSI
6.36 CFM @ 29 PSI
50% duty cycle
Forget that 10.6 CFM rating, that's a totally misleading rating. Your lungs can put out 10 CFM into a 0 psi back pressure (open air). 6.36 CFM into 29 psi (like into an aired up tire) tire) is the real spec and that's actually a really great CFM rating. That's a great deal for a 6 CFM compressor.


Irun

Jeep Addict
Supporting Member
Joined
Oct 31, 2019
Messages
3,191
Location
Virginia
According to the weight, this thing is beefy! At 26lbs, it's only 4 pounds lighter than this



WSS

Rock Stacker
Supporting Member
Joined
Jan 28, 2019
Messages
1,008
Location
California, southern part

Jerry Bransford

TJ Guru Moderator
Staff Member
Supporting Member
Joined
Nov 9, 2015
Messages
19,530
Location
Escondido California

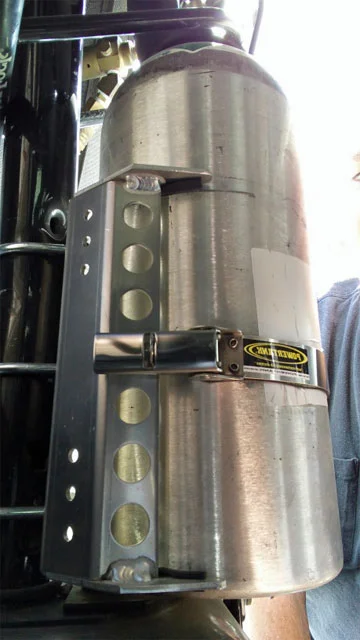

I run a CO2 tank. But I have room for it.

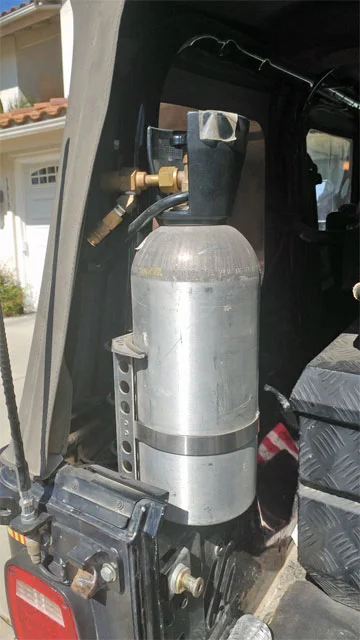

It doesn't take much room, mine is up & out of the way adjacent to the rear roll bar. I still miss my York belt-driven compressor I installed onto my previous TJ but my homemade CO2 tank fills tires just as fast, which is to say all four 35" tires tires refilled from 8 to 25 psi in around 5 minutes total.
