TJ Glovebox Light Install

Maso

TJ Enthusiast
Sep 29, 2017
120
Geelong, Victoria, Australia
I had been looking around for a while for a light for my 2006 TJ's glovebox, without much luck.

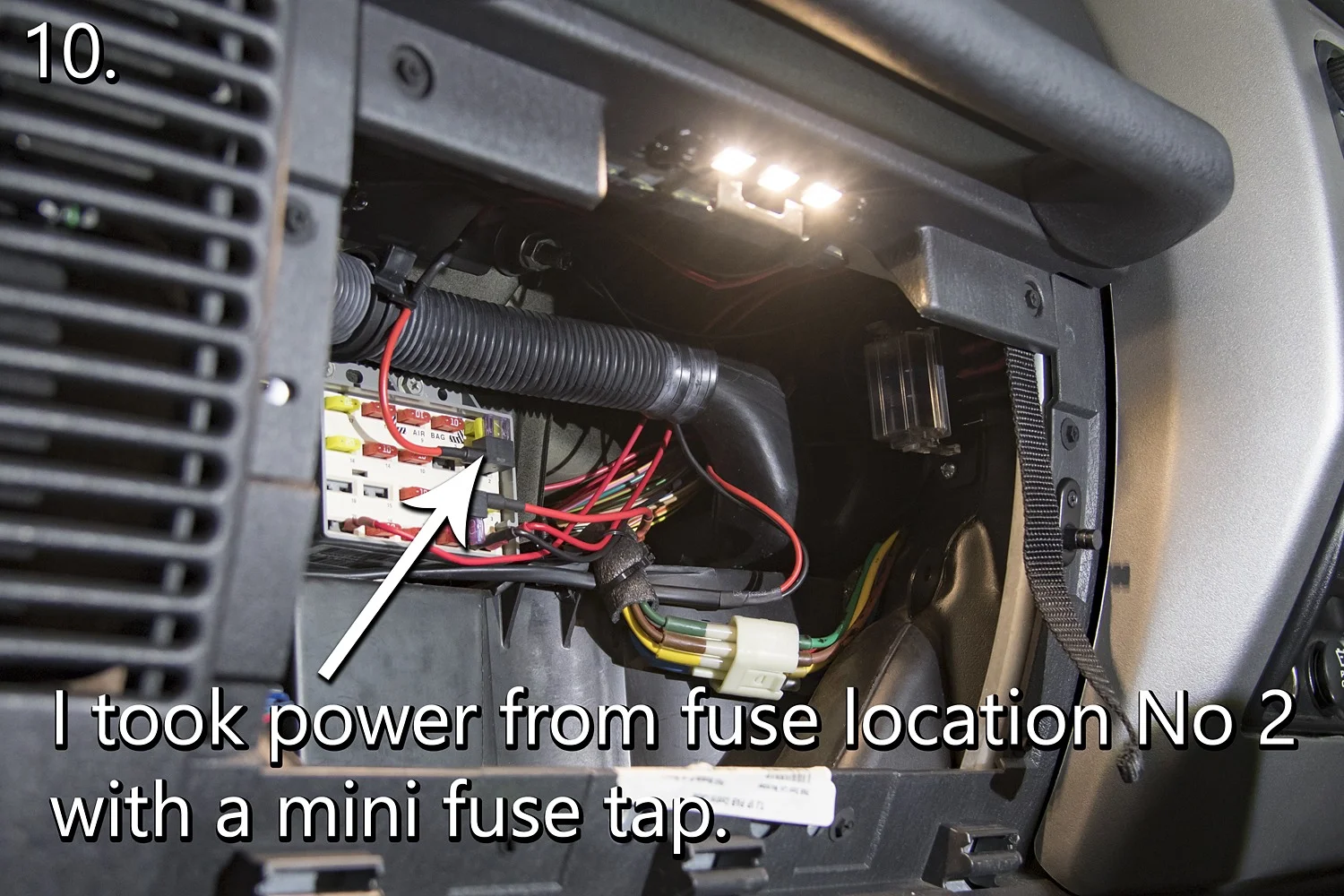

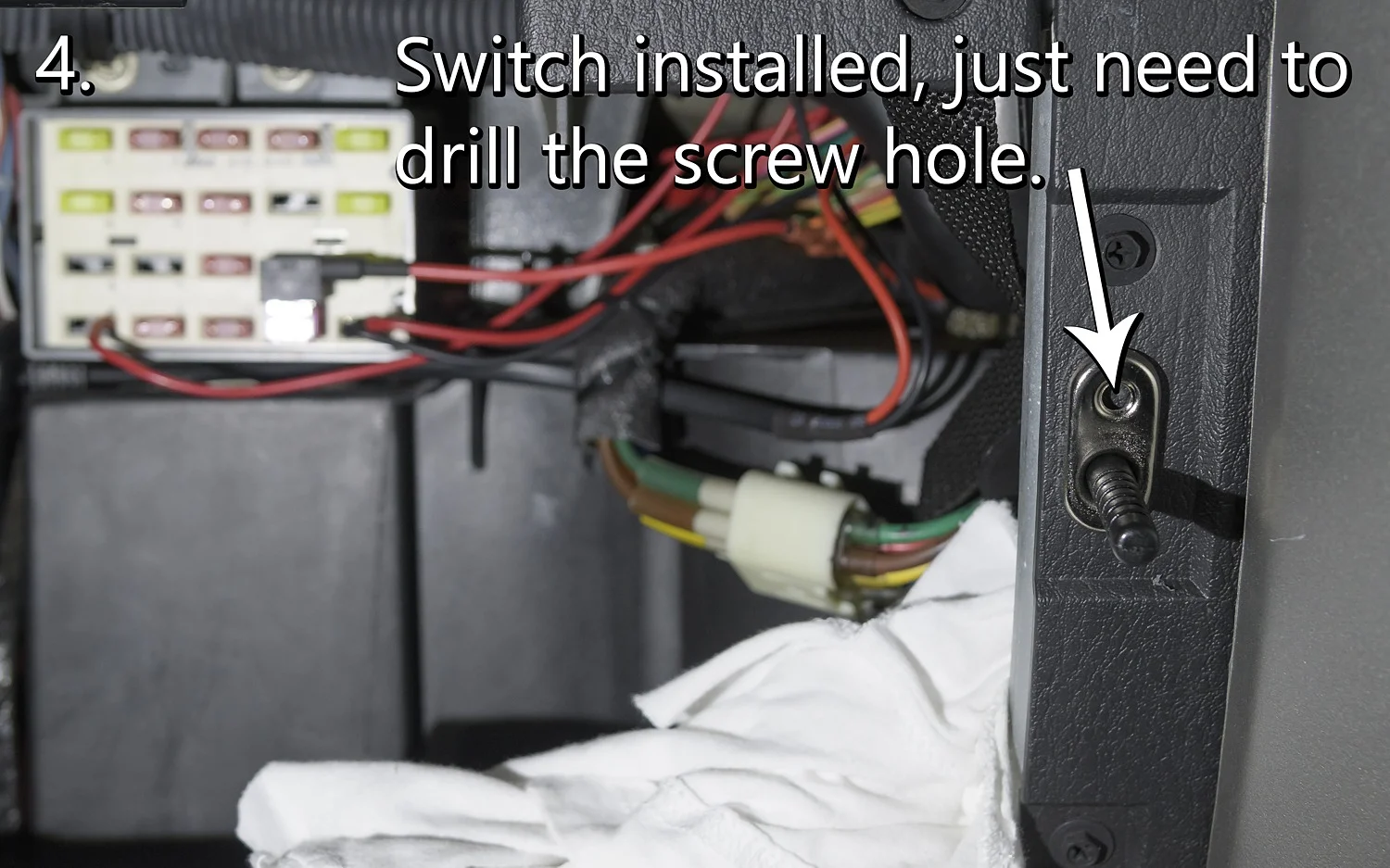

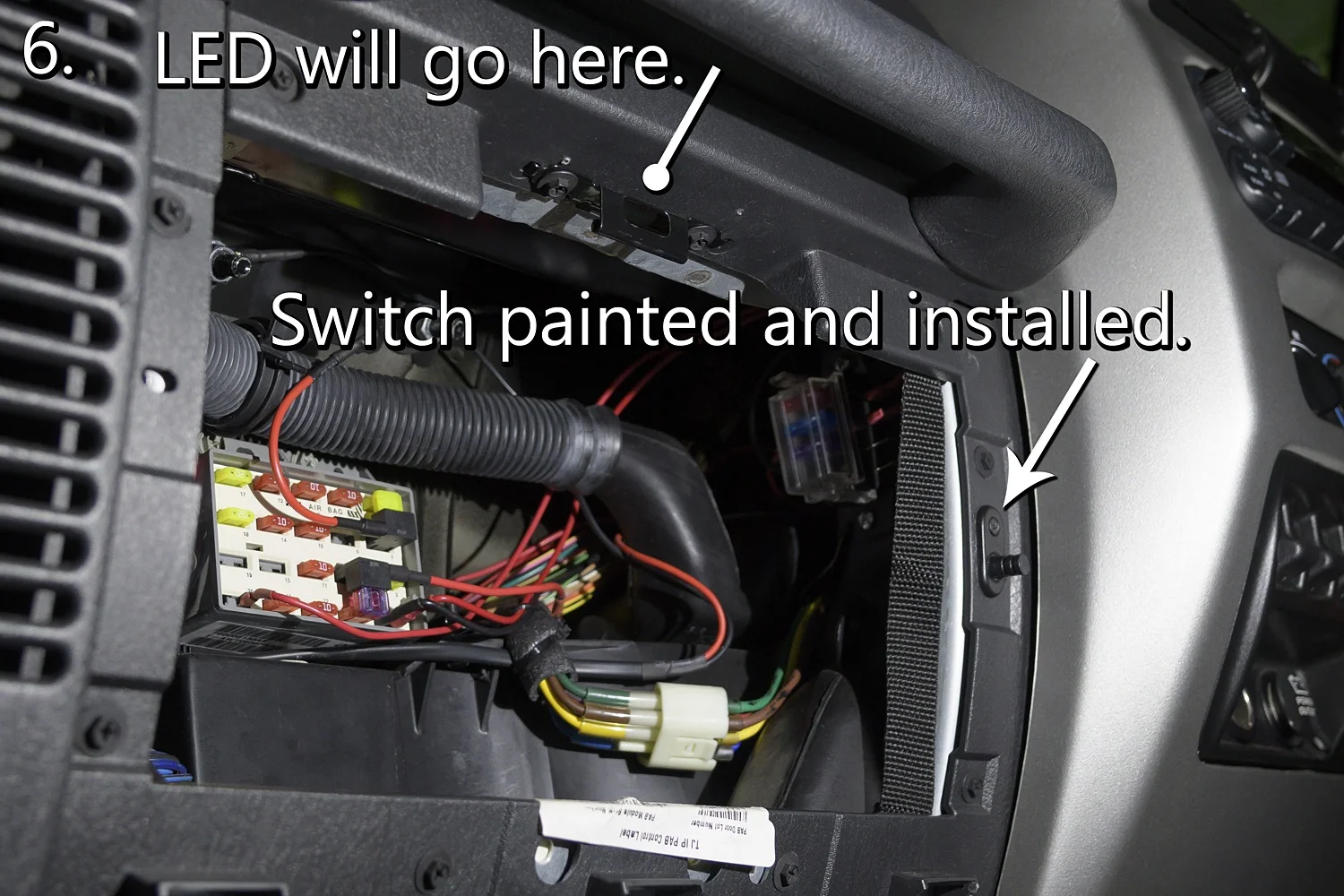

So I thought it was time I did it myself. I sat in the Jeep for a long time going over different options, where to put the switch, what type of light to use, where it was going to go. That was the biggest problem, it had to actually throw light in the glovebox when it was opened. The only option I could see was right in front of the latch where the glovebox shuts. Next problem, wasn't a lot of room there. I eventually found a hard plastic LED strip on ebay for $1.00. The dimentions for the LED strip is 75mm x 13mm and 6mm thick, perfect size. The LED is held on by two small screws, they just screw into the plastic. Then I had to work out how to activate the light when the glovebox was opened. I ended up going for one of those aftermarket car door switches. It has a long black plunger on it and you just cut it to your desired length. I decided to use constant power which I took from the number 2 fuse in the fuse panel behind the glovebox. I used a mini fuse tap and a 3 amp fuse as that is the smallest I have. So, I have power going from the mini fuse tap to the positive wire on the light, then the negative wire from the light goes through another 3 amp fuse to the swtich. When the glovebox is opened the switch makes contact with ground and the light comes on.
My TJ is Right Hand Drive, if you are wondering about the photos.



Chris

Administrator
Staff Member
Sep 28, 2015
37,933
Salem, Oregon
Nice mod, thanks for the write-up! You'd think they would have at least bothered to put a glove box light in from the factory, right?

  • Like
Reactions: JP13
OP
Maso

Maso

TJ Enthusiast
Sep 29, 2017
120
Geelong, Victoria, Australia
Thanks for the comments, I'll let you know if I run into any issues, or make any changes in the near future.
One thing I did do. The LED came with thick double sided tape on it. I removed this as it made it just a bit too thick to install it where I placed it.
So I just used two small screws.

OP
Maso

Maso

TJ Enthusiast
Sep 29, 2017
120
Geelong, Victoria, Australia
Can you give part numbers or source for them? Very nice install

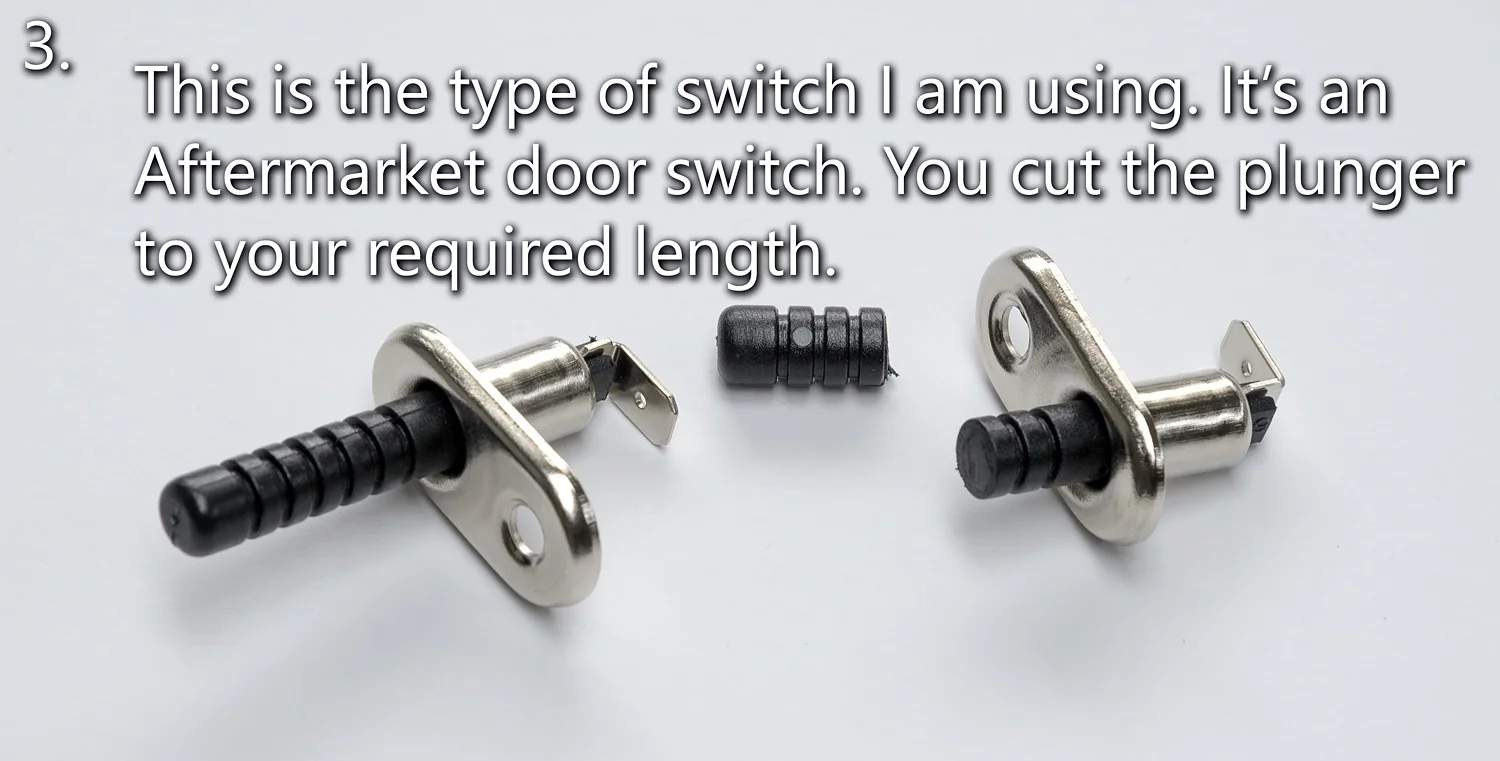

These are the parts I Used.

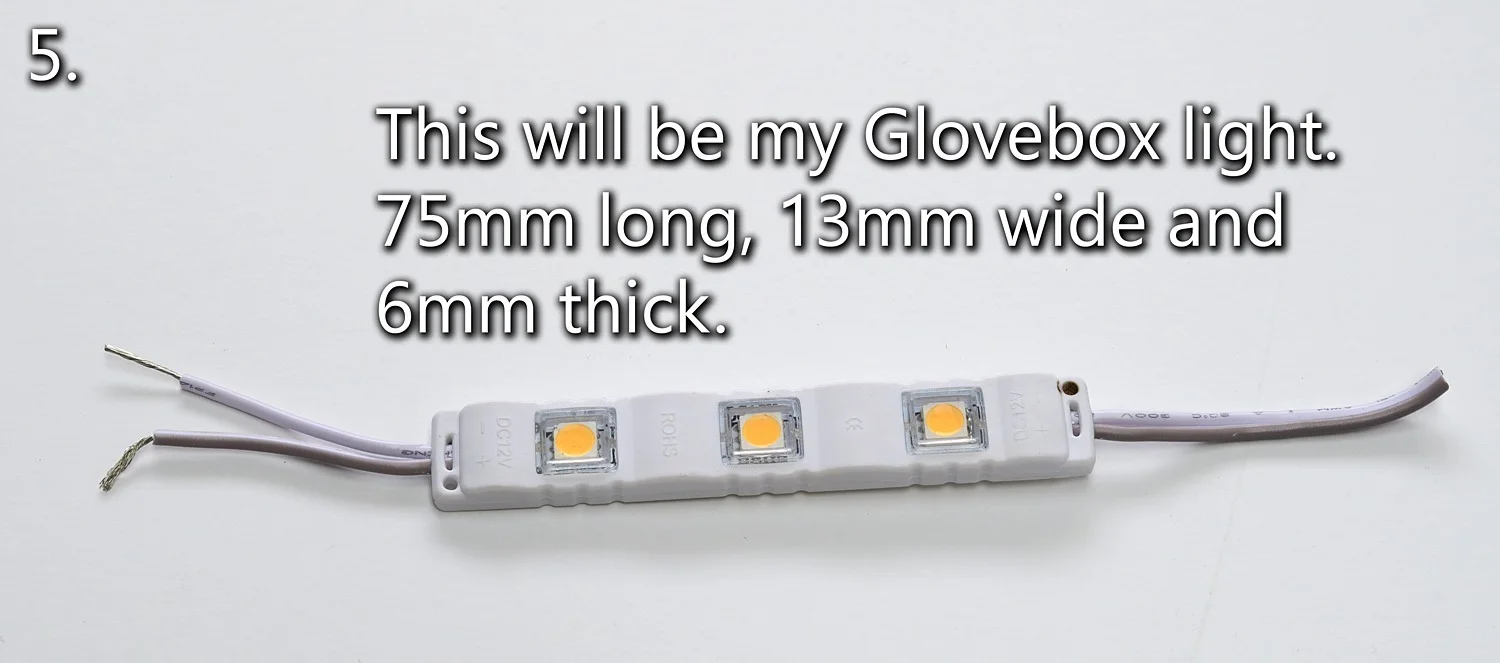

The LED I used is this - 5050 SMD 3 LEDs Module LED Strip String Light Multi-Colors Waterproof DC 12V (From Ebay) You can see the dimensions of the LED in picture 5.
http://rover.ebay.com/rover/1/705-53470-19255-0/1?icep_ff3=2&toolid=10001&campid=5337789113&icep_item=371830454593
The Switch was from Jaycar (Electronics Store) - Door Switch with Metal Fascia - Cat no LE8777
I live in Australia so both of these items came from here. But they shouldn't be too hard to track down.

  • Like
Reactions: JP13

JamesAndTheSahara

TJ Addict
Supporting Member
May 22, 2017
2,164
Auburn, AL, United States
I had been looking around for a while for a light for my 2006 TJ's glovebox, without much luck.
So I thought it was time I did it myself. I sat in the Jeep for a long time going over different options, where to put the switch, what type of light to use, where it was going to go. That was the biggest problem, it had to actually throw light in the glovebox when it was opened. The only option I could see was right in front of the latch where the glovebox shuts. Next problem, wasn't a lot of room there. I eventually found a hard plastic LED strip on ebay for $1.00. The dimentions for the LED strip is 75mm x 13mm and 6mm thick, perfect size. The LED is held on by two small screws, they just screw into the plastic. Then I had to work out how to activate the light when the glovebox was opened. I ended up going for one of those aftermarket car door switches. It has a long black plunger on it and you just cut it to your desired length. I decided to use constant power which I took from the number 2 fuse in the fuse panel behind the glovebox. I used a mini fuse tap and a 3 amp fuse as that is the smallest I have. So, I have power going from the mini fuse tap to the positive wire on the light, then the negative wire from the light goes through another 3 amp fuse to the swtich. When the glovebox is opened the switch makes contact with ground and the light comes on.
My TJ is Right Hand Drive, if you are wondering about the photos.

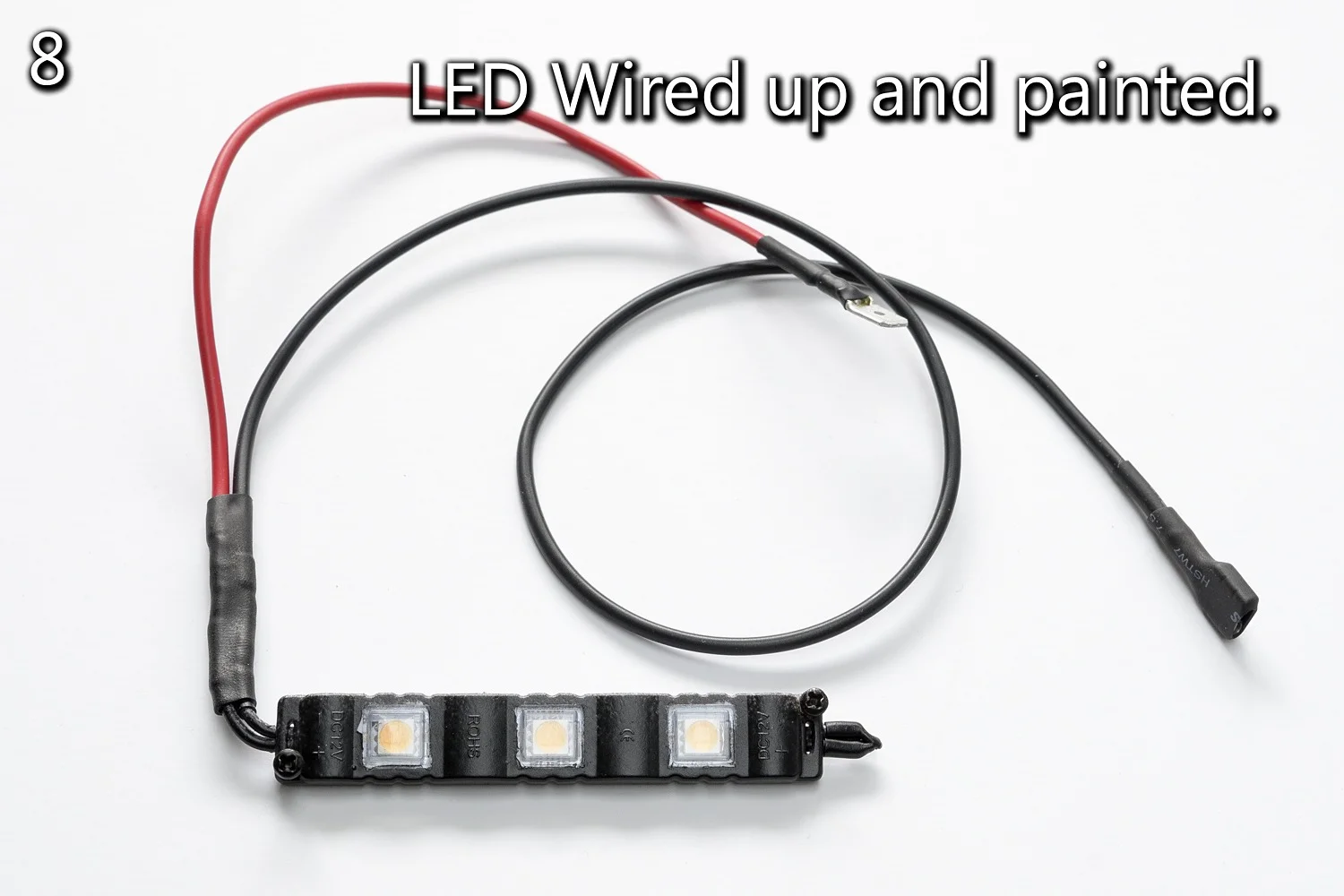

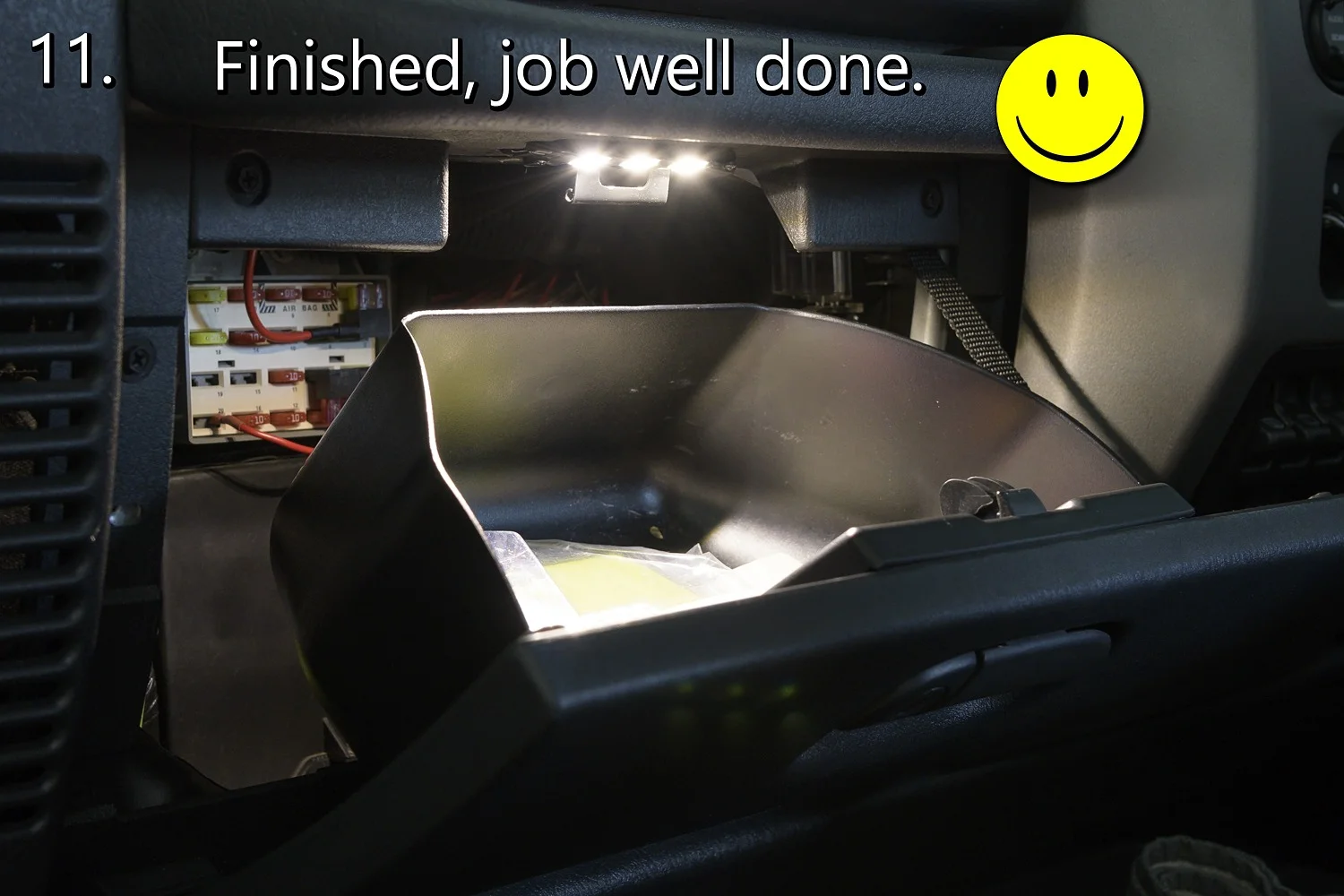

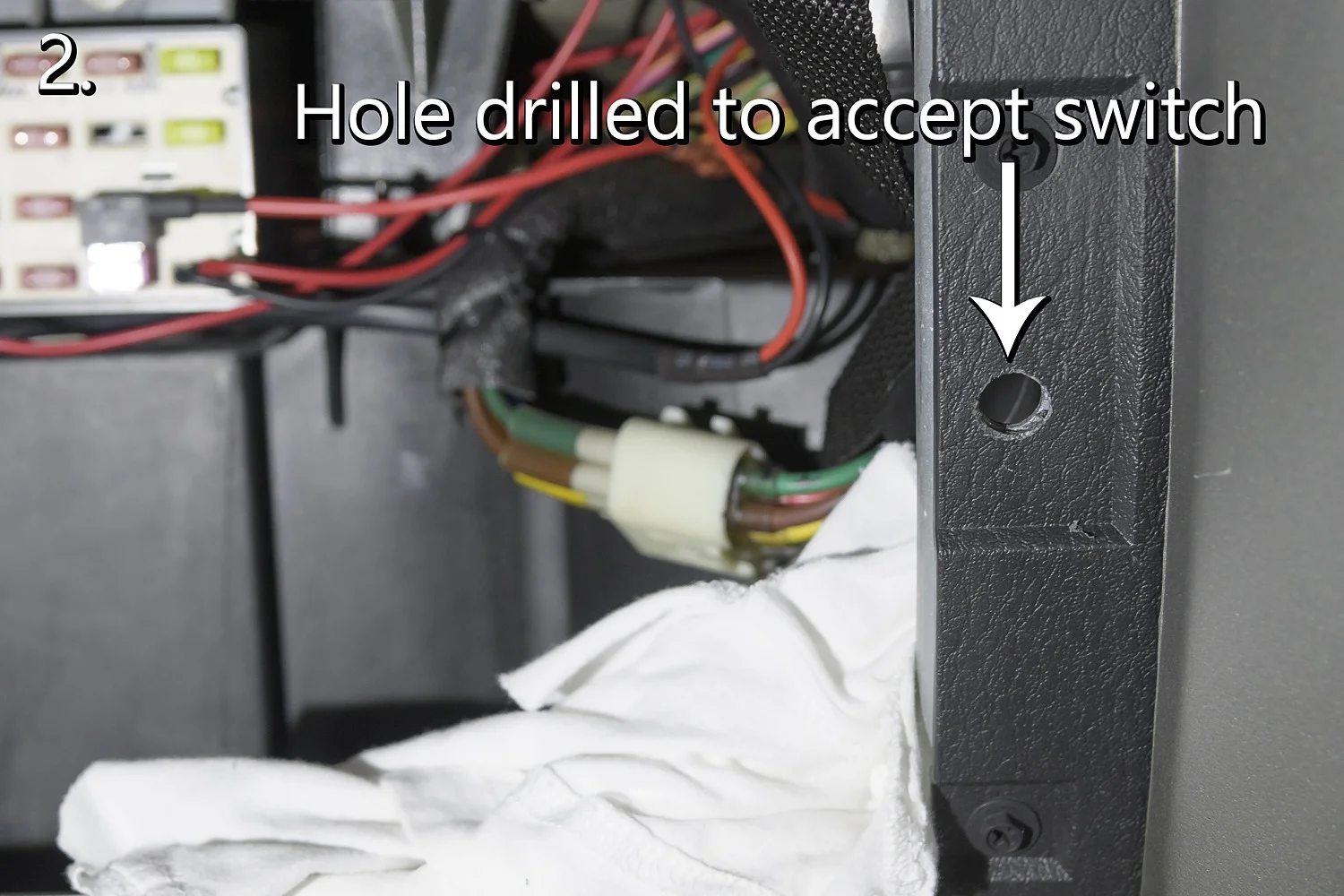

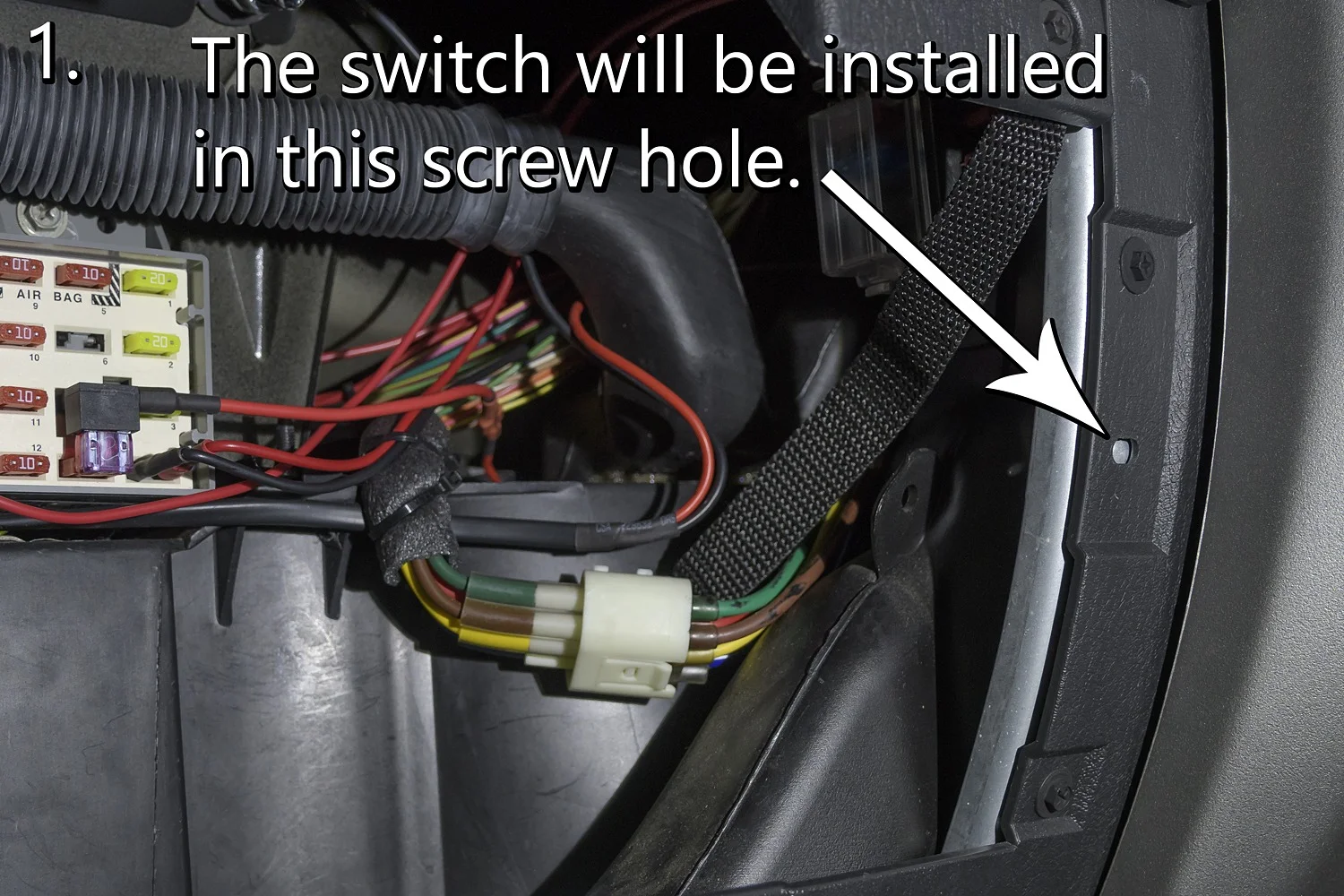

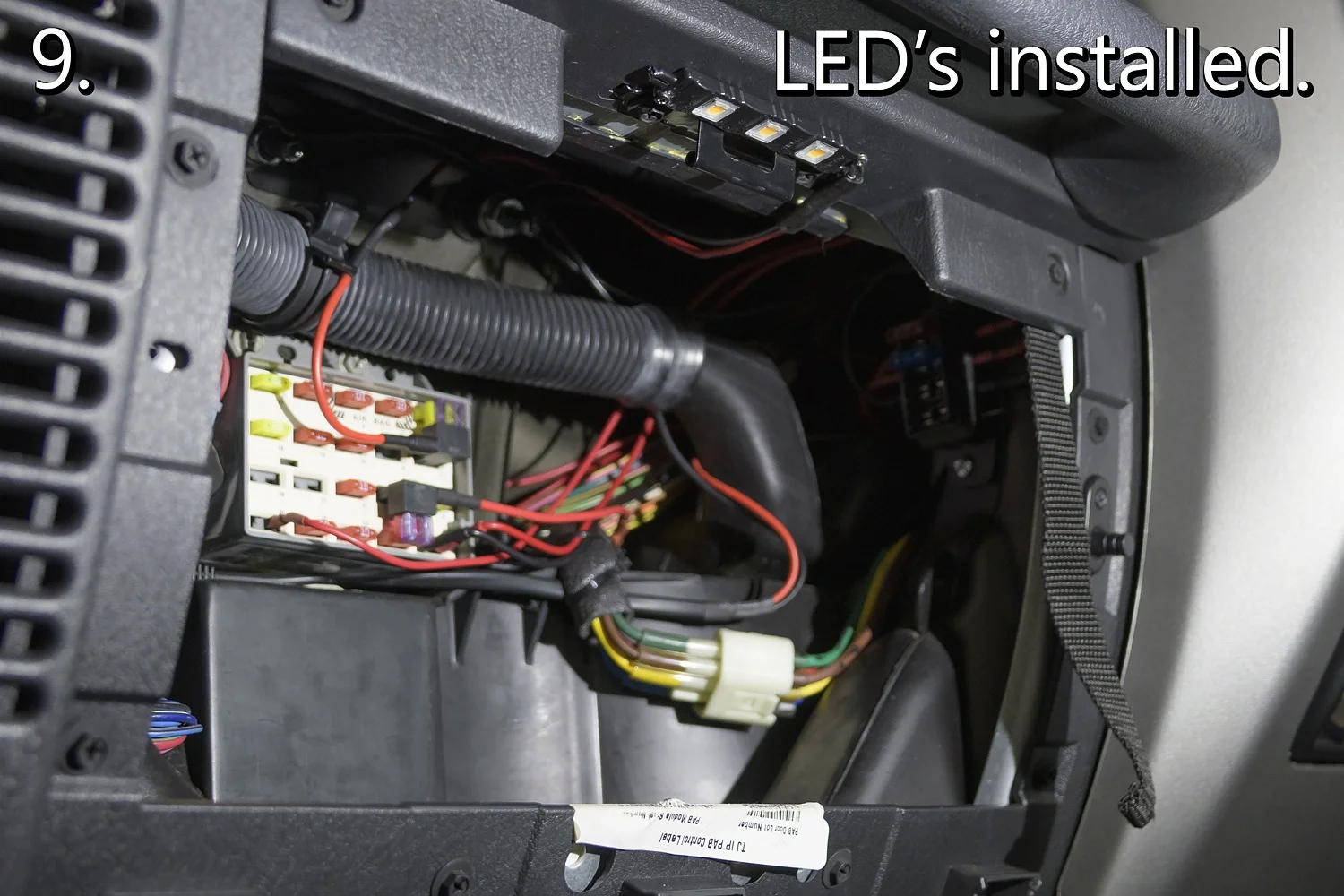

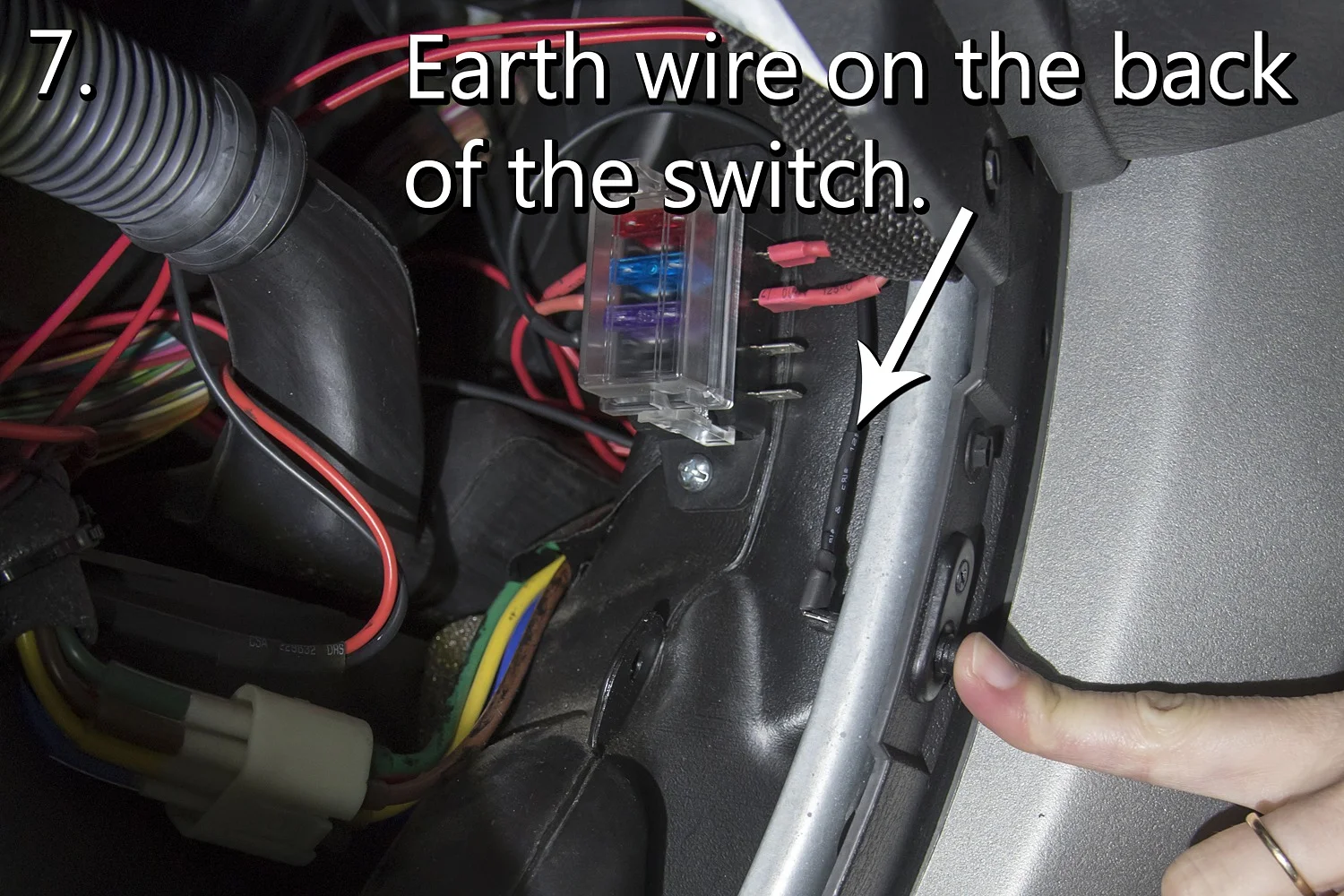

View attachment 24184 View attachment 24185 View attachment 24186 View attachment 24187 View attachment 24188 View attachment 24189 View attachment 24190 View attachment 24191 View attachment 24192 View attachment 24193 View attachment 24194
