Vacuum reservoir replacement?

jhetcel23TJ

New Member
Joined
Jul 3, 2019
Messages
8
Location
Michigan

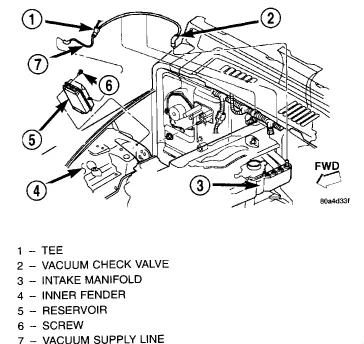

So in tracing a vacuum leak I disconnected the vacuum reservoir (#5 in the picture below), when giving it a shake there is a rattle coming from inside the reservoir box. Is there a way to test that the reservoir is working properly? What does the reservoir do exactly? And where can I find a replacement if needed?

2003 Jeep TJ, 4.0 I-6.



pagrey

TJ Addict
Joined
Apr 10, 2018
Messages
1,079
Location
Los Angeles, CA, USA
Turn the Jeep off, wait a few minutes and then turn the HVAC controls to another setting and see if it still operates. If the reservoir is working it will still operate the vents, if it is leaking they won't work.

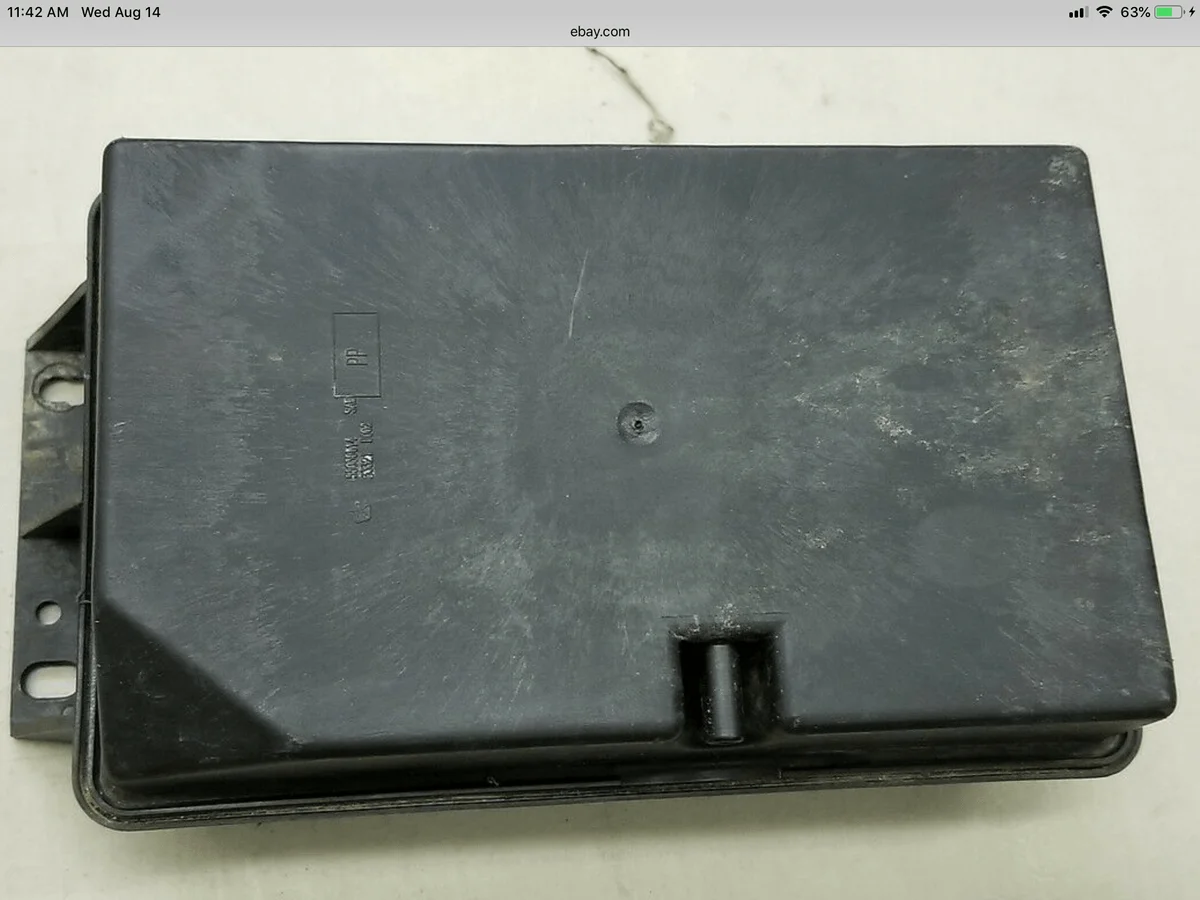

It's just an empty container to "store" vacuum.


Jerry Bransford

TJ Guru
Supporting Member
Joined
Nov 9, 2015
Messages
11,490
Location
Escondido California

Daryl

2004 Rubicon
Supporting Member
Joined
Apr 29, 2018
Messages
1,182
Location
California, USA
Last edited:
  • Like
Reactions: pagrey

pagrey

TJ Addict
Joined
Apr 10, 2018
Messages
1,079
Location
Los Angeles, CA, USA
There has been a check valve either on or inside every vacuum reservoir cannister I have ever seen.

The black object on top of this cannister is its check valve... https://www.jegs.com/i/JEGS/555/63010/10002/-1?gclid=Cj0KCQjw4s7qBRCzARIsAImcAxaI_9Et25mdjFM-RKCVmSQ1HgsntdBmGKcw_cGVu7fGEFmTU1gPcKIaAgYWEALw_wcB
That reservoir has two hoses, ours has one. The check valve is in the vacuum line by the master cylinder.

With a single line it would not work with a check valve.

  • Like
Reactions: K0LCB and Daryl
OP
jhetcel23TJ

jhetcel23TJ

New Member
Joined
Jul 3, 2019
Messages
8
Location
Michigan
Well, tested HVAC controls and works just fine. Guess it doesn't need replacement and not the source of my leak.

  • Like
Reactions: pagrey

Daryl

2004 Rubicon
Supporting Member
Joined
Apr 29, 2018
Messages
1,182
Location
California, USA
Well, tested HVAC controls and works just fine. Guess it doesn't need replacement and not the source of my leak.
Do you have access to a mity vac? If not, see if you can borrow one from AutoZone. That way you can pull a vacuum on each component to find the leak.

HTOMT 2 in 1 Brake Bleeder Kit Hand held Vacuum Pump Test Set for Automotive with Sponge Protected Case,Adapters,One-Man Brake and Clutch Bleeding System https://www.amazon.com/dp/B07471TKRF/?tag=wranglerorg-20
