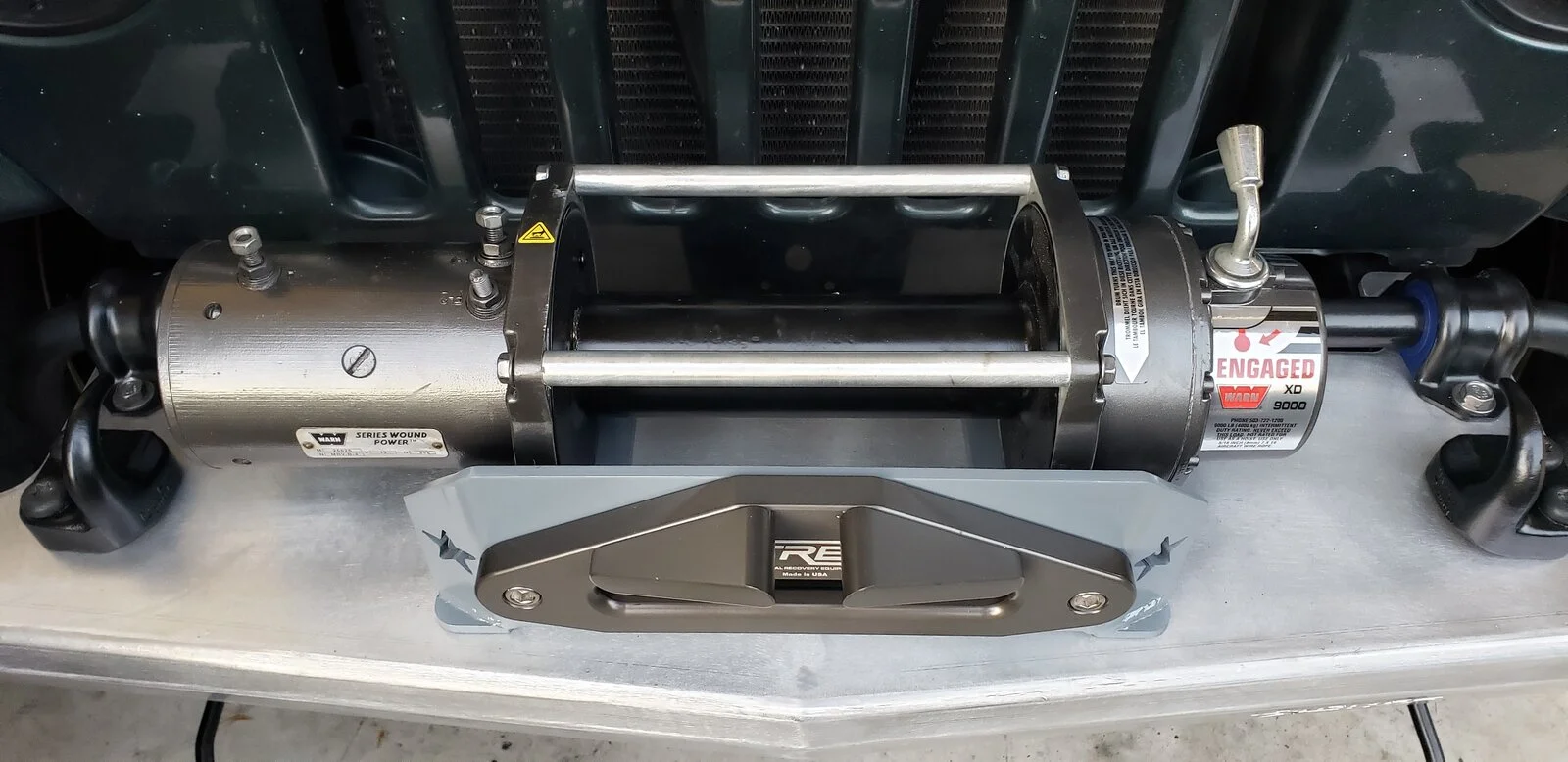

Warn XD Restoration

Irun

What I want isn't as important as what I need!
Supporting Member
Joined
Oct 31, 2019
Messages
7,027
Location
Virginia

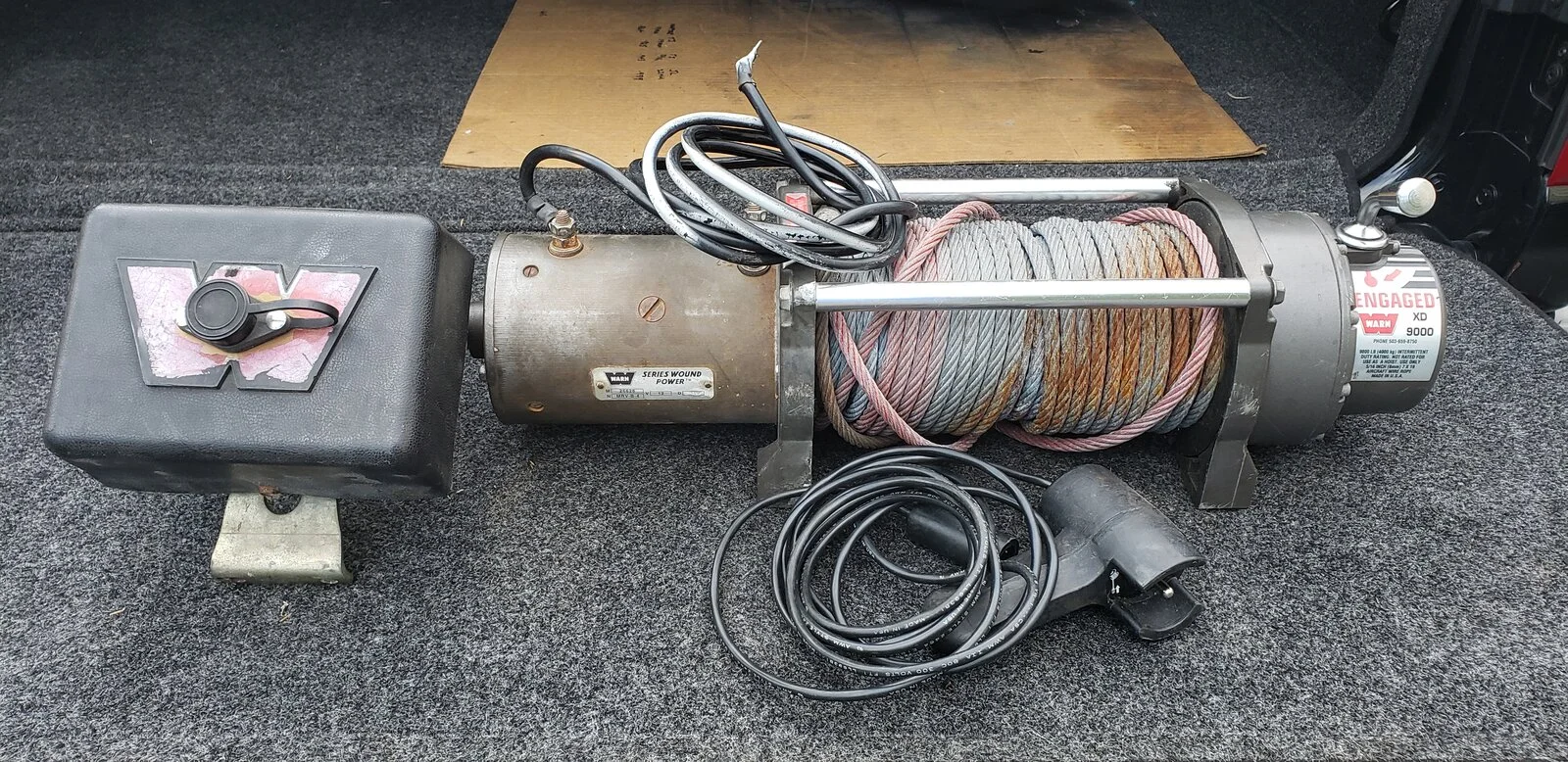

I picked up a Warn XD and would like to do a light refresh. Although it's a little weathered, it appears like the steel cable hadn't been unwound and the winch looks like it wasn't really used. After doing a quick visual inspection, all I see that's needed is:

- 2 Gauge Power Cables (To the battery)
- Tie Rods (Warn 98279 Service Kit)
- Winch Mounting Bolts
- Contactor Pack Mounting Bracket
- Replacement Warn Stickers

That said, are there any tricks I should know about when taking this apart to do an inspection?

Second question, does anyone know the part number for a mounting bracket for this version?









Last edited:
OP
Irun

Irun

What I want isn't as important as what I need!
Supporting Member
Joined
Oct 31, 2019
Messages
7,027
Location
Virginia

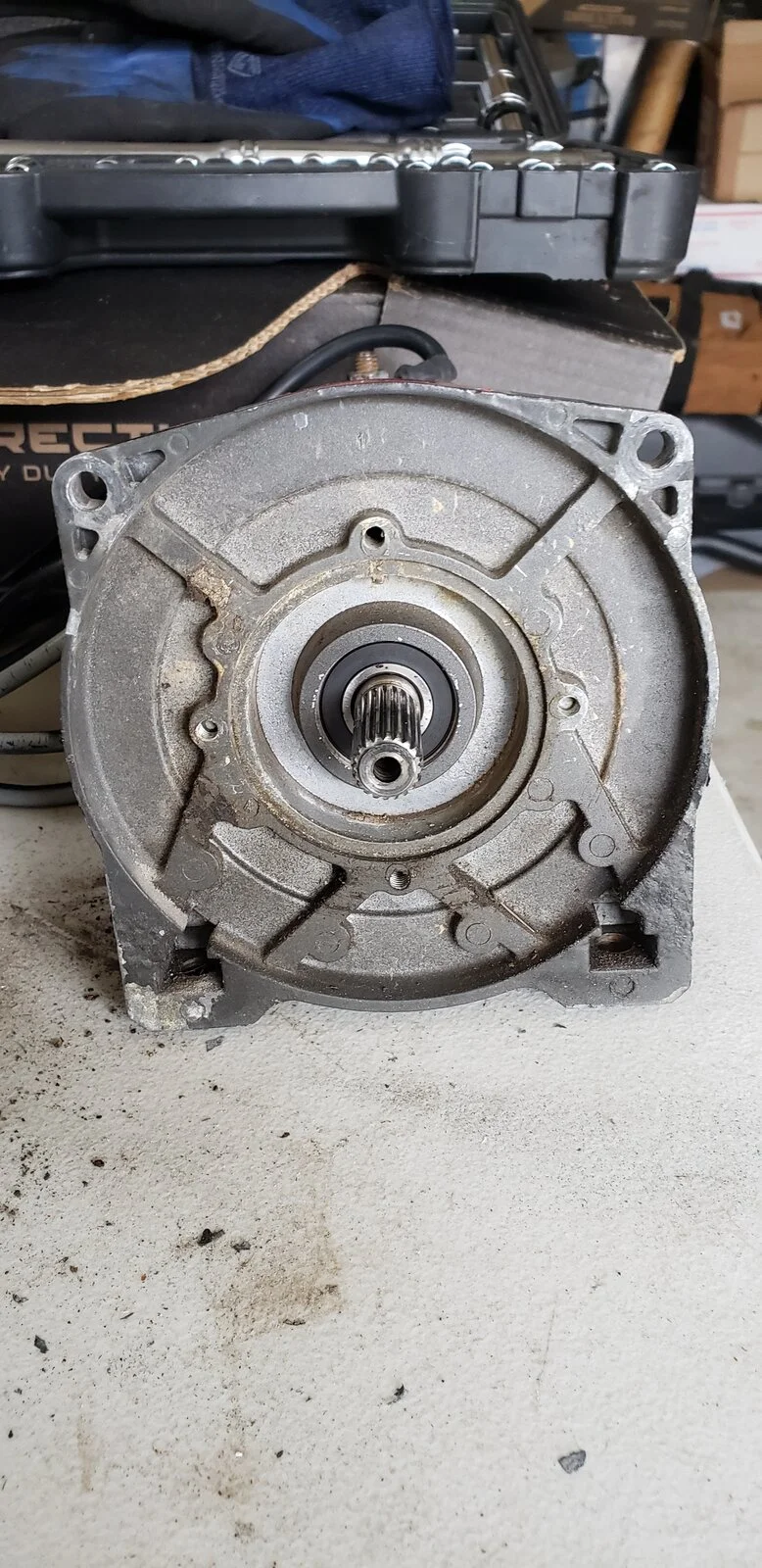

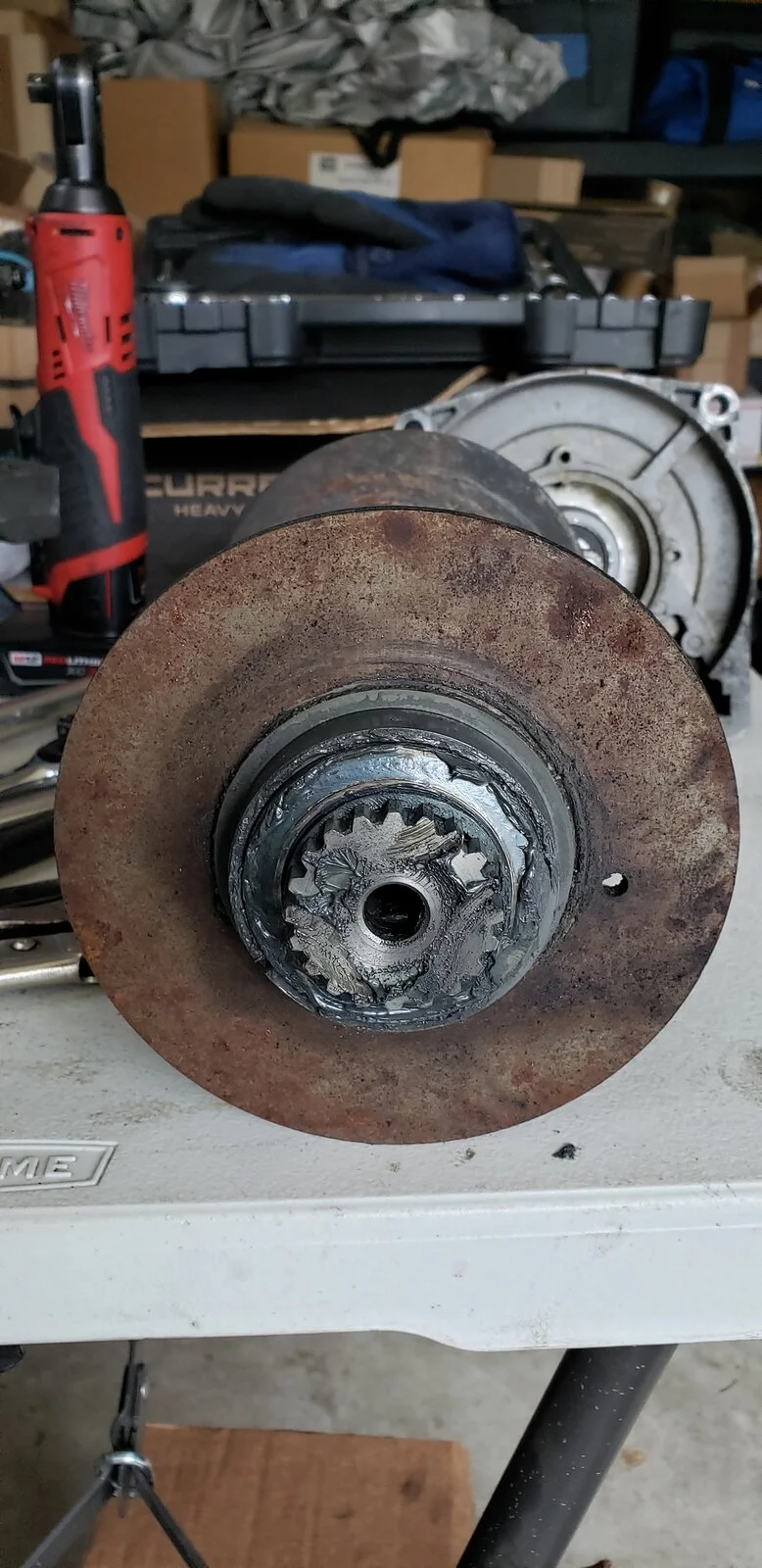

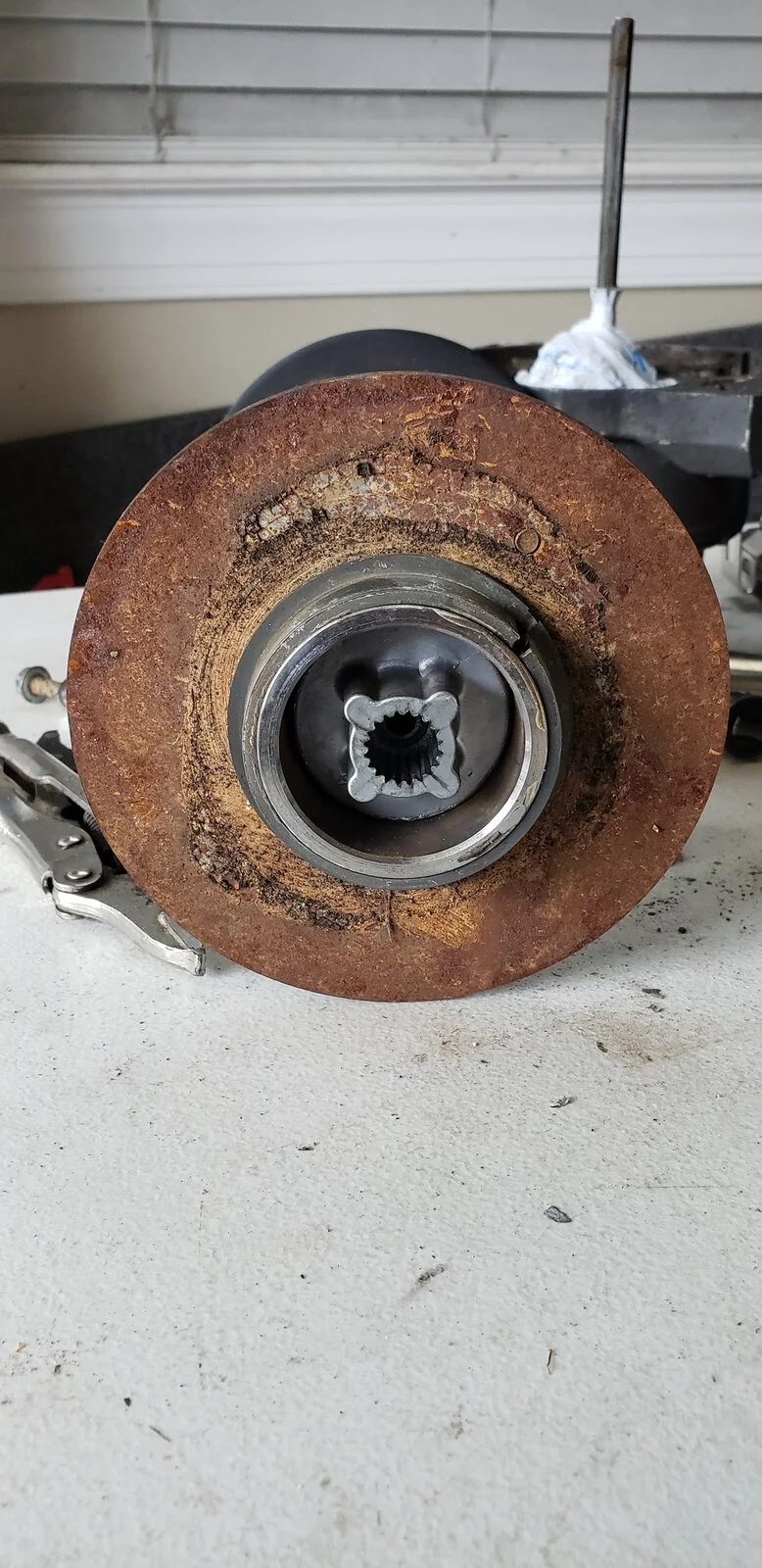

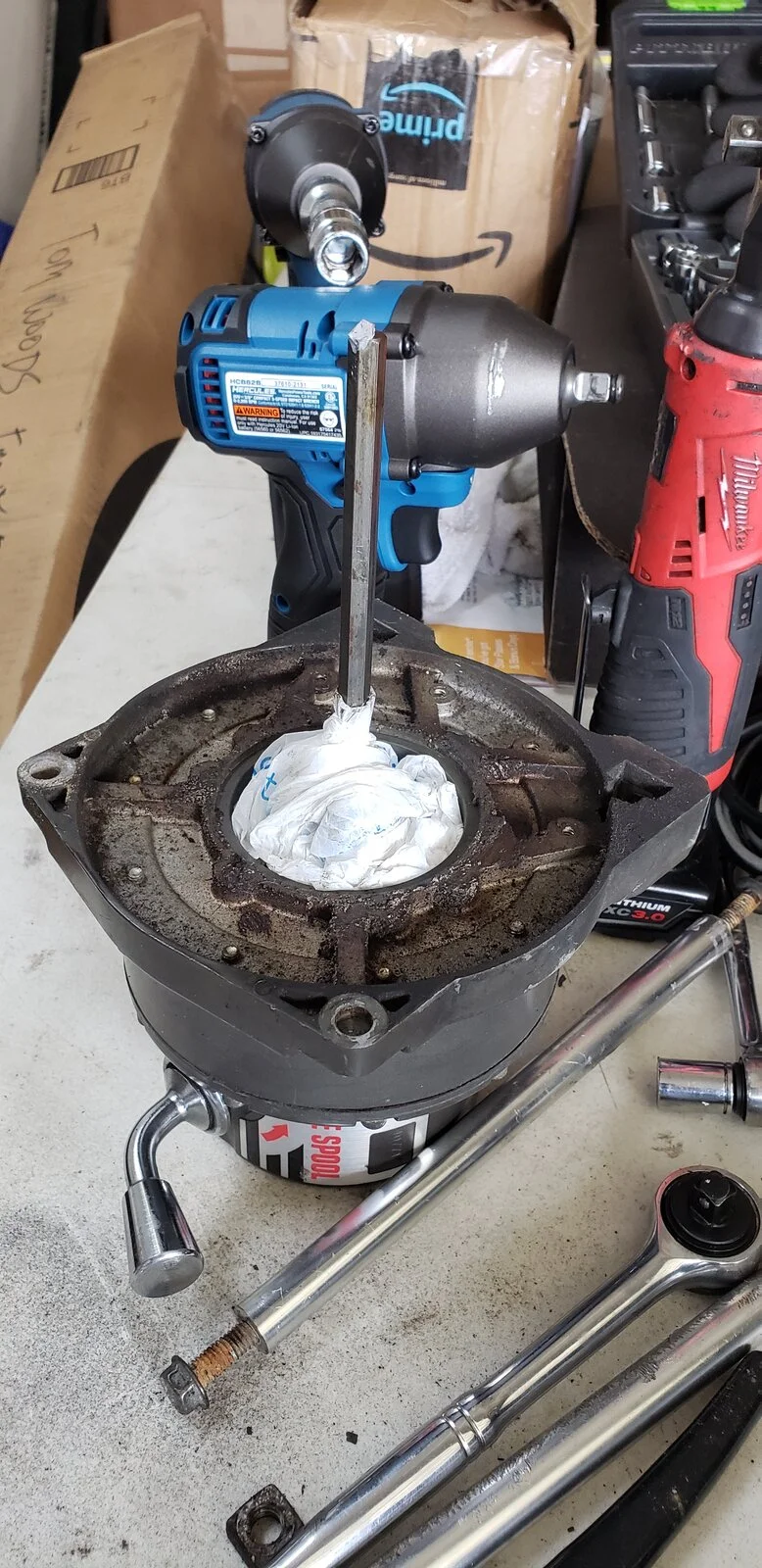

I looked up a couple of videos and taking it apart seems relatively simple. After a partial disassembly, it doesn't look bad at all inside.









Blackjack

Evil Winch Doctor
Supporting Member
Joined
Dec 16, 2018
Messages
2,589
Location
Kenai
That thing looks basically unused. Solenoid bracket is PN 26368 and I have some I will be putting up for sale if you want one. If you get new tie bars you will want to make sure and actually tap them and not try to cut threads with the self tapping screws they come with.

You will want to pull the motor cap and put a couple drops of oil on the bushing and let it soak for a few minutes since it was used so little.

OP
Irun

Irun

What I want isn't as important as what I need!
Supporting Member
Joined
Oct 31, 2019
Messages
7,027
Location
Virginia
That thing looks basically unused. Solenoid bracket is PN 26368 and I have some I will be putting up for sale if you want one. If you get new tie bars you will want to make sure and actually tap them and not try to cut threads with the self tapping screws they come with.

You will want to pull the motor cap and put a couple drops of oil on the bushing and let it soak for a few minutes since it was used so little.
I didn't realize the Tie Rods were aluminum, so I cleaned those up and should be able to reuse what I have. I'll definitely pull the motor cap and oil the bushing. PM sent on the bracket. Thanks!

  • Like
Reactions: Blackjack

JMT

Definitely a Snowflake ❄️
Supporting Member
Ride of the Month Winner
Joined
Feb 27, 2017
Messages
18,645
Location
🌎
I picked up a Warn XD and would like to do a light refresh. Although it's a little weathered, it appears like the steel cable hadn't been unwound and the winch looks like it wasn't really used. After doing a quick visual inspection, all I see that's needed is:

- 2 Gauge Power Cables (To the battery)
- Tie Rods (Warn 98279 Service Kit)
- Winch Mounting Bolts
- Contactor Pack Mounting Bracket
- Replacement Warn Stickers

That said, are there any tricks I should know about when taking this apart to do an inspection?

Second question, does anyone know the part number for a mounting bracket for this version?









Looking forward to this! Love to see these come back to life!

  • Like
Reactions: Irun and Blackjack
OP
Irun

Irun

What I want isn't as important as what I need!
Supporting Member
Joined
Oct 31, 2019
Messages
7,027
Location
Virginia

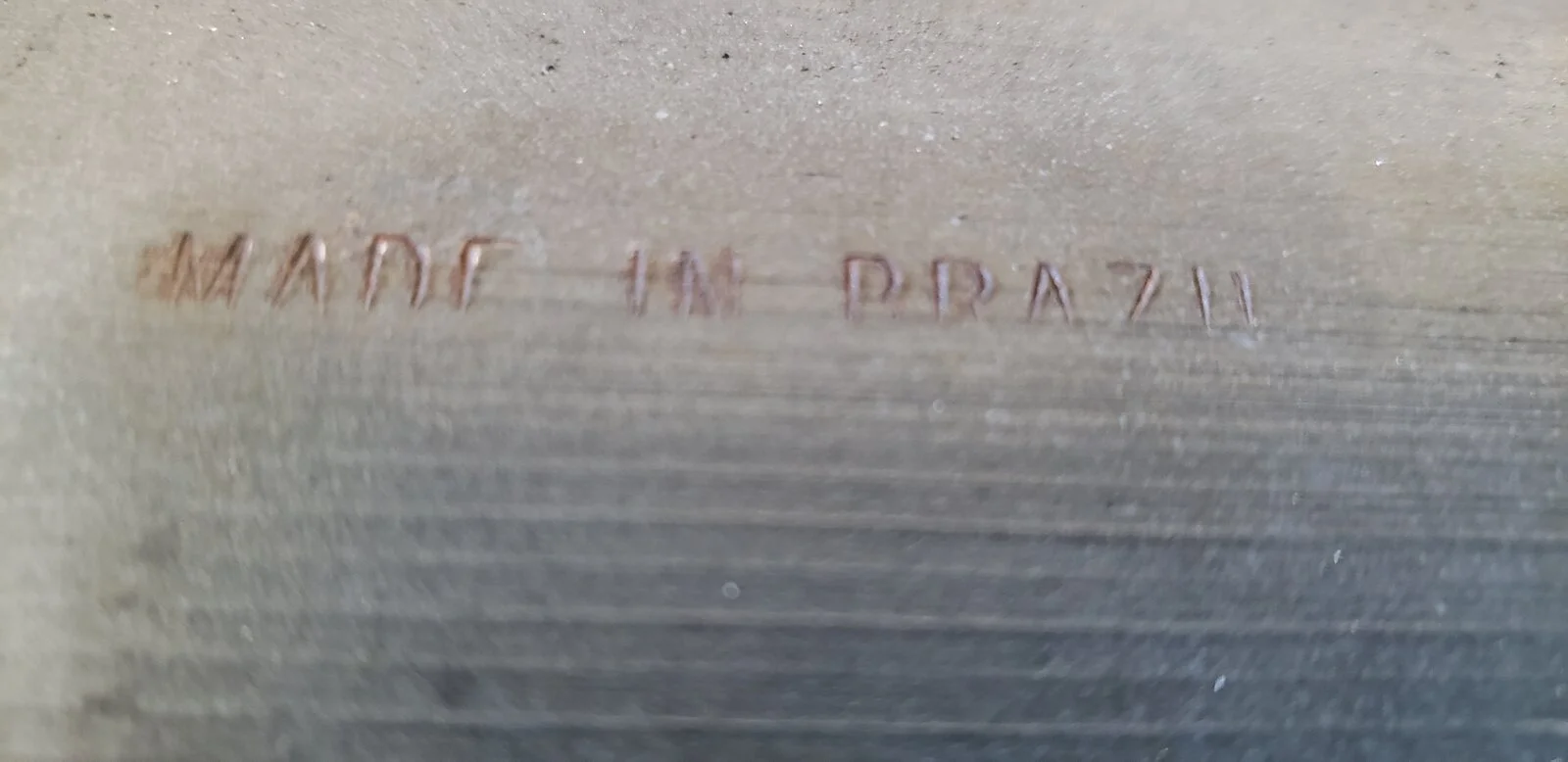

I was under the assumption Warn was Made in USA. What's up with this?



JMT

Definitely a Snowflake ❄️
Supporting Member
Ride of the Month Winner
Joined
Feb 27, 2017
Messages
18,645
Location
🌎
I was under the assumption Warn was Made in USA. What's up with this?

View attachment 348466

I believe that means the winch was made on the “Darkest Day of America” which was evidently July 11.

I believe that day had the highest gas prices ever and yes it is Biden’s fault.

Let’s Go Brandon!



Hope that’s not a harbinger of how well the winch was made! 😉

Last edited:

Blackjack

Evil Winch Doctor
Supporting Member
Joined
Dec 16, 2018
Messages
2,589
Location
Kenai
I was under the assumption Warn was Made in USA. What's up with this?

View attachment 348466

Warn had used Bosch of Brazil for motors since the 90s. They could not get a domestic motor manufacturer to provide what they wanted. After Bosch closed the plant in Brazil in the late 2000s they currently use Saco whos plant is in Asia.

  • Like
Reactions: Irun
OP
Irun

Irun

What I want isn't as important as what I need!
Supporting Member
Joined
Oct 31, 2019
Messages
7,027
Location
Virginia

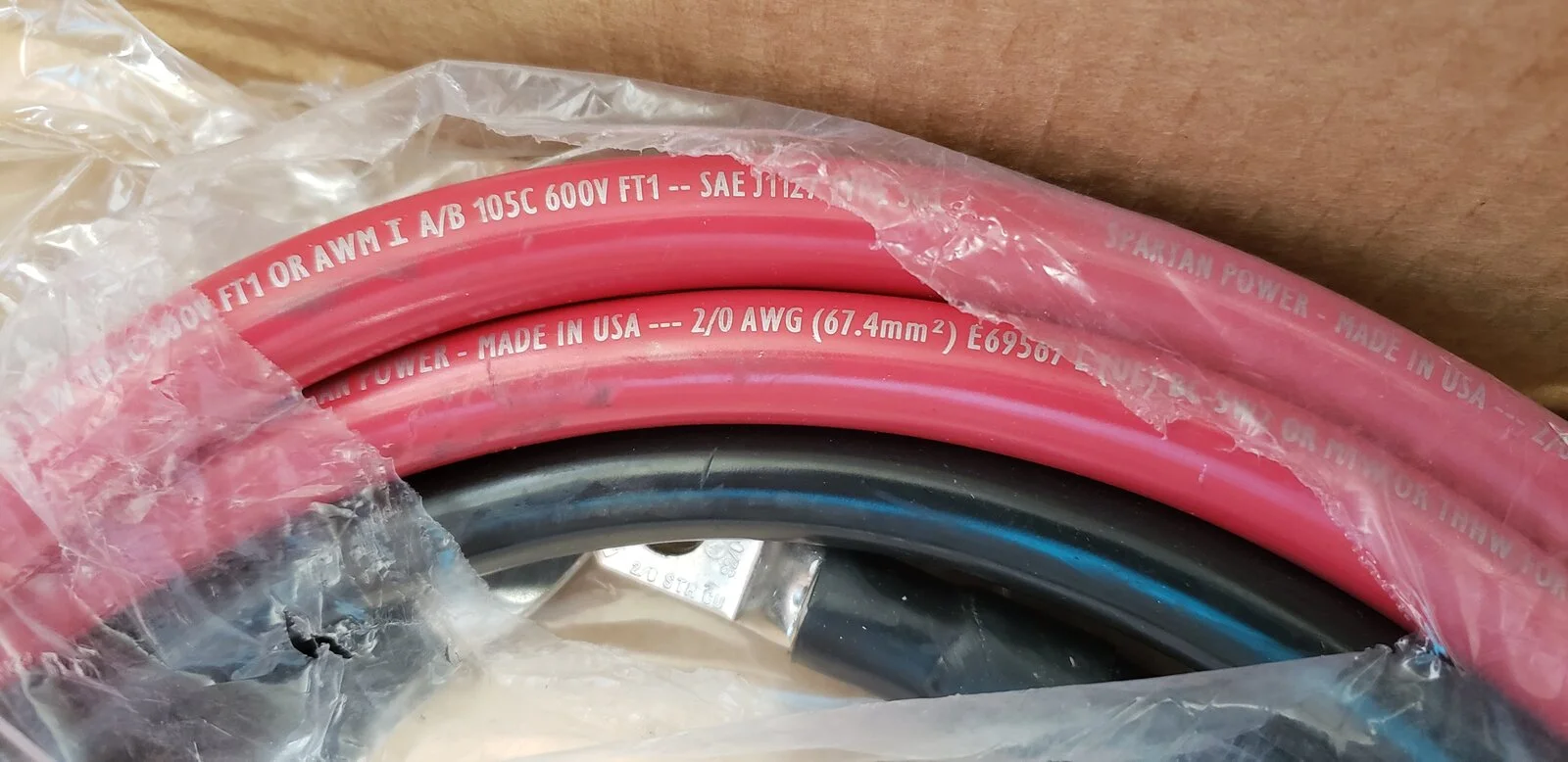

Power cables came in, but I'm wondering if I went to big?


OP
Irun

Irun

What I want isn't as important as what I need!
Supporting Member
Joined
Oct 31, 2019
Messages
7,027
Location
Virginia
Warn had used Bosch of Brazil for motors since the 90s. They could not get a domestic motor manufacturer to provide what they wanted. After Bosch closed the plant in Brazil in the late 2000s they currently use Saco whos plant is in Asia.

Figured it must be something like that. It's a very serious motor! (y)

  • Like
Reactions: Blackjack
OP
Irun

Irun

What I want isn't as important as what I need!
Supporting Member
Joined
Oct 31, 2019
Messages
7,027
Location
Virginia

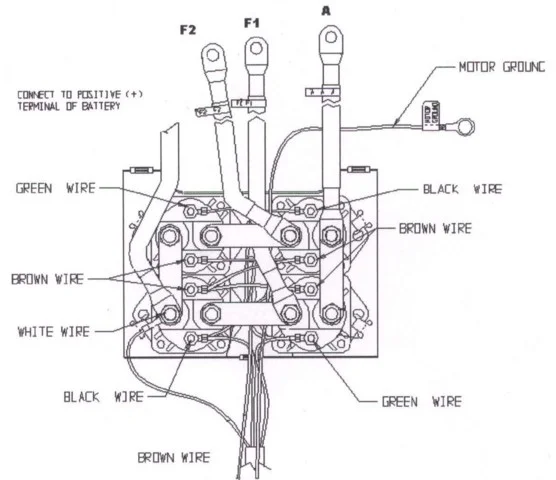

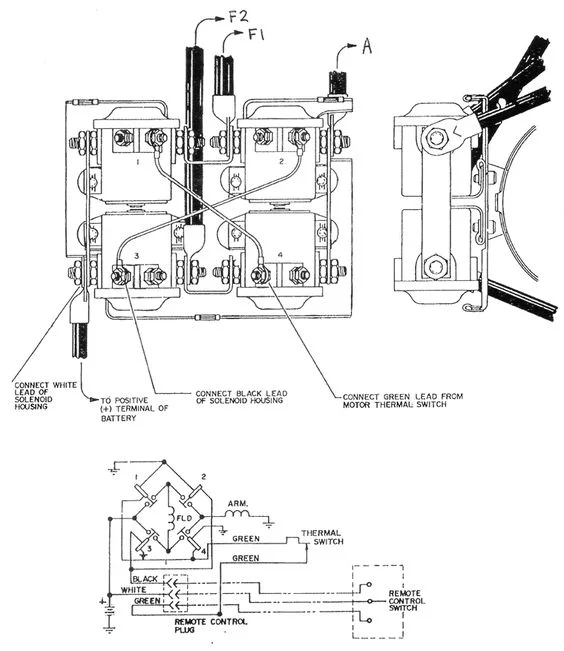

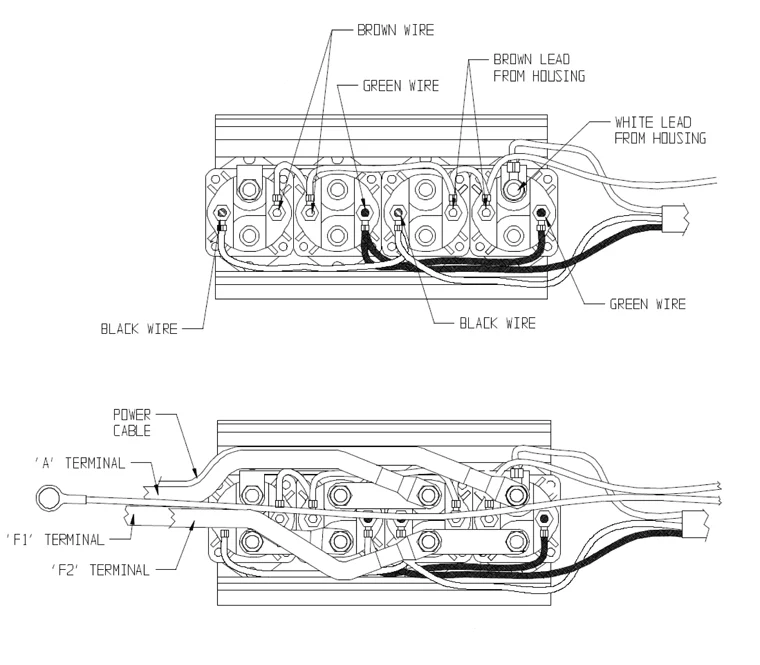

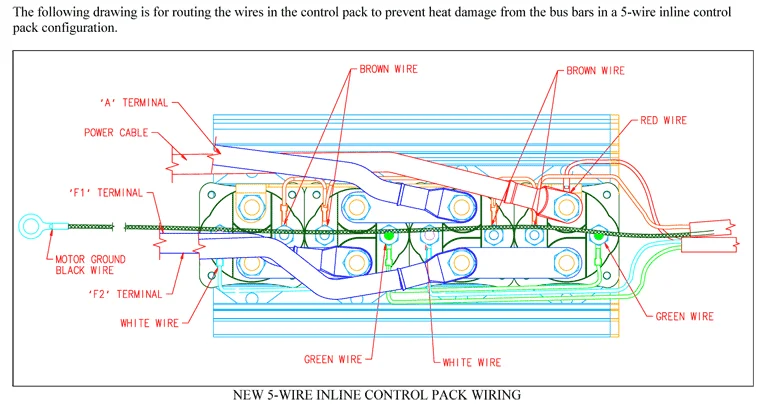

Can someone point me to a wiring diagram for this winch? I'm not finding where to connect the negative and positive to the battery.
