Warn XD Restoration

OP
Irun

Irun

What I want isn't as important as what I need!
Supporting Member
Joined
Oct 31, 2019
Messages
7,027
Location
Virginia

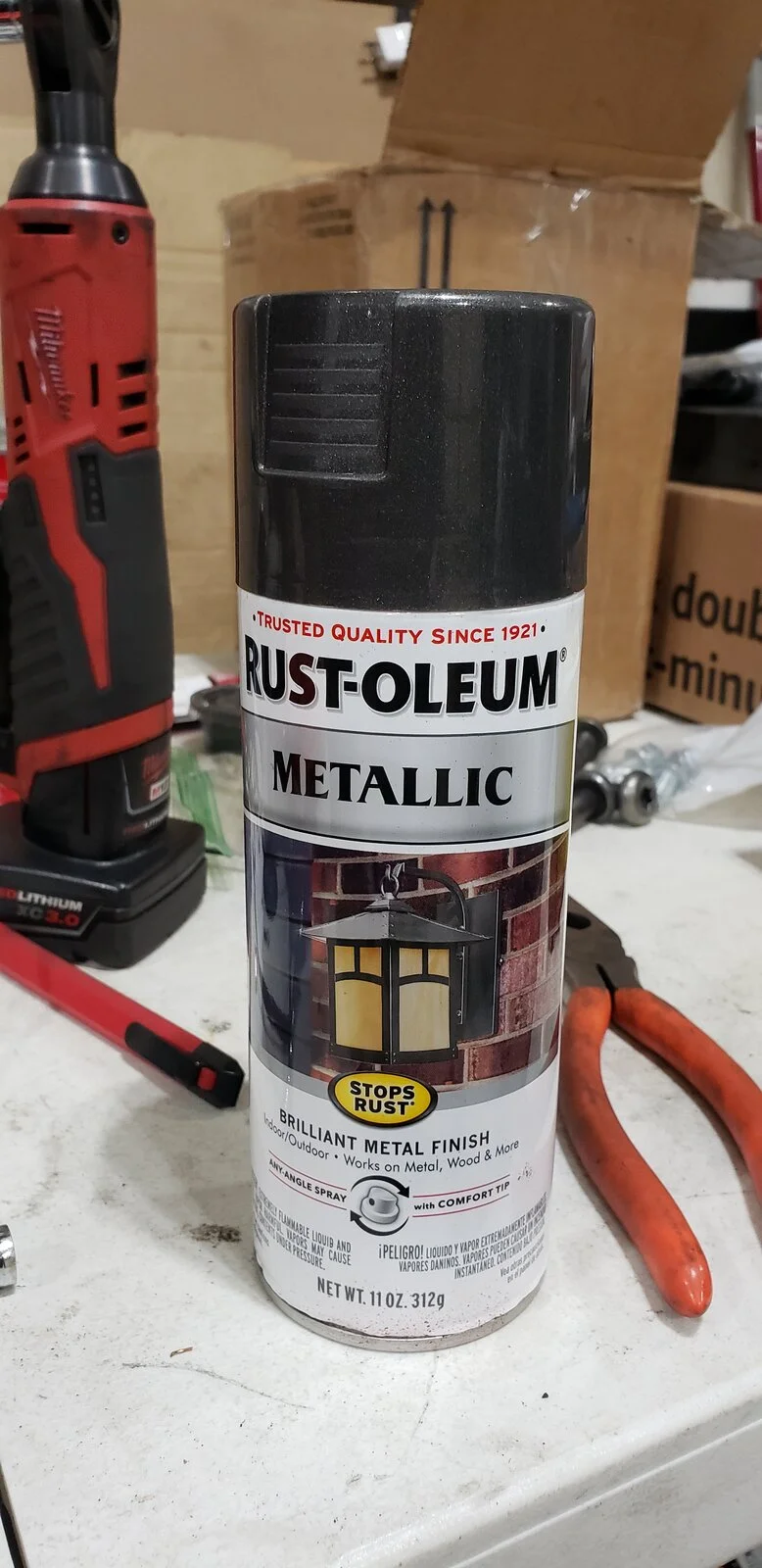

Looks good. What paint did you end up using?


  • Like
Reactions: JMT and Blackjack
OP
Irun

Irun

What I want isn't as important as what I need!
Supporting Member
Joined
Oct 31, 2019
Messages
7,027
Location
Virginia

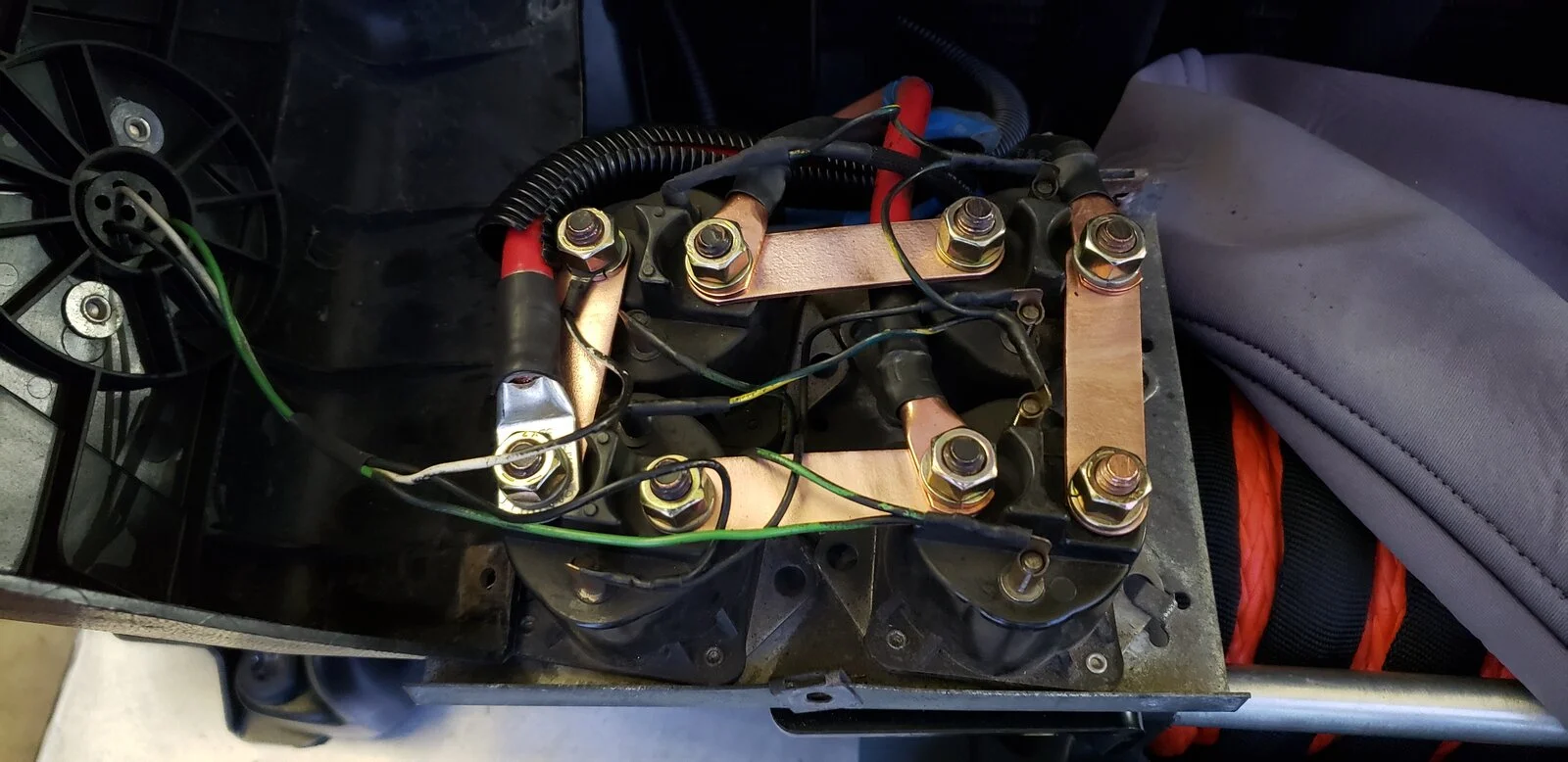

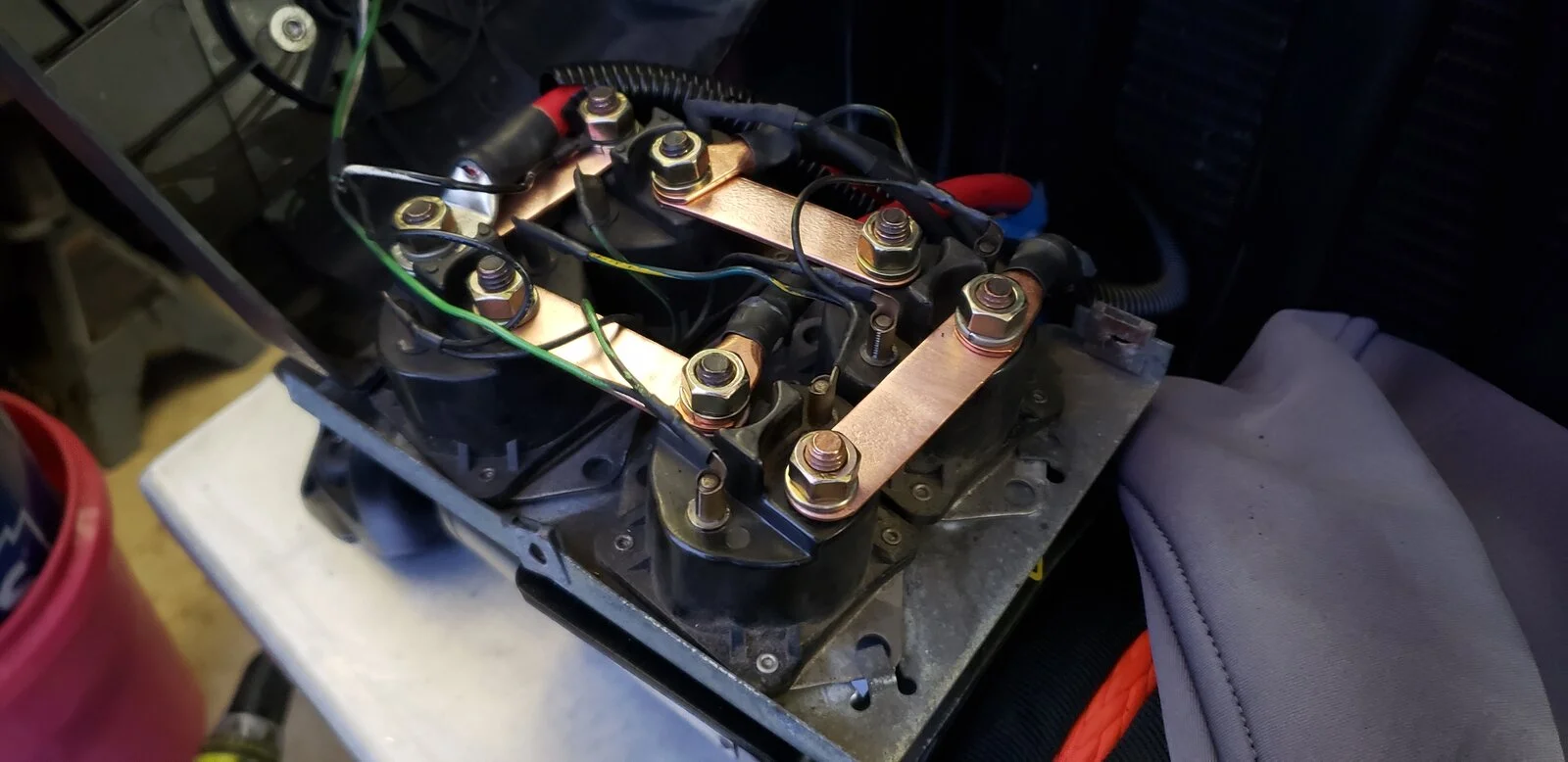

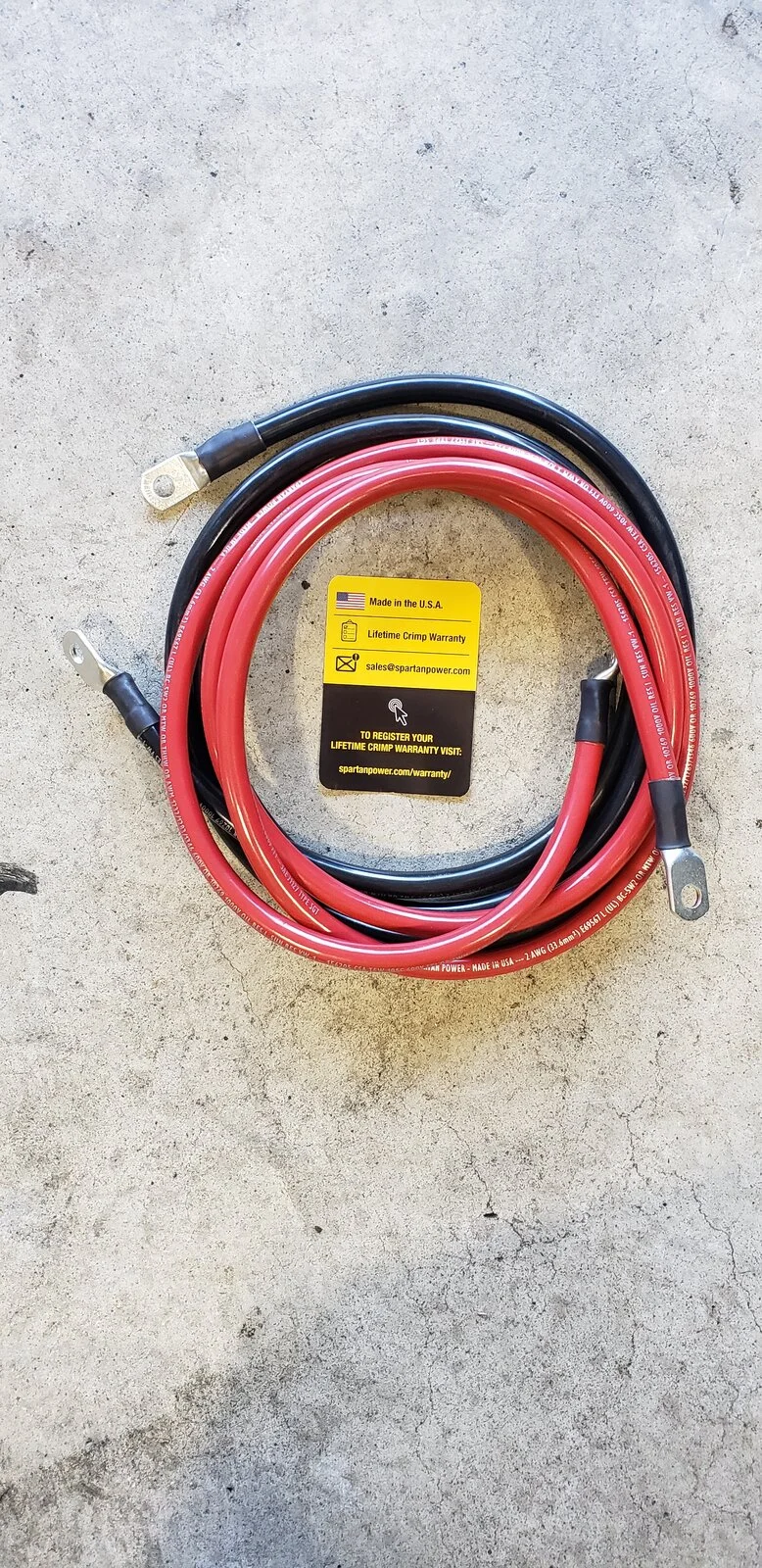

Everything is wired, with the correct 2 gauge wire, mocked up, and working. The only exception is the solenoid for winding the line in periodically stops working. If I tap on it it starts working again. I'll take a look at that after I finish painting miscellaneous bolts and the W on top of the contactor Box.





Wildman

Over Analyzer Extraordinaire...............
Staff Member
Supporting Member
Joined
Dec 12, 2015
Messages
22,714
Location
In the hills of WA
Everything is wired, with the correct 2 gauge wire, mocked up, and working. The only exception is the solenoid for winding the line in periodically stops working. If I tap on it it starts working again. I'll take a look at that after I finish painting miscellaneous bolts and the W on top of the contactor Box.

View attachment 350684

View attachment 350685

That turned out looking really good. Did you get new solenoids or reuse the ones that came with the winch?

  • Like
Reactions: Irun
OP
Irun

Irun

What I want isn't as important as what I need!
Supporting Member
Joined
Oct 31, 2019
Messages
7,027
Location
Virginia
Pop the cover and post a pic and I will get you some part numbers.

I might have some that I'd ordered and then decided to go with the solid-state contactor instead.

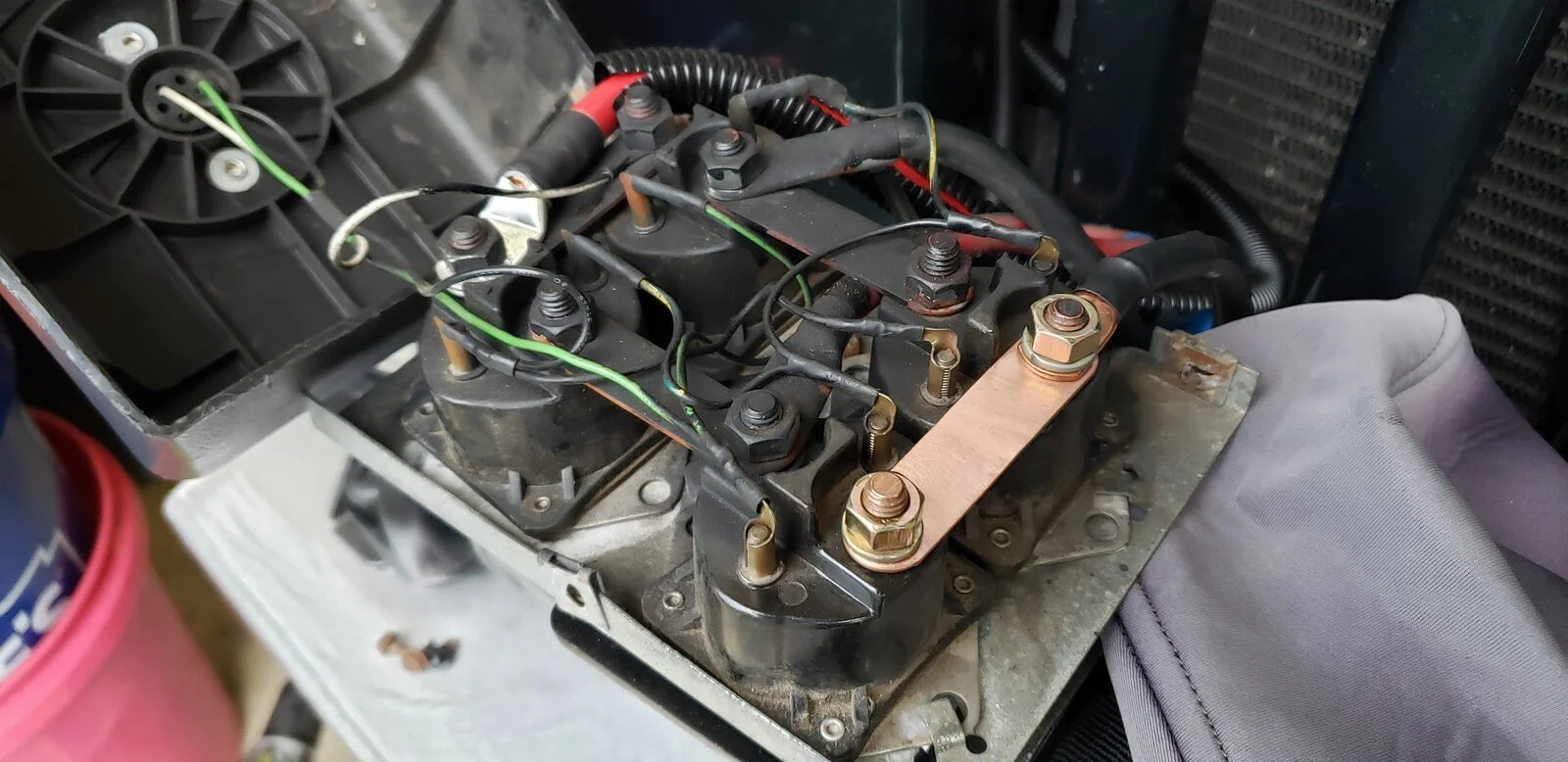

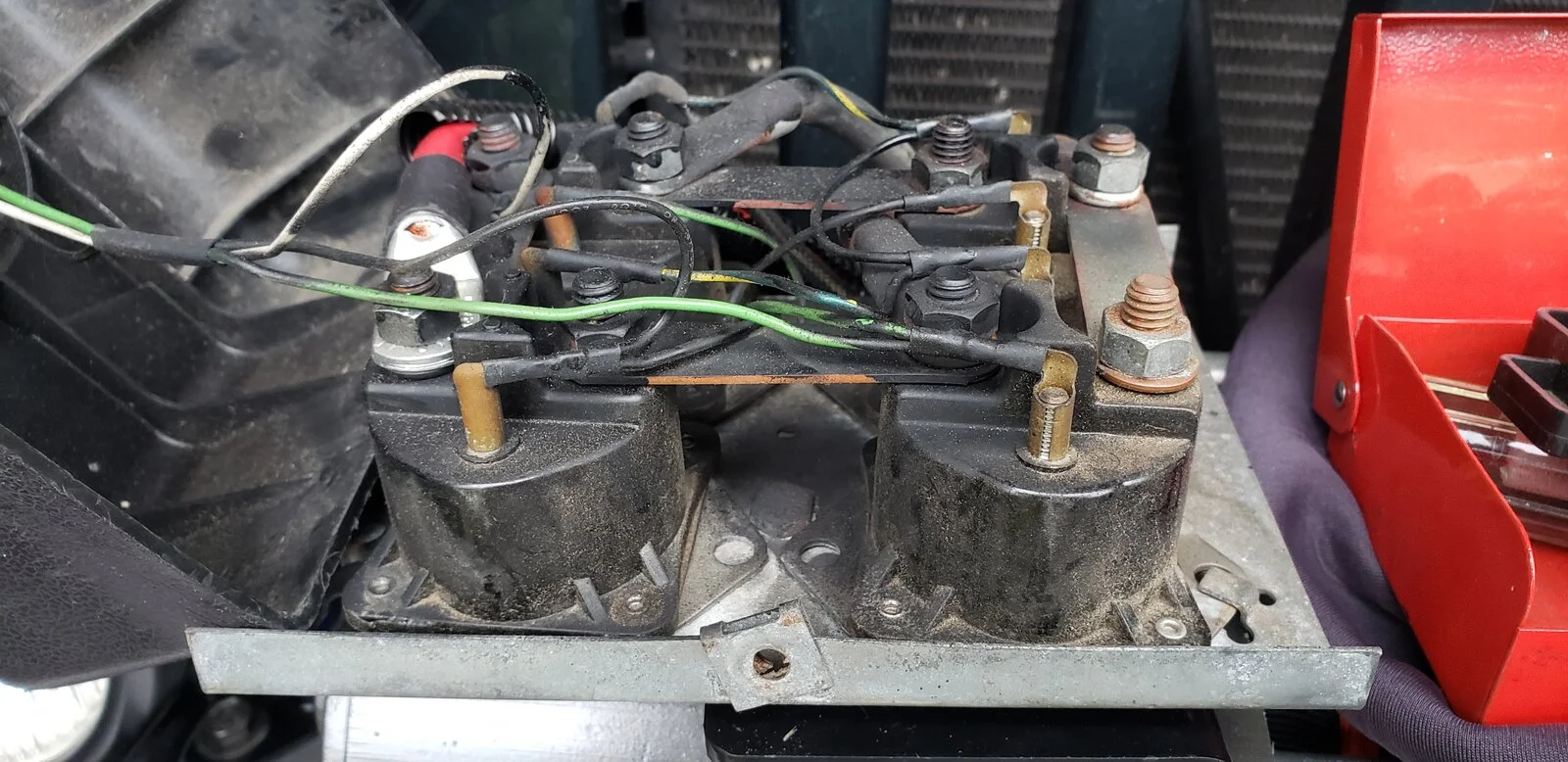

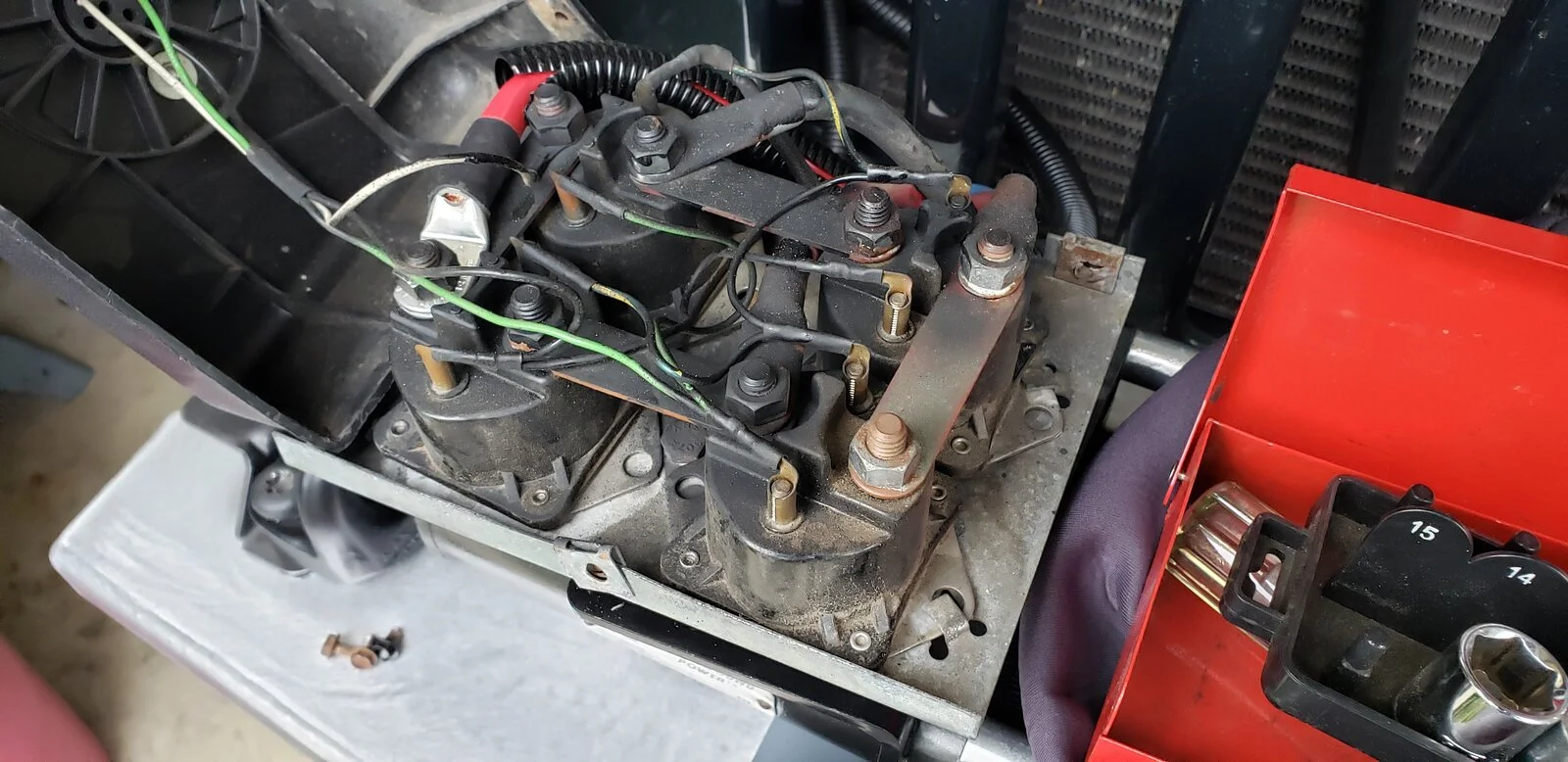

I was helping a friend out yesterday and didn't have time to remove the cover. I do know there was some rust on the connectors, which I tried to clean up. However, I probably need to remove the connections one at a time and do a thorough cleaning. This I did not do, so my problem might be as simple as a bad connection. :unsure:

  • Like
Reactions: Wildman
OP
Irun

Irun

What I want isn't as important as what I need!
Supporting Member
Joined
Oct 31, 2019
Messages
7,027
Location
Virginia

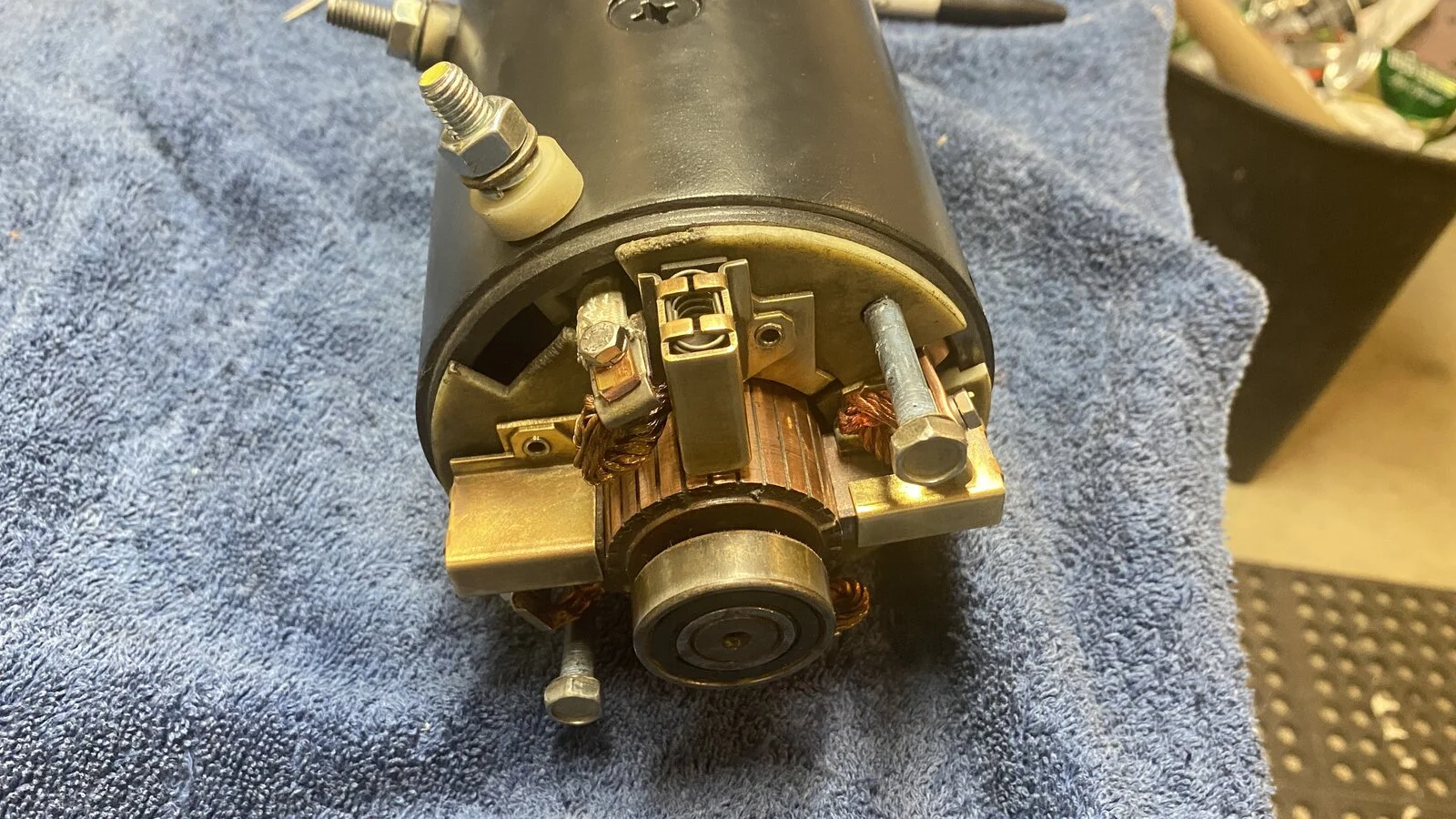

Should have done this before...Will clean all the connections and replace the crimped ends. First one done!


  • Like
Reactions: JMT

PRNDL

I like Jeeps
Supporting Member
Joined
Sep 25, 2021
Messages
690
Location
TEXAS
I would love to find a used one of these XD9000s or an M8000. Classic winch look, American quality. Can't beat it. Nice job.

  • Like
Reactions: Irun and Wildman

Wildman

Over Analyzer Extraordinaire...............
Staff Member
Supporting Member
Joined
Dec 12, 2015
Messages
22,714
Location
In the hills of WA
The solenoids I have do not look like those. I have the ones that look like a Ford starter solenoid. Bummer.

  • Like
Reactions: Irun

Blackjack

Evil Winch Doctor
Supporting Member
Joined
Dec 16, 2018
Messages
2,589
Location
Kenai
What does this do? Adds the thermal protection? Anything else?

It eliminates those horrible barrel connectors on the control wires and adds ground switching for the solenoids. The barrel connectors are notorious for creating issues and with the "new Ford style" solenoids switching the ground side in addition to the power side added reliability and some extra circuit redundancy.

  • Like
Reactions: Wildman and Irun

Wildman

Over Analyzer Extraordinaire...............
Staff Member
Supporting Member
Joined
Dec 12, 2015
Messages
22,714
Location
In the hills of WA
It eliminates those horrible barrel connectors on the control wires and adds ground switching for the solenoids. The barrel connectors are notorious for creating issues and with the "new Ford style" solenoids switching the ground side in addition to the power side added reliability and some extra circuit redundancy.

Because I went with a contactor over the solenoids is there an upgrade for it? Or not something worth worrying about?


Wildman

Over Analyzer Extraordinaire...............
Staff Member
Supporting Member
Joined
Dec 12, 2015
Messages
22,714
Location
In the hills of WA
What plug is on you pack?

I don't know. I think it's a 5 pin because I got the newer style -50 cover. But was going to swap to the 3 pin since I had the controller already. But if going to the 5 pin is a better idea I'll do it. I'll have to look when I get back out to the garage.
I am going to get my leg cast tomorrow and should be able to start working again Wednesday.

  • Like
Reactions: Irun

JMT

Definitely a Snowflake ❄️
Supporting Member
Ride of the Month Winner
Joined
Feb 27, 2017
Messages
18,645
Location
🌎
I would love to find a used one of these XD9000s or an M8000. Classic winch look, American quality. Can't beat it. Nice job.

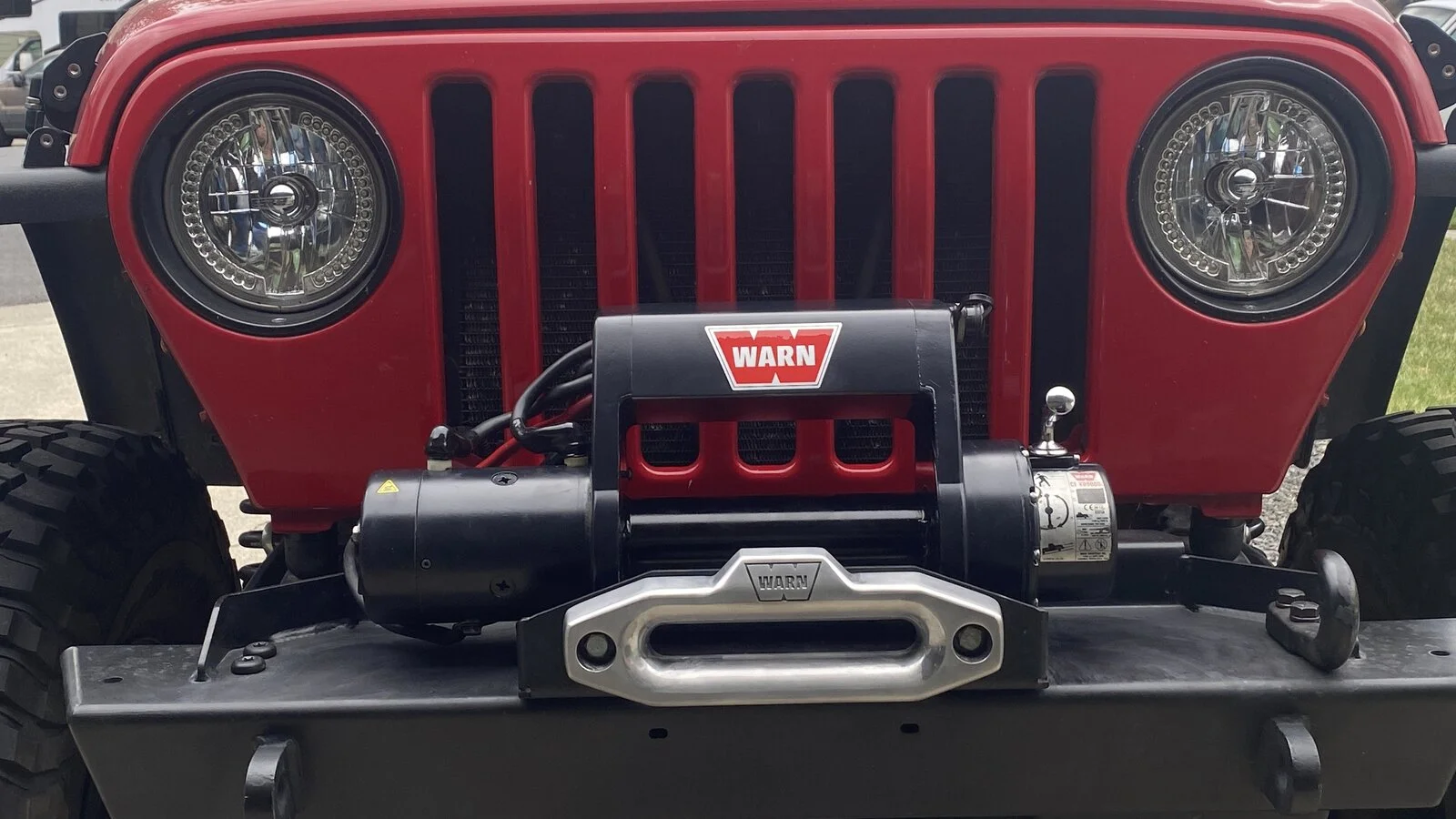

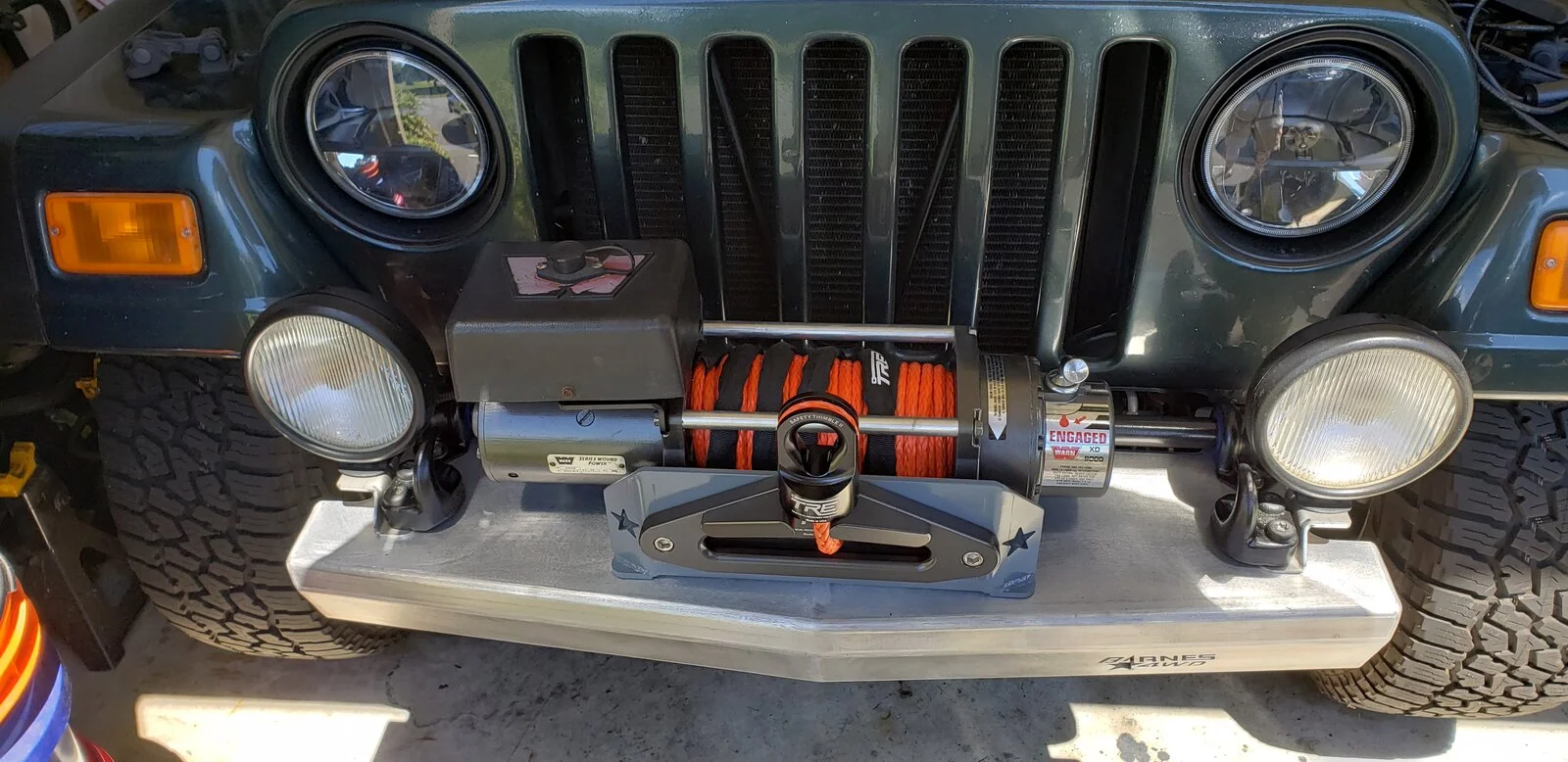

I found this XD9000i and rebuilt it with @Blackjack help. He had to push me. It was kinda rough, but just needed TLC. He had several parts and a snorkel kit he provided. I love it.
