Wheelbase Stretches on 35s

Rescue6

TJ Addict
Supporting Member
Joined
Oct 12, 2018
Messages
1,249
Location
Colorado
I’m back on 35s and stretched out. I will have to remeasure because when I put in the 12” travel shocks this spring I had to shorten the rear arms a bit in order to get full stuff with the 60. I have a Genright tank and a four link out back. I purchased the axle, tank, corner armor and 4 link stuff all in a package years ago. I had also outboarded the rear shocks at that time as well but didn’t do a great job of it to be honest. The stretch tank and 4 link were fine but I was after max stretch over max flex so the outboarded shocks and uptravel were compromised. It helped the Jeep feel a whole lot more stable on climbs, and had a much better departure angle on drop offs since it was on 37s at the time. When I redid all the stuff this spring and was more concerned with uptravel than final wheelbase numbers I lost a little bit of the rear stretch I had but I also pushed the front as far as the steering would let me without doing a steering box relocation and got about 1.5” up front with everything staying happy. I actually just finished assembling a new set of rear control arms for the rear and will get them installed in the next day or two and I’ll take some measurements. I must not have used enough anti seize on the JJ ends as the lower end of my lower arms were rusted/frozen and no longer adjustable so after trying to break them free a few times, drilling small holes and filling them with PB Blaster, a torch and a 4’ cheater bar without luck. Then having to make adjustments the hard way with just one adjustable end. I just bought eight JJoints and some 2”x.25” wall DOM and built some new links an inch shorter than my old ones so I could get all the adjustments I need in. Once I get my Atlas tucked up a bit more and my belly pan raised up a little more I’ll be all set. These new shocks ride so much better. And once I dialed in the front arm geometry after my flop it climbs stable again. I know you will recognize the rock pile here.



someguysjeep

simple guy
Lifetime Supporting Member
Joined
Nov 17, 2019
Messages
5,379
Location
ohio
i'm in the 108 -109" range i think. my rear drive shaft is over 32" long now.

why? wheelbase and wheel spread add stability and i wanted to challenge myself..

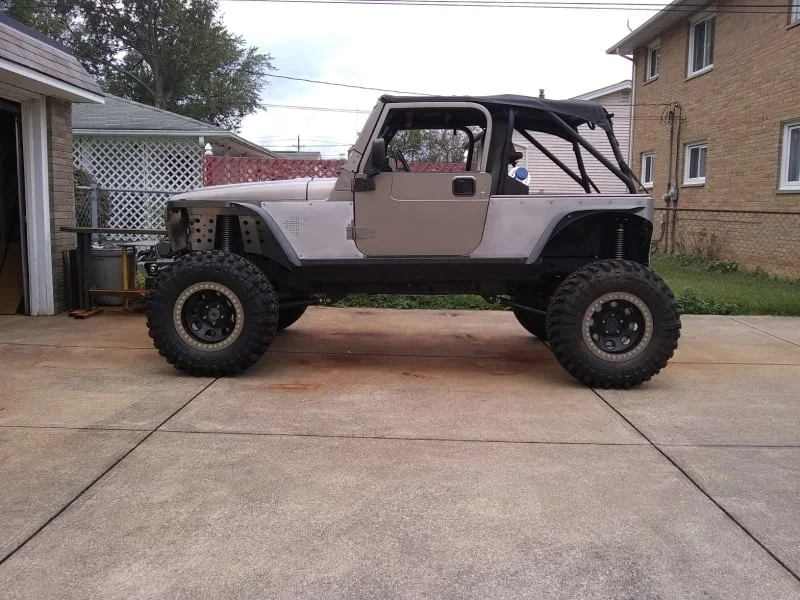

i rebuilt the whole back end of the frame narrower and higher, from the last body mount under the doors back.



slight rake there in the pic, my big spares not in the back end yet .

Last edited:

Irun

What I want isn't as important as what I need!
Supporting Member
Joined
Oct 31, 2019
Messages
7,030
Location
Virginia
I know @sjalkian did a 5" stretch using the Genright tank. He can jump in and fill out the details! ;)

  • Like
Reactions: jjvw

Sj's TJ

TJ Enthusiast
Supporting Member
Joined
Jun 2, 2018
Messages
765
Location
Vienna, VA
I stretched the rear by 5”. I did so to gain more stability specifically on steep climbs and dropping off big boulders.

I got there by getting a Genright tank which allowed me to maintain 19.5 gallons and get 5” with my Dana 44. I took the opportunity to outboard the rear shocks and various other things that my build thread explains.



T

TRE3TOP

Guest
i'm in the 108 -109" range i think. my rear drive shaft is over 32" long now.

why? wheelbase and wheel spread add stability and i wanted to challenge myself..

i rebuilt the whole back end of the frame narrower and higher, from the last body mount under the doors back.

View attachment 343942

slight rake there in the pic, my big spares not in the back end yet .

Did you/ do you plan to go bigger than 35? 108/109 seems a little long for 35s?


someguysjeep

simple guy
Lifetime Supporting Member
Joined
Nov 17, 2019
Messages
5,379
Location
ohio
Did you/ do you plan to go bigger than 35? 108/109 seems a little long for 35s?

eventually. i have a 1T rear axle in the works, just not in a rush........... i wanna play with this version some.

and if i really wanted to a few more #'s in the struts and i can bring that belly up some if i had to.

  • Like
Reactions: SvtLdr and TRE3TOP

Terrrs01

Member
Joined
Mar 20, 2021
Messages
65
Location
North East Indiana

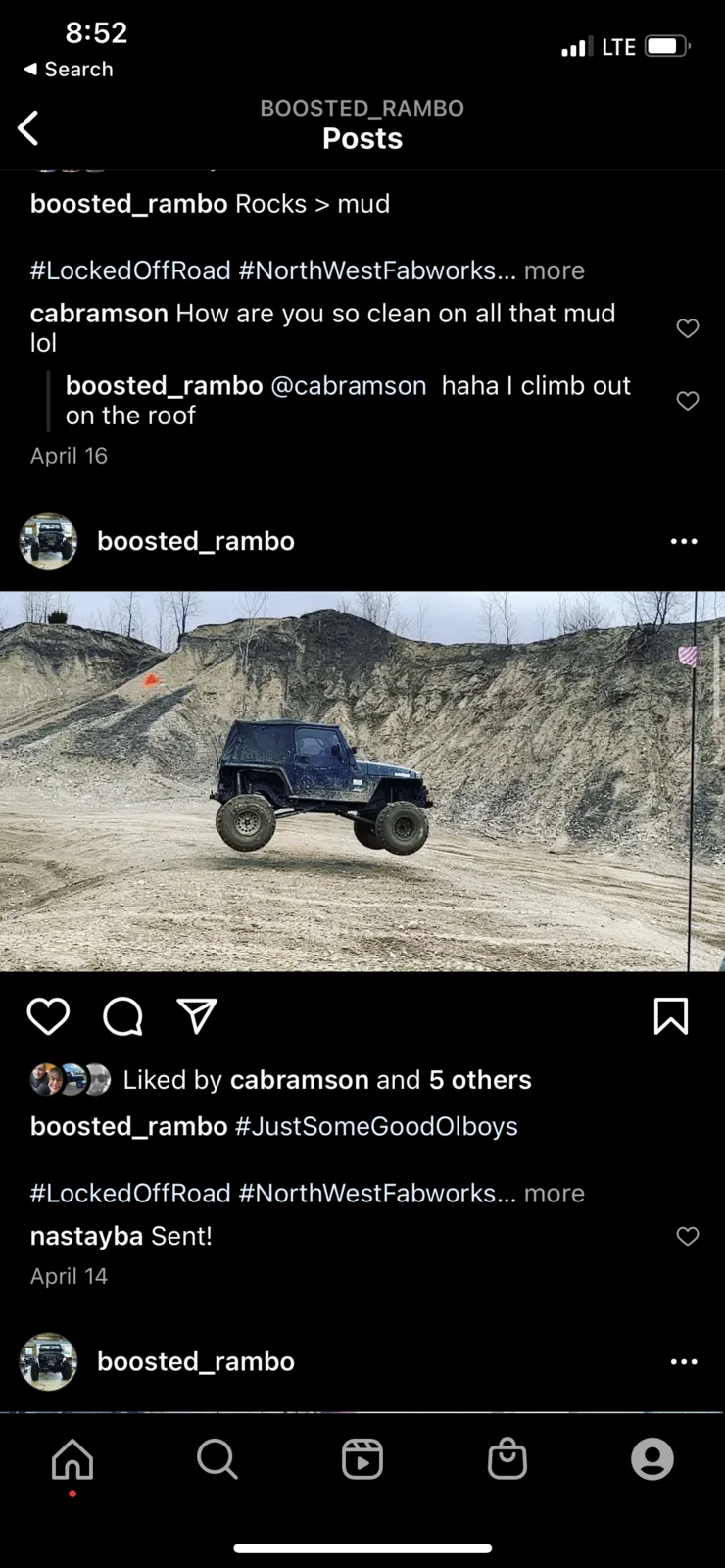

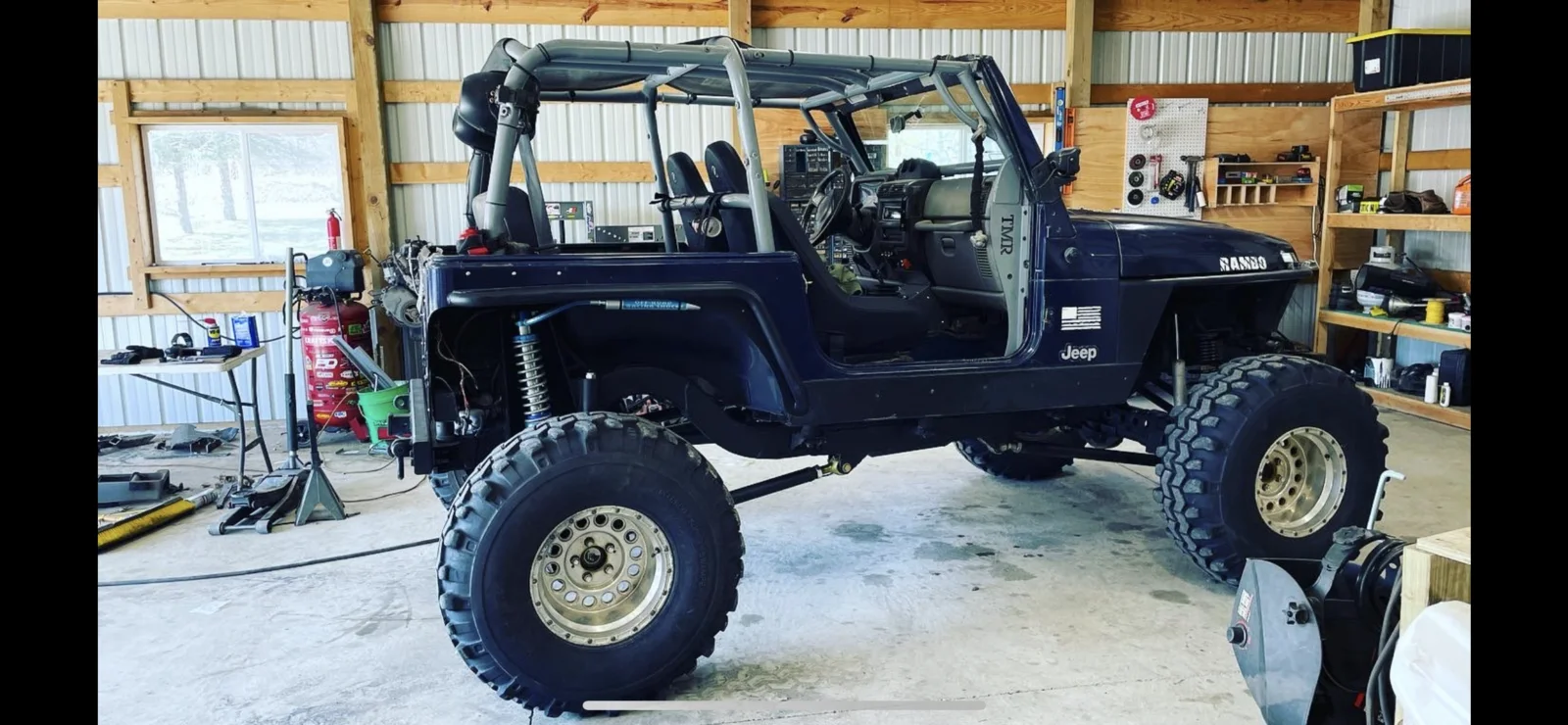

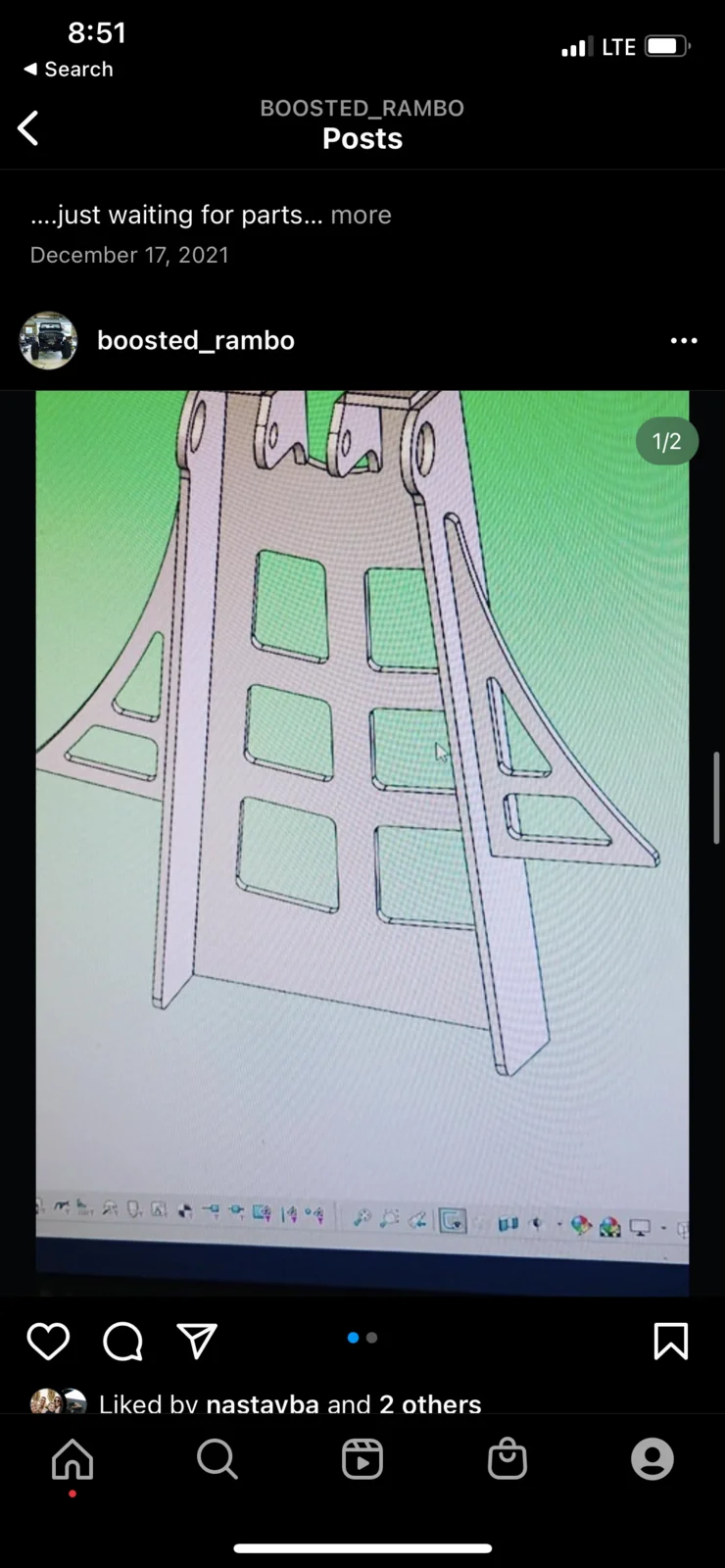

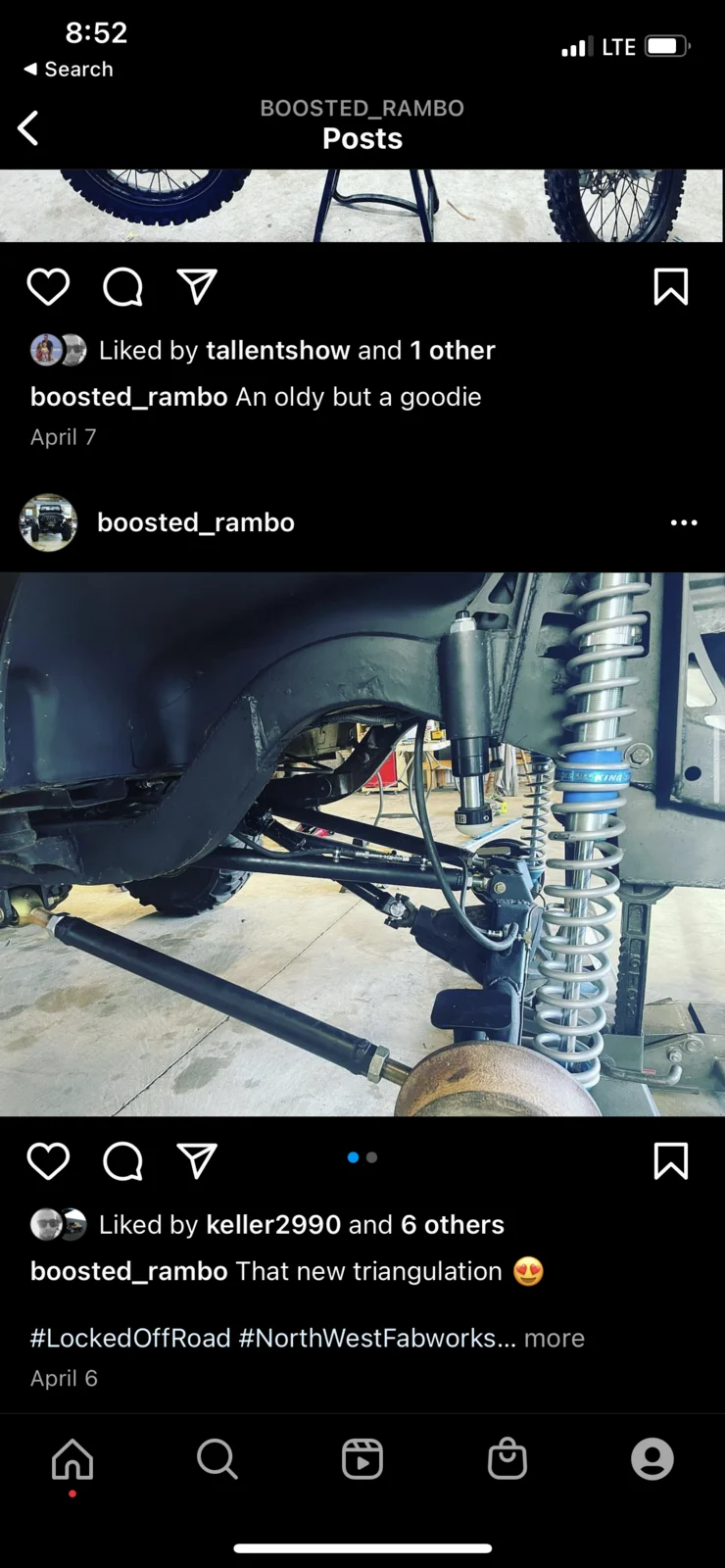

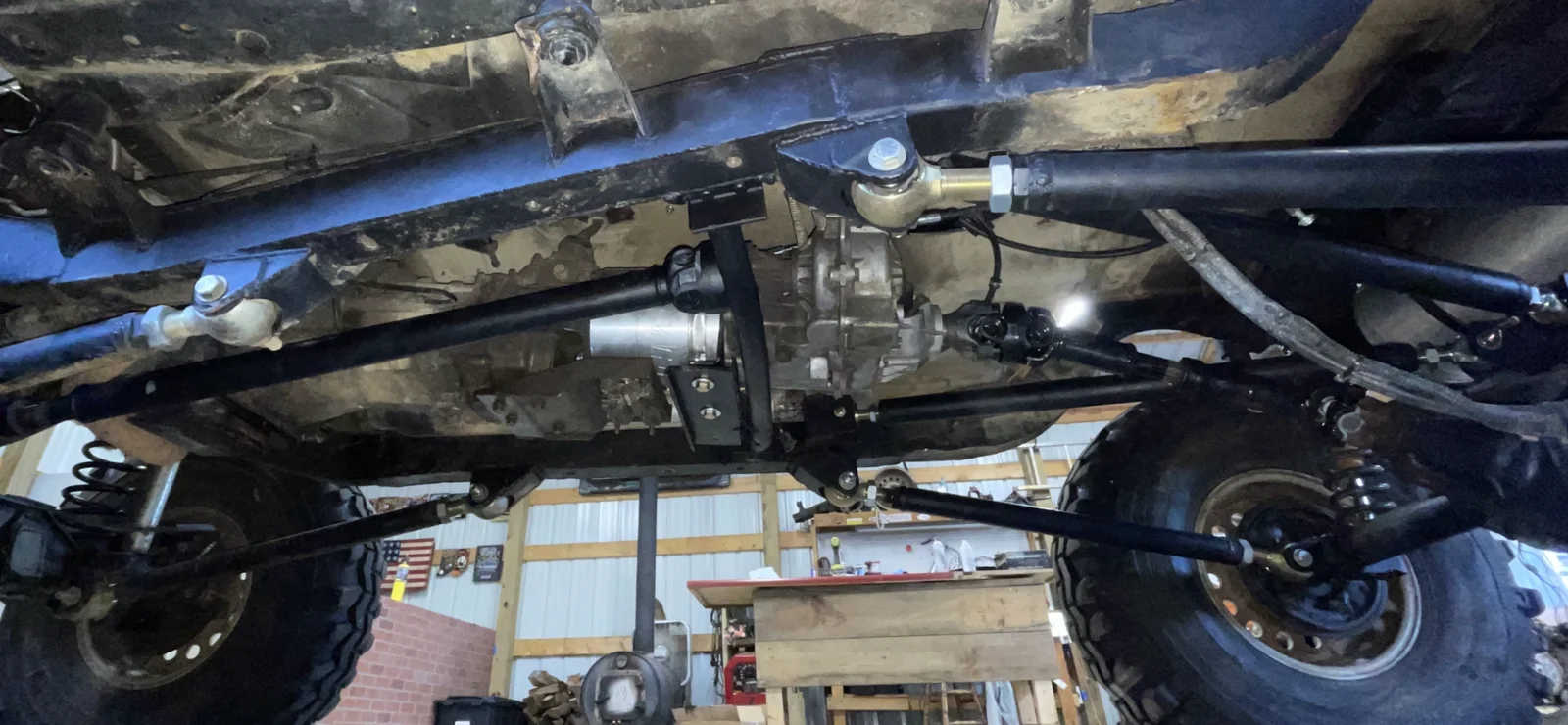

@SvtLdr made some towers for my coilovers. Got some locked off road hydro bumps, TMR limit straps,and some joints/DOM/small truss. The year previous I already moved to a small aluminum fuel tank in preparation for a stretch. Then of course went straight to a small hill and air’d it out 😂









SvtLdr

Search Engine Certified Mechanic
Supporting Member
Ride of the Month Winner
Joined
Nov 26, 2019
Messages
1,882
Location
NE Indiana
