Rearview mirror harness
- Thread starter Imposter71
- Start date
The one I got from eBay claimed it was for a 03 TJ, but I'm sure it wasn't since I had to rewire the harness. The factory listed part # for the temp sensor worked just fine. BTW if you plug in a 177 without checking the pins, smoke comes out of the dash splice connector. [emoji32]
VirtualRussel
TJ Enthusiast
I think the factory ones (part # 55156197AB) were made from pure gold. At RockAuto it is $337 and at Morris 4x4 it is $431.
ancarta:
ancarta:
Wow! I didn't know mine was so valuable...I think the factory ones (part # 55156197AB) were made from pure gold. At RockAuto it is $337 and at Morris 4x4 it is $431.
OP

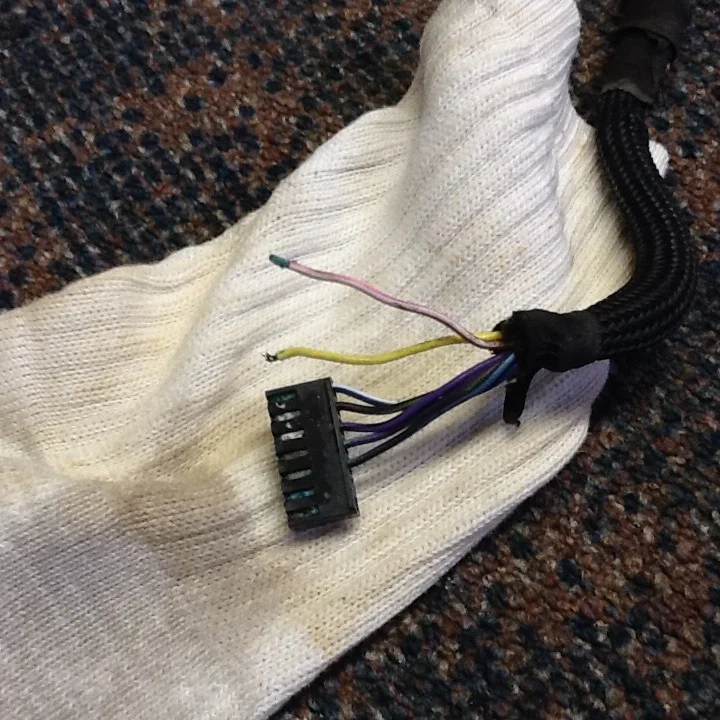

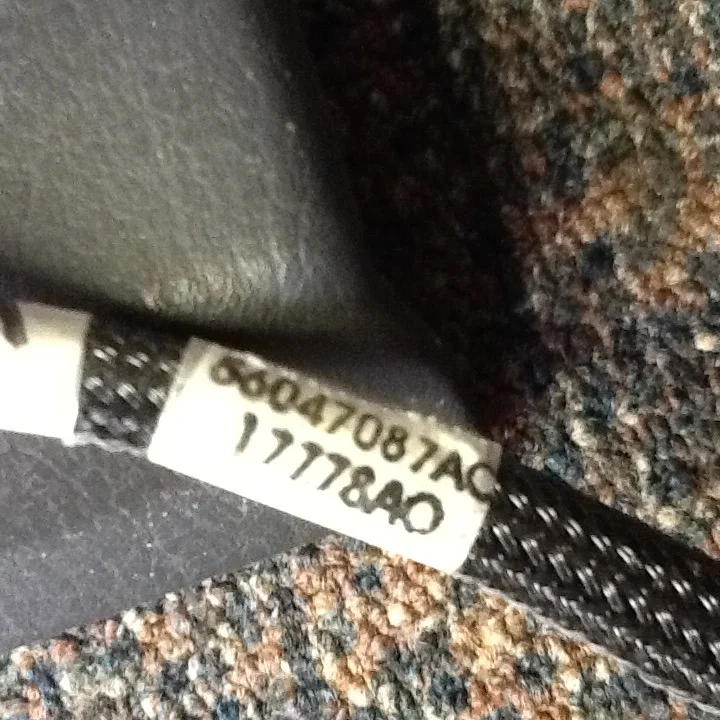

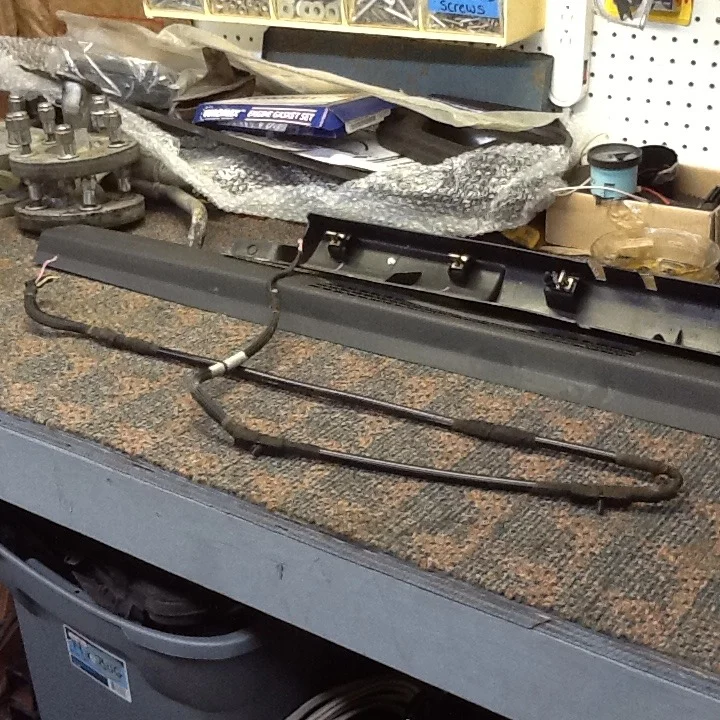

Harness is out. Pics of the 2 broken wires. According to previous posts looks like it would be constant 12v and map lights. Not sure which one goes in which spot, or if I can fix this one myself or not. Have never tried to dissasemble one of those connectors. Included the numbers on the harness as well. I'm going to google it later and see if I can locate a harness and see what it costs.
Do yourself a favor and buy a set of these: Lisle 57750 Wire Terminal Tool Kit
That makes taking apart factory connectors on wiring harnesses a breeze! I have a set and use them all the time. These are a great tool to have in the toolbox.
That makes taking apart factory connectors on wiring harnesses a breeze! I have a set and use them all the time. These are a great tool to have in the toolbox.
Head Lice
TJ Addict
My '04 has this option ..... kinda' like it !
With the compass you'll never get lost .......
"We may be lost ...... but, we're makin' good time"
Head Lice
TJ Addict

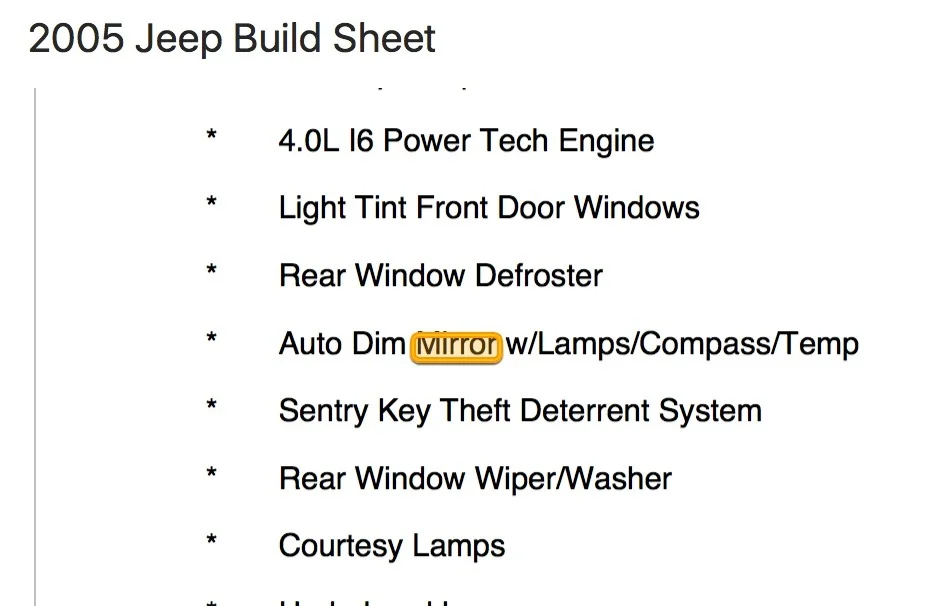

Mine's listed as yours is, but mine is under 'Standard Equipment' on the Build Sheet ...... ??
OP
If anyone can look at their mirror harness and tell me which position my 2 broken wires belong in it would be greatly appreciated. Just not sure if the yellow was on the end slot or the other one was. since I have the harness out I can look at the other end and match them up the same as that connector, I was just afraid that they may change position from that end to the mirror plug ( Murphys law and all that). I know Kevin Johnson posted his earlier in this thread but it doesn't seem to match mine. Thanks for all the help/input so far.
Neal
TJ Enthusiast
My '06 LJ came with the compass/temp mirror. It has never worked right. It has power and the map lights work, but the display just shows a test pattern (?), with all of the LED elements lit up. Haven't bothered to troubleshoot it, I can figure out which direction I'm going by looking at the sun and I don't much worry about the temperature (it's either warm enough to drop the top or not). Maybe one day I'll get around to fixing it, but it ain't real high on my to-do list.
OP
Fixed! Thanks for the help. Map lights work, temp and compass came on but are dim - that is OK. Cleaned pins etc best we could. There is a lot of corrosion there so I was surprised it worked at all. We were able to use the old harness and repair the broken wires. We will see how long they last. On to the next challenge!
OP
Check the page here that has the factory service manual and look up the wire that works with dash dimmer, mine dims when I dim dash lights
Skully
Member
So is there some sort of conduit or cord cover hiding the wiring along the windshield frame? Mine is just bare metal. I'd like to install something like this but I like things looking factory, so I didn't want to run visible wires up along the windshield frame. Where are the wires on the pre-installed ones?
GRANDOTE_619
New Member
APOLOGIES, off topic... Can the map lights under auto dimming mirror be replaced easily or is there a complicated procedure which includes soldering?
