4WD light not working

JoshJ04

JoshJ04

Member
Joined
Oct 25, 2020
Messages
31
Location
New Jersey
(1997 TJ, 4.0)

My 4WD light doesn't work. I changed the bulb a few times, changed the 4WD switch, I changed the little plastic socket and nothing! It's still not working. I even changed it to the "4WD FULL TIME" (between the upshift light and the 4wd part time light) and it, unsurprisingly, didn't work.

Now I know when 4WD is engaged and I know that everyone is going to say to just not to worry about it, but it just bothers me that it doesn't work. What should I do? What should I try? Thanks guys.

I don't think the 4wd light on the dash was meant for the tj. I have a 98 and there is no light. When i had a 98 Cherokee it had the 4 wd full and part time light. Same instrument panel different jeep.

mudmaster said:
Is the connector at the T-case connected?
Click to expand...

Yes it is. Just went out and double checked.
TonyArms said:
I don't think the 4wd light on the dash was meant for the tj. I have a 98 and there is no light. When i had a 98 Cherokee it had the 4 wd full and part time light. Same instrument panel different jeep.
Click to expand...

I would think Chrysler would make an effort to make that work.

JoshJ04 said:
(1997 TJ, 4.0)

My 4WD light doesn't work. I changed the bulb a few times, changed the 4WD switch, I changed the little plastic socket and nothing! It's still not working. I even changed it to the "4WD FULL TIME" (between the upshift light and the 4wd part time light) and it, unsurprisingly, didn't work.

Now I know when 4WD is engaged and I know that everyone is going to say to just not to worry about it, but it just bothers me that it doesn't work. What should I do? What should I try? Thanks guys.
Click to expand...

Simple test is to remove the connector and jumper the 2 terminals on the vehicle side. If the light is illuminate it's the TC switch. My indicator only worked on the third replacement switch. FYI only part time will light up when working properly the Full time is there because the instrument cluster is used for various models.

  • Like
Reactions: CharlesHS
JoshJ04 said:
Yes it is. Just went out and double checked.


I would think Chrysler would make an effort to make that work.
Click to expand...

it would make sence
JoshJ04 said:
Yes it is. Just went out and double checked.


I would think Chrysler would make an effort to make that work.
Click to expand...

is there a spot on the cluster that lights up a 4wd light or just the 4 part time and 4 full time ?

I would also test the switch for continuity to see if it is the problem.
There is always the chance that the transfercase switch is not being engaged by the movement of the shifting into 4WD.

TonyArms said:
it would make sence


is there a spot on the cluster that lights up a 4wd light or just the 4 part time and 4 full time ?
Click to expand...

Part Time only since our Jeep's running gear is not designed for Full Time like the Grand Cherokees and other similar vehicles. Try running your Jeep in 4WD on dry pavement and it will become self explanatory.

My 4wd light works just fine in my 97.

I'd check continuity between the dash instrument panel connector and the switch.

Resources section has the FSM and wiring diagrams.

-Mac

Check fuse 10?

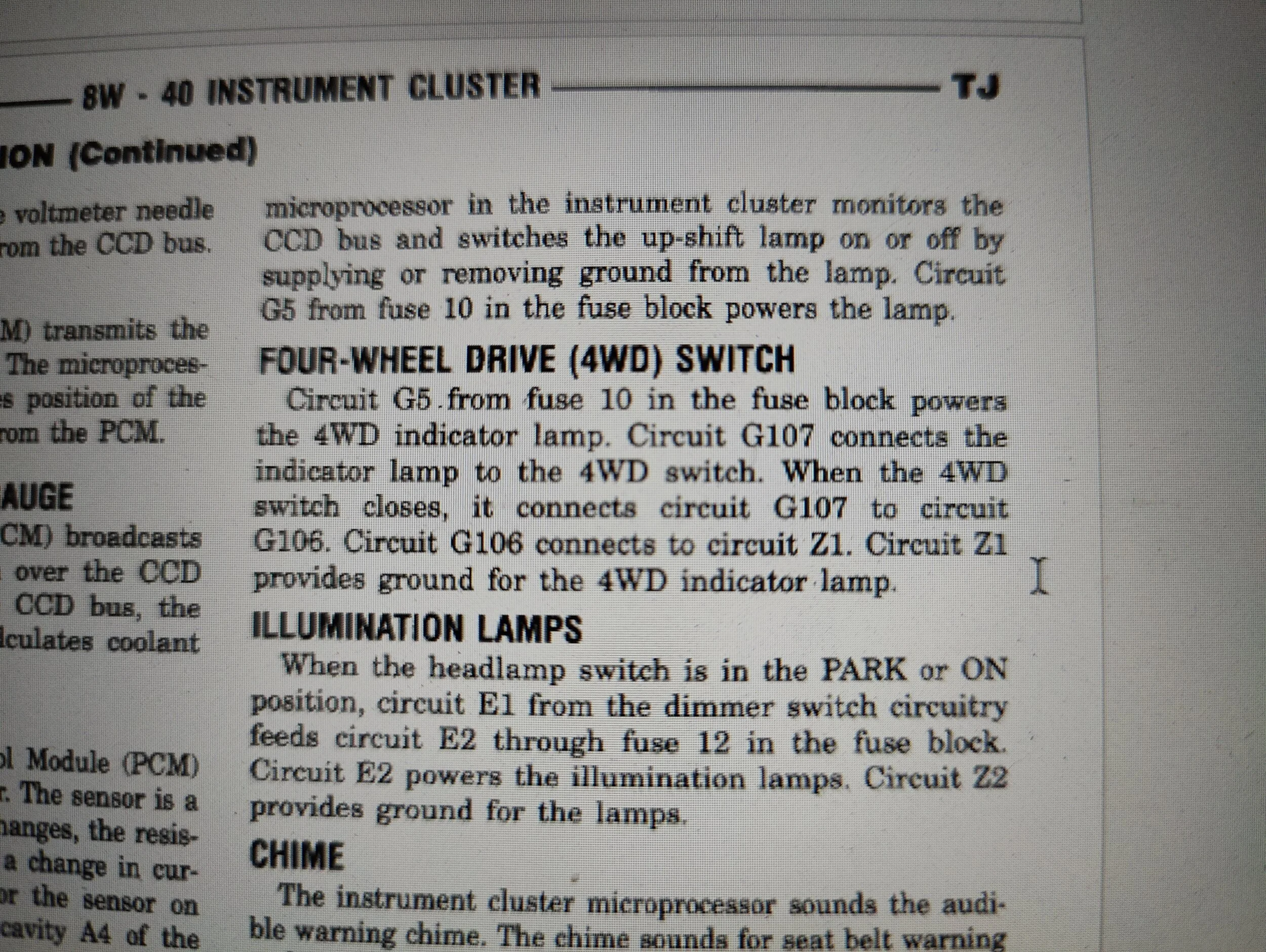

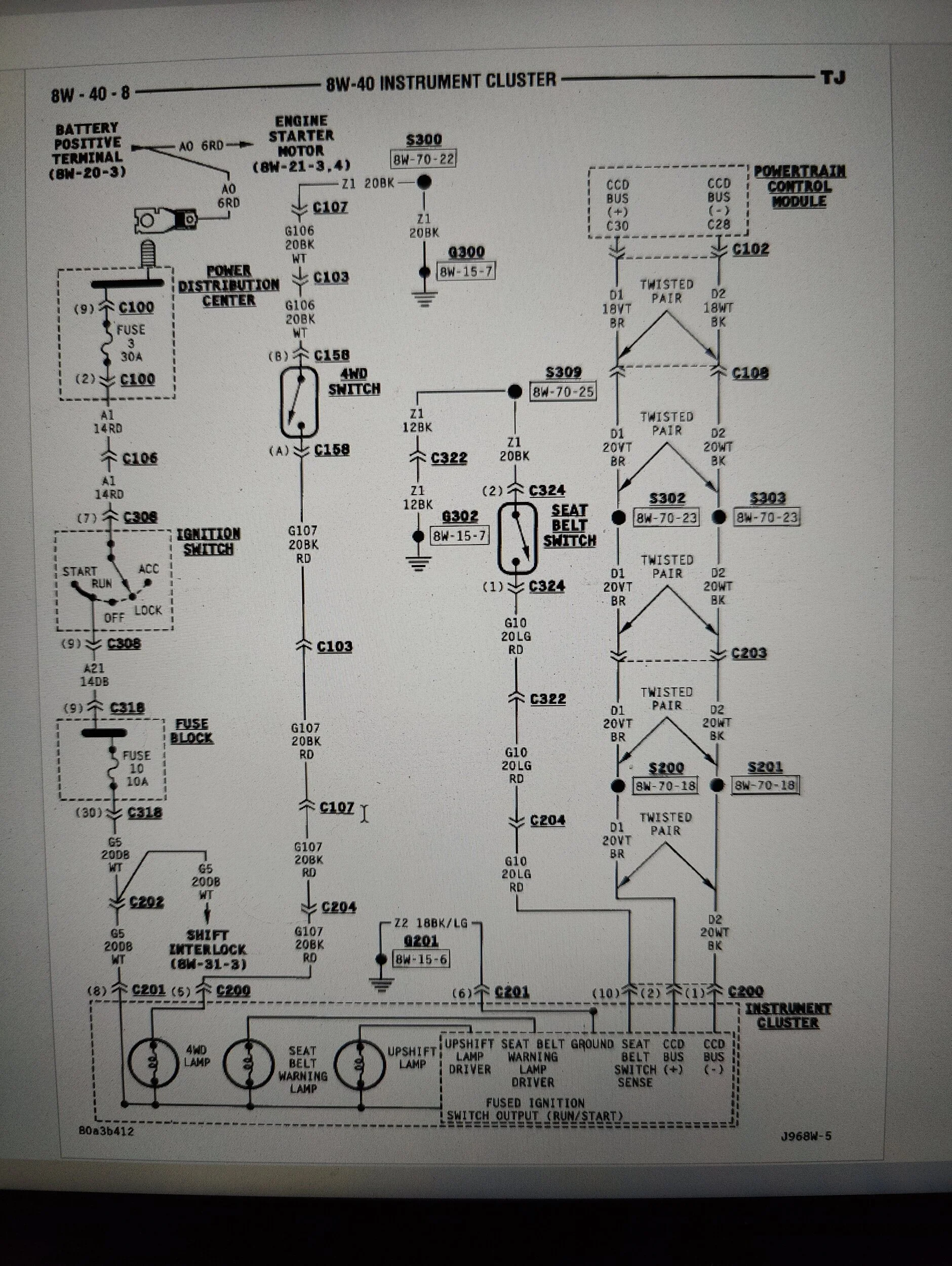

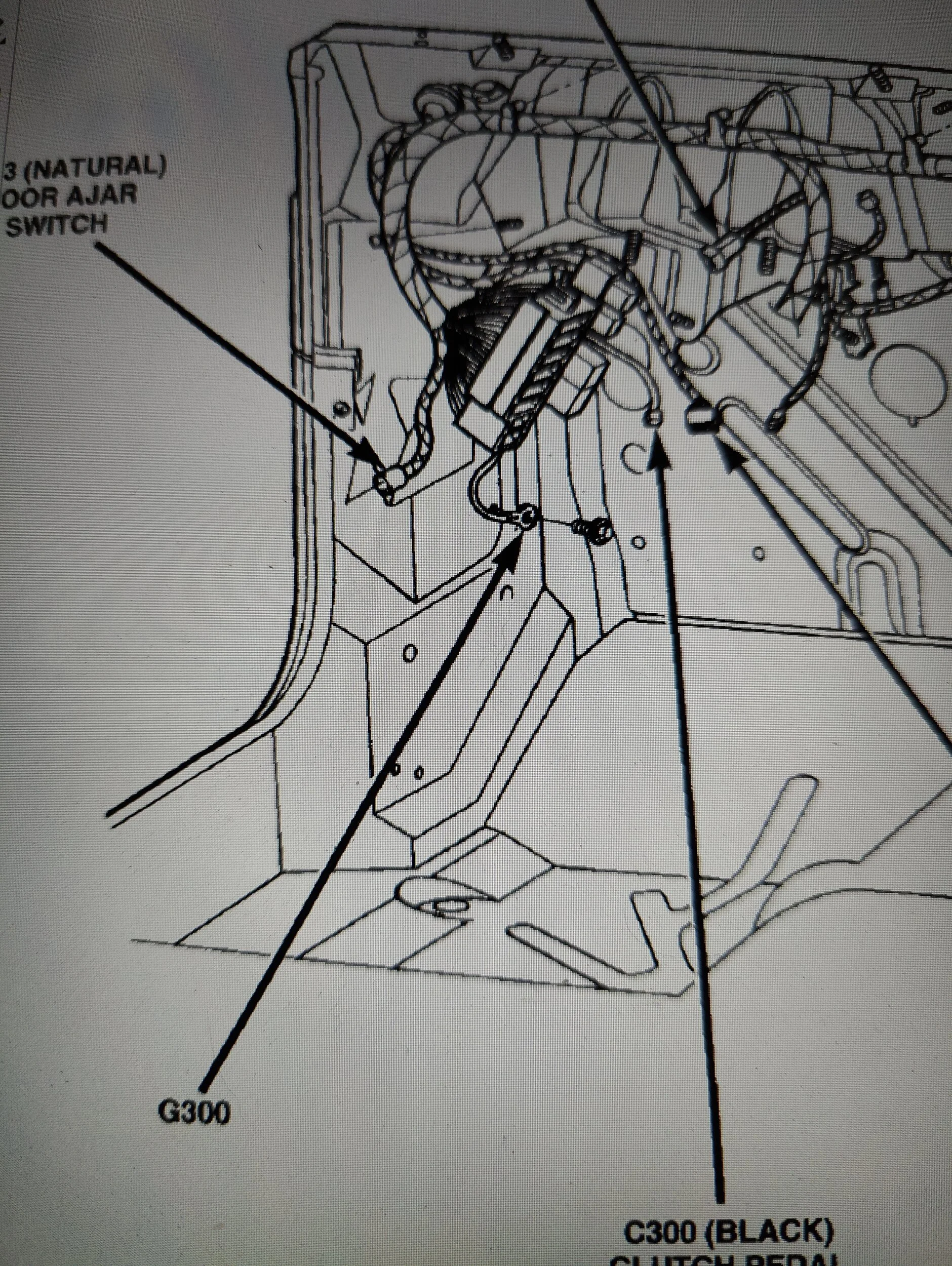

And G300 is grounded in the left kick panel.



-Mac

Last edited:
TonyArms said:
it would make sence


is there a spot on the cluster that lights up a 4wd light or just the 4 part time and 4 full time ?
Click to expand...

Looking from the back of the gauge cluster, from left to right, UPSHIFT, 4WD FULL TIME, 4WD PART TIME. I was getting annoyed so I just switched the new bulb and socket to the FULL TIME section just to see. I knew it wasn't going to work but I wanted to try everything.

TJ4Jim said:
Simple test is to remove the connector and jumper the 2 terminals on the vehicle side. If the light is illuminate it's the TC switch. My indicator only worked on the third replacement switch. FYI only part time will light up when working properly the Full time is there because the instrument cluster is used for various models.
Click to expand...

TonyArms said:
i guess my light doesn't work, i learned something today 😊
Click to expand...

You tried to jumper the plug and the light didn't come on? I assume you had the key on when you did the test?

hear said:
You tried to jumper the plug and the light didn't come on? I assume you had the key on when you did the test?
Click to expand...

The WT...white wire should go to ground...the RT connects to the dash light...if you ground it, the dash light should come on or get power.

To be more specific...

My guess is ground B300 in the driver kick panel area is corroded or disconnect...but thena bunch of other stuff wouldn't work.

-Mac

hear said:
You tried to jumper the plug and the light didn't come on? I assume you had the key on when you did the test?
Click to expand...

No i don't care if there is 4wd light on ,i thought i was offering help to the person who started the post. Seems like i should have a disclaimer after each post saying "I don't know crap" I use the lever, down is 2wd up is 4wd. if I'm out in the pasture trying to get my steer Angus back in the barn (that i had to do yesterday) I might need 4wd Low.

TonyArms said:
No i don't care if there is 4wd light on ,i thought i was offering help to the person who started the post. Seems like i should have a disclaimer after each post saying "I don't know crap" I use the lever, down is 2wd up is 4wd. if I'm out in the pasture trying to get my steer Angus back in the barn (that i had to do yesterday) I might need 4wd Low.
Click to expand...

Yes, I quoted your post to ask the OP if he did what you suggested.
