This is a VERY nice rig that can be daily driven and used for hardcore wheeling. The components make this a very capable rig both on and offroad. This is an offroad rig and has some scratches and dings but overall the body is in great condition. The “worst” area is a dented windshield frame and cracked windshield that can easily be replaced. For anyone looking to get into the offroading arena this is a great vehicle that has everything you need. I hate to get rid of such a nice rig but with too many other hobbies and not enough time to enjoy the trails I would rather see it go to someone who can put it to good use. A specification of the components on this Jeep are listed below and I have receipts for almost everything on this Jeep.

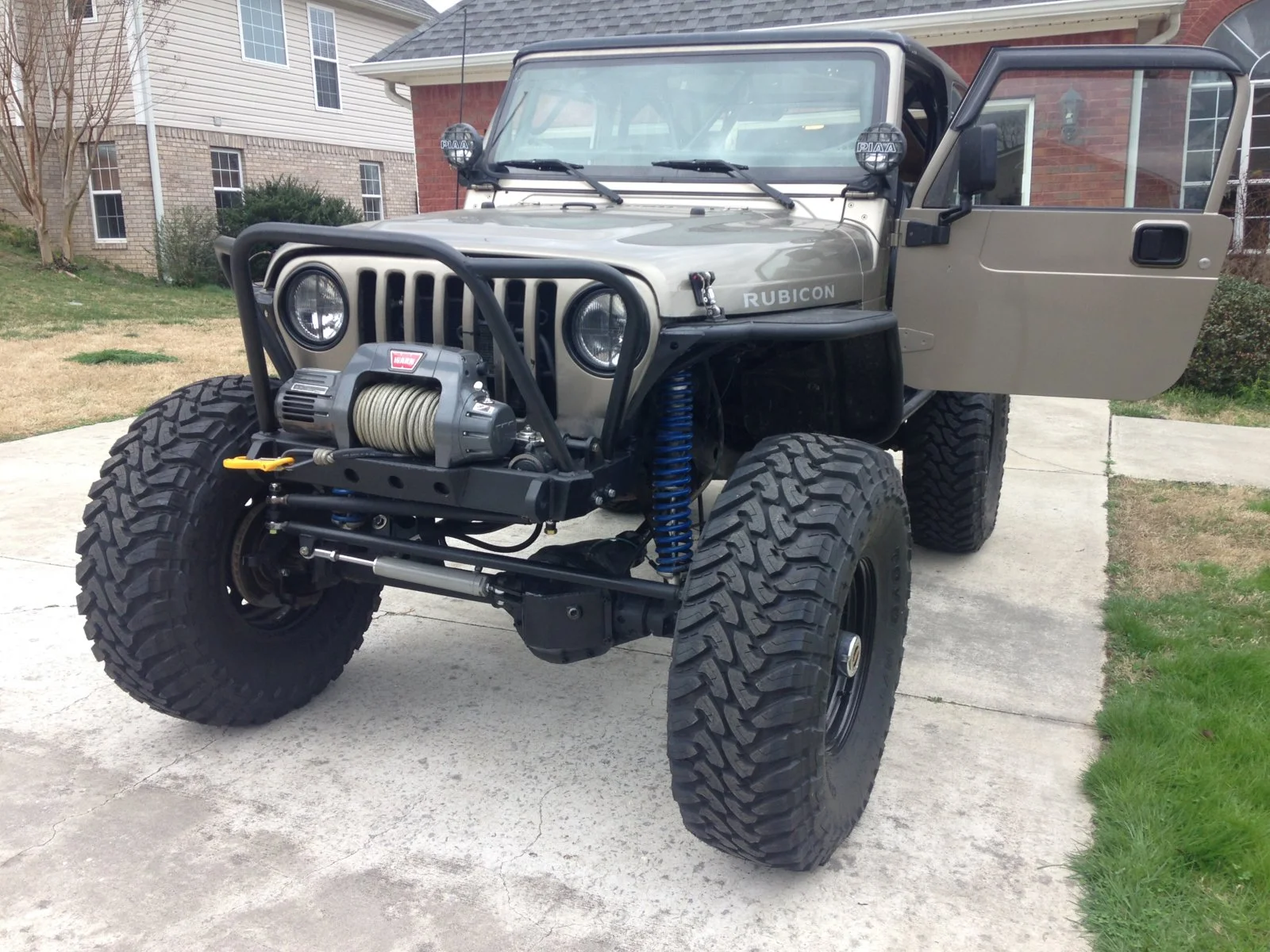

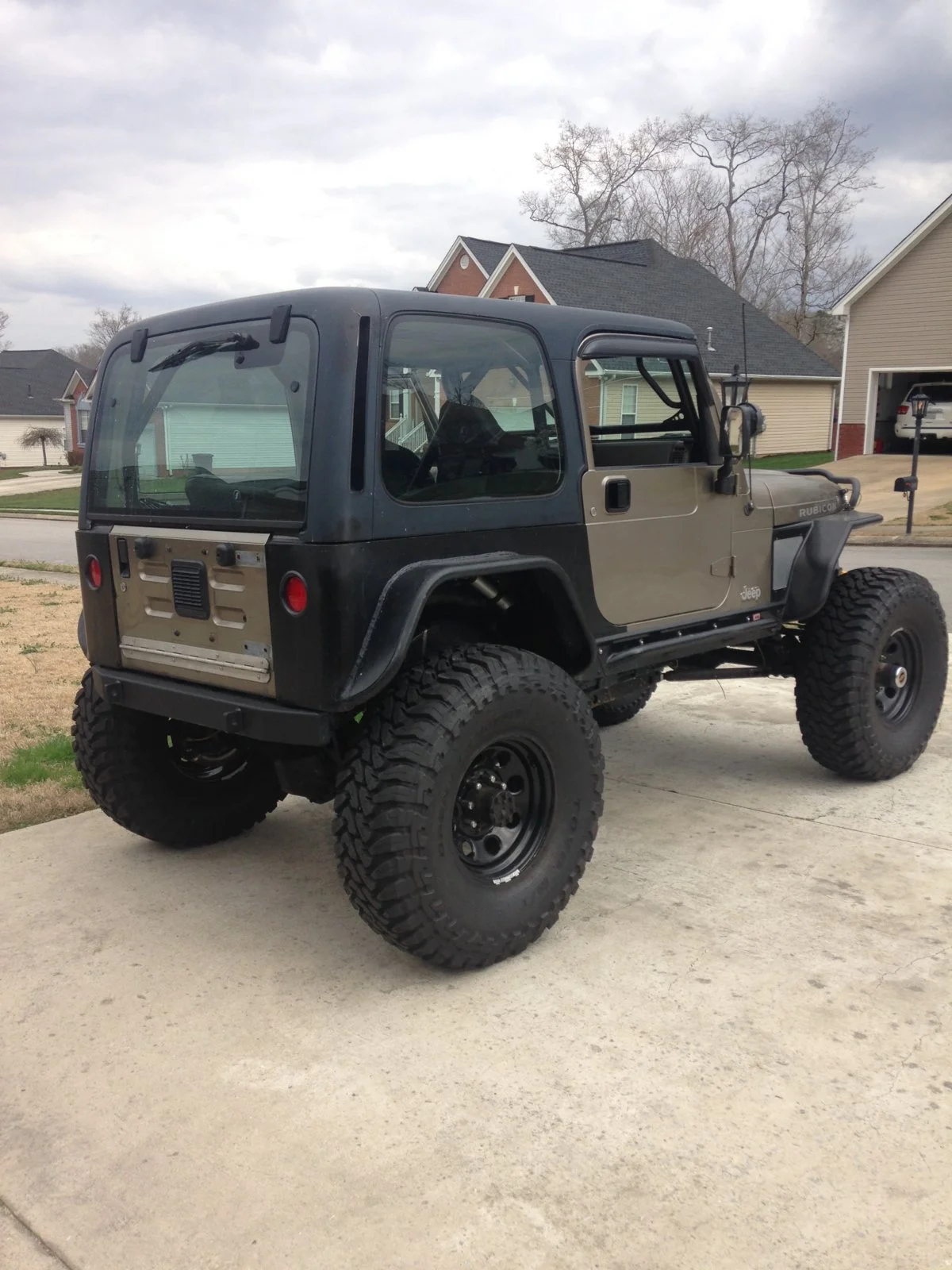

2003 Jeep Rubicon w/ Removable Hard Doors, Removable Hardtop, Quick Release Hood Pins, Rear Tailgate
4.0L I6, 108,000 miles w/ Banks Ram Air Intake
Auto Trans New (42RLE) Dec 2008 (less than 15k miles) w/ Trans Cooler
Atlas 2 Speed with 5.0:1 Low Range
Front Axle: Dana 60 King Pin, ARB Air Locker, 5.38 Ring and Pinion, 35 Spline Alloy Inner & Outer Shafts, High Steer w/ Integrated PSM Ram Assist, Tabs for Anti-Roll Sway Bar Connects, Coil Over Links, 1/4" HD Dana 60 Diff Cover, Brand New King Pin Kit w/ New Springs, Bushings, Seals, etc. Throughout Front Axle, New Rotors, Ruff Stuff 1/4” Thick Diff Cover, Warn Premium Lockout Hubs
3 Link Front, Custom 3-Link w/ Panhard w/ 1/4" Material, Ballistic Fab Tabs, 2x3/8" wall Lower Links w/ Rubicon Express Joints and 7/8"x3/4" Heims, 1.5"x0.25" wall Upper Link and Panhard Bar w/ 3/4"x3/4" Heims, GenRight Limit Straps, FOA Coilovers 16" (recently rebuilt with new seals and oil)
Rear Axle: 14 Bolt, ARB Air Locker, 5.38 Ring and Pinion, 35 Spline Shafts, Custom 4-Link Axle Truss w/ 1/4" Material, Tabs for Anti-Roll Sway Bar Connects, Coil Over Links, Rebuilt w/ New Seals and Bearings, Russ Stuff 1/4” Thick Diff Cover
4 Link Rear, Custom 4-Link Double Triangulated Suspension Axle Truss w/ 1/4" Material, 2"x3/8" wall Lower Links w/ Rubicon Express Joints and 7/8"x3/4" Heims, 1.75"'x0.25" wall Aluminum Upper Links w/ 3/4x3/4" Heims, GenRight Limit Straps, FOA Coilovers 14" (recently rebuilt with new seals and oil)
Full Integrated Belly Pan w/ Removable 1/4" Pan, Integrated Front & Rear Lower Link Mounts, Integrated Transmission/Transfer Case Mounts, and Nth Degree Oil Pan Skid
Full Traction Exhaust System
Tom Woods Front and Rear Drive Shaft (3/8" wall)
FOA Coilovers Front and Rear, Rebuilt w/ New Seals and New Oil
PSC Steering Box, PSC Hydraulic Ram Assist (1.5" x 8"), PSC Power Steering Pump/Pulley/Reservoir, and Cooler

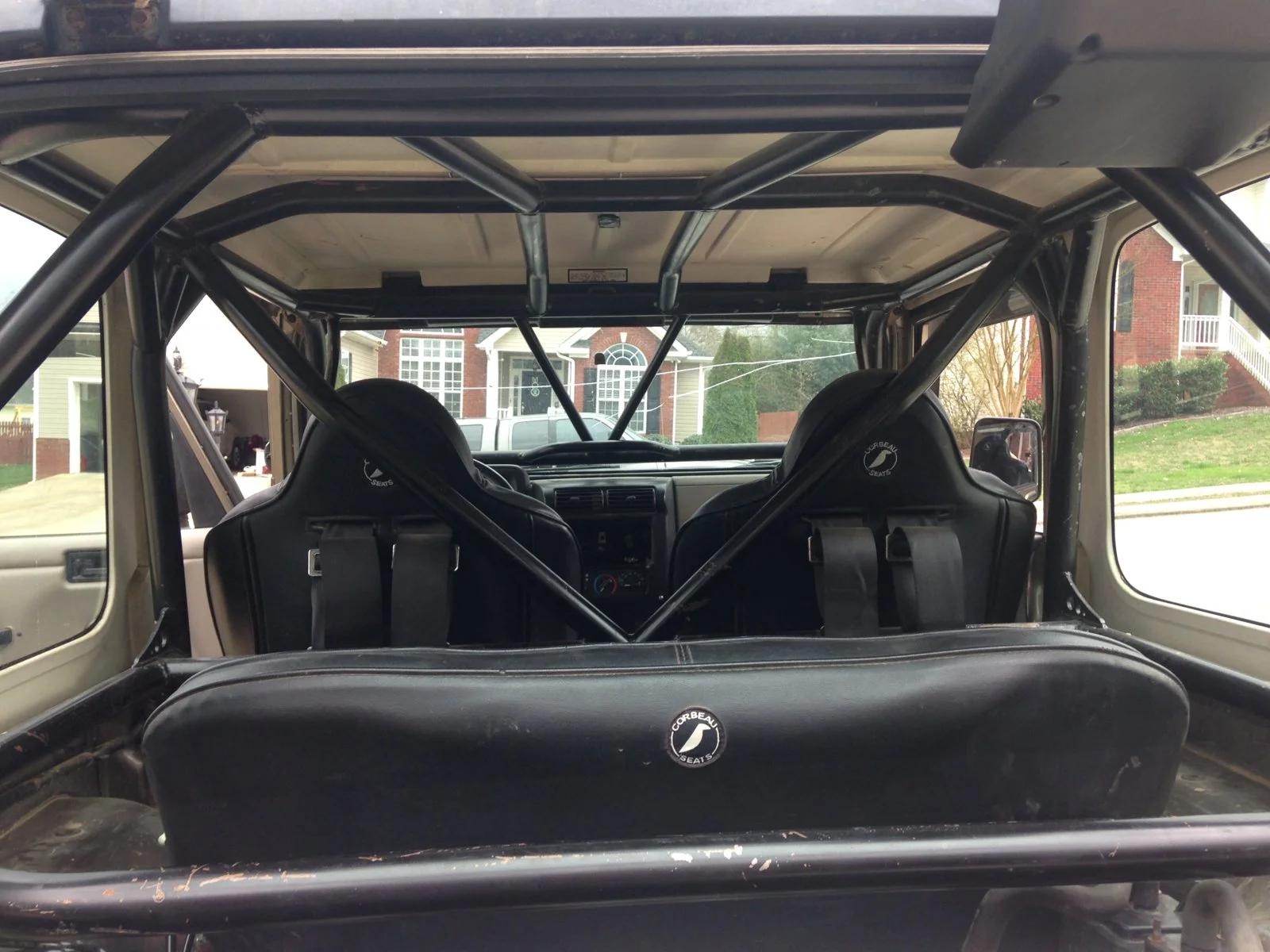

GenRight Roll Cage w/ Frame Tie in Kit (1.75”x0.120” wall Tubing), GenRight Front and Rear Shock Towers, GenRight Rear Shock Kit, GenRight Corner Guards (1/4” Plate), GenRight Tube Fenders Front and Rear (Heavy Plate and 1.5”x0.120” wall Tubing)

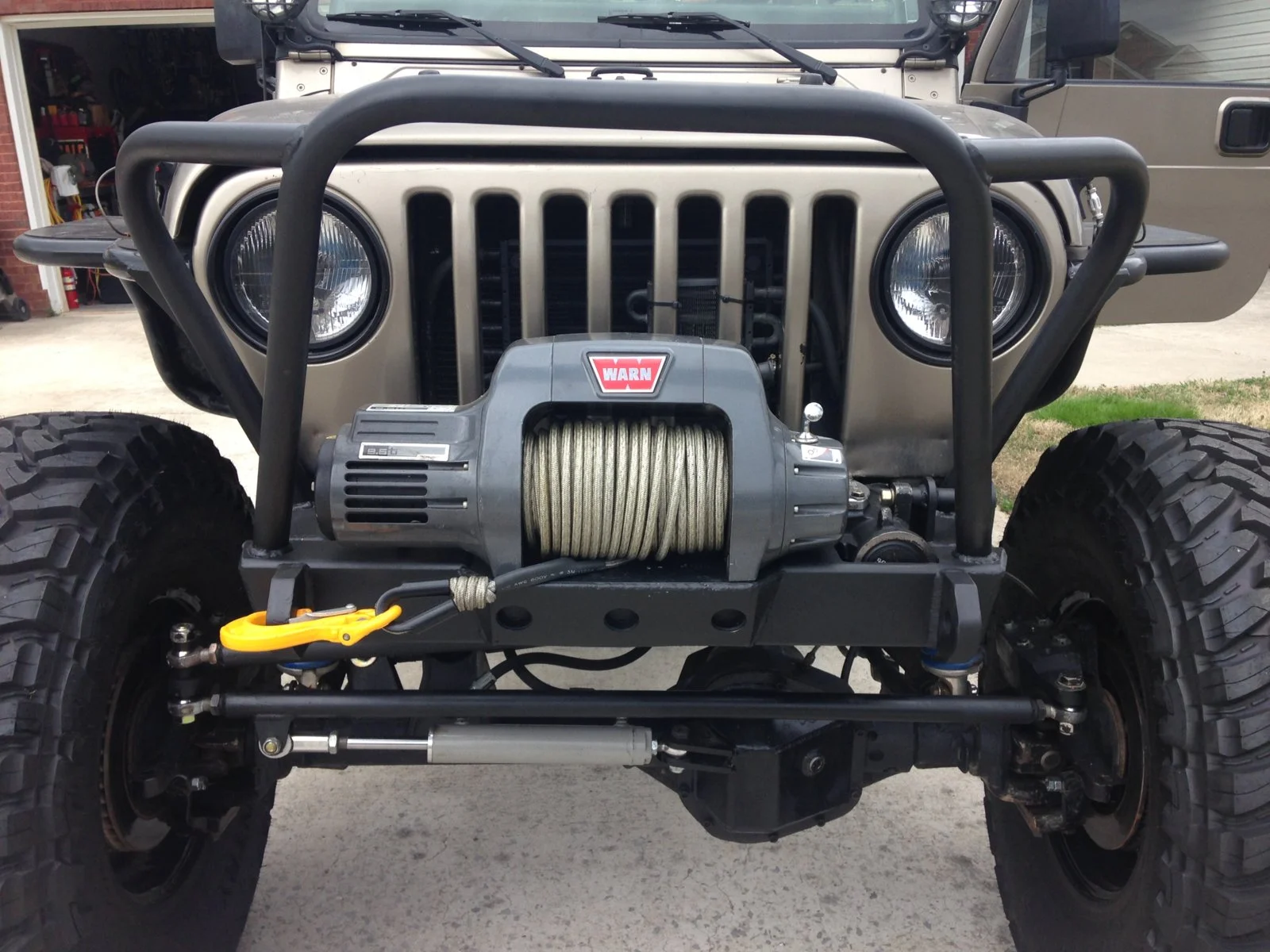

Custom Front Bumper w/ Integrated Winch Mount, HD 1" Tow Points, Square Stinger w/ Headlight Protection, 1/4" wall Materials and 1.5"x0.120" Wall DOM Tubing
Warn Winch 9.5TI w/ Brand NEW MasterPull Superline XD 100'x3/8" w/ HD Sling Hook w/ Half Link (Never Pulled w/ This Line)
Warn Rear Bumper and ARB Rocker Guards
Corbeau Seats Front and 5 Point Corbeau Harnesses, Corbeau Rear Bucket
Delta Xenon Headlamps (x2) and PIAA Spot Lights (x2)
Crager Soft 8, Black Steel Wheels, 17"x9" 8 Lug, Brand New
Toyo Open Country MT 40"x13.50"x17" Tires, Brand New
ARB High Output Air Compressor

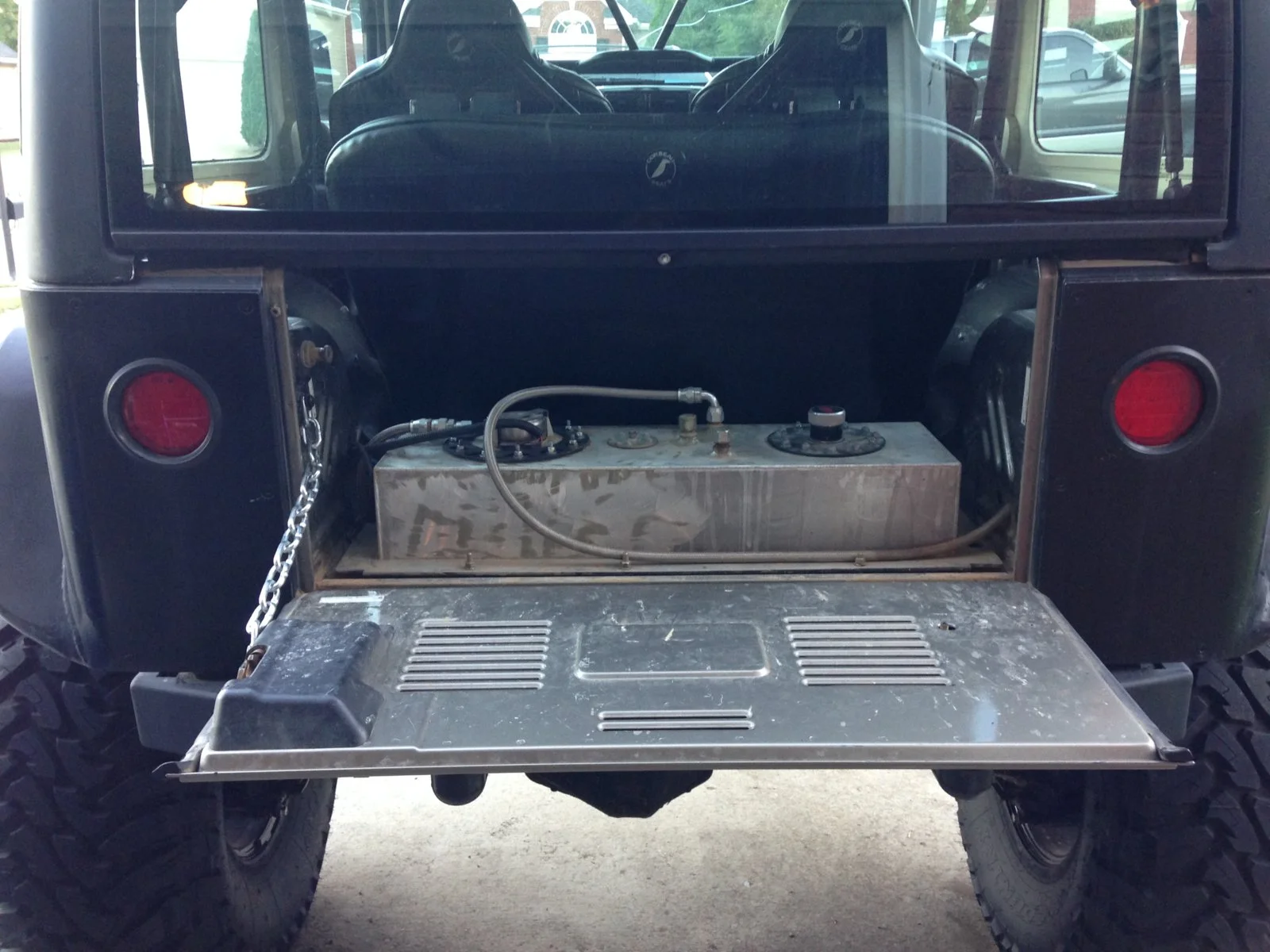

RCI Fuel Cell 15gals w/ Emissions Equipment, Kore Adapter Ring
Master 1-ton Cylinder
Wheelbase ~107"
front width ~66"
rear width ~64"
belly height ~22"
For Trade (F/T) Interests - Toyota 4 Runner, Tacoma, Less Built Vehicle, etc. Must Sit Four People
For Sale (F/S) - $23,000 obo
423.503.8570
