Issue finding correct outer left tie rod end

TrevorT

TrevorT

Member
Supporting Member
Joined
Jul 4, 2023
Messages
26
Location
Athens, GA
Front of the jeep is on jackstands for the holiday weekend. Trying to replace the tie rod end on the left outer tie rod. I initially ordered the wrong one from Moog. I ordered the one that connects to the pitman arm. So in a pinch, I grabbed one from AutoZone, it says it’s for the outer left tie rod, but it won’t thread in. It’s almost like it’s reverse thread. Does anyone have a part number of the correct one? The duralast one is ES3094 and that’s wrong, moog has one that’s ES3094L that I’m going to order and try. Idk if it’s because it’s a 1997 or what but I can’t find any answers anywhere and it’s my daily driver so I got to get it going by Tuesday. Thanks in advance.

Also worth noting the zerk fitting is on the side of the tie rod end, not the bottom, does this mean I have a different steering system?

macleanflood said:
You sure it's an OEM bar and not something aftermarket? Pictures?

-Mac
Click to expand...


  • Like
Reactions: macleanflood

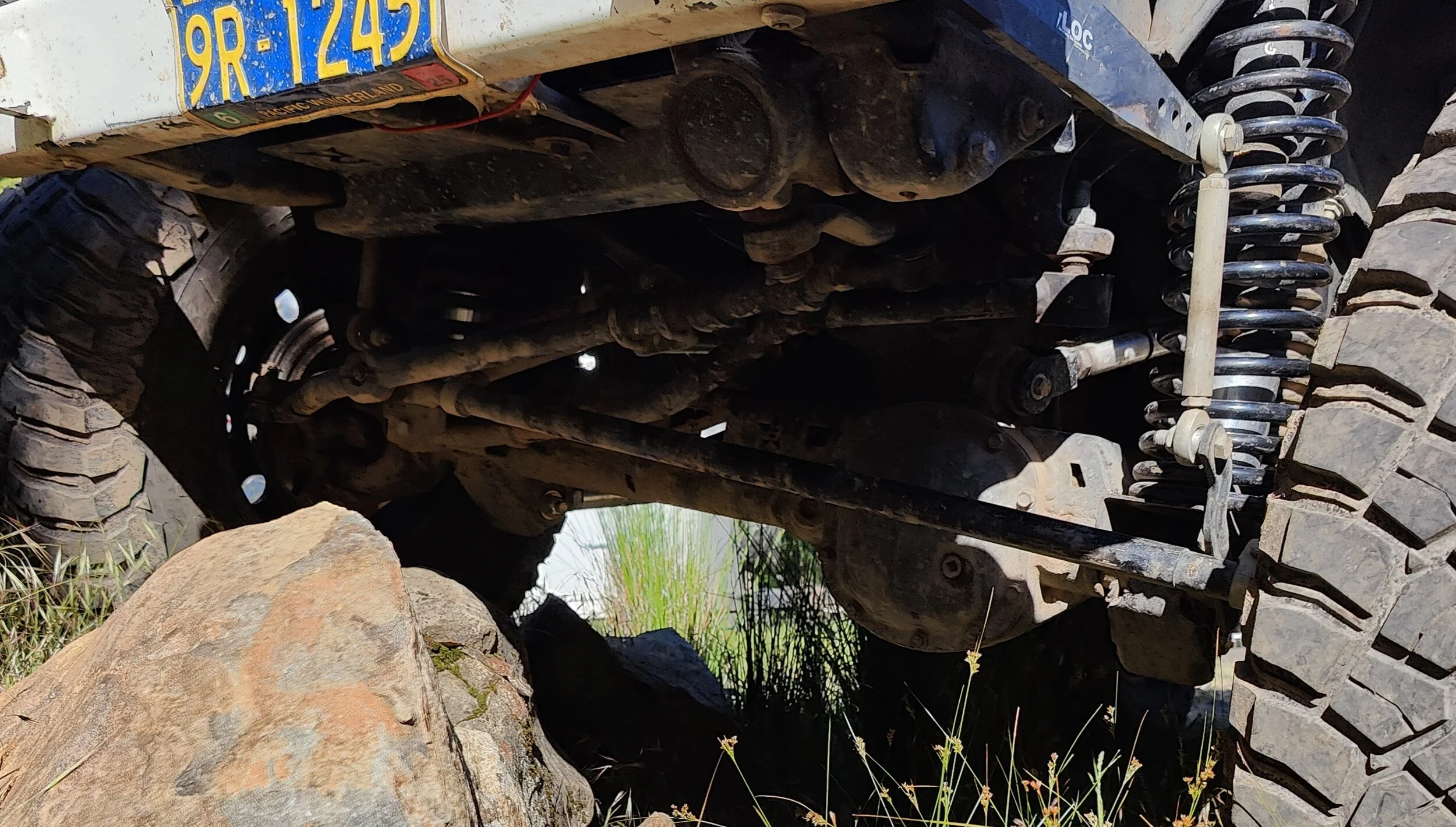

It's been a while since ive done the whole ball joint & tie rod end replacement.. but I do seem to remember one side of something was right hand thread and the other was left hand thread. Mines a 03. grease zerk for the tie rod end on the passenger side is on the side of it & 99.9% sure the drivers side its on the cap.


  • Like
Reactions: TrevorT
03coloradowrangler said:
It's been a while since ive done the whole ball joint & tie rod end replacement.. but I do seem to remember one side of something was right hand thread and the other was left hand thread. Mines a 03. grease zerk for the tie rod end on the passenger side is on the side of it & 99.9% sure the drivers side its on the cap.

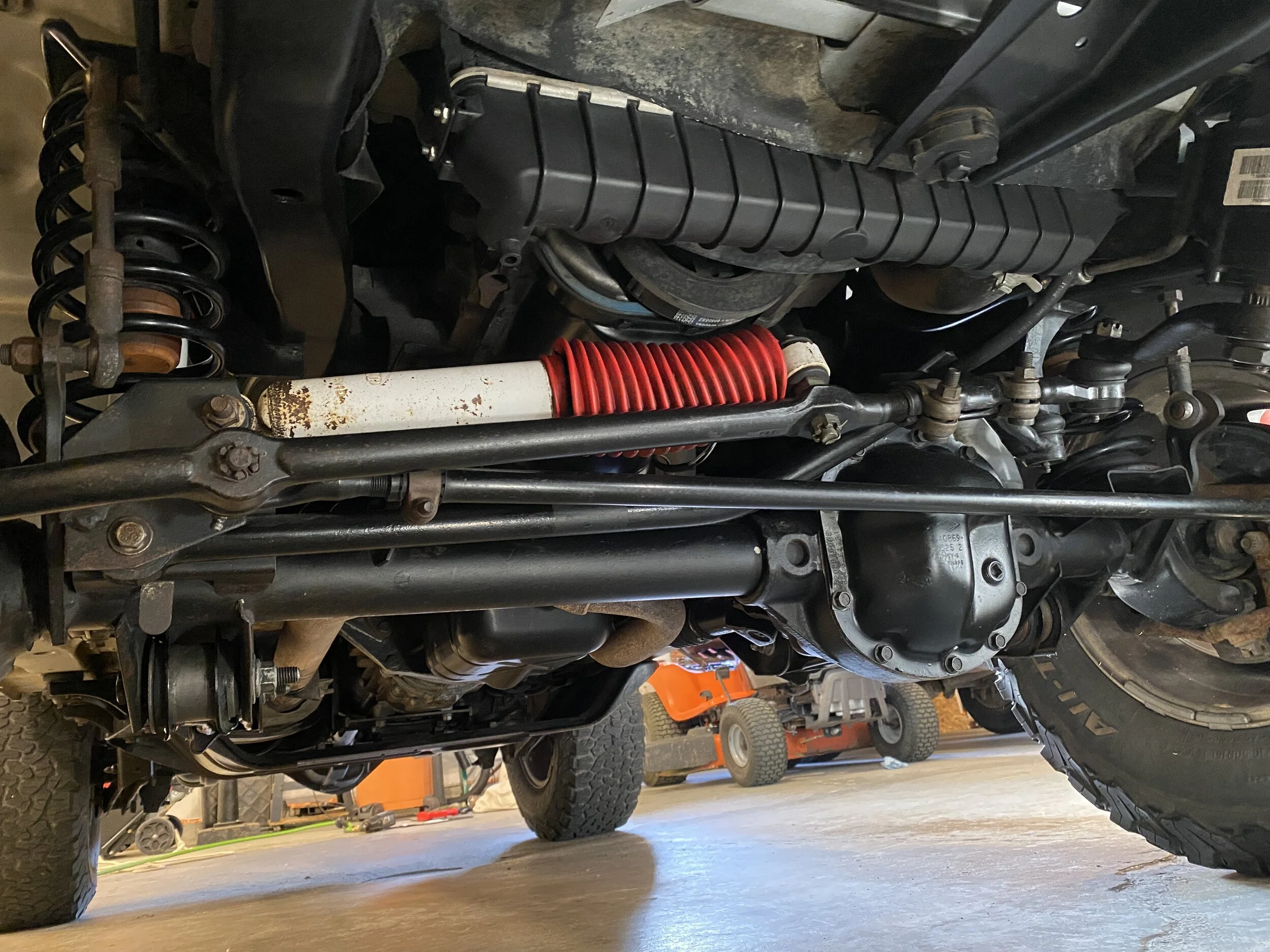

View attachment 529505
Click to expand...

Thanks. I think they just had it on backwards. Since it’s just a straight bar. I had a part delivered and will update if it works. Just a few more hours of work and I can enjoy the holiday weekend!

  • Like
Reactions: ColoJeep and TheBoogieman
Yes, the entire tie rod spins to adjust. So they are opposite thread on each side.

Might be backwards as you suggested, but then it won’t thread correctly on the other end.

  • Like
Reactions: TrevorT
TrevorT said:
Thanks. I think they just had it on backwards. Since it’s just a straight bar. I had a part delivered and will update if it works. Just a few more hours of work and I can enjoy the holiday weekend!
Click to expand...

On is right hand thread one is left, I think the tie rod is on backwards. The moog with the L should be the left hand thread

  • Like
Reactions: TrevorT
Update, the part number ES3095R worked. Taking it to a shop on Tuesday and getting an alignment done and seeing if they will check everything else and make sure the PO didn’t have anything else messed up

  • Like
Reactions: John Cooper
TrevorT said:
Update, the part number ES3095R worked. Taking it to a shop on Tuesday and getting an alignment done and seeing if they will check everything else and make sure the PO didn’t have anything else messed up
Click to expand...

Thats all good, but you can learn on this forum how to do a “Home Alignment. toe in” and then align your steering wheel which is easy.

All good to have a shop do it, but ther deatails to learn it are here

  • Like
Reactions: TrevorT and macleanflood
