Hey Guys,
So I just got my 50" LED bar a couple days ago. I wanted to do a little write up on how I installed it and where I got everything from. I will post all the links to where I bought everything at the end...

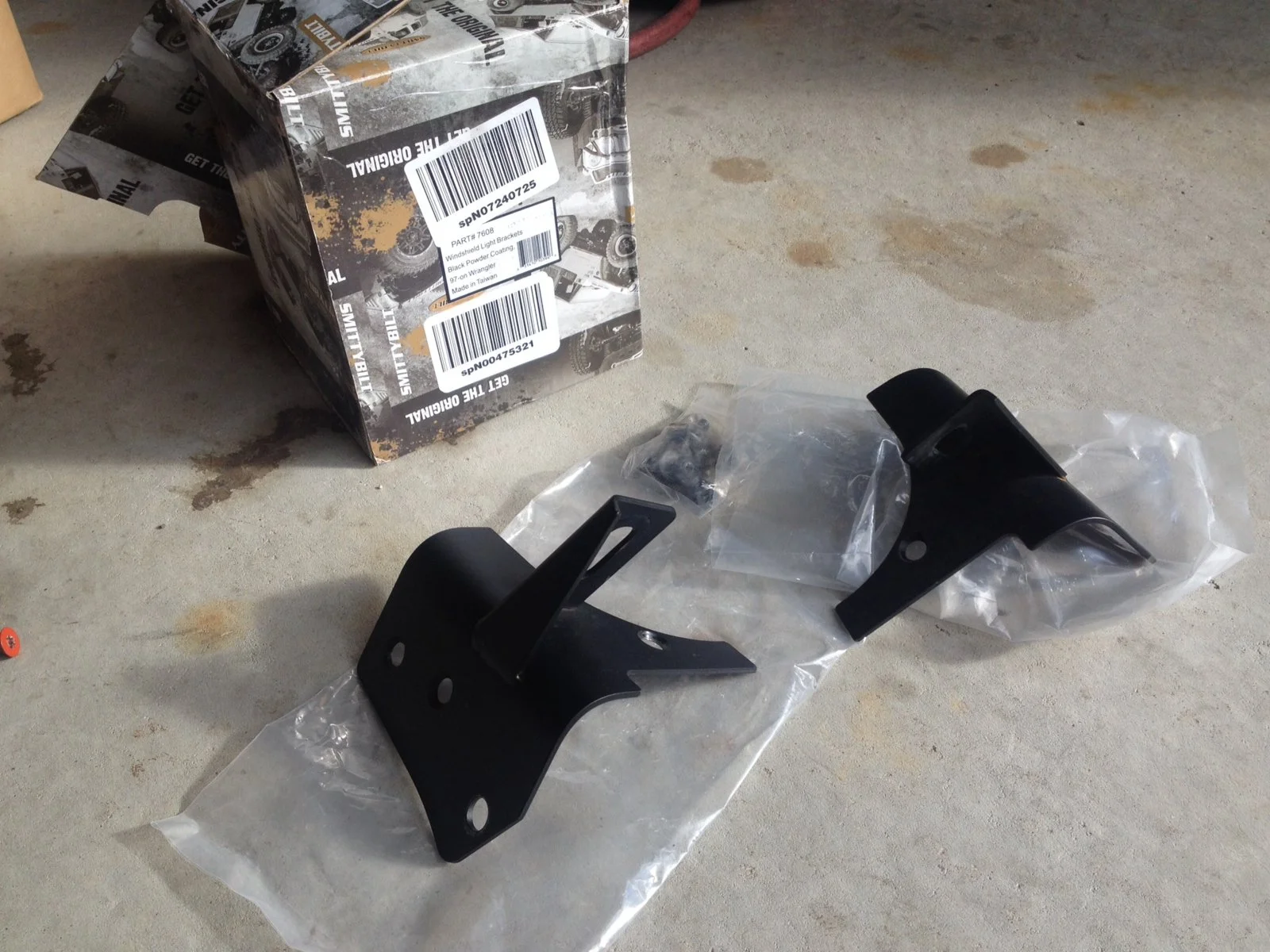

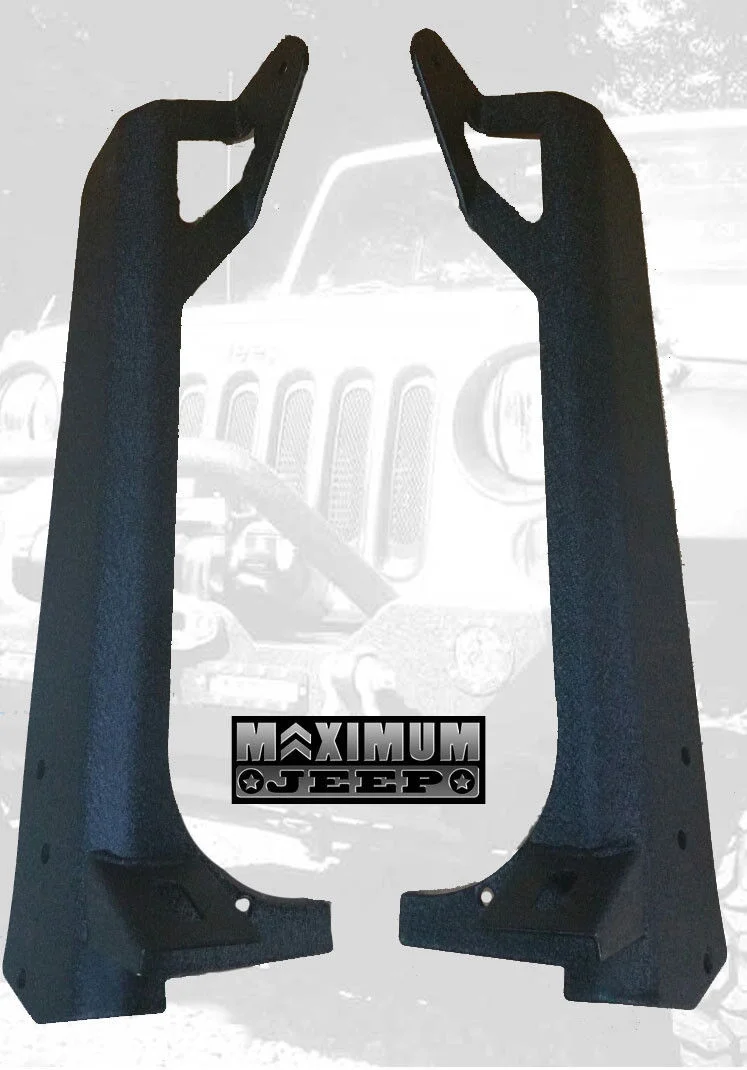

Step 1) First off I ordered the bracket from eBay. Since I have windshield mounted spot lights I choose this one because of the mounts at the bottom of the windshield. Here is a picture of the one I bought:
Step 2) I had to take off my old windshield brackets and replace them with the new one. It was pretty simple to install the new 50" mount as it was just unbolt my old ones and bolt the new ones on with the supplied screws. Here is a picture of my old mounts:

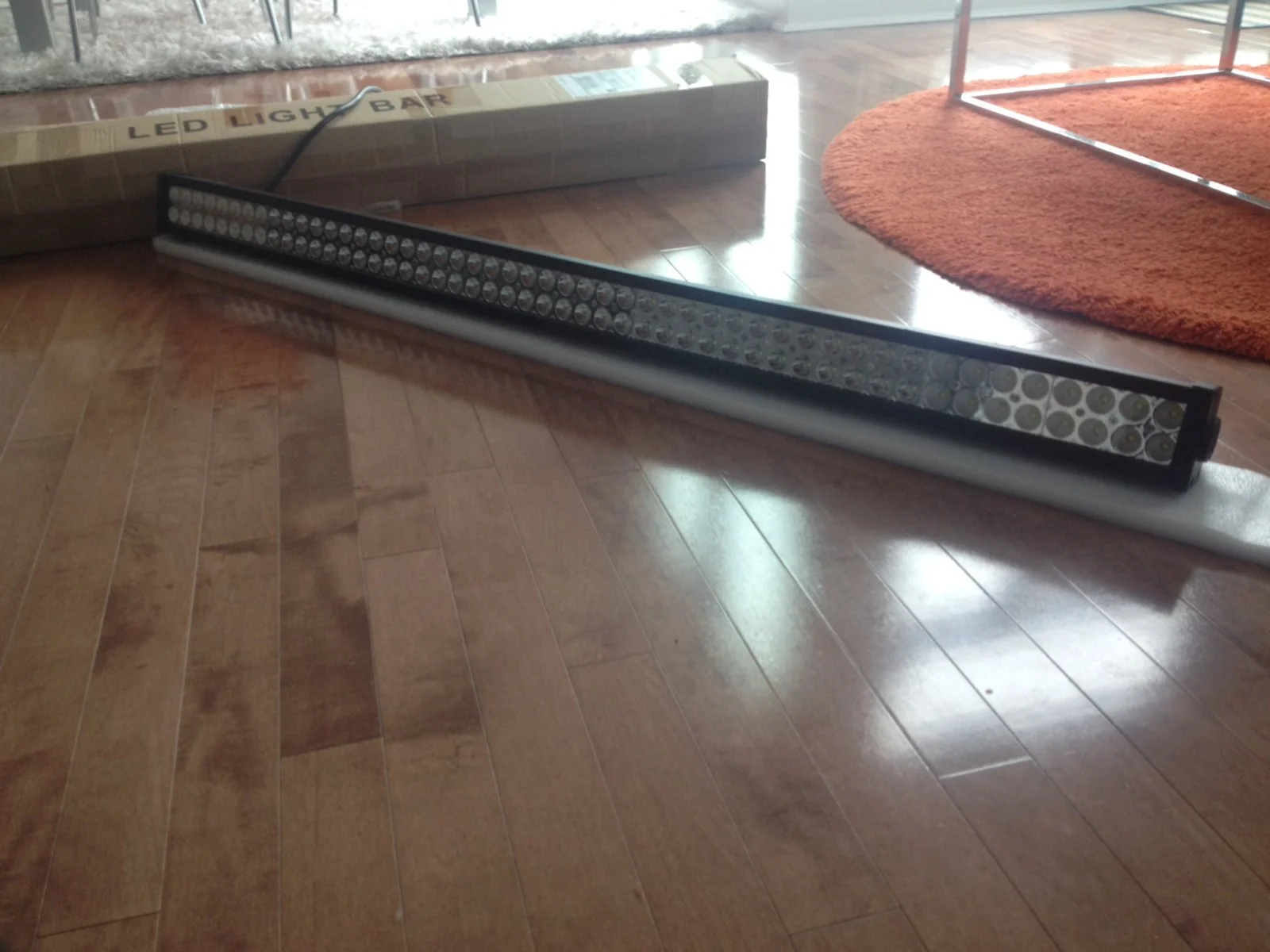

Step 3) After I re-mounted my spot lights all I had to do was order the LED bar. I originally ordered a 52" LED bar but after receiving it and trying to install it, it would not fit so please beware that this mount only fits a 50" bar. Here is a picture of the 50" LED bar I bought. It came with the brackets and bolts too:

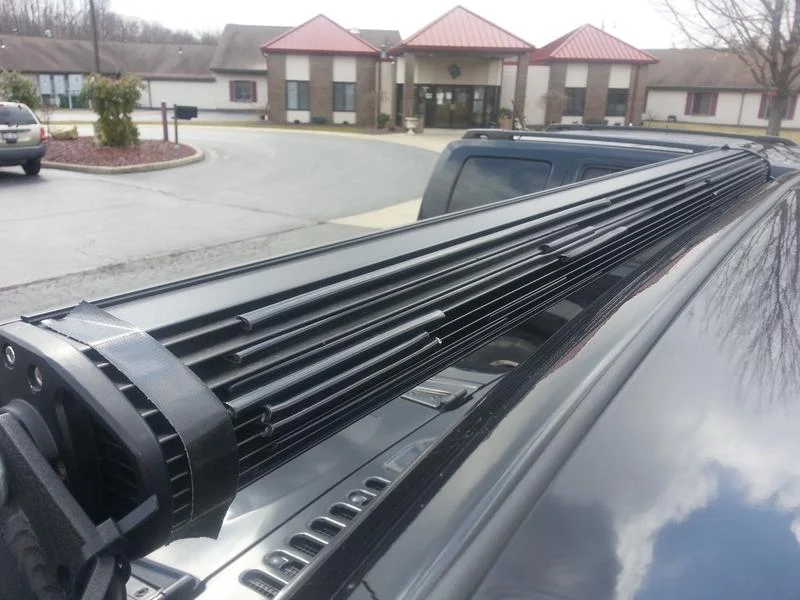

Step 4) So once I got my 50" LED bar I went ahead and ATTEMPTED to mount it. The first problem I encountered was that the supplied bolts were too short. I had to do a quick run to Lowe's to pick up 2 replacement bolts. I cant remember the size but I found them relatively quickly and they fit perfectly. I bought them around an inch bigger than the supplied ones and that seemed to do the trick. BE SURE TO PUT SOME OF THE BLACK TRIM ON THE FINS OF THE LIGHT BAR BEFORE YOU TIGHTEN EVERYTHING UP. If you don't you will be welcomed with a high pitched whistling sound. ITS BAD!

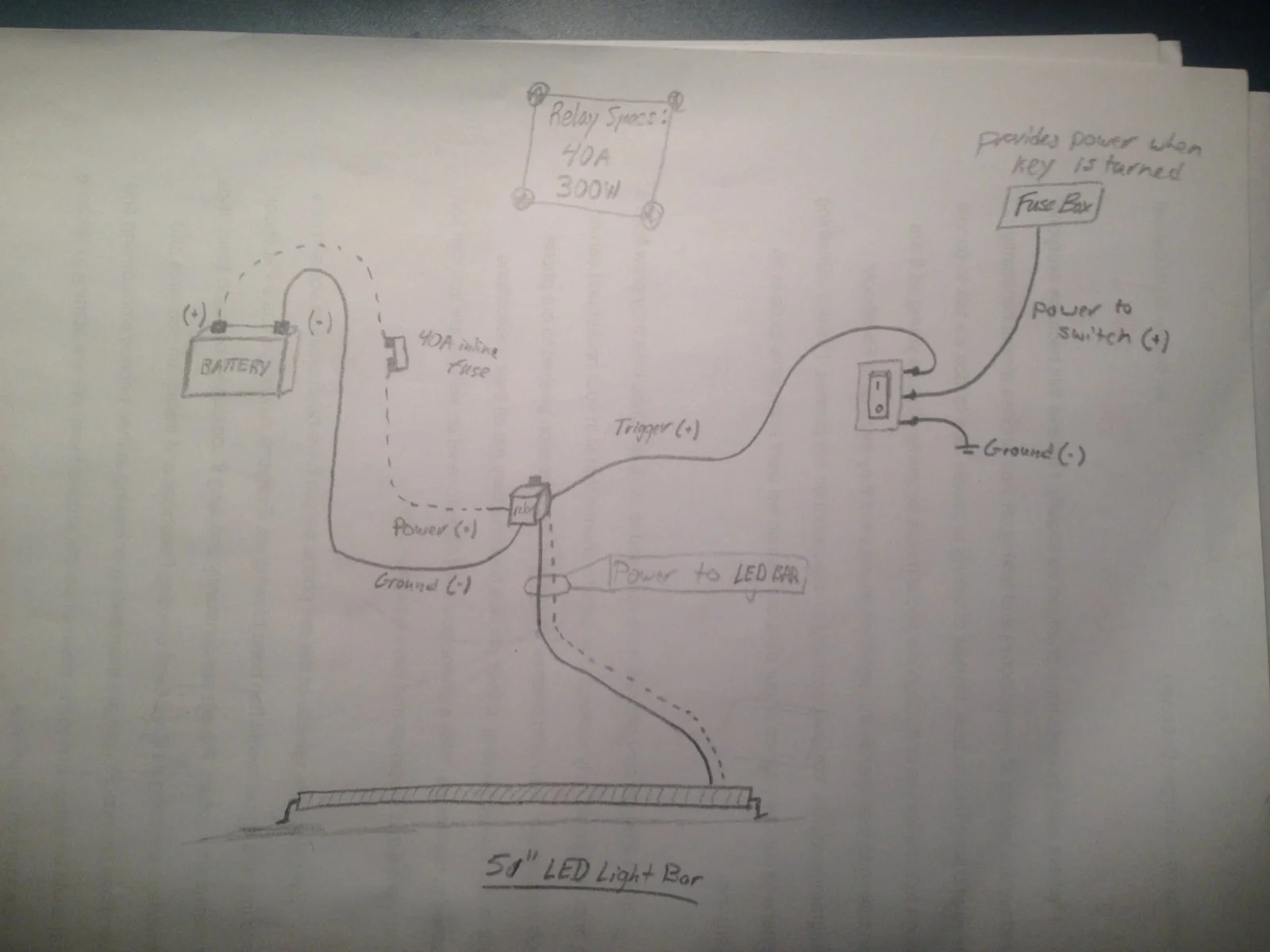

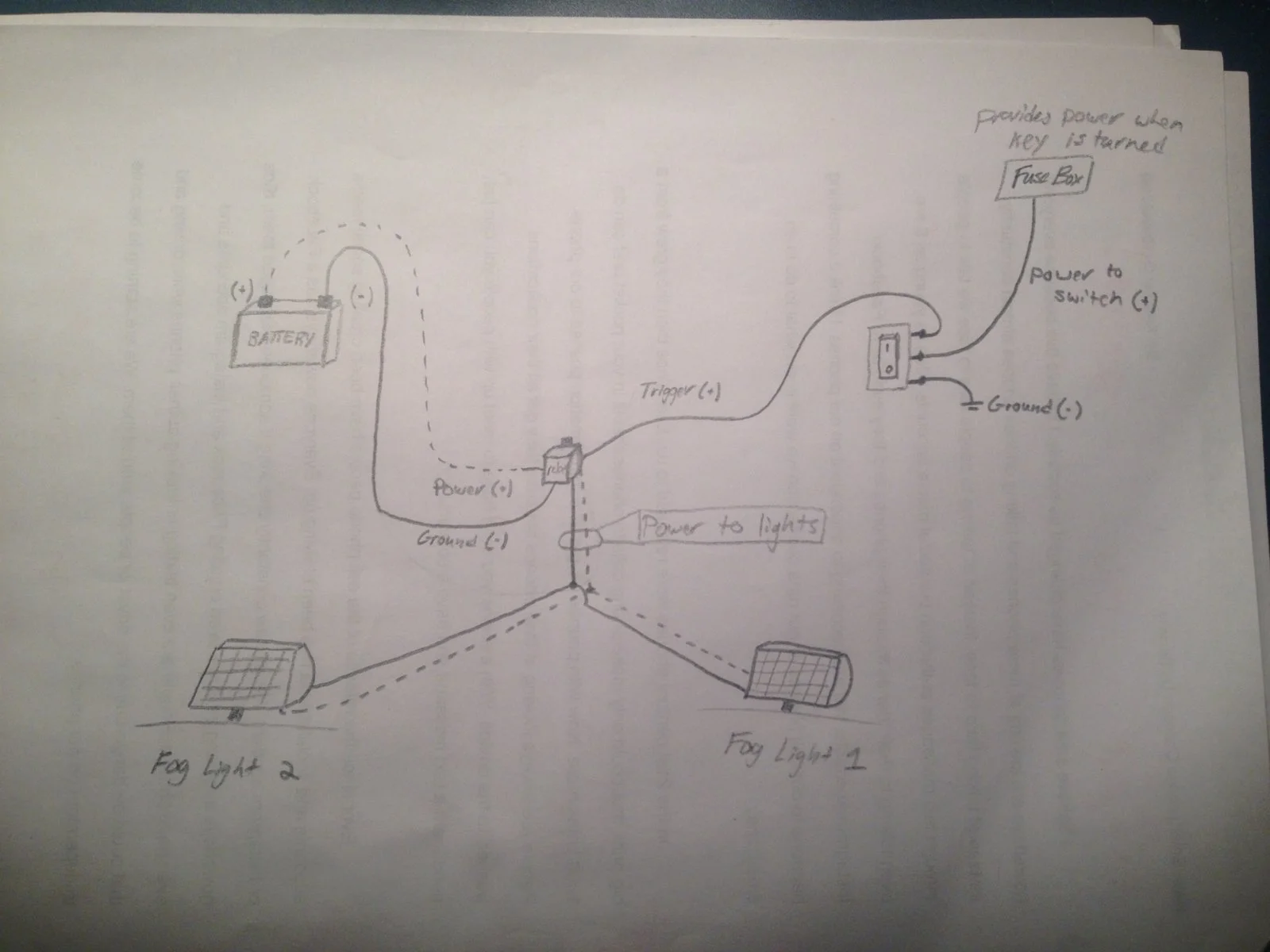

Step 5) Once I got it mounted and when I was happy with the way it looked I moved onto the finial step… wiring it all up. When I ordered the LED bar I also made sure to order a relay from eBay aswell. Since my LED bar is a 288W and 30A I went ahead and found a relay on eBay for around $15. The relay I bought was good for 300W and 40A so it won't complain. Here is a picture of how I wired it up:

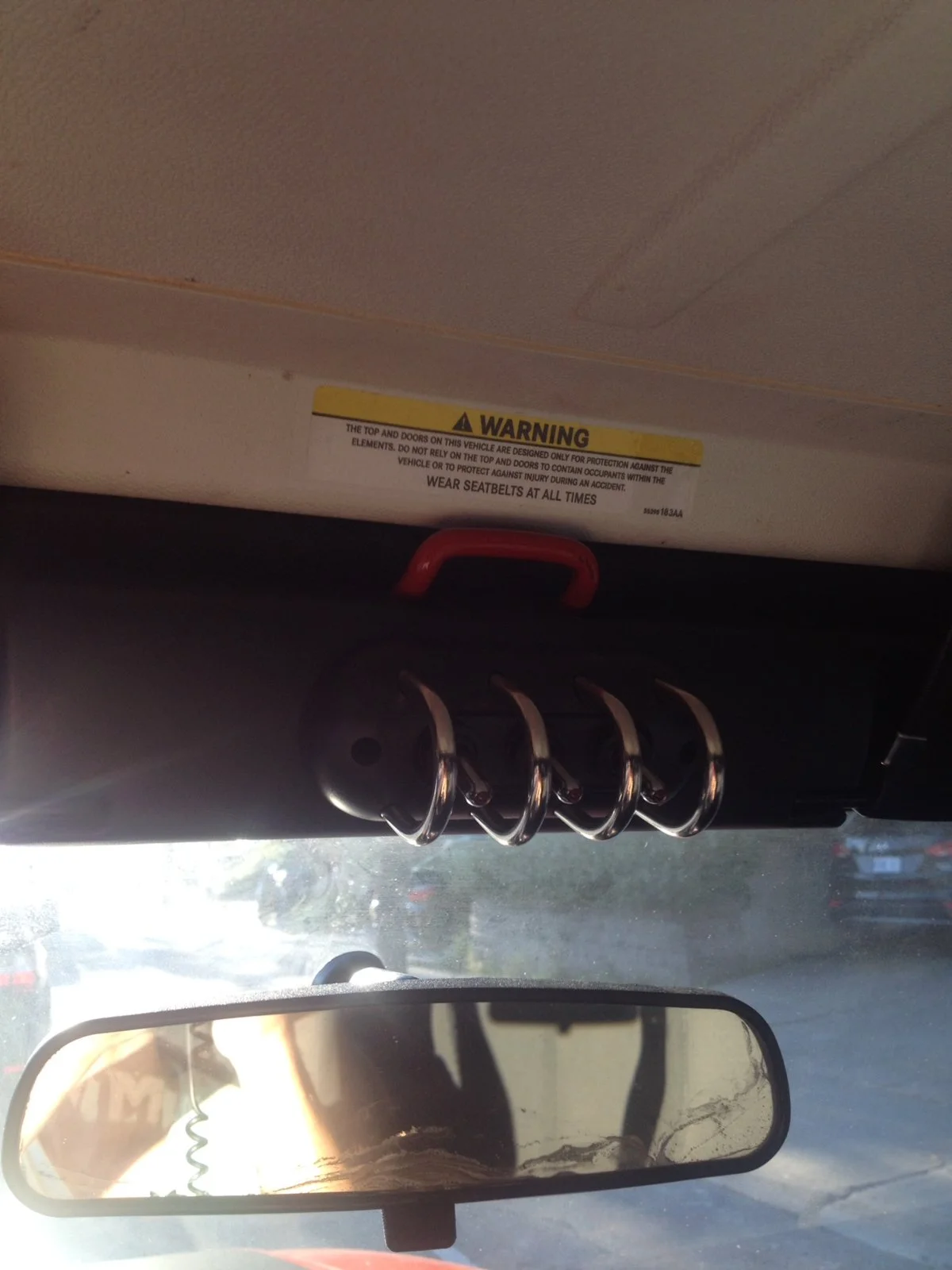

Step 6) Just wire up the switch and your good to go! I wired mine up to my middle switch and it works perfectly. You could use the supplied switch but I didn't like the way it looked and I also had a free spot on my switch board:

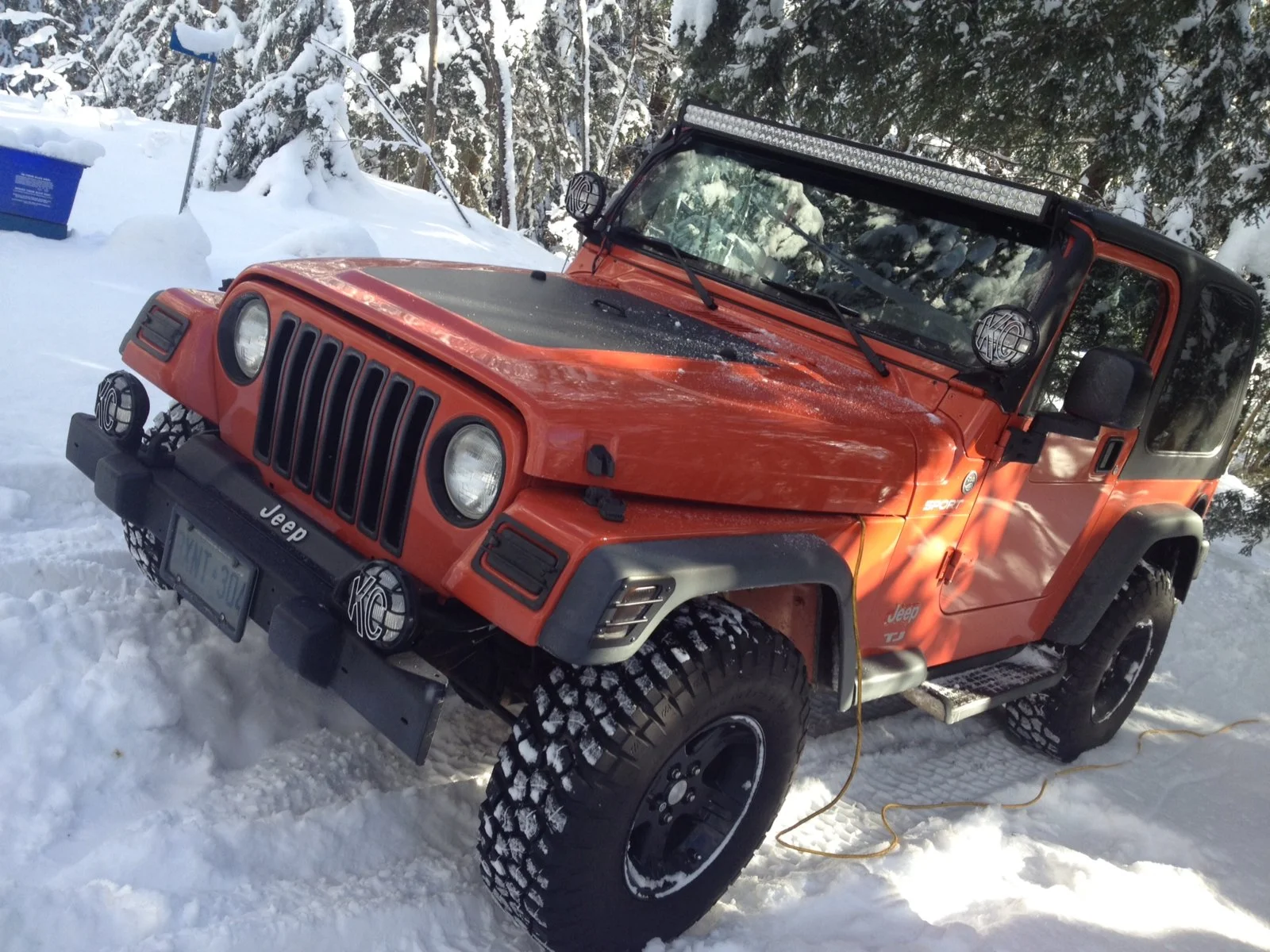

Here is a finial shot of what my Jeep looks like now with a 50" LED bar:

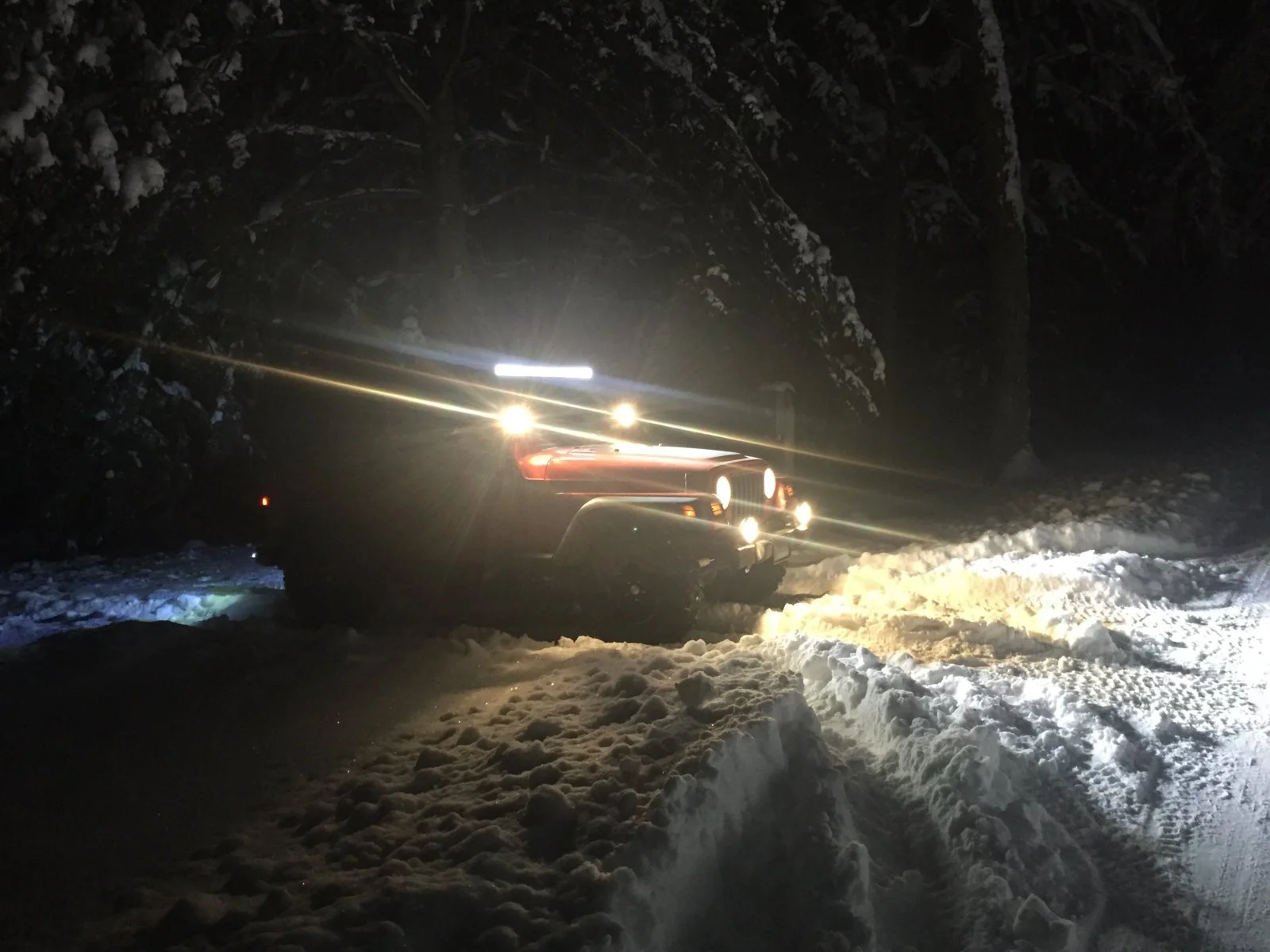

Man is this thing bright! I went up to my cottage after installing it and it just throws light everywhere, my windshield spot lights and my fog lights didn't do anything anymore! It was well worth the investment and this whole project ran me just around $300! Talk about a cheap way to add alot of light and good looks to boot. I really like the way it turned out and it makes the Jeep look really nice. It was really easy to install and anyone could do it! Let me know what you guys think! If you need any help or have any questions feel free to ask away
50" LED Bar:
http://r.ebay.com/9Ub5Ab
Bracket:
http://r.ebay.com/E23vl2
Relay:
http://r.ebay.com/UVzYyC
Switch Panel:
http://r.ebay.com/Gh3DOo
Trim:
http://r.ebay.com/PeK9yP
Hope this helps some of you,
- Kris
So I just got my 50" LED bar a couple days ago. I wanted to do a little write up on how I installed it and where I got everything from. I will post all the links to where I bought everything at the end...
Step 1) First off I ordered the bracket from eBay. Since I have windshield mounted spot lights I choose this one because of the mounts at the bottom of the windshield. Here is a picture of the one I bought:
Step 2) I had to take off my old windshield brackets and replace them with the new one. It was pretty simple to install the new 50" mount as it was just unbolt my old ones and bolt the new ones on with the supplied screws. Here is a picture of my old mounts:
Step 3) After I re-mounted my spot lights all I had to do was order the LED bar. I originally ordered a 52" LED bar but after receiving it and trying to install it, it would not fit so please beware that this mount only fits a 50" bar. Here is a picture of the 50" LED bar I bought. It came with the brackets and bolts too:
Step 4) So once I got my 50" LED bar I went ahead and ATTEMPTED to mount it. The first problem I encountered was that the supplied bolts were too short. I had to do a quick run to Lowe's to pick up 2 replacement bolts. I cant remember the size but I found them relatively quickly and they fit perfectly. I bought them around an inch bigger than the supplied ones and that seemed to do the trick. BE SURE TO PUT SOME OF THE BLACK TRIM ON THE FINS OF THE LIGHT BAR BEFORE YOU TIGHTEN EVERYTHING UP. If you don't you will be welcomed with a high pitched whistling sound. ITS BAD!
Step 5) Once I got it mounted and when I was happy with the way it looked I moved onto the finial step… wiring it all up. When I ordered the LED bar I also made sure to order a relay from eBay aswell. Since my LED bar is a 288W and 30A I went ahead and found a relay on eBay for around $15. The relay I bought was good for 300W and 40A so it won't complain. Here is a picture of how I wired it up:
Step 6) Just wire up the switch and your good to go! I wired mine up to my middle switch and it works perfectly. You could use the supplied switch but I didn't like the way it looked and I also had a free spot on my switch board:
Here is a finial shot of what my Jeep looks like now with a 50" LED bar:
Man is this thing bright! I went up to my cottage after installing it and it just throws light everywhere, my windshield spot lights and my fog lights didn't do anything anymore! It was well worth the investment and this whole project ran me just around $300! Talk about a cheap way to add alot of light and good looks to boot. I really like the way it turned out and it makes the Jeep look really nice. It was really easy to install and anyone could do it! Let me know what you guys think! If you need any help or have any questions feel free to ask away
50" LED Bar:
http://r.ebay.com/9Ub5Ab
Bracket:
http://r.ebay.com/E23vl2
Relay:
http://r.ebay.com/UVzYyC
Switch Panel:
http://r.ebay.com/Gh3DOo
Trim:
http://r.ebay.com/PeK9yP
Hope this helps some of you,
- Kris
