Panel LPS fuse 12 no power

[Daryl]

Well I got the cluster cleaned and put in and out a few times. Started up but no gauges/radio/dome/under hood light still.

I’m soldering a onto a circuit board right now. I’ll get back to you later today.



[Daryl]

Well I got the cluster cleaned and put in and out a few times. Started up but no gauges/radio/dome/under hood light still.

Did you perform the voltage check described in post 16?



[emtchrisbishop]

Did you perform the voltage check described in post 16?

The only thing I had power from was the 3rd spot on the far left connector.



[Daryl]

Did you download the FSM?



[emtchrisbishop]

Lol...all 1400 some pages...lol.
It's so complicated for me. I'd like to take a match to it. So I have power on the left side of the instrument cluster but not the right. Looks like maybe the headlight switch may be involved?



[Daryl]

Lol...all 1400 some pages...lol.
It's so complicated for me. I'd like to take a match to it. So I have power on the left side of the instrument cluster but not the right. Looks like maybe the headlight switch may be involved?

lol, I understand. So it would be safe to say you don’t know how to read a wiring diagram.



[emtchrisbishop]

lol, I understand. So it would be safe to say you don’t know how to read a wiring diagram.

Yeah that would be accurate. I'm trying though. Looks like the right side connector of the instrument cluster is the one I needed power from??



[Daryl]

Yeah that would be accurate. I'm trying though. Looks like the right side connector of the instrument cluster is the one I needed power from??

Let me look at the wiring diagrams and connector pin outs and I’ll walk you through it. Give me some time. I will get back to you.



[Daryl]

Do you have power on both legs of fuse 17 in the PDC under the hood?



[emtchrisbishop]

Do you have power on both legs of fuse 17 in the PDC under the hood?

I know I had one side, I'll check the other side of the fuse.



[emtchrisbishop]

Do you have power on both legs of fuse 17 in the PDC under the hood?

Yeah I've got 12v to both legs of fuse 17



[emtchrisbishop]

I actually couldn't believe it can drive without a instrument panel...



[Daryl]

Yeah I've got 12v to both legs of fuse 17

Check for power on pin 3 of connector 2. It’s a 20ga orange wire.



[emtchrisbishop]

Check for power on pin 3 of connector 2. It’s a 20ga orange wire.

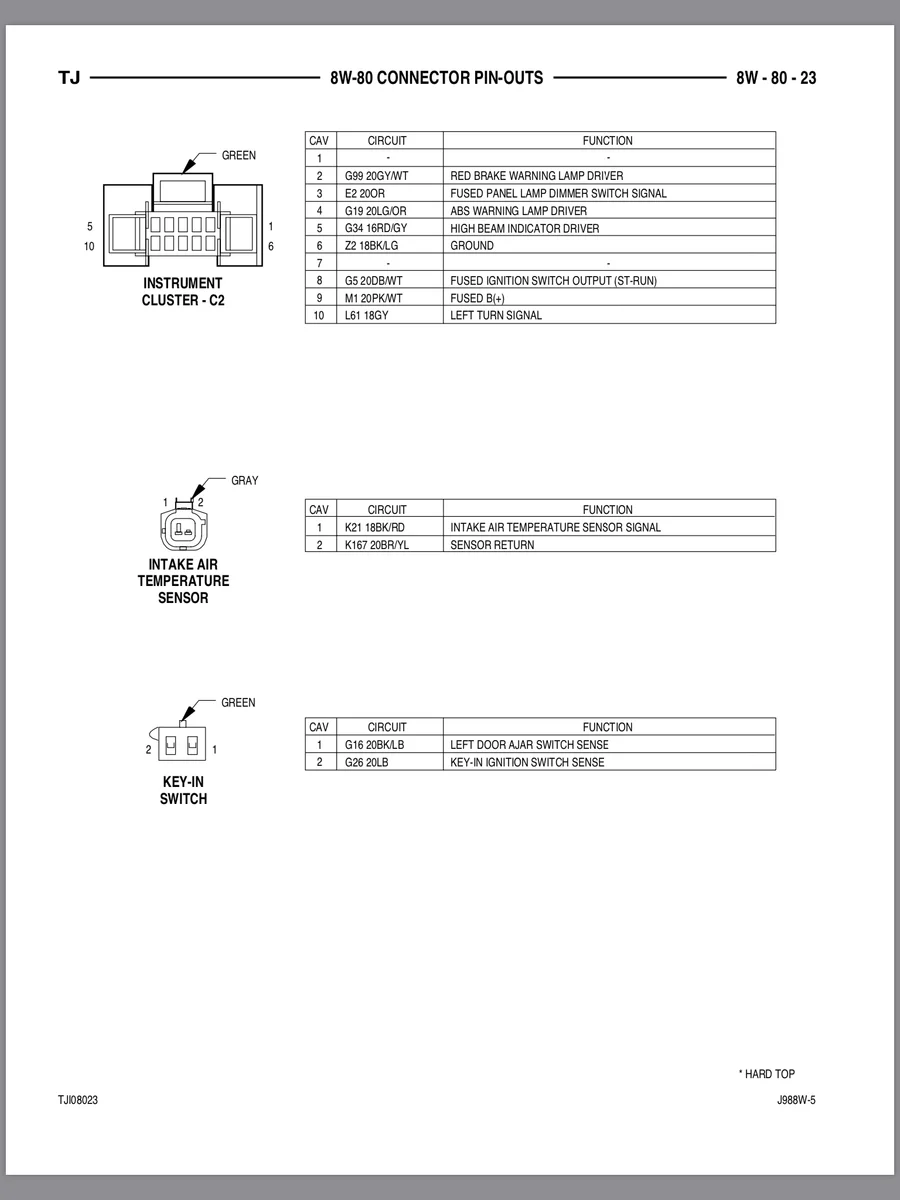

View attachment 165643

I'm not getting any power to connector 2.



[emtchrisbishop]

I'm not getting any power to connector 2.

I'm not getting any power to connector 2.

Actually the only pin that has any readings is pin 10 and it only reads a half a volt.



[Daryl]

I'm not getting any power to connector 2.

Not even on pin 9 of connector 2? Pink with a white tracer.



[emtchrisbishop]

Not even on pin 9 of connector 2? Pink with a white tracer.

I don't even see a pink/white wire going into connector 2.



[emtchrisbishop]

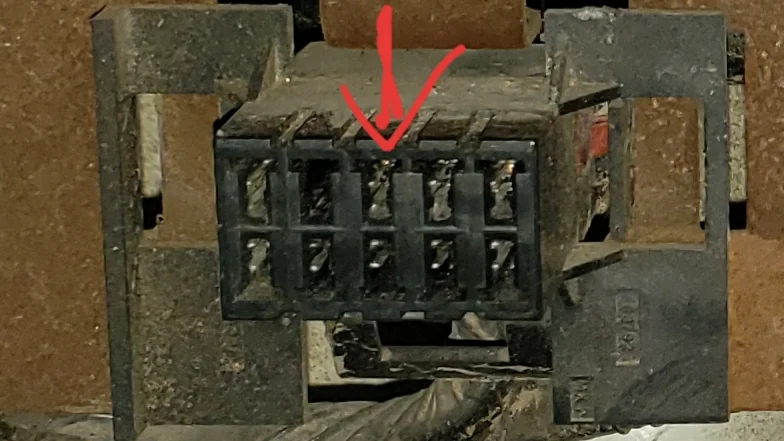

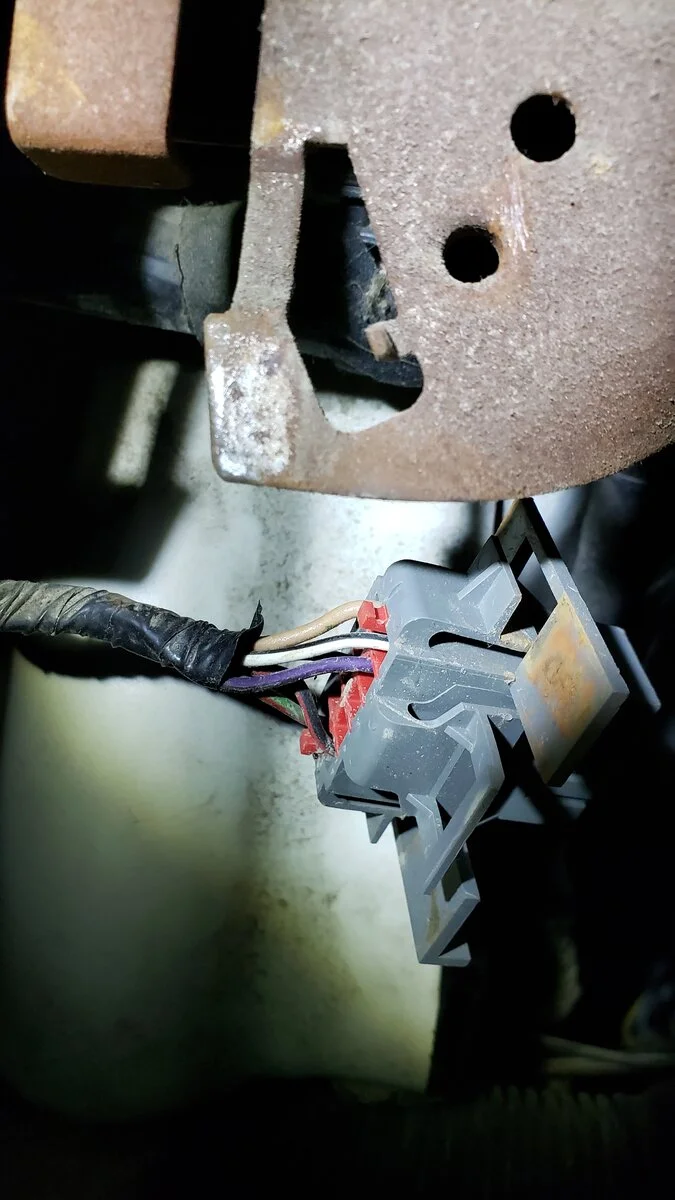

Here's a pic of con2



[emtchrisbishop]

I'm gonna call it a night before I set fire to this thing. Thanks for all the help Daryl. I appreciate your patience with me.



[Daryl]

I don't even see a pink/white wire going into connector 2.

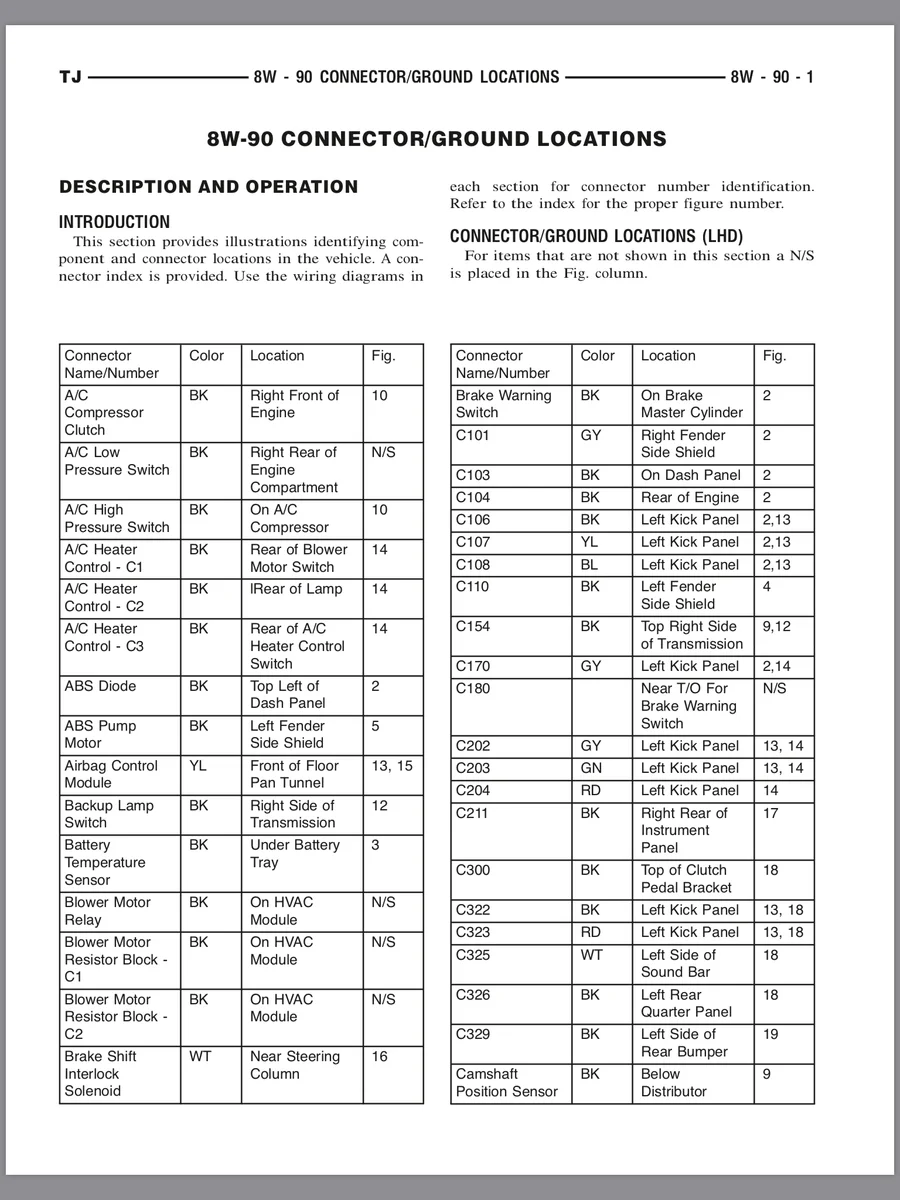

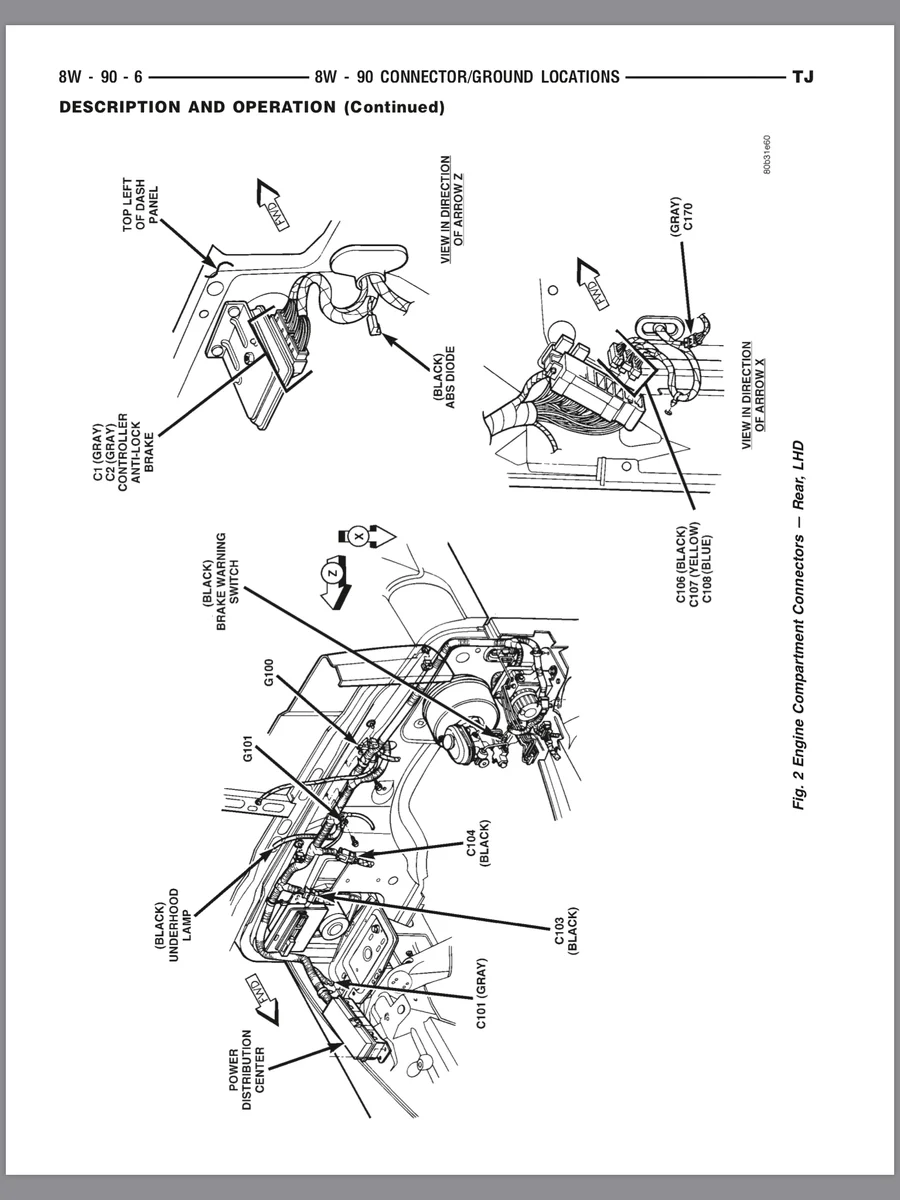

Check pin D12 on connector 108.
