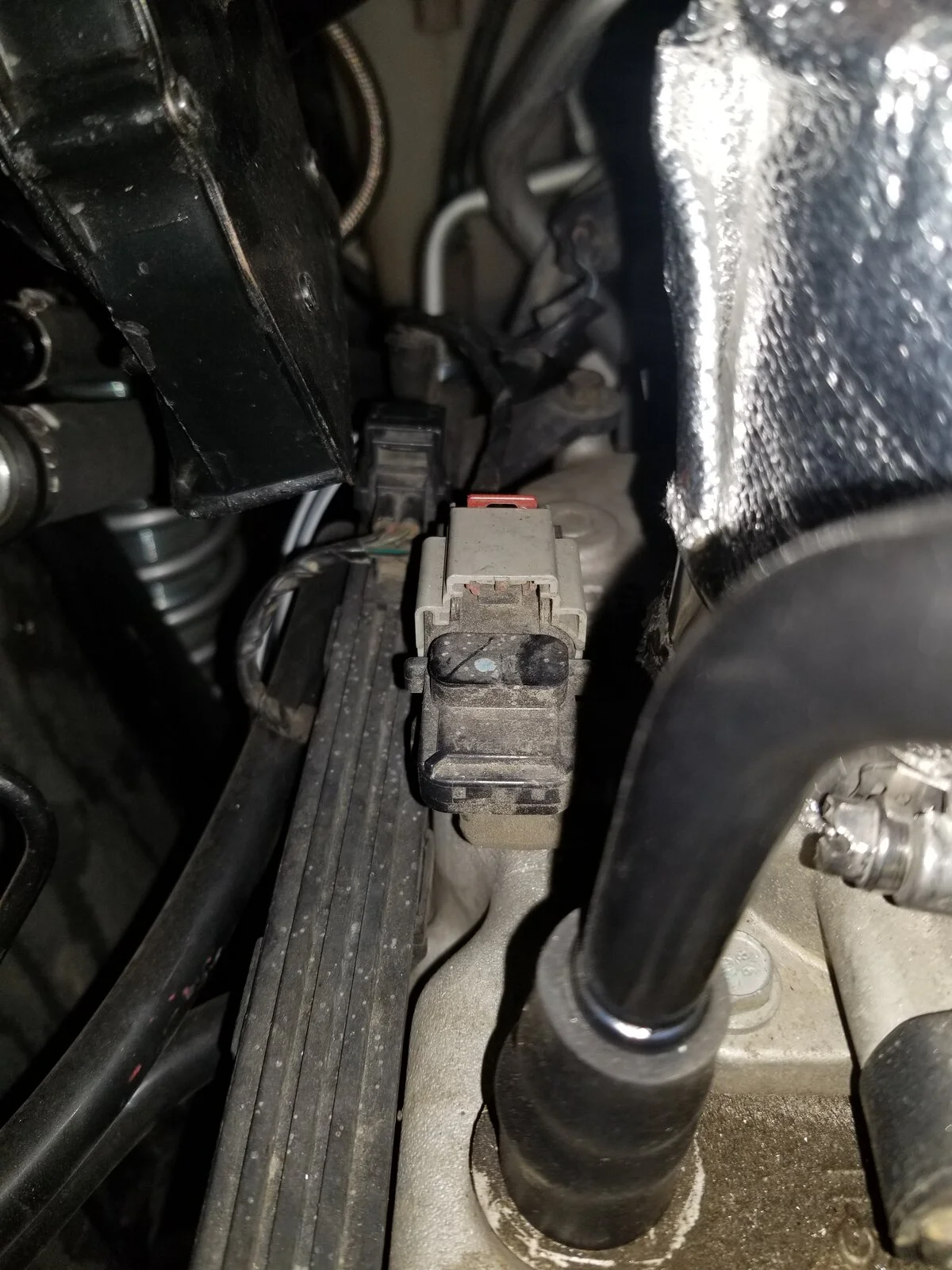

Previous owner left me this doozy

Were do you live, never heard of Shi,Kahr,

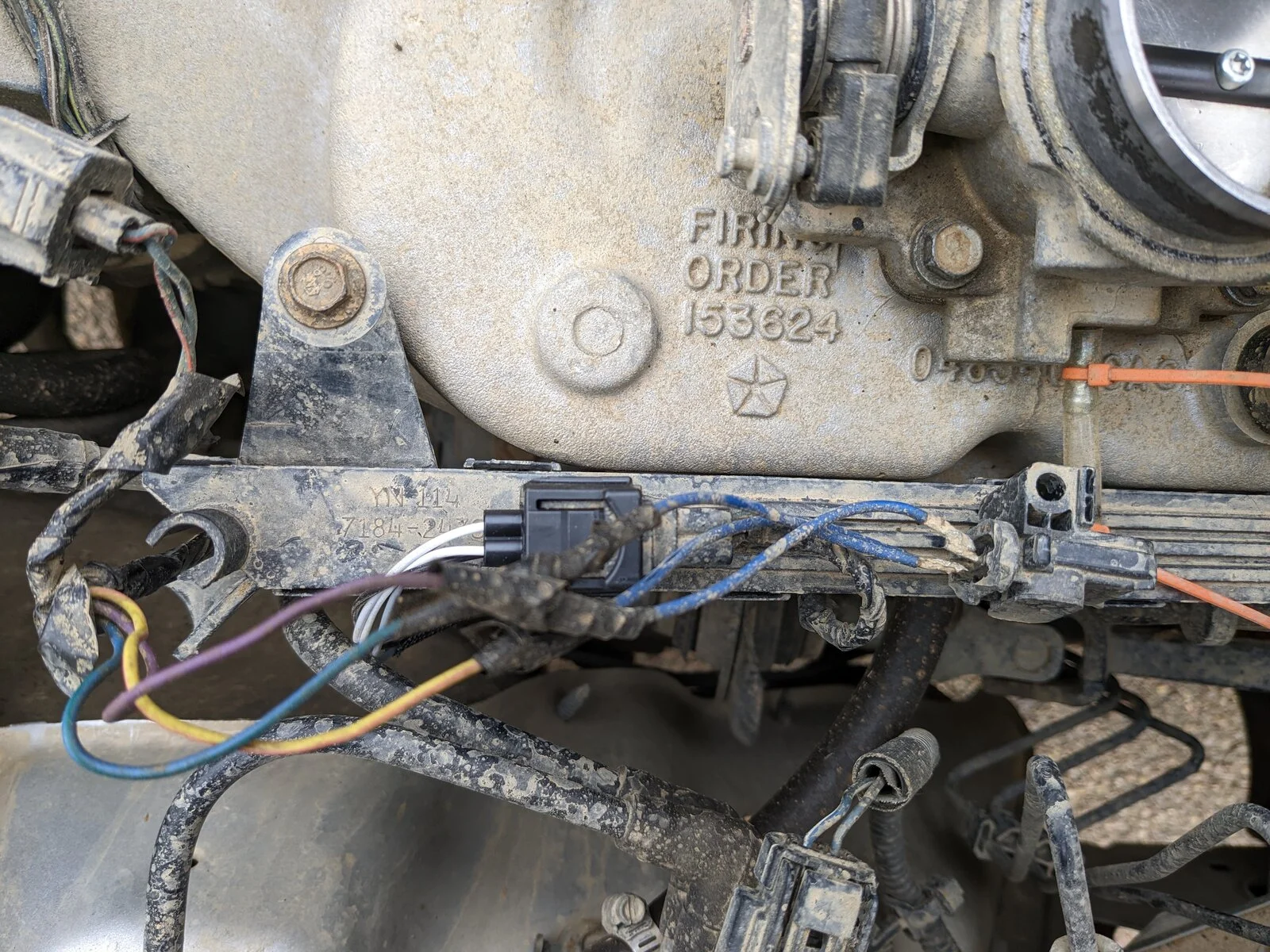

Maybe you have some kind of export model, those arnt right color wires for Map sensor. Why don't you take a pic of entire manifold and let us see all the sensors and wiring harness ?????

  • Haha
Reactions: tr21triton and John Cooper

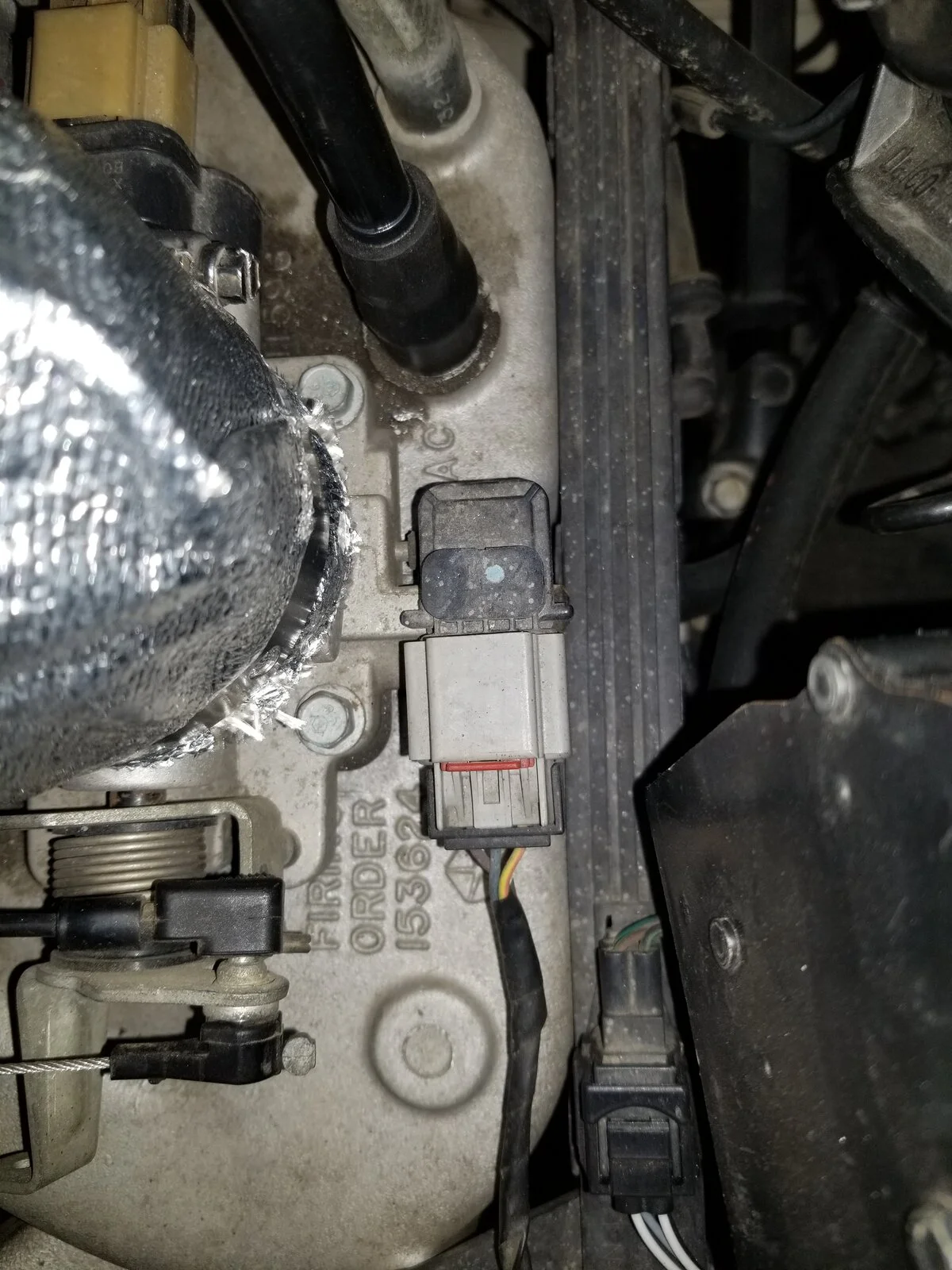

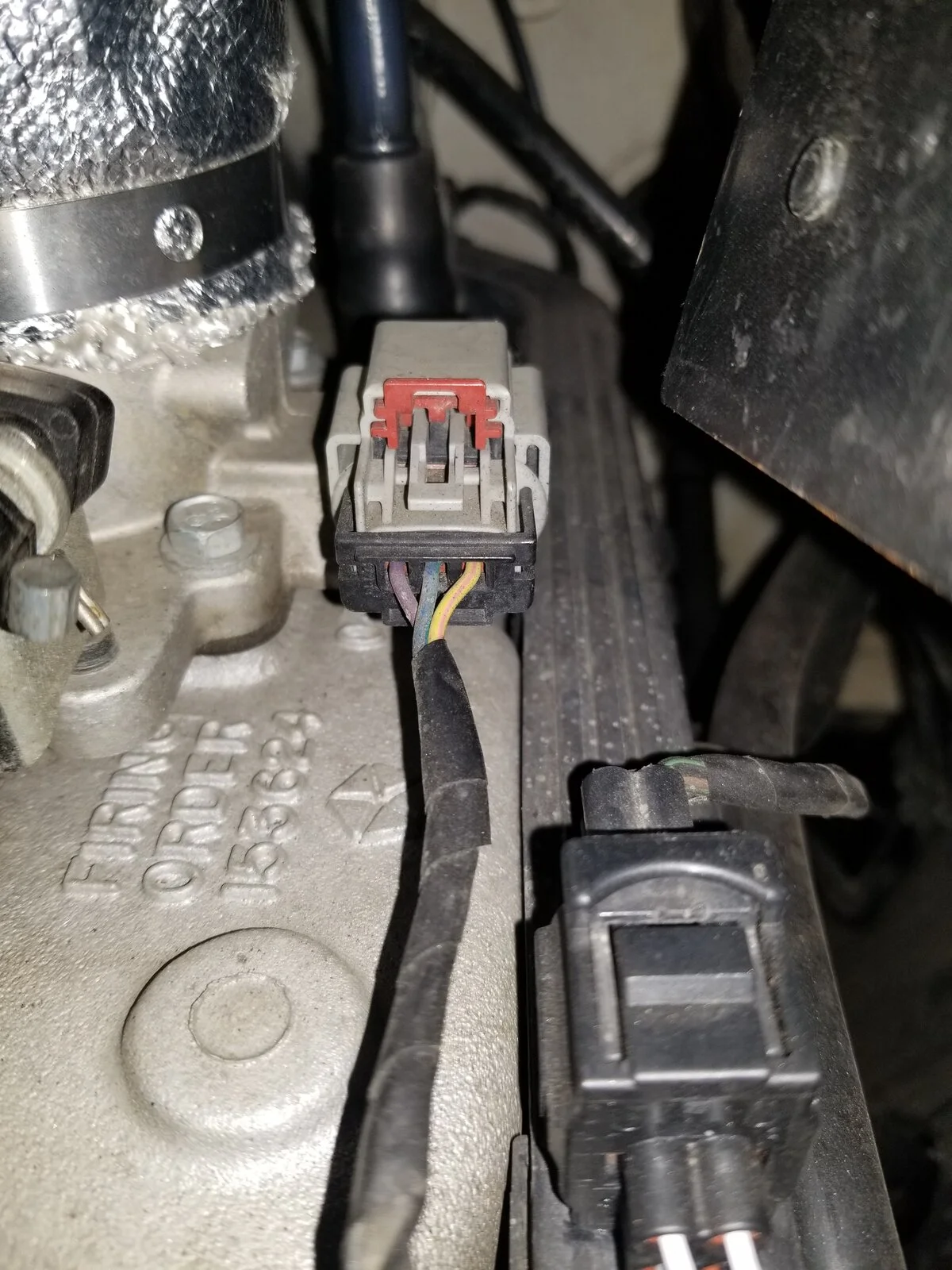

after doing some looking around thats the correct sensor but for some reason someone ground away the wire receptacle and removed the 90 deg hose thats supposed to connect it to the throttle body. your going to need a sensor, connector and the 90deg hose to fix it right !

mrblaine said:

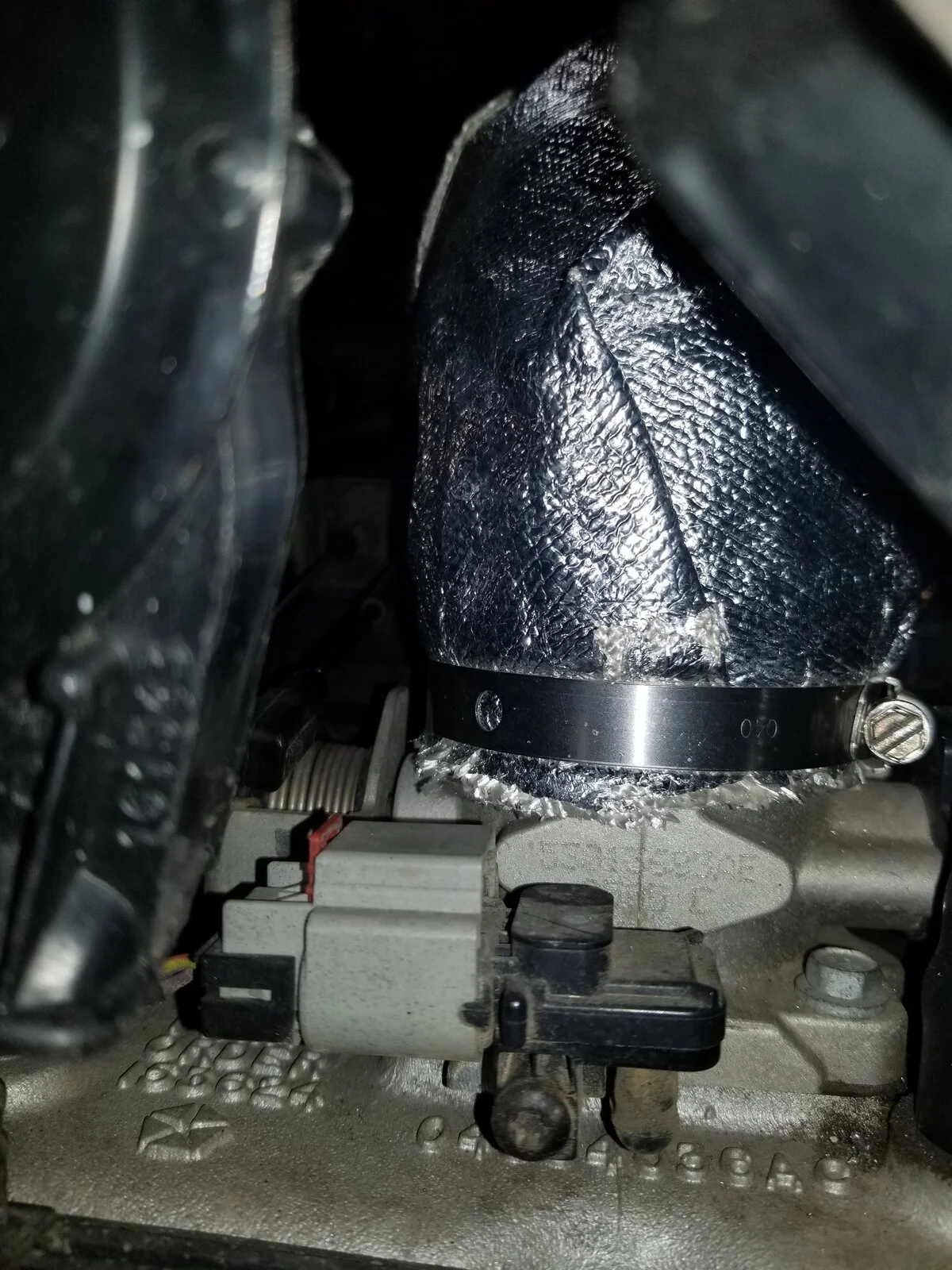

Looks like a jury rigged air flow sensor.
Click to expand...

CharlesHS said:
The clear tubing connects to what could be an adjustable MAP sensor.
Years ago Turbo City sold something similar that was supposed to increase engine performance.

Code P0122 is triggered when your vehicle's Engine Control Module (ECM) detects that your Throttle Position Sensor (TPS) circuit A is reporting an output voltage that is below its expected voltage. Depending on your vehicle, your TPS lower output voltage limit should be around .75 VDC.

You should test the CPS for proper operating voltage.

Click to expand...

Didn’t even know this was a thing. Thanks for the knowledge.

  • Like
Reactions: John Cooper
tr21triton said:
after doing some looking around thats the correct sensor but for some reason someone ground away the wire receptacle and removed the 90 deg hose thats supposed to connect it to the throttle body. your going to need a sensor, connector and the 90deg hose to fix it right !
Click to expand...

Thank you much! Now to figure out the wiring, as well. Hopefully won't be a completely new harness.

Last edited:
  • Like
Reactions: John Cooper
JSpike said:
Were do you live, never heard of Shi,Kahr,
Maybe you have some kind of export model, those arnt right color wires for Map sensor. Why don't you take a pic of entire manifold and let us see all the sensors and wiring harness ?????
Click to expand...

I'll get that in the morning for you.

  • Like
Reactions: John Cooper
CharlesHS said:
The clear tubing connects to what could be an adjustable MAP sensor.
Years ago Turbo City sold something similar that was supposed to increase engine performance.

Code P0122 is triggered when your vehicle's Engine Control Module (ECM) detects that your Throttle Position Sensor (TPS) circuit A is reporting an output voltage that is below its expected voltage. Depending on your vehicle, your TPS lower output voltage limit should be around .75 VDC.

You should test the CPS for proper operating voltage.

Click to expand...

I'll do this test in the morning; I've got a multimeter in my shop

jonlandrum said:
What is this circuit, and what do I need to do to take this back stock?
Click to expand...
I can't give you a parts list but these are from my '06:





  • Like
Reactions: jonlandrum, John Cooper and JMT
https://www.rockauto.com/en/moreinfo.php?pk=13957905&cc=1432231&pt=2597&jsn=434&_nck=Ekt6BqBF1pwlXdx0gYlm1XyS+rEifIwv/s4mYgfY8Hvof4U6uklzHi1pVrcI7/kMUzABBGieOHtrrcgM3yioi3jzTSwR1sdbqq1WlxbL9jDHcZcDKYR4PaP+hEUJNXCdiI1v0RY93BO+E7mLh/WtJwIqleWfqWghAgDMwM4sbB8hYme5sOq+BKgosMX+nAyfE3hnPAt4iqEdq/wmgLZ6A1pHY91Kz3eIHS1nyLfPjytdLnFfBv+gXasVpxtfYllR1m4CrCn87EYqzM0IcuSN/7Ri/g7DLHVxEEyvv6vns4Y4RYv9YY2BkXvgrNAMeRVY9NlD2WEPNG55hqMPR5qKX18q4ZRa/tmNkcBqq/IdUIMseelCvvKFph/i5o31uXAhiY+FkdtCHA7YEHyD0Ittcg==
https://www.rockauto.com/en/moreinfo.php?pk=10061808&cc=1432231&pt=11207&jsn=465&_nck=Ekt6BqBF1pwlXdx0gYlm1XyS+rEifIwv/s4mYgfY8Hvof4U6uklzHi1pVrcI7/kMUzABBGieOHtrrcgM3yioi3jzTSwR1sdbqq1WlxbL9jDHcZcDKYR4PaP+hEUJNXCdiI1v0RY93BO+E7mLh/WtJwIqleWfqWghAgDMwM4sbB8hYme5sOq+BKgosMX+nAyfE3hnPAt4iqEdq/wmgLZ6A1pHY91Kz3eIHS1nyLfPjytdLnFfBv+gXasVpxtfYllR1m4CrCn87EYqzM0IcuSN/7Ri/g7DLHVxEEyvv6vns4Y4RYv9YY2BkXvgrNAMeRVY9NlD2WEPNG55hqMPR5qKX18q4ZRa/tmNkcBqq/IdUIMseelCvvKFph/i5o31uXAhiY+FkdtCHA7YEHyD0Ittcg==

only part I cant find for you is the 90deg hose, maybe someone can help you with that piece !

  • Like
Reactions: jonlandrum and John Cooper
tr21triton said:
https://www.rockauto.com/en/moreinfo.php?pk=13957905&cc=1432231&pt=2597&jsn=434&_nck=Ekt6BqBF1pwlXdx0gYlm1XyS+rEifIwv/s4mYgfY8Hvof4U6uklzHi1pVrcI7/kMUzABBGieOHtrrcgM3yioi3jzTSwR1sdbqq1WlxbL9jDHcZcDKYR4PaP+hEUJNXCdiI1v0RY93BO+E7mLh/WtJwIqleWfqWghAgDMwM4sbB8hYme5sOq+BKgosMX+nAyfE3hnPAt4iqEdq/wmgLZ6A1pHY91Kz3eIHS1nyLfPjytdLnFfBv+gXasVpxtfYllR1m4CrCn87EYqzM0IcuSN/7Ri/g7DLHVxEEyvv6vns4Y4RYv9YY2BkXvgrNAMeRVY9NlD2WEPNG55hqMPR5qKX18q4ZRa/tmNkcBqq/IdUIMseelCvvKFph/i5o31uXAhiY+FkdtCHA7YEHyD0Ittcg==
https://www.rockauto.com/en/moreinfo.php?pk=10061808&cc=1432231&pt=11207&jsn=465&_nck=Ekt6BqBF1pwlXdx0gYlm1XyS+rEifIwv/s4mYgfY8Hvof4U6uklzHi1pVrcI7/kMUzABBGieOHtrrcgM3yioi3jzTSwR1sdbqq1WlxbL9jDHcZcDKYR4PaP+hEUJNXCdiI1v0RY93BO+E7mLh/WtJwIqleWfqWghAgDMwM4sbB8hYme5sOq+BKgosMX+nAyfE3hnPAt4iqEdq/wmgLZ6A1pHY91Kz3eIHS1nyLfPjytdLnFfBv+gXasVpxtfYllR1m4CrCn87EYqzM0IcuSN/7Ri/g7DLHVxEEyvv6vns4Y4RYv9YY2BkXvgrNAMeRVY9NlD2WEPNG55hqMPR5qKX18q4ZRa/tmNkcBqq/IdUIMseelCvvKFph/i5o31uXAhiY+FkdtCHA7YEHyD0Ittcg==

only part I cant find for you is the 90deg hose, maybe someone can help you with that piece !
Click to expand...

So it's literally just those two parts and the 90° hose? I guess I overreacted to how fucky this was going to be.

  • Like
Reactions: John Cooper
jonlandrum said:
So it's literally just those two parts and the 90° hose? I guess I overreacted to how fucky this was going to be.
Click to expand...

that little 90deg hose may be the hard part to find. you might look at the dorman parts at your local parts place. you will also need the bolt that holds the MAP sensor to the throttle body but that should be easy to find !!!!

  • Like
Reactions: jonlandrum and John Cooper
