Savvy-mid arm rear brake layout

[Nick21]

Planning on installing the rear savvy mid arm in the coming weeks and trying to get a game play for how I want to layout the rear brake lines.

If you have done this please post pictures of your setup



[sunnysideup_lj]



[Nick21]

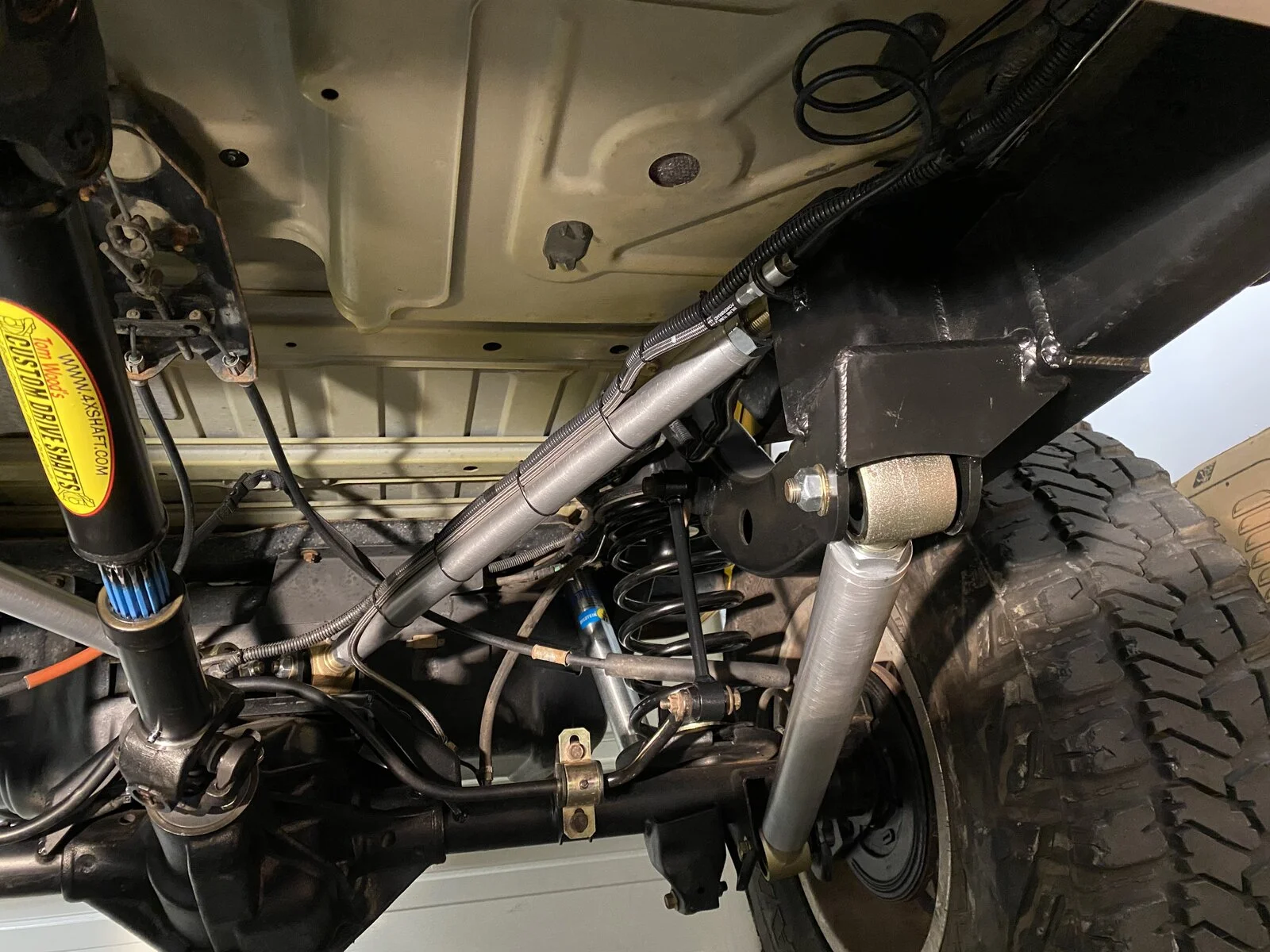

View attachment 421965

Did you end up using the normal split fitting (the fitting where to changes to 2 hard lines?)

Also what is going on the old hard line on the frame end?



[sunnysideup_lj]

3an male to 3/8'-24 female inverted flare Tee for the axle side. I'm still using the factory lines to the calipers.

The factory brake line has a plastic coating. Instead of compromising the coating to cut and and add a new flare, I bent the brake line into loops about the size of a Coke can to achieve the desired length. (similar set ups as seen from others here on the forums)



[Nick21]

I went ahead and got the parts. Thanks for the help
