Warn 9.5ti Winch Build Thread

Midtenn

Midtenn

TJ Addict
Joined
Mar 4, 2020
Messages
1,543
Location
Tennessee
I’m starting a build thread for my winch. Everything will start dumb because I have no idea what I’m doing, but I have infinite patience, curiosity, and am in a sufficient position to learn by doing.

I wanted a Warn winch not China made over Black Friday and instead just got this one out of interest and once back together, should be a solid winch for round about what I would have paid for a China one.

Initial investment was $100 off Facebook marketplace. It wouldn’t freespool, guy took it apart and lost interest.

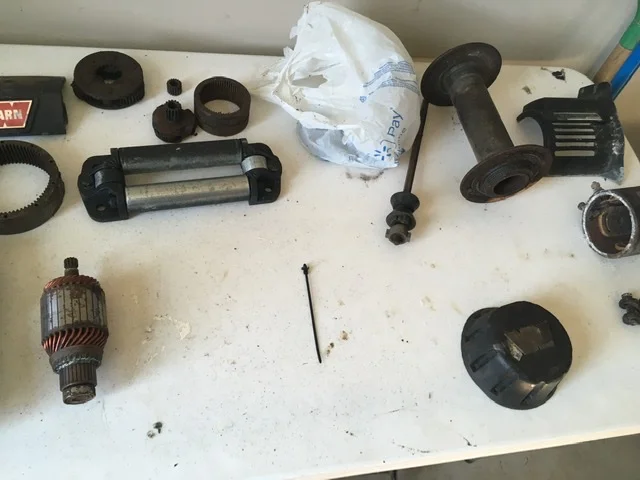

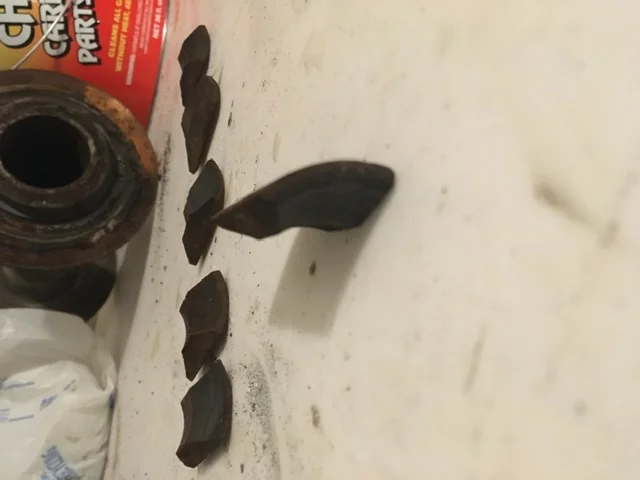

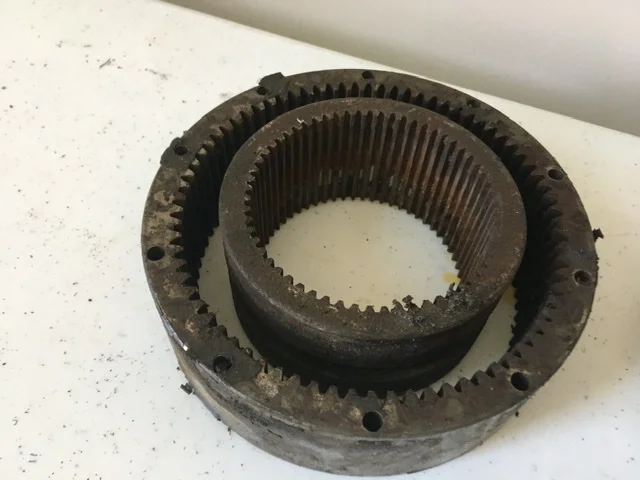

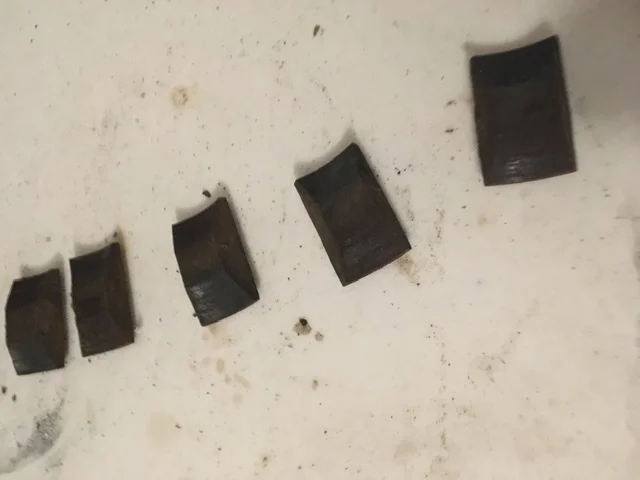

here are some pictures

My plan is to get it working, then disassemble again for paint. Reason for doing it that way is odds are it won’t work on my first try so I want to wait until it works for paint.








  • Like
Reactions: IPerkWVU, Mike_H, TJ Starting and 3 others

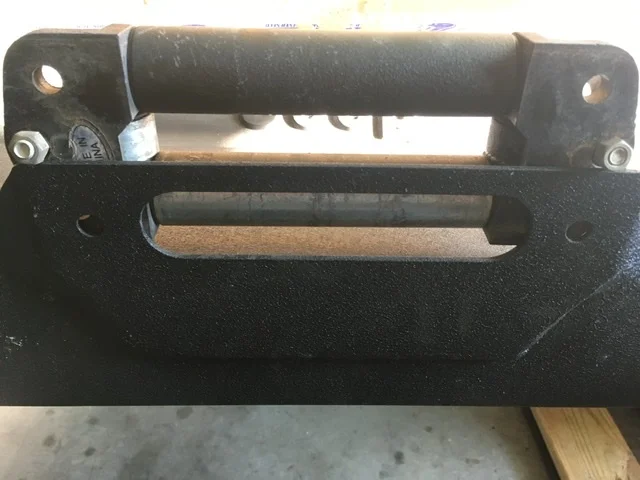

First issue is the roller fairlead won’t bolt up. Not sure why.

Rest of everything else just needs to be cleaned really well. Next trip is to get a small bucket or maybe it’s time for a parts washer.








  • Like
Reactions: TJ Starting and Zorba

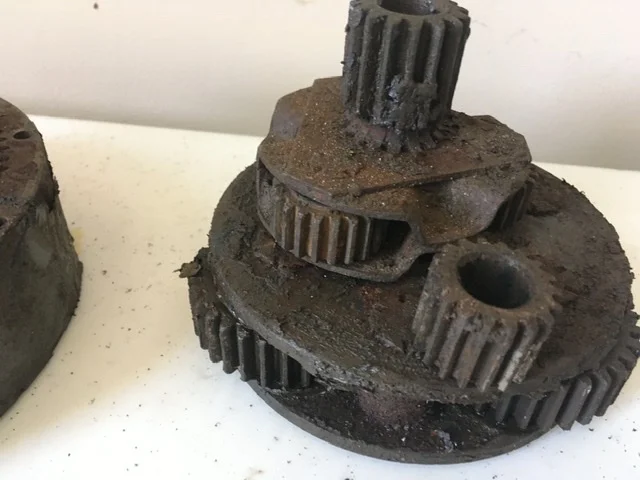

Before you get too far into your build, take some time and make sure you can bring the motor back to life. From there you are going to need a new brake, seal kit, bushings, and I did not see the first stage planetary. It needs to be checked to make sure the output gear is still firmly fastened to the side plates.

Blackjack said:
Before you get too far into your build, take some time and make sure you can bring the motor back to life. From there you are going to need a new brake, seal kit, bushings, and I did not see the first stage planetary. It needs to be checked to make sure the output gear is still firmly fastened to the side plates.
Click to expand...
Can you explain this a little better? I understand the part about the motor, but not the gears.

Midtenn said:
Can you explain this a little better? I understand the part about the motor, but not the gears.
Click to expand...

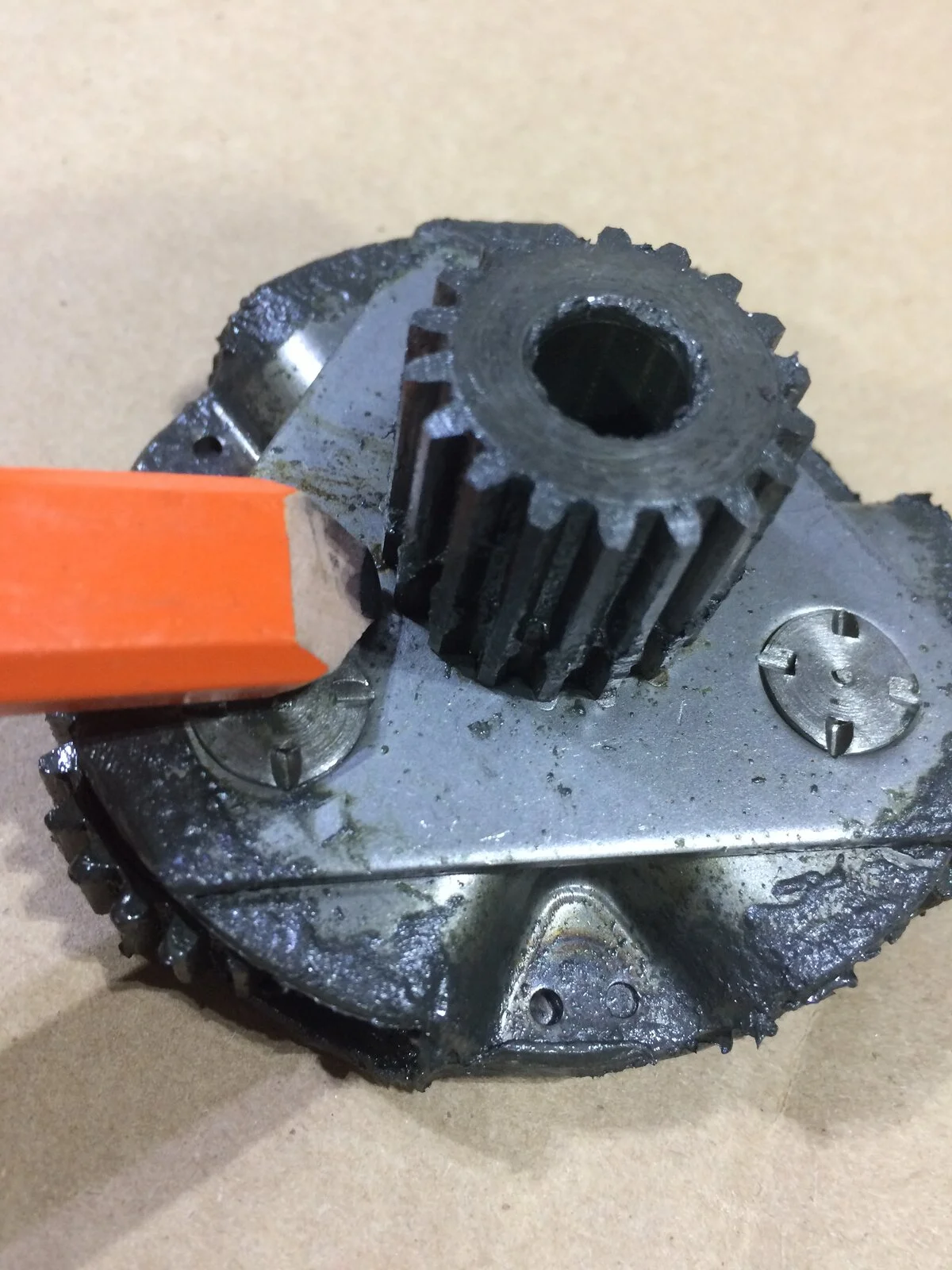

You need to check this connection on the first stage planetary. It is used as the brake driver on your winch and can fail if the winch is abused.

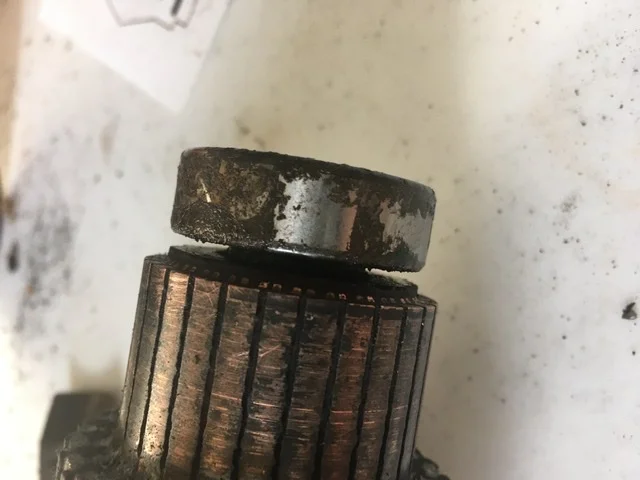

Mine looked good and is now going into the dip. The concern I have now is with the bearing on the end of the motor. I’m not sure if I can press this off or not.








Blackjack said:
You will need a very small bearing knife but it can be done. The easiest bearing to find that works it a 202ff.
Click to expand...
Based on what you see, you you bite the bullet and replace the motor? That kills making this a good deal but seems inevitable at this point.

Nice. I scan Facebook occasionally, looking for a deal on a used Warn to bring back to life. I have a Smittybilt, but I'd like to replace it with a Warn someday.

Mike_H said:
Nice. I scan Facebook occasionally, looking for a deal on a used Warn to bring back to life. I have a Smittybilt, but I'd like to replace it with a Warn someday.
Click to expand...
Today there’s a BNIN smittybilt 9500 with synthetic rope for $250. Restoring this joker is a hobby, I’m not sure you can make it financially worth it.

Midtenn said:
Today there’s a BNIN smittybilt 9500 with synthetic rope for $250. Restoring this joker is a hobby, I’m not sure you can make it financially worth it.
Click to expand...
Absolutely not financially worth it. It's a fun project though, and it keeps me from sitting on my ass watching TV. Just putting the finishing touches on this. 1964 Simplicity Broadmoor. In no way did it make sense to restore this tractor... But I like the style and I had it... So why not?


  • Like
Reactions: matkal and TJ Starting
Midtenn said:
Based on what you see, you you bite the bullet and replace the motor? That kills making this a good deal but seems inevitable at this point.
Click to expand...
Need to inspect the motor case and brush set and make sure they are in good working order.
