Gents,

Does anyone have a wiring diagram for the TJ, specifically related to front and rear turn signals and running lights?

RC


Sent from my iPhone using Tapatalk Pro


Daryl

2004 Rubicon
Supporting Member
Joined
Apr 29, 2018
Messages
2,564
Location
Earth 🌎

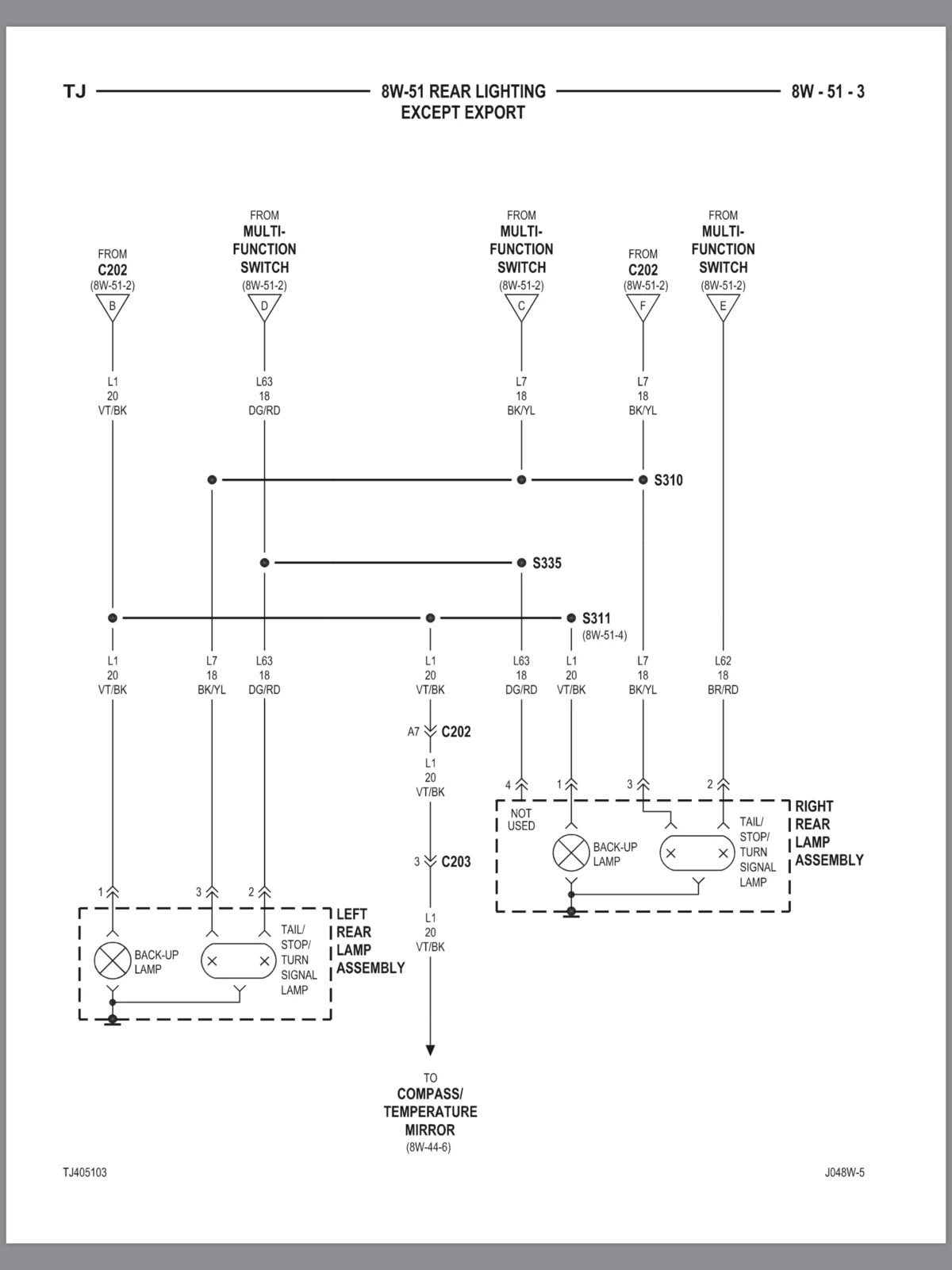

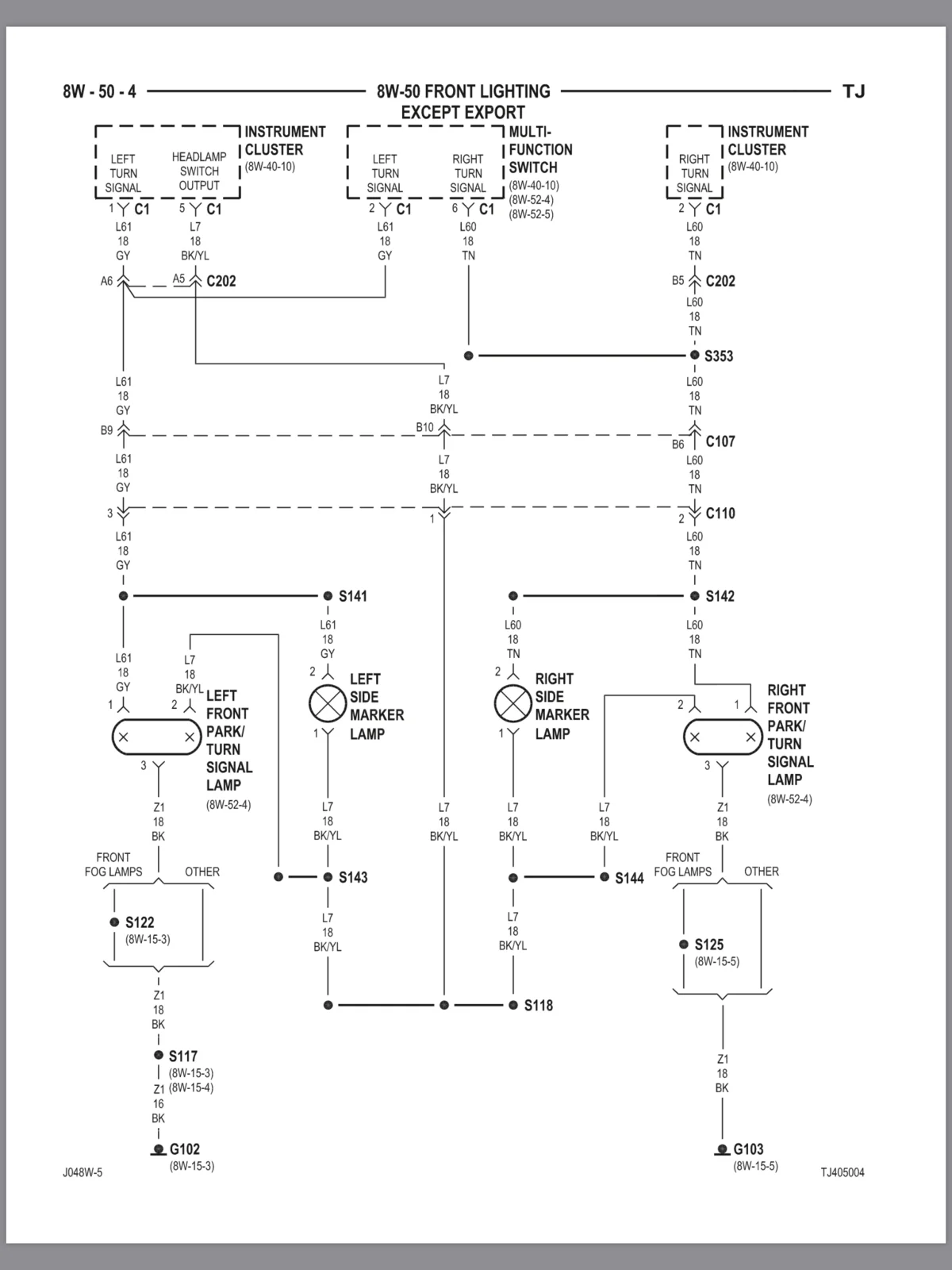

Not sure what year your Jeep is, but here’s one for a 2004.
