2003+ Cruise Control Wiring Location

[Andy-WhiteTJ]

Okay, looks like I have some wires to add. Namely, everything on the engine compartment side of connector C107.

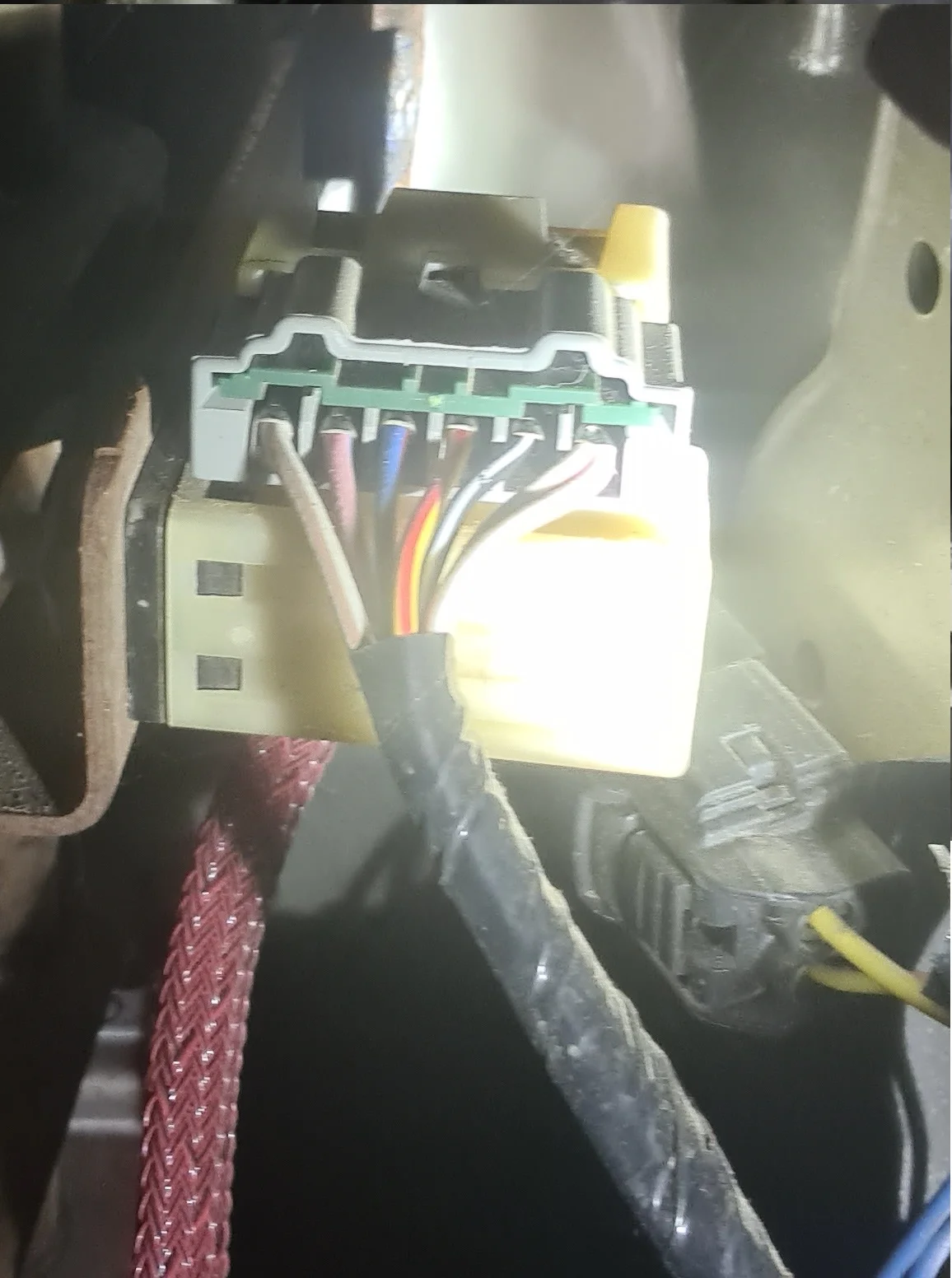

Per below, my brake light switch has wires 3 and 4, and I have the correct clock spring and steering wheel harness.

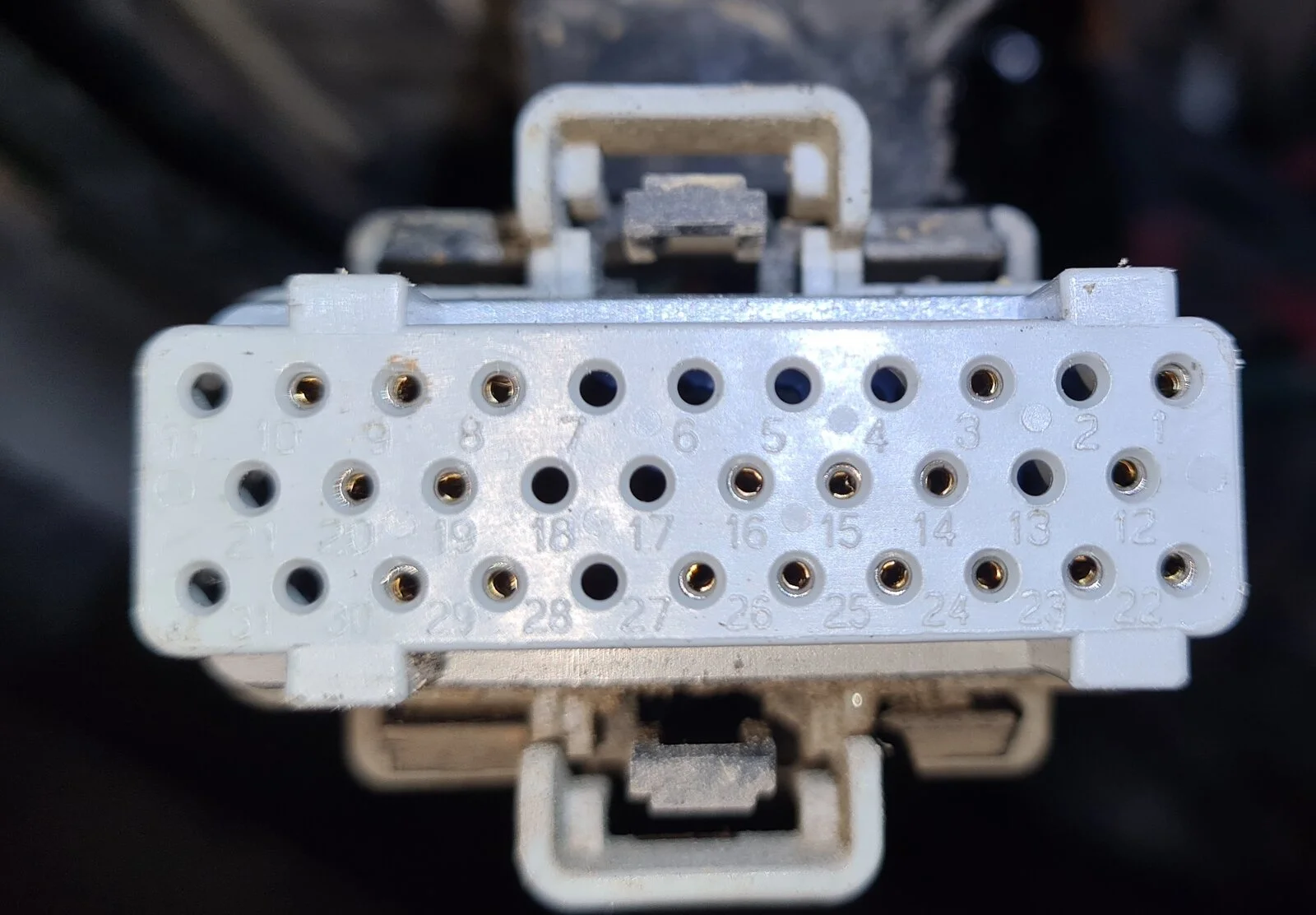

The engine compartment side of C107 however is missing pins A1, B1, and C3. Pins 4, 5, 11, and 32 are also missing from ECU connector C3.

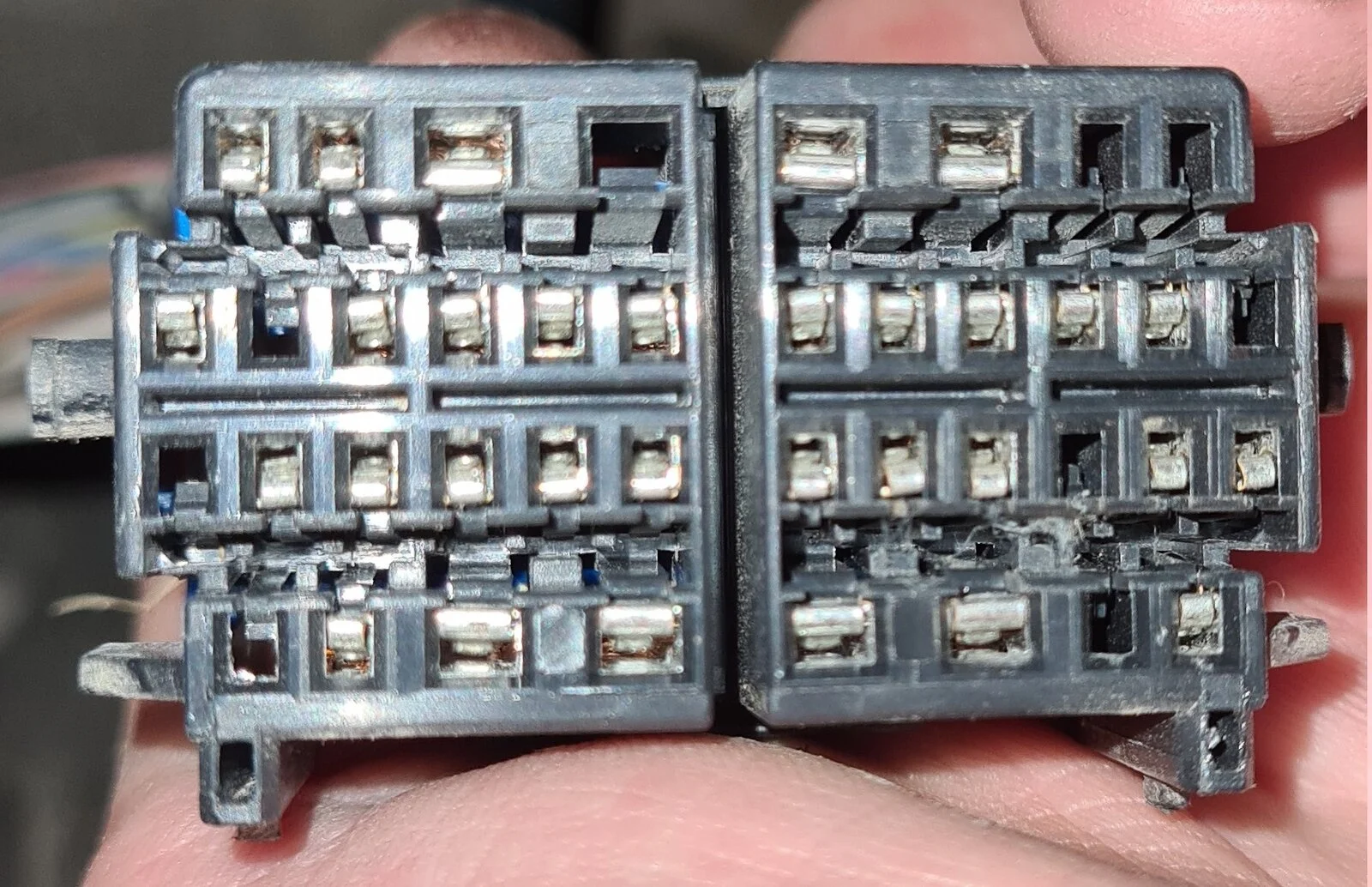

ECU connector pins look like deutsch female pins at first blush but I need to pull one out to confirm. I have no idea what the pins for C107 are though. Gotta find a handful of female pins for this. Thoughts?

So I need the following to finish the job:
- Female pins for C107
- Female pins for ECU C3
- Female actuator connector & pins
- A few short runs of wire

View attachment 284986

View attachment 284987

View attachment 284988

Did you ever get the narrow female pins for the C107 connector? If so, where besides junk yards. Not many around here



[Andy-WhiteTJ]

For someone in the future that may need this information I figured out that the C107 connector on a 2004 Wrangler is a 155448129 connector from Aptiv (formerly Delphi-Pakard) The connector is out of stock and obsolete everywhere I looked. Now I just need to figure out which pins to use. There are quite a bit of them when looking at Aptiv pins on here: https://www.newark.com/w/c/connecto...ector-contacts/prl/results?brand=aptiv-delphi
