WTB: 2005-2006 AC high pressure line

[06LJR]

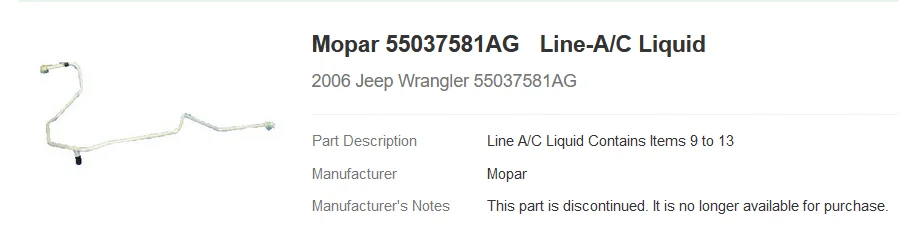

Looking for the OEM air conditioner high high-side/liquid line from firewall to condenser. This is the full hard pipe and does not have any hose segment. Doesn't seem to be available new anywhere.



[MikeE024]

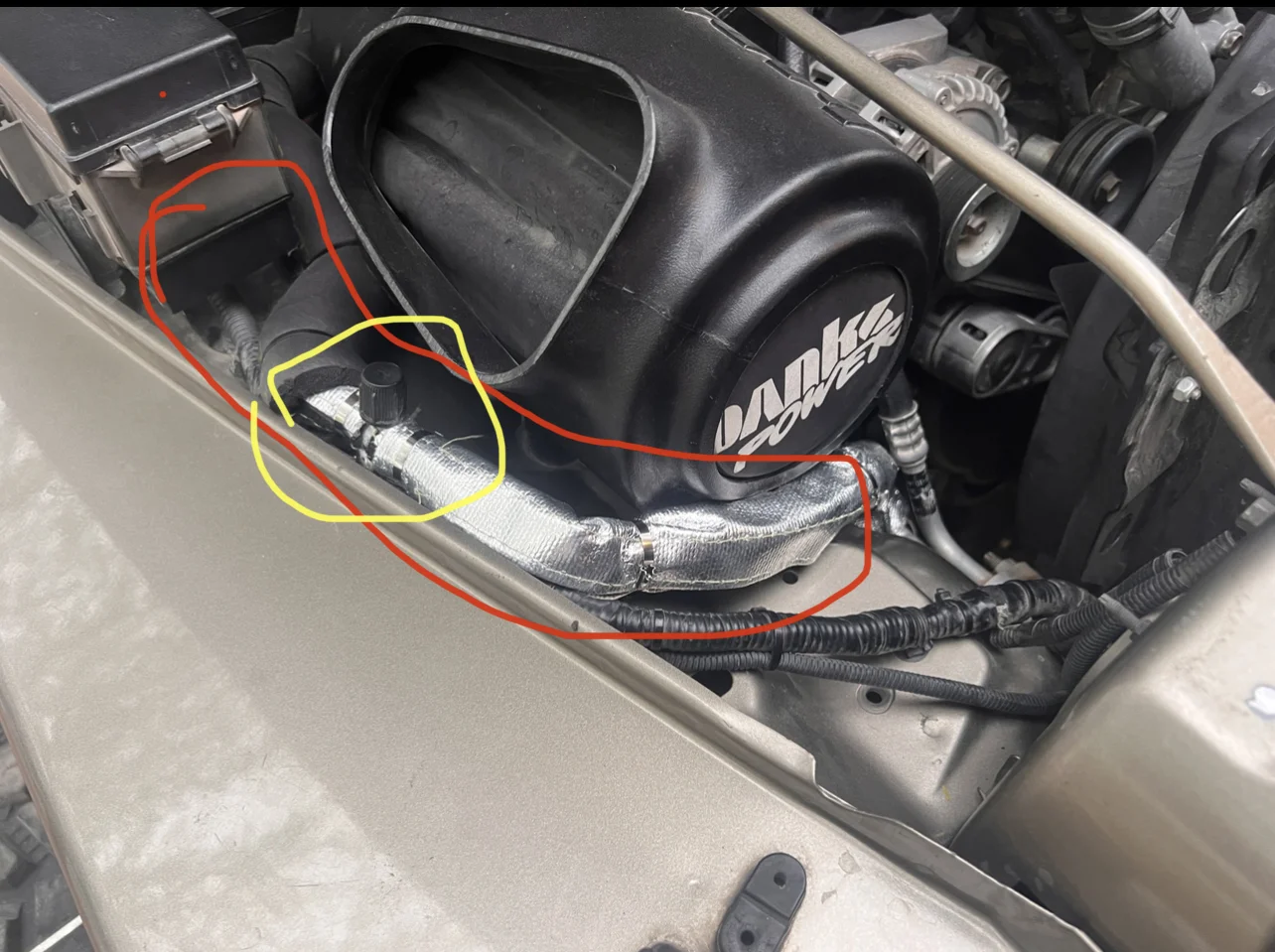

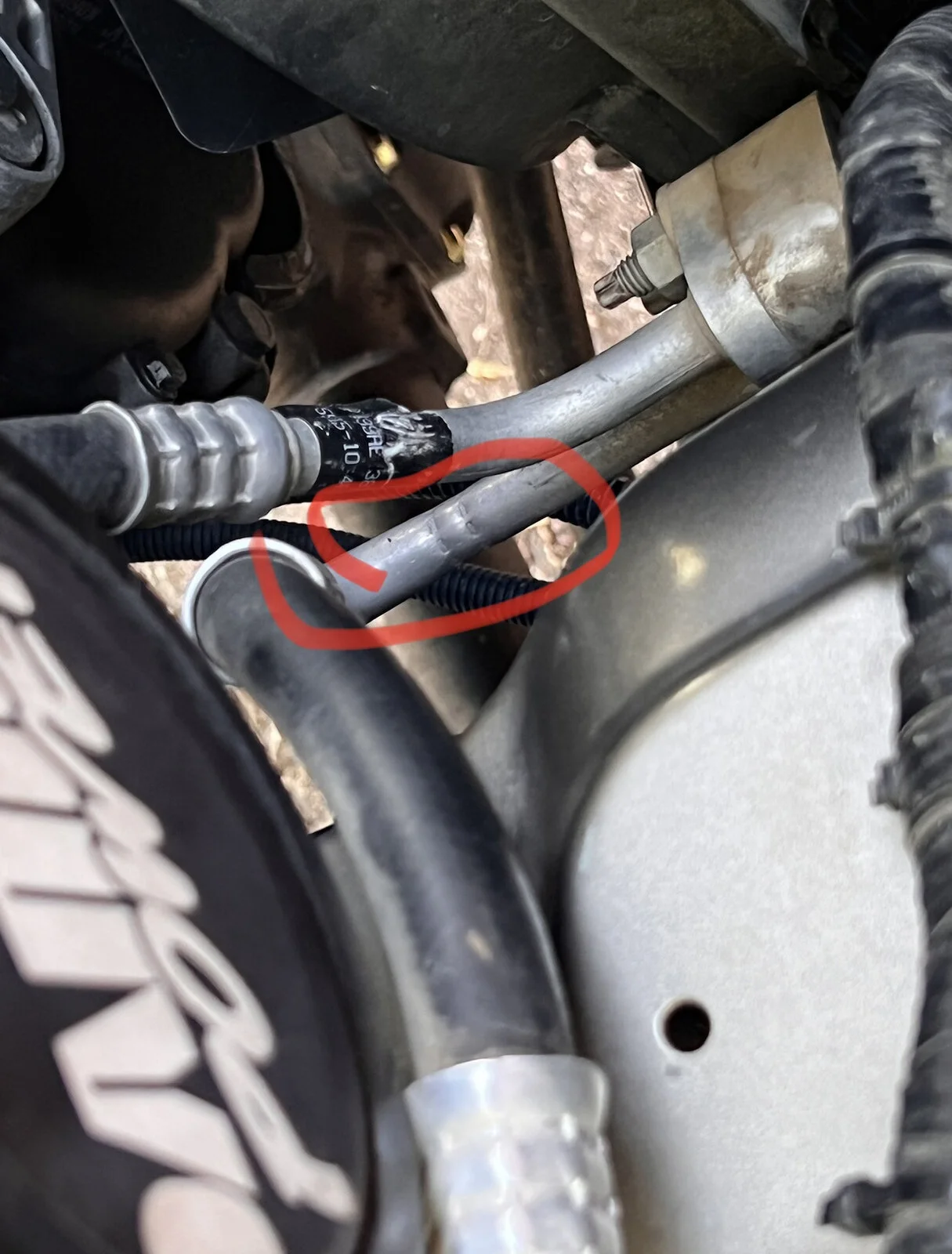

If this is the line with the crimped-in orifice tube near the 90 degree bend off of the condenser that runs on top of the inner fender and then back to the Evaporator then I was in your position two years ago (no oem part to be found for my 2005).

I reluctantly went aftermarket and have made it through the better part of two Arizona summers without issue. Would purchase again. I purchased off of rockauto, but it’s available on Amazon.

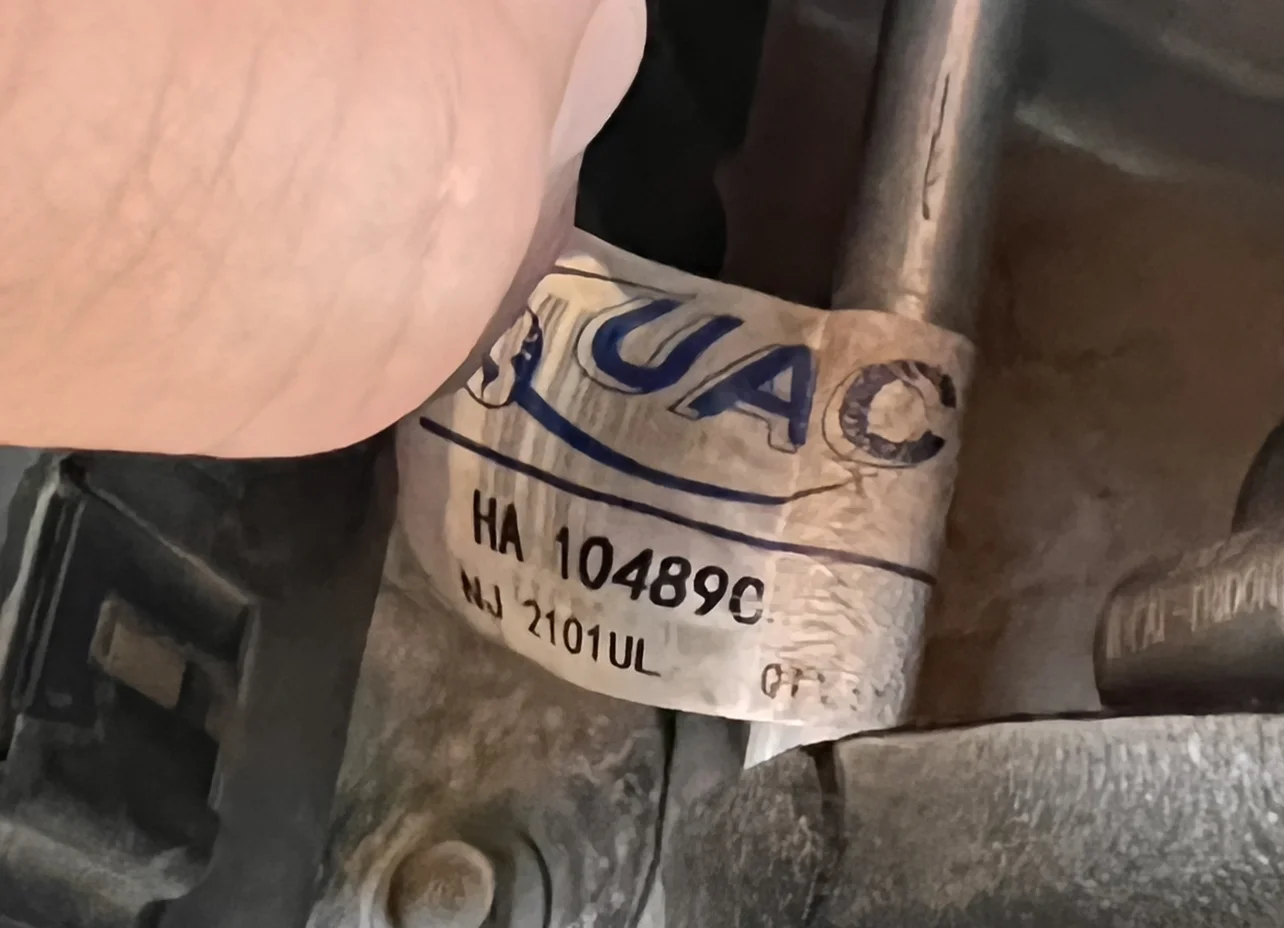

Part info: UAC HA 10489C A/C Refrigerant Liquid Hose



[voodooridr]

I think mine came from JeepAir
https://jeepair.com/collections/liq...quid-line-orifice-tube?variant=32066954592341



[06LJR]

If this is the line with the crimped-in orifice tube near the 90 degree bend off of the condenser that runs on top of the inner fender and then back to the Evaporator then I was in your position two years ago (no oem part to be found for my 2005).

I reluctantly went aftermarket and have made it through the better part of two Arizona summers without issue. Would purchase again. I purchased off of rockauto, but it’s available on Amazon.

Part info: UAC HA 10489C A/C Refrigerant Liquid Hose

View attachment 379710

View attachment 379711

View attachment 379712

Thanks @Mikee024 ! Awesome info. I found it on Amazon but they say it doesn't fit the '06. I'm sure they're wrong. It's about half the price on RockAuto so I'll give that a go.
I like the idea of the section of rubber hose just because I'm starting a DIY highline fender mod and was worried about how to reorient that pipe without hurting things. I think this may do the trick, and it's cheap enough to be worth the try.
Thanks also @voodooridr . That will be my backup choice if this doesn't pan out.



[MikeE024]

Thanks @Mikee024 ! Awesome info. I found it on Amazon but they say it doesn't fit the '06. I'm sure they're wrong. It's about half the price on RockAuto so I'll give that a go.
I like the idea of the section of rubber hose just because I'm starting a DIY highline fender mod and was worried about how to reorient that pipe without hurting things. I think this may do the trick, and it's cheap enough to be worth the try.
Thanks also @voodooridr . That will be my backup choice if this doesn't pan out.

Best of luck man. It took me two purchases to get a line that worked.

Fwiw, I noticed that some websites list the incorrect line description and others list the incorrect application.

In situations like this I try to go with Amazon prime for easy returns.

There’s a GDP line similar to mine that’s listed for the 2005 on RA, but not the 2006. And that line has conflicting info in its description regarding where it attaches.

I don’t see my exact purchase available on RA for 2005 or 2006, but it worked for my 2005. I see it on Amazon and it says it will fit my 2005 but not your 2006. eBay says it doesn’t work for my 2005.

Hopefully @voodooridr’s line works well if this one doesn’t work. Godspeed Jeep friend
