Factory heat shield pic request

SkylinesSuck

SkylinesSuck

TJ Expert
Supporting Member
Joined
Mar 28, 2020
Messages
4,349
Location
Northern VA
I think one of a couple different shops I had do work on my Jeep over the past few years removed the factory heat shield that sits above the skid plate/cat/muffler. There are two from my memory but I only have one, and I see the quick nuts that look like held them on against the bottom of the tub.

Could you guys snap a couple pics of under there next time you are under your Jeep for me? Considering fabing one up myself using the original as a general guide

Thanks in advance!

Last edited:
SkylinesSuck said:
I think one of a couple different shops I had do work on my Jeep over the past few years removed the factory heat shield that sits above the skid plate/cat/muffler. There are two from my memory but I only have one, and I see the quick nuts that look like held them on against the bottom of the tub.

Could you guys snap a couple pics of under there next time you are under your Jeep for me? Considering fabing one up myself using the original as a general guide

Thanks in advance!
Click to expand...
Pretty sure I have one you can use as a template. I'd offer it up for you, but need to replace a damaged one.

  • Like
Reactions: SkylinesSuck
Thanks man! I think a damaged one would suit me just fine to copy too 🙂

I also think maybe there are two different versions; early vs late. Not sure if compatible, but they can't be too different.




  • Like
  • Love
Reactions: SkylinesSuck and Irun

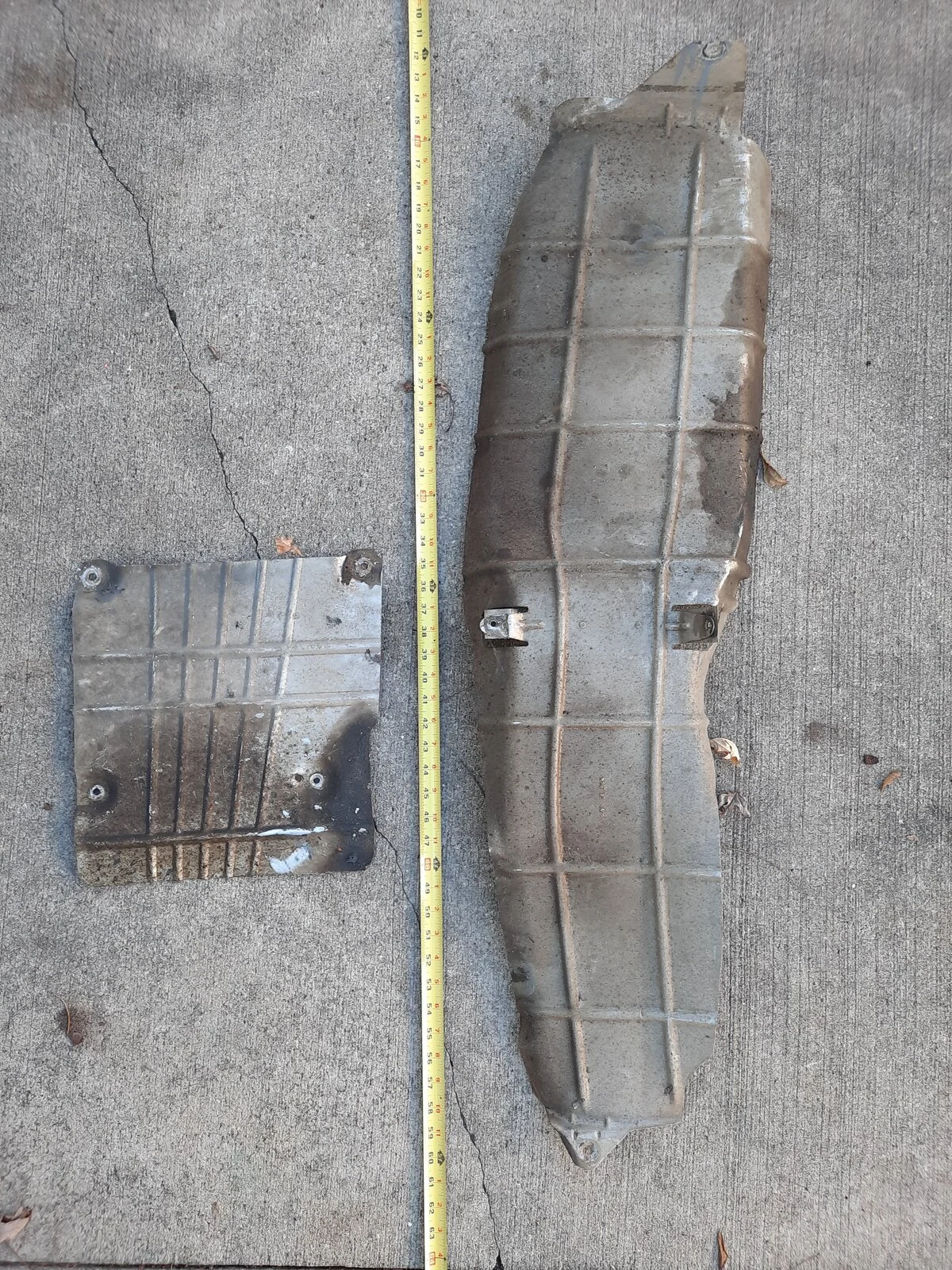

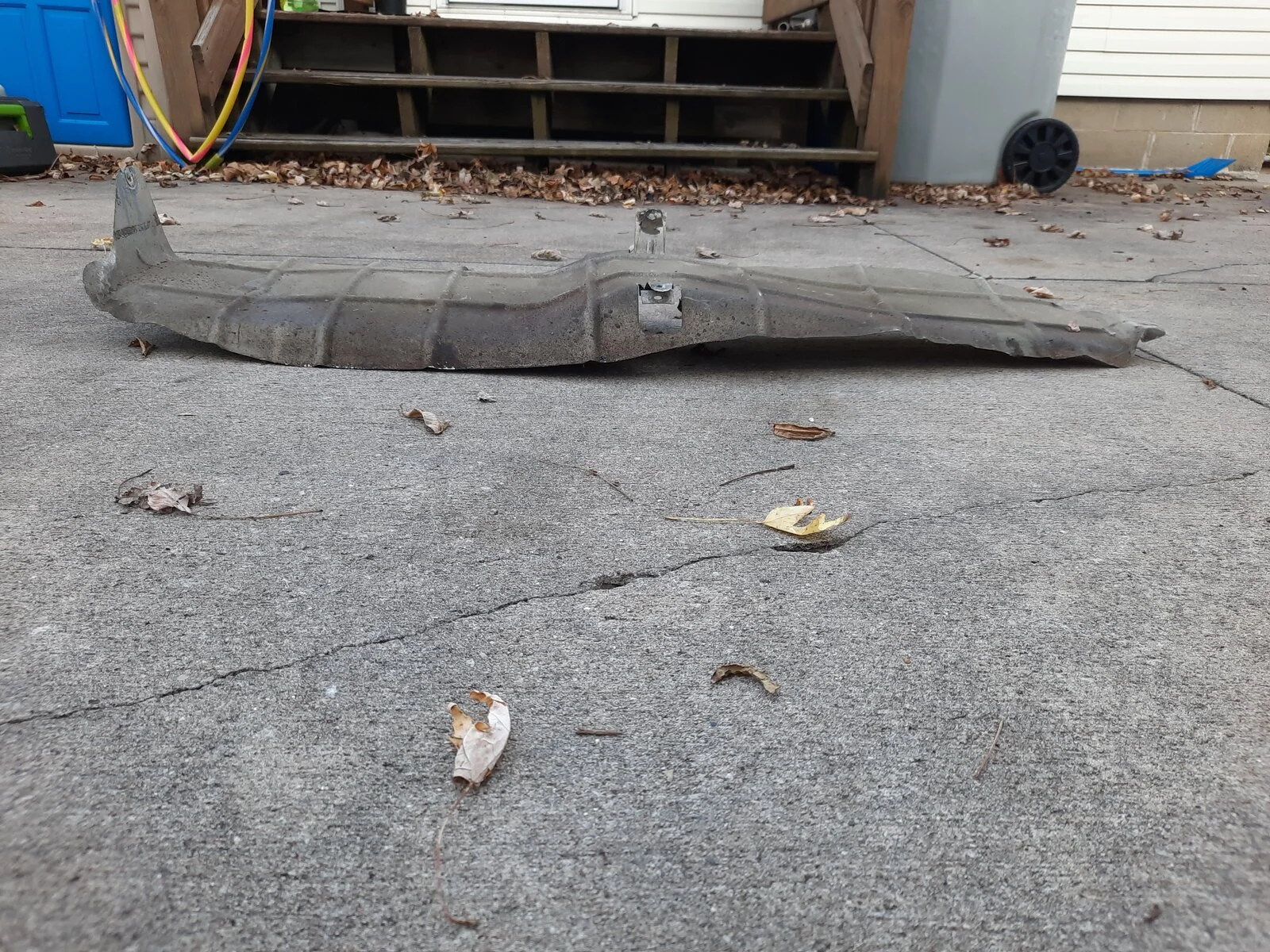

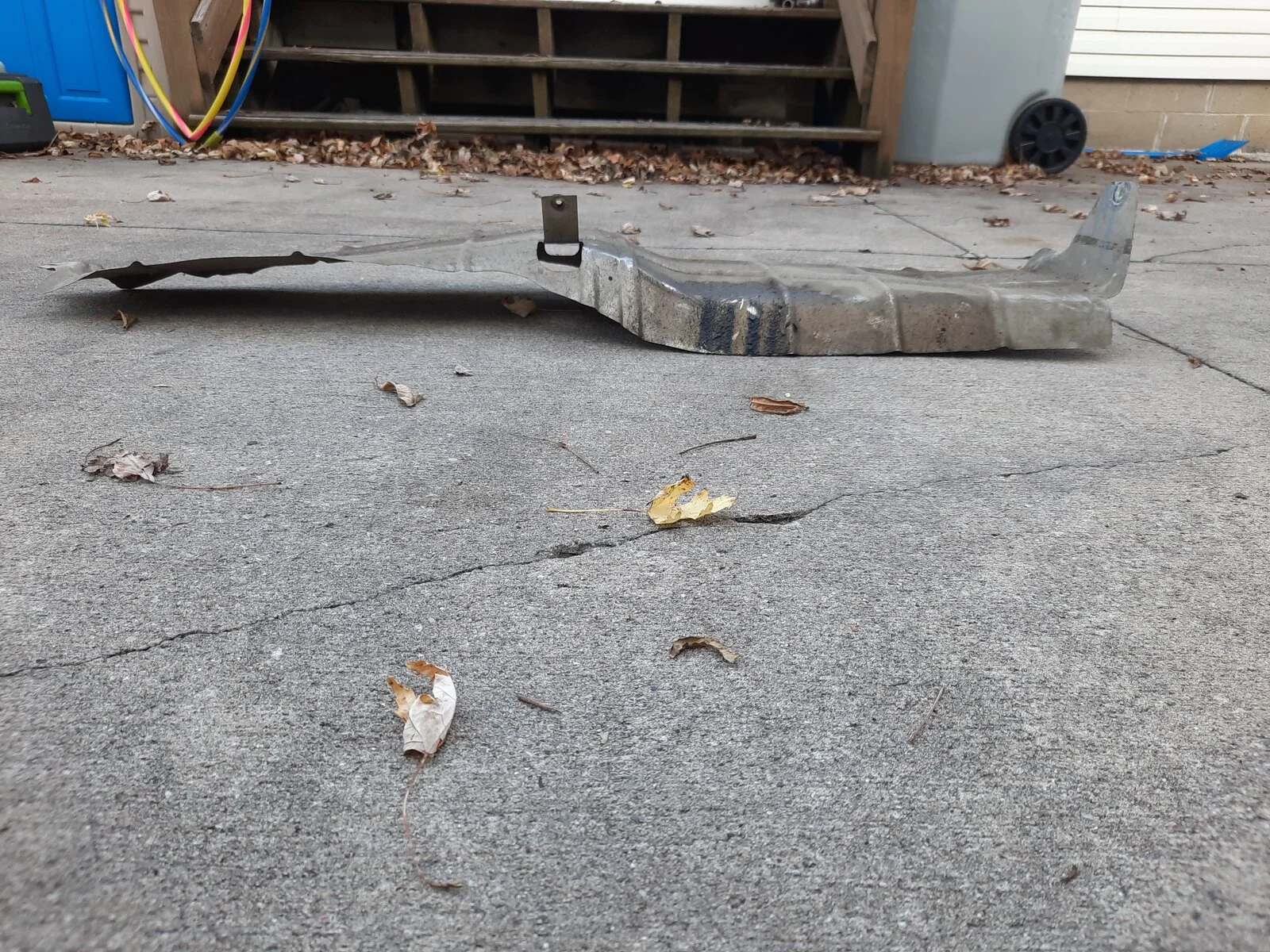

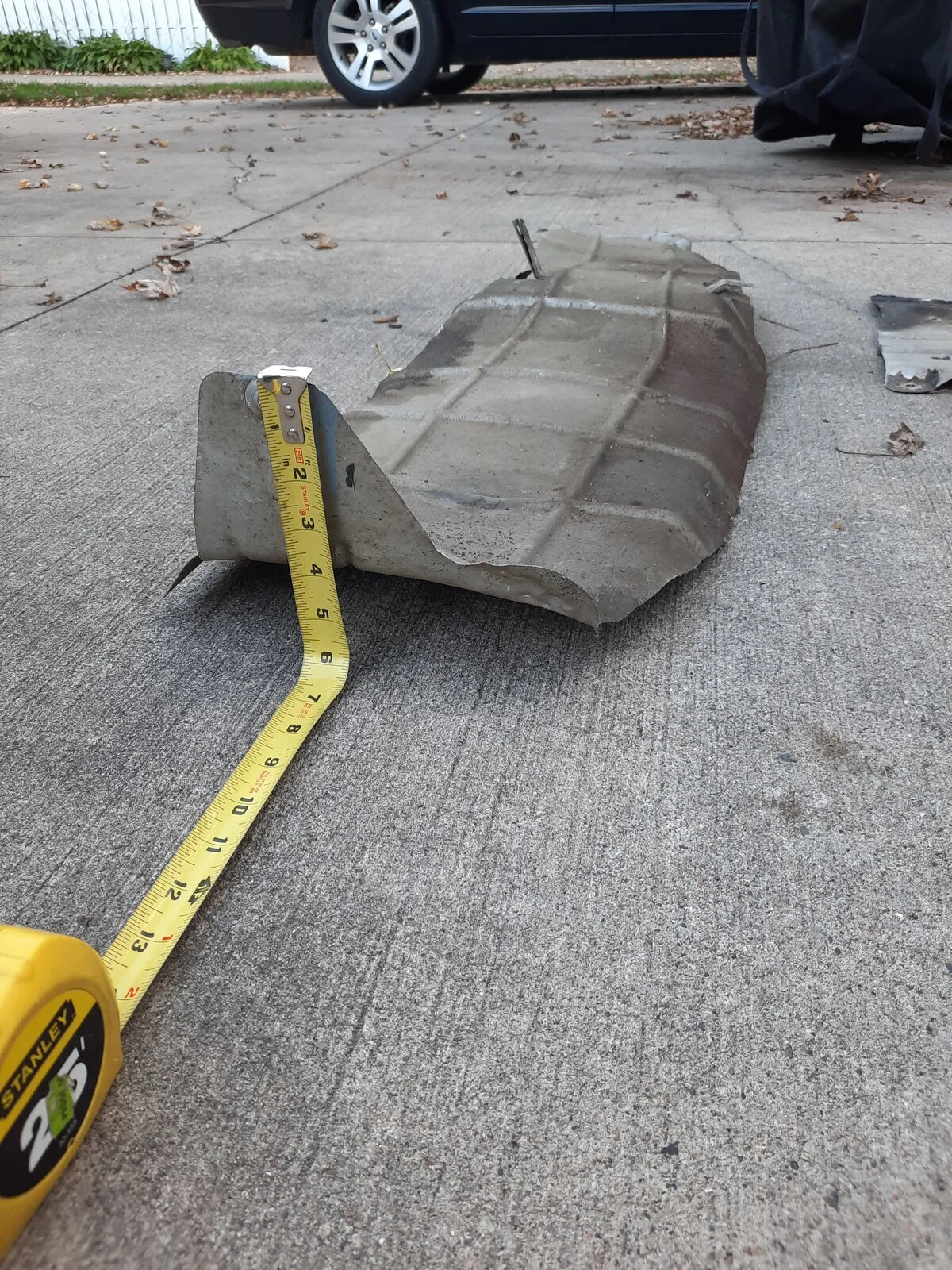

That's off a '98 btw, dunno if it's different on the later years. Sorry, you can't have these, they're going back on my tub when I'm done fixing it.

That's great! Thanks man. Seeing it out and not installed helps a lot. There are definitely two different styles. Mine is a '98 as well. Hoping to see the other version and some installed shots if anybody has them as well.

I appreciate the help guys!
