Fixing a busted console lid

jblues1969

jblues1969

Member
Original poster
Joined
Dec 9, 2022
Messages
97
Location
Waxhaw, NC
I'm going to log my progress in this attempt to repair a broken console lid.

The previous owner must have stepped on it or something. It's busted through.



They put a rough country cover on it, but I hate the tire tread look, so I bought a new cover that matches my neoprene seat covers. I want to repair it structurally and make it look at least decent.

I'm beginning to wish I had a larger 3D printer, because if I had a 400mm one, I could potentially print a whole new lid. Instead, I'm going to print diamonds to insert into these corrugations underneath.



Here's a proof of concept:



After printing those, I realized I could print larger diamonds with slots to pull together the edges of the broken pieces better. This is what I will be epoxying into place:



It's too damn cold in NC to pour epoxy right now, so that will be on hold for a couple of days. I'll be back with the results of that later on.

Next steps:
1. Wait for it to warm up
2. Epoxy the diamonds into place
3. Sand the top
4. Fill cracks with epoxy or super glue
5. Sand it again
6. Color Bond

  • Like
Reactions: WestCoastDan, J.Pierce, inkedrose and 5 others
hardtailpan said:
It's not too cold if you do it on the kitchen counter! The wife loves the smell of epoxy!

Follow me for more relationship advice....
Click to expand...

LOL! It's on the kitchen counter all clamped together right now. A few years back my parents and me and my wife decided to buy a big house and all move in together to avoid retirement community savings grabs, so my mom is the one that won't tolerate that for long. I think I have 24 hours.

  • Like
  • Wow
Reactions: BlueC, Blondie70, JustDandee and 1 other person
Paparock1 said:
Fixing something yourself is aways rewarding. If you finish and are noy happy. I have the same color lid that I am not using as I have a ammo can. It does jave the tread cover on it also but it is not broken. You can have it you only pay shipping.
Click to expand...

I'll get back to you on that. Even if this works, I may do that anyhow. Color doesn't matter much since I still have 2 cans of Color Bond. I'm halfway considering doing it in yellow. :D

  • Like
Reactions: Paparock1
I have used JB weld as a filler- works well on old 60’s steering wheel cracks and is sandable- just throwing out an option

OK here's the wrap up. I didn't get it looking like new, of course. but it's solid and not terrible looking, honestly.

Sanded (80 grit) and superglued.


Sanded again (80 grit)


First coat of Color Bond


Sanded with 180 grit, then another pass with Color Bond, and this is what I'm calling "done"

It's solid as a rock. I bet you can actually stand on it like the previous owner did, but without breaking it.

  • Like
Reactions: Kenneth G Zinis, JustDandee, J.Pierce and 4 others
jblues1969 said:
OK here's the wrap up. I didn't get it looking like new, of course. but it's solid and not terrible looking, honestly.

Sanded (80 grit) and superglued.

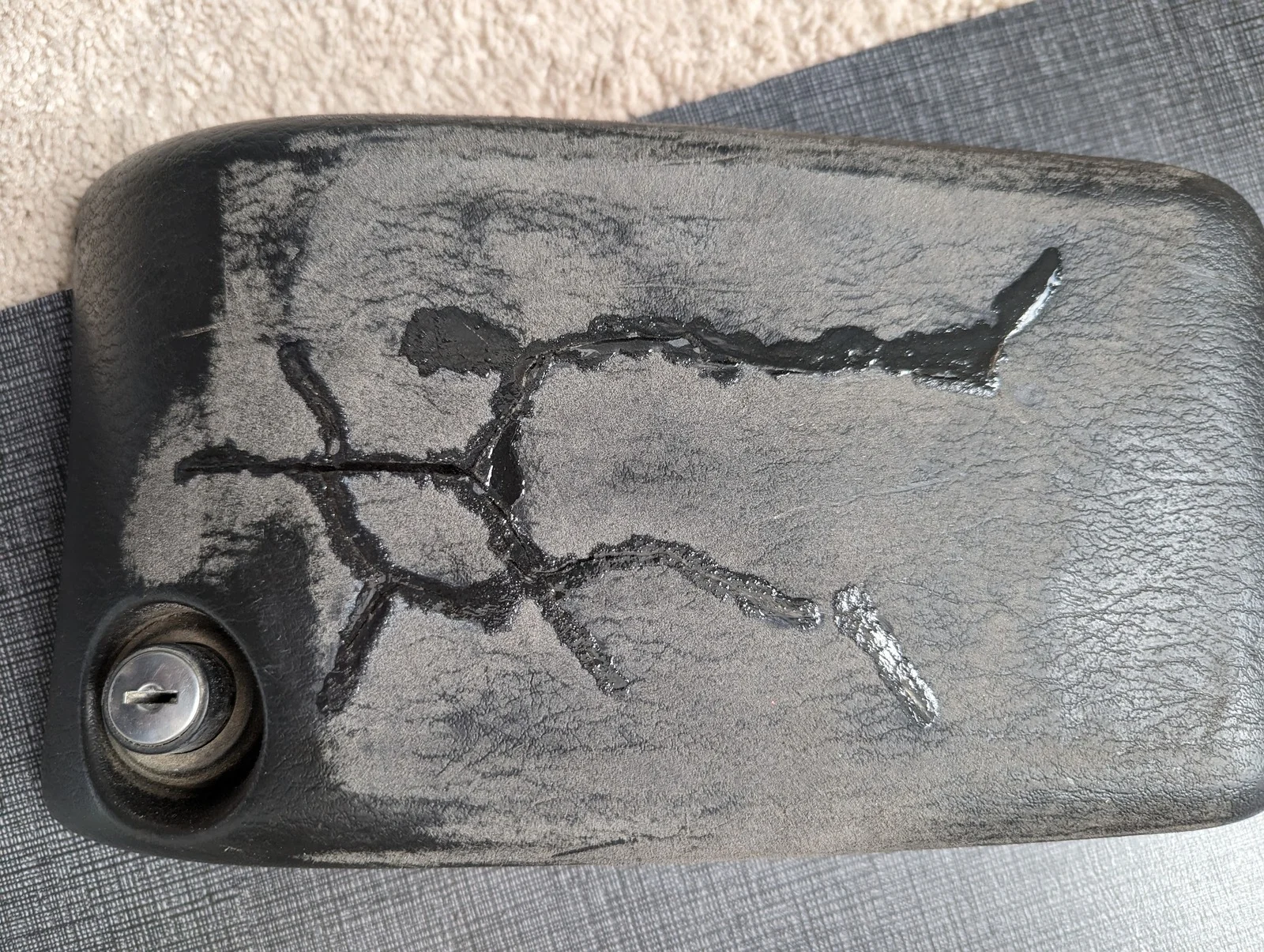

View attachment 387372

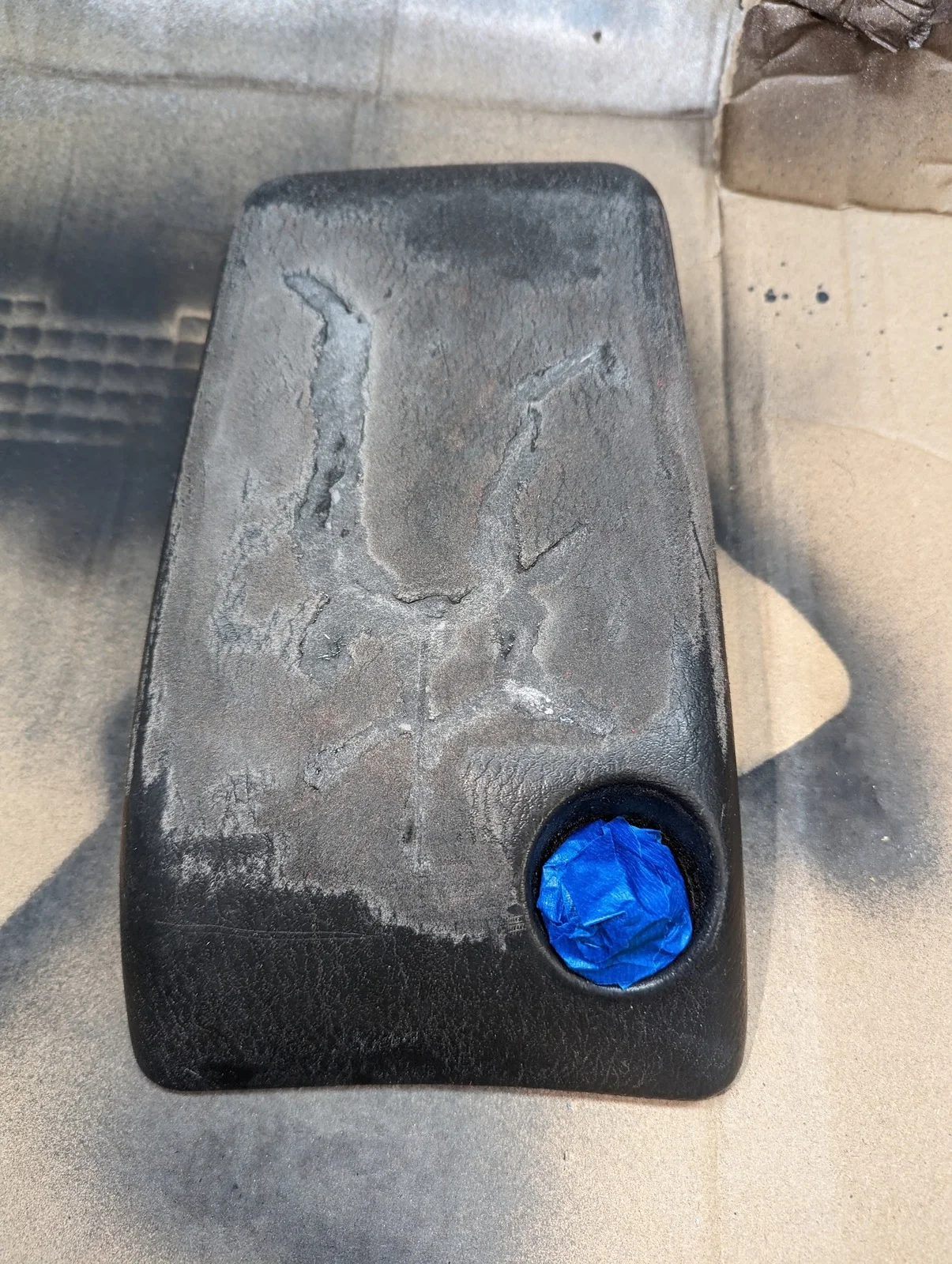

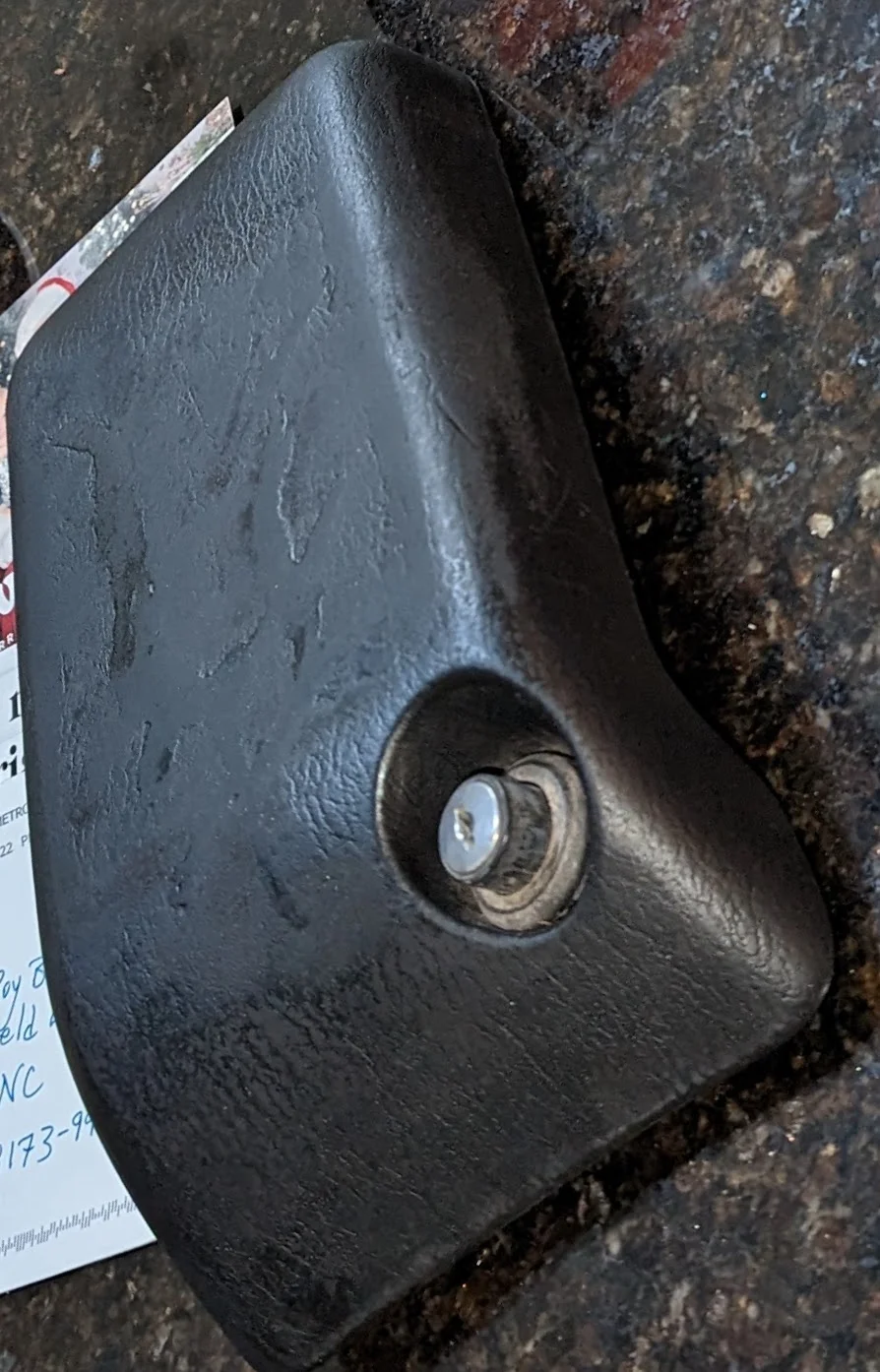

Sanded again (80 grit)
View attachment 387373

First coat of Color Bond
View attachment 387374

Sanded with 180 grit, then another pass with Color Bond, and this is what I'm calling "done"

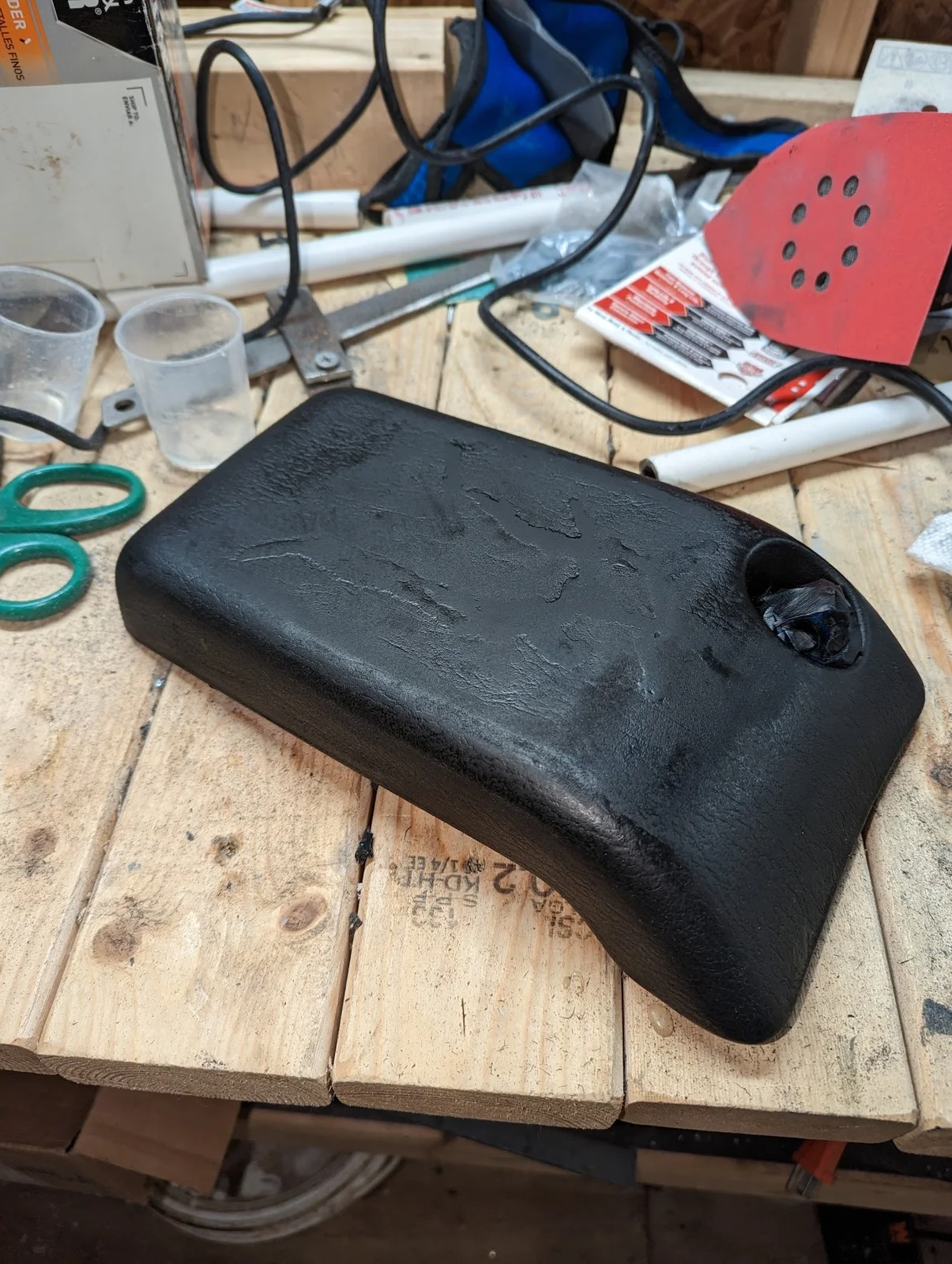

View attachment 387375
It's solid as a rock. I bet you can actually stand on it like the previous owner did, but without breaking it.
Click to expand...

Nice work. What were your material costs for the 3d printing, and how long did it take to print?
