No Tail light/instrument cluster lights.

[sunnysideup_lj]

I need some help.

My brother recently replaced his heater core. 2005 LJ non rubicon.

When we got it back together he has no tail lights (blinkers, brakes or running lights). Along with no dash lights. The Gauges and odometer work, but no other lights.

We have checked fuses, changed the MF switch. And tore the dash back off to see if any wires were pinched, everything looked good.

Where should I go next? I have read the service manual but am not getting anywhere.



[sunnysideup_lj]

Fuse 1-4 on the interior fuse block have no power



[Lou]

Hows fuse 3 under the hood look?



[sunnysideup_lj]

Hows fuse 3 under the hood look?

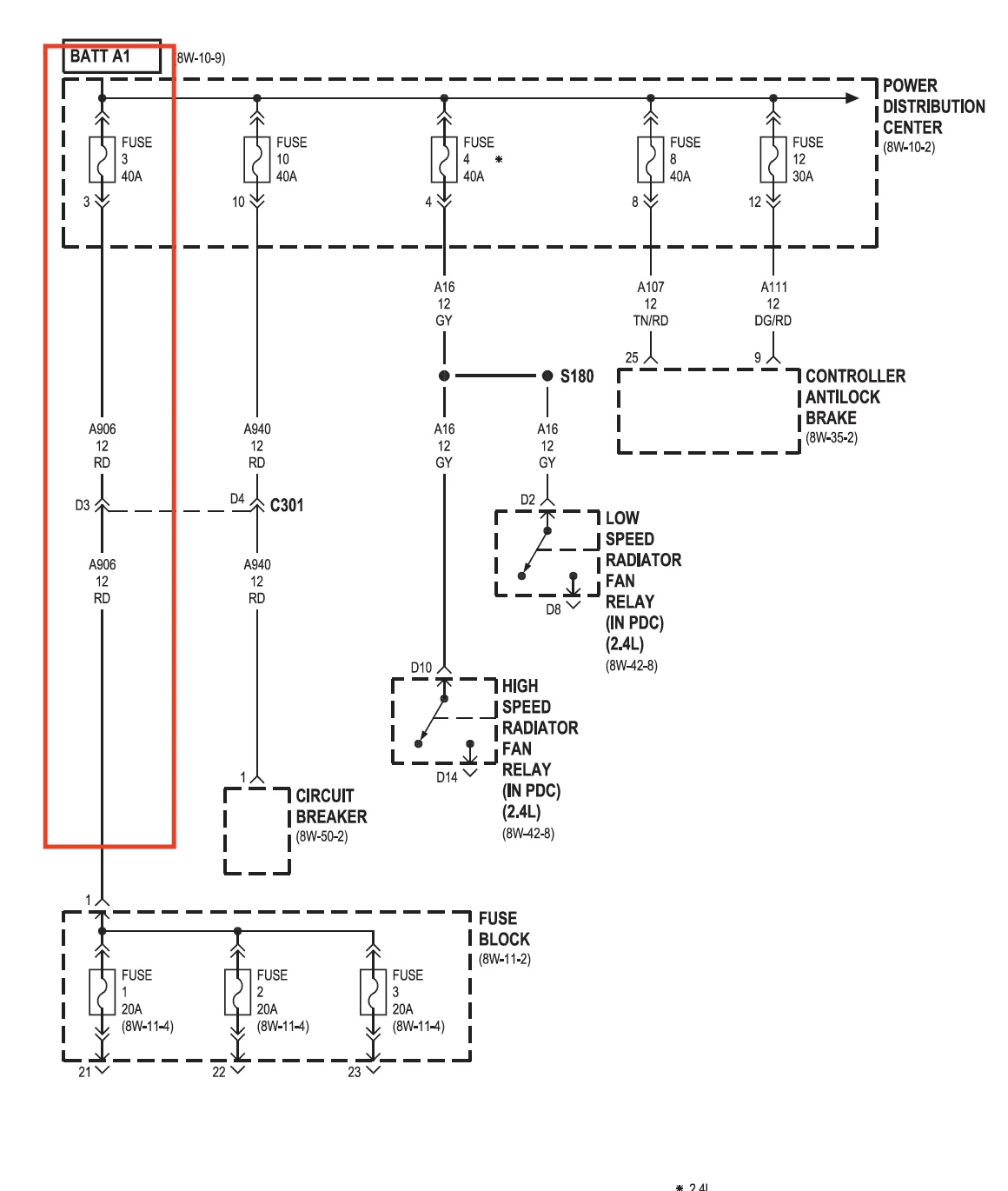

View attachment 333778

Fuse was blown.

Replaced fuse, everything is working now.

The dash blinks “no fuse”

Any ideas there?



[Lou]

no fuse means the 10 amp accessory fuse under the hood is blown. Not at a computer to look up the schematic.
