Jeep Wrangler TJ Performance PCM Tuning

Should the multifunction switch harness look like this?

Jaime Rangel said:

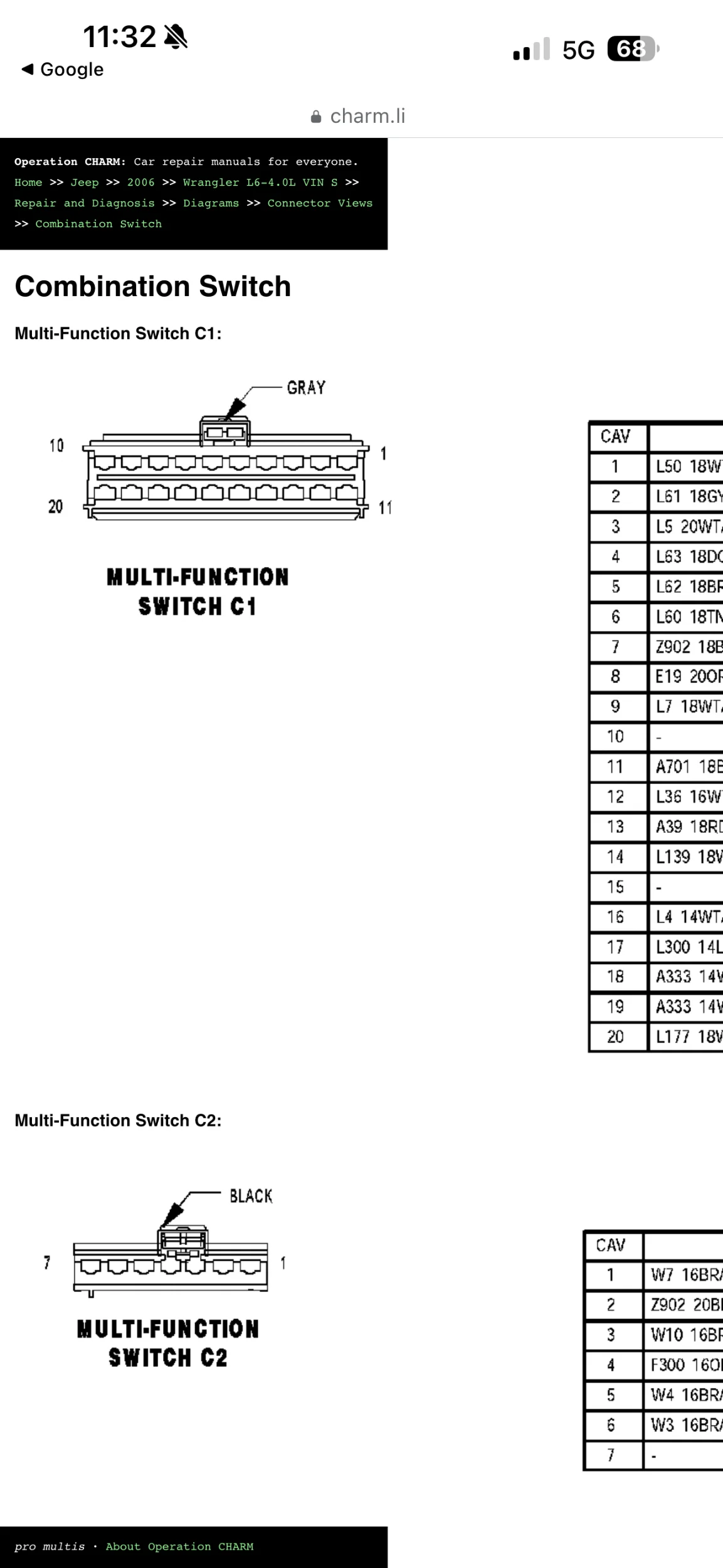

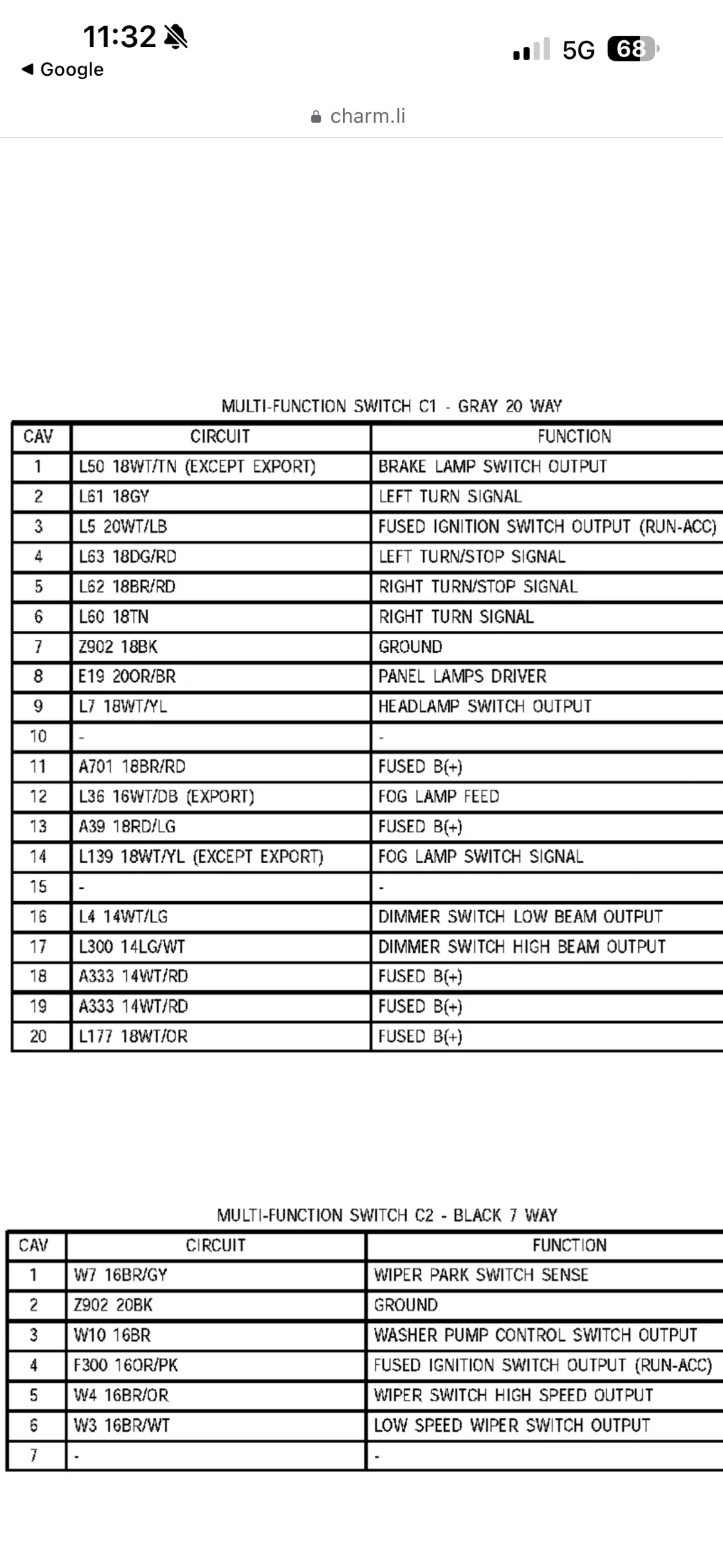

Does anyone have an image of how to connect the colored wires to the new connector?
Click to expand...
