What is the proper method for sway bar end link adjustment?

AndyG

TJ Expert
Supporting Member
Joined
Jul 30, 2018
Messages
3,831
Location
Alabama
What is the proper method for sway bar end link adjustment ? Should the bar be under tension, etc ... thinking I have a little excess body roll


4" lift , 33" tires, 26 psi , Rancho 50000 shocks


05 Blue Unlimited

TJ Addict
Ride of the Month Winner
Joined
Apr 27, 2016
Messages
1,492
Location
Oro Valley, AZ,
Oh, many after market end links are. Mine are set for 0, but there is no torsion in the bar itself without the links connected. It looks like their "ideal angle" is 10° and should be set the same on both sides. I would suspect it very difficult to induce torsion in the bar by adjusting it.

OP
AndyG

AndyG

TJ Expert
Supporting Member
Joined
Jul 30, 2018
Messages
3,831
Location
Alabama
M
Preloading the sway bar will cause the body to lean one direction.
Maybe I'm using the wrong term..does getting 10° of inclination create pre load or do you set them to how everything is at rest .

Jeep is just a tad darty and I can't find a thing wrong with parts , alignment or pitman arm and tires are fairly new and inflated to 26 psi.


05 Blue Unlimited

TJ Addict
Ride of the Month Winner
Joined
Apr 27, 2016
Messages
1,492
Location
Oro Valley, AZ,
Ok so I should ask, what are you chasing just body roll?

No the bar has no load on it when the end links are connect with the jeep (wheels) on level ground. Torsion is on the bar only when the one wheel is off plane (either higher or lower) when compared to the other wheel. Without the end links connected the bar itself will rotate freely.

  • Like
Reactions: TJMIKE

jjvw

0-60 in 18 seconds
Supporting Member
Joined
Feb 17, 2018
Messages
8,683
Location
Colorado, USA
M
Maybe I'm using the wrong term..does getting 10° of inclination create pre load or do you set them to how everything is at rest .

Jeep is just a tad darty and I can't find a thing wrong with parts , alignment or pitman arm and tires are fairly new and inflated to 26 psi.
That wouldn't be preload. That angle is just the arm position at ride height. The correct arm position is the one that places the arm horizontally at the mid point of the shock travel. It is also a position that does not allow the sway bar to over-extend a joint or invert at full droop.

Last edited:
OP
AndyG

AndyG

TJ Expert
Supporting Member
Joined
Jul 30, 2018
Messages
3,831
Location
Alabama
Ok so I should ask, what are you chasing just body roll?

No the bar has no load on it when the end links are connect with the jeep (wheels) on level ground. Torsion is on the bar only when the one wheel is off plane (either higher or lower) when compared to the other wheel. Without the end links connected the bar itself will rotate freely.
Thank you I'm just trying to figure out why this thing is trying to hunt just a little bit as it goes down roads that have any bumps at all.


Allstar424

TJ Enthusiast
Supporting Member
Joined
Feb 15, 2019
Messages
119
Location
Central Point, OR
Jeep is just a tad darty and I can't find a thing wrong with parts , alignment or pitman arm and tires are fairly new and inflated to 26 psi.
Interesting, I haven't heard of preloading or adding tension to the sway bar. Could the slight "dart" be coming from a worn steering gear?

OP
AndyG

AndyG

TJ Expert
Supporting Member
Joined
Jul 30, 2018
Messages
3,831
Location
Alabama
I don't think so it's only got 31,000 miles and it is nice and tight.

It makes you have to do a lot of little corrections and it seems like it just started doing that and everything is in spec....to my knowledge.

Common reason tells you something changed... Or maybe I just started paying attention to it.

It drives fantastic on a really smooth road but that's hard to find in Alabama.

  • Like
Reactions: Allstar424

05 Blue Unlimited

TJ Addict
Ride of the Month Winner
Joined
Apr 27, 2016
Messages
1,492
Location
Oro Valley, AZ,
Thank you I'm just trying to figure out why this thing is trying to hunt just a little bit as it goes down roads that have any bumps at all.
oh Ok so its fair to say it is more of a wandering down the road thing than body roll? (The sway bar does affect body roll but not wandering).

OP
AndyG

AndyG

TJ Expert
Supporting Member
Joined
Jul 30, 2018
Messages
3,831
Location
Alabama
O
oh Ok so its fair to say it is more of a wandering down the road thing than body roll? (The sway bar does affect body roll but not wandering).
Ok, that's me chasing squirrels. Figured that was the case .


05 Blue Unlimited

TJ Addict
Ride of the Month Winner
Joined
Apr 27, 2016
Messages
1,492
Location
Oro Valley, AZ,
O
Ok, that's me chasing squirrels. Figured that was the case .
No not saying that at all, wandering can be cause by worn (or old) components or incorrect toe, but there are a lot of variables to it that I no experience with and so can't help there. I can only say the sway bar is not the cause.


Creakydoor

TJ Enthusiast
Supporting Member
Joined
Jul 17, 2018
Messages
248
Location
Arvada, Colorado

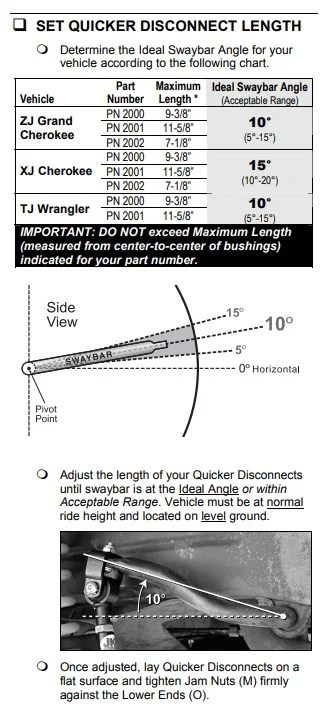

Today I am installing some Rubicon Express quick disconnect sway bar links. The instructions also say to set the 10 degree angle. I measured the angle of the sway bar with the level on my phone and it shows it’s 10 degrees up. And if I eyeball it it is slightly up, so I think it’s right. But I would love to get a second opinion from some of the experts here.

Also, I would love to know if this isn’t a huge deal to be precise with the angle (e.g. if it’s a few degrees off is that ok). I know they are adjustable, but I do need to drill a hole in the frame to secure them to when disconnected, so I want to get it right.

Side comment: When I did my lift I never got new sway bar links. So my stock ones were actually going down by 6 degrees. So that’s quite a bit off.

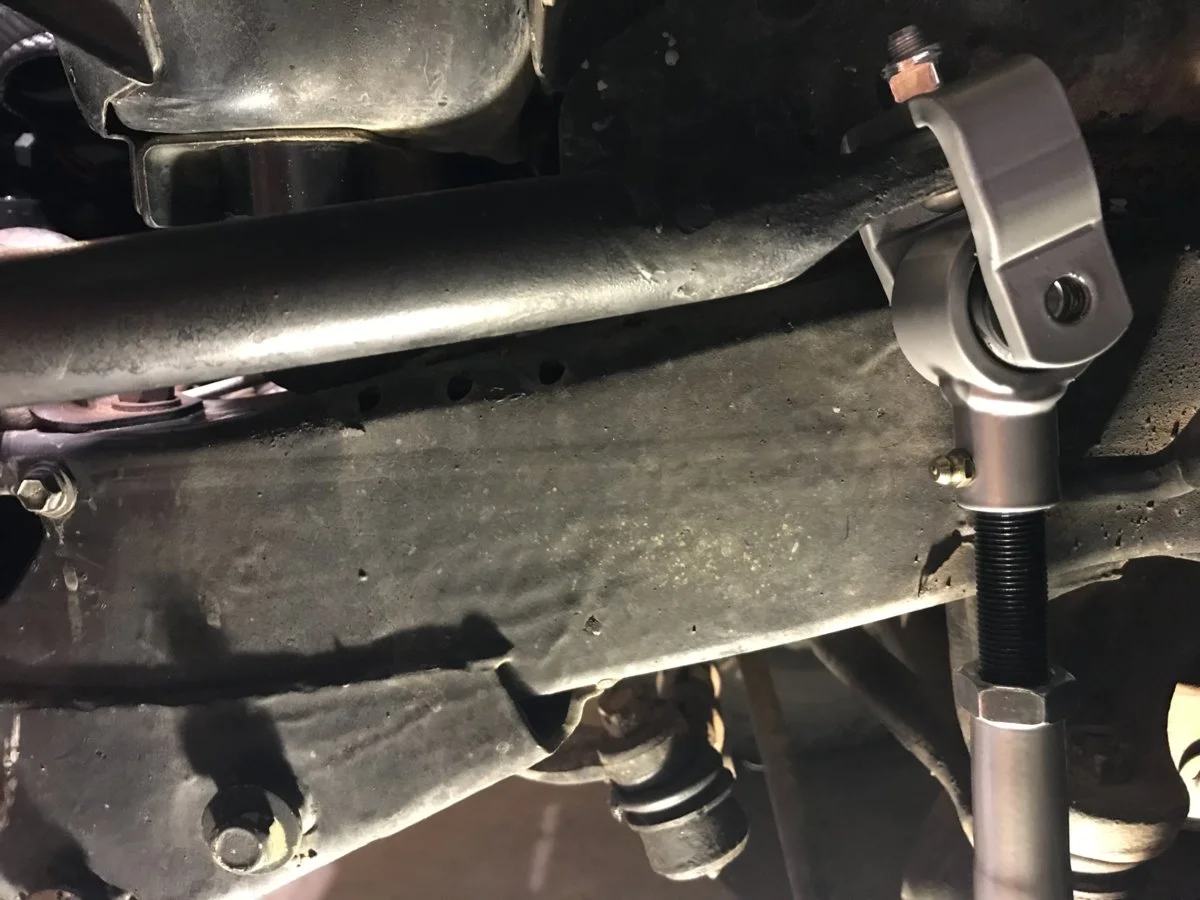

Pictures are how it looks relative to the frame. And the screenshot from my phone level. :)






  • Like
Reactions: Tj Starting

astjp2

TJ Addict
Joined
Aug 22, 2018
Messages
2,828
Location
Utah and Alaska
Your wandering may be due to too wide of a stance, swap some narrower/ less offset tires and wheels on and take it for a drive, you might be surprised.


Goatman

TJ Addict
Supporting Member
Joined
Apr 23, 2019
Messages
1,543
Location
Upstate NY

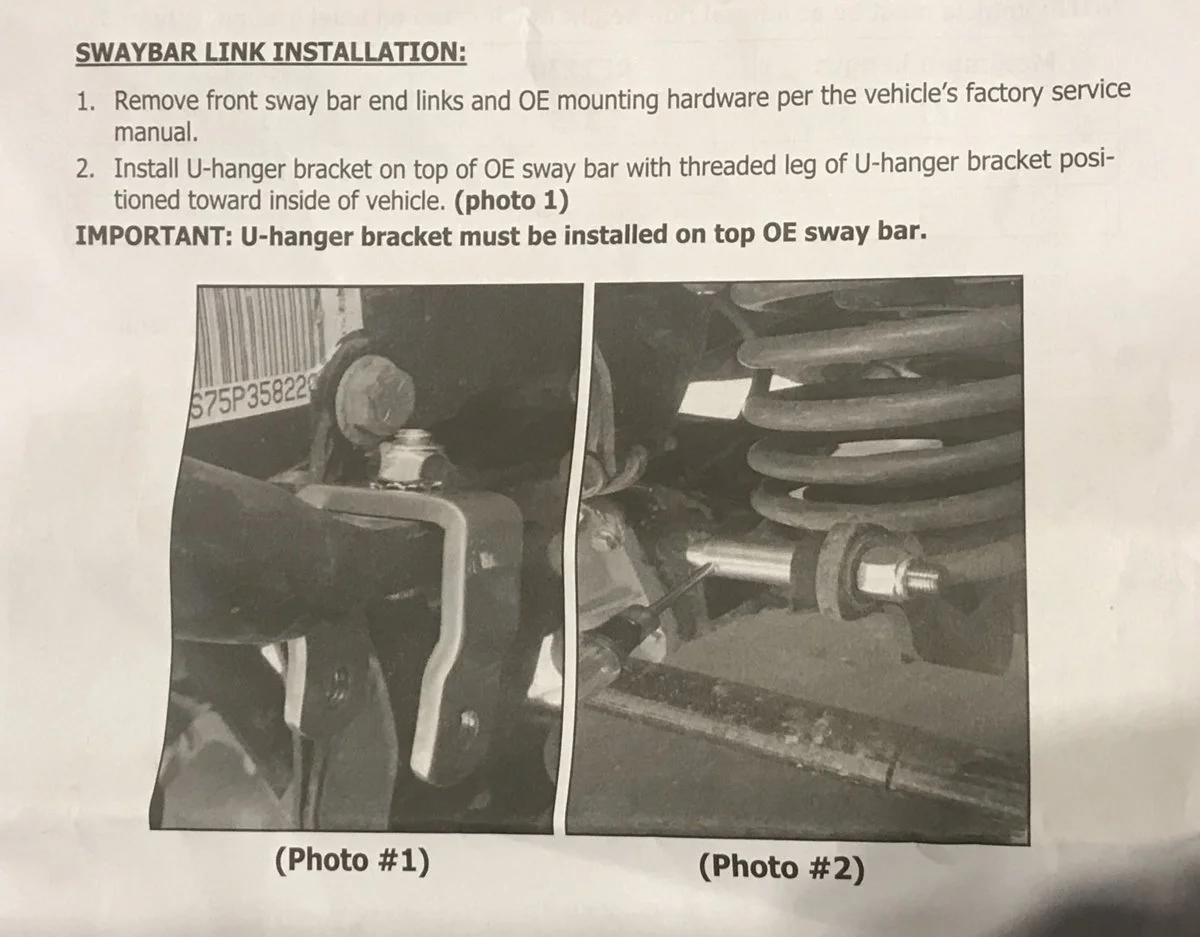

The part that bolts to the antisway bar is under the bar, not over the bar on the ones I've bothered to look at. Willing to be wrong, but check the instructions.


05 Blue Unlimited

TJ Addict
Ride of the Month Winner
Joined
Apr 27, 2016
Messages
1,492
Location
Oro Valley, AZ,
IDK, before my 2.5 lift the SB was virtually flat with the original links so when I installed adj end links I set it the same way. Also there is a hole already in the frame so in my case no need to drill.
