Broken bump stop cup bolt

Cheetokps

Cheetokps

TJ Enthusiast
Supporting Member
Joined
Jul 23, 2020
Messages
591
Location
Wallingford, CT

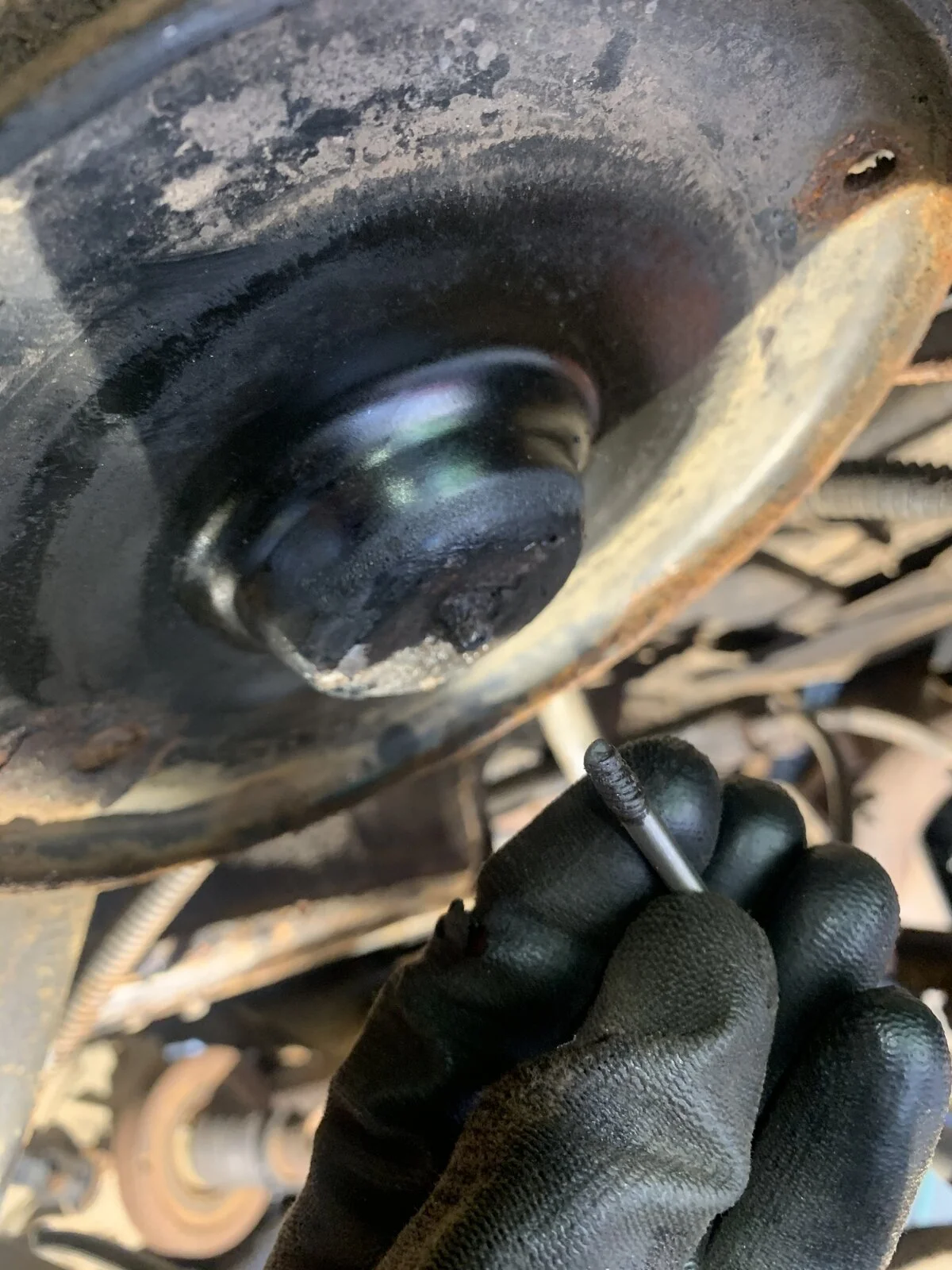

I’ve been working on installing my lift and unfortunately snapped my rear bump stop cup bolt off. I tried kroil, my new map gas torch, and Vice grips but my vice grips didn’t have enough grip on it. I also tried drilling and using a bolt extractor, but the extractor broke off inside (don’t know why I keep trying them, they keep doing that).

Any suggestions on getting it out? I’m tempted to go buy a cheap harbor freight welder to weld a nut into it, but i would prefer to not have to buy one and also it seems too close to the gas tank.

Might try some better vice grips that would have more grip, and might buy done expensive drill bits to drill the extractor out but not sure either if those will work.

Cutting it flush and drilling it out is one option better vice grips could work as well. Heat and soak the bolt with oil as much as you can.

Do you have access to a welder? The way I’ve extracted bolts like that is to clean it as best I can and weld a nut onto the exposed threads. Then use the appropriate sized wrench or socket to remove it.

Lax22 said:
Cutting it flush and drilling it out is one option better vice grips could work as well. Heat and soak the bolt with oil as much as you can.

Do you have access to a welder? The way I’ve extracted bolts like that is to clean it as best I can and weld a nut onto the exposed threads. Then use the appropriate sized wrench or socket to remove it.
Click to expand...
Unfortunately not, I am considering buying a cheap one for this however it worries me being so close to the gas tank.

Cheetokps said:
Unfortunately not, I am considering buying a cheap one for this however it worries me being so close to the gas tank.
Click to expand...
Well on a bright note if things go south you won’t have to worry about the bolt........
Soak it in a good penetrating oil. Go get a pair of vise grip pliers that will work for the job. Use some heat, but be Careful not to get the bolt too hot or you may harden it making it very difficult to drill out further.
Can you get some oil on top/inside of the cup? That would really let it soak in if it’s possible.

  • Like
Reactions: Lax22 and Cheetokps
Gollywomper said:
Well on a bright note if things go south you won’t have to worry about the bolt........
Soak it in a good penetrating oil. Go get a pair of vise grip pliers that will work for the job. Use some heat, but be Careful not to get the bolt too hot or you may harden it making it very difficult to drill out further.
Can you get some oil on top/inside of the cup? That would really let it soak in if it’s possible.
Click to expand...
I sprayed a bunch of kroil in the top of the cup last night but there’s so much dirt in there idk if it’s getting to the bolt. I tried scraping it out with a screwdriver and blasting it with air but there’s still a lot.

The big vice grips that I was seeing look like they would only work for bigger bolts not something smaller like this bolt, so I’m not sure I could get any better than the ones I have

Broke the bolt on the other side too. Picked up some vice grips i have to try out after work and have it soaking in kroil but don’t have a lot of hope it will work. Also got some cobalt drill bits that I might try drilling the bolts out with

Cheetokps said:
Broke the bolt on the other side too. Picked up some vice grips i have to try out after work and have it soaking in kroil but don’t have a lot of hope it will work. Also got some cobalt drill bits that I might try drilling the bolts out with
Click to expand...
The 5 dollar cobalt or the 125 dollar carbide ones? It makes a difference

Drill it out. It is just plain steel - you'll be through it in no time. Just remember to work your way up to the correct diameter. It is easy to get in there crooked

  • Like
Reactions: Tob
Wingback73 said:
Drill it out. It is just plain steel - you'll be through it in no time. Just remember to work your way up to the correct diameter. It is easy to get in there crooked
Click to expand...
I bought one of those drill guide things which might help keeping it straight hopefully

My suggestion for drilling out broken bolts is to start with about a 3/16" "pilot" hole. Try to get this one as close to center and straight as possible, then, depending on bolt diameter, finish with one or two larger sizes. If you take too small of steps you'll keep breaking drill bits.

  • Like
Reactions: Tob and Cheetokps
matkal said:
My suggestion for drilling out broken bolts is to start with about a 3/16" "pilot" hole. Try to get this one as close to center and straight as possible, then, depending on bolt diameter, finish with one or two larger sizes. If you take too small of steps you'll keep breaking drill bits.
Click to expand...
I think it’s a 10mm bolt. I broke a bolt extractor off inside one of the bolts, so I might grind down the part of the bolt sticking out as much as I can first so there’s less material to drill through

  • Sad
Reactions: matkal
Cheetokps said:
I think it’s a 10mm bolt. I broke a bolt extractor off inside one of the bolts, so I might grind down the part of the bolt sticking out as much as I can first so there’s less material to drill through
Click to expand...
This is why I never use bolt extractors, you cannot drill through them. IDK if or how you get them out.
I'm not familiar with the bump stops to know if there's a way around this.

  • Like
Reactions: P man
matkal said:
This is why I never use bolt extractors, you cannot drill through them. IDK if or how you get them out.
I'm not familiar with the bump stops to know if there's a way around this.
Click to expand...
Yeah I’m kind of mad at myself because after I broke one off in my tailgate hinge I swore to never use them again. At least it’s a small one so hopefully these cobalt bits are good enough

Cheetokps said:
Yeah I’m kind of mad at myself because after I broke one off in my tailgate hinge I swore to never use them again. At least it’s a small one so hopefully these cobalt bits are good enough
Click to expand...
Maybe go nuclear and drill a series of small holes around it??? Ask Google how to remove a broken "easy"out??
