Custom rear bumper build

Mike_H said:
Watch the wrap on the bottom. You can wrap where it bolts through to the frame, but you have to leave it open where the cross member is. That is where the fuel tank skid bolts down.

Also...I didn't hear anything from you after I sent that CAD file... Did it work out for you?
Click to expand...
Good tip! I have already designed openings for the fuel tank skid bolts. Something like this:


I didn't leave it open, since I think it will be stronger this way.

You are right! I should have mentioned your Autocad file above! It was helpful. I removed my bumper to measure myself as well, but it was helpful to have some other measurements to compare as well. Thanks again! :)

  • Like
Reactions: JMT and Mike_H
TJim said:
Good tip! I have already designed openings for the fuel tank skid bolts. Something like this: View attachment 253679

I didn't leave it open, since I think it will be stronger this way.

You are right! I should have mentioned your Autocad file above! It was helpful. I removed my bumper to measure myself as well, but it was helpful to have some other measurements to compare as well. Thanks again! :)
Click to expand...
So...you have to pull the bumper to get the fuel tank skid off?

Mike_H said:
So...you have to pull the bumper to get the fuel tank skid off?
Click to expand...
Most likely yes. I am not 100% positive on that. I will come back when it's finished.

It is not something worrying me though, since I don't find myself often needing to remove the fuel tank skid.

TJim said:
Most likely yes. I am not 100% positive on that. I will come back when it's finished.

It is not something worrying me though, since I don't find myself often needing to remove the fuel tank skid.
Click to expand...
Until you do... Then you'll wonder why in the heck you did it. I've had my tank down 5 or 6 times. I thought about doing it like you did, but future tank removal kept me from doing so.

The other thing to mention is that if you have any bolts thru the cross member, between the frame rails, you have to drop the tank to get to the nuts, unless you make other provisions (flag nuts, welded on nuts, etc.).

TJim said:
Thats almost identical to my final design. Plus the hitch receiver in the middle instead of the logo! haha

I will gain a lot of clearance vs stock rear bumper for sure. I might measure the departure angle out of curiosity.
Click to expand...
Yeah, I need to get the hitch in mine still - with the LJ it will be close to flush for me!

  • Like
Reactions: TJim
Mike_H said:
Until you do... Then you'll wonder why in the heck you did it. I've had my tank down 5 or 6 times. I thought about doing it like you did, but future tank removal kept me from doing so.

The other thing to mention is that if you have any bolts thru the cross member, between the frame rails, you have to drop the tank to get to the nuts, unless you make other provisions (flag nuts, welded on nuts, etc.).
Click to expand...
I am thinking to build some custom flag nuts.

TJim said:
I am thinking to build some custom flag nuts.
Click to expand...

Initially, I made flag nuts for mine. They weren't easy to work with. Then when I raised the rear frame, I needed to tack weld the nuts to the back of the crossmember.

  • Like
Reactions: JMT and TJim
I was quite busy for a few months, so I was pretty much inactive from the forum. I have done some progress.

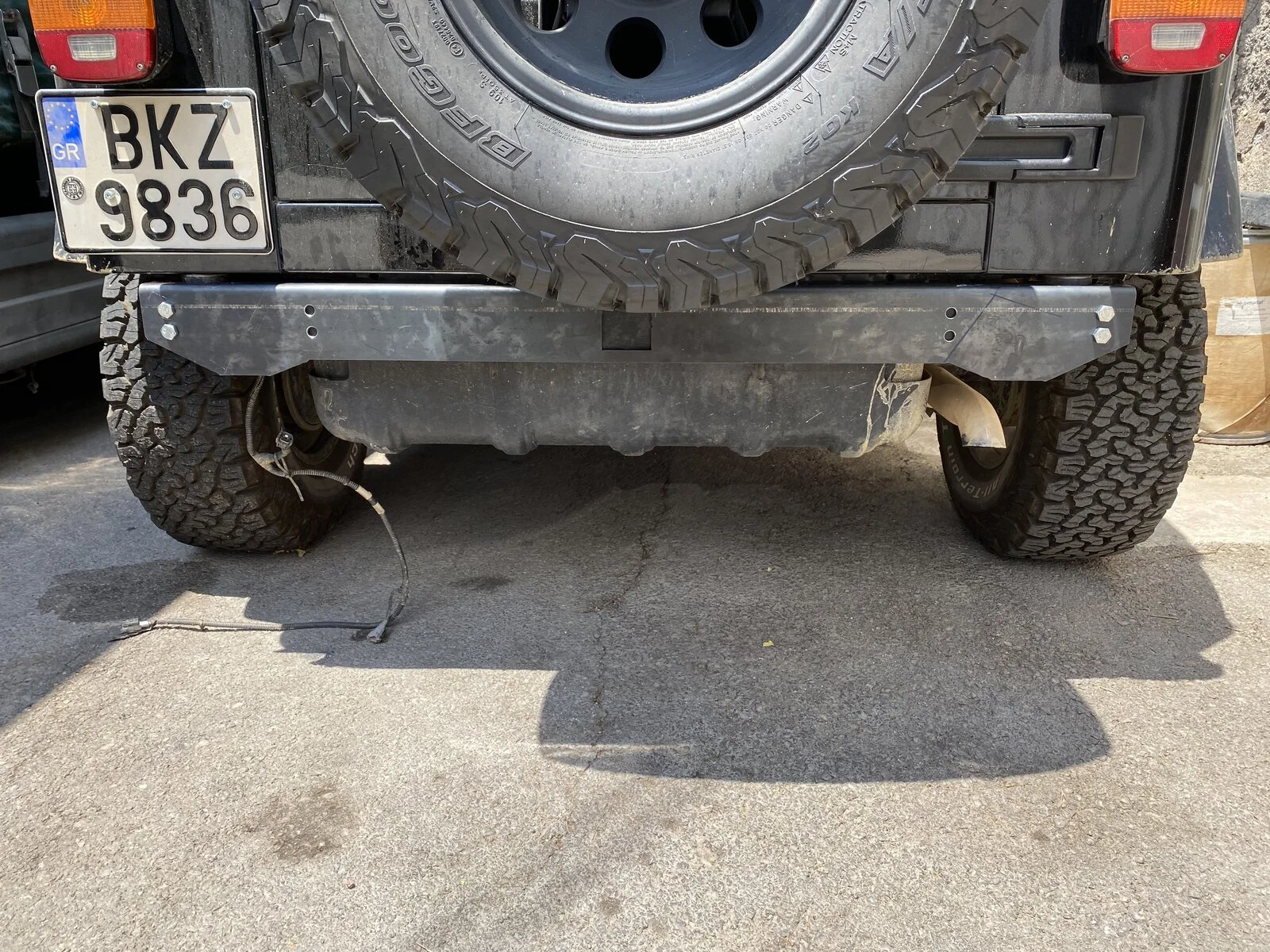

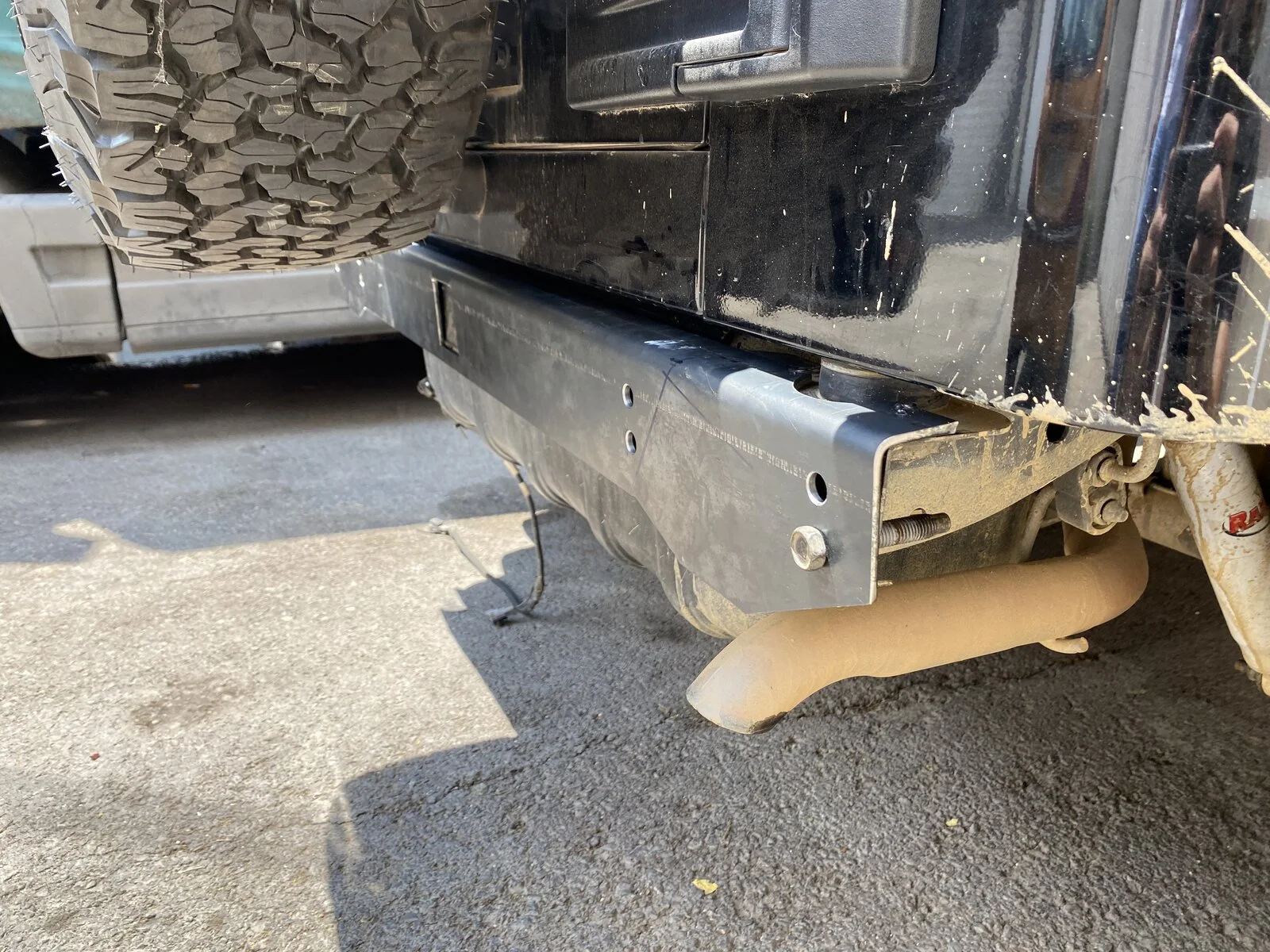

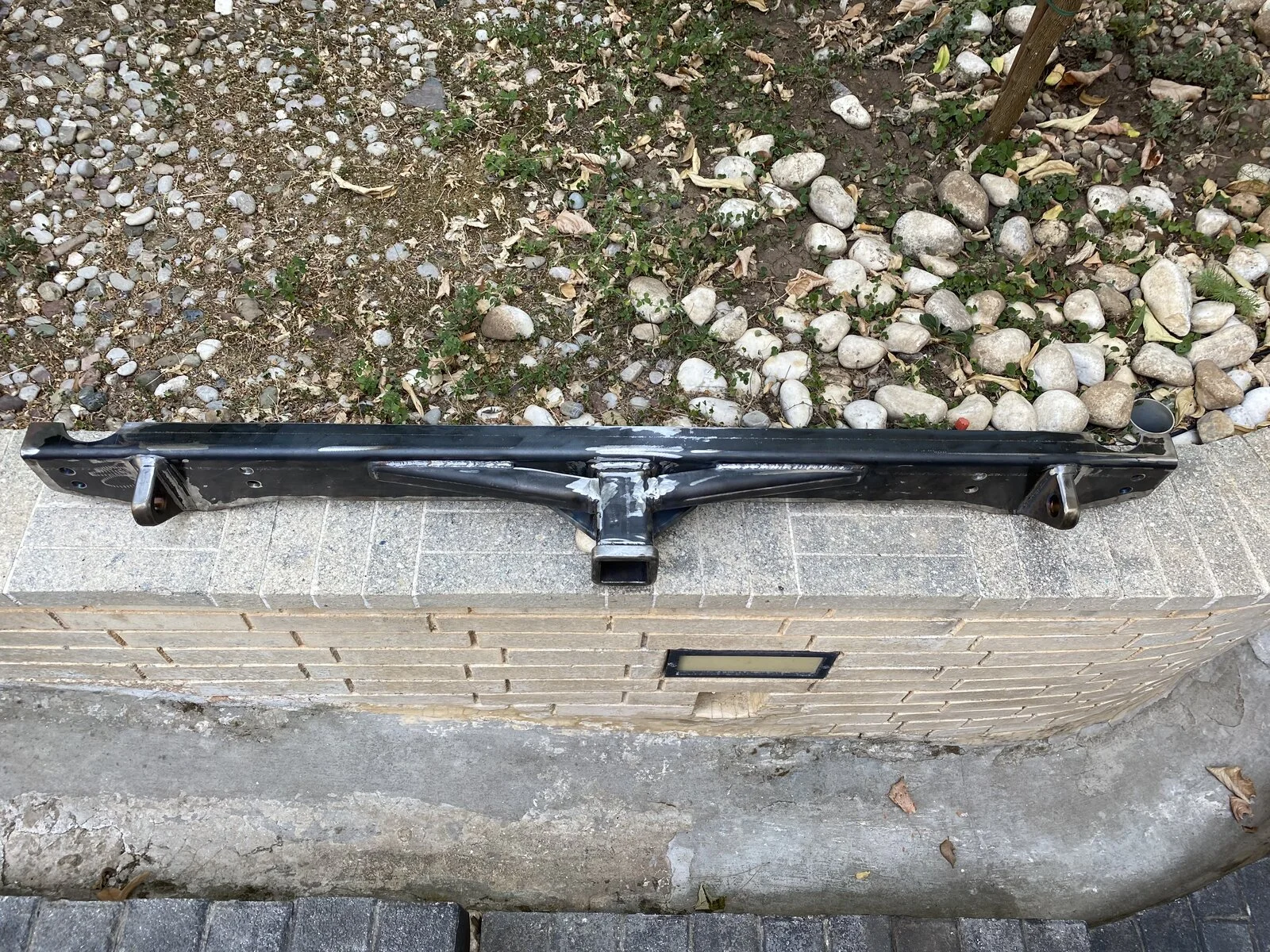

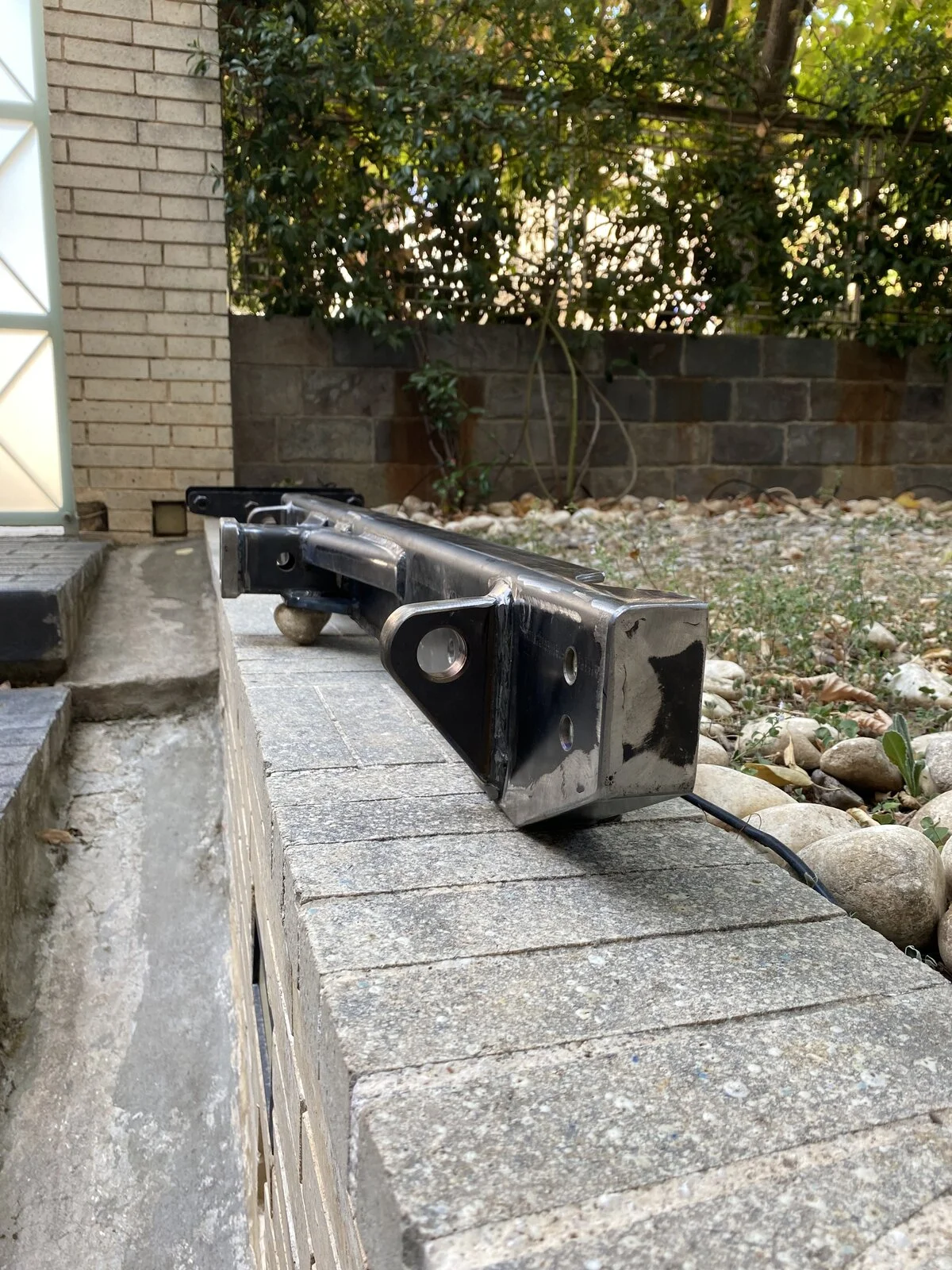

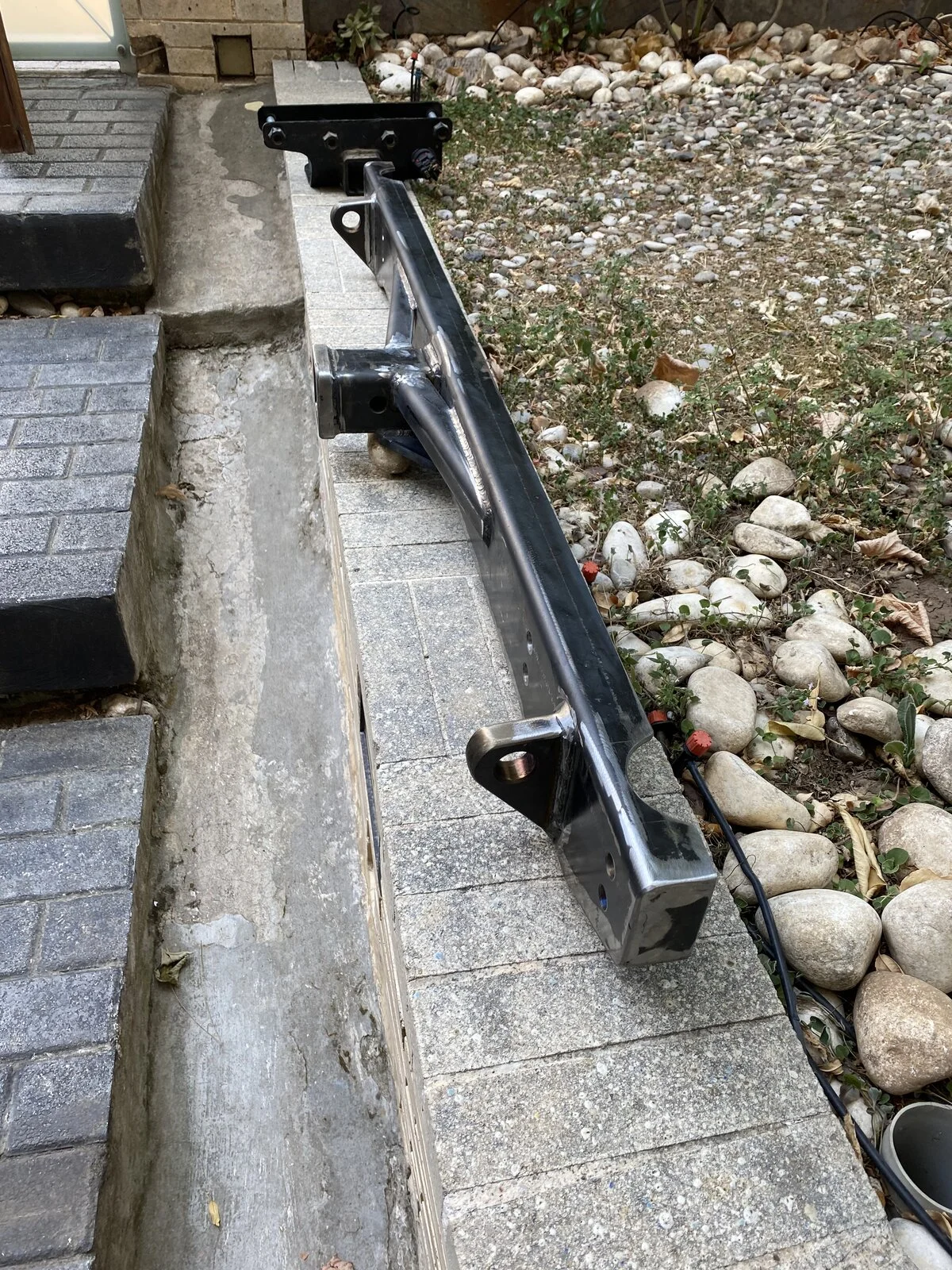

Those are the photos of the finished DIY rear bumper.



I haven't managed to paint it and install it yet. I will post the final photos when it is finished.

LET ME KNOW what you think of it so far :) !!






  • Like
  • Love
Reactions: L J, JMT, Tob and 6 others
TJim said:
I was quite busy for a few months, so I was pretty much inactive from the forum. I have done some progress.

Those are the photos of the finished DIY rear bumper.

View attachment 281538View attachment 281539View attachment 281540View attachment 281541

I haven't managed to paint it and install it yet. I will post the final photos when it is finished.

LET ME KNOW what you think of it so far :) !!

View attachment 281538

View attachment 281539

View attachment 281540
Click to expand...
I love it, great job!

Last edited:
  • Like
Reactions: TJim
Looks nice. I spy a JK Mount in the background. I'm doing similar but mostly with off the shelf items.

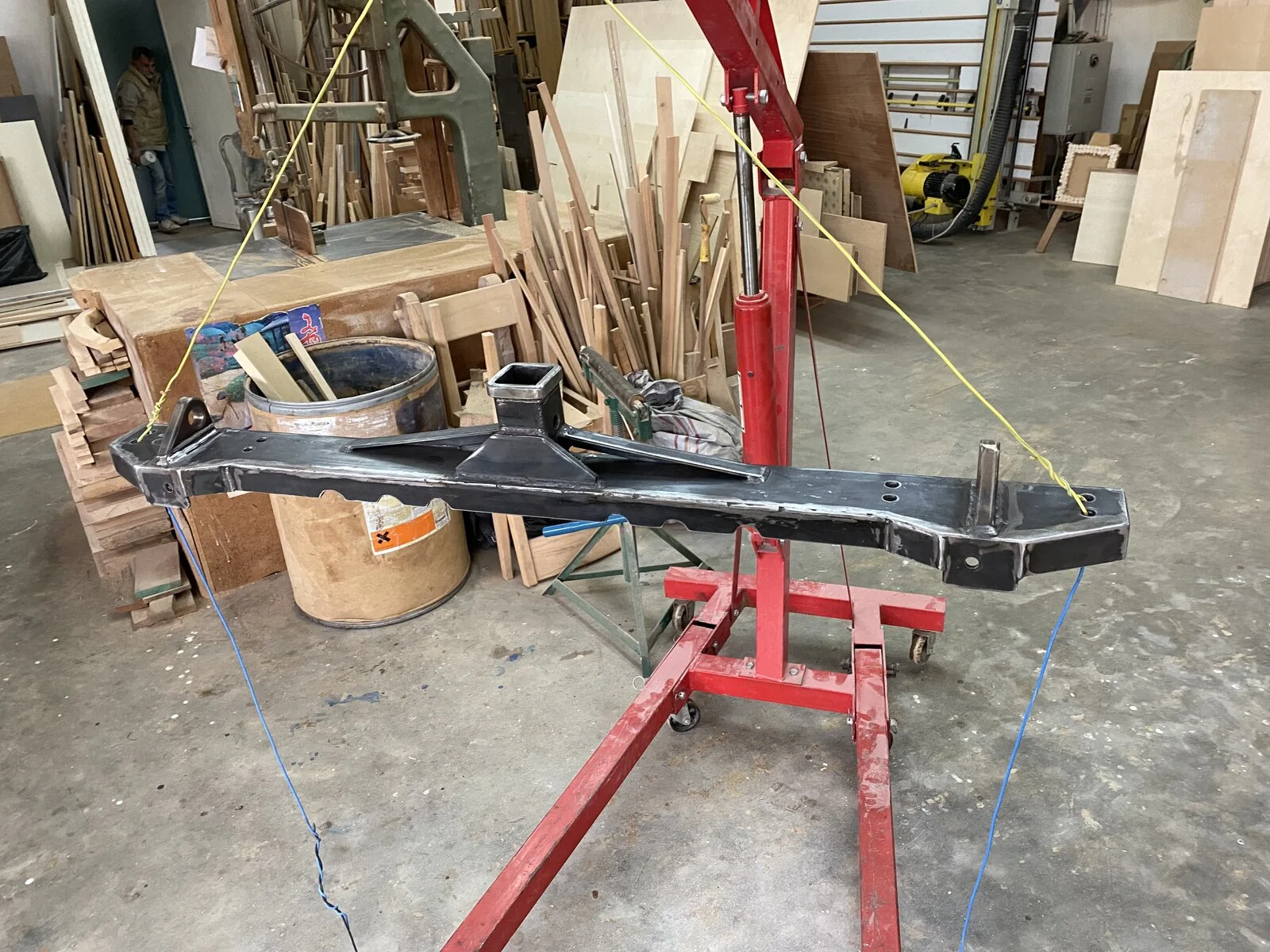

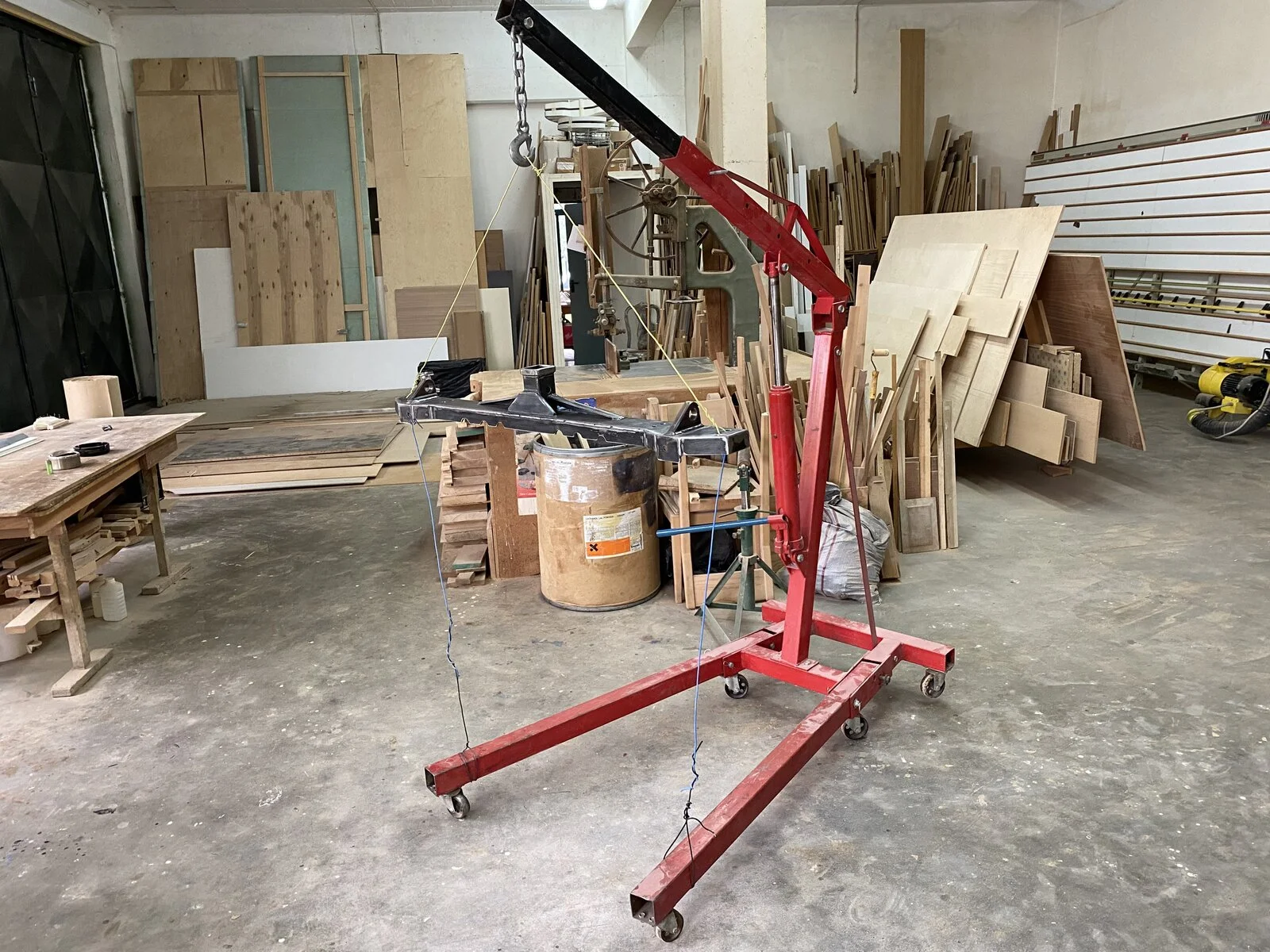

So today I paint it, using a gun spray. I am not experienced so the result is no near perfect, but I could not wait anymore so I just did it.

First, I prepped it (clean, sand) accordingly.
Then, I applied an epoxy primer.
At the end, I applied a matte black paint.

I wanted to do it on my own, it was my first time using a spray gun. I couldn't wait to do any tests, or anything. If I don't like it in the future, I might just sand it and paint it again.


PHOTOS

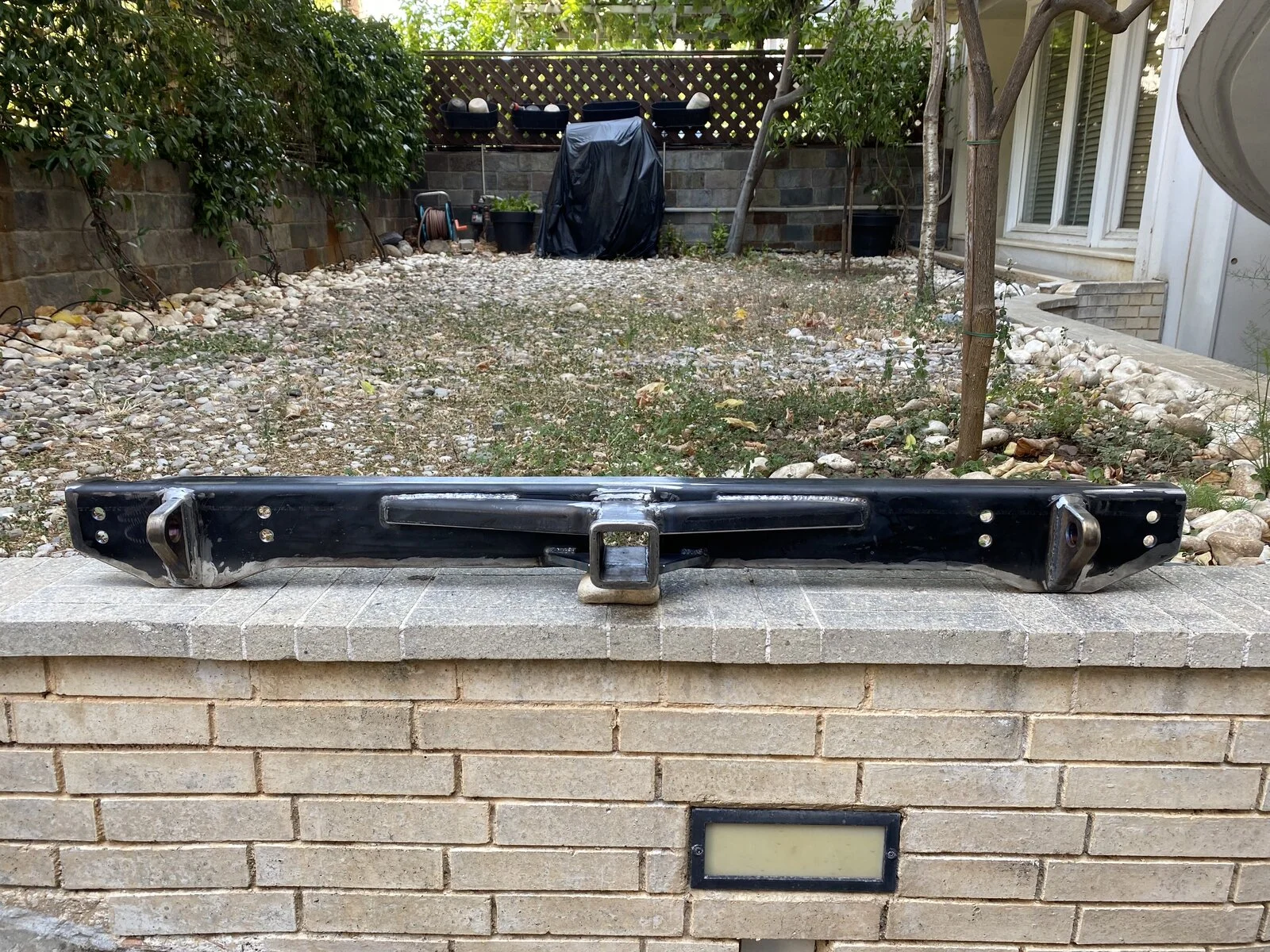

BARE METAL

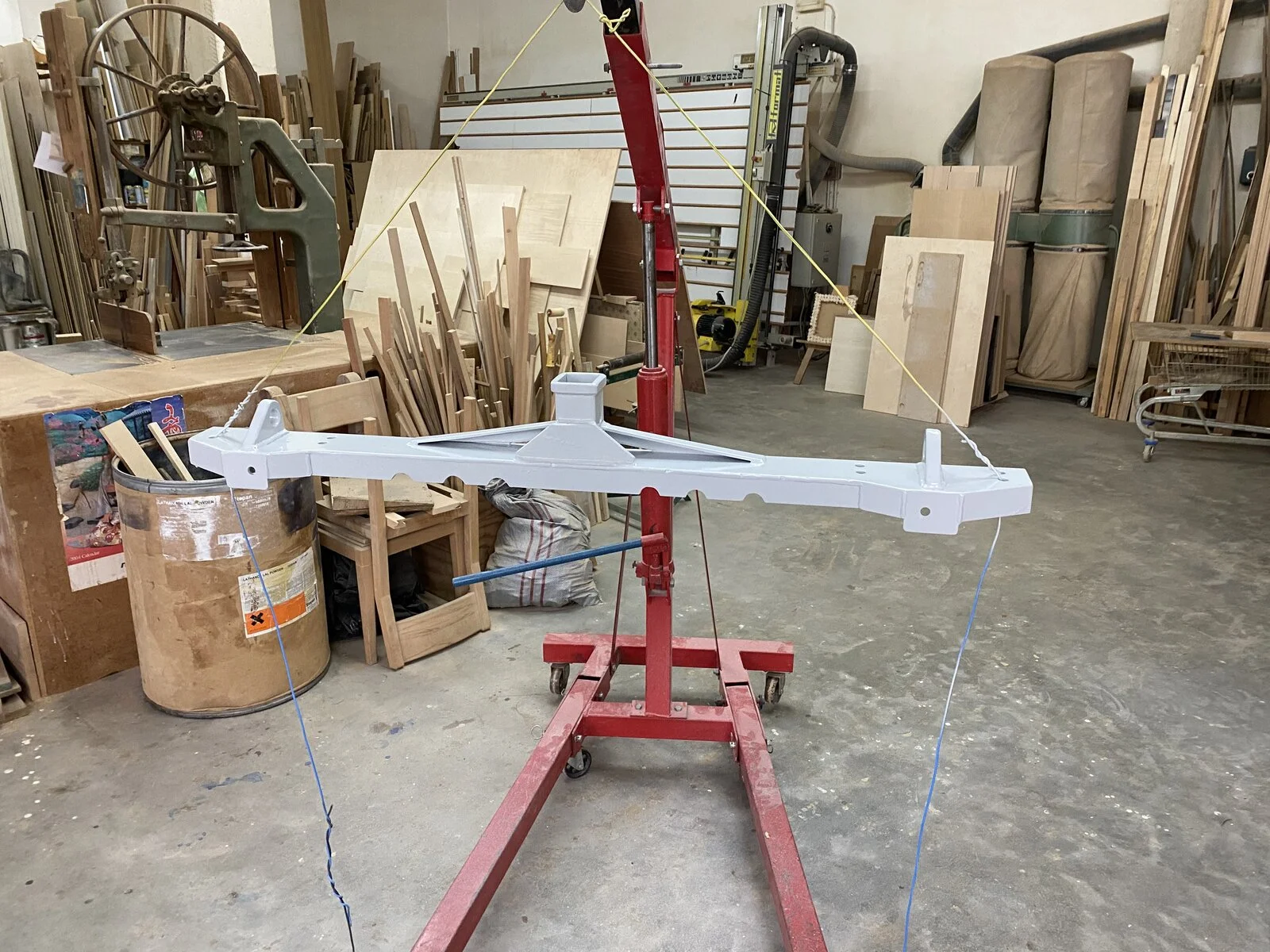

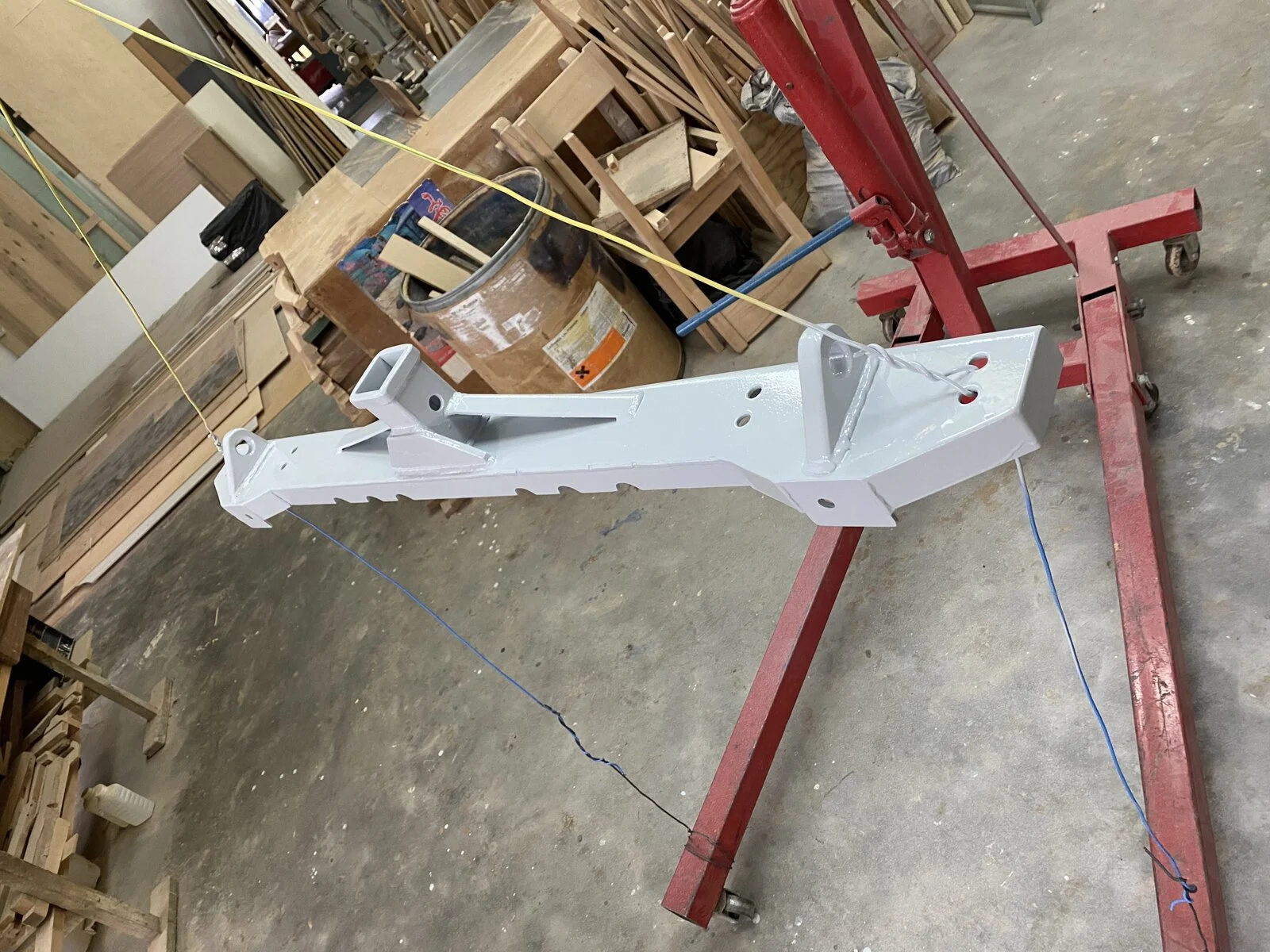

PRIMER:

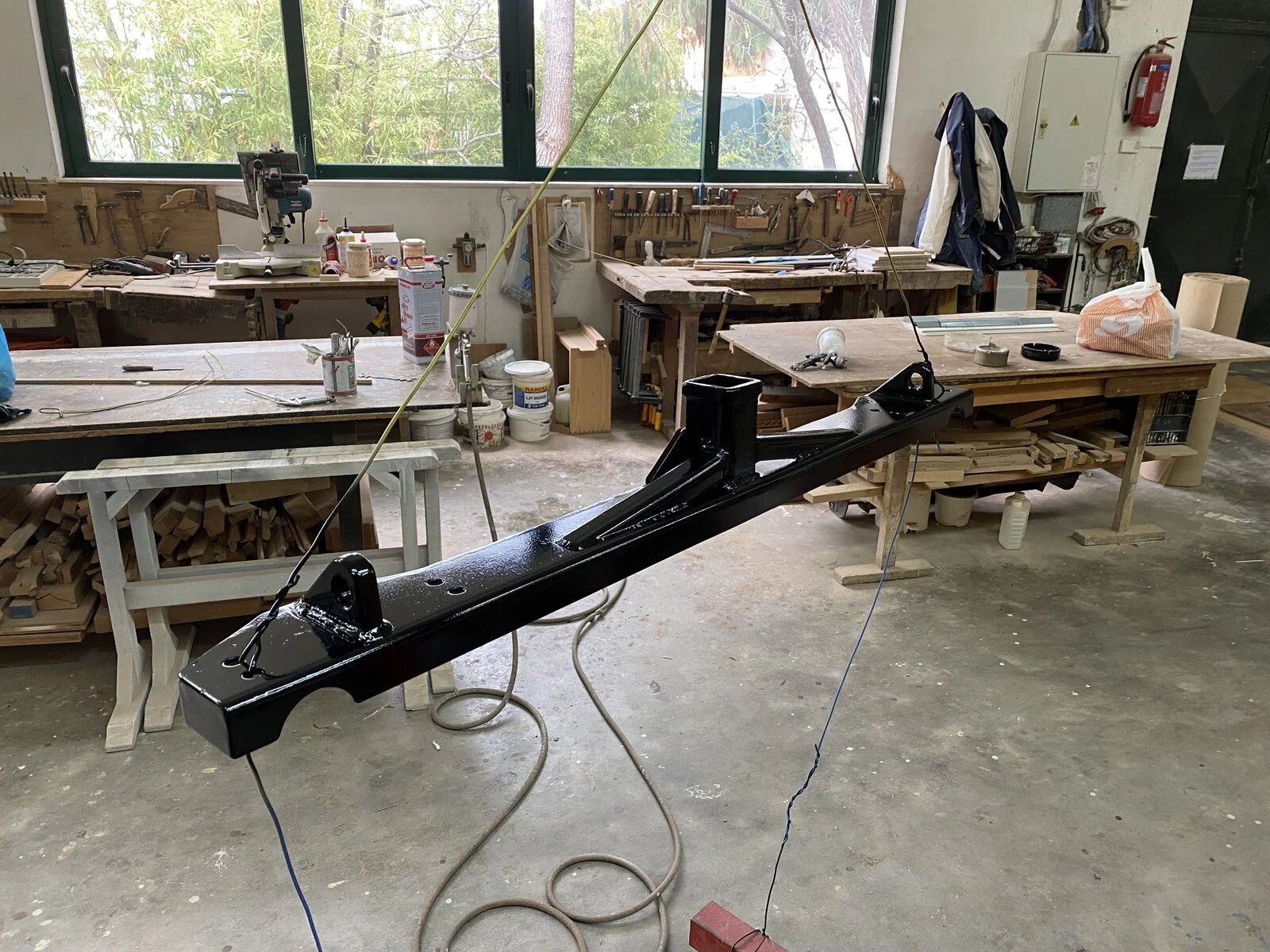

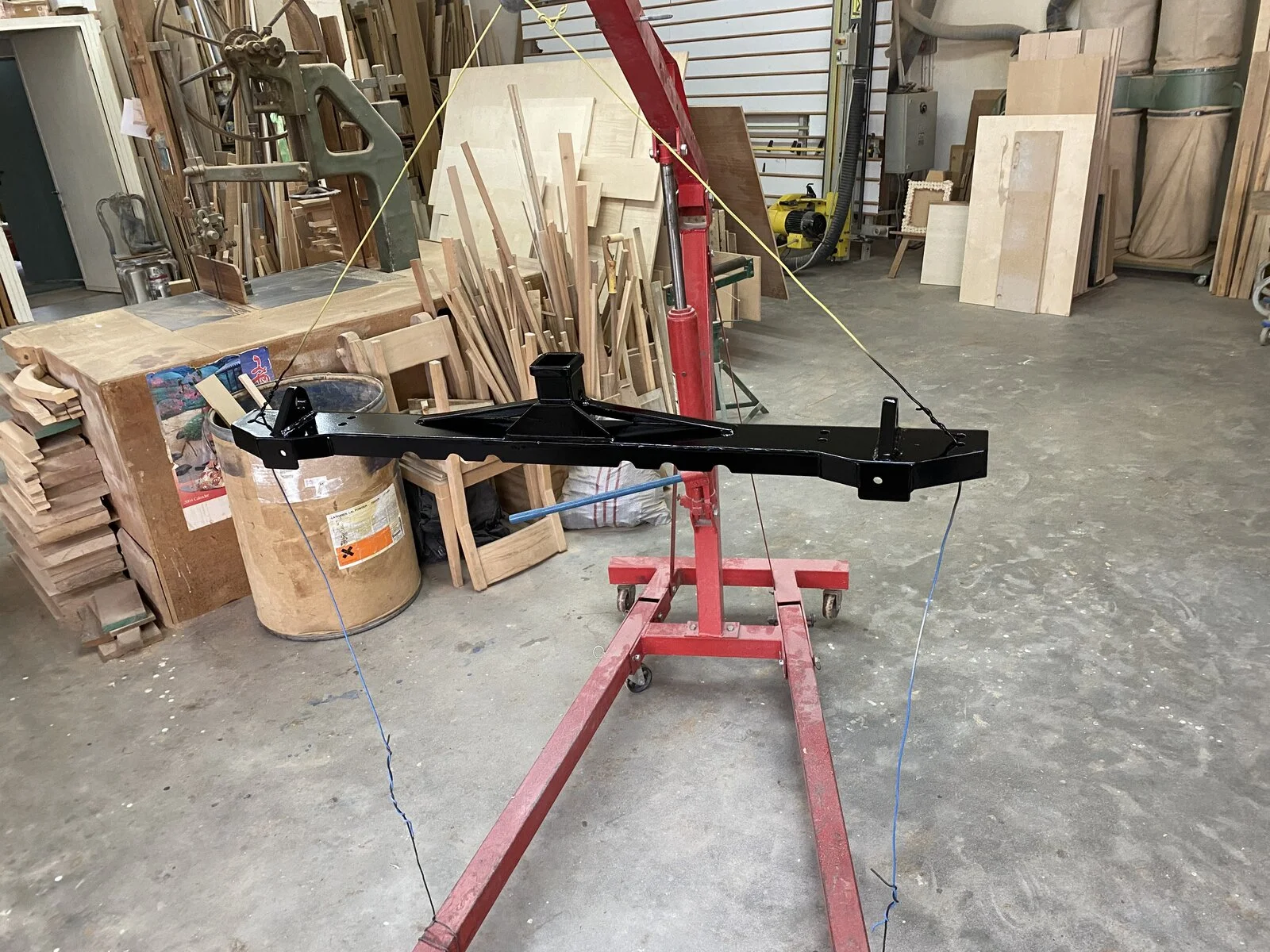

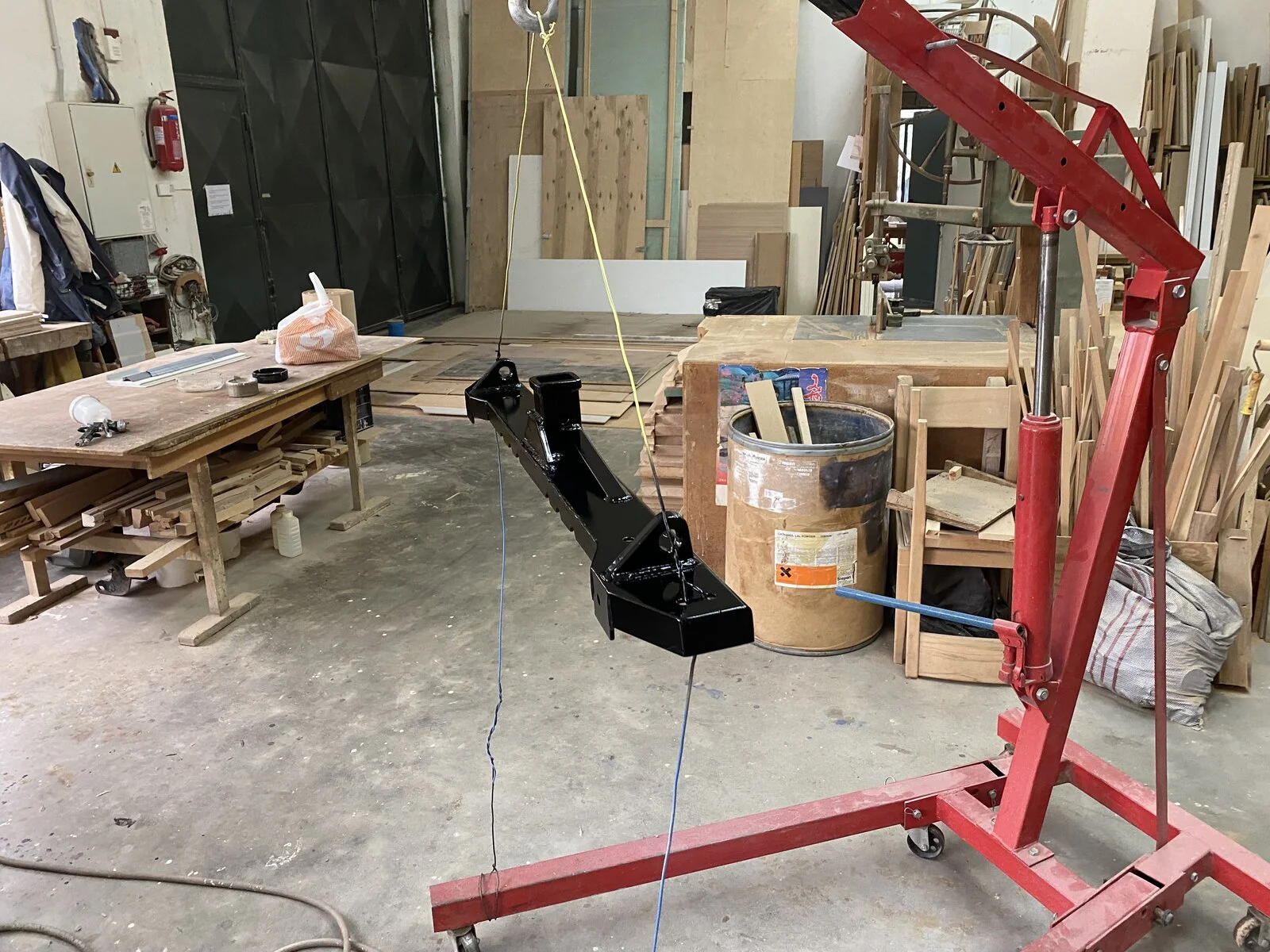

BLACK PAINT:


  • Like
  • Love
Reactions: WSS, TJ Starting, matkal and 4 others
Today, I installed the final product (at least for now). I might paint it again some day, but for now I am satisfied. I just wanted to install it and use it, since I had some time this week.

The end result seems to be a bit more glossy than I would like, even though I used some (allegedly) matte black paint.

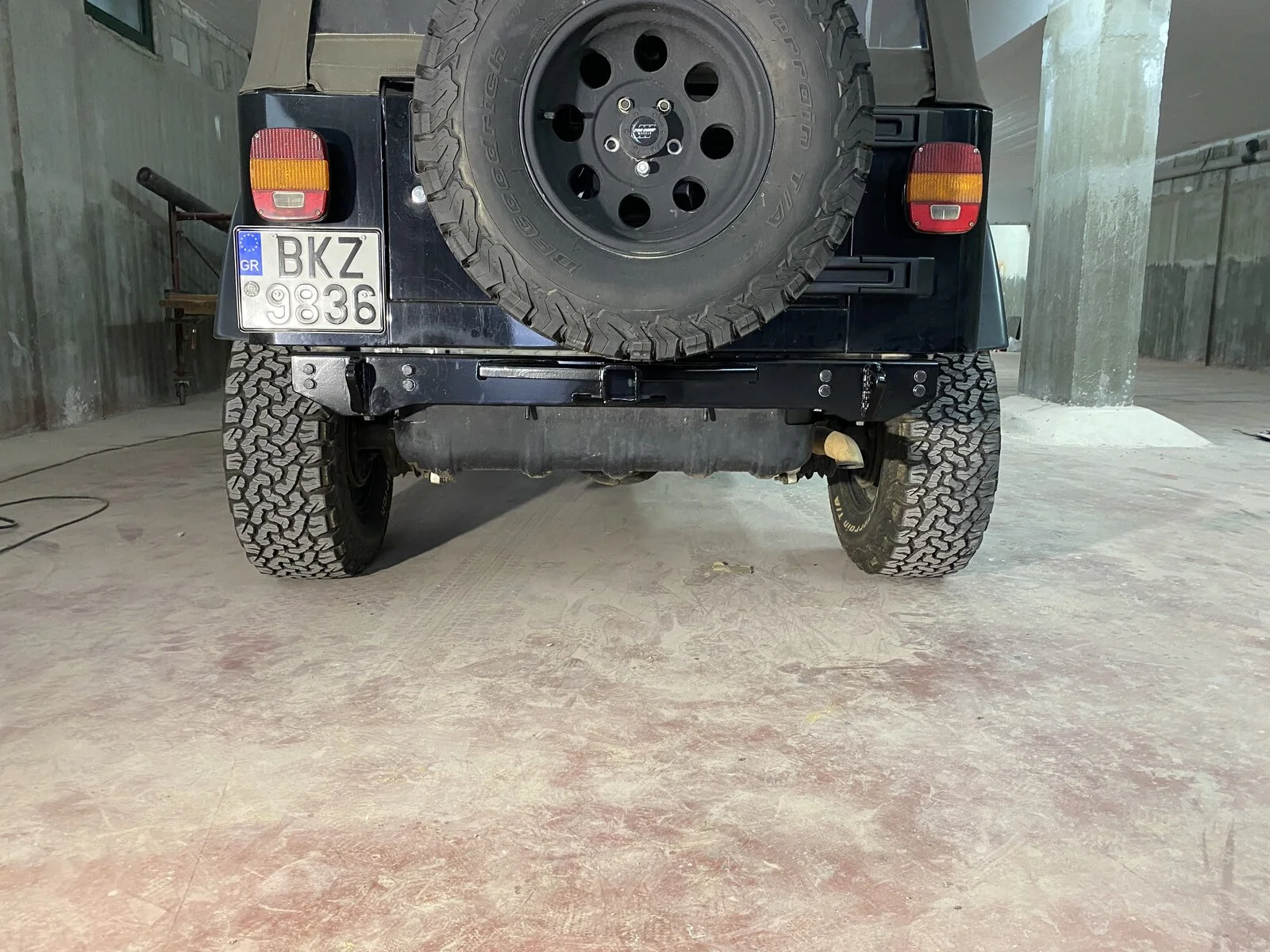

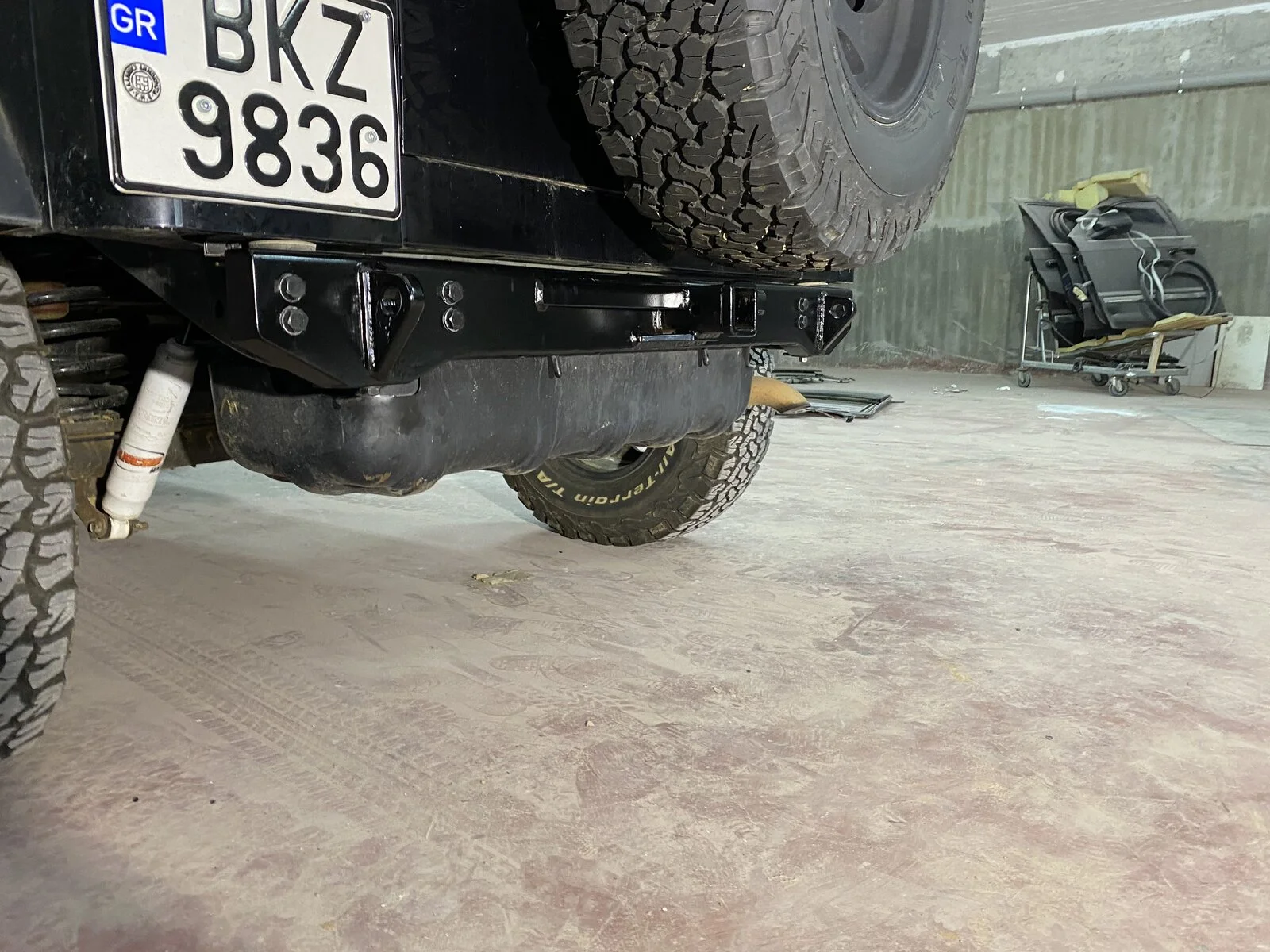

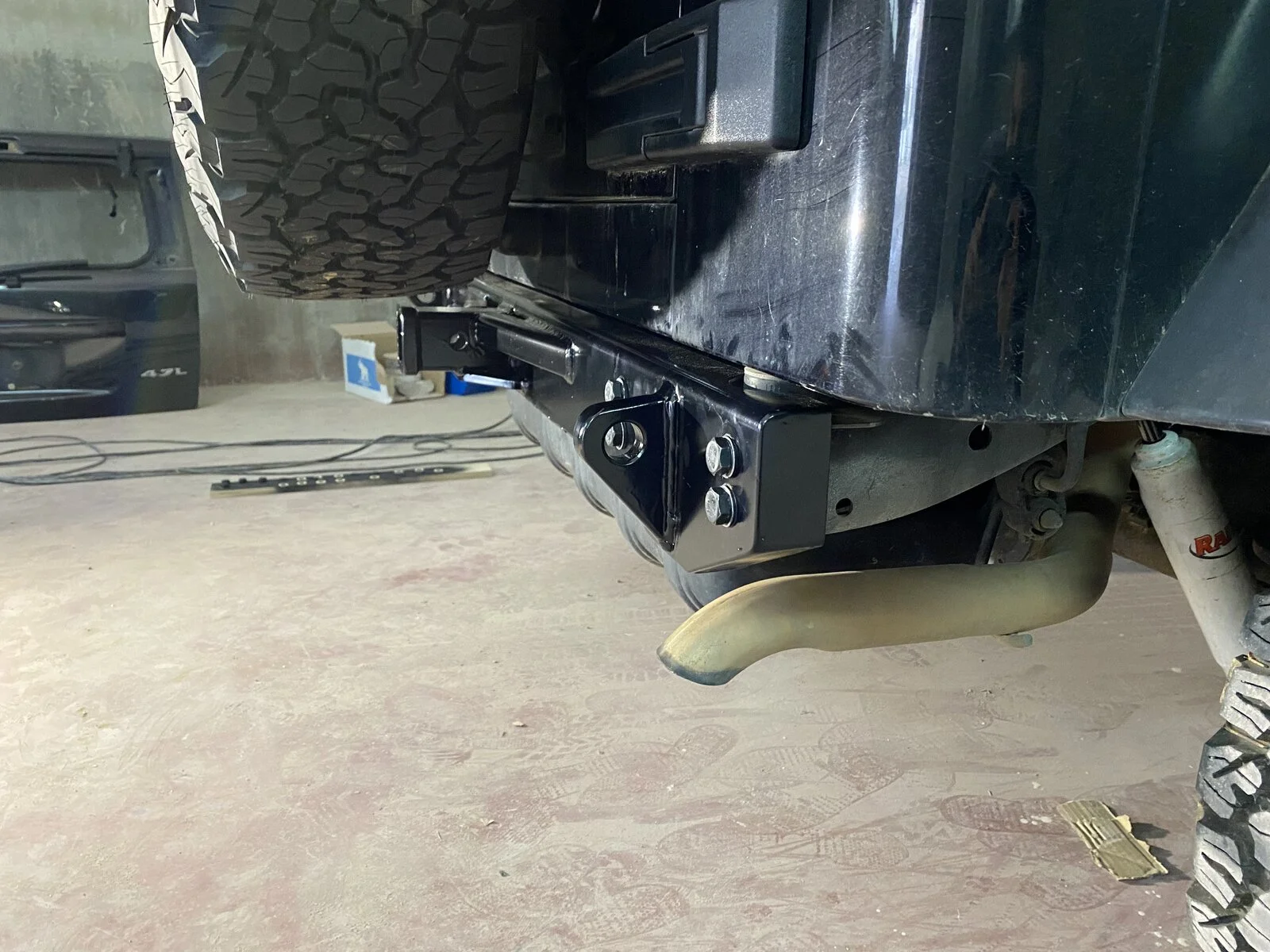

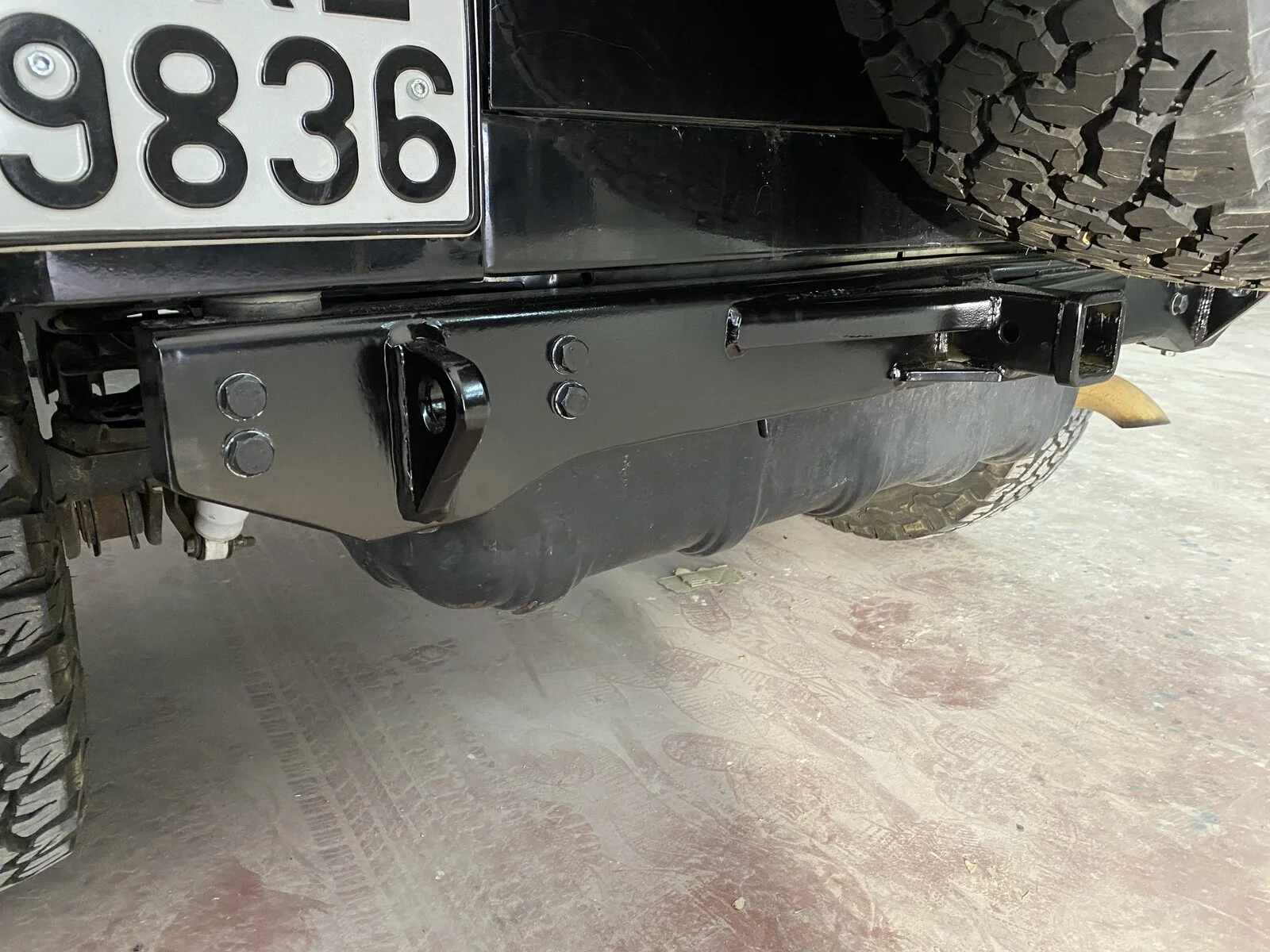

Photos of the bumper painted and installed:



  • Like
Reactions: Dunkut88TJ, MichaelGH, pagrey and 4 others
WSS said:

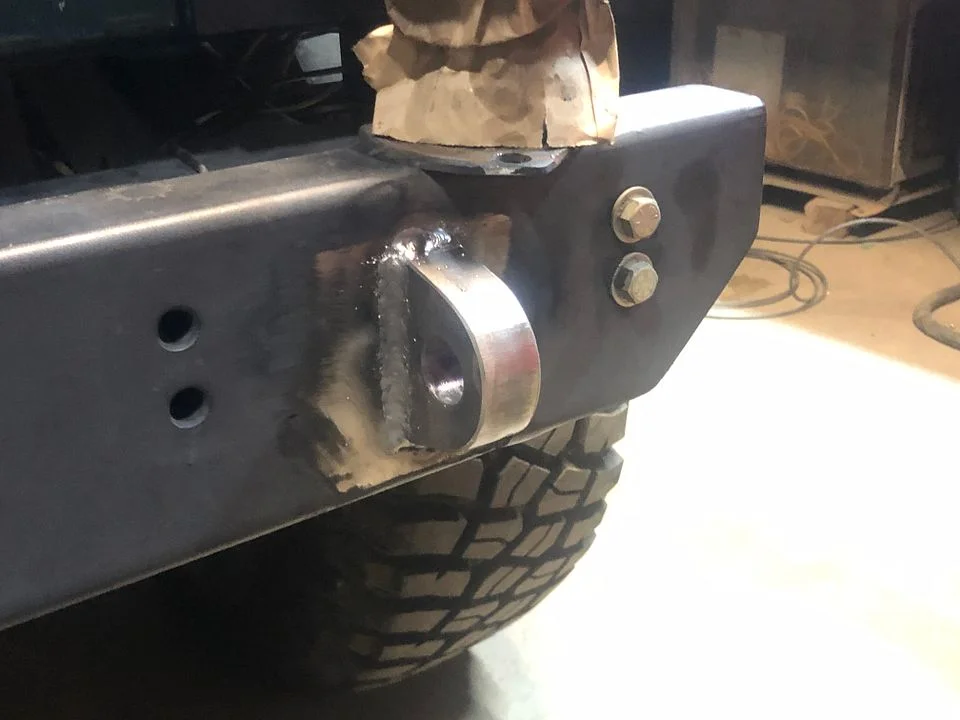

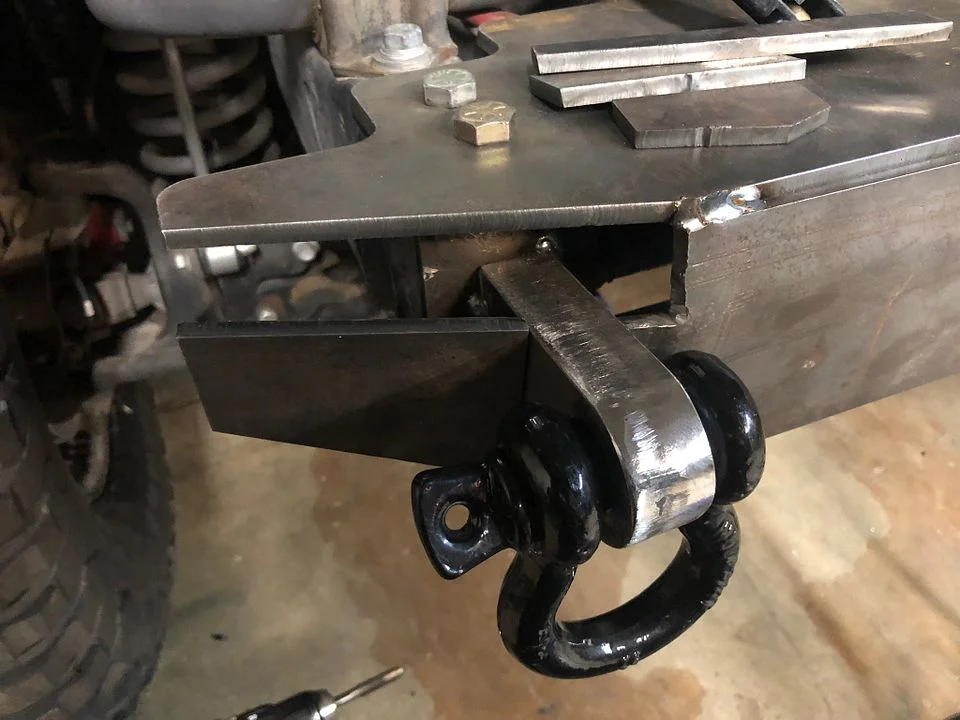

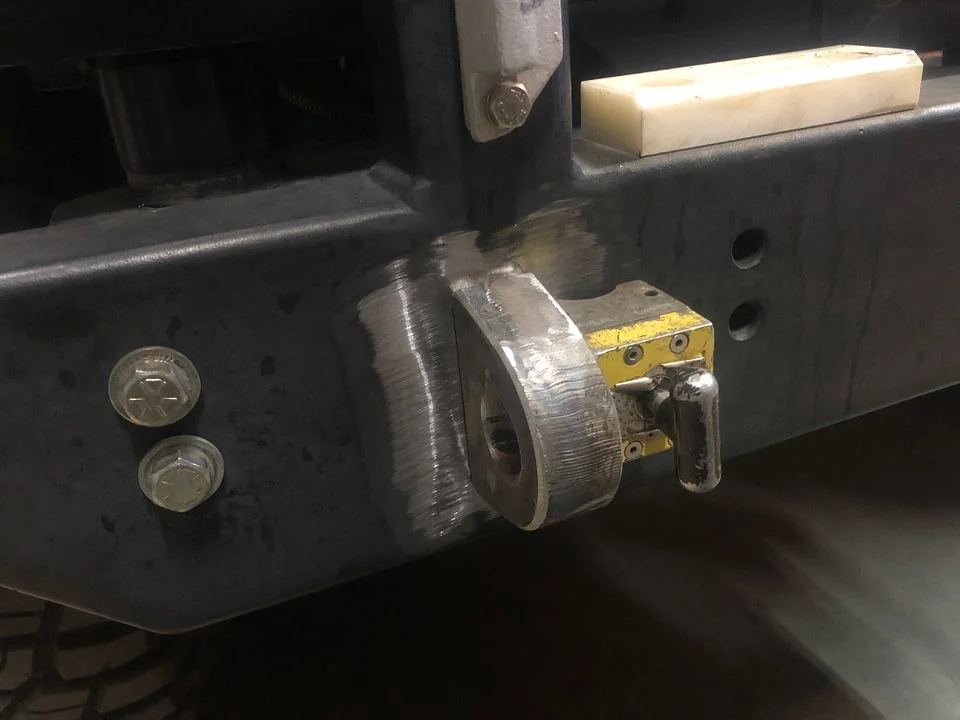

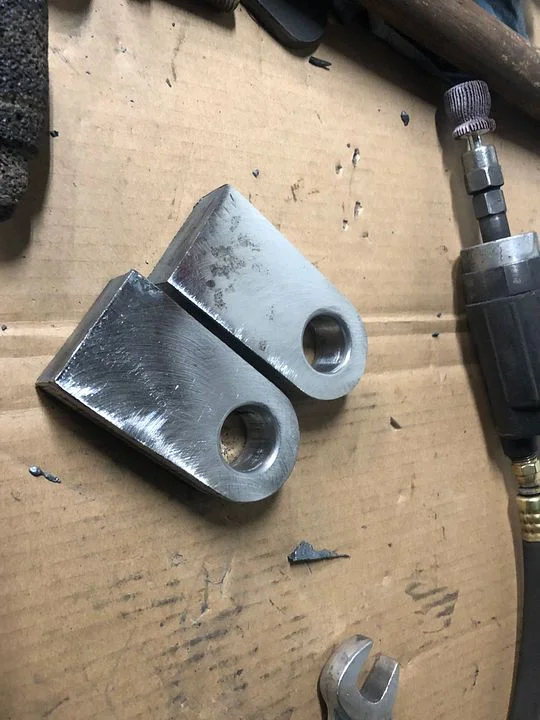

times two on the recovery tab going thru thru frame. They can be a little narrower too if you pass thru. I do like the shape though a little style and lots of weld surface.

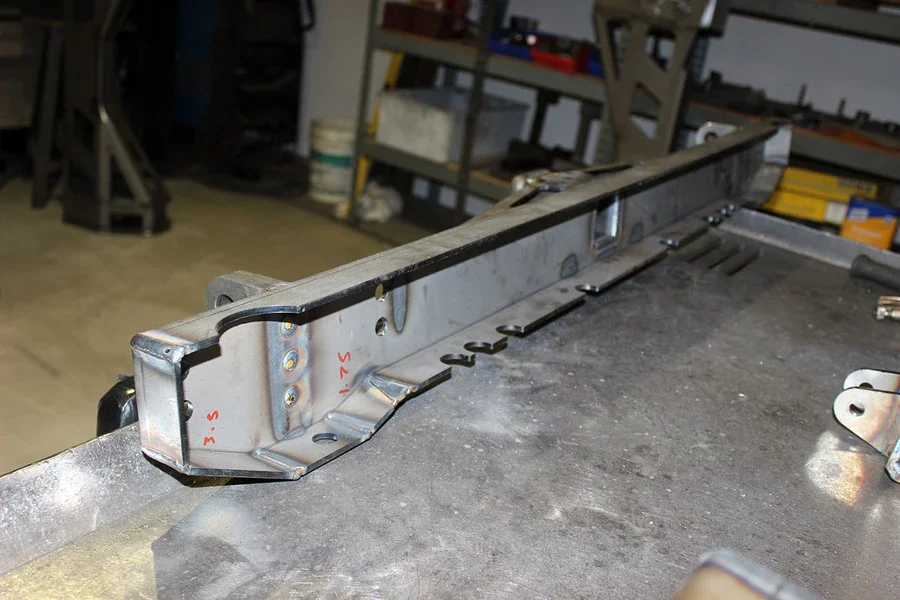

I have not tackled my rear bumper yet, so I surface mounted with a wide weld area like yours. My front was a full build with narrow thru mounts.

View attachment 253641

View attachment 253642

View attachment 253643

View attachment 253644
Click to expand...
This post and post #11 bear repeating, don't surface-mount recovery tabs!
