STICKY Wrangler TJ Factory Specifications

[andyj]

The offsets calculated here https://wranglertjforum.com/threads/wrangler-tj-stock-specifications.71/#post-183
don't look right. I get:
backspacing - offset
5" - 25.4mm
5.25" - 31.75mm
5.5" - 38.1mm
Found on https://www.gtsparkplugs.com/Backspace-Offset-Calculator.html
I try to find 16x7 rims with 4.75 backspacing. What backspacing have the Rubicon wheels?

Sorry, I got it wrong. My measurements are for 7 inch wide rims.



[TonySeattle]

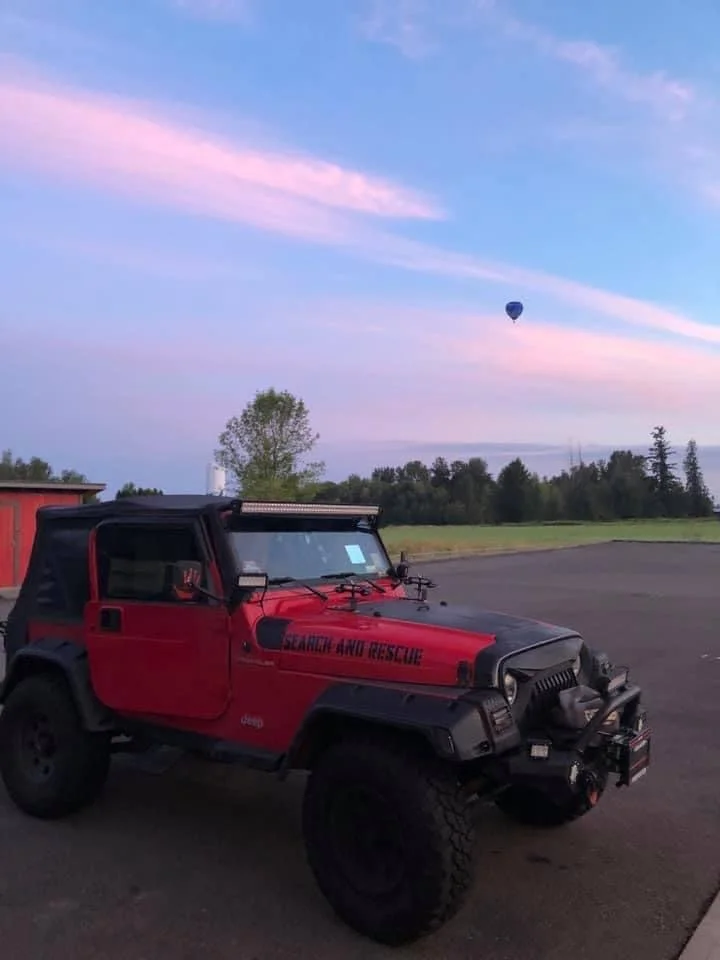

SaRa - Search and Rescue apparatus:



[SSTJ]

Wheels

Standard SE Wheel

View attachment 87

* 15x6 steel
* 5 on 4.5" bolt pattern
* Backspacing = ??
* Offset = ??

——————————————————————

Name Unknown

View attachment 88

* 15x7 steel
* 5 on 4.5" bolt pattern
* Backspacing = 5.5"
* Offset = +38 mm

——————————————————————

Name Unknown

View attachment 89

* 15x7
* 5 on 4.5" bolt pattern
* Backspacing = 5.5"
* Chrome finish
* Offset = +38 mm

——————————————————————

Grizzly

View attachment 90

* 15x7 aluminum
* 5 on 4.5" bolt pattern
* Backspacing = 5.5"
* Offset = +38 mm

——————————————————————

Ecco

View attachment 91

* 15x7 aluminum
* 5 on 4.5" bolt pattern
* Backspacing = 5.5"
* Offset = +38 mm

——————————————————————

Gambler

View attachment 92

* 15x8 aluminum
* 5 on 4.5" bolt pattern
* Backspacing = 5.25"
* Optional wheel with 30" tire package
* Offset = +19 mm

——————————————————————

Canyon

View attachment 93

* 15x8 aluminum
* 5 on 4.5" bolt pattern
* Backspacing = 5.5"
* Optional wheel with 30" tire package
* Offset = +25 mm

——————————————————————

Ravine

View attachment 94

* 15x8 aluminum
* 5 on 4.5" bolt pattern
* Backspacing = 5.5"
* Optional wheel with 30" tire package
* Offset = +25 mm

——————————————————————

Ravine

View attachment 95

* 15x8 aluminum
* 5 on 4.5" bolt pattern
* Backspacing = 5.5"
* Standard wheel with Golden Eagle package only
* Offset = +25 mm

——————————————————————

Alcoa

View attachment 96

* 15x8 forged aluminum
* 5 on 4.5" bolt pattern
* Backspacing = 5.5"
* Offset = +25 mm
* Standard wheel with 2004 Rocky Mountain Edition and 2006 65th Anniv. Edition

——————————————————————

Moab

View attachment 97

* 16x8 cast aluminum
* 5 on 4.5" bolt pattern
* Backspacing = 5"
* Offset = +12 mm
* Stock Rubicon wheel

NOTE: There seems to have been a few variations of Moab wheels produced over the years which you can see in this thread here.

——————————————————————

Moab Sahara

View attachment 98

* 16x8 cast aluminum
* 5 on 4.5" bolt pattern
* Backspacing = 5"
* Offset = +12 mm
* Same as regular Moab wheel except black accents between spokes
* Stock Unlimited Rubicon Sahara wheel

NOTE: There seems to have been a few variations of Moab wheels produced over the years which you can see in this thread here.

@Chris, the link for "Wheels" is broken in the TOC.



[Chris]

@Chris, the link for "Wheels" is broken in the TOC.

You sure? Works just fine for me.



[SSTJ]

You sure? Works just fine for me.

Ok, maybe it's just me. When I click the "Wheels" link in tour first post's TOC, it just bumps me back to the top of the page. Just tried again.

But if I right-click and copy the link, I get this: https://wranglertjforum.com/threads/wrangler-tj-stock-specifications.71/#post-183, which does appear to be correct. So yea must be something on my end.



[ChrisTJ98]

I would like to know what year TJ up to 2002 came with black dash panels or maybe it b was called charcoal? I have a 98 and would like to match black trim panels on tbe 2006 tj full doors I bought.



[SSTJ]

Does anyone know which of the wheels in Chris’s original post would’ve come on a 97 Sahara? I think the Gamblers, but am not sure.
