Alright got the axle hung. Help me out here. From what I understand reading other threads is that I’m cycling my suspension now to square everything up. Trackbar & lowers are set roughly to stock length, uppers are what they are because I already threw the old ones away.

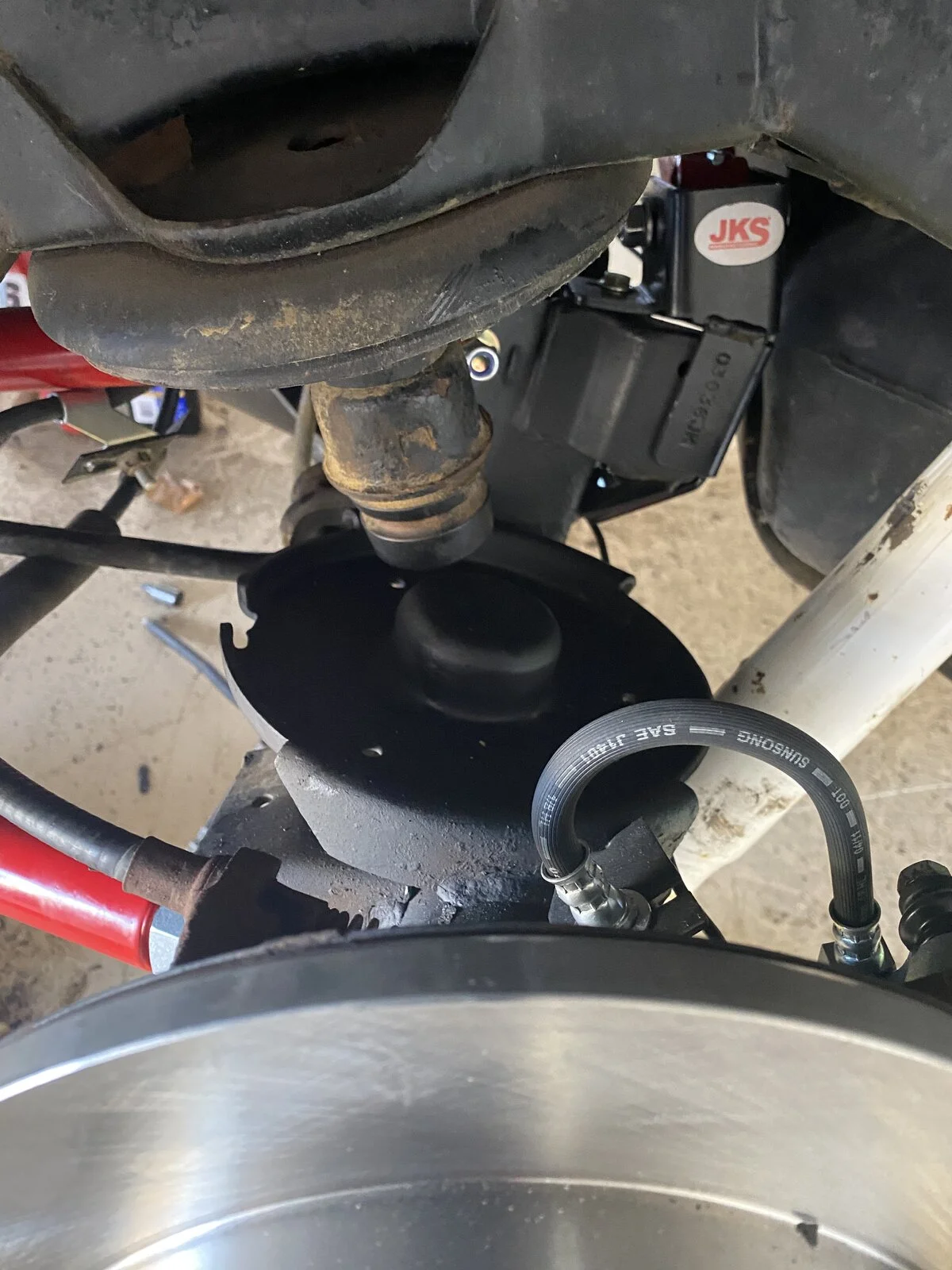

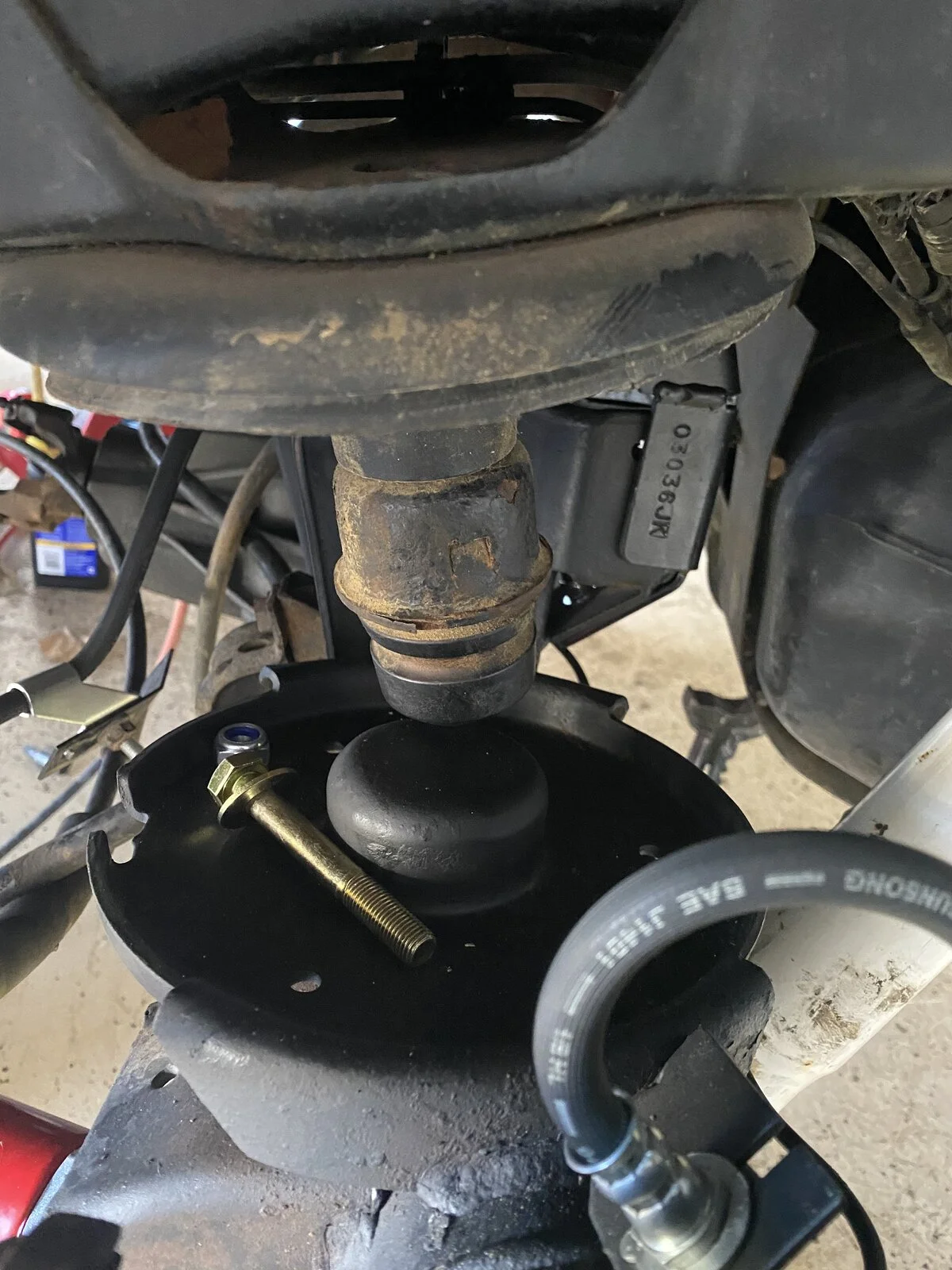

I stuffed the left and the right, at this point I’m lining up the bump stops? Shocks are installed, they have about 1/2” left at contact which is good.

This is what I’m looking at as it sits, the axle looks like it needs to come forward but I don’t think I have enough left in the lowers. Should I have the uppers disconnected at this point?

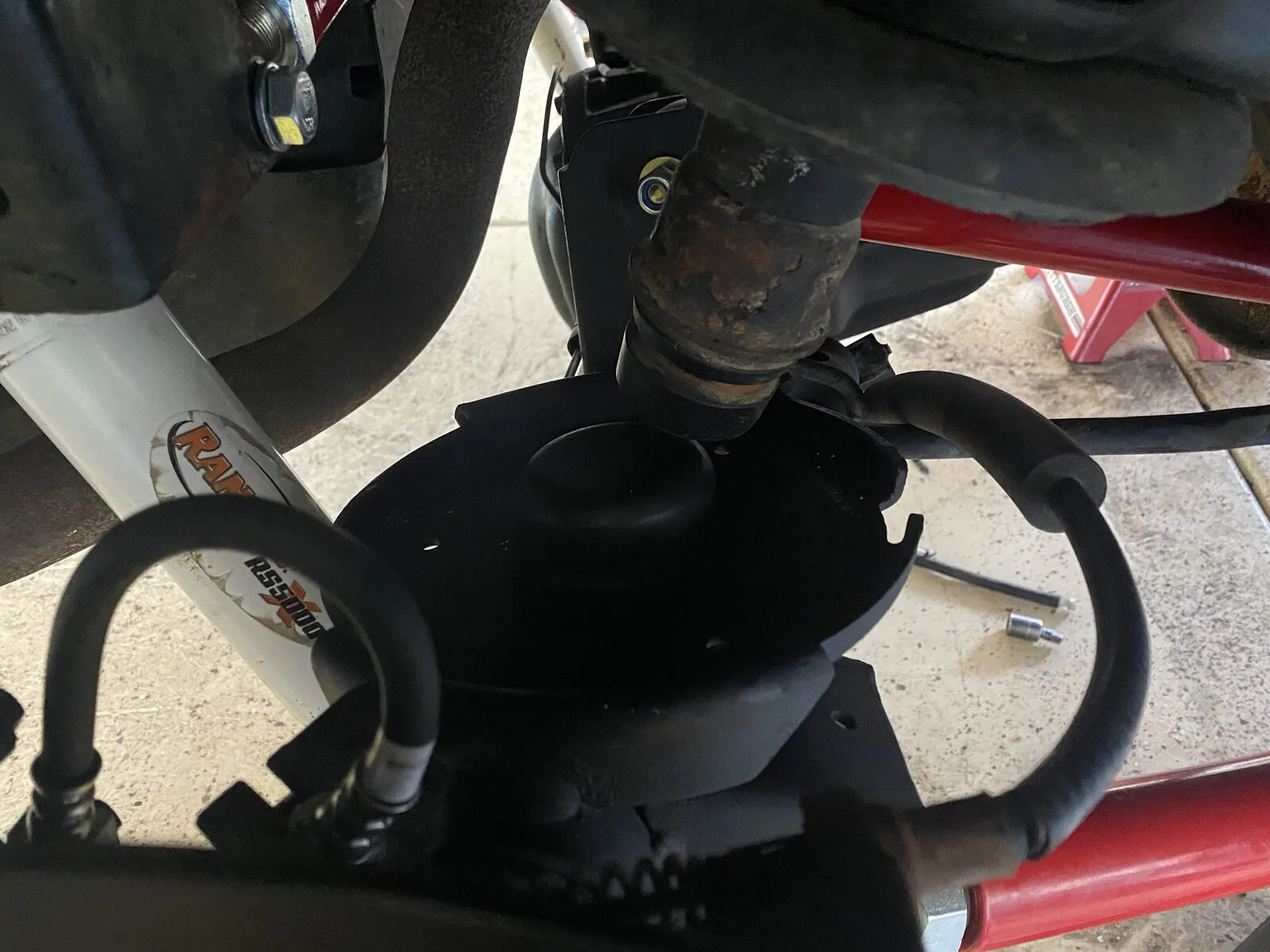

Right:

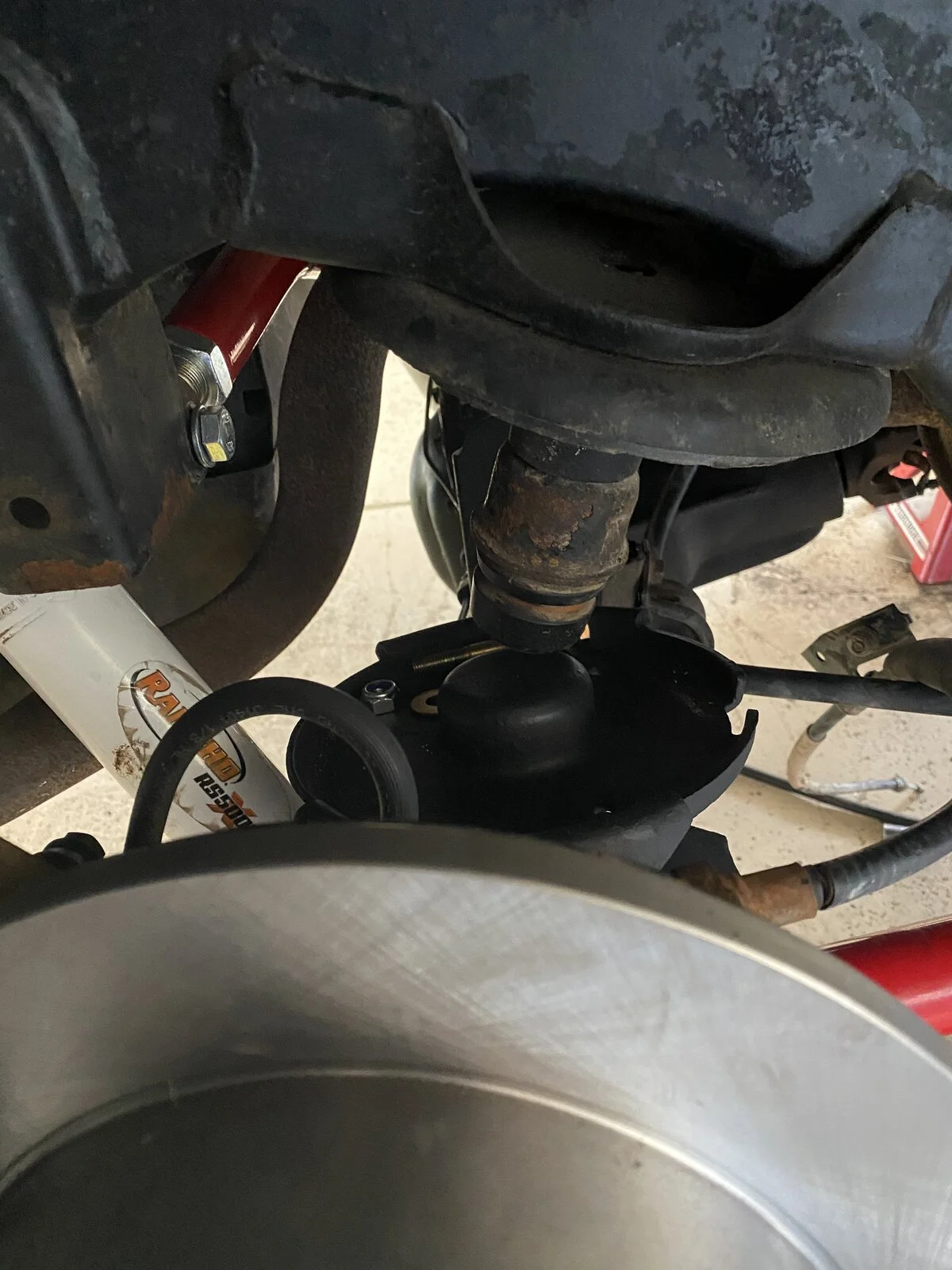

Left:



[qslim]

So I removed the uppers & adjusted the lowers. There’s about a 1/4” difference in arm length now but the cups line up.



[qslim]

Just to be sure I'm getting this right - the cups are lined up with the lower adjustments. Once I connect everything else & install the springs I'll set the pinion angle with the upper CAs. Then I'll center the axle laterally with the track bar. Is that the right order of operations?



[mrblaine]

Just to be sure I'm getting this right - the cups are lined up with the lower adjustments. Once I connect everything else & install the springs I'll set the pinion angle with the upper CAs. Then I'll center the axle laterally with the track bar. Is that the right order of operations?

Not aware of your tire size but, doesn't matter what the cups do if the tire hits the body.
1- set both lower arms the same length
2- install one upper and dial in approximate pinion angle
3- install trackbar and center axle side to side at ride height
4- install shocks so the travel up and down can be used to cycle the axle
5- cycle axle full articulation with a tire on the up side to check for clearances, trimming, bump stop adjustment for shocks at the same time or right before you put tire on.
6- after tire is on and articulated and any front to back adjustments have been factored in, then check the bumpstops against shock travel, how they line up, how much extra is or isn't needed.
7- fine tune pinion angle with the single upper and both lowers. Only after all else is done does the last upper get installed.

It isn't a defined step by step do this then that process. Each adjustment affects other things so the whole mess needs to be evaluated for what is going on as you dial it in.



[qslim]

Not aware of your tire size but, doesn't matter what the cups do if the tire hits the body.
1- set both lower arms the same length
2- install one upper and dial in approximate pinion angle
3- install trackbar and center axle side to side at ride height
4- install shocks so the travel up and down can be used to cycle the axle
5- cycle axle full articulation with a tire on the up side to check for clearances, trimming, bump stop adjustment for shocks at the same time or right before you put tire on.
6- after tire is on and articulated and any front to back adjustments have been factored in, then check the bumpstops against shock travel, how they line up, how much extra is or isn't needed.
7- fine tune pinion angle with the single upper and both lowers. Only after all else is done does the last upper get installed.

It isn't a defined step by step do this then that process. Each adjustment affects other things so the whole mess needs to be evaluated for what is going on as you dial it in.

I see what you're saying now. It's an overall pain in the dick doing it for the first time, but I get how it needs to end up & what all the different inputs do, so I'm figuring it out.

I got the axle centered longitudinally, with 33s I discovered that I rub with the Sahara fenders about 2" before bump stop - dunno if the wife will be good with getting rid of the fiberglass fenders, we'll see.

I installed the springs, connected the TB, put it on the ground, saw that the axle was about 1.75" off to the right, so I put it back up, removed the springs, drooped the axle until I could get the axle end of the TB out & adjust it as necessary. It's centered now.

Wasn't sure if it was safe to have both uppers removed with weight on wheels, so I jacked it up, removed the springs, supported the frame, set the axle at ride height, & set the pinion angle so the rear yoke points to the SYE yoke. Re-installed everything & it stayed put. Called TW with driveshaft measurements, should be able to pick that thing up on the way home tomorrow.

If you told me a few months ago that I had to pull the springs on a TJ I'd block off a few hours. Now I know I can do it in 10 minutes.

At least it’s on it own weight at this point



[qslim]

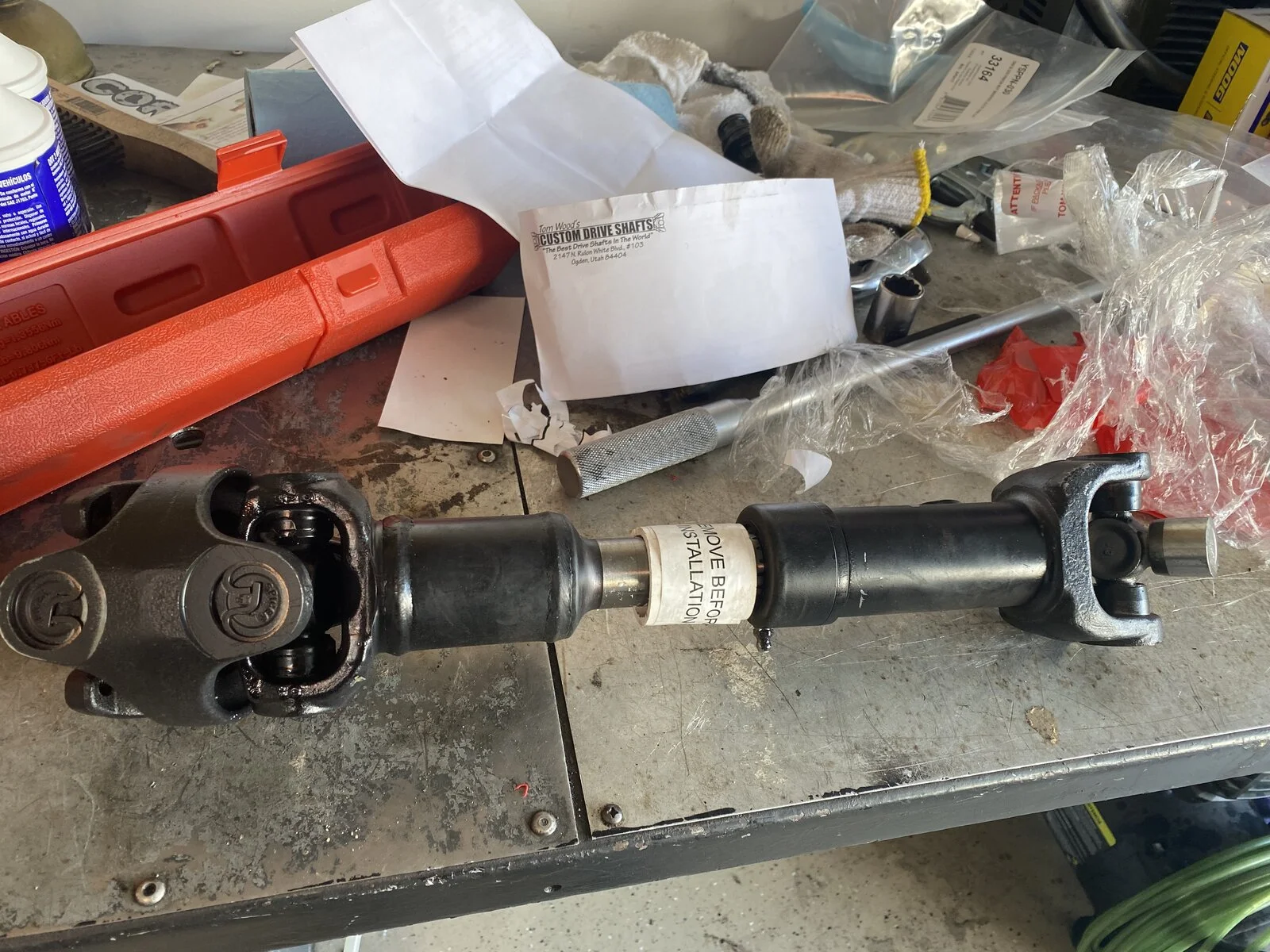

Swing over to Tom Wood’s & got my DS.

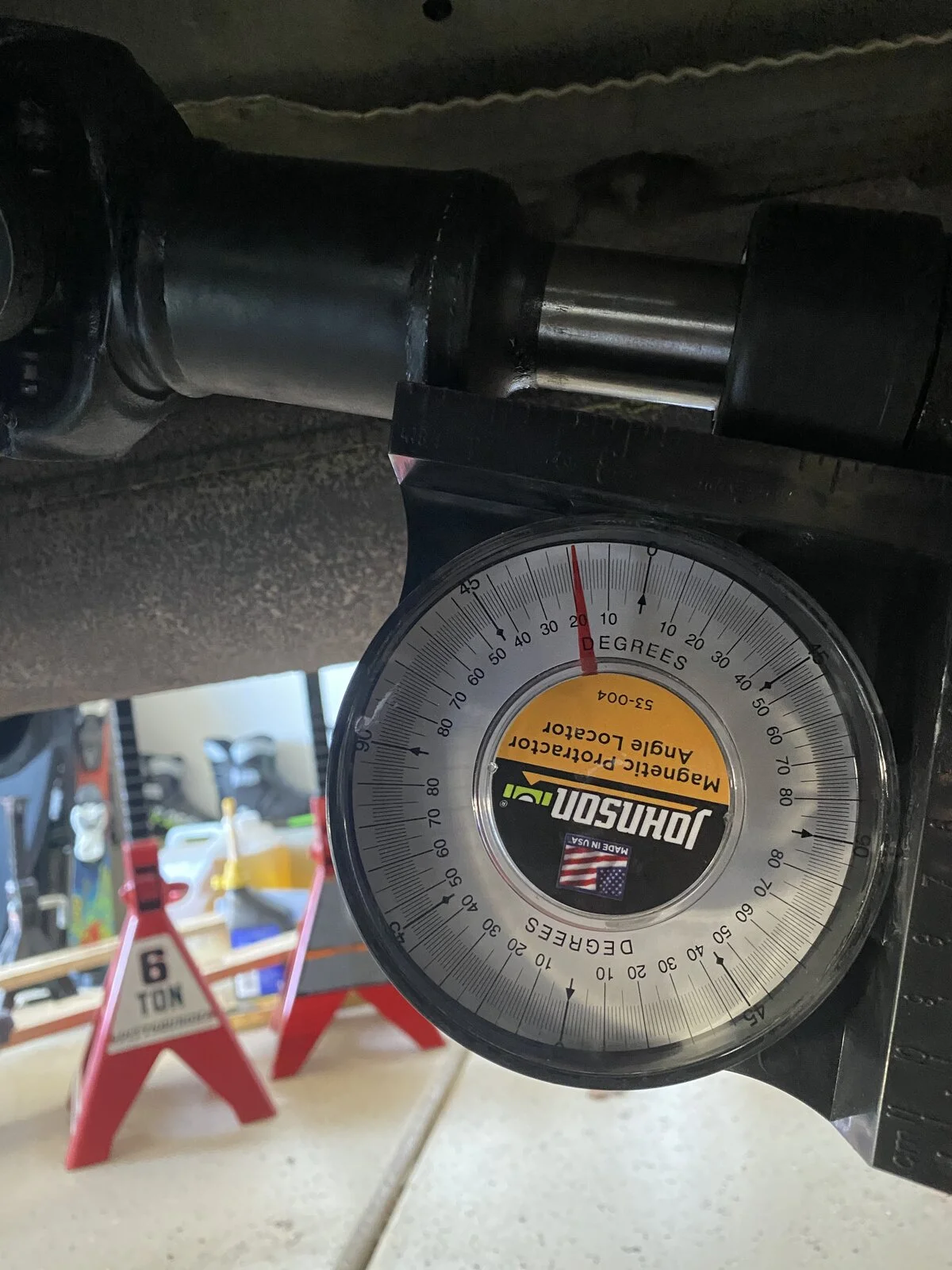

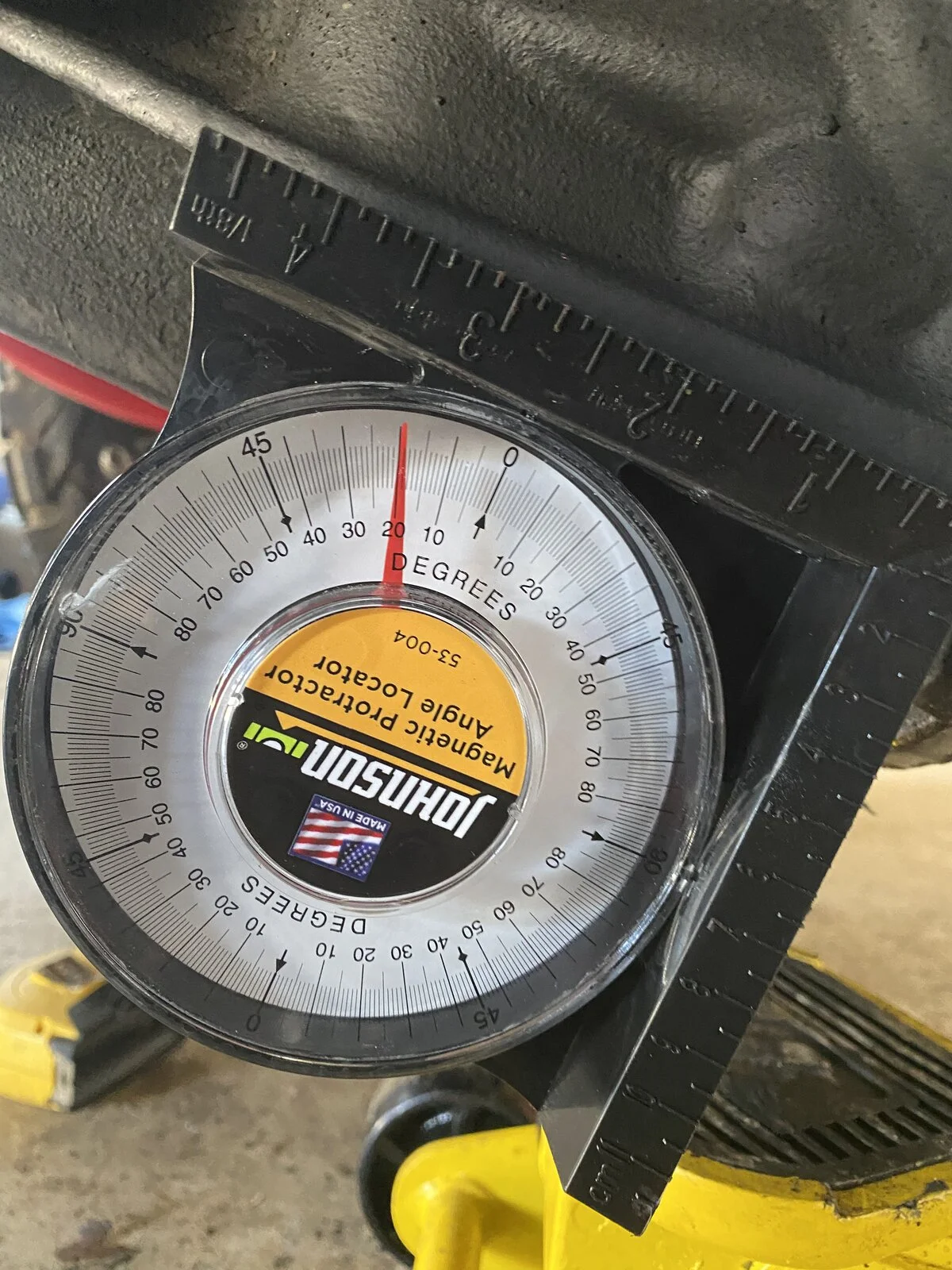

How do these angles look? I’m about 2 degrees down on the pinion.



[bobthetj03]

Sounds like a good starting point. I hate those angle finders. No good place to put them on a short DS.



[qslim]

Sounds like a good starting point. I hate those angle finders. No good place to put them on a short DS.

Yeah, it's pretty damn short, I had to bridge the slip joint. I measured the tube ends though & they look to be the same diameter. I'll go with it.

Anyone have a trick for torquing the pinion nut? I got a new one, & for the life of me I can't get the 160 ft lbs without moving the axle & hitting either the ground or the control arm with the end of the wrench depending what side I'm on. The manual calls out a tool to hold the yoke, I can make something out of something, wondering if there was another trick.



[Apparition]

Yeah, it's pretty damn short, I had to bridge the slip joint. I measured the tube ends though & they look to be the same diameter. I'll go with it.

Anyone have a trick for torquing the pinion nut? I got a new one, & for the life of me I can't get the 160 ft lbs without moving the axle & hitting either the ground or the control arm with the end of the wrench depending what side I'm on. The manual calls out a tool to hold the yoke, I can make something out of something, wondering if there was another trick.

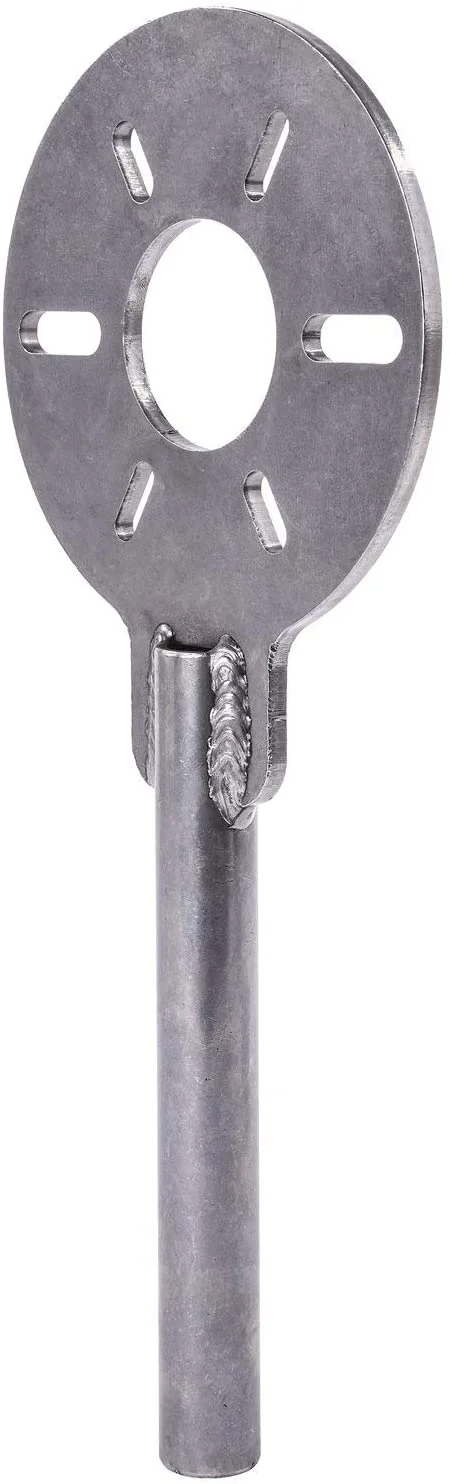

I used this

https://bleepinjeep.com/product/yoke-wrench-tool/



[BuildBreakRepeat]

Swing over to Tom Wood’s & got my DS.

View attachment 235222

How do these angles look? I’m about 2 degrees down on the pinion.

View attachment 235223

View attachment 235224

A more accurate pinion angle measurement is using the spreader holes next to the diff cover (machined flat) and subtracting 90 degrees



[Wildman]

Yeah, it's pretty damn short, I had to bridge the slip joint. I measured the tube ends though & they look to be the same diameter. I'll go with it.

Anyone have a trick for torquing the pinion nut? I got a new one, & for the life of me I can't get the 160 ft lbs without moving the axle & hitting either the ground or the control arm with the end of the wrench depending what side I'm on. The manual calls out a tool to hold the yoke, I can make something out of something, wondering if there was another trick.

I've used a BIG pipe wrench with a extended tube on the handle or make a yoke holding tool.

Easy enough to make or order it from Amazon.

https://www.amazon.com/dp/B078WHRQFR/?tag=wranglerorg-20



[bobthetj03]

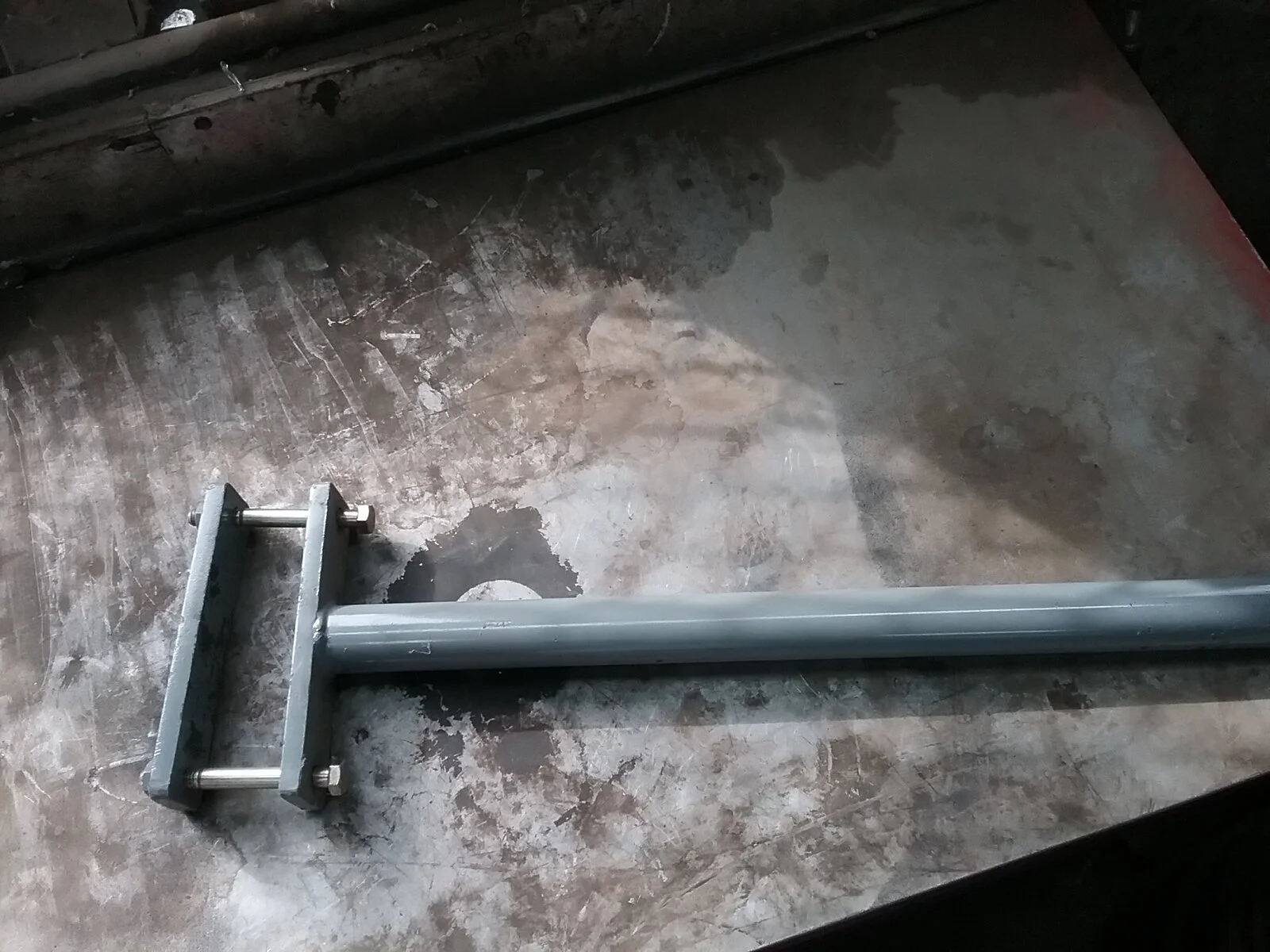

We made this for the shop. Simple enough.



[mrblaine]

Yeah, it's pretty damn short, I had to bridge the slip joint. I measured the tube ends though & they look to be the same diameter. I'll go with it.

Anyone have a trick for torquing the pinion nut? I got a new one, & for the life of me I can't get the 160 ft lbs without moving the axle & hitting either the ground or the control arm with the end of the wrench depending what side I'm on. The manual calls out a tool to hold the yoke, I can make something out of something, wondering if there was another trick.

Pipe wrench on narrow part of pinion yoke, other end in a cheater pipe resting on the ground.



[qslim]

Chain wrench propped on a floor jack worked like a charm



[qslim]

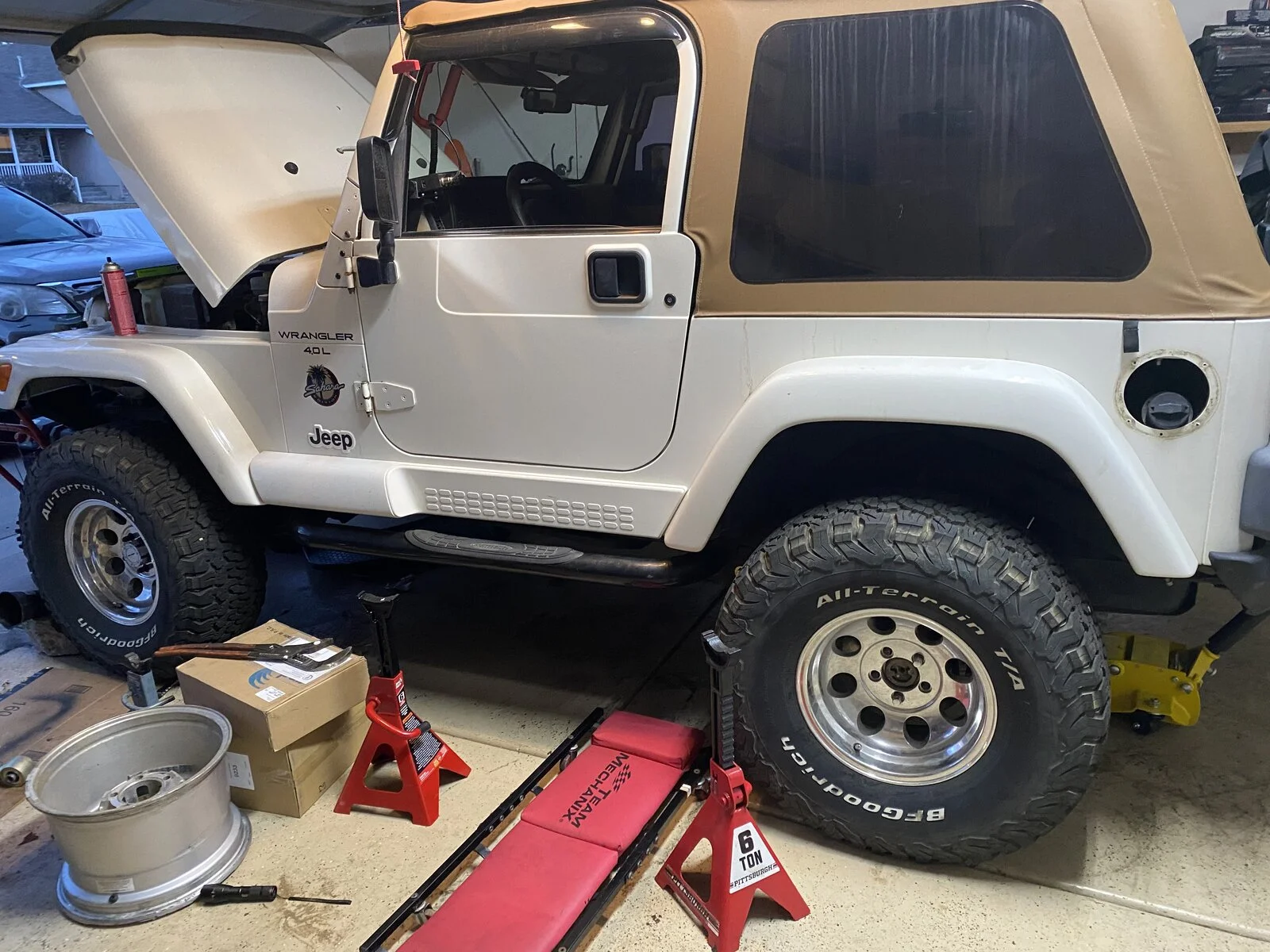

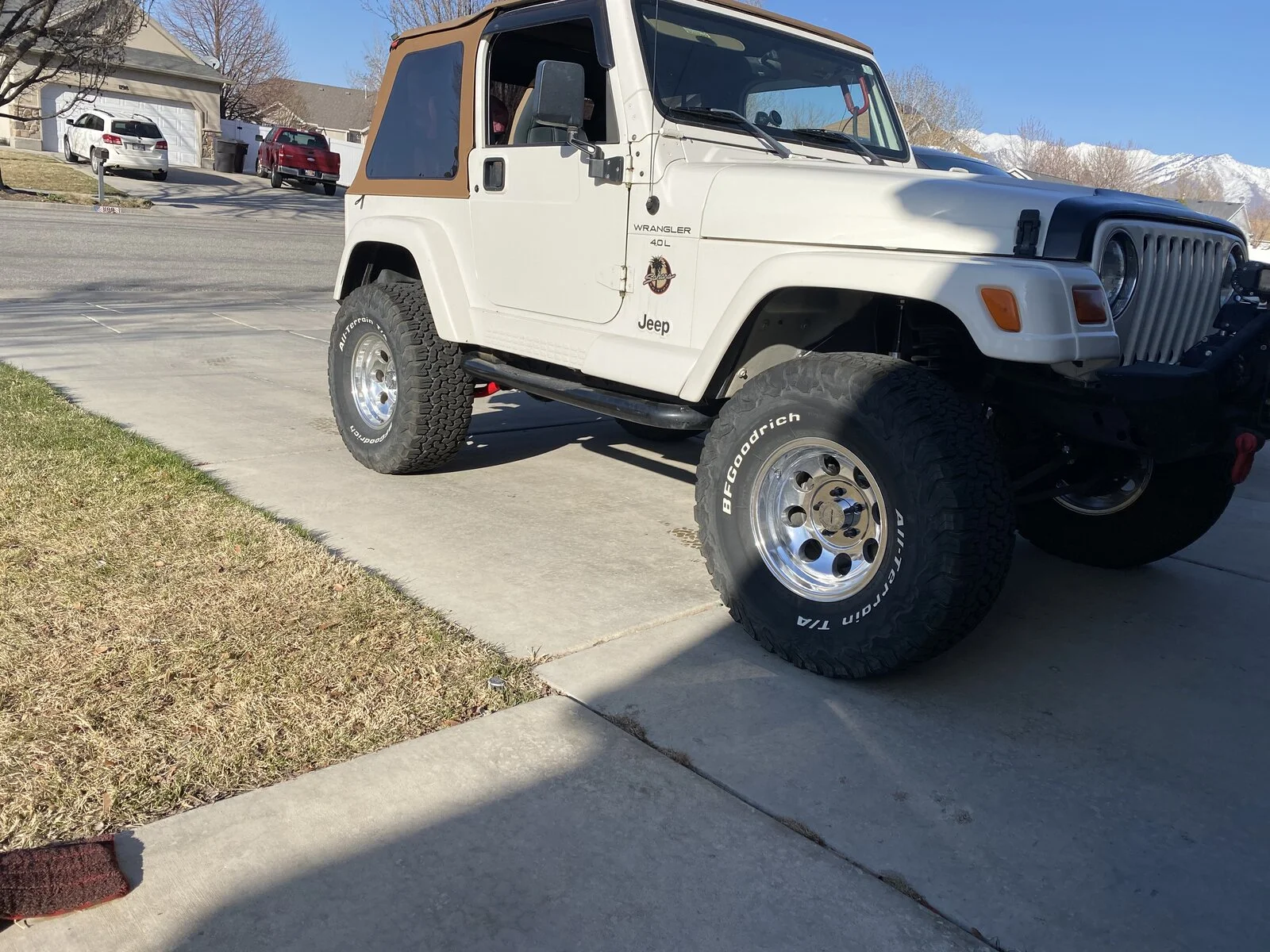

Dana 44 installed & ready for a maiden voyage in a new TJ

Took it around the neighborhood & was pleasantly surprised. As on who plans for the worst I already had backup plans in case this 44 was trash, even though the gears looked fine visually. Did some tight turns, no noises, no whining... Seems solid.

Drove up & down my curb for the fun of it while by non-gear head neighbor watched me.

Got up to about 40 & only noticed a tiny vibration in the shifter, the body vibes I had with the 35 & stock DS are completely gone from what I can tell.

Pedal is spongier than I like, but it stops. I bench bled the shit out of the MC, did about another 30 pumps after I saw the last air bubble. I’ve been driving my wife’s Lexus for the past week though, I may just be spoiled.

Now on to the front end! And the heater core!
